◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#35881) — 22 parça

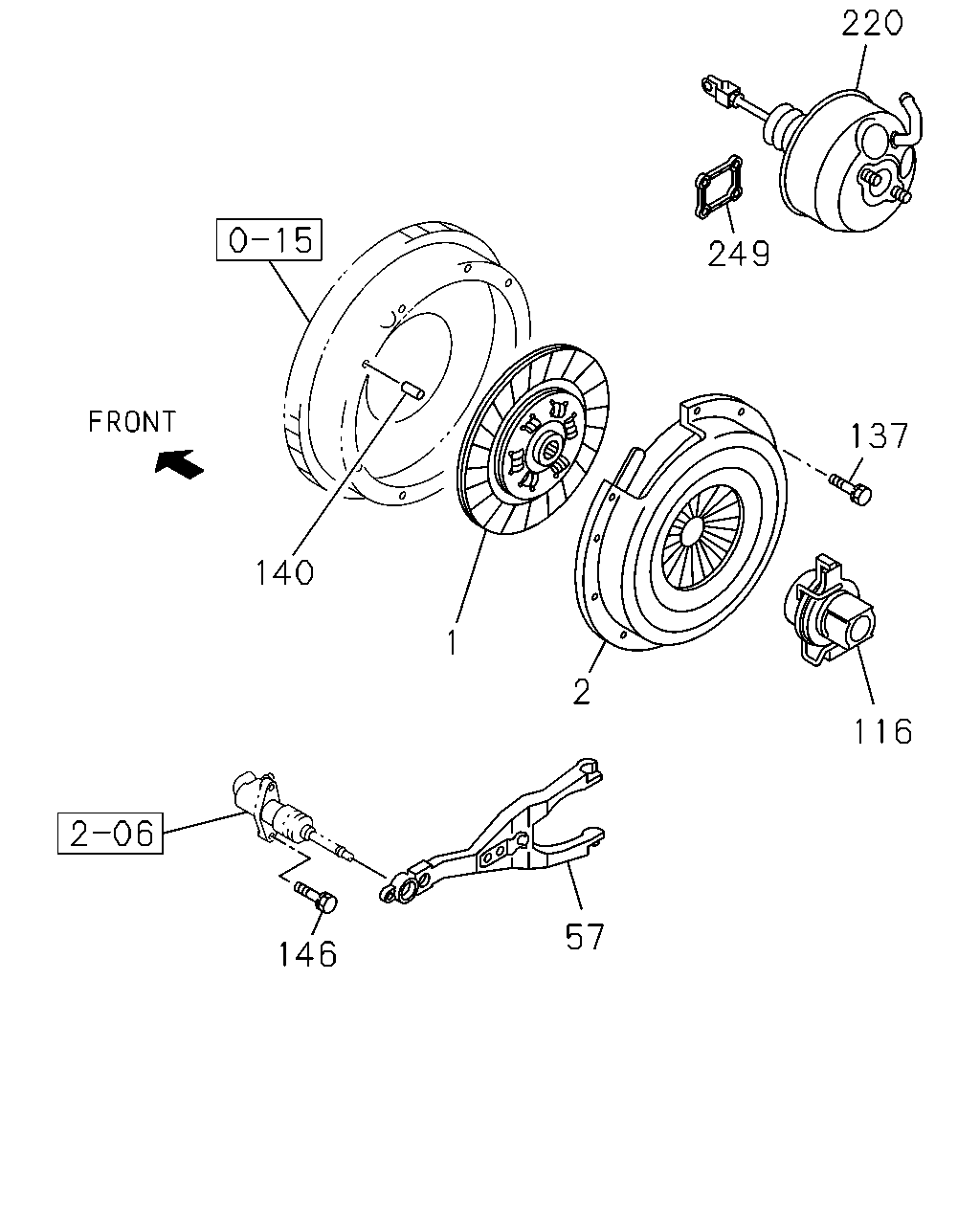

çizim 71898
220 249 137 140 1 2 116 57 146
BalonParca AdiParca NoAdetTipApplied Date
1 00.886 DISC; CLUTCH
4JH1 ENG(RJX) 		8-97320-355-0 01 1 0211-0412
1 00.886 DISC; CLUTCH
4JH1 ENG(RJX) 		8-97377-149-0 01 1 0501-0501
1 00.886 DISC; CLUTCH
4JH1-TC ENG(RDM) 		8-97377-149-0 01 1 0502-1402
1 00.886 DISC; CLUTCH
4JH1-TC ENG(RDM) 		8-98255-959-1 01 1 1403-
1 00.886 DISC; CLUTCH
4JH1 ENG(RJX) BEST VALUE PARTS 		5-87610-049-0 01 1 0501-0501
1 00.886 DISC; CLUTCH
4JH1-TC ENG(RDM) BEST VALUE PARTS 		5-87610-049-2 01 1 0502-1501
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1 ENG(RJX) 		8-97259-693-0 01 1 0211-0501
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1-TC ENG(RDM) 		8-97259-693-0 01 1 0502-
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1 ENG(RJX) BEST VALUE PARTS 		5-87610-144-0 01 1 0211-0501
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1-TC ENG(RDM) BEST VALUE PARTS 		5-87610-144-0 01 1 0502-
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 0211-
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0211-
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 0211-
137 00.862 BOLT; CLU COVER
4JH1 ENG(RJX) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0211-0501
137 00.862 BOLT; CLU COVER
4JH1-TC ENG(RDM) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0502-0512
137 00.862 BOLT; CLU COVER
4JH1-TC ENG(RDM) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601-
140 00.862 PIN; STRAIGHT
4JH1 ENG(RJX) L=25 		8-94410-361-0 02 1 0211-0501
140 00.862 PIN; STRAIGHT
4JH1-TC ENG(RDM) L=25 		8-94410-361-0 02 1 0502-
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0211-0512
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97162-962-1 01 1 0211-
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97167-489-0 01 1 0211-
