1 |

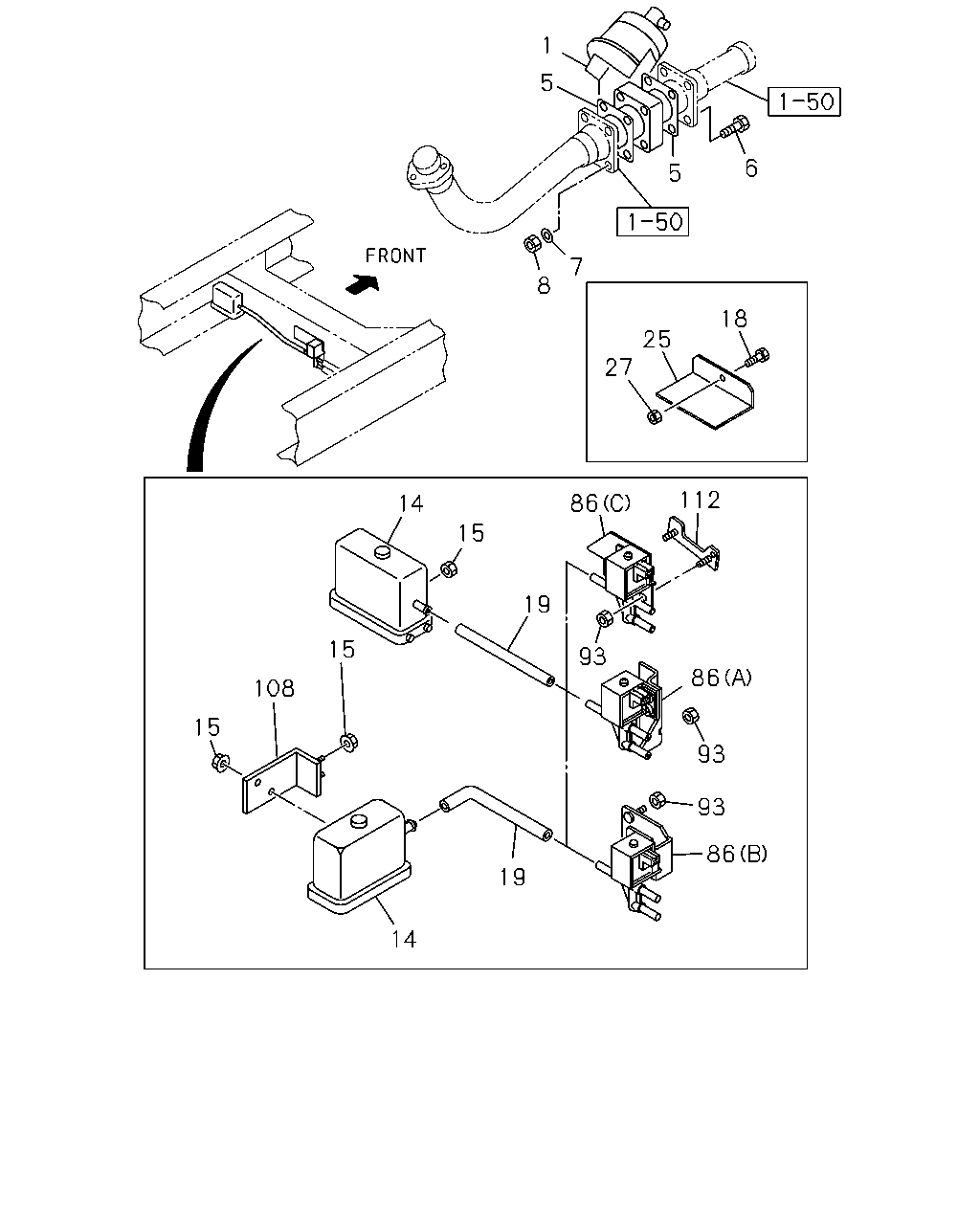

03.632 BRAKE UNIT; EXH
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
|
8-97102-372-3 |
01 |
1 |
0211-0501 |
● |
● |
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
|
8-97102-372-4 |
01 |
1 |
0502- |
● |
● |
|
| |
1 |
03.632 BRAKE UNIT; EXH
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
|
8-97351-465-0 |
01 |
1 |
0211-0501 |
|
|
● |
| |
1 |
03.632 BRAKE UNIT; EXH
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
|
8-97351-465-1 |
01 |
1 |
0502- |
|
|
● |
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
| |
5 |
03.634 GASKET; EXH BRAKE UNIT
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
ID=54
|
8-94328-354-0 |
02 |
1 |
0502- |
● |
● |
● |
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
03.708
M8X70
|
0-10805-870-0 |
04 |
1 |
0502-0512 |
● |
● |
● |
| |
6 |
03.632 BOLT; EXH BRAKE UNIT FIX
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
M8X70
|
0-10855-870-0 |
04 |
1 |
0601- |
● |
● |
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
| |
7 |
03.632 WASHER; EXH BRAKE UNIT FIX
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
T=1.9
|
5-09500-012-0 |
04 |
1 |
0502- |
● |
● |
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0211-0501 |
● |
● |
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
02.559
M8
|
9-09110-408-0 |
04 |
1 |
0502-0512 |
● |
● |
● |
| |
8 |
03.632 NUT; EXH BRAKE UNIT FIX
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
02.334
M8
|
0-91110-508-0 |
04 |
1 |
0601- |
● |
● |
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
|
8-97033-888-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
| |
14 |
03.634 FILTER; AIR,EXH BRAKE
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
|
8-97033-888-0 |
01 |
1 |
0502- |
● |
● |
● |
| |
15 |
03.634 NUT; AIR FILTER
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
| |
15 |
03.634 NUT; AIR FILTER
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0501 |
● |
● |
|
| |
15 |
03.634 NUT; AIR FILTER
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0502-0602 |
● |
● |
● |
| |
15 |
03.634 NUT; AIR FILTER
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0502-0602 |
● |
● |
|
| |
15 |
03.634 NUT; AIR FILTER
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
● |
| |
15 |
03.634 NUT; AIR FILTER
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
|
| |
18 |
03.636 BOLT; PROTECTOR
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
02.664
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0211-0501 |
● |
● |
|
| |
18 |
03.636 BOLT; PROTECTOR
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
02.664
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0502-0512 |
● |
● |
|
| |
18 |
03.636 BOLT; PROTECTOR
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
● |
● |
|
| |
19 |
03.630 HOSE; AIR FILTER
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
L=160
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0502-0505 |
● |
|
|
| |
19 |
03.630 HOSE; AIR FILTER
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0211-0501 |
● |
● |
|
| |
19 |
03.630 HOSE; AIR FILTER
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
L=220
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0502- |
● |
● |
|
| |
19 |
03.630 HOSE; AIR FILTER
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0211-0501 |
|
|
● |
| |
19 |
03.630 HOSE; AIR FILTER
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
L=180
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0502- |
|
|
● |
| |
25 |
03.640 PROTECTOR; HEAT,VLV
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
|
8-97255-215-0 |
01 |
1 |
0211-0501 |
● |
● |
|
| |
25 |
03.640 PROTECTOR; HEAT,VLV
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
|
8-97255-215-0 |
01 |
1 |
0502- |
● |
● |
|
| |
27 |
03.632 NUT; HEAT PROTECTOR
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0501 |
● |
● |
|
| |
27 |
03.632 NUT; HEAT PROTECTOR
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0502-0602 |
● |
● |
|
| |
27 |
03.632 NUT; HEAT PROTECTOR
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
(C)
|
8-97374-166-0 |
01 |
1 |
0502-0505 |
● |
|
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
(A)
|
8-97161-801-1 |
01 |
1 |
0211-0501 |
|
|
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
(A)
|
8-97161-801-3 |
01 |
1 |
0502- |
|
|
● |
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
(B)
|
8-97219-362-0 |
01 |
1 |
0211-0405 |
● |
● |
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
(B)
|
8-97374-160-0 |
01 |
1 |
0406-0501 |
● |
● |
|
| |
86 |
03.636 VALVE; MAG,EXH BRK
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
(B)
|
8-97374-160-2 |
01 |
1 |
0502- |
● |
● |
|
| |
93 |
08.917 NUT; MAG VLV
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
| |
93 |
08.917 NUT; MAG VLV
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0502-0602 |
● |
● |
● |
| |
93 |
08.917 NUT; MAG VLV
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
● |
● |
| |
108 |
03.634 BRACKET; AIR FILTER
4JH1 ENG(RJX)
EXHAUST BRAKE<NF8>
|
8-97106-474-2 |
01 |
1 |
0211-0501 |
● |
● |
|
| |
108 |
03.634 BRACKET; AIR FILTER
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
|
8-97106-474-2 |
01 |
1 |
0502- |
● |
● |
|
| |
112 |
03.640 PLATE; BRKT
4JH1-TC ENG(RDM)
EXHAUST BRAKE<NF8>
|
8-97091-766-0 |
01 |
1 |
0502-0609 |
● |
|
|
