3-41 — REAR BRAKE POWER CHAMBER (#3588) — 265 parça

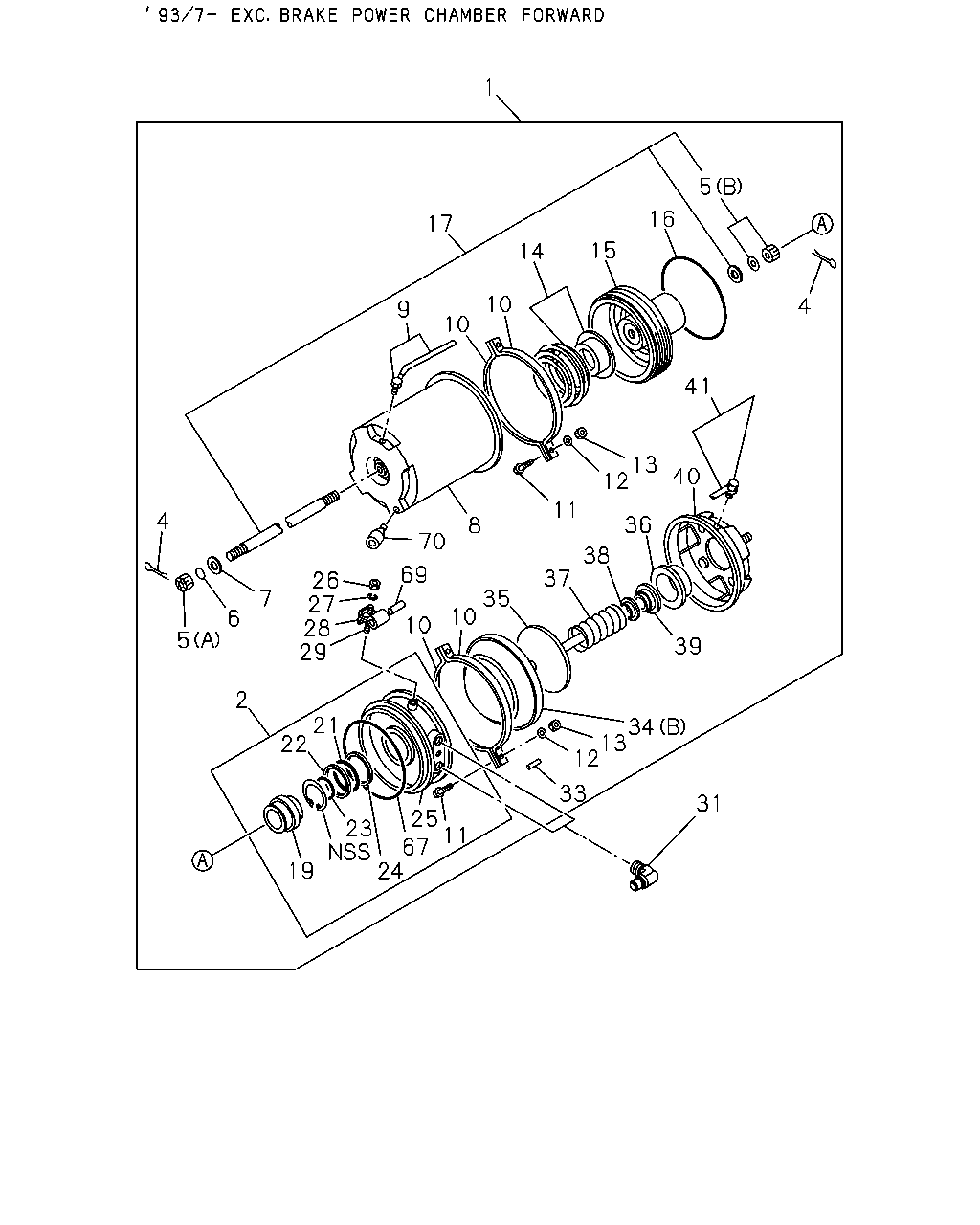

çizim 7033
1 5 16 17 15 14 10 4 9 10 41 13 12 40 11 4 36 8 70 38 69 37 26 27 28 29 35 10 7 6 10 5 39 2 21 22 34 13 12 33 31 25 11 23 67 24 19
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-368-1 01 1 9002-9306
1 CHAMBER ASM; SPRING 1-48250-367-1 01 1 9002-9306
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-368-1 01 1 9307-9509
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-368-1 01 1 9510-9602
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-563-0 01 1 9603-
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-367-1 01 1 9307-9509
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-367-1 01 1 9510-9602
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-562-0 01 1 9603-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-156-1 01 1 9307-9509
1 CHAMBER ASM; SPRING
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-156-1 01 1 9510-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-156-1 01 1 9510-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-157-1 01 1 9307-9509
1 CHAMBER ASM; SPRING
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-157-1 01 1 9510-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-157-1 01 1 9510-
2 CHAMBER; EMERGENCY
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-254-0 02 1 9603-
2 CHAMBER; EMERGENCY
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48252-014-0 01 1 9307-9509
2 CHAMBER; EMERGENCY
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48252-014-0 01 1 9510-
2 CHAMBER; EMERGENCY
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48252-014-0 01 1 9510-
2 CHAMBER; EMERGENCY
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48252-015-0 01 1 9307-9509
2 CHAMBER; EMERGENCY
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48252-015-0 01 1 9510-
2 CHAMBER; EMERGENCY
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48252-015-0 01 1 9510-
4 PIN; STRAIGHT,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-056-0 04 1 9307-9509
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-056-0 04 1 9510-
4 PIN; STRAIGHT,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-056-0 04 1 9510-
5 NUT; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) 		1-48259-054-0 02 1 9307-9509
5 NUT; SHELL
BRAKE SYSTEM HEAVY DUTY(J55) (A) 		1-48259-054-0 02 1 9510-
5 NUT; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) (A) 		1-48259-054-0 02 1 9510-
5 NUT; SHELL
BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-48259-074-0 02 1 9510-
5 NUT; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-48259-074-0 02 1 9510-
6 GASKET; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		9-09920-268-0 02 1 9307-9509
6 GASKET; SHELL
BRAKE SYSTEM HEAVY DUTY(J55) 		9-09920-268-0 02 1 9510-
6 GASKET; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		9-09920-268-0 02 1 9510-
7 GASKET
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-055-0 02 1 9307-9509
7 GASKET
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-055-0 02 1 9510-
7 GASKET
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-055-0 02 1 9510-
8 SHELL; CYL,SPR CHAMBER 1-48259-157-0 02 1 9002-9112
8 SHELL; CYL,SPR CHAMBER 1-48259-221-0 02 1 9201-9306
8 SHELL; CYL,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-069-0 01 1 9307-9509
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-069-0 01 1 9510-
8 SHELL; CYL,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-069-0 01 1 9510-
8 SHELL; CYL,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-070-0 01 1 9307-9509
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-070-0 01 1 9510-
8 SHELL; CYL,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-070-0 01 1 9510-
9 PIPE ASM; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-076-0 02 1 9307-9509
9 PIPE ASM; SHELL
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-076-0 02 1 9510-
9 PIPE ASM; SHELL
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-076-0 02 1 9510-
10 RING; CLAMP,SPR CHAMBER 1-48259-144-0 04 1 9002-9112
10 RING; CLAMP,SPR CHAMBER 1-48259-229-0 04 1 9201-9306
10 RING; CLAMP,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-229-0 04 1 9307-9509
10 RING; CLAMP,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-229-0 04 1 9510-9602
10 RING; CLAMP,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-229-0 02 1 9603-
10 RING; CLAMP,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-016-0 08 1 9307-9509
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-016-0 08 1 9510-
10 RING; CLAMP,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-016-0 08 1 9510-
11 BOLT; CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-035-0 08 1 9307-9509
11 BOLT; CLAMP RING
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-035-0 08 1 9510-
11 BOLT; CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-035-0 08 1 9510-
12 WASHER; LK,CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-046-0 08 1 9307-9509
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-046-0 08 1 9510-
12 WASHER; LK,CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-046-0 08 1 9510-
13 NUT; CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M10 		9-09110-510-0 08 1 9307-9509
13 NUT; CLAMP RING
BRAKE SYSTEM HEAVY DUTY(J55) M10 		9-09110-510-0 08 1 9510-
13 NUT; CLAMP RING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) M10 		9-09110-510-0 08 1 9510-
14 SPRING & SEAT SET
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-037-0 02 1 9307-9509
14 SPRING & SEAT SET
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-037-0 02 1 9510-
14 SPRING & SEAT SET
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-037-0 02 1 9510-
15 PISTON
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48262-005-0 02 1 9307-9509
15 PISTON
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48262-005-0 02 1 9510-
15 PISTON
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48262-005-0 02 1 9510-
16 GASKET
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-048-0 02 1 9307-9509
16 GASKET
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-048-0 02 1 9510-
16 GASKET
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-048-0 02 1 9510-
17 BOLT ASM; EMERGENCY
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-073-0 02 1 9307-9509
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-073-0 02 1 9510-
17 BOLT ASM; EMERGENCY
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-073-0 02 1 9510-
19 COVER; PISTON
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48269-011-0 02 1 9307-9509
19 COVER; PISTON
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48269-011-0 02 1 9510-
19 COVER; PISTON
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48269-011-0 02 1 9510-
21 GASKET; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-049-0 02 1 9307-9509
21 GASKET; SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-049-0 02 1 9510-
21 GASKET; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-049-0 02 1 9510-
22 RING; BACKUP,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-019-0 02 1 9307-9509
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-019-0 02 1 9510-
22 RING; BACKUP,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-019-0 02 1 9510-
23 GASKET; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-047-0 02 1 9307-9509
23 GASKET; SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-047-0 02 1 9510-
23 GASKET; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-047-0 02 1 9510-
24 BEARING; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-020-0 02 1 9307-9509
24 BEARING; SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-020-0 02 1 9510-
24 BEARING; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-020-0 02 1 9510-
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-077-0 01 1 9307-9509
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-077-0 01 1 9510-
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-077-0 01 1 9510-
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-078-0 01 1 9307-9509
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-078-0 01 1 9510-
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-078-0 01 1 9510-
26 NUT; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-058-0 04 1 9307-9509
26 NUT; PRESSURE PLATE
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-058-0 04 1 9510-
26 NUT; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-058-0 04 1 9510-
27 WASHER; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-057-0 02 1 9307-9509
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-057-0 02 1 9510-
27 WASHER; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-057-0 02 1 9510-
28 BRACKET; PRESSURE PLATE,HOSE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-059-0 02 1 9307-9509
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-059-0 02 1 9510-
28 BRACKET; PRESSURE PLATE,HOSE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-059-0 02 1 9510-
29 STUD; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-050-0 02 1 9307-9509
29 STUD; PRESSURE PLATE
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-050-0 02 1 9510-
29 STUD; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-050-0 02 1 9510-
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> 3/8 TAPER EMERGENCY 		1-09660-570-0 01 1 9307-9509
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 3/8 TAPER EMERGENCY 		1-09660-570-0 01 1 9510-
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> 1/4 TAPER SERVICE 		1-09660-574-0 01 1 9307-9509
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 1/4 TAPER SERVICE 		1-09660-574-0 01 1 9510-
31 CONNECTOR
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> EMERGENCY 		1-09660-109-1 01 1 9307-9307
31 CONNECTOR
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> EMERGENCY M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 9308-9509
31 CONNECTOR
BRAKE SYSTEM HEAVY DUTY(J55) M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 9510-
31 CONNECTOR
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 9510-
33 RETAINER; DIAPH
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-044-0 04 1 9307-9509
33 RETAINER; DIAPH
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-044-0 04 1 9510-
33 RETAINER; DIAPH
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-044-0 04 1 9510-
34 DIAPHRAGM
(A) 		1-48259-148-0 02 1 9002-9306
34 DIAPHRAGM
(B) 		1-48259-156-0 02 1 9002-9306
34 DIAPHRAGM
BRAKE POWER CHAMBER FORWARD<BCQ> (A) 		1-48259-148-0 02 1 9307-9509
34 DIAPHRAGM
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) 		1-48259-148-0 02 1 9510-
34 DIAPHRAGM
BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-48259-156-0 02 1 9307-9509
34 DIAPHRAGM
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-48259-156-0 02 1 9510-9602
34 DIAPHRAGM
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-48252-010-0 02 1 9307-9509
34 DIAPHRAGM
BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-48252-010-0 02 1 9510-
34 DIAPHRAGM
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-48252-010-0 02 1 9510-
35 PLATE; ROD END,SPR CHAMBER 1-48259-143-0 02 1 9002-9306
35 PLATE; ROD END,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-143-0 02 1 9307-9509
35 PLATE; ROD END,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-143-0 02 1 9510-
35 PLATE; ROD END,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48253-010-0 02 1 9307-9509
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48253-010-0 02 1 9510-
35 PLATE; ROD END,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48253-010-0 02 1 9510-
36 RETAINER; SPR CHAMBER 1-48259-226-0 02 1 9201-9306
36 RETAINER; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-226-0 02 1 9307-9509
36 RETAINER; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-226-0 02 1 9510-
36 RETAINER; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-043-0 02 1 9307-9509
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-043-0 02 1 9510-
36 RETAINER; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-043-0 02 1 9510-
37 SPRING; LWR,SPR CHAMBER 1-48259-142-0 02 1 9002-9306
37 SPRING; LWR,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-142-0 02 1 9307-9509
37 SPRING; LWR,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-142-0 02 1 9510-
37 SPRING; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48255-003-0 02 1 9307-9509
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48255-003-0 02 1 9510-
37 SPRING; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48255-003-0 02 1 9510-
38 COVER; ROD & PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-066-0 02 1 9307-9509
38 COVER; ROD & PLATE
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-066-0 02 1 9510-
38 COVER; ROD & PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-066-0 02 1 9510-
39 COVER; ROD & PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-065-0 02 1 9307-9509
39 COVER; ROD & PLATE
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-065-0 02 1 9510-
39 COVER; ROD & PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-065-0 02 1 9510-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-141-0 02 1 9002-9112
40 COVER ASM; LWR,SPR CHAMBER 1-48259-227-0 02 1 9201-9306
40 COVER ASM; LWR,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-227-0 02 1 9307-9509
40 COVER ASM; LWR,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-227-0 02 1 9510-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-068-1 01 1 9307-9509
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-068-1 01 1 9510-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-068-1 01 1 9510-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-067-1 01 1 9307-9509
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-067-1 01 1 9510-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-067-1 01 1 9510-
41 PIPE ASM; LWR COVER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-075-0 02 1 9307-9509
41 PIPE ASM; LWR COVER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-075-0 02 1 9510-
41 PIPE ASM; LWR COVER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-075-0 02 1 9510-
67 GASKET; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-053-0 02 1 9307-9509
67 GASKET; SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-053-0 02 1 9510-
67 GASKET; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-053-0 02 1 9510-
69 HOSE; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-051-0 02 1 9307-9509
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-051-0 02 1 9510-
69 HOSE; PRESSURE PLATE
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-051-0 02 1 9510-
70 COVER; EXH,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-052-0 02 1 9307-9509
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-052-0 02 1 9510-
70 COVER; EXH,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-052-0 02 1 9510-
çizim 38927
1 10 10 8 89 83 88 84 90 34 31 40 10 10 36 37 35 34
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-368-1 01 1 9002-9306
1 CHAMBER ASM; SPRING 1-48250-367-1 01 1 9002-9306
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-368-1 01 1 9307-9509
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-368-1 01 1 9510-9602
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-563-0 01 1 9603-
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-367-1 01 1 9307-9509
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-367-1 01 1 9510-9602
1 CHAMBER ASM; SPRING
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-562-0 01 1 9603-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-156-1 01 1 9307-9509
1 CHAMBER ASM; SPRING
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-156-1 01 1 9510-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-156-1 01 1 9510-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48250-157-1 01 1 9307-9509
1 CHAMBER ASM; SPRING
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-157-1 01 1 9510-
1 CHAMBER ASM; SPRING
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48250-157-1 01 1 9510-
8 SHELL; CYL,SPR CHAMBER 1-48259-157-0 02 1 9002-9112
8 SHELL; CYL,SPR CHAMBER 1-48259-221-0 02 1 9201-9306
8 SHELL; CYL,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-069-0 01 1 9307-9509
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-069-0 01 1 9510-
8 SHELL; CYL,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-069-0 01 1 9510-
8 SHELL; CYL,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-070-0 01 1 9307-9509
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-070-0 01 1 9510-
8 SHELL; CYL,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-070-0 01 1 9510-
10 RING; CLAMP,SPR CHAMBER 1-48259-144-0 04 1 9002-9112
10 RING; CLAMP,SPR CHAMBER 1-48259-229-0 04 1 9201-9306
10 RING; CLAMP,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-229-0 04 1 9307-9509
10 RING; CLAMP,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-229-0 04 1 9510-9602
10 RING; CLAMP,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-229-0 02 1 9603-
10 RING; CLAMP,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-016-0 08 1 9307-9509
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-016-0 08 1 9510-
10 RING; CLAMP,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-016-0 08 1 9510-
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> 3/8 TAPER EMERGENCY 		1-09660-570-0 01 1 9307-9509
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 3/8 TAPER EMERGENCY 		1-09660-570-0 01 1 9510-
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> 1/4 TAPER SERVICE 		1-09660-574-0 01 1 9307-9509
31 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 1/4 TAPER SERVICE 		1-09660-574-0 01 1 9510-
31 CONNECTOR
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> EMERGENCY 		1-09660-109-1 01 1 9307-9307
31 CONNECTOR
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> EMERGENCY M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 9308-9509
31 CONNECTOR
BRAKE SYSTEM HEAVY DUTY(J55) M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 9510-
31 CONNECTOR
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) M20 & PT3/8 ELBOW 		1-09660-686-0 01 1 9510-
34 DIAPHRAGM
(A) 		1-48259-148-0 02 1 9002-9306
34 DIAPHRAGM
(B) 		1-48259-156-0 02 1 9002-9306
34 DIAPHRAGM
BRAKE POWER CHAMBER FORWARD<BCQ> (A) 		1-48259-148-0 02 1 9307-9509
34 DIAPHRAGM
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) 		1-48259-148-0 02 1 9510-
34 DIAPHRAGM
BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-48259-156-0 02 1 9307-9509
34 DIAPHRAGM
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-48259-156-0 02 1 9510-9602
34 DIAPHRAGM
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-48252-010-0 02 1 9307-9509
34 DIAPHRAGM
BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-48252-010-0 02 1 9510-
34 DIAPHRAGM
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-48252-010-0 02 1 9510-
35 PLATE; ROD END,SPR CHAMBER 1-48259-143-0 02 1 9002-9306
35 PLATE; ROD END,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-143-0 02 1 9307-9509
35 PLATE; ROD END,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-143-0 02 1 9510-
35 PLATE; ROD END,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48253-010-0 02 1 9307-9509
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48253-010-0 02 1 9510-
35 PLATE; ROD END,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48253-010-0 02 1 9510-
36 RETAINER; SPR CHAMBER 1-48259-226-0 02 1 9201-9306
36 RETAINER; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-226-0 02 1 9307-9509
36 RETAINER; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-226-0 02 1 9510-
36 RETAINER; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-043-0 02 1 9307-9509
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-043-0 02 1 9510-
36 RETAINER; SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-043-0 02 1 9510-
37 SPRING; LWR,SPR CHAMBER 1-48259-142-0 02 1 9002-9306
37 SPRING; LWR,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-142-0 02 1 9307-9509
37 SPRING; LWR,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-142-0 02 1 9510-
37 SPRING; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48255-003-0 02 1 9307-9509
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48255-003-0 02 1 9510-
37 SPRING; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48255-003-0 02 1 9510-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-141-0 02 1 9002-9112
40 COVER ASM; LWR,SPR CHAMBER 1-48259-227-0 02 1 9201-9306
40 COVER ASM; LWR,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-227-0 02 1 9307-9509
40 COVER ASM; LWR,SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-227-0 02 1 9510-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-068-1 01 1 9307-9509
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-068-1 01 1 9510-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-068-1 01 1 9510-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-067-1 01 1 9307-9509
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-067-1 01 1 9510-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-067-1 01 1 9510-
83 ADAPTER; SPR CHAMBER 1-48259-149-0 02 1 9002-9112
83 ADAPTER; SPR CHAMBER 1-48259-230-0 02 1 9201-9306
83 ADAPTER; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-230-0 02 1 9307-9509
83 ADAPTER; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-230-0 02 1 9510-9602
84 SCREW ASM; RELEASE 1-48259-161-0 02 1 9002-9306
84 SCREW ASM; RELEASE
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-161-0 02 1 9307-9509
84 SCREW ASM; RELEASE
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-161-0 02 1 9510-9602
88 PLUG; SPR CHAMBER 1-48259-165-0 02 1 9002-9112
88 PLUG; SPR CHAMBER 1-48259-224-0 02 1 9201-9306
88 PLUG; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-224-0 02 1 9307-9509
88 PLUG; SPR CHAMBER
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-224-0 02 1 9510-9602
89 RETAINER; PLUG 1-48259-225-0 02 1 9201-9306
89 RETAINER; PLUG
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-225-0 02 1 9307-9509
89 RETAINER; PLUG
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-225-0 02 1 9510-9602
90 GROMMET
BRAKE POWER CHAMBER FORWARD<BCQ> 		1-48259-241-0 04 1 9505-9509
90 GROMMET
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48259-241-0 04 1 9510-9602
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
