◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#35879) — 32 parça

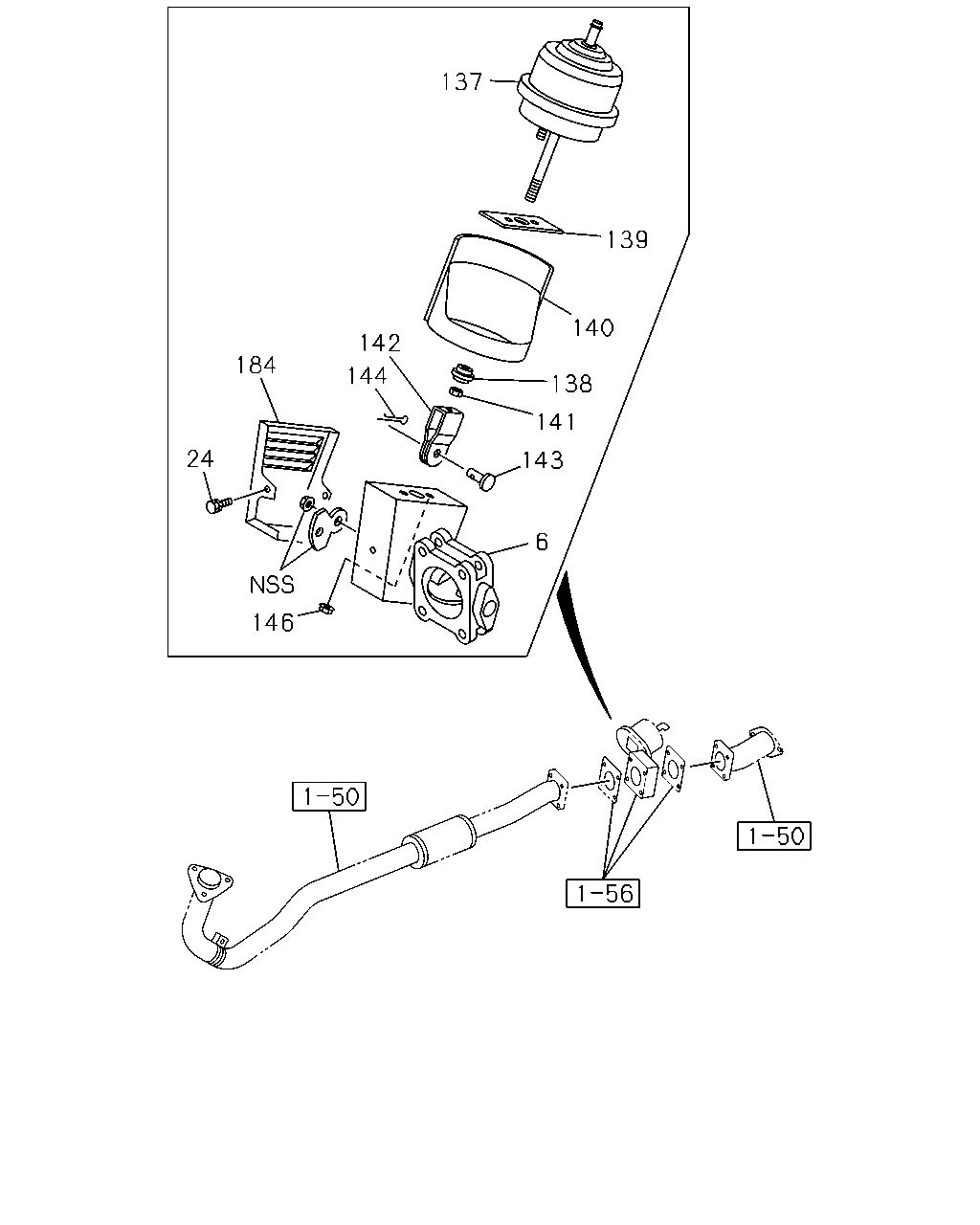

çizim 69308
137 139 140 142 184 144 138 141 24 143 6 146
BalonParca AdiParca NoAdetTipApplied Date A B C
6 03.632 VALVE; EXH BRAKE
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97369-945-0 01 1 0211-0501 ● ●
6 03.632 VALVE; EXH BRAKE
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-97369-945-1 01 1 0502- ● ●
6 03.632 VALVE; EXH BRAKE
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97360-025-0 01 1 0211-0501 ●
6 03.632 VALVE; EXH BRAKE
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-97360-025-0 01 1 0502- ●
24 03.634 BOLT; COVER
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 0211-0501 ● ● ●
24 03.634 BOLT; COVER
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 0502- ● ● ●
137 03.634 CHAMBER; POWER
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97173-327-0 01 1 0211-0501 ● ●
137 03.634 CHAMBER; POWER
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-97173-327-0 01 1 0502- ● ●
137 03.634 CHAMBER; POWER
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97257-279-0 01 1 0211-0501 ●
137 03.634 CHAMBER; POWER
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-97257-279-0 01 1 0502- ●
138 03.634 BEARING; EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0211-0501 ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0502- ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 0211-0501 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 0502- ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97093-854-0 01 1 0211-0501 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-97093-854-0 01 1 0502- ● ●
140 03.634 INSULATOR; EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97257-283-0 01 1 0211-0501 ●
140 03.634 INSULATOR; EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-97257-283-0 01 1 0502- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 0211-0501 ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 0502- ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0211-0501 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0502- ● ● ●
143 03.636 PIN; EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0211-0501 ● ● ●
143 03.636 PIN; EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0502- ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0211-0501 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0502- ● ● ●
146 03.634 NUT; EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
146 03.634 NUT; EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502- ● ●
146 03.634 NUT; EXH BRK VLV
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0211-0501 ●
146 03.634 NUT; EXH BRK VLV
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0502- ●
184 03.634 COVER; BRKT
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97311-447-0 01 1 0211-0501 ● ● ●
184 03.634 COVER; BRKT
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 		8-97311-447-0 01 1 0502- ● ● ●
