Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#35878) — 237 parça

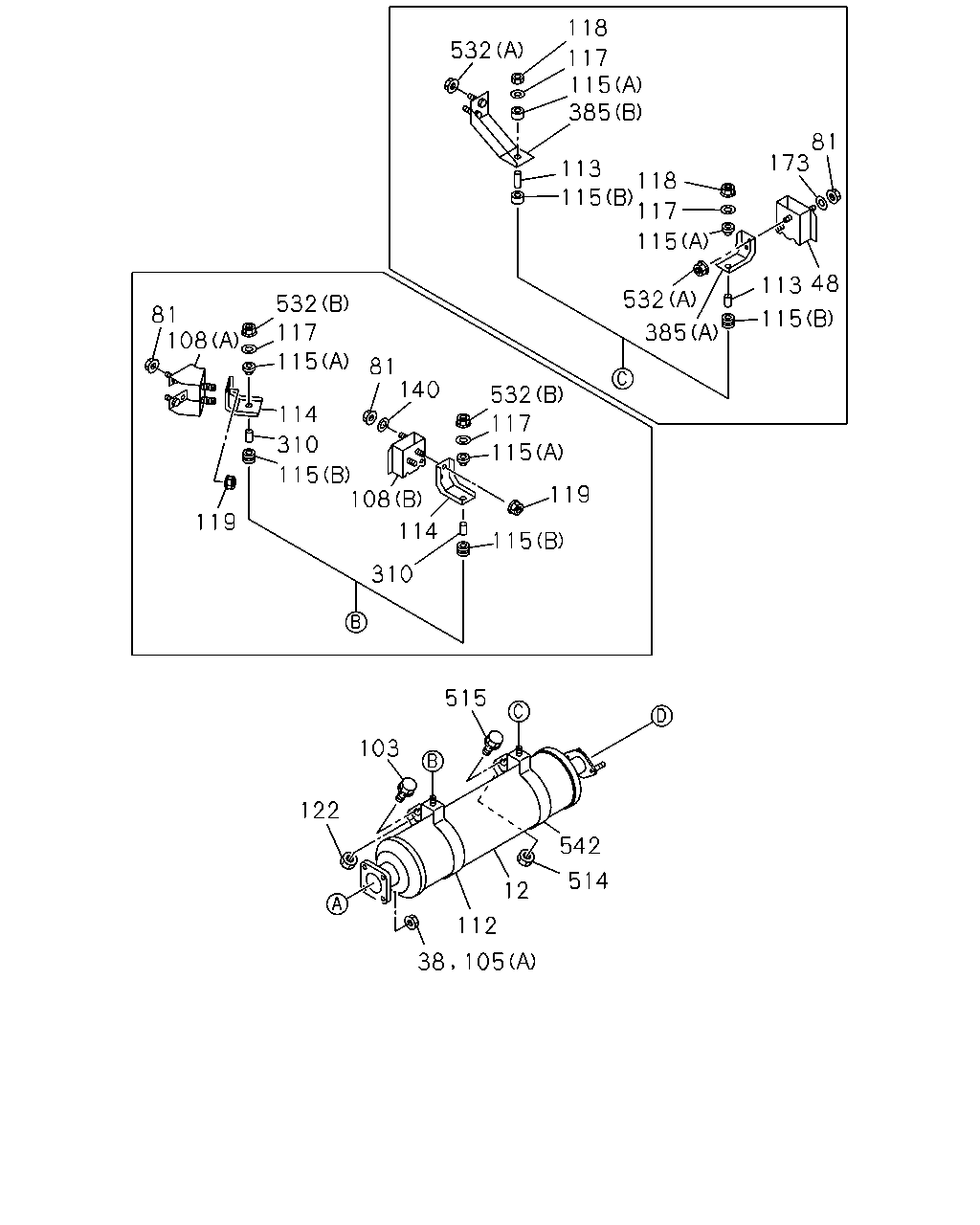

118 532 117 115 385 81 173 113 118 115 117 115 532 532 117 81 108 115 385 115 81 140 532 117 114 310 115 115 108 119 119 114 115 310 515 103 122 542 514 12 112 38 105 113 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	03.701 SILENCER ASM; EXH 4JH1 ENG(RJX)	8-97259-999-1	01	1	0211-0501	●	●	●
12	03.701 SILENCER ASM; EXH 4JH1-TC ENG(RDM)	8-97259-999-1	01	1	0502-	●	●	●
38	00.002 NUT; SILENCER 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501	●		●
38	00.002 NUT; SILENCER 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501		●
38	00.002 NUT; SILENCER 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602		●
38	00.002 NUT; SILENCER 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-		●
48	03.704 BRACKET; EXH PIPE TO MTG 4JH1 ENG(RJX)	8-97179-737-0	01	1	0211-0501	●		●
48	03.704 BRACKET; EXH PIPE TO MTG 4JH1-TC ENG(RDM)	8-97179-737-0	01	1	0502-	●		●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●		●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●		●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●		●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0801	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0211-0512	●	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0601-	●	●	●
105	03.704 NUT; CLAMP 4JH1 ENG(RJX) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0211-0501	●	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●	●	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1 ENG(RJX) (A)	8-97288-425-0	01	1	0211-0501	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1-TC ENG(RDM) (A)	8-97288-425-0	01	1	0502-	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1 ENG(RJX) (B)	8-97179-737-0	01	1	0211-0501		●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1-TC ENG(RDM) (B)	8-97179-737-0	01	1	0502-		●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1 ENG(RJX) (A)	8-97312-902-0	01	1	0211-0501			●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1-TC ENG(RDM) (A)	8-97312-902-0	01	1	0502-			●
112	03.706 BRACKET; HANGER 4JH1 ENG(RJX)	8-97260-021-0	01	1	0211-0501	●	●	●
112	03.706 BRACKET; HANGER 4JH1-TC ENG(RDM)	8-97260-021-0	01	1	0502-	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0211-	●	●	●
114	03.704 BRACKET; EXH SILENCER 4JH1 ENG(RJX)	8-97172-313-0	01	1	0211-0501	●	●
114	03.704 BRACKET; EXH SILENCER 4JH1-TC ENG(RDM)	8-97172-313-0	01	1	0502-	●	●
114	03.704 BRACKET; EXH SILENCER 4JH1 ENG(RJX)	8-97073-758-0	01	1	0211-0501			●
114	03.704 BRACKET; EXH SILENCER 4JH1-TC ENG(RDM)	8-97073-758-0	01	1	0502-			●
115	03.704 RUBBER; MTG,SILENCER 4JH1 ENG(RJX) (A)	8-94457-277-1	01	1	0211-0501	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0211-0501	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1-TC ENG(RDM) (A)	8-94457-277-1	01	1	0502-	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1 ENG(RJX) (B)	8-94457-278-1	01	1	0211-0501	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0211-0501	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1-TC ENG(RDM) (B)	8-94457-278-1	01	1	0502-	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0502-	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JH1 ENG(RJX) OD=55	9-09852-169-0	01	1	0211-0501	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0211-0501	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JH1-TC ENG(RDM) OD=55	9-09852-169-0	01	1	0502-	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0502-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0211-	●	●	●
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0211-0512	●	●	●
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●
140	03.275 WASHER; LK,BRKT TO FRAME 4JH1 ENG(RJX) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0211-0501		●
140	03.275 WASHER; LK,BRKT TO FRAME 4JH1-TC ENG(RDM) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0502-0605		●
140	03.275 WASHER; LK,BRKT TO FRAME 4JH1-TC ENG(RDM) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	0606-		●
173	03.685 WASHER; PL 4JH1 ENG(RJX) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0211-0501	●		●
173	03.685 WASHER; PL 4JH1-TC ENG(RDM) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0502-0605	●		●
173	03.685 WASHER; PL 4JH1-TC ENG(RDM) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	0606-	●		●
310	03.706 TUBE; DIST,EXH PIPE 4JH1 ENG(RJX) L=37.5	9-22151-217-0	01	1	0211-0501	●	●	●
310	03.706 TUBE; DIST,EXH PIPE 4JH1-TC ENG(RDM) L=37.5	9-22151-217-0	01	1	0502-	●	●	●
385	03.704 BRACKET; SILENCER MTG 4JH1 ENG(RJX) (A)	8-94329-857-0	01	1	0211-0501	●
385	03.704 BRACKET; SILENCER MTG 4JH1-TC ENG(RDM) (A)	8-94329-857-0	01	1	0502-	●
385	03.704 BRACKET; SILENCER MTG 4JH1 ENG(RJX) (B)	8-97260-094-1	01	1	0211-0501		●
385	03.704 BRACKET; SILENCER MTG 4JH1-TC ENG(RDM) (B)	8-97260-094-1	01	1	0502-		●
385	03.704 BRACKET; SILENCER MTG 4JH1 ENG(RJX) (A)	8-97172-313-0	01	1	0211-0501			●
385	03.704 BRACKET; SILENCER MTG 4JH1-TC ENG(RDM) (A)	8-97172-313-0	01	1	0502-			●
514	03.704 NUT; BAND 4JH1 ENG(RJX) 02.559 M8	9-09110-408-0	01	1	0211-0501	●	●	●
514	03.704 NUT; BAND 4JH1-TC ENG(RDM) 02.559 M8	9-09110-408-0	01	1	0502-0512	●	●	●
514	03.704 NUT; BAND 4JH1-TC ENG(RDM) 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●
515	03.704 BOLT; BAND 4JH1 ENG(RJX) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501	●	●	●
515	03.704 BOLT; BAND 4JH1-TC ENG(RDM) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0801	●	●	●
515	03.704 BOLT; BAND 4JH1-TC ENG(RDM) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●	●	●
515	03.704 BOLT; BAND 4JH1-TC ENG(RDM) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909	●	●	●
515	03.704 BOLT; BAND 4JH1-TC ENG(RDM) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●	●
532	03.704 NUT 4JH1 ENG(RJX) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0211-0501	●	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0502-	●	●	●
532	03.704 NUT 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0211-0501	●	●	●
532	03.704 NUT 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0211-0501	●		●
532	03.704 NUT 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●		●
532	03.704 NUT 4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
542	03.704 BRACKET 4JH1 ENG(RJX) 03.706	8-97260-021-0	01	1	0211-0501	●	●	●
542	03.704 BRACKET 4JH1-TC ENG(RDM) 03.706	8-97260-021-0	01	1	0502-	●	●	●

168 125 81 70 144 88 143 97 94 95 137 104 166 124 14 105 126 165 164 105 357 88 162 94 164 162 95 165 166 105 88 104 94 137 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) (B) ID=64.7	8-94328-352-0	01	1	0211-0501	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0502-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> 03.634 (A) ID=54	8-94328-354-0	01	1	0211-0501	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) 03.634 (A) ID=54	8-94328-354-0	01	1	0211-0501		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1-TC ENG(RDM) 03.634 (A) ID=54	8-94328-354-0	01	1	0502-		●
70	03.706 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●		●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●		●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●		●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
88	03.708 CLAMP; EXH PIPE 4JH1 ENG(RJX) ID=61.6	8-97010-307-0	01	1	0211-0501	●	●	●
88	03.708 CLAMP; EXH PIPE 4JH1 ENG(RJX) ID=61.6	8-97010-307-0	01	1	0211-0501		●
88	03.708 CLAMP; EXH PIPE 4JH1-TC ENG(RDM) ID=61.6	8-97010-307-0	01	1	0502-	●	●	●
88	03.708 CLAMP; EXH PIPE 4JH1-TC ENG(RDM) ID=61.6	8-97010-307-0	01	1	0502-		●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0211-	●	●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0211-		●
95	03.708 BOLT; BRKT 4JH1 ENG(RJX) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0211-0501	●
95	03.708 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0502-0512	●
95	03.708 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
97	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0211-0605		●
97	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-		●
104	03.704 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
104	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
104	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0211-0512	●	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0601-	●	●	●
105	03.704 NUT; CLAMP 4JH1 ENG(RJX) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0211-0501	●	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●	●	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4JH1 ENG(RJX) 09.011 M10	9-09110-410-0	01	1	0211-0501	●
124	03.704 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	01	1	0211-0501		●
124	03.704 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	01	1	0502-0512		●
124	03.704 NUT; SUPPORT RUBBER 00.833 M10	0-91110-510-0	01	1	0601-		●
125	03.708 NUT; CLAMP 02.559 M8	9-09110-408-0	01	1	0211-0512		●
125	03.708 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	0601-		●
126	03.705 PIPE; EXH,RR 4JH1 ENG(RJX)	8-97328-800-0	01	1	0211-0501	●
126	03.705 PIPE; EXH,RR 4JH1-TC ENG(RDM)	8-97328-800-0	01	1	0502-	●
126	03.705 PIPE; EXH,RR 4JH1 ENG(RJX)	8-97260-001-1	01	1	0211-0501		●
126	03.705 PIPE; EXH,RR 4JH1-TC ENG(RDM)	8-97260-001-1	01	1	0502-		●
126	03.705 PIPE; EXH,RR 4JH1 ENG(RJX)	8-97351-463-0	01	1	0211-0501			●
126	03.705 PIPE; EXH,RR 4JH1-TC ENG(RDM)	8-97351-463-0	01	1	0502-			●
137	03.706 BRACKET; TAIL PIPE 4JH1 ENG(RJX) (A)	8-97209-186-0	01	1	0211-0501	●
137	03.706 BRACKET; TAIL PIPE 4JH1-TC ENG(RDM) (A)	8-97209-186-0	01	1	0502-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	0211-		●
137	03.706 BRACKET; TAIL PIPE 4JH1 ENG(RJX) (A)	9-22121-146-1	01	1	0211-0501			●
137	03.706 BRACKET; TAIL PIPE 4JH1-TC ENG(RDM) (A)	9-22121-146-1	01	1	0502-0504			●
137	03.706 BRACKET; TAIL PIPE (A)	9-22121-146-1	01	1	0505-			●
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	0211-0308		●
143	03.704 RUBBER; SUPPORT	8-97371-655-1	01	1	0309-		●
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602		●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=148	8-97145-971-0	01	1	0211-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0211-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=180	8-97222-646-0	01	1	0211-			●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0211-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 03.616 L=23	9-22151-175-0	01	1	0211-			●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0211-0512	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-	●	●
165	03.706 BOLT; SUPPORT RUBBER 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0211-0512			●
165	03.706 BOLT; SUPPORT RUBBER 09.173 M8X45 FLANGE	0-28050-845-0	01	1	0601-			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0605			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=8.4 OD=26	0-91614-808-0	01	1	0606-			●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) (A)	8-97240-857-0	01	1	0211-0501	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) (A)	8-97240-857-0	01	1	0502-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (B)	8-94468-174-1	01	1	0211-		●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0211-0605	●	●	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●

2 36 1 44 25 18 319 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0211-0501	●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0502-	●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97288-421-1	01	1	0211-0501	●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0211-0501		●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0502-		●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97259-992-3	01	1	0211-0501		●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (C)	8-97311-667-1	01	1	0211-0501			●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (C)	8-97311-667-1	01	1	0502-			●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97180-750-2	01	1	0211-0408	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97381-456-0	01	1	0409-0501	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1-TC ENG(RDM)	8-97381-456-0	01	1	0502-	●	●	●
18	03.611 GASKET; EXH PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0211-0501	●		●
18	03.611 GASKET; EXH PIPE TO PIPE 4JH1-TC ENG(RDM) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0502-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0211-0501	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0502-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX)	8-97320-578-0	01	1	0211-0501		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM)	8-97320-578-0	01	1	0502-		●
36	03.613 NUT; EXH PIPE 4JH1 ENG(RJX) M10 FLANGE	8-97096-192-1	02	1	0211-0501	●	●	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) M10 FLANGE	8-97096-192-1	02	1	0502-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0211-0401	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0501	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0504	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0505-0801	●	●	●
44	03.613 BOLT; BRKT 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909	●	●	●
44	03.613 BOLT; BRKT 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0502-0512	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) (A)	8-97240-857-0	01	1	0211-0501	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) (A)	8-97240-857-0	01	1	0502-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (B)	8-94468-174-1	01	1	0211-		●
319	03.602 NUT; PROTECTOR 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●		●
319	03.602 NUT; PROTECTOR 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●		●
319	03.602 NUT; PROTECTOR 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●		●

25 14 2 36 44 44 1 168 2 14 36 44 44 1 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0211-0501	●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0502-	●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97288-421-1	01	1	0211-0501	●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0211-0501		●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0502-		●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97259-992-3	01	1	0211-0501		●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (C)	8-97311-667-1	01	1	0211-0501			●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (C)	8-97311-667-1	01	1	0502-			●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97180-750-2	01	1	0211-0408	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97381-456-0	01	1	0409-0501	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1-TC ENG(RDM)	8-97381-456-0	01	1	0502-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) (B) ID=64.7	8-94328-352-0	01	1	0211-0501	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	0502-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> 03.634 (A) ID=54	8-94328-354-0	01	1	0211-0501	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) 03.634 (A) ID=54	8-94328-354-0	01	1	0211-0501		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1-TC ENG(RDM) 03.634 (A) ID=54	8-94328-354-0	01	1	0502-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0211-0501	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0502-	●		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX)	8-97320-578-0	01	1	0211-0501		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM)	8-97320-578-0	01	1	0502-		●
36	03.613 NUT; EXH PIPE 4JH1 ENG(RJX) M10 FLANGE	8-97096-192-1	02	1	0211-0501	●	●	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) M10 FLANGE	8-97096-192-1	02	1	0502-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0211-0401	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0501	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0504	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0505-0801	●	●	●
44	03.613 BOLT; BRKT 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909	●	●	●
44	03.613 BOLT; BRKT 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0502-0512	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) (A)	8-97240-857-0	01	1	0211-0501	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) (A)	8-97240-857-0	01	1	0502-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (B)	8-94468-174-1	01	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
