◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#35877) — 22 parça

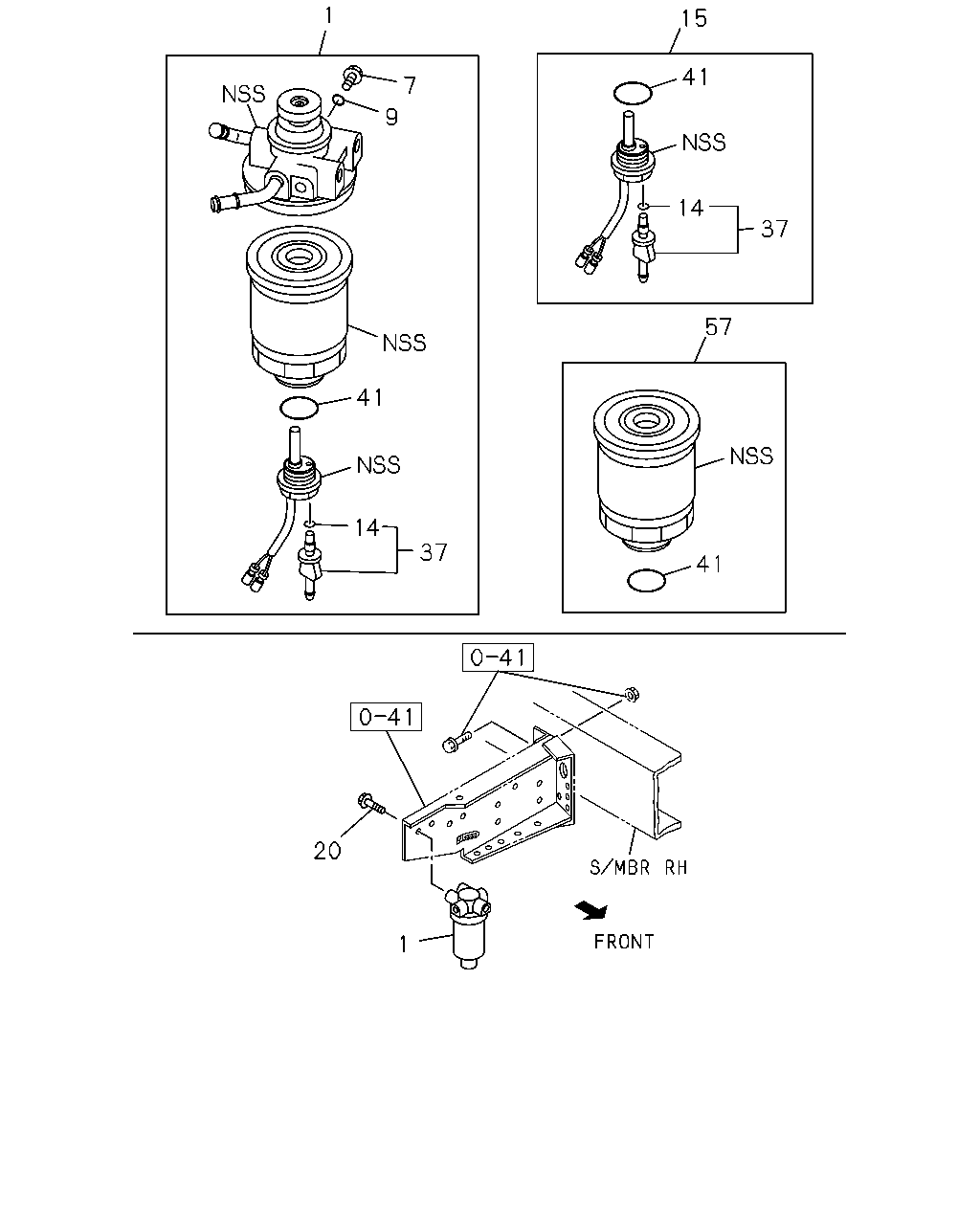

çizim 19302
1 15 41 7 9 14 37 57 41 14 37 41 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 SEDIMENTER; FUEL
4JH1 ENG(RJX) 		8-97240-126-2 01 1 0211-0501 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JH1-TC ENG(RDM) 		8-97240-126-3 01 1 0502- ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JH1 ENG(RJX) 		8-94132-674-0 01 1 0211-0501 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JH1-TC ENG(RDM) 		8-94132-674-0 01 1 0502- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JH1 ENG(RJX) 		8-94132-675-0 01 1 0211-0501 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JH1-TC ENG(RDM) 		8-94132-675-0 01 1 0502- ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JH1 ENG(RJX) 		8-94447-156-0 01 1 0211-0501 ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JH1-TC ENG(RDM) 		8-94447-156-0 01 1 0502- ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JH1 ENG(RJX) 		8-97079-821-0 01 1 0211-0501 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JH1-TC ENG(RDM) 		8-97079-821-0 01 1 0502- ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0502-0512 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
37 03.890 PLUG; SENSOR
4JH1 ENG(RJX) 		8-97123-549-0 01 1 0211-0501 ● ● ●
37 03.890 PLUG; SENSOR
4JH1-TC ENG(RDM) 		8-97123-549-0 01 1 0502- ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JH1 ENG(RJX) 08.927 		9-09563-334-0 01 1 0211-0501 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JH1-TC ENG(RDM) 08.927 		9-09563-334-0 01 1 0502-0611 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JH1-TC ENG(RDM) 03.417 		1-09623-649-0 01 1 0612- ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4JH1 ENG(RJX) 		8-94369-299-3 01 1 0211-0501 ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4JH1-TC ENG(RDM) 		8-94369-299-3 01 1 0502-0611 ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4JH1-TC ENG(RDM) 		8-98037-480-0 01 1 0612- ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4JH1-TC ENG(RDM) BEST VALUE PARTS 		5-87610-094-0 01 1 0612- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
