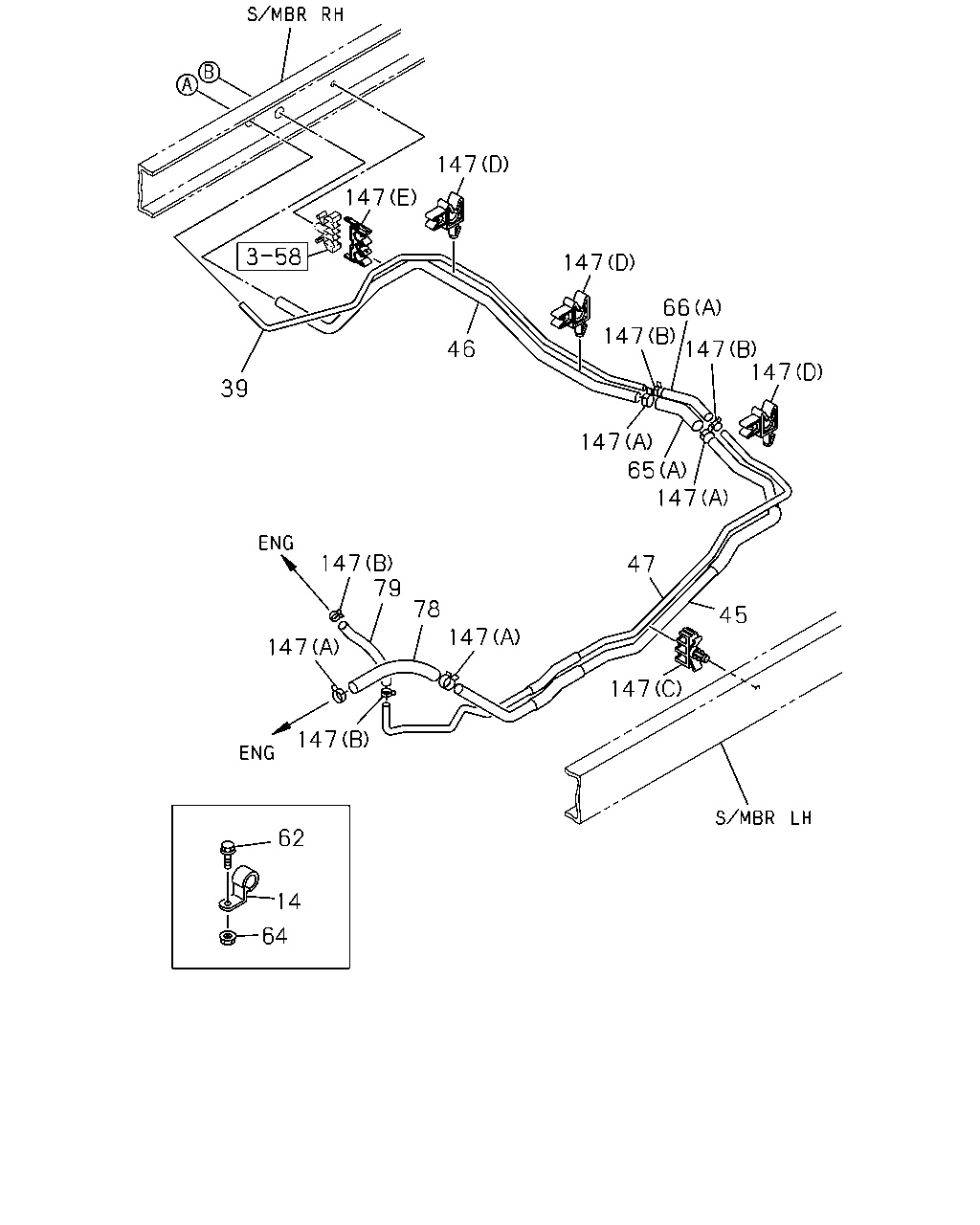

1-41 — FUEL PIPING; CHASSIS (#35876) — 83 parça

147 147 147 66 147 46 147 147 39 147 65 147 147 79 47 78 147 45 147 147 147 62 14 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.162 CLIP; HOSE 4JH1 ENG(RJX) 03.630 ID=19 H=25 L=25	1-09700-464-0	01	1	0211-0501	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX)	8-97363-971-1	01	1	0211-0501		●	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM)	8-97363-971-1	01	1	0502-		●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX)	8-97326-012-0	01	1	0211-0501	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM)	8-97326-012-0	01	1	0502-	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX)	8-97326-020-0	01	1	0211-0501		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM)	8-97326-020-0	01	1	0502-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX)	8-97326-018-0	01	1	0211-0501	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM)	8-97326-018-0	01	1	0502-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX)	8-97326-010-0	01	1	0211-0501	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM)	8-97326-010-0	01	1	0502-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX)	8-97326-011-0	01	1	0211-0301		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX)	8-97363-970-0	01	1	0302-0501		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM)	8-97363-970-0	01	1	0502-		●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX)	8-97326-026-0	01	1	0211-0501		●	●
47	03.163 PIPE; FUEL,RETURN 4JH1-TC ENG(RDM)	8-97326-026-0	01	1	0502-		●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX)	8-97326-024-0	01	1	0211-0501	●
47	03.163 PIPE; FUEL,RETURN 4JH1-TC ENG(RDM)	8-97326-024-0	01	1	0502-	●
62	03.162 BOLT; CLIP FIX 4JH1 ENG(RJX) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0501	●
64	03.162 NUT; CLIP 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0212	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0501	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0502-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0212		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0301-0501	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0502-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0502-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0501	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0502-	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (C) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0211-0301		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0211-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (A) ID=19	8-98150-356-0	08	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (B) ID=13	8-98150-357-0	06	1	0912-	●	●	●

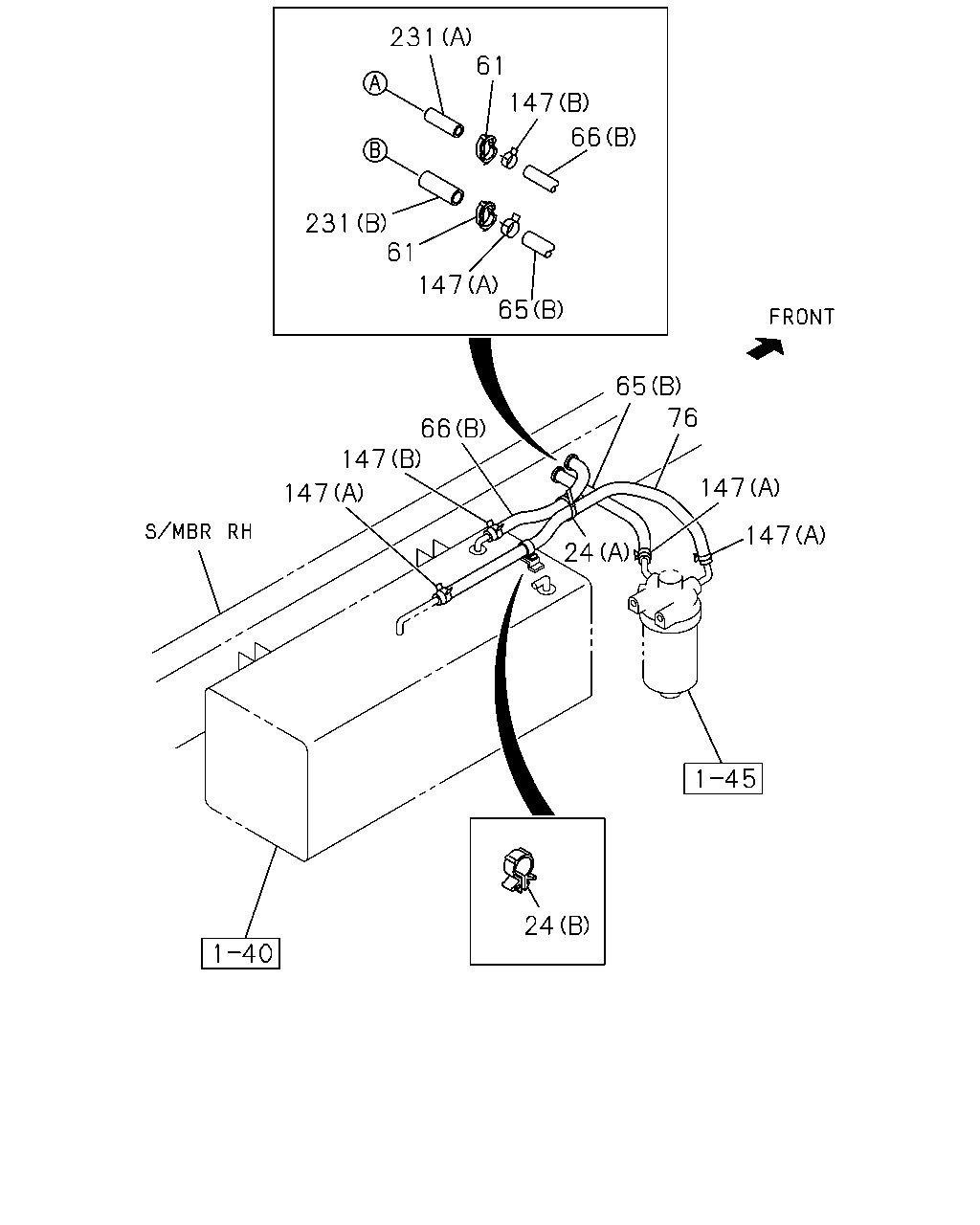

231 61 147 66 231 61 147 65 65 76 66 147 147 147 147 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (A) L=140	5-09707-031-1	01	1	0502-	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0211-0501	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0212	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0501	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0502-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0212		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0301-0501	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0502-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0502-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) L=550 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0501			●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0502-			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0211-0212		●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0301-0501	●	●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0502-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (C) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0211-0301		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0211-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (A) ID=19	8-98150-356-0	08	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (B) ID=13	8-98150-357-0	06	1	0912-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0211-0501	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1-TC ENG(RDM) (B) OD=16.5 L=50	8-97214-235-0	01	1	0502-	●	●	●
