◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#35875) — 97 parça

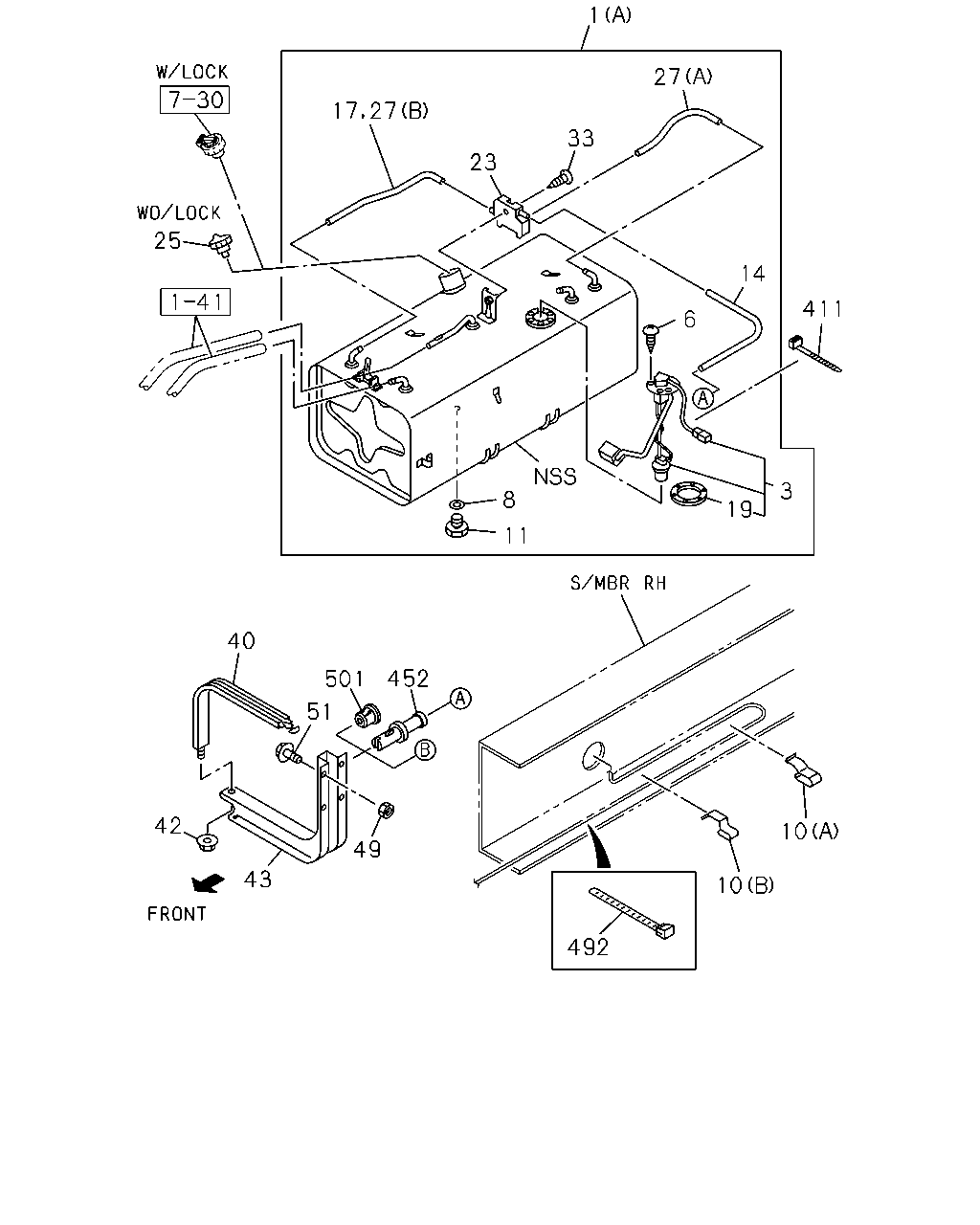

çizim 71457
1 27 33 23 25 14 411 6 3 8 19 11 40 452 501 51 42 10 49 43 10 492 17 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
4JH1 ENG(RJX) (A) 753X340X327 75L 		8-97353-983-0 01 1 0211-0501 ● ●
1 03.001 TANK; FUEL
(B) 732X375X375 75L 		8-97375-633-4 01 1 0502- ● ●
1 03.001 TANK; FUEL
4JH1 ENG(RJX) (A) 1000X340X327 100L 		8-97353-984-0 01 1 0211-0501 ●
1 03.001 TANK; FUEL
(B) 979X380X375 100L 		8-97376-818-0 01 1 0502-0503 ●
1 03.001 TANK; FUEL
(B) 979X380X375 100L 		8-97375-634-5 01 1 0504- ●
3 03.107 UNIT; FUEL TANK,SUB
4JH1 ENG(RJX) 03.001 		8-94316-190-0 01 1 0211-0501 ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0502- ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4JH1 ENG(RJX) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0211-0501 ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0502-0603 ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0604- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4JH1 ENG(RJX) 01.550 		1-21729-043-0 01 1 0211-0301 ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4JH1 ENG(RJX) 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0302-0501 ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0502- ● ● ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559 (A) T=9.2 		5-09709-013-0 AR 1 0211- ● ● ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525 (B) T=4.5 & 9 		5-09709-023-0 AR 1 0211- ● ● ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525 (B) T=9.2 & 9 		5-09709-025-0 AR 1 0211- ● ● ●
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
01.240 (A) T=5.5 		5-09709-047-0 AR 1 0211- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
4JH1 ENG(RJX) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0301 ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
4JH1 ENG(RJX) 01.453 M14X14 		9-09862-156-0 01 1 0302-0501 ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=320 		8-98157-805-0 01 1 0502- ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 0502- ●
14 03.163 HOSE; BREATHER,OUTLET
4JH1 ENG(RJX) 00.034 L=320 SERVICED BY L=10000 		9-09914-701-0 01 1 0211-0501 ● ●
14 03.163 HOSE; BREATHER,OUTLET
4JH1 ENG(RJX) 00.034 L=430 SERVICED BY L=10000 		9-09914-701-0 01 1 0211-0501 ●
17 03.163 HOSE; BREATHER
4JH1 ENG(RJX) L=430 SERVICED BY L=3000 		8-94128-826-0 01 1 0211-0501 ● ●
19 03.112 GASKET; FUEL TANK UNIT
4JH1 ENG(RJX) ID=42 OD=71 		5-83148-001-0 01 1 0211-0501 ● ● ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0502- ● ● ●
23 03.162 JOINT; BREATHER HOSE
4JH1 ENG(RJX) 		8-97077-713-1 01 1 0211-0501 ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0211- ● ● ●
27 03.163 HOSE; BREATHER
4JH1 ENG(RJX) (A) L=340 SERVICED BY L=3000 		8-94128-826-0 01 1 0211-0501 ● ●
27 03.163 HOSE; BREATHER
4JH1 ENG(RJX) (A),(B) L=470 SERVICED BY L=3000 		8-94128-826-0 02 1 0211-0501 ●
33 03.162 SCREW; JOINT TO FUEL TANK
4JH1 ENG(RJX) 02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0211-0501 ● ● ●
40 03.022 BELT; SUPPORT,FUEL TANK 8-94438-385-4 02 1 0211-0501 ● ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0211- ● ● ●
43 03.015 BRACKET; FUEL TANK
REAR 		8-97181-220-0 01 1 0502- ● ● ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 02 1 0211-0501 ● ● ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 01 1 0502- ● ● ●
49 03.023 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 08 1 0211-0602 ● ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0603- ● ● ●
51 03.023 BOLT; BRKT TO FRAME
4JH1 ENG(RJX) M10X30 FLANGE 		0-28691-030-0 06 1 0301-0501 ● ●
51 03.023 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM) M10X30 FLANGE 		0-28691-030-0 06 1 0502-0512 ● ●
51 03.023 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM) 07.068 M10X30 FLANGE 		0-28661-030-0 06 1 0601- ● ●
51 03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28691-030-0 08 1 0211-0212 ● ● ●
51 03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28691-030-0 08 1 0301-0512 ●
51 03.023 BOLT; BRKT TO FRAME
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0601- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 L=140 		5-09707-031-1 02 1 0502- ● ● ●
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0211-0501 ● ● ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0502- ● ● ●
492 03.028 CLIP; HARNESS TO VAC HOSE
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.559 L=250 		5-09707-030-1 02 1 0211-0501 ● ● ●
492 03.028 CLIP; HARNESS TO VAC HOSE
4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.559 L=250 		5-09707-030-1 02 1 0502- ● ● ●
501 03.028 GROMMET; BRKT 8-97096-990-0 01 1 0211-0501 ● ● ●

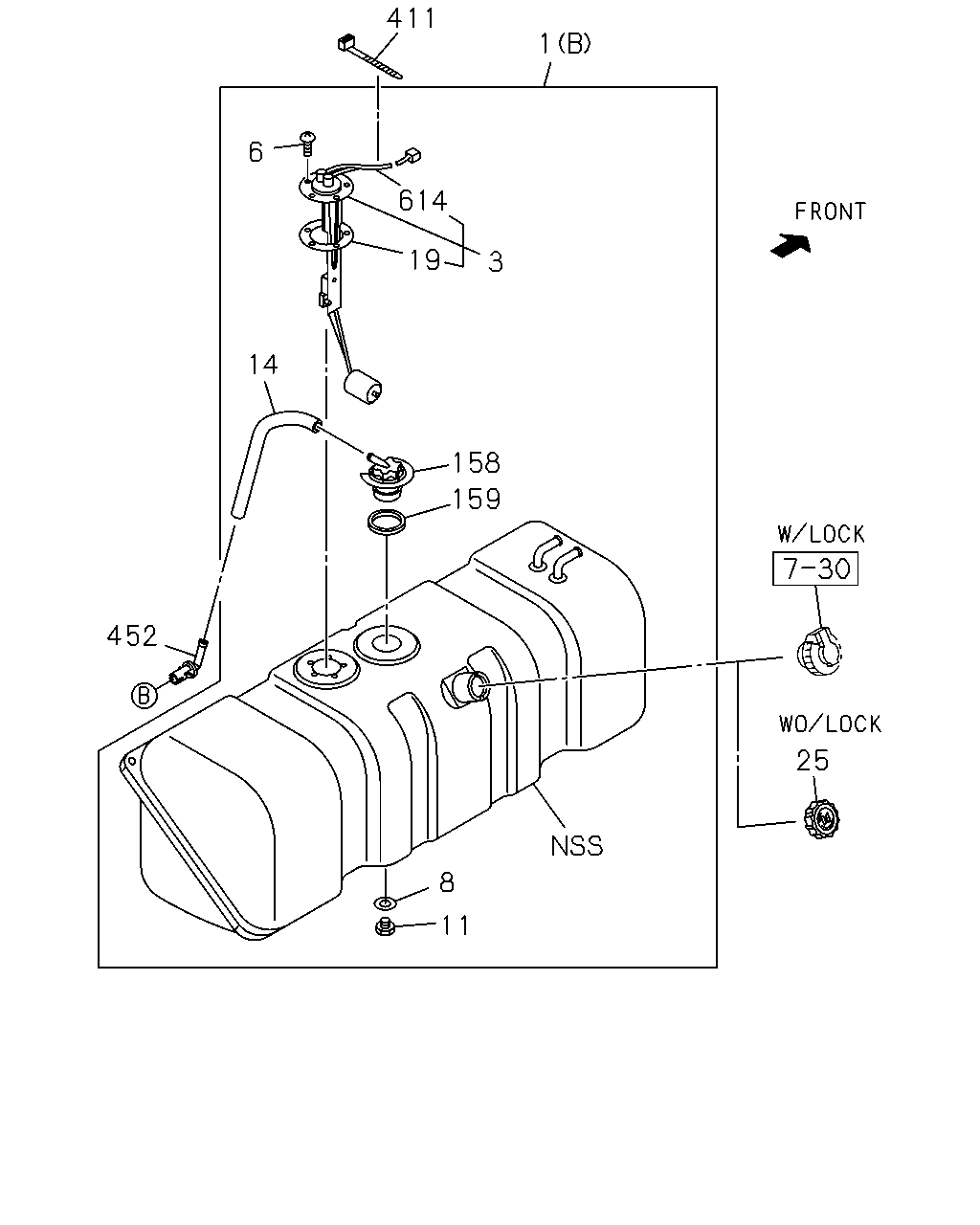

çizim 73840
411 1 6 614 19 3 14 158 159 452 25 8 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
4JH1 ENG(RJX) (A) 753X340X327 75L 		8-97353-983-0 01 1 0211-0501 ● ●
1 03.001 TANK; FUEL
(B) 732X375X375 75L 		8-97375-633-4 01 1 0502- ● ●
1 03.001 TANK; FUEL
4JH1 ENG(RJX) (A) 1000X340X327 100L 		8-97353-984-0 01 1 0211-0501 ●
1 03.001 TANK; FUEL
(B) 979X380X375 100L 		8-97376-818-0 01 1 0502-0503 ●
1 03.001 TANK; FUEL
(B) 979X380X375 100L 		8-97375-634-5 01 1 0504- ●
3 03.107 UNIT; FUEL TANK,SUB
4JH1 ENG(RJX) 03.001 		8-94316-190-0 01 1 0211-0501 ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0502- ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4JH1 ENG(RJX) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0211-0501 ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0502-0603 ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0604- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4JH1 ENG(RJX) 01.550 		1-21729-043-0 01 1 0211-0301 ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4JH1 ENG(RJX) 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0302-0501 ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0502- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
4JH1 ENG(RJX) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0301 ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
4JH1 ENG(RJX) 01.453 M14X14 		9-09862-156-0 01 1 0302-0501 ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=320 		8-98157-805-0 01 1 0502- ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 0502- ●
14 03.163 HOSE; BREATHER,OUTLET
4JH1 ENG(RJX) 00.034 L=320 SERVICED BY L=10000 		9-09914-701-0 01 1 0211-0501 ● ●
14 03.163 HOSE; BREATHER,OUTLET
4JH1 ENG(RJX) 00.034 L=430 SERVICED BY L=10000 		9-09914-701-0 01 1 0211-0501 ●
19 03.112 GASKET; FUEL TANK UNIT
4JH1 ENG(RJX) ID=42 OD=71 		5-83148-001-0 01 1 0211-0501 ● ● ●
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0502- ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0211- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0502- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0502- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 L=140 		5-09707-031-1 02 1 0502- ● ● ●
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0211-0501 ● ● ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0502- ● ● ●
614 03.028 HARNESS; FUEL 8-97363-614-0 01 1 0502- ● ● ●
çizim 73841
49 49 51 51 43 452 43 42 653
BalonParca AdiParca NoAdetTipApplied Date A B C
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0211- ● ● ●
43 03.015 BRACKET; FUEL TANK
REAR 		8-97181-220-0 01 1 0502- ● ● ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 02 1 0211-0501 ● ● ●
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 01 1 0502- ● ● ●
49 03.023 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 08 1 0211-0602 ● ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0603- ● ● ●
51 03.023 BOLT; BRKT TO FRAME
4JH1 ENG(RJX) M10X30 FLANGE 		0-28691-030-0 06 1 0301-0501 ● ●
51 03.023 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM) M10X30 FLANGE 		0-28691-030-0 06 1 0502-0512 ● ●
51 03.023 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM) 07.068 M10X30 FLANGE 		0-28661-030-0 06 1 0601- ● ●
51 03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28691-030-0 08 1 0211-0212 ● ● ●
51 03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28691-030-0 08 1 0301-0512 ●
51 03.023 BOLT; BRKT TO FRAME
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0601- ●
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0211-0501 ● ● ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0502- ● ● ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 0502- ● ● ●
