◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#35873) — 92 parça

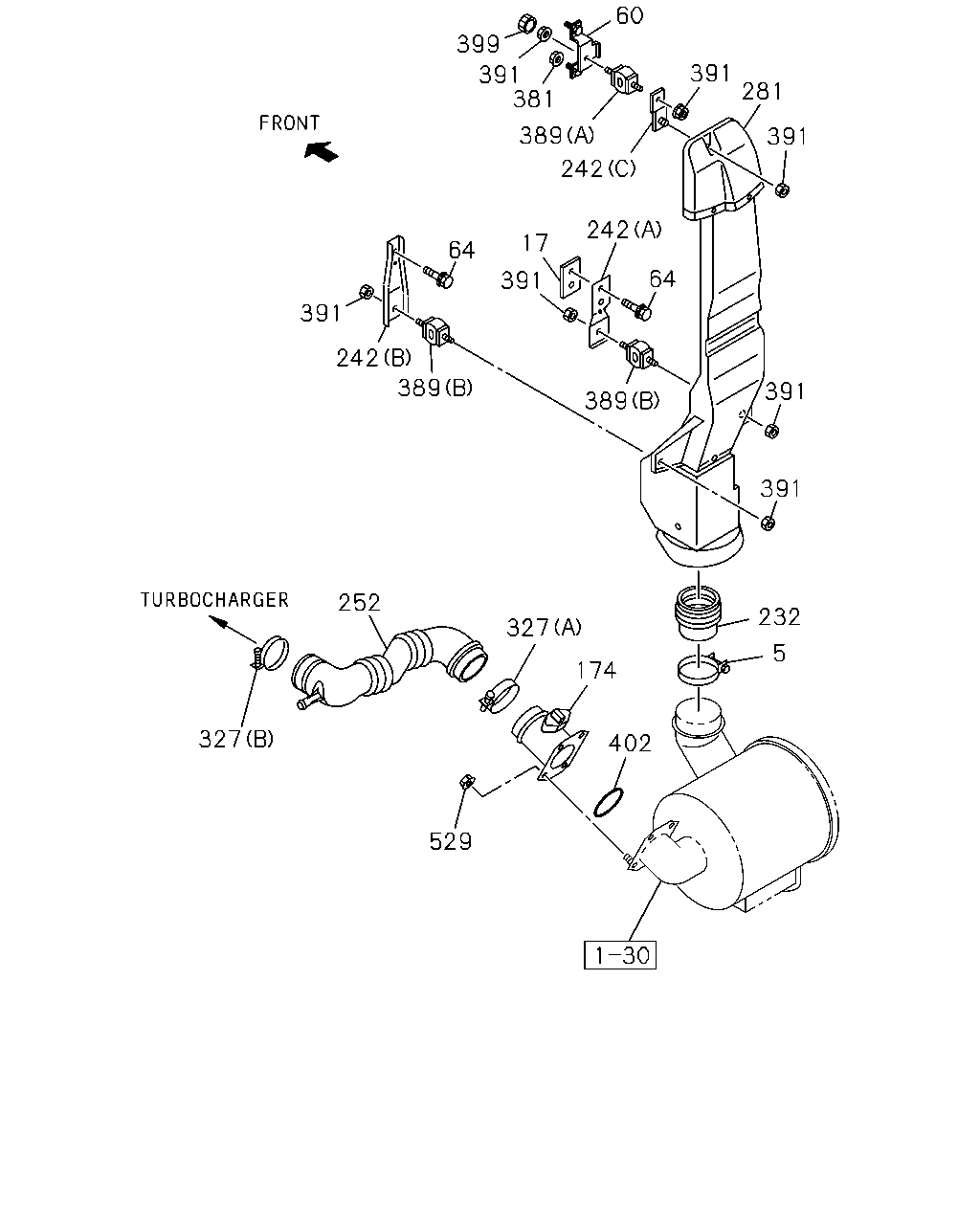

çizim 69452
60 399 391 391 381 281 389 391 242 242 17 64 64 391 391 242 389 391 389 391 252 232 327 5 174 327 402 529
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) ID=112 		9-09915-074-1 01 1 0211-0501 ● ● ●
5 03.407 CLIP; AIR DUCT
4JH1-TC ENG(RDM) ID=112 		9-09915-074-1 01 1 0502- ● ● ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) 		8-97853-699-2 01 1 0211-0501 ● ● ●
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 0502- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX) 		8-97856-956-0 01 1 0211-0501 ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1-TC ENG(RDM) 		8-97856-956-1 01 1 0502- ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0211-0501 ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0502- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT
4JH1 ENG(RJX) 		8-97240-057-0 01 1 0211-0501 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT
4JH1-TC ENG(RDM) 		8-97240-057-1 01 1 0502- ● ● ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0211-0501 ● ● ●
232 03.417 HOSE; CONN
4JH1-TC ENG(RDM) 		8-94456-844-1 01 1 0502- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97856-932-0 01 1 0211-0501 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (A) 		8-97856-932-0 01 1 0502- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (B) 		8-97856-933-0 01 1 0211-0501 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (B) 		8-97856-933-0 01 1 0502- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (C) 		8-97856-958-0 01 1 0211-0501 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (C) 		8-97856-958-0 01 1 0502- ● ● ●
252 03.417 DUCT; AIR INT
4JH1 ENG(RJX) 		8-97312-540-2 01 1 0211-0501 ● ● ●
252 03.417 DUCT; AIR INT
4JH1-TC ENG(RDM) 		8-97312-540-3 01 1 0502- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) 		8-97300-255-0 01 1 0211-0501 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM) 		8-97300-255-1 01 1 0502- ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79 		1-09707-136-0 01 1 1002- ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=77-99 		1-09707-141-0 01 1 1002- ● ● ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 03.407 (A) ID=77-95 		1-09707-114-0 01 1 0211-0403 ● ● ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0404-0501 ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0502-0810 ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) 03.407 (A) ID=75-95 		8-98133-357-0 01 1 0811-1001 ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=75-95 		8-98133-357-0 01 1 1002- ● ● ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) (B) ID=58-79 		8-94126-771-0 01 1 0211-0403 ● ● ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 01 1 0404-0501 ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 01 1 0502-0811 ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) 03.407 (B) ID=55-75 		8-98133-349-0 01 1 0812-1001 ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75 		8-98133-349-0 01 1 1002- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0211-0501 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 0502- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0211-0501 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (A) 		8-97080-149-0 01 1 0502- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0211-0501 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (B) 		8-97081-886-0 02 1 0502- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0211-0501 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM) M8 FLANGE 		8-94279-517-0 07 1 0502-0910 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM) M8 W/LK WASHER 		8-97581-234-0 07 1 0911- ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
EXC. INTERIOR DELUXE<RBB> 		8-94273-605-0 02 1 0611- ● ● ●
402 03.417 GASKET; RUBBER
4JH1 ENG(RJX) 		8-97240-056-0 01 1 0211-0501 ● ● ●
402 03.417 GASKET; RUBBER
4JH1-TC ENG(RDM) 		8-97240-056-0 01 1 0502- ● ● ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0211-0501 ● ● ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1-TC ENG(RDM) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0502-0602 ● ● ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603- ● ● ●

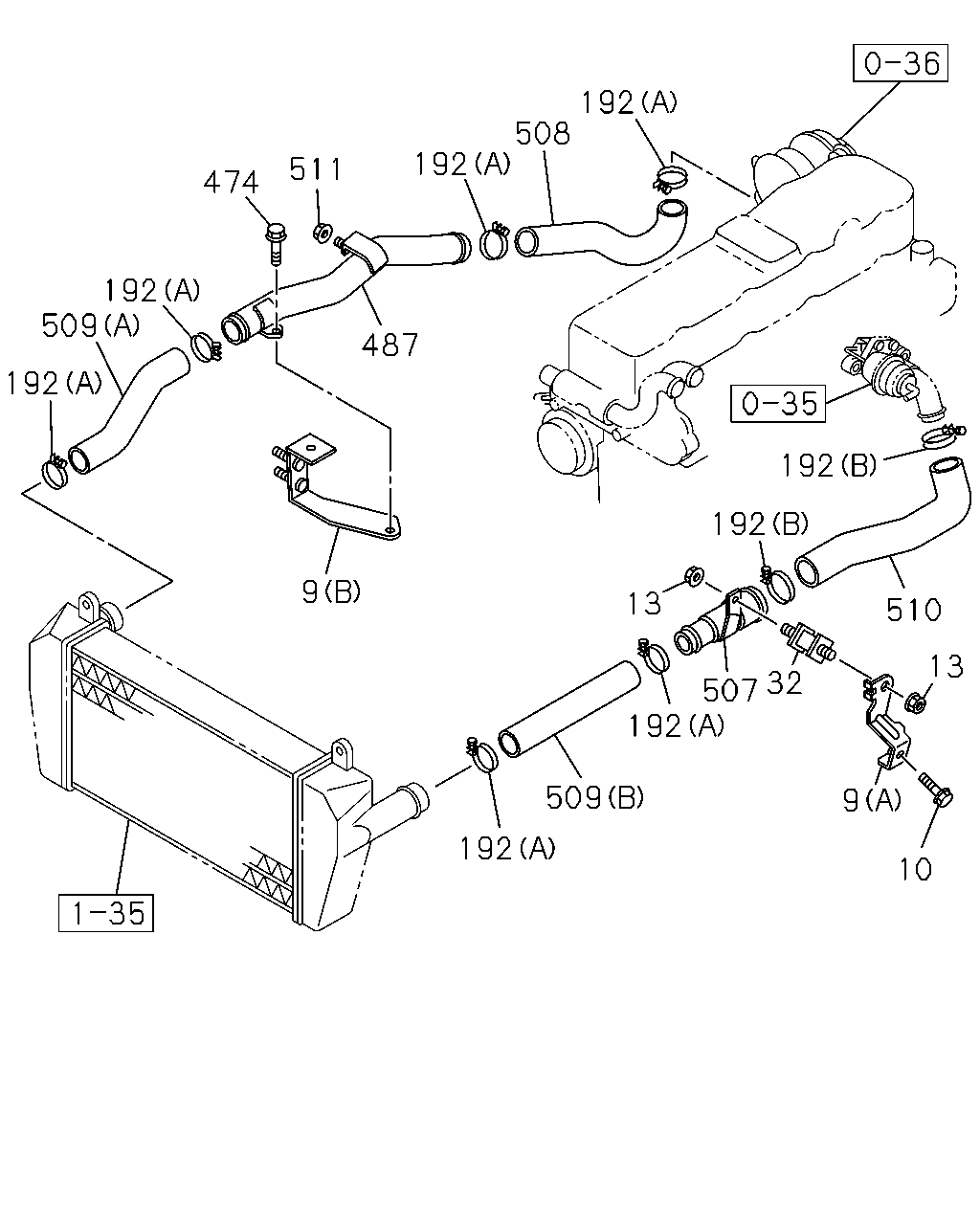

çizim 73996
192 508 192 511 474 192 509 487 192 192 192 9 13 510 13 32 507 192 509 9 192 10
BalonParca AdiParca NoAdetTipApplied Date A B C
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (A) 		8-97300-771-1 01 1 0211-0501 ● ● ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (A) 		8-97300-771-1 01 1 0502- ● ● ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (B) 		8-97312-472-0 01 1 0211-0501 ● ● ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (B) 		8-97312-472-0 01 1 0502- ● ● ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ● ● ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ● ● ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ● ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JH1 ENG(RJX) 03.405 		8-94158-155-1 01 1 0211-0501 ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JH1-TC ENG(RDM) 03.405 		8-94158-155-1 01 1 0502-0611 ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JH1-TC ENG(RDM) 		8-98036-826-0 01 1 0612- ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=58-79 		1-09707-136-0 02 1 1002- ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 06 1 1002- ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0211-0403 ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0404-0501 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) (A) ID=50-65 		1-09707-204-0 06 1 0502-0810 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) (A) ID=45-65 		8-98133-348-0 06 1 0811-1001 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 06 1 1002- ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0211-0410 ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-65 		1-09707-204-0 06 1 0411-0501 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0502-0811 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) (B) ID=55-75 		8-98133-349-0 02 1 0812-1001 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=55-75 		8-98133-349-0 02 1 1002- ● ● ●
474 03.417 BOLT; PIPE
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ● ● ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0512 ● ● ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JH1 ENG(RJX) 		8-97312-536-0 01 1 0211-0501 ● ● ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JH1-TC ENG(RDM) 		8-97312-536-0 01 1 0502- ● ● ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JH1 ENG(RJX) 		8-97240-053-0 01 1 0211-0501 ● ● ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JH1-TC ENG(RDM) 		8-97240-053-0 01 1 0502- ● ● ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JH1 ENG(RJX) 		8-97258-837-3 01 1 0211-0501 ● ● ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JH1-TC ENG(RDM) 		8-97258-837-4 01 1 0502- ● ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (A) 		8-97260-314-5 01 1 0211-0501 ● ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1-TC ENG(RDM) (A) 		8-97260-314-6 01 1 0502- ● ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (B) 		8-97300-859-3 01 1 0211-0501 ● ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1-TC ENG(RDM) (B) 		8-97300-859-4 01 1 0502- ● ● ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JH1 ENG(RJX) 		8-97300-858-3 01 1 0211-0501 ● ● ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JH1-TC ENG(RDM) 		8-97300-858-4 01 1 0502- ● ● ●
511 03.417 NUT; PIPE
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
511 03.417 NUT; PIPE
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
511 03.417 NUT; PIPE
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
