◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#35871) — 34 parça

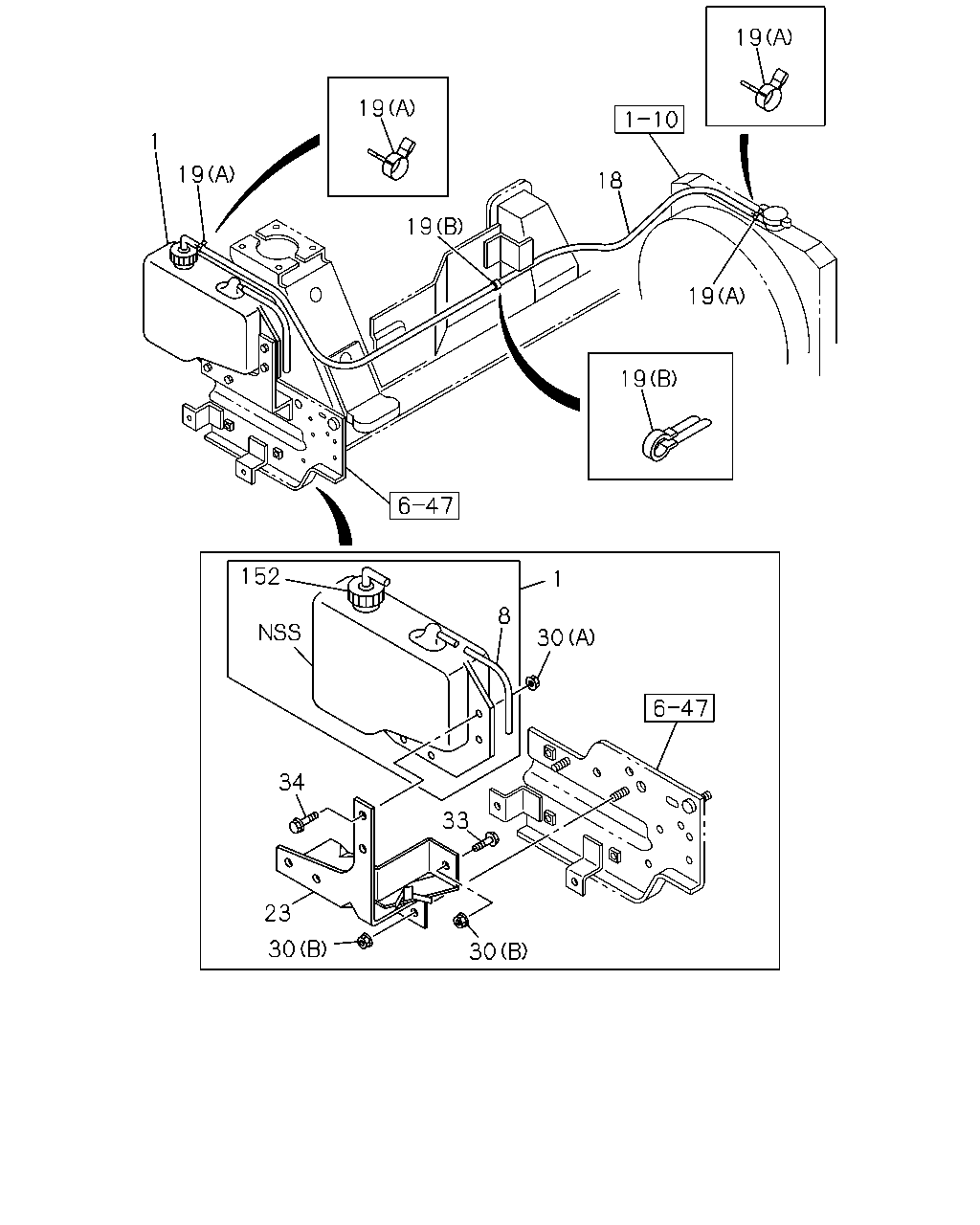

çizim 74069
19 19 1 19 18 19 19 19 152 1 8 30 34 33 23 30 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.219 TANK; SURGE,RAD
4JH1 ENG(RJX) 		8-97205-136-0 01 1 0211-0501 ● ● ●
1 01.219 TANK; SURGE,RAD
4JH1-TC ENG(RDM) 		8-97205-136-1 01 1 0502- ● ● ●
8 01.166 HOSE; VINYL
4JH1 ENG(RJX) 01.240 L=500 		1-09366-179-0 01 1 0211-0501 ● ● ●
8 01.166 HOSE; VINYL
4JH1-TC ENG(RDM) 01.240 L=500 		1-09366-179-0 01 1 0502- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1 ENG(RJX) L=1580 		8-97356-350-0 01 1 0211-0501 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JH1-TC ENG(RDM) L=1580 		8-97356-350-0 01 1 0502- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1 ENG(RJX) (B) ID=14 L=47 		5-09700-319-0 02 1 0211-0501 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JH1-TC ENG(RDM) (B) ID=14 L=47 		5-09700-319-0 02 1 0502- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (A) ID=12 		8-94238-610-0 02 1 0211-0911 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
(A) ID=12 		8-98150-358-0 02 1 0912- ● ● ●
23 01.219 BRACKET; RESERVE TANK
4JH1 ENG(RJX) 		8-97225-271-1 01 1 0211-0501 ● ● ●
23 01.219 BRACKET; RESERVE TANK
4JH1-TC ENG(RDM) 		8-97225-271-1 01 1 0502- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0602 ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
30 01.203 NUT
4JH1 ENG(RJX) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0211-0501 ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91150-208-0 03 1 0502-0602 ● ● ●
30 01.203 NUT
4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE 		0-91180-208-0 03 1 0603- ● ● ●
33 01.277 BOLT; BRKT
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ●
33 01.277 BOLT; BRKT
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0512 ● ● ●
34 01.203 BOLT; RESERVE TANK
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
152 01.203 CAP ASM; SURGE TANK
4JH1 ENG(RJX) 		8-97217-799-0 01 1 0211-0501 ● ● ●
152 01.203 CAP ASM; SURGE TANK
4JH1-TC ENG(RDM) 		8-97217-799-0 01 1 0502- ● ● ●

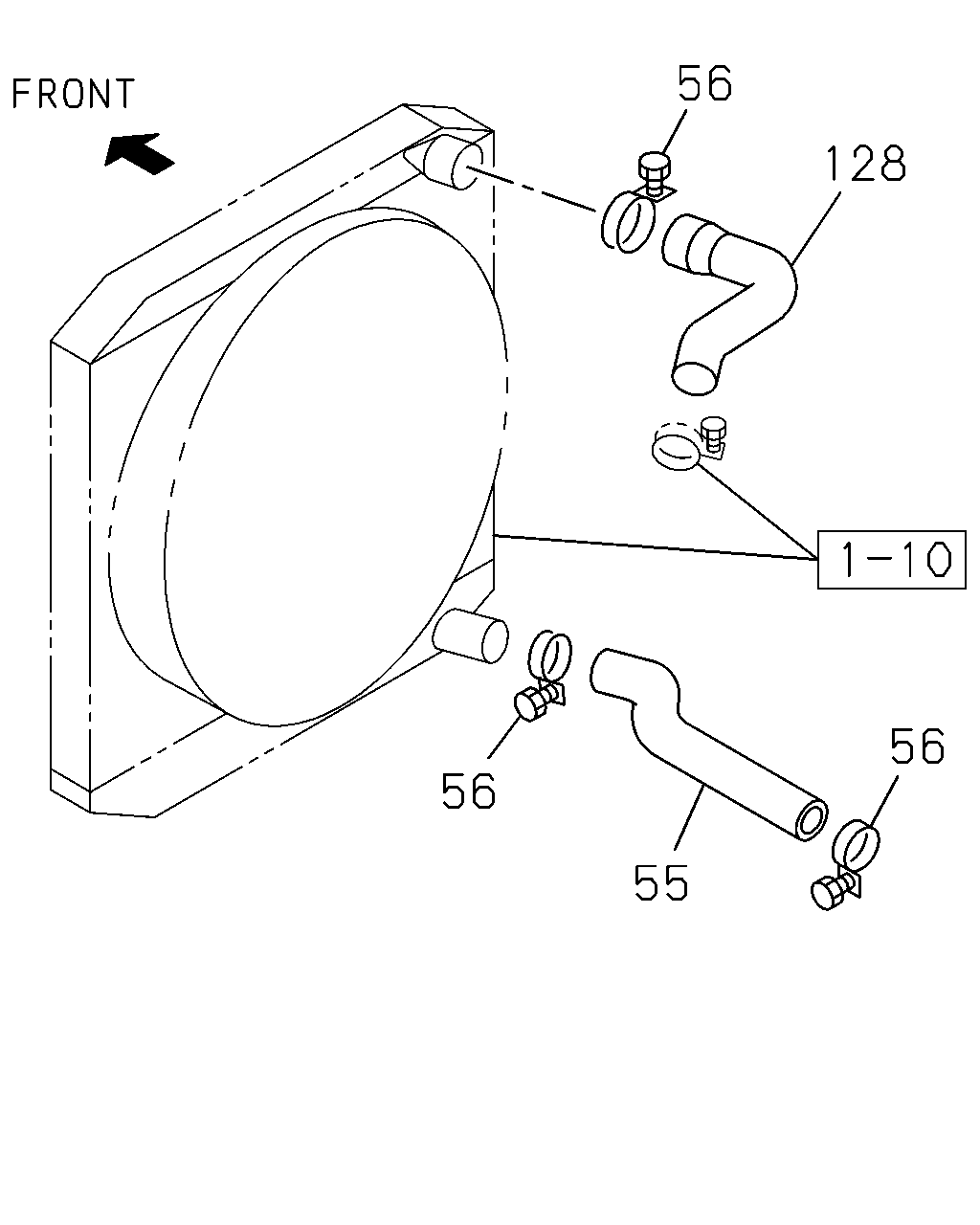

çizim 74174
56 128 56 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C
55 01.173 HOSE; WATER,RAD OUTLET
4JH1 ENG(RJX) 		8-97260-187-1 01 1 0211-0501 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JH1-TC ENG(RDM) 		8-97260-187-2 01 1 0502- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1 ENG(RJX) ID=48 		5-09704-049-0 03 1 0211-0501 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM) ID=48 		5-09704-049-0 03 1 0502-0610 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM) ID=48 		8-98036-282-0 03 1 0611-0901 ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JH1-TC ENG(RDM) ID=48 		8-98133-956-0 03 1 0902- ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JH1 ENG(RJX) 		8-97289-369-0 01 1 0211-0501 ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JH1-TC ENG(RDM) 		8-97289-369-1 01 1 0502- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
