1-10 — RADIATOR (#35870) — 111 parça

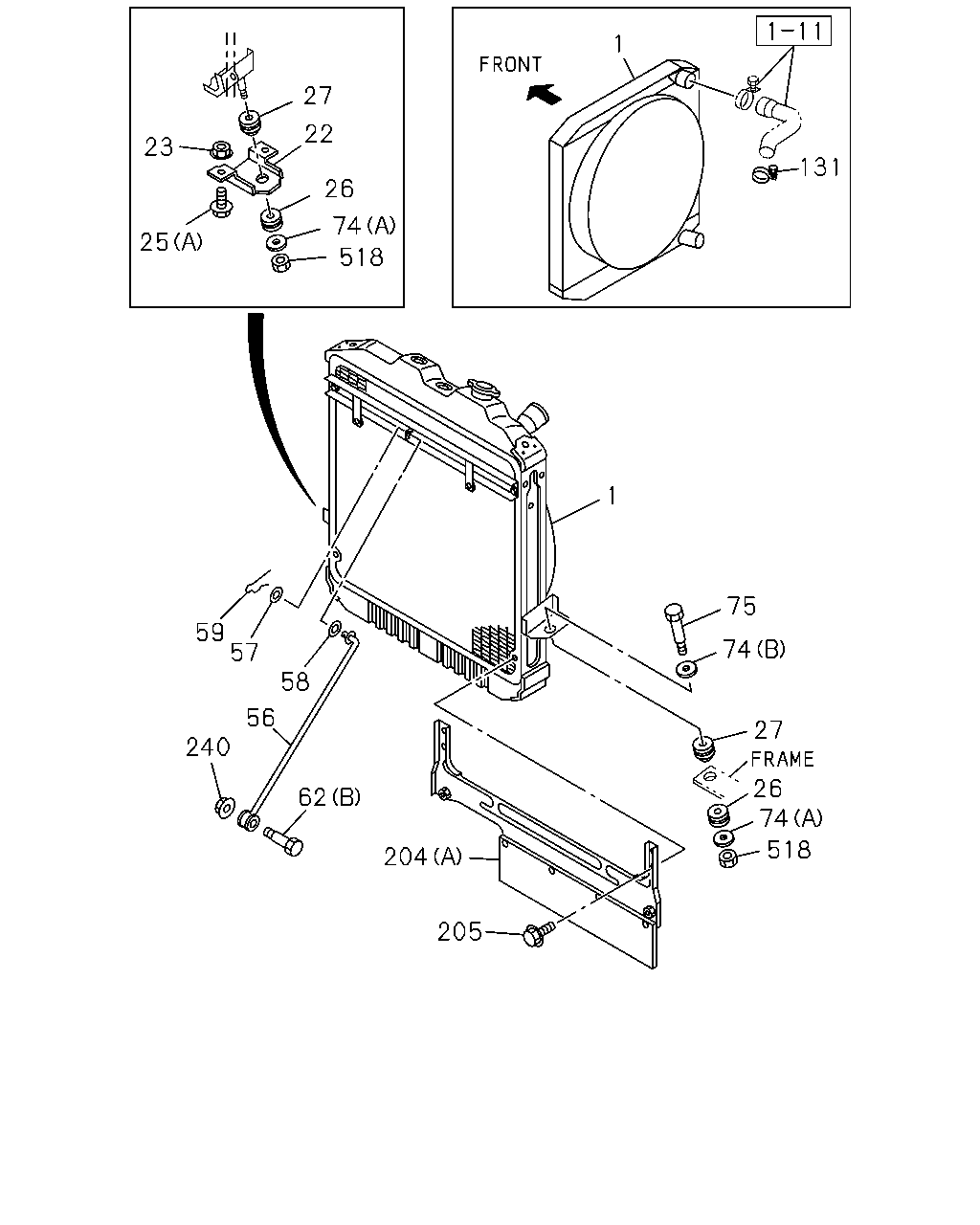

1 27 22 23 131 26 74 25 518 1 75 59 57 74 58 56 27 240 26 74 62 518 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JH1 ENG(RJX)	8-97351-778-1	01	1	0211-0501	●	●	●
1	01.219 RADIATOR ASM 4JH1-TC ENG(RDM)	8-97351-778-2	01	1	0502-	●	●	●
22	01.270 BRACKET; RAD MTG	8-94257-949-1	01	1	0211-	●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	02	1	0211-	●	●	●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0211-0501	●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0502-	●	●	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512	●	●	●
25	01.271 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0211-	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0211-	●	●	●
56	01.270 STAY; RAD 4JH1 ENG(RJX)	8-97351-495-0	01	1	0211-0501	●	●	●
56	01.270 STAY; RAD 4JH1-TC ENG(RDM)	8-97351-495-0	01	1	0502-	●	●	●
57	01.271 WASHER; PL,STAY 4JH1 ENG(RJX) 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0211-0501	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	0502-0605	●	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-	●	●	●
58	01.271 WASHER; CURVED,STAY 4JH1 ENG(RJX) ID=12	8-97011-676-0	01	1	0211-0501	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0502-	●	●	●
59	01.271 PIN; SNAP,STAY 4JH1 ENG(RJX) 03.452 L=32.6	8-94202-777-0	01	1	0211-0501	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	0502-0610	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●	●	●
62	01.271 BOLT; STAY 4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	0211-0610	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0211-	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0211-	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4JH1 ENG(RJX) ID=42	5-09704-047-1	01	1	0211-0501	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4JH1-TC ENG(RDM) ID=42	5-09704-047-1	01	1	0502-0901	●	●	●
131	01.166 CLIP; ENG SIDE TOP 4JH1-TC ENG(RDM) ID=42	8-98133-958-0	01	1	0902-	●	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (A)	8-97035-512-3	01	1	0211-	●	●	●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX) (B)	8-97260-121-0	01	1	0211-0501	●	●	●
204	01.267 GUIDE ASM; AIR 4JH1-TC ENG(RDM) (B)	8-97260-121-0	01	1	0502-	●	●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0211-0512	●	●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0211-	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0211-0610	●	●	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-	●	●	●

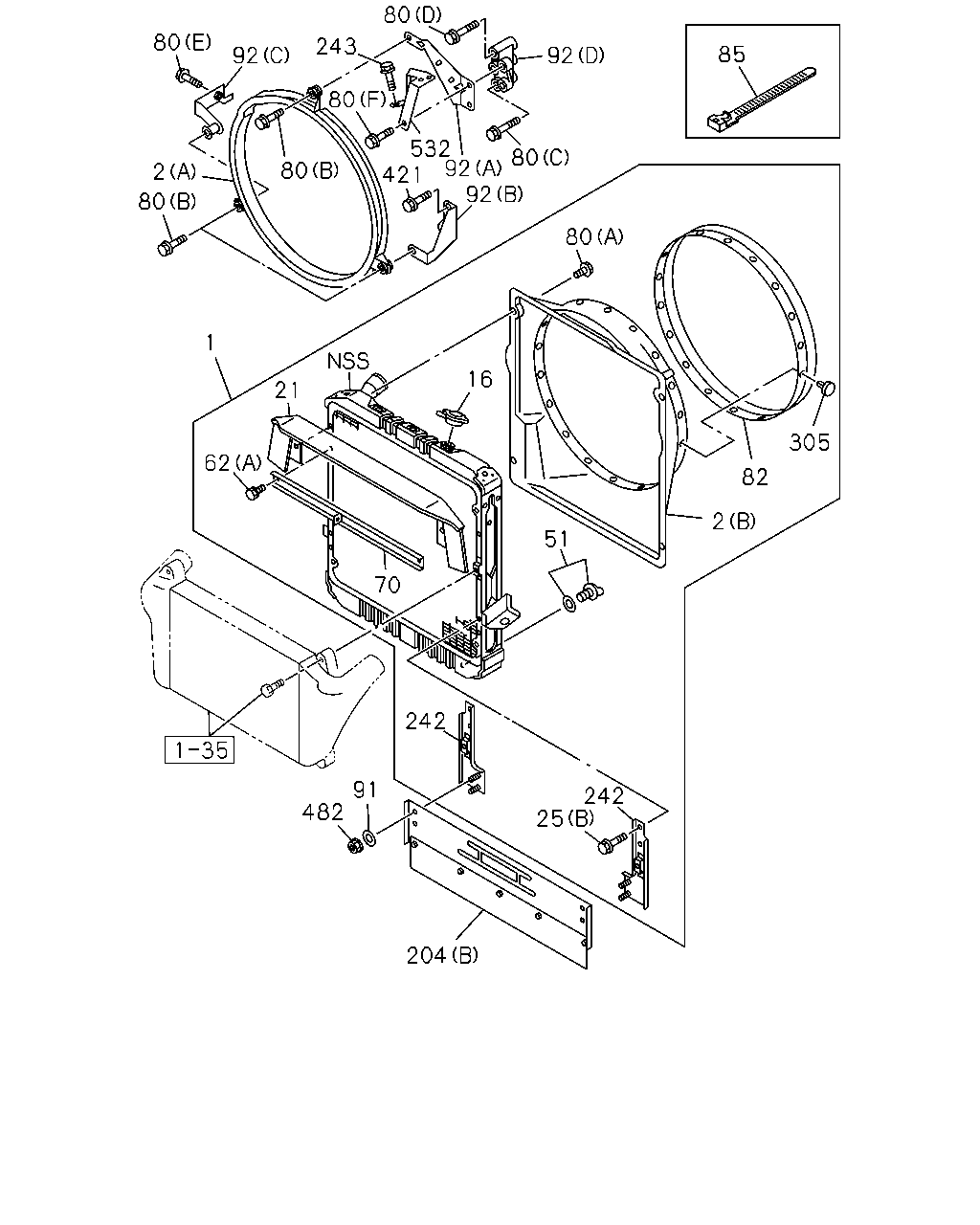

80 80 243 85 92 92 80 532 80 92 421 92 80 2 80 80 1 16 21 305 62 82 2 51 70 242 91 242 25 482 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 RADIATOR ASM 4JH1 ENG(RJX)	8-97351-778-1	01	1	0211-0501	●	●	●
1	01.219 RADIATOR ASM 4JH1-TC ENG(RDM)	8-97351-778-2	01	1	0502-	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (A)	8-97287-037-2	01	1	0211-0501	●	●	●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (A)	8-97287-037-2	01	1	0502-	●	●	●
2	01.277 GUIDE; FAN 4JH1 ENG(RJX) (B)	8-97350-179-0	01	1	0211-0501	●	●	●
2	01.277 GUIDE; FAN 4JH1-TC ENG(RDM) (B)	8-97350-179-0	01	1	0502-	●	●	●
16	01.203 CAP; RAD 4JH1 ENG(RJX)	8-97239-187-0	01	1	0211-0501	●	●	●
16	01.203 CAP; RAD 4JH1-TC ENG(RDM)	8-97239-187-0	01	1	0502-	●	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX)	8-97351-774-0	01	1	0211-0307	●	●	●
21	01.276 SEAL; RAD 4JH1 ENG(RJX)	8-97370-182-0	01	1	0308-0501	●	●	●
21	01.276 SEAL; RAD 4JH1-TC ENG(RDM)	8-97370-182-0	01	1	0502-	●	●	●
25	01.271 BOLT; BRKT 4JH1 ENG(RJX) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0211-0501	●	●	●
25	01.271 BOLT; BRKT 4JH1-TC ENG(RDM) 01.428 (B) M6X12 FLANGE	0-28080-612-0	04	1	0502-	●	●	●
25	01.271 BOLT; BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512	●	●	●
25	01.271 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
51	08.951 PLUG; DRAIN 4JH1 ENG(RJX) W/GASKET	8-97171-437-0	01	1	0211-0501	●	●	●
51	08.951 PLUG; DRAIN 4JH1-TC ENG(RDM) W/GASKET	8-97171-437-0	01	1	0502-	●	●	●
62	01.271 BOLT; STAY 4JH1 ENG(RJX) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●	●	●
62	01.271 BOLT; STAY 4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0211-	●	●	●
70	01.271 STAY; RAD 4JH1 ENG(RJX)	8-97047-899-0	01	1	0211-0501	●	●	●
70	01.271 STAY; RAD 4JH1-TC ENG(RDM)	8-97047-899-0	01	1	0502-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0211-0501	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.738 (A) M6X16 FLANGE	0-28080-616-0	04	1	0502-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.540 (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	0211-0501	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.540 (B) M8X41 W/PL WASHER	8-97264-622-0	03	1	0502-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0211-0501	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.251 (C) M8X60 FLANGE	0-28080-860-0	01	1	0502-0512	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 04.686 (C) M8X60 FLANGE	0-28050-860-0	01	1	0601-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0211-0501	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28081-060-0	01	1	0502-0512	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.685 (D) M10X60 FLANGE	0-28051-060-0	01	1	0601-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 02.664 (E) M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 01.531 (E) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1 ENG(RJX) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0211-0501	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 03.405 (F) M10X25 FLANGE	0-28681-025-0	02	1	0502-0512	●	●	●
80	01.277 BOLT; FAN GUIDE 4JH1-TC ENG(RDM) 00.029 (F) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●	●
82	01.277 COVER; FAN,RAD 4JH1 ENG(RJX)	8-97260-451-0	01	1	0211-0501	●	●	●
82	01.277 COVER; FAN,RAD 4JH1-TC ENG(RDM)	8-97260-451-1	01	1	0502-	●	●	●
85	01.277 CLIP 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	01	1	0211-0501	●	●	●
85	01.277 CLIP 4JH1-TC ENG(RDM) 03.162 L=140	5-09707-031-1	01	1	0502-	●	●	●
91	01.277 WASHER; PL 4JH1 ENG(RJX) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0211-0501	●	●	●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0502-0605	●	●	●
91	01.277 WASHER; PL 4JH1-TC ENG(RDM) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (D)	8-94478-881-1	01	1	0211-0501	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (D)	8-94478-881-1	01	1	0502-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (B)	8-97240-139-2	01	1	0211-0501	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (B)	8-97240-139-3	01	1	0502-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (A)	8-97253-495-1	01	1	0211-0501	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (A)	8-97253-495-1	01	1	0502-	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1 ENG(RJX) (C)	8-97289-749-1	01	1	0211-0501	●	●	●
92	01.277 BRACKET; FAN GUIDE 4JH1-TC ENG(RDM) (C)	8-97289-749-1	01	1	0502-	●	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) (A)	8-97035-512-3	01	1	0211-	●	●	●
204	01.267 GUIDE ASM; AIR 4JH1 ENG(RJX) (B)	8-97260-121-0	01	1	0211-0501	●	●	●
204	01.267 GUIDE ASM; AIR 4JH1-TC ENG(RDM) (B)	8-97260-121-0	01	1	0502-	●	●	●
242	01.219 BRACKET; RAD 4JH1 ENG(RJX)	8-97260-452-0	01	1	0211-0501	●	●	●
242	01.219 BRACKET; RAD 4JH1-TC ENG(RDM)	8-97260-452-0	01	1	0502-	●	●	●
242	01.219 BRACKET; RAD 4JH1 ENG(RJX)	8-97260-453-0	01	1	0211-0501	●	●	●
242	01.219 BRACKET; RAD 4JH1-TC ENG(RDM)	8-97260-453-0	01	1	0502-	●	●	●
243	01.219 BOLT; BRKT 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0501	●	●	●
243	01.219 BOLT; BRKT 4JH1-TC ENG(RDM) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0502-0512	●	●	●
243	01.219 BOLT; BRKT 4JH1-TC ENG(RDM) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1 ENG(RJX)	1-09470-009-0	12	1	0211-0501	●	●	●
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4JH1-TC ENG(RDM)	1-09470-009-0	12	1	0502-	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1 ENG(RJX) 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0211-0501	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0502-0512	●	●	●
421	01.277 BOLT; BRKT FAN GUIDE 4JH1-TC ENG(RDM) 01.252 M8X80 FLANGE	0-28050-880-0	02	1	0601-	●	●	●
482	01.277 NUT; AIR GUIDE 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0211-0501	●	●	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	04	1	0502-0602	●	●	●
482	01.277 NUT; AIR GUIDE 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-	●	●	●
532	01.219 BRACKET; HEATER PIPE 4JH1 ENG(RJX)	8-97302-265-1	01	1	0211-0501	●	●	●
532	01.219 BRACKET; HEATER PIPE 4JH1-TC ENG(RDM)	8-97302-265-1	01	1	0502-	●	●	●
