◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#35869) — 46 parça
çizim 17599
218 391
BalonParca AdiParca NoAdetTipApplied Date A B C
218 03.452 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
218 03.452 NUT; BRKT
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
218 03.452 NUT; BRKT
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
391 03.452 BRACKET; ENG CONT
4JH1 ENG(RJX) 		8-97352-772-0 01 1 0211-0501 ● ● ●
391 03.452 BRACKET; ENG CONT
4JH1-TC ENG(RDM) 		8-97352-772-0 01 1 0502- ● ● ●

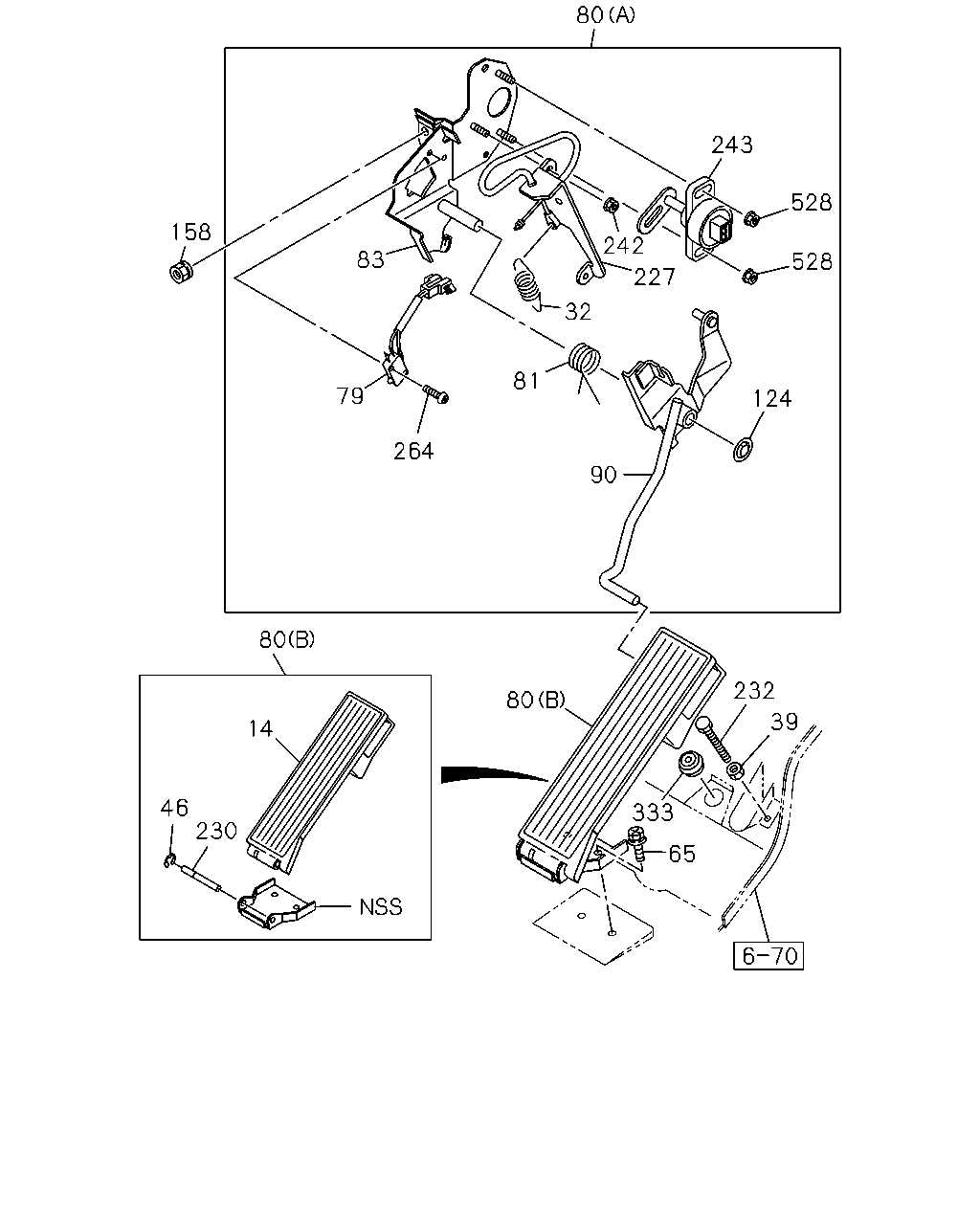

çizim 69786
80 243 528 158 242 83 528 227 32 81 79 124 264 90 80 232 80 39 14 46 230 333 65
BalonParca AdiParca NoAdetTipApplied Date A B C
14 03.451 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0211- ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL
4JH1 ENG(RJX) 		8-97997-917-0 01 1 0211-0501 ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL
4JH1-TC ENG(RDM) 		8-97997-917-0 01 1 0502- ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.559 M8 		9-09110-408-0 01 1 0211-0512 ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.334 M8 		0-91110-508-0 01 1 0601- ● ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
04.040 ID=4 		9-09185-404-0 01 1 0211-0604 ● ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0605- ● ● ●
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0211- ● ● ●
79 03.451 SWITCH; ACCEL PEDAL
4JH1 ENG(RJX) 		8-97224-056-0 01 1 0211-0501 ● ● ●
79 03.451 SWITCH; ACCEL PEDAL
4JH1-TC ENG(RDM) 		8-97224-056-0 01 1 0502- ● ● ●
80 03.452 LINK ASM; ENG CONT
(B) 		8-97853-061-2 01 1 0211- ● ● ●
80 03.452 LINK ASM; ENG CONT
4JH1 ENG(RJX) (A) 		8-97892-195-8 01 1 0211-0501 ● ● ●
80 03.452 LINK ASM; ENG CONT
4JH1-TC ENG(RDM) (A) 		8-97892-195-9 01 1 0502-1205 ● ● ●
80 03.452 LINK ASM; ENG CONT
4JH1-TC ENG(RDM) (A) 		8-98216-821-0 01 1 1206- ● ● ●
81 03.459 SPRING; RETURN,ENG CONT LEVER
4JH1 ENG(RJX) 		8-97853-205-1 01 1 0211-0501 ● ● ●
81 03.459 SPRING; RETURN,ENG CONT LEVER
4JH1-TC ENG(RDM) 		8-97853-205-1 01 1 0502- ● ● ●
83 03.452 BRACKET; CONT LINK
4JH1 ENG(RJX) 		8-97892-196-3 01 1 0211-0501 ● ● ●
83 03.452 BRACKET; CONT LINK
4JH1-TC ENG(RDM) 		8-97892-196-4 01 1 0502- ● ● ●
90 03.454 LEVER; RELAY,ENG CONT
4JH1 ENG(RJX) 		8-97892-197-3 01 1 0211-0501 ● ● ●
90 03.454 LEVER; RELAY,ENG CONT
4JH1-TC ENG(RDM) 		8-97892-197-5 01 1 0502- ● ● ●
124 03.463 NUT; LEVER
4JH1 ENG(RJX) 09.011 ID=9.9 PUSH NUT 		8-97012-098-0 01 1 0211-0501 ● ● ●
124 03.463 NUT; LEVER
4JH1-TC ENG(RDM) 09.011 ID=9.9 PUSH NUT 		8-97012-098-0 01 1 0502- ● ● ●
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 0211- ● ● ●
227 03.430 CABLE ASM; RETURN,ACCEL PEDAL
4JH1 ENG(RJX) 		8-97892-203-5 01 1 0211-0501 ● ● ●
227 03.430 CABLE ASM; RETURN,ACCEL PEDAL
4JH1-TC ENG(RDM) 		8-97892-203-5 01 1 0502- ● ● ●
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0211- ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
04.642 M8X65 		0-20800-865-0 01 1 0211-0404 ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 0405- ● ● ●
242 03.483 NUT; ACCEL PEDAL
4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 0211-0501 ● ● ●
242 03.483 NUT; ACCEL PEDAL
4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 0502-0805 ● ● ●
242 03.483 NUT; ACCEL PEDAL
4JH1-TC ENG(RDM) 04.115 M6 W/DISHED WASHER 		8-98029-921-0 01 1 0806- ● ● ●
243 03.425 SENSOR; ACCEL
4JH1 ENG(RJX) 		8-97200-308-0 01 1 0211-0501 ● ● ●
243 03.425 SENSOR; ACCEL
4JH1-TC ENG(RDM) 		8-97200-308-0 01 1 0502- ● ● ●
264 03.425 SCREW; ACCEL SW
4JH1 ENG(RJX) 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0211-0501 ● ● ●
264 03.425 SCREW; ACCEL SW
4JH1-TC ENG(RDM) 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 0502-0603 ● ● ●
264 03.425 SCREW; ACCEL SW
4JH1-TC ENG(RDM) M3X16 TAPPING 		0-71340-316-0 02 1 0604- ● ● ●
333 03.671 GROMMET; HOLE,CABLE
4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 0211-0501 ● ● ●
333 03.671 GROMMET; HOLE,CABLE
4JH1-TC ENG(RDM) 16.545 OD=24.5 T=7.5 		8-97224-683-0 01 1 0502- ● ● ●
528 03.463 NUT; ACCEL SENSOR
4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER 		8-94423-325-0 02 1 0211-0501 ● ● ●
528 03.463 NUT; ACCEL SENSOR
4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER 		8-94423-325-0 02 1 0502-0805 ● ● ●
528 03.463 NUT; ACCEL SENSOR
4JH1-TC ENG(RDM) 04.115 M6 W/DISHED WASHER 		8-98029-921-0 02 1 0806- ● ● ●
