0-66 — GENERATOR (#35865) — 55 parça

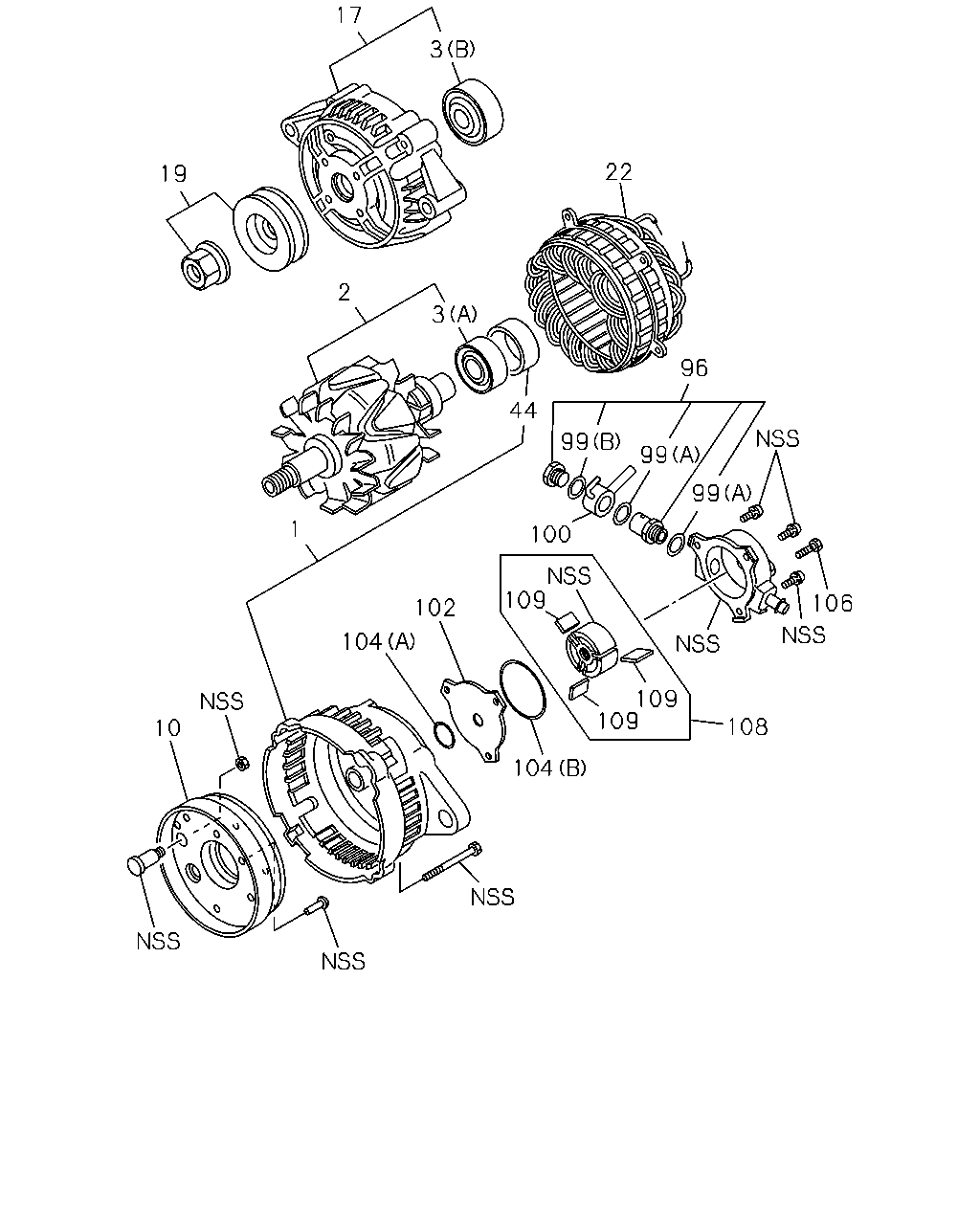

17 3 22 19 2 3 96 44 99 99 99 1 100 109 106 102 104 109 109 108 10 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0405
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97249-209-3, 97249209	8-97313-441-0	01	1	-0405
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0406-1208
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97249-209-3, 97249209	8-97374-472-0	01	1	0406-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97240-270-2, 97240270	8-98230-323-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97249-209-3, 97249209	8-98230-324-0	01	1	1209-
2	02.279 ROTOR; GEN 03.280 ASM PART: A = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: B = 8-97249-209-3, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97249-209-3, 97249209	8-97148-112-0	01	1	-1007
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97240-270-2, 97240270	8-98159-457-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97249-209-3, 97249209	8-98159-457-0	01	1	1008-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-97313-444-0	01	1	-0405
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0406-1208
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97249-209-3, 97249209	8-97374-473-0	01	1	0406-1208
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-98230-332-0	01	1	1209-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97249-209-3, 97249209	8-97313-447-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97249-209-3, 97249209	8-97313-448-0	01	1	-0405
19	02.274 PULLEY; GEN ASM PART: A = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97249-209-3, 97249209	8-97313-449-0	01	1	0406-
22	02.310 STATOR; GEN ASM PART: A = 8-97240-270-2, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97249-209-3, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94156-589-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97249-209-3, 97249209	8-97313-452-0	01	1	-0405
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97249-209-3, 97249209	8-97313-453-0	01	1	0406-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-994-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-985-0	03	1	-

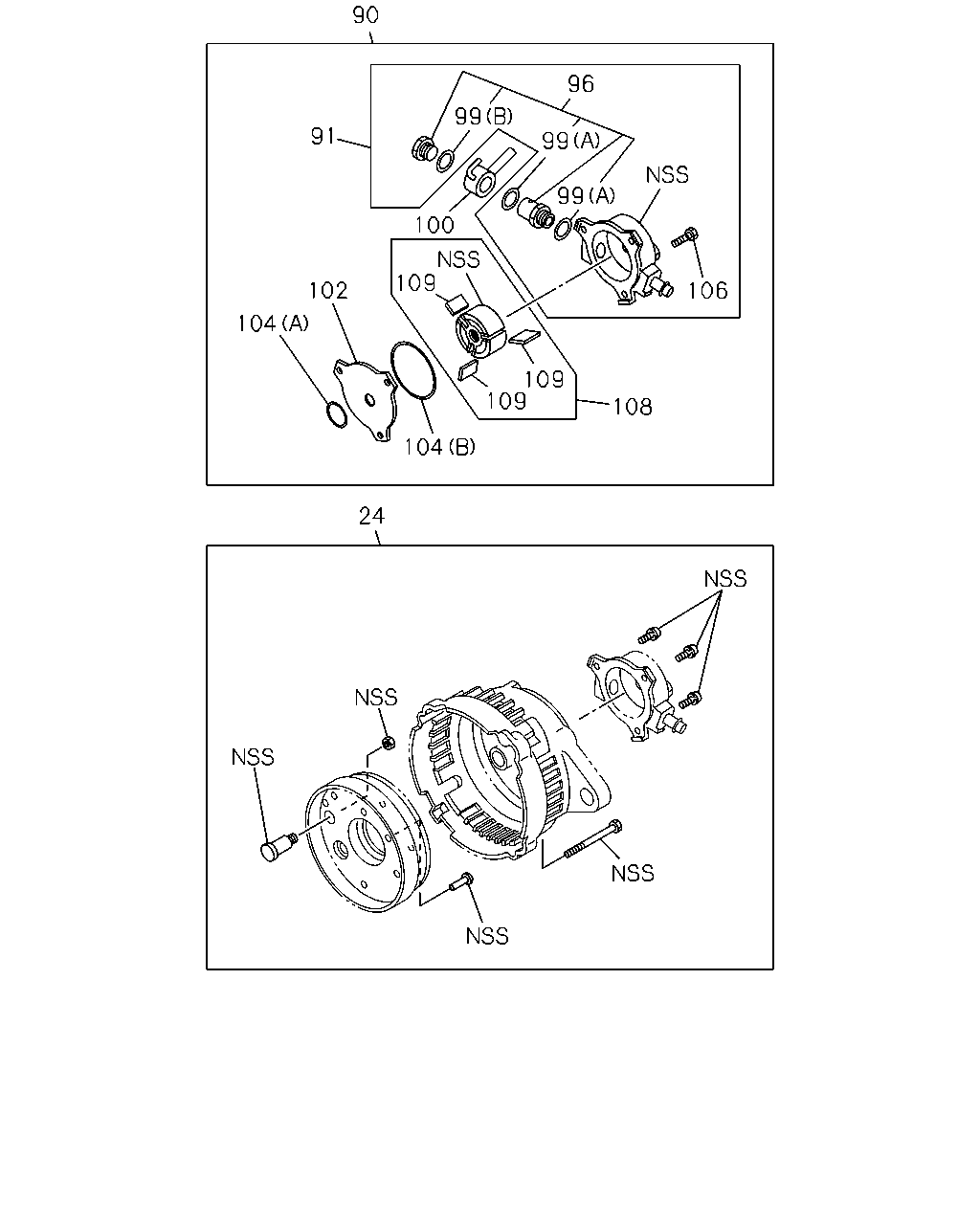

90 96 99 91 99 99 100 109 102 106 104 109 109 108 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97249-209-3, 97249209	8-97313-450-0	01	1	-0405
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97249-209-3, 97249209	8-97313-451-0	01	1	0406-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97249-209-3, 97249209	8-97313-452-0	01	1	-0405
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97249-209-3, 97249209	8-97313-453-0	01	1	0406-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-994-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97240-270-2, 97240270, B = 8-97249-209-3, 97249209	8-94223-985-0	03	1	-
