◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#35864) — 23 parça

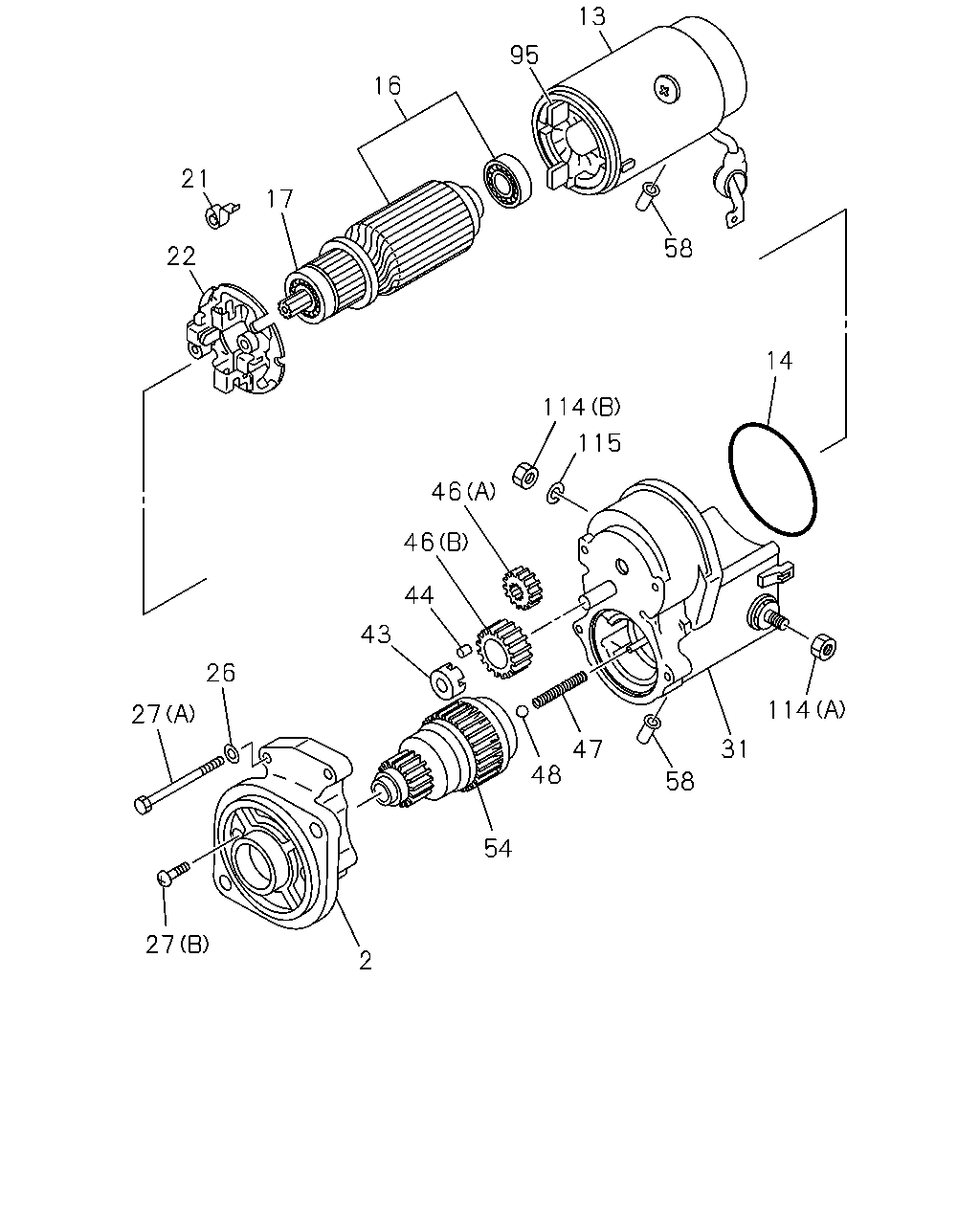

çizim 71877
13 95 16 21 17 58 22 14 114 115 46 46 44 43 26 114 27 31 47 48 58 54 27 2
BalonParca AdiParca NoAdetTipApplied Date
2 02.085 CASE; PINION,STARTER
ASM PART: A = 8-97042-997-2, 97042997 		8-94167-435-0 01 1 -
13 02.049 YOKE; STARTER
ASM PART: A = 8-97042-997-2, 97042997 		8-94167-425-0 01 1 -
14 02.087 GASKET; YOKE,STARTER
ASM PART: A = 8-97042-997-2, 97042997 		8-94167-428-0 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: A = 8-97042-997-2, 97042997 		8-97083-193-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
ASM PART: A = 8-97042-997-2, 97042997 		8-97083-195-0 01 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-97042-997-2, 97042997 		5-81117-015-0 04 1 -
22 02.051 HOLDER; BRUSH STARTER
ASM PART: A = 8-97042-997-2, 97042997 		8-94167-430-0 01 1 -
26 02.077 SEAL; THROUGH BOLT STARTER
02.085 ASM PART: A = 8-97042-997-2, 97042997 		5-81129-211-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
(A) ASM PART: A = 8-97042-997-2, 97042997 		8-94167-433-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
(B) ASM PART: A = 8-97042-997-2, 97042997 		8-94167-434-0 02 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97042-997-2, 97042997 		8-97083-196-0 01 1 -
43 02.086 RETAINER; PINION STARTER
ASM PART: A = 8-97042-997-2, 97042997 		5-81129-100-0 01 1 -
44 02.086 ROLLER; PINION STARTER
ASM PART: A = 8-97042-997-2, 97042997 		5-81129-099-0 05 1 -
46 02.086 GEAR; CLU STARTER
(A) ASM PART: A = 8-97042-997-2, 97042997 		5-81123-010-0 01 1 -
46 02.086 GEAR; CLU STARTER
(B) ASM PART: A = 8-97042-997-2, 97042997 		8-94167-427-0 01 1 -
47 02.086 SPRING; PINION STARTER
02.108 ASM PART: A = 8-97042-997-2, 97042997 		5-81129-096-0 01 1 -
48 02.108 BALL; PINION,STARTER
ASM PART: A = 8-97042-997-2, 97042997 		5-81129-092-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
ASM PART: A = 8-97042-997-2, 97042997 		5-81124-003-1 01 1 -
58 03.330 PIPE; DRAIN RR COVER STARTER
ASM PART: A = 8-97042-997-2, 97042997 		1-81129-677-0 02 1 -
95 02.051 BRUSH ASM; STARTER
ASM PART: A = 8-97042-997-2, 97042997 		8-97083-194-0 01 1 -
114 02.055 NUT; TERMINAL
02.042, (A) ASM PART: A = 8-97042-997-2, 97042997 		5-09400-042-0 01 1 -
114 02.055 NUT; TERMINAL
00.002, (B) ASM PART: A = 8-97042-997-2, 97042997 		9-09110-508-0 01 1 -
115 02.063 WASHER; TERMINAL
00.002, ID=8.2 ASM PART: A = 8-97042-997-2, 97042997 		9-09150-508-0 01 1 -
