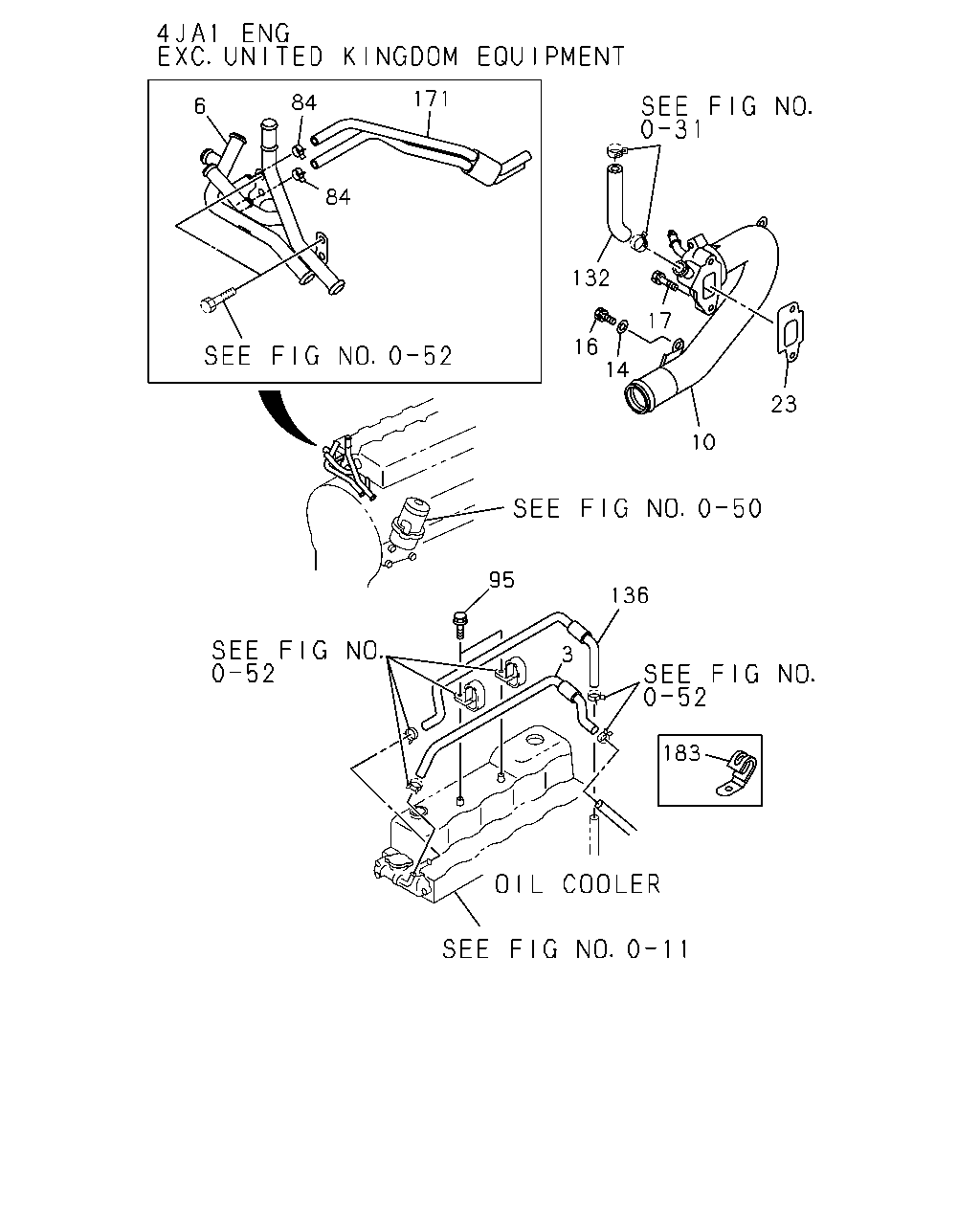

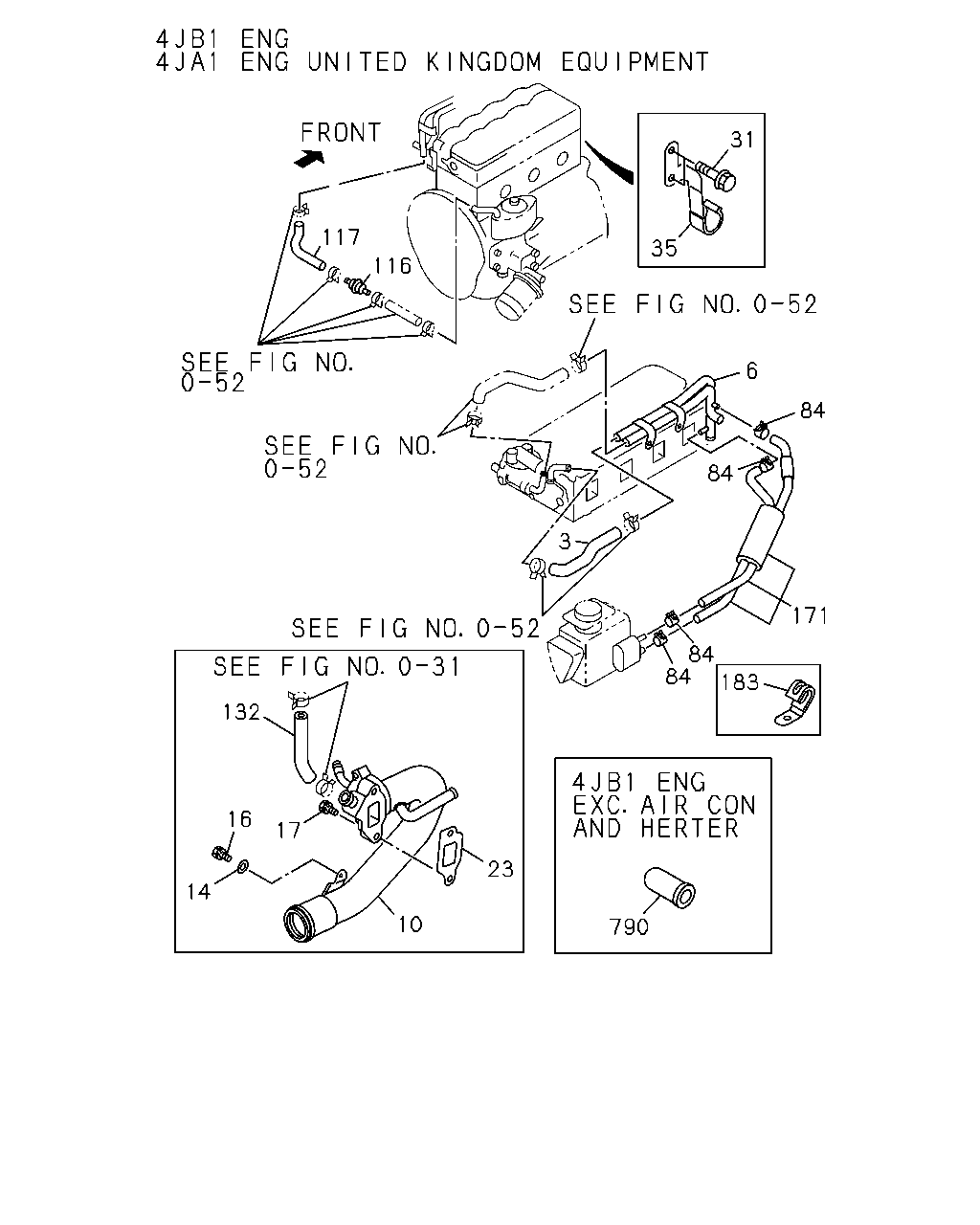

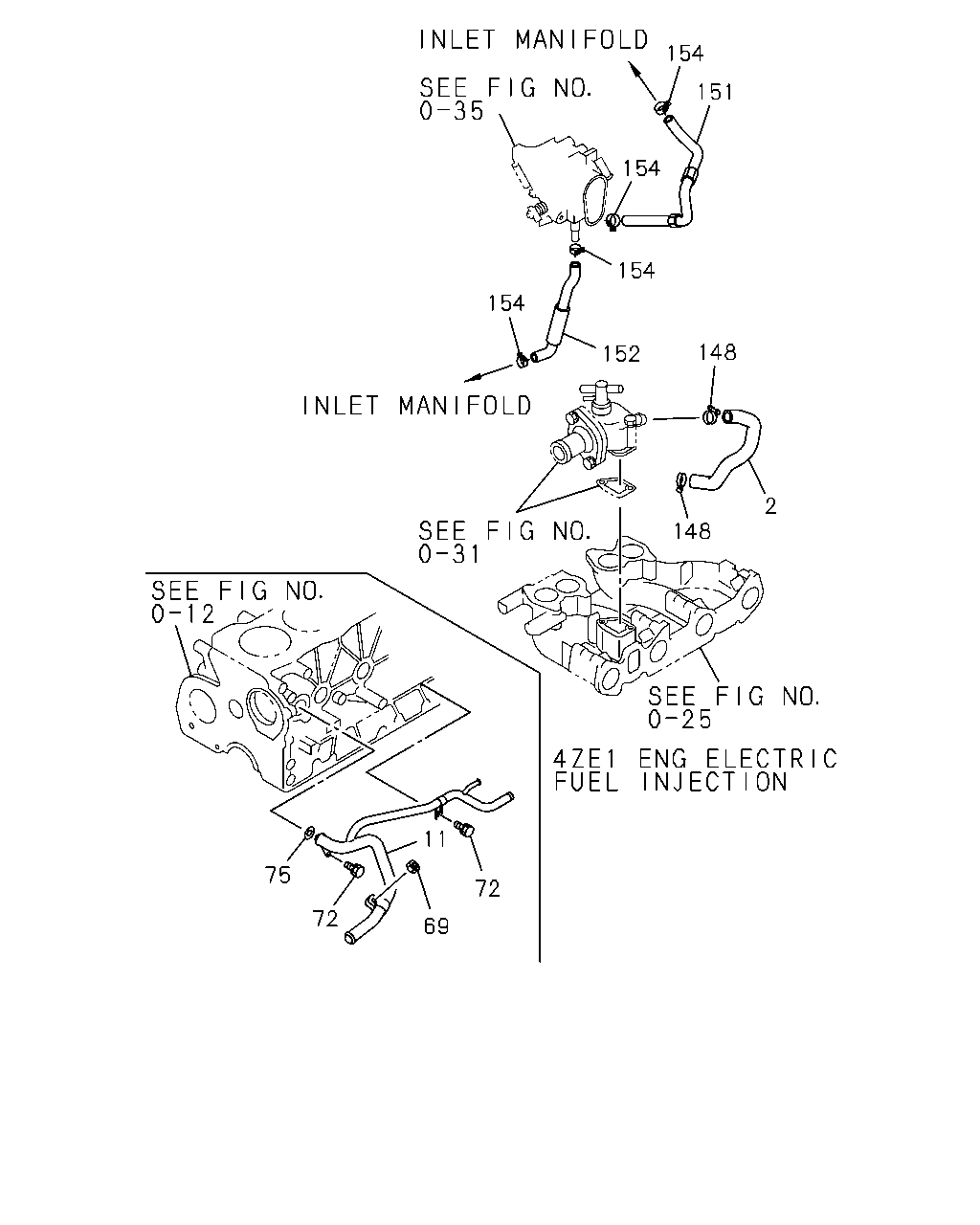

0-32 — WATER PIPING; ENGINE (#35862) — 70 parça

148 2 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	01.097 HOSE; WATER,BY-PASS ELECTRIC FUEL INJECTION<6GG>	8-97108-079-0	01	1	9611-	●
2	01.097 HOSE; WATER,BY-PASS	8-97167-694-1	01	1	9712-		●
148	01.097 CLIP; BYPASS HOSE ELECTRIC FUEL INJECTION<6GG> 01.166 ID=20.8	8-94125-862-0	01	1	9611-	●
148	01.097 CLIP; BYPASS HOSE ELECTRIC FUEL INJECTION<6GG> 01.540 ID=18.9	8-94478-875-0	01	1	9611-	●
148	01.097 CLIP; BYPASS HOSE 01.540 ID=18.9	8-94478-875-0	02	1	9712-		●

84 6 171 84 95 136 3 10 23 14 16 132 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9611-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9611-		●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.855	8-94475-205-1	01	1	9611-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97133-316-1	01	1	9611-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9611-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	9611-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY>	8-94475-203-2	01	1	9611-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. COLD START DEVICE<7LY>	8-97116-640-0	01	1	9611-		●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3)	8-97041-039-3	01	1	9611-	●
10	01.153 PIPE; SUCTION	8-97041-039-3	01	1	9611-		●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94340-787-3	01	1	9611-	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9611-	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9611-	●	●
17	01.153 BOLT; SUCTION PIPE 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9611-	●	●
17	01.153 BOLT; SUCTION PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9611-	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9611-	●	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 03.162 ID=15.5	8-94221-519-0	04	1	9611-	●	●
95	01.240 BOLT; CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	9611-	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9611-		●
136	01.540 HOSE; OIL COOLER,RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94475-206-2	01	1	9611-	●
171	01.240 HOSE; RUBBER,WAX CSD COLD START DEVICE<7LY>	8-97133-305-0	01	1	9611-	●
171	01.240 HOSE; RUBBER,WAX CSD UNITED KINGDOM EQUIPMENT(EK3)	8-97048-903-3	01	1	9611-	●
171	01.240 HOSE; RUBBER,WAX CSD COLD START DEVICE<7LY> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97049-001-2	01	1	9611-	●	●

117 116 35 31 6 84 84 3 171 84 84 183 790 23 10 17 16 14 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9611-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9611-		●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.855	8-94475-205-1	01	1	9611-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97133-316-1	01	1	9611-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9611-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	9611-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY>	8-94475-203-2	01	1	9611-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. COLD START DEVICE<7LY>	8-97116-640-0	01	1	9611-		●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3)	8-97041-039-3	01	1	9611-	●
10	01.153 PIPE; SUCTION	8-97041-039-3	01	1	9611-		●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94340-787-3	01	1	9611-	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9611-	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9611-	●	●
17	01.153 BOLT; SUCTION PIPE 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9611-	●	●
17	01.153 BOLT; SUCTION PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9611-	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9611-	●	●
31	01.159 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9611-	●
35	01.242 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 01.540	8-97039-302-0	01	1	9611-	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 03.162 ID=15.5	8-94221-519-0	04	1	9611-	●	●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	9611-	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	9611-	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	9611-	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9611-		●
171	01.240 HOSE; RUBBER,WAX CSD COLD START DEVICE<7LY>	8-97133-305-0	01	1	9611-	●
171	01.240 HOSE; RUBBER,WAX CSD UNITED KINGDOM EQUIPMENT(EK3)	8-97048-903-3	01	1	9611-	●
171	01.240 HOSE; RUBBER,WAX CSD COLD START DEVICE<7LY> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97049-001-2	01	1	9611-	●	●
183	01.242 CLIP; VACUUM HOSE 02.559 ID=12	5-09700-331-0	01	1	9611-	●	●
790	01.097 CAP EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3)	8-94414-688-0	02	1	9611-9702		●
790	01.097 CAP EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIA EQUIPMENT(RR3),COOLER WO/HEATER(YL1)	8-94414-688-0	02	1	9703-		●

152 154 154 154 148 2 148 11 72 69 72 75 154 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E	F
2	01.097 HOSE; WATER,BY-PASS ELECTRIC FUEL INJECTION<6GG>	8-97108-079-0	01	1	9611-	●
2	01.097 HOSE; WATER,BY-PASS	8-97167-694-1	01	1	9712-		●
11	01.097 PIPE; INL,WATER PUMP	8-94474-078-3	01	1	9611-	●		●	●
69	01.153 NUT; WATER PIPE 07.829 M6 FLANGE	5-09440-004-0	01	1	9611-	●		●	●
72	00.206 BOLT; WATER PIPE M8X14 W/LK WASHER	0-50040-814-0	02	1	9611-	●		●	●
75	01.097 GASKET; INL PIPE TO WATER PUMP 01.154	8-94235-013-0	01	1	9611-	●		●	●
148	01.097 CLIP; BYPASS HOSE ELECTRIC FUEL INJECTION<6GG> 01.166 ID=20.8	8-94125-862-0	01	1	9611-	●
148	01.097 CLIP; BYPASS HOSE ELECTRIC FUEL INJECTION<6GG> 01.540 ID=18.9	8-94478-875-0	01	1	9611-	●
148	01.097 CLIP; BYPASS HOSE 01.540 ID=18.9	8-94478-875-0	02	1	9712-		●
151	01.153 HOSE; WATER OUTLET ELECTRIC FUEL INJECTION<6GG>	8-97037-869-0	01	1	9611-	●
152	01.153 HOSE; WATER INL ELECTRIC FUEL INJECTION<6GG>	8-97037-868-0	01	1	9611-	●
154	01.153 CLIP; WATER HOSE ELECTRIC FUEL INJECTION<6GG> 03.162 ID=15.5	8-94221-519-0	04	1	9611-	●
