3-34 — BRAKE VALVE; AIR (#3586) — 177 parça

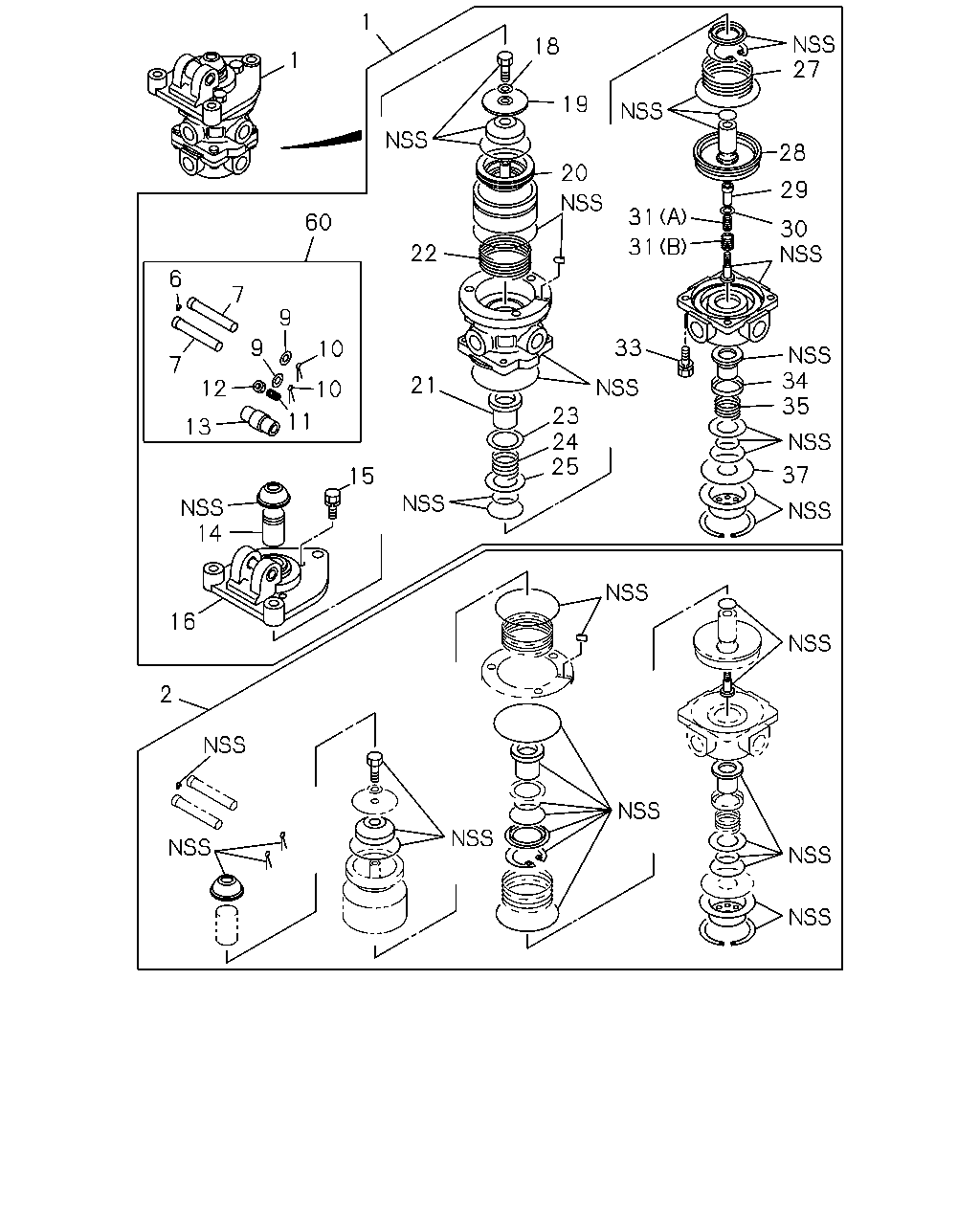

1 27 18 1 19 28 20 29 31 60 30 31 22 6 7 9 33 9 10 34 35 7 21 12 10 23 24 25 11 13 37 15 14 16 2 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-675-1	01	1	9002-9409
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-733-1	01	1	9410-
1	VALVE; BRK EXC. TAIWAN EQUIPMENT(WW5)	1-48100-604-1	01	1	9002-
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-054-0	01	1	9002-9409
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-147-0	01	1	9410-
6	PIN; PEDAL,SIDE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-103-0	01	1	9002-
6	PIN; PEDAL,SIDE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-083-0	02	1	9002-
7	PIN; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-244-0	02	1	9002-
7	PIN; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-082-0	02	1	9002-
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-106-0	02	1	9002-9002
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-106-0	04	1	9003-9409
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-106-0	02	1	9410-
10	PIN; SPLIT,BRK VLV TAIWAN EQUIPMENT(WW5) OD=2.8 L=18	9-08113-018-0	02	1	9002-
10	PIN; SPLIT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-087-0	02	1	9002-
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-245-0	01	1	9002-
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-088-0	01	1	9002-
12	NUT; SCREW,PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	9-88510-123-0	01	1	9002-
12	NUT; SCREW,PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-089-0	01	1	9002-
13	ROLLER; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-243-0	01	1	9002-
13	ROLLER; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-257-0	01	1	9002-
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-306-0	01	1	9002-9409
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-345-0	01	1	9410-
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-220-0	01	1	9002-
15	BOLT; PLATE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48219-039-0	03	1	9002-
15	BOLT; PLATE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-232-0	03	1	9002-
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5)	1-48119-268-0	01	1	9002-
16	PLATE; MTG,BRKT VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-261-2	01	1	9002-
18	WASHER; LK,SEAT,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48419-002-0	01	1	9002-9306
18	WASHER; LK,SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-155-0	01	1	9002-9306
18	WASHER; LK,SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-156-0	01	1	9307-
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-058-0	01	1	9002-9409
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-041-0	01	1	9410-
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-172-0	01	1	9002-
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-295-0	01	1	9002-9409
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-336-0	01	1	9410-
20	PISTON; UPR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-251-0	01	1	9002-
21	BUSHING; UPR BODY TAIWAN EQUIPMENT(WW5)	1-48119-293-0	01	1	9002-
22	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48143-009-0	01	1	9002-
23	WASHER; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-145-0	01	1	9002-
24	SPRING; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-018-0	01	1	9002-
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-287-0	01	1	9002-9409
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-138-0	01	1	9410-
25	WASHER; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-149-0	01	1	9002-
27	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-020-0	01	1	9002-9409
27	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-055-0	01	1	9410-
28	PISTON; LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-140-0	01	1	9002-
28	PISTON; LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-249-0	01	1	9002-
29	SLEEVE; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-083-1	01	1	9002-
30	WASHER; SLEEVE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-082-0	01	1	9002-
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (A)	1-48123-032-0	01	1	9002-
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (B)	1-48123-033-0	01	1	9002-
33	BOLT; BODY,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-213-0	04	1	9002-
33	BOLT; BODY,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-068-0	04	1	9002-
34	RETAINER; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-144-0	01	1	9002-
34	RETAINER; VLV,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48122-010-0	01	1	9002-
35	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-019-0	01	1	9002-
37	WASHER; VLV LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-080-0	01	1	9002-
37	WASHER; VLV LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-163-0	01	1	9002-
60	ROLLER & PIN SET; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-122-1	01	1	9002-

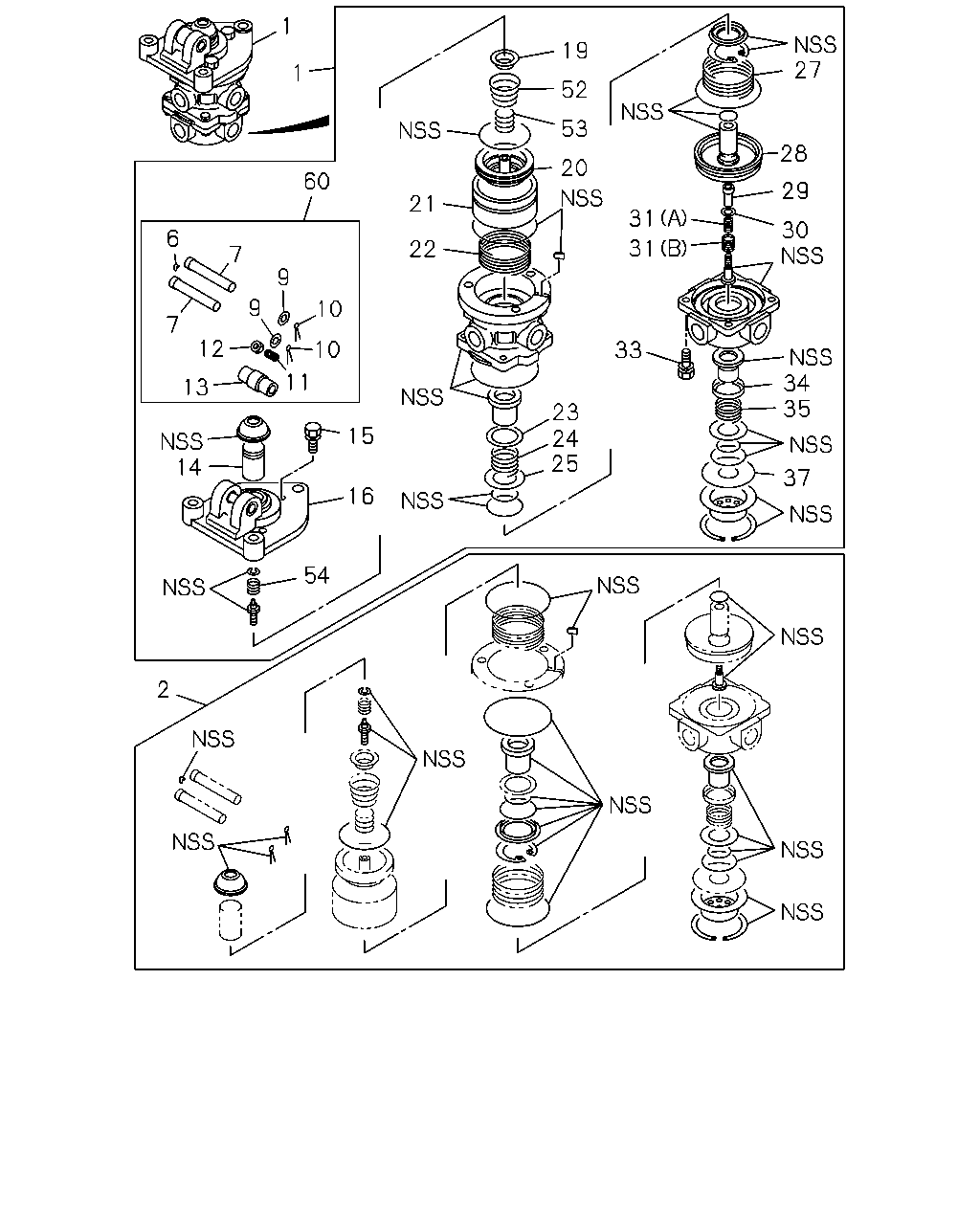

1 27 19 1 52 53 28 20 60 29 21 31 30 6 31 22 7 9 9 10 7 12 10 33 34 35 11 13 23 24 25 15 14 37 16 54 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-675-1	01	1	9002-9409
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-733-1	01	1	9410-
1	VALVE; BRK EXC. TAIWAN EQUIPMENT(WW5)	1-48100-604-1	01	1	9002-
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-054-0	01	1	9002-9409
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-147-0	01	1	9410-
6	PIN; PEDAL,SIDE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-103-0	01	1	9002-
6	PIN; PEDAL,SIDE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-083-0	02	1	9002-
7	PIN; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-244-0	02	1	9002-
7	PIN; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-082-0	02	1	9002-
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-106-0	02	1	9002-9002
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-106-0	04	1	9003-9409
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-106-0	02	1	9410-
10	PIN; SPLIT,BRK VLV TAIWAN EQUIPMENT(WW5) OD=2.8 L=18	9-08113-018-0	02	1	9002-
10	PIN; SPLIT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-087-0	02	1	9002-
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-245-0	01	1	9002-
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-088-0	01	1	9002-
12	NUT; SCREW,PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	9-88510-123-0	01	1	9002-
12	NUT; SCREW,PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-089-0	01	1	9002-
13	ROLLER; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-243-0	01	1	9002-
13	ROLLER; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-257-0	01	1	9002-
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-306-0	01	1	9002-9409
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-345-0	01	1	9410-
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-220-0	01	1	9002-
15	BOLT; PLATE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48219-039-0	03	1	9002-
15	BOLT; PLATE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-232-0	03	1	9002-
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5)	1-48119-268-0	01	1	9002-
16	PLATE; MTG,BRKT VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-261-2	01	1	9002-
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-058-0	01	1	9002-9409
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-041-0	01	1	9410-
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-172-0	01	1	9002-
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-295-0	01	1	9002-9409
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-336-0	01	1	9410-
20	PISTON; UPR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-251-0	01	1	9002-
21	BUSHING; UPR BODY TAIWAN EQUIPMENT(WW5)	1-48119-293-0	01	1	9002-
22	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48143-009-0	01	1	9002-
23	WASHER; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-145-0	01	1	9002-
24	SPRING; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-018-0	01	1	9002-
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-287-0	01	1	9002-9409
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-138-0	01	1	9410-
25	WASHER; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-149-0	01	1	9002-
27	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-020-0	01	1	9002-9409
27	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-055-0	01	1	9410-
28	PISTON; LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-140-0	01	1	9002-
28	PISTON; LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-249-0	01	1	9002-
29	SLEEVE; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-083-1	01	1	9002-
30	WASHER; SLEEVE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-082-0	01	1	9002-
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (A)	1-48123-032-0	01	1	9002-
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (B)	1-48123-033-0	01	1	9002-
33	BOLT; BODY,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-213-0	04	1	9002-
33	BOLT; BODY,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-068-0	04	1	9002-
34	RETAINER; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-144-0	01	1	9002-
34	RETAINER; VLV,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48122-010-0	01	1	9002-
35	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-019-0	01	1	9002-
37	WASHER; VLV LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-080-0	01	1	9002-
37	WASHER; VLV LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-163-0	01	1	9002-
52	SPRING; PISTON,OUTER,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-040-0	01	1	9410-
53	SPRING; PISTON,INNER,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-068-0	01	1	9410-
54	SPRING; PISTON,UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-067-0	01	1	9410-
60	ROLLER & PIN SET; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-122-1	01	1	9002-

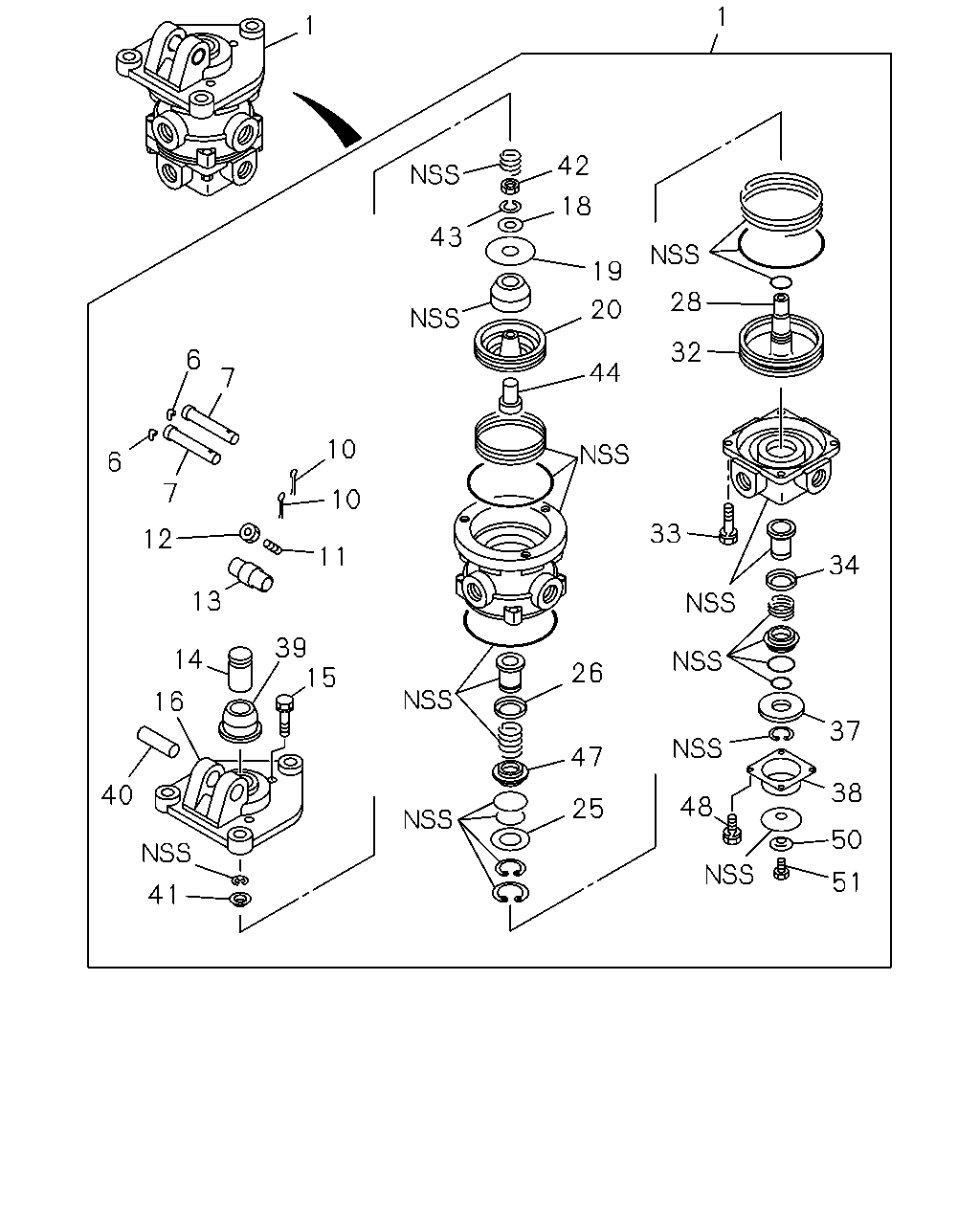

1 1 42 18 43 19 28 20 32 6 44 7 10 6 7 10 33 12 11 34 13 39 15 14 26 16 37 47 38 40 48 25 50 51 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-675-1	01	1	9002-9409
1	VALVE; BRK TAIWAN EQUIPMENT(WW5)	1-48100-733-1	01	1	9410-
1	VALVE; BRK EXC. TAIWAN EQUIPMENT(WW5)	1-48100-604-1	01	1	9002-
6	PIN; PEDAL,SIDE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-103-0	01	1	9002-
6	PIN; PEDAL,SIDE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-083-0	02	1	9002-
7	PIN; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-244-0	02	1	9002-
7	PIN; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-082-0	02	1	9002-
10	PIN; SPLIT,BRK VLV TAIWAN EQUIPMENT(WW5) OD=2.8 L=18	9-08113-018-0	02	1	9002-
10	PIN; SPLIT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-087-0	02	1	9002-
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-245-0	01	1	9002-
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-088-0	01	1	9002-
12	NUT; SCREW,PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	9-88510-123-0	01	1	9002-
12	NUT; SCREW,PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-089-0	01	1	9002-
13	ROLLER; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-243-0	01	1	9002-
13	ROLLER; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-257-0	01	1	9002-
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-306-0	01	1	9002-9409
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-345-0	01	1	9410-
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-220-0	01	1	9002-
15	BOLT; PLATE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48219-039-0	03	1	9002-
15	BOLT; PLATE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-232-0	03	1	9002-
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5)	1-48119-268-0	01	1	9002-
16	PLATE; MTG,BRKT VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-261-2	01	1	9002-
18	WASHER; LK,SEAT,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48419-002-0	01	1	9002-9306
18	WASHER; LK,SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-155-0	01	1	9002-9306
18	WASHER; LK,SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-156-0	01	1	9307-
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-058-0	01	1	9002-9409
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-041-0	01	1	9410-
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-172-0	01	1	9002-
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-295-0	01	1	9002-9409
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-336-0	01	1	9410-
20	PISTON; UPR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-251-0	01	1	9002-
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-287-0	01	1	9002-9409
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-138-0	01	1	9410-
25	WASHER; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-149-0	01	1	9002-
26	RETAINER; VLV,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48122-003-0	01	1	9002-
28	PISTON; LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-140-0	01	1	9002-
28	PISTON; LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-249-0	01	1	9002-
32	SCREW; BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48121-034-0	01	1	9002-
33	BOLT; BODY,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48119-213-0	04	1	9002-
33	BOLT; BODY,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-068-0	04	1	9002-
34	RETAINER; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-144-0	01	1	9002-
34	RETAINER; VLV,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48122-010-0	01	1	9002-
37	WASHER; VLV LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-080-0	01	1	9002-
37	WASHER; VLV LWR,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-163-0	01	1	9002-
38	COVER; EXH,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-217-0	01	1	9002-
39	BOOT; PLUNGER,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-079-0	01	1	9002-
40	PIPE; PLATE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-086-0	01	1	9002-
41	PLATE; STEM,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-159-0	01	1	9002-
42	NUT; SPR SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-157-0	01	1	9002-
43	WASHER; SPR SEAT,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48419-002-0	01	1	9307-9409
43	WASHER; SPR SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-156-0	01	1	9002-9306
43	WASHER; SPR SEAT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-170-0	01	1	9307-
44	SLEEVE; PISTON,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-154-0	01	1	9002-
47	RETAINER; GASKET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-147-0	01	1	9002-
48	BOLT; COVER,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-216-0	04	1	9002-
50	WASHER; RET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-112-0	01	1	9002-
51	SCREW; FORMING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48129-111-0	01	1	9002-

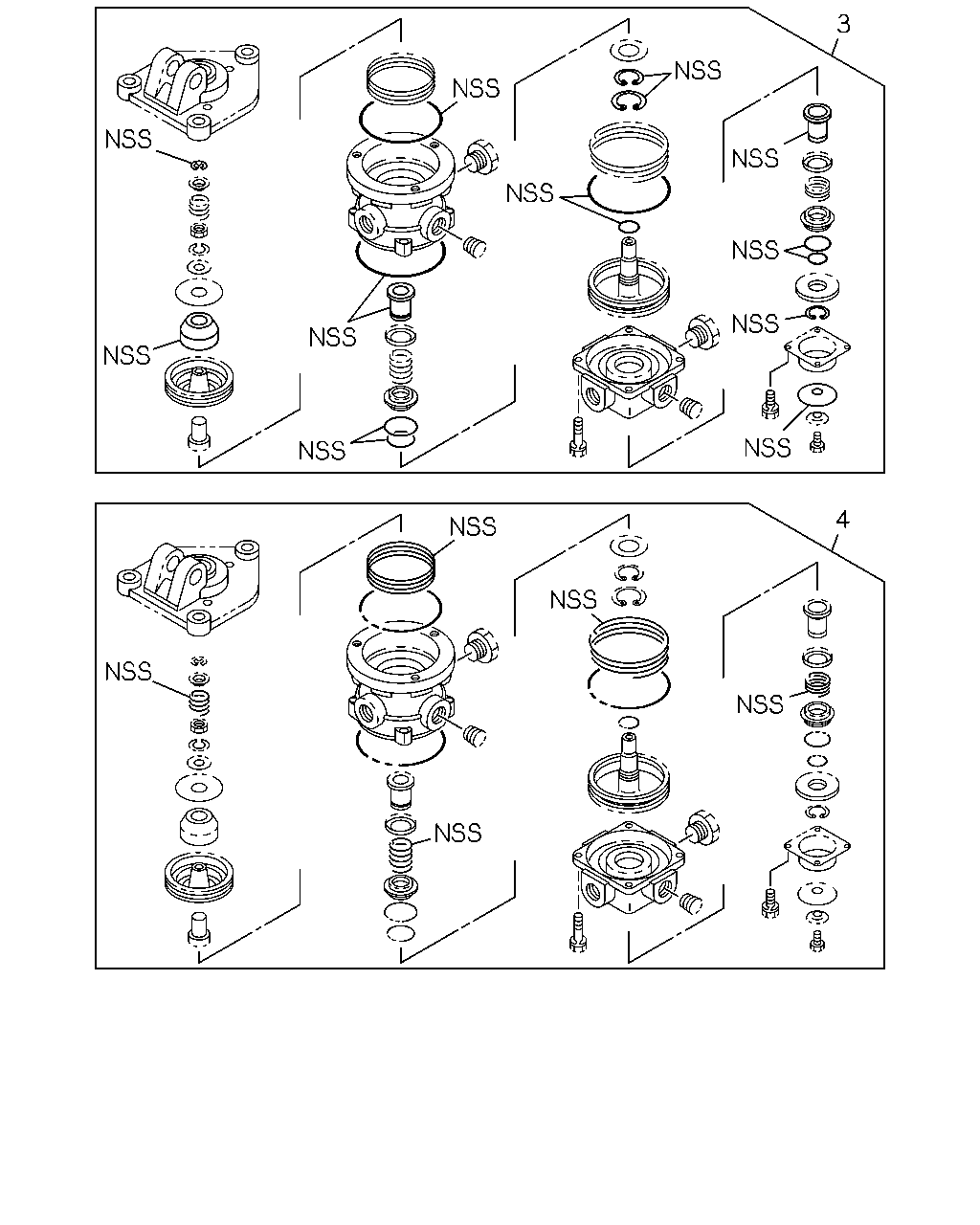

3 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; RUBBER,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-87830-373-0	01	1	9002-
	4	REPAIR KIT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-87830-374-0	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
