0-27 — EXHAUST MANIFOLD (#35858) — 138 parça

26 25 19 14 18 15 18 1 2 3 21 3 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9611-	●	●
1	03.601 MANIFOLD; EXHAUST ELECTRIC FUEL INJECTION<6GG>	8-97038-795-1	01	1	9611-			●
1	03.601 MANIFOLD; EXHAUST EXC. ELECTRIC FUEL INJECTION<6GG>	8-97083-579-0	01	1	9611-			●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97096-117-1	01	1	9611-				●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9611-				●
1	03.601 MANIFOLD; EXHAUST	8-97139-723-0	01	1	9611-9612					●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9701-					●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9701-					●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9712-						●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9712-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9611-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9611-				●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9712-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9611-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9611-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9611-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9611-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94472-396-0	01	1	9611-9701				●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97131-704-0	01	1	9702-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97164-276-1	01	1	9712-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97164-278-1	01	1	9712-						●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9611-			●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9611-				●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9611-				●	●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9611-	●	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9611-				●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9712-						●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9611-				●	●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-				●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-					●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-				●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9611-				●	●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9712-						●
25	03.602 BRACKET; EXH MANIF UNITED KINGDOM EQUIPMENT(EK3)	8-97096-634-1	01	1	9611-				●
25	03.602 BRACKET; EXH MANIF	8-97161-202-0	01	1	9611-					●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9611-				●
26	03.602 BOLT; BRKT TO EXH MANIF 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9611-					●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.604 M8X14 FLANGE	8-94312-699-1	01	1	9611-				●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 M8X14 FLANGE	8-94312-699-1	01	1	9611-					●

2 1 14 13 18 18 16 2 1 14 13 18 13 18 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9611-	●	●
1	03.601 MANIFOLD; EXHAUST ELECTRIC FUEL INJECTION<6GG>	8-97038-795-1	01	1	9611-			●
1	03.601 MANIFOLD; EXHAUST EXC. ELECTRIC FUEL INJECTION<6GG>	8-97083-579-0	01	1	9611-			●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97096-117-1	01	1	9611-				●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9611-				●
1	03.601 MANIFOLD; EXHAUST	8-97139-723-0	01	1	9611-9612					●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9701-					●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9701-					●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9712-						●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9712-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9611-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9611-				●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9712-						●
13	03.613 WASHER; LK,EXH MANIF 00.002 ID=8.2	9-09150-508-0	07	1	9611-	●	●	●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9611-			●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9611-				●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9611-	●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	02	1	9611-			●
16	03.604 STUD; EXH PIPE TO MANIF ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	03	1	9611-			●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9611-				●
16	03.604 STUD; EXH PIPE TO MANIF M12X15 L=46.6	8-97115-132-0	06	1	9712-						●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9611-	●	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9611-				●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9712-						●

16 18 14 19 2 1 15 3 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9611-	●	●
1	03.601 MANIFOLD; EXHAUST ELECTRIC FUEL INJECTION<6GG>	8-97038-795-1	01	1	9611-			●
1	03.601 MANIFOLD; EXHAUST EXC. ELECTRIC FUEL INJECTION<6GG>	8-97083-579-0	01	1	9611-			●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97096-117-1	01	1	9611-				●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9611-				●
1	03.601 MANIFOLD; EXHAUST	8-97139-723-0	01	1	9611-9612					●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9701-					●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9701-					●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9712-						●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9712-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9611-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9611-				●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9712-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9611-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9611-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9611-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9611-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94472-396-0	01	1	9611-9701				●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97131-704-0	01	1	9702-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97164-276-1	01	1	9712-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97164-278-1	01	1	9712-						●
14	03.604 WASHER; PL,EXH MANIF 01.276 ID=8.4 OD=18	9-09164-608-0	02	1	9611-			●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9611-				●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9611-				●	●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9611-	●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	02	1	9611-			●
16	03.604 STUD; EXH PIPE TO MANIF ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	03	1	9611-			●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9611-				●
16	03.604 STUD; EXH PIPE TO MANIF M12X15 L=46.6	8-97115-132-0	06	1	9712-						●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9611-	●	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9611-				●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9712-						●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9611-				●	●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-				●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-					●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-				●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9611-				●	●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9712-						●

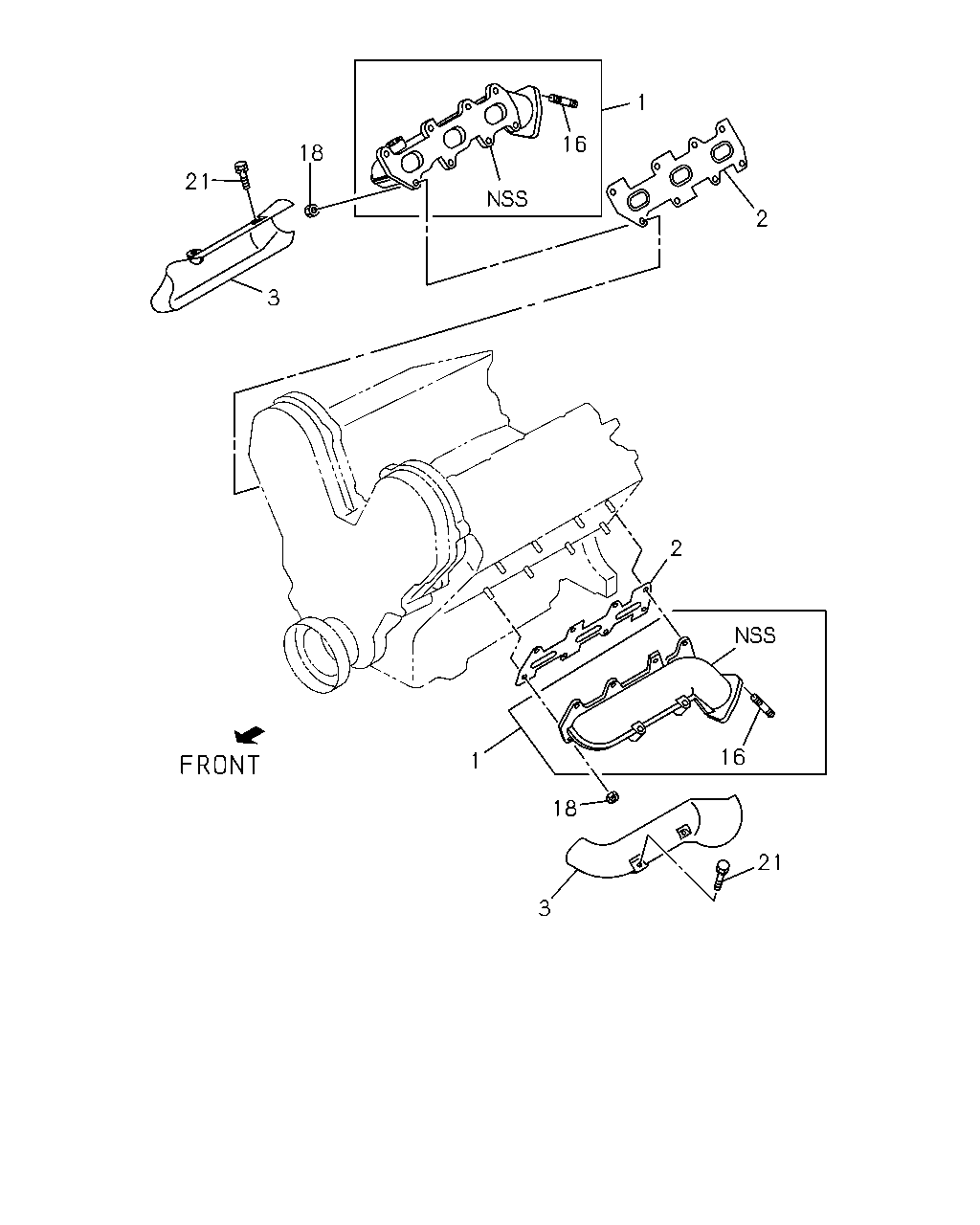

1 18 16 21 3 2 2 1 16 18 21 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST WO/EGR	8-94159-205-1	01	1	9611-	●	●
1	03.601 MANIFOLD; EXHAUST ELECTRIC FUEL INJECTION<6GG>	8-97038-795-1	01	1	9611-			●
1	03.601 MANIFOLD; EXHAUST EXC. ELECTRIC FUEL INJECTION<6GG>	8-97083-579-0	01	1	9611-			●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97096-117-1	01	1	9611-				●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9611-				●
1	03.601 MANIFOLD; EXHAUST	8-97139-723-0	01	1	9611-9612					●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9701-					●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9701-					●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9712-						●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9712-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-054-0	01	1	9611-	●	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9611-				●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9712-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9611-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9611-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9611-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9611-					●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94472-396-0	01	1	9611-9701				●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97131-704-0	01	1	9702-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97164-276-1	01	1	9712-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97164-278-1	01	1	9712-						●
16	03.604 STUD; EXH PIPE TO MANIF 03.275 M10X25 L=40	9-04411-025-0	02	1	9611-	●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	02	1	9611-			●
16	03.604 STUD; EXH PIPE TO MANIF ELECTRIC FUEL INJECTION<6GG> 03.275 M10X25 L=40	9-04411-025-0	03	1	9611-			●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9611-				●
16	03.604 STUD; EXH PIPE TO MANIF M12X15 L=46.6	8-97115-132-0	06	1	9712-						●
18	03.604 NUT; EXH MANIF 02.559 M8	9-09110-408-0	07	1	9611-	●	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9611-				●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9712-						●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-				●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-					●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-				●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9611-					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9611-				●	●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9712-						●
