Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#35857) — 264 parça

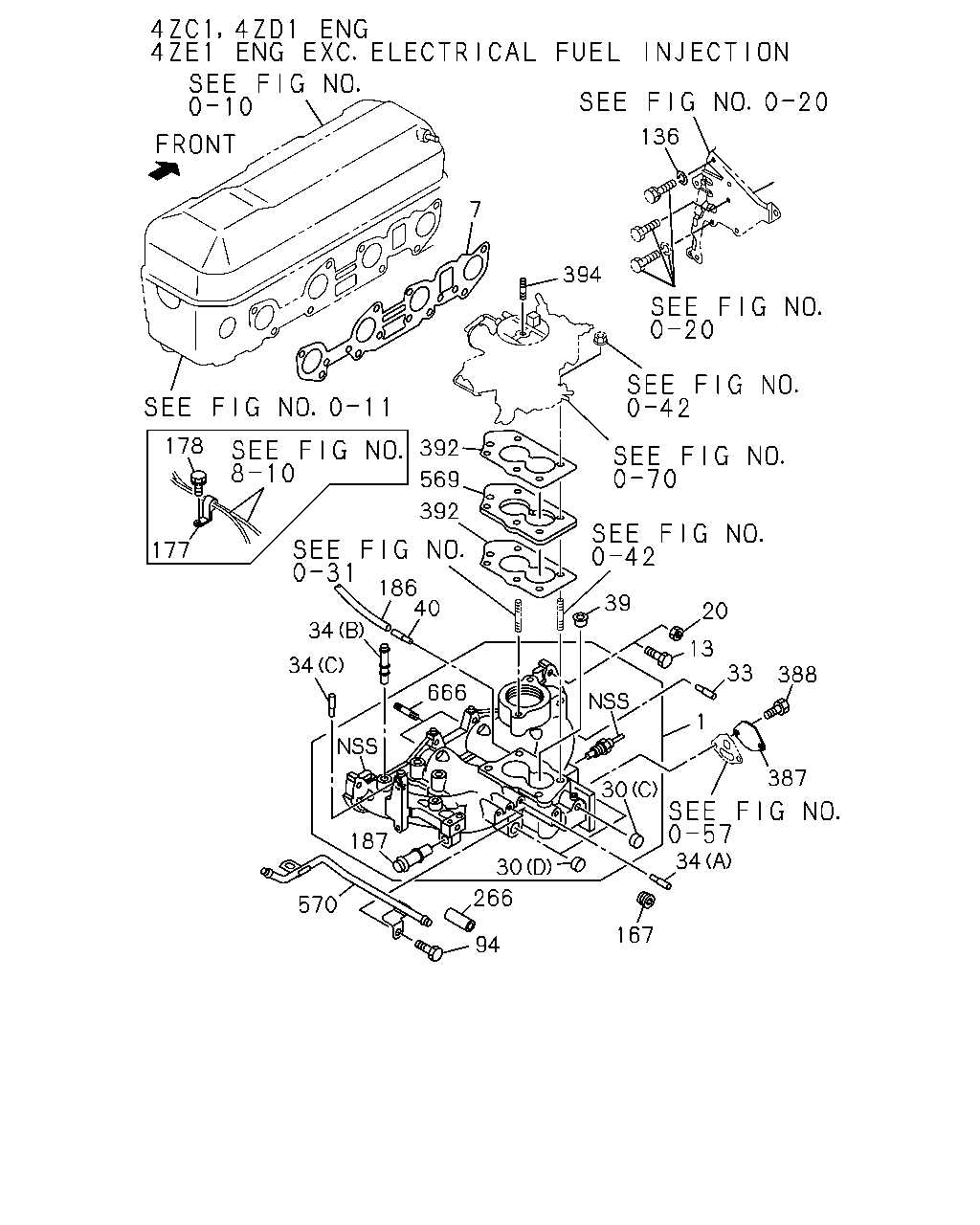

136 394 392 569 392 7 178 177 34 34 186 40 666 187 570 266 30 94 167 34 30 1 33 388 387 13 20 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL	8-94360-747-3	01	1	9611-	●	●
1	03.265 MANIFOLD; INL ELECTRIC FUEL INJECTION<6GG>	8-97070-556-4	01	1	9611-			●
1	03.265 MANIFOLD; INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94370-819-1	01	1	9611-			●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97139-649-0	01	1	9611-9612				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-97139-649-1	01	1	9701-				●	●
1	03.265 MANIFOLD; INL (B)	8-97116-132-1	01	1	9611-9612					●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97116-132-2	01	1	9701-					●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97116-137-0	01	1	9701-9702					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9611-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9611-				●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9712-						●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9611-	●	●	●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9611-9612				●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9611-9612					●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-				●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9611-				●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X28	0-50140-628-0	06	1	9611-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9611-	●	●	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9611-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9611-				●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-						●
30	03.265 CUP; SEALING,INL MANIF 00.253 (C) OD=16	9-11129-081-0	01	1	9611-	●	●
30	03.265 CUP; SEALING,INL MANIF (D) OD=20	9-11219-192-0	02	1	9611-	●	●
30	03.265 CUP; SEALING,INL MANIF EXC. ELECTRIC FUEL INJECTION<6GG> (D) OD=20	9-11219-192-0	02	1	9611-			●
30	03.265 CUP; SEALING,INL MANIF ELECTRIC FUEL INJECTION<6GG> 00.253 (A) OD=18	5-11219-008-0	01	1	9611-			●
30	03.265 CUP; SEALING,INL MANIF ELECTRIC FUEL INJECTION<6GG> (B) OD=20	9-11219-192-0	01	1	9611-			●
30	03.265 CUP; SEALING,INL MANIF EXC. ELECTRIC FUEL INJECTION<6GG> 00.253 (C) OD=16	9-11129-081-0	02	1	9611-			●
33	03.278 PIPE; IDLE COMPENSATOR,INL MANIF OD=6 L=28	8-94214-981-0	01	1	9611-	●	●
34	03.675 PIPE; VAC (A) OD=10 L=50	8-94330-262-0	01	1	9611-	●	●
34	03.675 PIPE; VAC EXC. ELECTRIC FUEL INJECTION<6GG> (A) OD=10 L=50	8-94330-262-0	01	1	9611-			●
34	03.675 PIPE; VAC 03.278 (B) OD=5 L=34	8-94200-851-2	02	1	9611-	●	●
34	03.675 PIPE; VAC ELECTRIC FUEL INJECTION<6GG> 03.278 (B) OD=5 L=34	8-94200-851-2	02	1	9611-			●
34	03.675 PIPE; VAC EXC. ELECTRIC FUEL INJECTION<6GG> 03.278 (B) OD=5 L=34	8-94200-851-2	01	1	9611-			●
34	03.675 PIPE; VAC EXC. ELECTRIC FUEL INJECTION<6GG> (C) OD=4 L=21	8-94145-897-2	01	1	9611-			●
39	03.278 TUBE; DISTR,INL MANIF EXC. ELECTRIC FUEL INJECTION<6GG>	8-94463-029-0	01	1	9611-			●
40	03.278 PIPE; VAC LINE,INL MANIF EXC. ELECTRIC FUEL INJECTION<6GG> OD=6 L=28	8-94214-981-0	01	1	9611-			●
94	02.559 BOLT 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9712-	●	●
94	02.559 BOLT EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9712-			●
94	02.559 BOLT ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-			●
94	02.559 BOLT UNITED KINGDOM EQUIPMENT(EK3) 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9611-9701				●
94	02.559 BOLT 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9611-9701					●
94	02.559 BOLT UNITED KINGDOM EQUIPMENT(EK3) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9702-				●
94	02.559 BOLT 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9702-					●
136	00.293 WASHER; LK,CLIP PLATE 00.206 ID=6.1	9-09150-506-0	02	1	9611-	●	●
167	03.265 PLUG; INL MANIF 01.531 PT1/8	5-09605-019-2	01	1	9611-	●	●
167	03.265 PLUG; INL MANIF ELECTRIC FUEL INJECTION<6GG> 01.073 PT3/8	5-09605-005-0	01	1	9611-			●
177	02.343 CLIP; CABLE TO MANIF ID=13 H=24 L=20	9-09527-012-0	01	1	9611-	●	●
177	02.343 CLIP; CABLE TO MANIF EXC. ELECTRIC FUEL INJECTION<6GG> ID=13 H=24 L=20	9-09527-012-0	01	1	9611-			●
178	03.680 BOLT; CARB CABLE CLIP 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9611-	●	●
178	03.680 BOLT; CARB CABLE CLIP EXC. ELECTRIC FUEL INJECTION<6GG> 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9611-			●
186	03.278 HOSE; IDLE COMPENSATOR 08.962 L=380 SERVICED BY L=3000	0-04750-300-0	01	1	9611-	●	●
186	03.278 HOSE; IDLE COMPENSATOR EXC. ELECTRIC FUEL INJECTION<6GG> 08.962 L=380 SERVICED BY L=3000	0-04750-300-0	01	1	9611-			●
187	03.726 CONNECTOR; HTR	8-94136-759-3	01	1	9611-	●	●
187	03.726 CONNECTOR; HTR EXC. ELECTRIC FUEL INJECTION<6GG>	8-94136-759-3	01	1	9611-			●
266	03.680 CAP; RUBBER,CONNECTOR EXC. ELECTRIC FUEL INJECTION<6GG> 01.780 OD=7	8-94206-392-0	01	1	9611-			●
387	03.265 PLATE; EGR,INL MANIF	8-94161-899-0	01	1	9611-	●	●
387	03.265 PLATE; EGR,INL MANIF	8-97169-805-0	01	1	9712-						●
388	01.153 BOLT; EGR PLATE,INL MANIF 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9611-	●	●
392	03.726 GASKET; EFE HTR EXC. ELECTRIC FUEL INJECTION<6GG>	8-94146-256-0	02	1	9611-			●
394	03.403 STUD; ACL TO CARB,CARB CENTER M8X84	8-94159-217-2	01	1	9611-	●	●
394	03.403 STUD; ACL TO CARB,CARB CENTER EXC. ELECTRIC FUEL INJECTION<6GG> M8X84	8-94159-217-2	01	1	9611-			●
569	03.602 INSULATOR; HEAT EXC. ELECTRIC FUEL INJECTION<6GG>	8-94463-028-0	01	1	9611-			●
570	03.675 PIPE; VAC DISTRIBUTOR 03.665 L=160.5	8-94159-232-1	01	1	9611-	●	●
570	03.675 PIPE; VAC DISTRIBUTOR EXC. ELECTRIC FUEL INJECTION<6GG> 03.665 L=160.5	8-94159-232-1	01	1	9611-			●
666	03.275 STUD; FUEL PUMP 03.726 M8X18 L=38	8-94146-549-0	02	1	9611-	●	●
666	03.275 STUD; FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG> 03.726 M8X18 L=38	8-94146-549-0	02	1	9611-			●

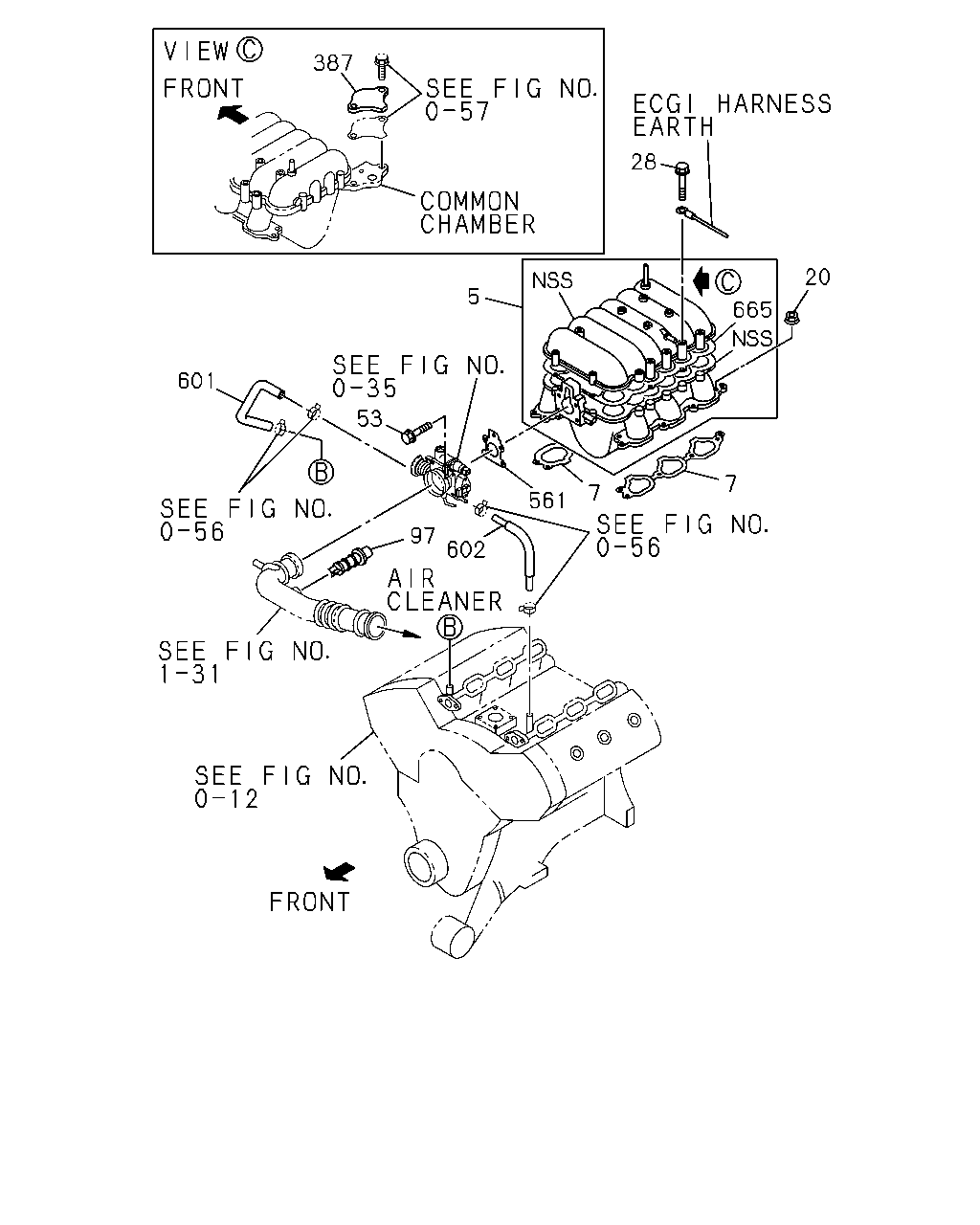

387 28 20 665 5 53 601 97 602 561 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.278 CHAMBER; COMMON ELECTRIC FUEL INJECTION<6GG>	8-97142-464-0	01	1	9611-			●
5	03.278 CHAMBER; COMMON	8-97180-044-2	01	1	9712-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9611-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9611-				●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9712-						●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9611-	●	●	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9611-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9611-				●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-						●
28	03.278 BOLT; CHAMBER ELECTRIC FUEL INJECTION<6GG> 09.171 M10X35 W/LK WASHER	0-50041-035-0	03	1	9611-			●
28	03.278 BOLT; CHAMBER M8X150 FLANGE	0-28085-815-0	04	1	9712-						●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-9612				●
53	03.602 BOLT; INL PIPE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-9612					●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9701-				●
53	03.602 BOLT; INL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9701-					●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9611-9803				●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9804-				●
53	03.602 BOLT; INL PIPE 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9712-						●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE	8-12160-244-0	01	1	9712-						●
387	03.265 PLATE; EGR,INL MANIF	8-94161-899-0	01	1	9611-	●	●
387	03.265 PLATE; EGR,INL MANIF	8-97169-805-0	01	1	9712-						●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). ELECTRIC FUEL INJECTION<6GG>	8-97037-870-0	01	1	9611-			●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE).	8-94389-939-0	01	1	9712-						●
601	01.097 HOSE; WATER,T/V FEED	8-97136-218-0	01	1	9712-						●
602	01.097 HOSE; WATER,T/V RETURN	8-97136-219-2	01	1	9712-						●
665	03.270 GASKET; COMMON CHAMBER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-074-1	01	1	9712-						●

27 20 13 10 138 416 53 52 6 12 190 6 7 27 143 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.265 MANIFOLD; INL,UPR EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97143-701-1	01	1	9611-				●
6	03.265 MANIFOLD; INL,UPR EXC. UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94320-921-1	01	1	9611-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9611-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9611-				●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9712-						●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97035-883-0	01	1	9611-				●
12	03.270 GASKET; INL MANIF,UPR TO LWR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94320-923-0	01	1	9611-				●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9611-	●	●	●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9611-9612				●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9611-9612					●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-				●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9611-				●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X28	0-50140-628-0	06	1	9611-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9611-	●	●	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9611-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9611-				●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-						●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 M6X20 L=29	9-04110-620-0	02	1	9611-				●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9611-				●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97109-028-1	01	1	9611-				●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97143-946-0	01	1	9611-9701				●
52	01.097 PIPE; INL (B)	8-97143-946-0	01	1	9611-9701					●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97146-383-0	01	1	9702-				●
52	01.097 PIPE; INL (B)	8-97146-383-0	01	1	9702-					●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97115-866-0	01	1	9611-				●
52	01.097 PIPE; INL (A)	8-94473-955-1	01	1	9611-					●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-9612				●
53	03.602 BOLT; INL PIPE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-9612					●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9701-				●
53	03.602 BOLT; INL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9701-					●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9611-9803				●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9804-				●
53	03.602 BOLT; INL PIPE 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9712-						●
111	03.275 BOLT; DOWN SHIFT CABLE BRKT EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9611-				●
138	03.265 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97115-992-0	01	1	9611-				●
143	03.273 BRACKET; INL MANIF FRT EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.540	8-94453-529-2	01	1	9611-				●
190	03.275 COLLAR; INLET MANIFOLD EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94320-924-0	08	1	9611-				●
416	00.293 NIPPLE; BREATHER HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.602 OD=15 L=41	8-94442-052-0	01	1	9611-				●

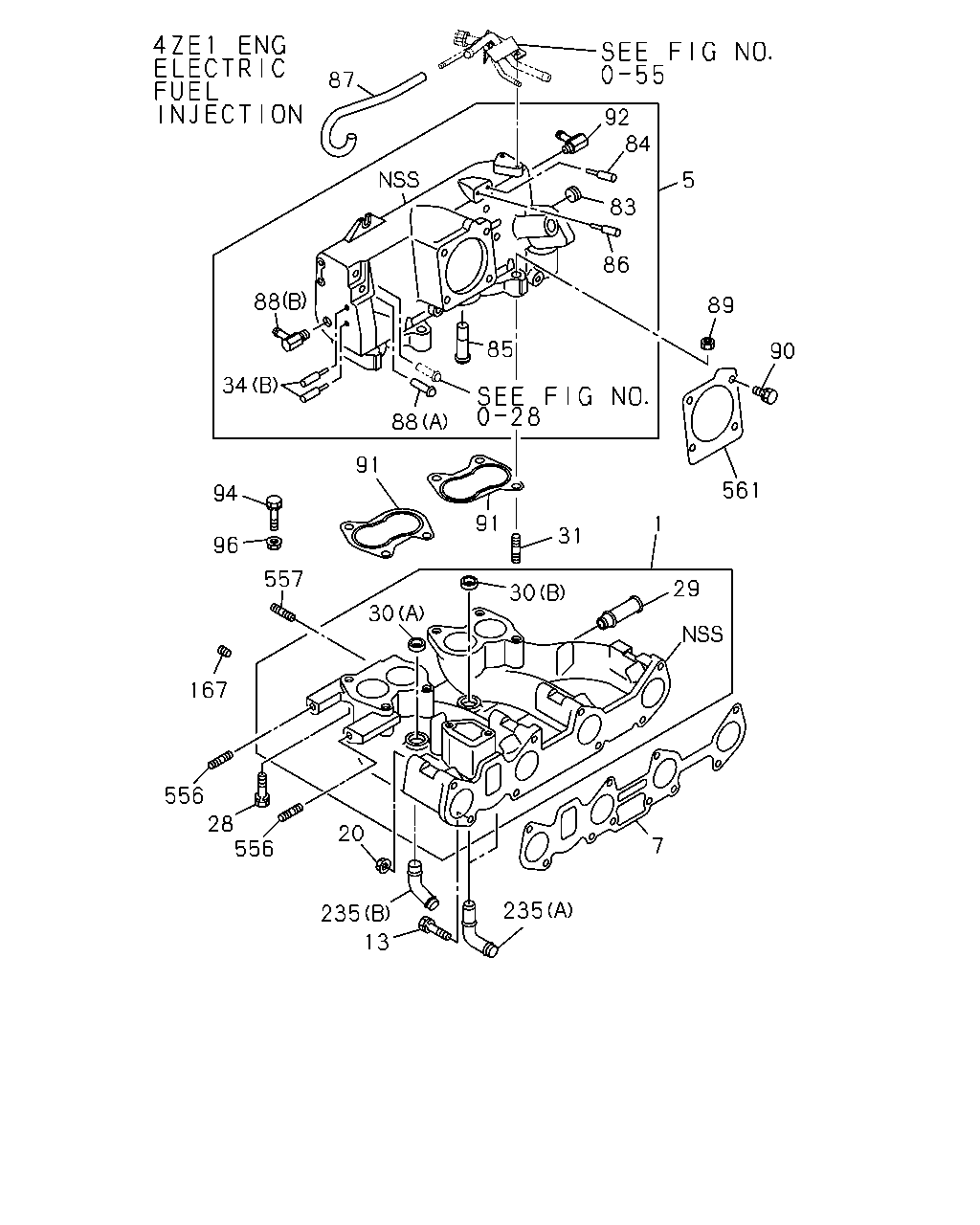

89 90 561 31 1 29 30 91 91 94 96 557 30 167 556 28 556 20 235 13 235 7 34 88 87 92 84 5 83 86 85 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL	8-94360-747-3	01	1	9611-	●	●
1	03.265 MANIFOLD; INL ELECTRIC FUEL INJECTION<6GG>	8-97070-556-4	01	1	9611-			●
1	03.265 MANIFOLD; INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94370-819-1	01	1	9611-			●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97139-649-0	01	1	9611-9612				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-97139-649-1	01	1	9701-				●	●
1	03.265 MANIFOLD; INL (B)	8-97116-132-1	01	1	9611-9612					●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97116-132-2	01	1	9701-					●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97116-137-0	01	1	9701-9702					●
5	03.278 CHAMBER; COMMON ELECTRIC FUEL INJECTION<6GG>	8-97142-464-0	01	1	9611-			●
5	03.278 CHAMBER; COMMON	8-97180-044-2	01	1	9712-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9611-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9611-				●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9712-						●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9611-	●	●	●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9611-9612				●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9611-9612					●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-				●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9611-				●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X28	0-50140-628-0	06	1	9611-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9611-	●	●	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9611-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9611-				●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-						●
28	03.278 BOLT; CHAMBER ELECTRIC FUEL INJECTION<6GG> 09.171 M10X35 W/LK WASHER	0-50041-035-0	03	1	9611-			●
28	03.278 BOLT; CHAMBER M8X150 FLANGE	0-28085-815-0	04	1	9712-						●
29	03.278 NIPPLE; HTR ELECTRIC FUEL INJECTION<6GG> 03.726	8-94136-759-3	01	1	9611-			●
30	03.265 CUP; SEALING,INL MANIF 00.253 (C) OD=16	9-11129-081-0	01	1	9611-	●	●
30	03.265 CUP; SEALING,INL MANIF (D) OD=20	9-11219-192-0	02	1	9611-	●	●
30	03.265 CUP; SEALING,INL MANIF EXC. ELECTRIC FUEL INJECTION<6GG> (D) OD=20	9-11219-192-0	02	1	9611-			●
30	03.265 CUP; SEALING,INL MANIF ELECTRIC FUEL INJECTION<6GG> 00.253 (A) OD=18	5-11219-008-0	01	1	9611-			●
30	03.265 CUP; SEALING,INL MANIF ELECTRIC FUEL INJECTION<6GG> (B) OD=20	9-11219-192-0	01	1	9611-			●
30	03.265 CUP; SEALING,INL MANIF EXC. ELECTRIC FUEL INJECTION<6GG> 00.253 (C) OD=16	9-11129-081-0	02	1	9611-			●
31	03.278 STUD; COMMON CHAMBER ELECTRIC FUEL INJECTION<6GG> 00.685 M10X35 L=50	9-04411-035-0	03	1	9611-			●
34	03.675 PIPE; VAC (A) OD=10 L=50	8-94330-262-0	01	1	9611-	●	●
34	03.675 PIPE; VAC EXC. ELECTRIC FUEL INJECTION<6GG> (A) OD=10 L=50	8-94330-262-0	01	1	9611-			●
34	03.675 PIPE; VAC 03.278 (B) OD=5 L=34	8-94200-851-2	02	1	9611-	●	●
34	03.675 PIPE; VAC ELECTRIC FUEL INJECTION<6GG> 03.278 (B) OD=5 L=34	8-94200-851-2	02	1	9611-			●
34	03.675 PIPE; VAC EXC. ELECTRIC FUEL INJECTION<6GG> 03.278 (B) OD=5 L=34	8-94200-851-2	01	1	9611-			●
34	03.675 PIPE; VAC EXC. ELECTRIC FUEL INJECTION<6GG> (C) OD=4 L=21	8-94145-897-2	01	1	9611-			●
83	03.278 PLUG; COMMON CHAMBER ELECTRIC FUEL INJECTION<6GG> 01.073 PT3/8	5-09605-005-0	01	1	9611-			●
84	03.265 PIPE; AUTO CRUISE ELECTRIC FUEL INJECTION<6GG> 03.278 OD=5 L=34	8-94200-851-2	02	1	9611-			●
85	03.265 PIPE; AIR REG ELECTRIC FUEL INJECTION<6GG>	8-94148-031-0	01	1	9611-			●
86	03.278 PIPE; CANISTER PURGE ELECTRIC FUEL INJECTION<6GG>	8-94249-288-0	01	1	9611-			●
87	03.163 HOSE; PURGE SIGNAL ELECTRIC FUEL INJECTION<6GG> 08.962 L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9611-			●
88	03.265 CONNECTOR; FAST IDLE ELECTRIC FUEL INJECTION<6GG> 03.278 (A)	8-94107-531-0	01	1	9611-			●
88	03.265 CONNECTOR; FAST IDLE ELECTRIC FUEL INJECTION<6GG> (B) PT1/4 ELBOW	8-94221-562-0	01	1	9611-			●
89	03.278 NUT; COMMON CHAMBER TO INL MANIF ELECTRIC FUEL INJECTION<6GG> 08.917 M10 FLANGE	0-91150-210-0	03	1	9611-			●
90	03.275 BOLT; TB TO COMMON CHAMBER ELECTRIC FUEL INJECTION<6GG> M8X40 HEX SOCKET	9-05820-840-0	04	1	9611-			●
91	03.278 GASKET; COMMON CHAMBER TO INL MA ELECTRIC FUEL INJECTION<6GG>	8-94328-250-0	02	1	9611-			●
92	03.278 NIPPLE; M/VAC ELECTRIC FUEL INJECTION<6GG>	8-97062-077-1	01	1	9611-			●
94	02.559 BOLT 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9712-	●	●
94	02.559 BOLT EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9712-			●
94	02.559 BOLT ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-			●
94	02.559 BOLT UNITED KINGDOM EQUIPMENT(EK3) 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9611-9701				●
94	02.559 BOLT 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9611-9701					●
94	02.559 BOLT UNITED KINGDOM EQUIPMENT(EK3) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9702-				●
94	02.559 BOLT 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9702-					●
96	03.273 NUT; ENG HARNESS CLIP ELECTRIC FUEL INJECTION<6GG> 02.343 M6 W/LK WASHER	8-94424-179-0	02	1	9611-			●
167	03.265 PLUG; INL MANIF 01.531 PT1/8	5-09605-019-2	01	1	9611-	●	●
167	03.265 PLUG; INL MANIF ELECTRIC FUEL INJECTION<6GG> 01.073 PT3/8	5-09605-005-0	01	1	9611-			●
235	03.278 JOINT; INL MANIF ELECTRIC FUEL INJECTION<6GG> (A)	8-97117-185-0	02	1	9611-			●
235	03.278 JOINT; INL MANIF ELECTRIC FUEL INJECTION<6GG> (B)	8-97117-083-0	01	1	9611-			●
556	03.275 STUD; PROTECTOR,INLET MANIF ELECTRIC FUEL INJECTION<6GG> 00.206 M8X16 L=32	9-04010-816-0	02	1	9611-			●
557	03.275 STUD; ECM EARTH,INLET MANIF ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 L=21	9-04110-612-0	02	1	9611-			●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). ELECTRIC FUEL INJECTION<6GG>	8-97037-870-0	01	1	9611-			●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE).	8-94389-939-0	01	1	9712-						●

260 1 13 20 7 27 1 13 20 95 114 61 62 61 52 53 491 491 320 185 185 184 77 184 52 94 94 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL	8-94360-747-3	01	1	9611-	●	●
1	03.265 MANIFOLD; INL ELECTRIC FUEL INJECTION<6GG>	8-97070-556-4	01	1	9611-			●
1	03.265 MANIFOLD; INL EXC. ELECTRIC FUEL INJECTION<6GG>	8-94370-819-1	01	1	9611-			●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97139-649-0	01	1	9611-9612				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-97139-649-1	01	1	9701-				●	●
1	03.265 MANIFOLD; INL (B)	8-97116-132-1	01	1	9611-9612					●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97116-132-2	01	1	9701-					●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97116-137-0	01	1	9701-9702					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94324-052-0	01	1	9611-	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9611-				●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9712-						●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9611-	●	●	●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9611-9612				●
13	03.275 BOLT; INL MANIF 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9611-9612					●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-				●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9701-					●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9611-				●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X28	0-50140-628-0	06	1	9611-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	04	1	9611-	●	●	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9611-				●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9611-				●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-						●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 M6X20 L=29	9-04110-620-0	02	1	9611-				●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9611-				●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97109-028-1	01	1	9611-				●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97143-946-0	01	1	9611-9701				●
52	01.097 PIPE; INL (B)	8-97143-946-0	01	1	9611-9701					●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97146-383-0	01	1	9702-				●
52	01.097 PIPE; INL (B)	8-97146-383-0	01	1	9702-					●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97115-866-0	01	1	9611-				●
52	01.097 PIPE; INL (A)	8-94473-955-1	01	1	9611-					●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-9612				●
53	03.602 BOLT; INL PIPE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9611-9612					●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9701-				●
53	03.602 BOLT; INL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9701-					●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.029 M10X28 W/LK WASHER	0-50041-028-0	02	1	9611-9803				●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9804-				●
53	03.602 BOLT; INL PIPE 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9712-						●
61	03.273 CLIP; CONNECTOR HOSE UNITED KINGDOM EQUIPMENT(EK3) ID=65-82	8-97131-942-0	02	1	9611-				●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	9611-					●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-97137-018-0	01	1	9611-				●
62	03.265 HOSE; CONNECTOR	8-97137-018-0	01	1	9611-					●
77	03.265 PIPE; INL,INT SHUTTER TO INL MAN UNITED KINGDOM EQUIPMENT(EK3)	8-94474-096-0	01	1	9611-9701				●
77	03.265 PIPE; INL,INT SHUTTER TO INL MAN	8-94474-096-0	01	1	9611-9701					●
94	02.559 BOLT 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9712-	●	●
94	02.559 BOLT EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9712-			●
94	02.559 BOLT ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-			●
94	02.559 BOLT UNITED KINGDOM EQUIPMENT(EK3) 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9611-9701				●
94	02.559 BOLT 04.104 M10X60 W/LK WASHER	0-50041-060-0	02	1	9611-9701					●
94	02.559 BOLT UNITED KINGDOM EQUIPMENT(EK3) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9702-				●
94	02.559 BOLT 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9702-					●
95	03.278 CLIP; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94406-478-0	01	1	9704-					●
114	03.265 HOSE; VAC,INT THROTTLE UNITED KINGDOM EQUIPMENT(EK3)	8-97142-687-0	01	1	9611-				●
114	03.265 HOSE; VAC,INT THROTTLE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97170-027-1	01	1	9701-					●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97086-961-0	02	1	9611-9701				●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97086-961-0	02	1	9611-9701					●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (A) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9611-9611				●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9611-9611					●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94434-927-0	02	1	9611-9611				●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B)	8-94434-927-0	02	1	9611-9611					●
260	03.278 CAP; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 01.780 ID=4	8-94217-809-0	01	1	9611-				●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.275	8-97086-961-0	01	1	9702-				●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.275	8-97086-961-0	01	1	9702-					●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) 03.278 (A)	8-97031-674-0	01	1	9611-				●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) (B) OD=7 H=1.2	8-94364-750-0	01	1	9611-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
