Sayfa 0-22 - Isuzu EPC

0-22 — ENGINE MOUNTING (#35856) — 201 parça

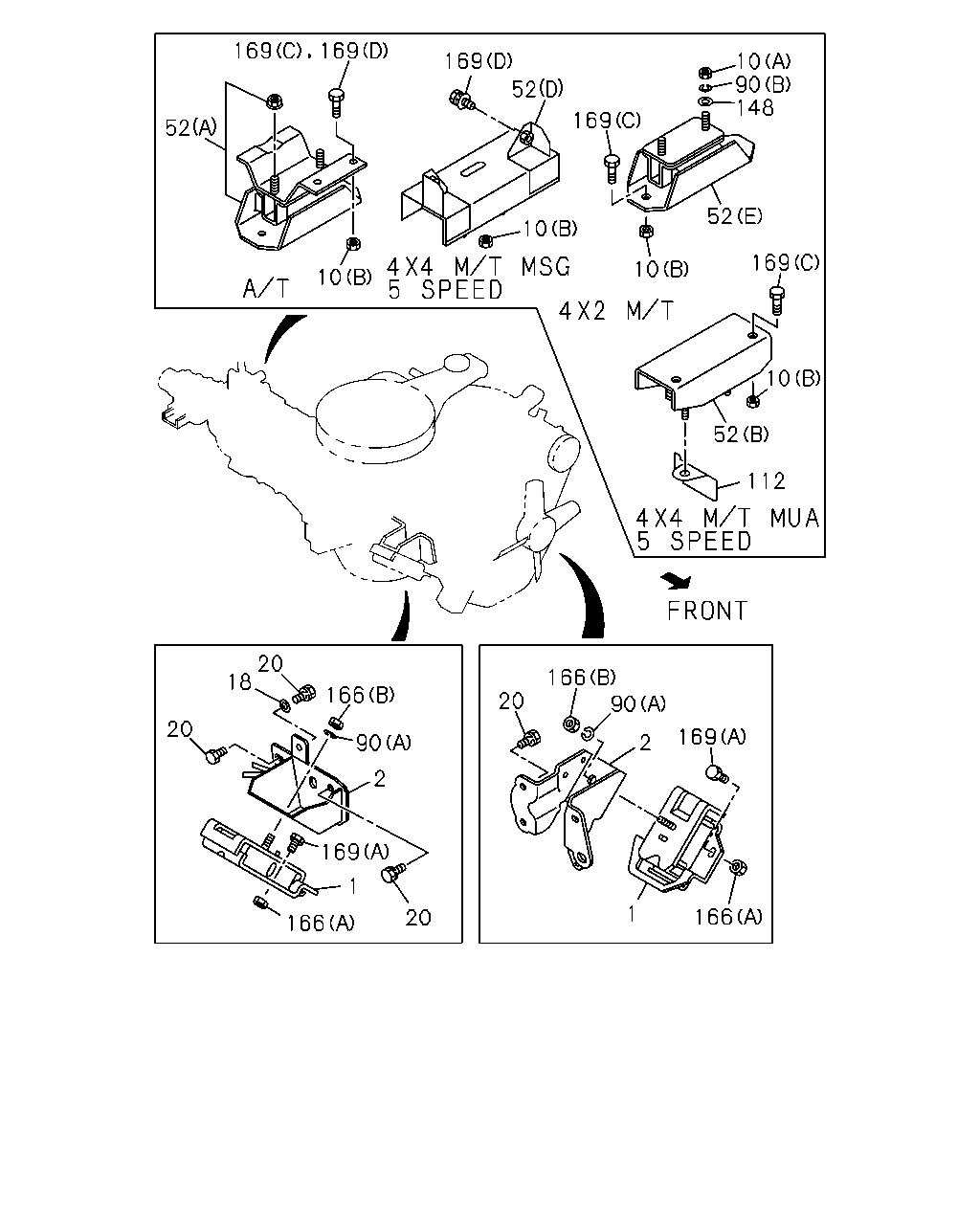

52 169 169 169 52 169 10 10 10 52 169 10 52 112 169 90 166 20 2 1 166 20 1 166 169 2 90 166 20 18 20 148 90 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-868-2	01	1	9611-	●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-867-2	01	1	9611-	●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97066-800-0	01	1	9611-		●
1	00.027 RUBBER; ENG FOOT,FRT LONG(TF***F)	8-97066-800-0	01	1	9611-			●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-94325-597-2	01	1	9611-		●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2 LONG(TFB**F)	8-97066-799-0	01	1	9611-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9611-9801				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9802-				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9611-				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-158-1	01	1	9712-						●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-157-1	01	1	9712-						●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9611-	●	●	●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9611-	●	●	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9611-				●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9611-				●	●
2	00.029 FOOT; ENG	8-97110-078-0	01	1	9712-						●
2	00.029 FOOT; ENG	8-97146-073-0	01	1	9712-						●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 09.011 (A) M10	9-09110-410-0	02	1	9611-9711	●	●	●	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-	●	●	●	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9611-	●	●	●	●	●	●
18	00.002 WASHER; PL,ENG FOOT 00.206 ID=8.4	9-09164-508-0	01	1	9611-	●	●
18	00.002 WASHER; PL,ENG FOOT EXC. ELECTRIC FUEL INJECTION<6GG> 00.206 ID=8.4	9-09164-508-0	01	1	9611-			●
20	00.029 BOLT; ENG FOOT 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9611-	●	●
20	00.029 BOLT; ENG FOOT EXC. ELECTRIC FUEL INJECTION<6GG> 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9611-			●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9611-	●	●	●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9611-	●	●	●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9611-	●	●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9611-				●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9611-				●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9611-				●	●
20	00.029 BOLT; ENG FOOT 04.510 (A) M10X40 FLANGE	0-28181-040-0	01	1	9712-						●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X25 FLANGE	0-28781-025-0	07	1	9712-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (E)	8-94434-208-1	01	1	9611-	●	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (D)	8-94441-510-0	01	1	9611-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (B)	8-94441-572-1	01	1	9611-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) A/T AISIN(RMD) (A)	8-94441-508-0	01	1	9611-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (C)	8-94472-973-0	01	1	9611-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (F)	8-94458-384-2	01	1	9611-				●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) A/T THM(RMQ)	8-94374-672-1	01	1	9712-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN)	8-97015-103-2	01	1	9712-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97123-260-0	01	1	9712-						●
90	00.002 WASHER; LK (A) ID=12.2	9-09150-812-0	02	1	9611-9711	●	●	●
90	00.002 WASHER; LK 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 08.929 (B) ID=10.2	9-09150-810-0	02	1	9611-9711	●	●	●	●	●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94441-573-0	01	1	9611-		●	●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97022-766-0	01	1	9712-						●
148	00.002 WASHER; PL 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 06.896 ID=10.5	9-09164-510-0	02	1	9611-9711	●	●	●	●	●
166	00.002 NUT; SUPPORT RUBBER 05.816 (B) M12	9-99110-412-0	02	1	9611-9711	●	●	●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9611-	●	●				●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9712-	●	●	●
166	00.002 NUT; SUPPORT RUBBER 4X2(TFB***) A/T THM(RMQ) 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9712-						●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9611-	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9712-	●	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711	●	●		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711		●		●
169	00.029 BOLT; SUPPORT 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711			●		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-		●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2 LONG(TFB**F) A/T AISIN(RMD) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9611-		●	●	●	●
169	00.029 BOLT; SUPPORT 4X2 LONG(TFB**F) A/T AISIN(RMD) 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	02	1	9611-			●
169	00.029 BOLT; SUPPORT 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-				●
169	00.029 BOLT; SUPPORT LONG(TF***F) 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-					●
169	00.029 BOLT; SUPPORT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-						●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T THM(RMQ) 09.171 (E) M10X30 W/LK WASHER	0-50051-030-0	02	1	9712-						●

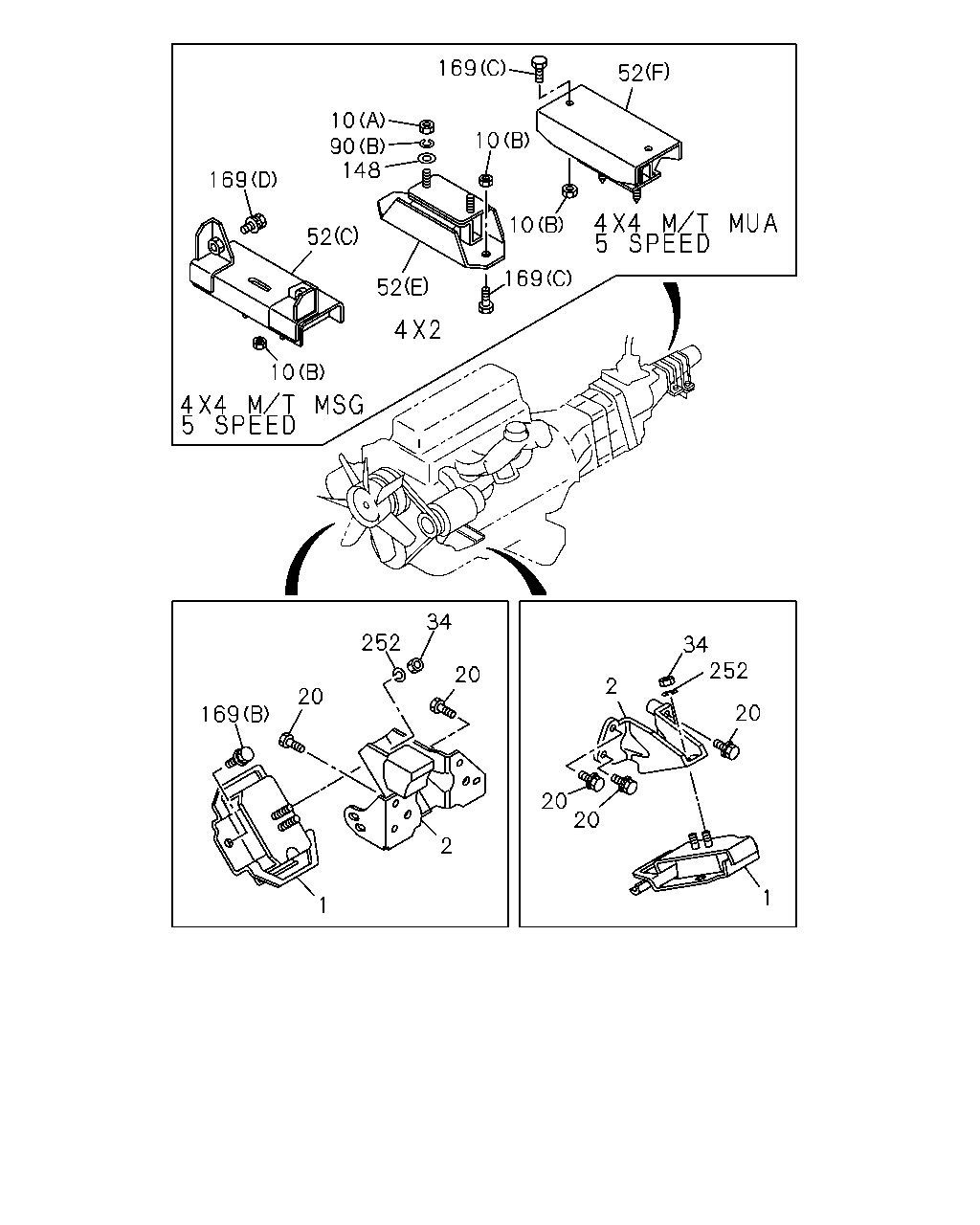

34 252 20 20 169 1 2 20 20 2 34 252 20 1 10 169 52 52 148 90 10 10 169 52 10 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-868-2	01	1	9611-	●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-867-2	01	1	9611-	●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97066-800-0	01	1	9611-		●
1	00.027 RUBBER; ENG FOOT,FRT LONG(TF***F)	8-97066-800-0	01	1	9611-			●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-94325-597-2	01	1	9611-		●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2 LONG(TFB**F)	8-97066-799-0	01	1	9611-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9611-9801				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9802-				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9611-				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-158-1	01	1	9712-						●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-157-1	01	1	9712-						●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9611-	●	●	●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9611-	●	●	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9611-				●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9611-				●	●
2	00.029 FOOT; ENG	8-97110-078-0	01	1	9712-						●
2	00.029 FOOT; ENG	8-97146-073-0	01	1	9712-						●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 09.011 (A) M10	9-09110-410-0	02	1	9611-9711	●	●	●	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-	●	●	●	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9611-	●	●	●	●	●	●
20	00.029 BOLT; ENG FOOT 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9611-	●	●
20	00.029 BOLT; ENG FOOT EXC. ELECTRIC FUEL INJECTION<6GG> 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9611-			●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9611-	●	●	●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9611-	●	●	●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9611-	●	●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9611-				●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9611-				●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9611-				●	●
20	00.029 BOLT; ENG FOOT 04.510 (A) M10X40 FLANGE	0-28181-040-0	01	1	9712-						●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X25 FLANGE	0-28781-025-0	07	1	9712-						●
34	00.002 NUT; RUBBER TO ENG 09.011 M10	9-09110-410-0	04	1	9611-9710				●	●
34	00.002 NUT; RUBBER TO ENG 04.785 M10 FLANGE	0-91150-110-0	04	1	9711-9712				●	●
34	00.002 NUT; RUBBER TO ENG 08.917 M10 FLANGE	0-91150-210-0	04	1	9801-				●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (E)	8-94434-208-1	01	1	9611-	●	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (D)	8-94441-510-0	01	1	9611-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (B)	8-94441-572-1	01	1	9611-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) A/T AISIN(RMD) (A)	8-94441-508-0	01	1	9611-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (C)	8-94472-973-0	01	1	9611-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (F)	8-94458-384-2	01	1	9611-				●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) A/T THM(RMQ)	8-94374-672-1	01	1	9712-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN)	8-97015-103-2	01	1	9712-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97123-260-0	01	1	9712-						●
90	00.002 WASHER; LK (A) ID=12.2	9-09150-812-0	02	1	9611-9711	●	●	●
90	00.002 WASHER; LK 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 08.929 (B) ID=10.2	9-09150-810-0	02	1	9611-9711	●	●	●	●	●
148	00.002 WASHER; PL 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 06.896 ID=10.5	9-09164-510-0	02	1	9611-9711	●	●	●	●	●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9611-	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9712-	●	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711	●	●		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711		●		●
169	00.029 BOLT; SUPPORT 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711			●		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-		●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2 LONG(TFB**F) A/T AISIN(RMD) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9611-		●	●	●	●
169	00.029 BOLT; SUPPORT 4X2 LONG(TFB**F) A/T AISIN(RMD) 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	02	1	9611-			●
169	00.029 BOLT; SUPPORT 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-				●
169	00.029 BOLT; SUPPORT LONG(TF***F) 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-					●
169	00.029 BOLT; SUPPORT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-						●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T THM(RMQ) 09.171 (E) M10X30 W/LK WASHER	0-50051-030-0	02	1	9712-						●
252	00.002 WASHER; LK,SUPPORT RUBBER 08.929 ID=10.2	9-09150-810-0	04	1	9611-9710				●	●

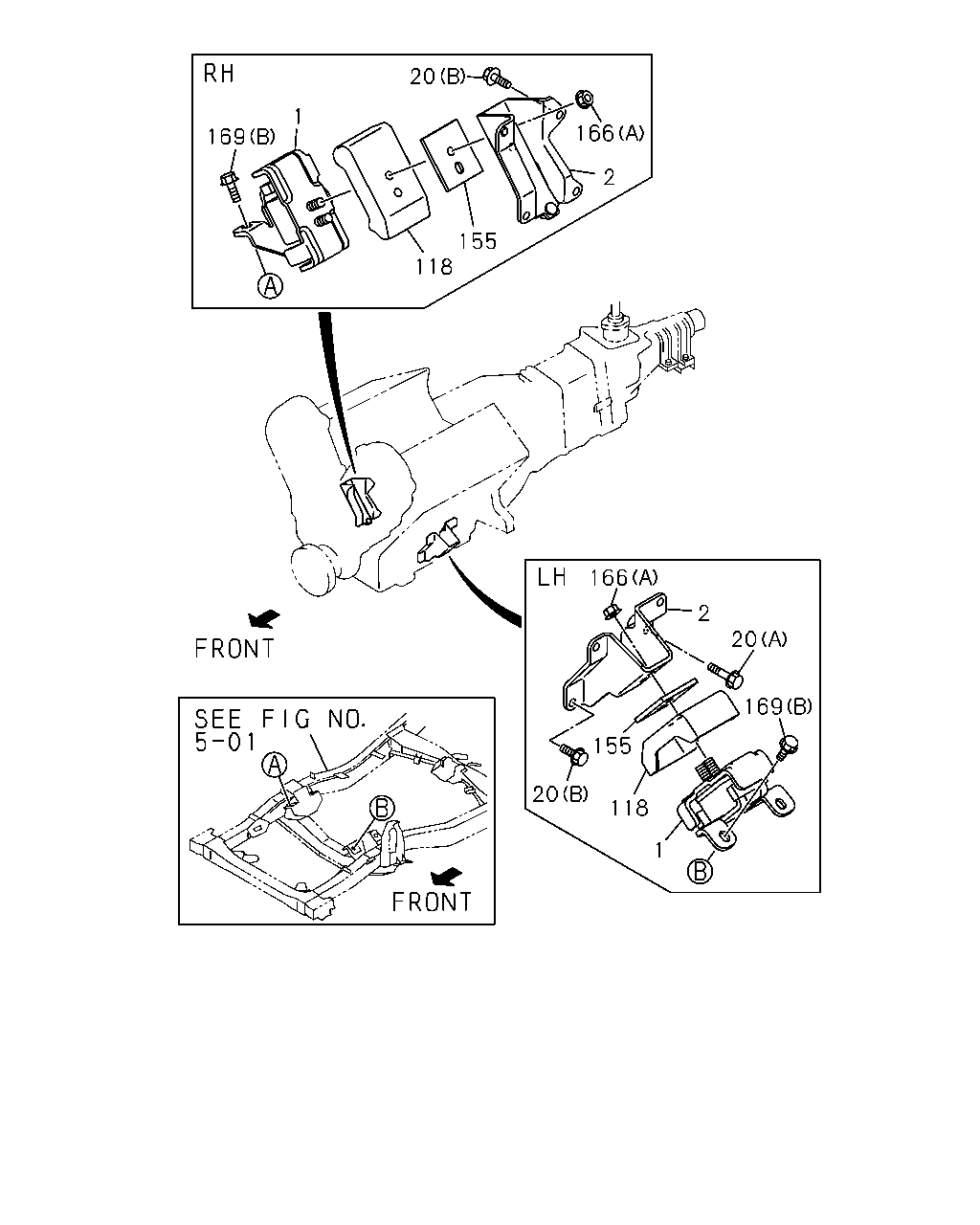

118 155 1 169 20 166 2 20 118 155 1 169 20 2 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-868-2	01	1	9611-	●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2(TFB***)	8-94422-867-2	01	1	9611-	●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-97066-800-0	01	1	9611-		●
1	00.027 RUBBER; ENG FOOT,FRT LONG(TF***F)	8-97066-800-0	01	1	9611-			●
1	00.027 RUBBER; ENG FOOT,FRT 4X4(TFS***)	8-94325-597-2	01	1	9611-		●	●
1	00.027 RUBBER; ENG FOOT,FRT 4X2 LONG(TFB**F)	8-97066-799-0	01	1	9611-			●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9611-9801				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97086-076-1	01	1	9802-				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9611-				●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-158-1	01	1	9712-						●
1	00.027 RUBBER; ENG FOOT,FRT	8-97104-157-1	01	1	9712-						●
2	00.029 FOOT; ENG	8-94449-473-3	01	1	9611-	●	●	●
2	00.029 FOOT; ENG	8-94449-474-3	01	1	9611-	●	●	●
2	00.029 FOOT; ENG	8-97038-196-1	01	1	9611-				●	●
2	00.029 FOOT; ENG	8-97038-195-1	01	1	9611-				●	●
2	00.029 FOOT; ENG	8-97110-078-0	01	1	9712-						●
2	00.029 FOOT; ENG	8-97146-073-0	01	1	9712-						●
20	00.029 BOLT; ENG FOOT 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9611-	●	●
20	00.029 BOLT; ENG FOOT EXC. ELECTRIC FUEL INJECTION<6GG> 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9611-			●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	01	1	9611-	●	●	●
20	00.029 BOLT; ENG FOOT 00.002 M12X25 W/LK WASHER	0-50041-225-0	05	1	9611-	●	●	●
20	00.029 BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9611-	●	●	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	06	1	9611-				●	●
20	00.029 BOLT; ENG FOOT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9611-				●	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	9611-				●	●
20	00.029 BOLT; ENG FOOT 04.510 (A) M10X40 FLANGE	0-28181-040-0	01	1	9712-						●
20	00.029 BOLT; ENG FOOT 09.181 (B) M10X25 FLANGE	0-28781-025-0	07	1	9712-						●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT 00.027	8-97137-834-0	01	1	9712-						●
118	00.029 COVER; SUPPORT RUBBER,ENG FOOT 00.027	8-97137-833-0	01	1	9712-						●
155	00.029 PLATE; SUPPORT 00.002	8-97139-639-0	02	1	9712-						●
166	00.002 NUT; SUPPORT RUBBER 05.816 (B) M12	9-99110-412-0	02	1	9611-9711	●	●	●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9611-	●	●				●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9712-	●	●	●
166	00.002 NUT; SUPPORT RUBBER 4X2(TFB***) A/T THM(RMQ) 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9712-						●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9611-	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9712-	●	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711	●	●		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711		●		●
169	00.029 BOLT; SUPPORT 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711			●		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-		●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2 LONG(TFB**F) A/T AISIN(RMD) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9611-		●	●	●	●
169	00.029 BOLT; SUPPORT 4X2 LONG(TFB**F) A/T AISIN(RMD) 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	02	1	9611-			●
169	00.029 BOLT; SUPPORT 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-				●
169	00.029 BOLT; SUPPORT LONG(TF***F) 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-					●
169	00.029 BOLT; SUPPORT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-						●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T THM(RMQ) 09.171 (E) M10X30 W/LK WASHER	0-50051-030-0	02	1	9712-						●

169 169 52 169 78 166 10 52 10 169 112 52 10 169

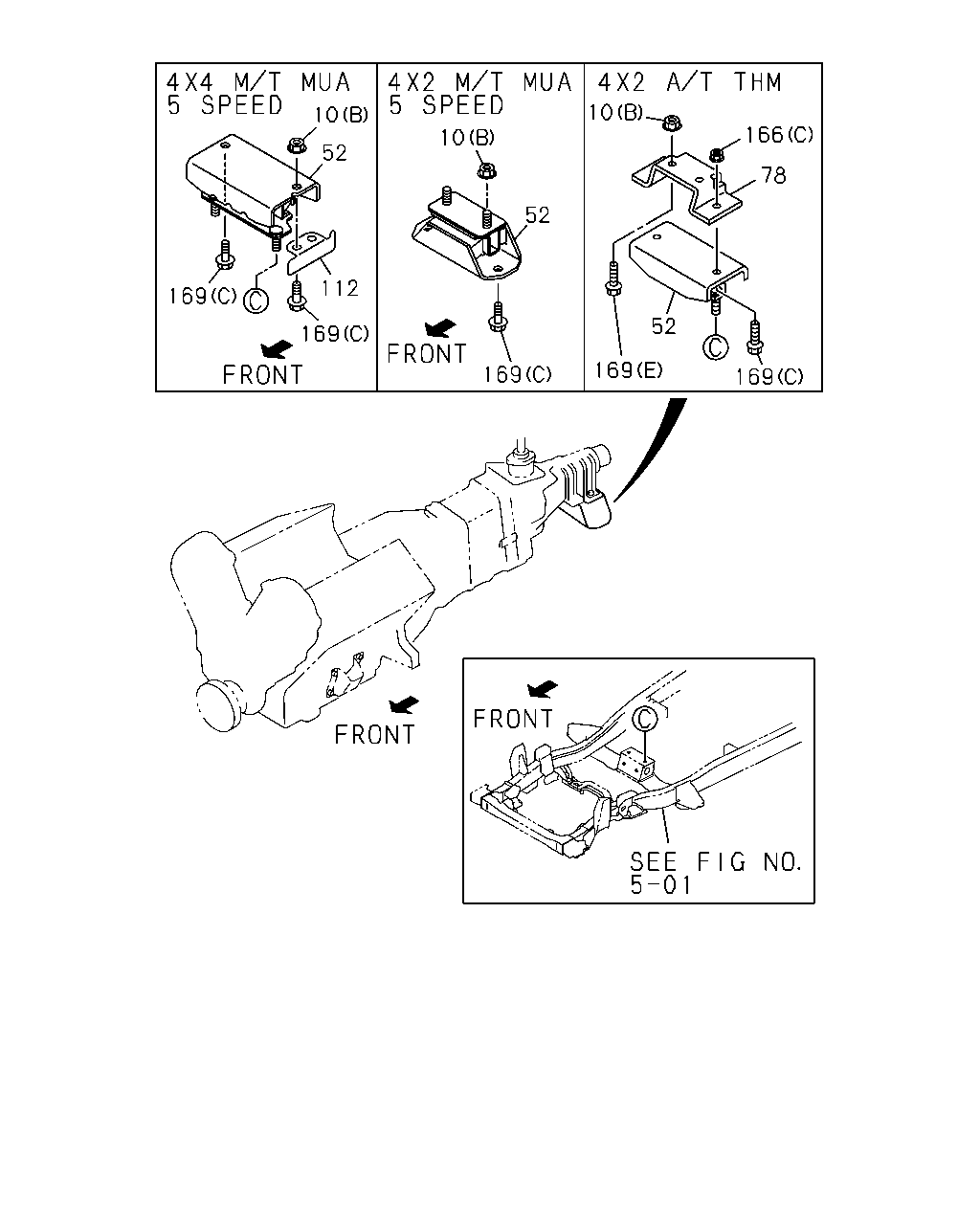

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 09.011 (A) M10	9-09110-410-0	02	1	9611-9711	●	●	●	●	●
10	04.085 NUT; MTG RUBBER 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-	●	●	●	●	●
10	04.085 NUT; MTG RUBBER (B) M10 FLANGE	8-94126-973-0	02	1	9611-	●	●	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (E)	8-94434-208-1	01	1	9611-	●	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (D)	8-94441-510-0	01	1	9611-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (B)	8-94441-572-1	01	1	9611-		●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2 LONG(TFB**F) A/T AISIN(RMD) (A)	8-94441-508-0	01	1	9611-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MSG 5 SPEED(M75) (C)	8-94472-973-0	01	1	9611-				●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN) (F)	8-94458-384-2	01	1	9611-				●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) A/T THM(RMQ)	8-94374-672-1	01	1	9712-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X2(TFB***) M/T MUA 5 SPEED(RMN)	8-97015-103-2	01	1	9712-						●
52	00.027 RUBBER; CUSHION,ENG MTG,RR 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97123-260-0	01	1	9712-						●
78	00.029 BRACKET; ENG MTG,RR 4X2(TFB***) A/T THM(RMQ)	8-94339-922-1	01	1	9712-						●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-94441-573-0	01	1	9611-		●	●
112	00.029 PROTECTOR; HEAT 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97022-766-0	01	1	9712-						●
166	00.002 NUT; SUPPORT RUBBER 05.816 (B) M12	9-99110-412-0	02	1	9611-9711	●	●	●
166	00.002 NUT; SUPPORT RUBBER 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9611-	●	●				●
166	00.002 NUT; SUPPORT RUBBER 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9712-	●	●	●
166	00.002 NUT; SUPPORT RUBBER 4X2(TFB***) A/T THM(RMQ) 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9712-						●
169	00.029 BOLT; SUPPORT 00.002 (A) M10X28 W/LK WASHER	8-94325-415-1	04	1	9611-	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9712-	●	●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2(TFB***) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711	●	●		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711		●		●
169	00.029 BOLT; SUPPORT 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9611-9711			●		●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MUA 5 SPEED(RMN) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-		●	●	●	●	●
169	00.029 BOLT; SUPPORT 4X2 LONG(TFB**F) A/T AISIN(RMD) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-			●
169	00.029 BOLT; SUPPORT 4X4(TFS***) M/T MSG 5 SPEED(M75) 00.002 (D) M12X50 W/LK&PL WASHER	0-50141-250-0	02	1	9611-		●	●	●	●
169	00.029 BOLT; SUPPORT 4X2 LONG(TFB**F) A/T AISIN(RMD) 11.377 (D) M10X20 W/LK WASHER	0-50041-020-0	02	1	9611-			●
169	00.029 BOLT; SUPPORT 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-				●
169	00.029 BOLT; SUPPORT LONG(TF***F) 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-					●
169	00.029 BOLT; SUPPORT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 00.002 (B) M10X28 W/LK WASHER	8-97035-564-0	04	1	9611-						●
169	00.029 BOLT; SUPPORT 4X2(TFB***) A/T THM(RMQ) 09.171 (E) M10X30 W/LK WASHER	0-50051-030-0	02	1	9712-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
