Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#35854) — 348 parça

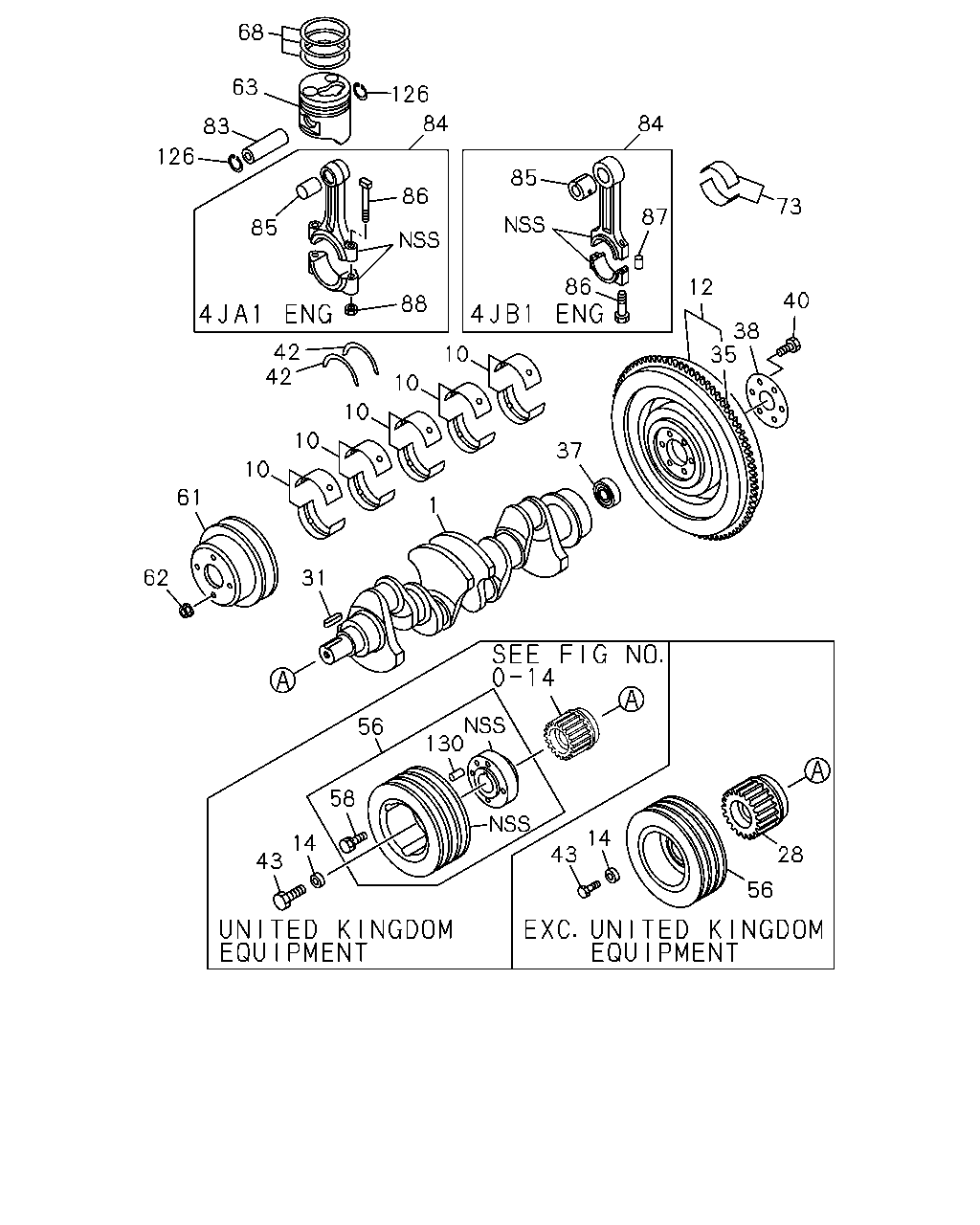

1 31 61 62 10 10 10 10 10 37 42 42 85 86 84 126 68 63 83 126 88 85 84 87 86 12 35 38 40 73 28 56 14 43 130 56 58 14 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-94251-729-1	01	1	9611-	●
1	00.646 CRANKSHAFT	8-94136-164-1	01	1	9611-		●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9611-			●
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9611-				●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9611-					●
1	00.646 CRANKSHAFT	8-97131-857-1	01	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-243-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-244-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-245-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-261-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-262-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-263-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BROWN	8-97179-296-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 GREEN	8-97179-297-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 YELLOW	8-97179-298-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BLUE	8-97179-299-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BROWN	8-97179-300-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 GREEN	8-97179-301-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 YELLOW	8-97179-302-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BLUE	8-97179-303-0	02	1	9712-						●
12	00.666 FLYWHEEL	8-94425-192-0	01	1	9611-	●	●
12	00.666 FLYWHEEL	8-94462-101-2	01	1	9611-			●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9611-				●
12	00.666 FLYWHEEL	8-94172-531-1	01	1	9611-					●
12	00.666 FLYWHEEL	8-97131-860-0	01	1	9712-						●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9611-				●	●
28	00.728 GEAR; CR/SHF EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=21	8-94139-754-0	01	1	9611-				●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9611-				●	●
35	00.673 GEAR; RING	9-12333-032-1	01	1	9611-	●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN)	9-12333-032-1	01	1	9611-			●
35	00.673 GEAR; RING A/T AISIN(RMD)	8-94441-553-1	01	1	9611-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9611-				●	●
35	00.673 GEAR; RING A/T THM(RMQ) Z=121	8-97174-420-0	01	1	9712-						●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN) ID=281	8-94374-959-0	01	1	9712-						●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9611-	●	●	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) 00.649	8-97031-741-0	01	1	9712-						●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9611-	●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9611-				●	●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	9712-						●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9611-	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9611-				●	●
40	00.669 BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9712-						●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M10X31	8-94379-616-0	08	1	9712-						●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9611-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9611-				●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9611-					●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9712-						●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9611-	●	●	●			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9611-				●	●
56	00.659 PULLEY; CR/SHF DAMPER UNITED KINGDOM EQUIPMENT(EK3) 3-GROOVE	8-94387-685-0	01	1	9611-9708				●
56	00.659 PULLEY; CR/SHF DAMPER UNITED KINGDOM EQUIPMENT(EK3) 3-GROOVE	8-97184-137-0	01	1	9709-				●
56	00.659 PULLEY; CR/SHF DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3) 3-GROOVE YAMATO PRESS	8-94419-457-2	01	1	9611-				●	●
56	00.659 PULLEY; CR/SHF DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3) 3-GROOVE FUKOKU	8-94442-166-3	01	1	9611-				●	●
58	00.659 BOLT; CR/SHF PULLEY UNITED KINGDOM EQUIPMENT(EK3) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9611-9708				●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9611-				●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97130-518-0	01	1	9712-						●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9611-				●	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-753-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-754-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-743-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-744-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-798-0	04	1	9611-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-799-0	04	1	9611-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-600-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-601-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97180-192-0	18	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97180-193-0	18	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97180-194-0	18	1	9712-						●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94119-545-0	04	1	9611-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94153-966-2	04	1	9611-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94405-614-2	04	1	9611-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9611-				●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97170-113-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94251-266-1	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94414-305-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94414-306-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9611-				●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	9712-						●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-011-0	04	1	9611-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94220-367-0	04	1	9611-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9611-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9611-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97149-195-1	06	1	9712-						●
84	00.603 ROD ASM; CONN	8-94215-643-3	04	1	9611-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9611-		●	●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9611-				●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9611-					●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	9712-						●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-94419-455-0	04	1	9611-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9611-					●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9611-	●	●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9611-				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9611-					●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9712-						●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9611-					●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9611-	●	●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9611-				●
88	00.623 NUT; CONNROD 00.626 3/8-24 UNF	8-94377-785-0	12	1	9712-						●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	9611-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	9611-					●
130	00.662 PIN; STRAIGHT UNITED KINGDOM EQUIPMENT(EK3) 08.939 OD=4 L=12	9-08160-412-0	01	1	9611-9708				●

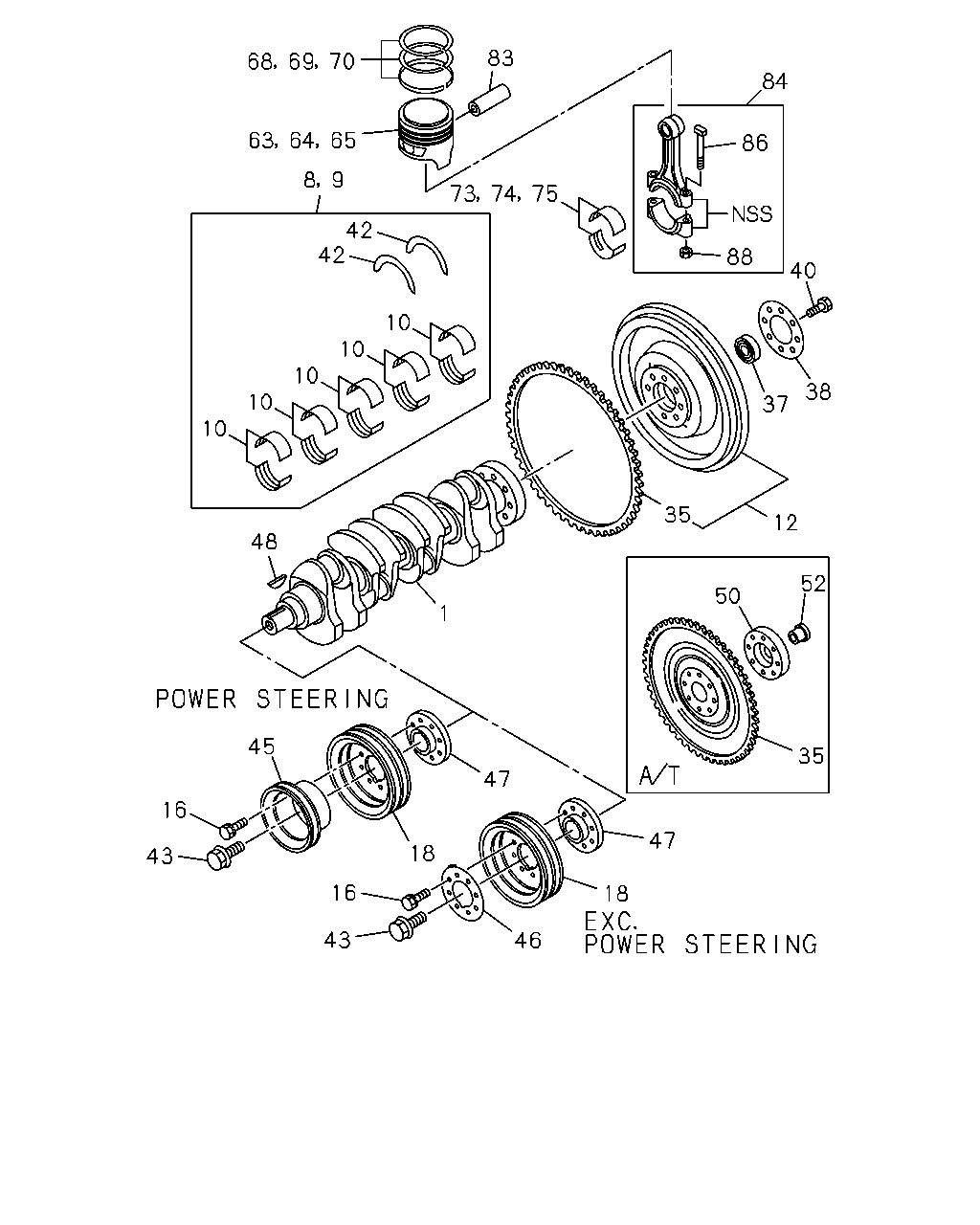

1 48 10 10 10 10 10 42 42 9 8 64 63 65 70 69 68 83 73 74 75 84 86 88 40 38 37 12 35 50 52 35 47 18 46 43 16 18 47 45 16 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-94251-729-1	01	1	9611-	●
1	00.646 CRANKSHAFT	8-94136-164-1	01	1	9611-		●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9611-			●
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9611-				●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9611-					●
1	00.646 CRANKSHAFT	8-97131-857-1	01	1	9712-						●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25 UNSI=0.25	8-94133-028-1	01	1	9611-	●	●
8	00.094 METAL KIT; CRANKSHAFT,U/S=0.25	8-94320-176-0	01	1	9611-			●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50 UNSI=0.50	8-94133-029-1	01	1	9611-	●	●
9	00.094 METAL KIT; CRANKSHAFT,U/S=0.50	8-94320-177-0	01	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-243-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-244-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-245-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-261-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-262-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-263-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BROWN	8-97179-296-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 GREEN	8-97179-297-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 YELLOW	8-97179-298-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BLUE	8-97179-299-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BROWN	8-97179-300-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 GREEN	8-97179-301-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 YELLOW	8-97179-302-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BLUE	8-97179-303-0	02	1	9712-						●
12	00.666 FLYWHEEL	8-94425-192-0	01	1	9611-	●	●
12	00.666 FLYWHEEL	8-94462-101-2	01	1	9611-			●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9611-				●
12	00.666 FLYWHEEL	8-94172-531-1	01	1	9611-					●
12	00.666 FLYWHEEL	8-97131-860-0	01	1	9712-						●
16	00.662 BOLT; PULLEY TO CENTER 04.686 M6X16 W/LK WASHER	0-50040-616-0	08	1	9611-	●	●
16	00.662 BOLT; PULLEY TO CENTER 04.686 M6X16 W/LK WASHER	0-50040-616-0	04	1	9611-			●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-94483-683-1	01	1	9611-	●	●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-97073-157-0	01	1	9611-			●
18	00.659 PULLEY; CR/SHF 6-GROOVE	8-97131-859-0	01	1	9712-						●
35	00.673 GEAR; RING	9-12333-032-1	01	1	9611-	●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN)	9-12333-032-1	01	1	9611-			●
35	00.673 GEAR; RING A/T AISIN(RMD)	8-94441-553-1	01	1	9611-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9611-				●	●
35	00.673 GEAR; RING A/T THM(RMQ) Z=121	8-97174-420-0	01	1	9712-						●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN) ID=281	8-94374-959-0	01	1	9712-						●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9611-	●	●	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) 00.649	8-97031-741-0	01	1	9712-						●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9611-	●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9611-				●	●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	9712-						●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9611-	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9611-				●	●
40	00.669 BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9712-						●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M10X31	8-94379-616-0	08	1	9712-						●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9611-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9611-				●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9611-					●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9712-						●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9611-	●	●	●			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9611-				●	●
45	00.659 PULLEY ASM; CR/SHF,P/S & A/C POWER STEERING<N40>	8-94438-534-0	01	1	9611-	●	●
45	00.659 PULLEY ASM; CR/SHF,P/S & A/C POWER STEERING<N40>	8-94136-782-2	01	1	9611-			●
46	00.662 PLATE; PULLEY,CR/SHF EXC. POWER STEERING<N40>	8-94159-197-1	01	1	9611-	●	●
47	00.662 BOSS; CR/SHF PULLEY	8-97073-079-0	01	1	9611-	●	●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9611-	●	●	●			●
50	00.669 SPACER; FLYWHEEL A/T AISIN(RMD) T=20.45	8-94134-770-1	01	1	9611-			●
52	00.669 SLEEVE; CONV PILOT A/T AISIN(RMD) 00.649	8-94221-949-0	01	1	9611-			●
52	00.669 SLEEVE; CONV PILOT A/T THM(RMQ)	8-94384-695-0	01	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-753-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-754-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-743-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-744-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-798-0	04	1	9611-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-799-0	04	1	9611-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-600-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-601-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97180-192-0	18	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97180-193-0	18	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97180-194-0	18	1	9712-						●
64	00.629 PISTON; O/S=0.50	8-94414-055-1	04	1	9611-	●
64	00.629 PISTON; O/S=0.50	8-94413-459-2	04	1	9611-		●
64	00.629 PISTON; O/S=0.50	8-97069-548-1	04	1	9611-			●
65	00.629 PISTON; O/S=1.00	8-94414-056-1	04	1	9611-	●
65	00.629 PISTON; O/S=1.00	8-94413-460-2	04	1	9611-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94119-545-0	04	1	9611-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94153-966-2	04	1	9611-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94405-614-2	04	1	9611-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9611-				●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97170-113-0	06	1	9712-						●
69	00.643 RING SET; PISTON,O/S=0.50	8-94143-049-0	04	1	9611-	●
69	00.643 RING SET; PISTON,O/S=0.50	8-94337-245-1	04	1	9611-		●
69	00.643 RING SET; PISTON,O/S=0.50	8-94337-249-0	04	1	9611-			●
70	00.643 RING SET; PISTON,O/S=1.00	8-94143-050-0	04	1	9611-	●
70	00.643 RING SET; PISTON,O/S=1.00	8-94337-246-1	04	1	9611-		●
70	00.643 RING SET; PISTON,O/S=1.00	8-94337-250-0	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94251-266-1	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94414-305-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94414-306-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9611-				●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	9712-						●
74	00.616 METAL SET; CONN ROD,U/S=0.25 UNSI=0.25	8-94133-026-0	01	1	9611-	●	●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-94320-178-0	04	1	9611-			●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-94133-027-0	01	1	9611-	●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-94320-179-0	04	1	9611-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-011-0	04	1	9611-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94220-367-0	04	1	9611-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9611-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9611-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97149-195-1	06	1	9712-						●
84	00.603 ROD ASM; CONN	8-94215-643-3	04	1	9611-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9611-		●	●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9611-				●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9611-					●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	9712-						●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9611-	●	●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9611-				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9611-					●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9712-						●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9611-	●	●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9611-				●
88	00.623 NUT; CONNROD 00.626 3/8-24 UNF	8-94377-785-0	12	1	9712-						●

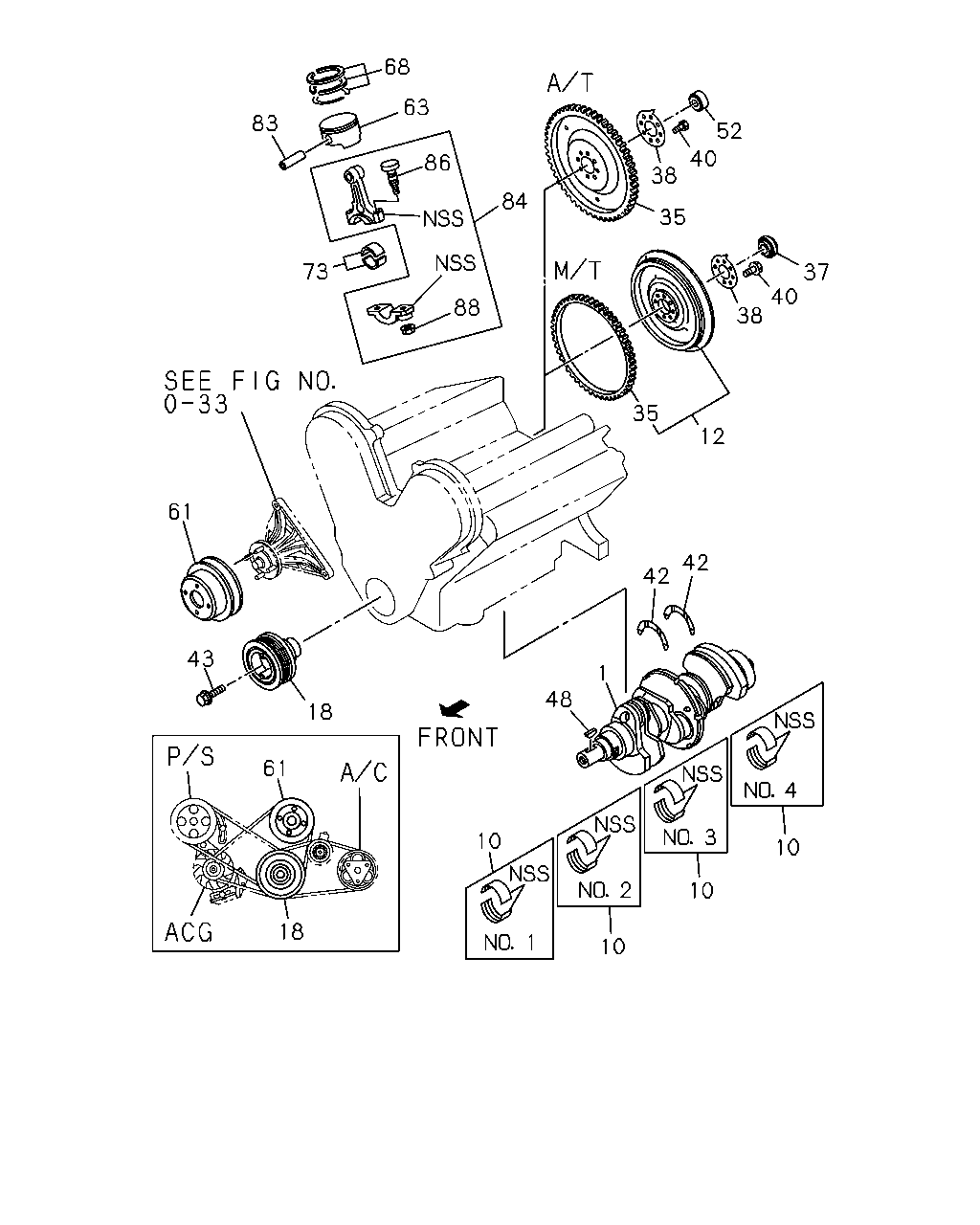

61 73 86 63 88 83 68 84 35 38 40 52 38 40 37 12 35 42 42 1 48 10 61 43 18 10 10 10 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.646 CRANKSHAFT	8-94251-729-1	01	1	9611-	●
1	00.646 CRANKSHAFT	8-94136-164-1	01	1	9611-		●
1	00.646 CRANKSHAFT	8-97107-920-1	01	1	9611-			●
1	00.646 CRANKSHAFT	8-94455-240-1	01	1	9611-				●
1	00.646 CRANKSHAFT	8-94453-525-2	01	1	9611-					●
1	00.646 CRANKSHAFT	8-97131-857-1	01	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-243-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-244-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-245-0	05	1	9611-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97063-255-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-256-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-257-0	05	1	9611-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-261-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-262-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-263-0	05	1	9611-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9611-					●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BROWN	8-97179-296-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 GREEN	8-97179-297-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 YELLOW	8-97179-298-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BLUE	8-97179-299-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BROWN	8-97179-300-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 GREEN	8-97179-301-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 YELLOW	8-97179-302-0	02	1	9712-						●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BLUE	8-97179-303-0	02	1	9712-						●
12	00.666 FLYWHEEL	8-94425-192-0	01	1	9611-	●	●
12	00.666 FLYWHEEL	8-94462-101-2	01	1	9611-			●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	9611-				●
12	00.666 FLYWHEEL	8-94172-531-1	01	1	9611-					●
12	00.666 FLYWHEEL	8-97131-860-0	01	1	9712-						●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-94483-683-1	01	1	9611-	●	●
18	00.659 PULLEY; CR/SHF 2-GROOVE	8-97073-157-0	01	1	9611-			●
18	00.659 PULLEY; CR/SHF 6-GROOVE	8-97131-859-0	01	1	9712-						●
35	00.673 GEAR; RING	9-12333-032-1	01	1	9611-	●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN)	9-12333-032-1	01	1	9611-			●
35	00.673 GEAR; RING A/T AISIN(RMD)	8-94441-553-1	01	1	9611-			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9611-				●	●
35	00.673 GEAR; RING A/T THM(RMQ) Z=121	8-97174-420-0	01	1	9712-						●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN) ID=281	8-94374-959-0	01	1	9712-						●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	9611-	●	●	●	●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) 00.649	8-97031-741-0	01	1	9712-						●
38	00.862 WASHER; FLYWHEEL 00.669 T=1.2	8-94250-274-1	01	1	9611-	●	●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9611-				●	●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	9712-						●
40	00.669 BOLT; FLYWHEEL M10X36	8-94479-034-0	08	1	9611-	●	●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9611-				●	●
40	00.669 BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9712-						●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M10X31	8-94379-616-0	08	1	9712-						●
42	00.095 WASHER; THRUST,CR/SHF	8-94481-907-0	02	1	9611-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	9611-				●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9611-					●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9712-						●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9611-	●	●	●			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9611-				●	●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9611-	●	●	●			●
52	00.669 SLEEVE; CONV PILOT A/T AISIN(RMD) 00.649	8-94221-949-0	01	1	9611-			●
52	00.669 SLEEVE; CONV PILOT A/T THM(RMQ)	8-94384-695-0	01	1	9712-						●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-1	01	1	9611-				●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97130-518-0	01	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-753-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-754-0	04	1	9611-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-743-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-744-0	04	1	9611-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-798-0	04	1	9611-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-799-0	04	1	9611-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-600-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-601-0	04	1	9611-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	9611-					●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-97180-192-0	18	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-97180-193-0	18	1	9712-						●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-97180-194-0	18	1	9712-						●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94119-545-0	04	1	9611-	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94153-966-2	04	1	9611-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94405-614-2	04	1	9611-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-1	04	1	9611-				●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97170-113-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94251-266-1	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94414-305-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94414-306-0	01	1	9611-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD BROWN	8-94440-093-2	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLACK	8-94440-094-2	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD BLUE	8-94440-095-2	04	1	9611-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9611-				●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	9712-						●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	9712-						●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	5-12211-011-0	04	1	9611-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94220-367-0	04	1	9611-		●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	9611-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9611-					●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97149-195-1	06	1	9712-						●
84	00.603 ROD ASM; CONN	8-94215-643-3	04	1	9611-	●
84	00.603 ROD ASM; CONN	8-94220-365-2	04	1	9611-		●	●
84	00.603 ROD ASM; CONN	8-94333-119-0	04	1	9611-				●
84	00.603 ROD ASM; CONN	8-97062-300-0	04	1	9611-					●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	9712-						●
86	00.623 BOLT; CONNROD M10X60	9-12235-068-2	08	1	9611-	●	●	●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	9611-				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9611-					●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9712-						●
88	00.623 NUT; CONNROD 00.626	9-09840-238-0	08	1	9611-	●	●	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	9611-				●
88	00.623 NUT; CONNROD 00.626 3/8-24 UNF	8-94377-785-0	12	1	9712-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
