Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#35853) — 317 parça

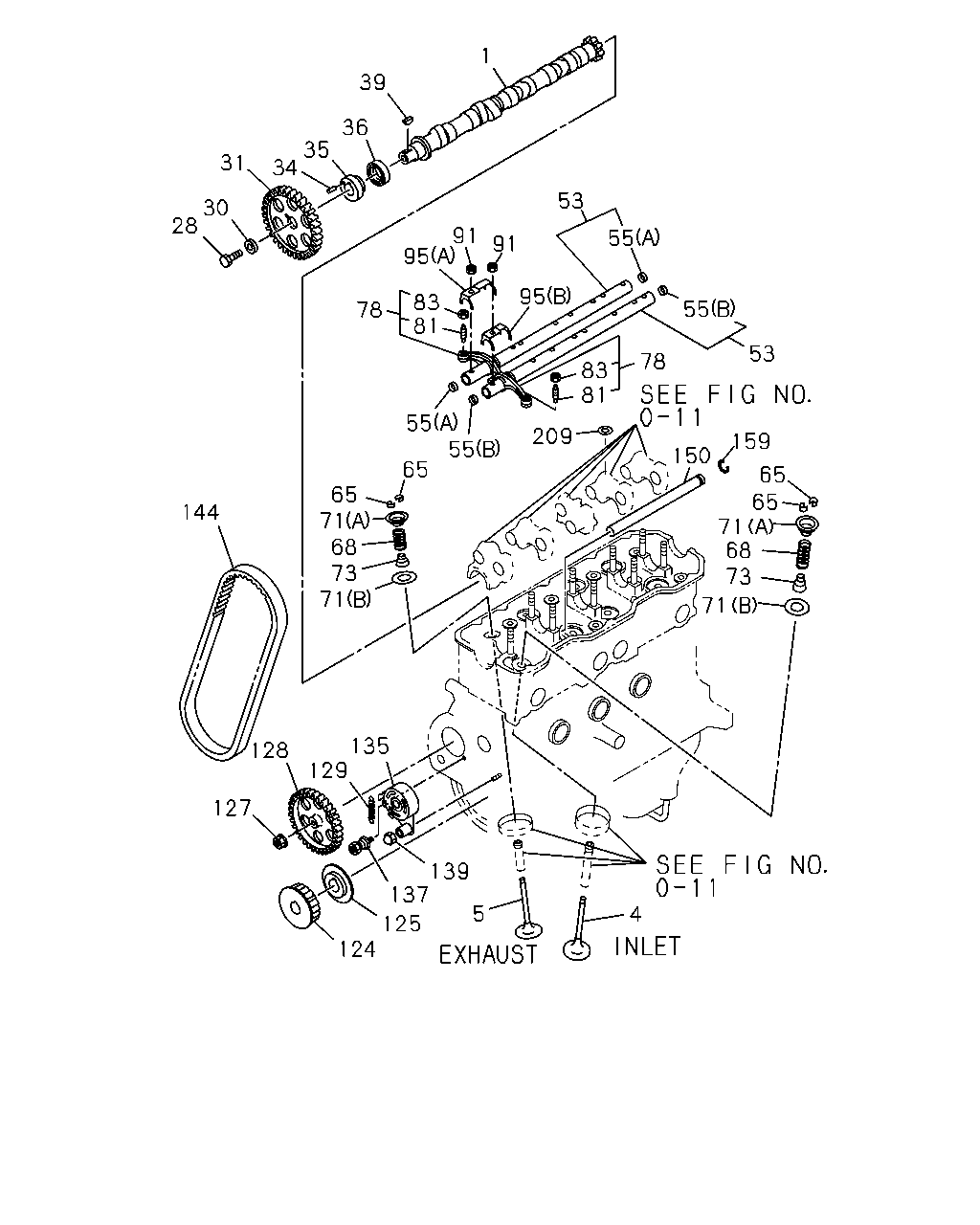

144 65 71 68 73 71 135 129 128 127 139 137 125 124 5 4 71 73 68 28 30 31 34 35 36 39 1 53 55 95 91 91 95 78 83 81 83 81 78 55 53 159 150 209 55 55 65 65 65 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9611-	●	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9611-				●	●
4	00.296 VALVE; INL	8-94153-969-0	04	1	9611-	●	●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9611-			●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94464-921-0	04	1	9611-				●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9611-					●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94133-275-1	04	1	9611-				●
4	00.296 VALVE; INL	8-97169-807-0	12	1	9712-						●
5	00.297 VALVE; EXH	8-97119-751-0	04	1	9611-	●	●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9611-			●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3)	8-94433-245-0	04	1	9611-				●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9611-					●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94247-875-1	04	1	9611-				●
5	00.297 VALVE; EXH	8-97169-808-0	12	1	9712-						●
28	00.738 BOLT; CAM PULLEY 08.900 M10X35	9-02061-035-0	01	1	9611-	●	●	●
28	00.738 BOLT; CAM PULLEY	8-97149-393-0	02	1	9712-						●
30	00.662 WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9611-	●	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97136-107-0	01	1	9611-	●	●
31	00.736 SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9611-			●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97147-983-0	01	1	9611-				●
34	00.533 PIN; CM/SHF 00.662	9-08160-512-0	01	1	9611-	●	●	●
35	00.533 BOSS; CM/SHF	8-94251-272-1	01	1	9611-	●	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=45	8-94334-845-0	01	1	9611-	●	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) OD=56 T=7.0	8-97080-562-0	01	1	9611-				●
39	00.529 KEY; WOODRUFF,BOSS 08.960	9-08055-516-0	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM INLET	8-94110-646-1	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-94129-227-0	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9611-				●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9611-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9611-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9611-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9712-						●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9611-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9611-				●	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9712-						●
71	00.309 SEAT; SPR (A) OD=32	8-94233-232-1	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (B) OD=34	8-94200-749-0	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9611-				●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9703-				●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9611-9702				●	●
71	00.309 SEAT; SPR OD=24.2	8-97136-329-1	24	1	9712-						●
71	00.309 SEAT; SPR OD=27	8-97149-155-0	24	1	9712-						●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97033-673-0	08	1	9611-	●	●	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET	8-94324-158-1	12	1	9712-						●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXHAUST	8-97146-733-0	12	1	9712-						●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9611-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9611-	●	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9611-				●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9611-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9611-				●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9611-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9611-				●	●
91	00.349 NUT; ROCKER SHAFT 00.002 M8	9-09110-508-0	10	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9611-				●	●
124	00.659 PULLEY; TIMING,CR/SHF 00.724 Z=22	8-94231-165-1	01	1	9611-	●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9611-			●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=22	8-94133-501-3	01	1	9611-				●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-97136-326-0	01	1	9712-						●
125	00.662 PLATE; GUIDE,TIMING BELT 00.724	8-94215-184-0	01	1	9611-	●	●	●
127	00.724 NUT; PULLEY M12	8-94221-051-0	01	1	9611-	●	●	●
128	00.724 PULLEY; TIMING,OIL PUMP Z=38	8-97136-108-0	01	1	9611-	●	●
128	00.724 PULLEY; TIMING,OIL PUMP Z=45	8-94174-224-1	01	1	9611-			●
129	00.724 SPRING; TENSIONER L=47.4	8-94225-389-0	01	1	9611-	●	●
129	00.724 SPRING; TENSIONER L=65	8-94472-329-0	01	1	9611-			●
135	00.724 PULLEY; TENSIONER	8-94215-197-1	01	1	9611-	●	●
135	00.724 PULLEY; TENSIONER	8-94472-349-0	01	1	9611-			●
135	00.724 PULLEY; TENSIONER	8-97136-256-0	01	1	9712-						●
137	00.724 BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9611-	●	●	●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9611-				●
139	00.724 NUT; TENSIONER 00.002 M8	9-09110-508-0	01	1	9611-	●	●	●
144	00.724 BELT; TIMING	8-97066-863-0	01	1	9611-	●
144	00.724 BELT; TIMING	8-97041-784-0	01	1	9611-		●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9611-			●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9611-				●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9712-						●
150	00.426 ROD ASM; PUSH,FUEL PUMP W/RING	8-94159-290-1	01	1	9611-	●	●
150	00.426 ROD ASM; PUSH,FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG> W/RING	8-94159-290-1	01	1	9611-			●
159	00.426 RING; SNAP,PUSH ROD,FUEL PUMP	8-94159-292-0	01	1	9611-	●	●
159	00.426 RING; SNAP,PUSH ROD,FUEL PUMP EXC. ELECTRIC FUEL INJECTION<6GG>	8-94159-292-0	01	1	9611-			●
209	00.349 WASHER; LK,ROCKER ARM BRKT 16.674 ID=8.4	9-09160-508-0	02	1	9611-	●	●	●

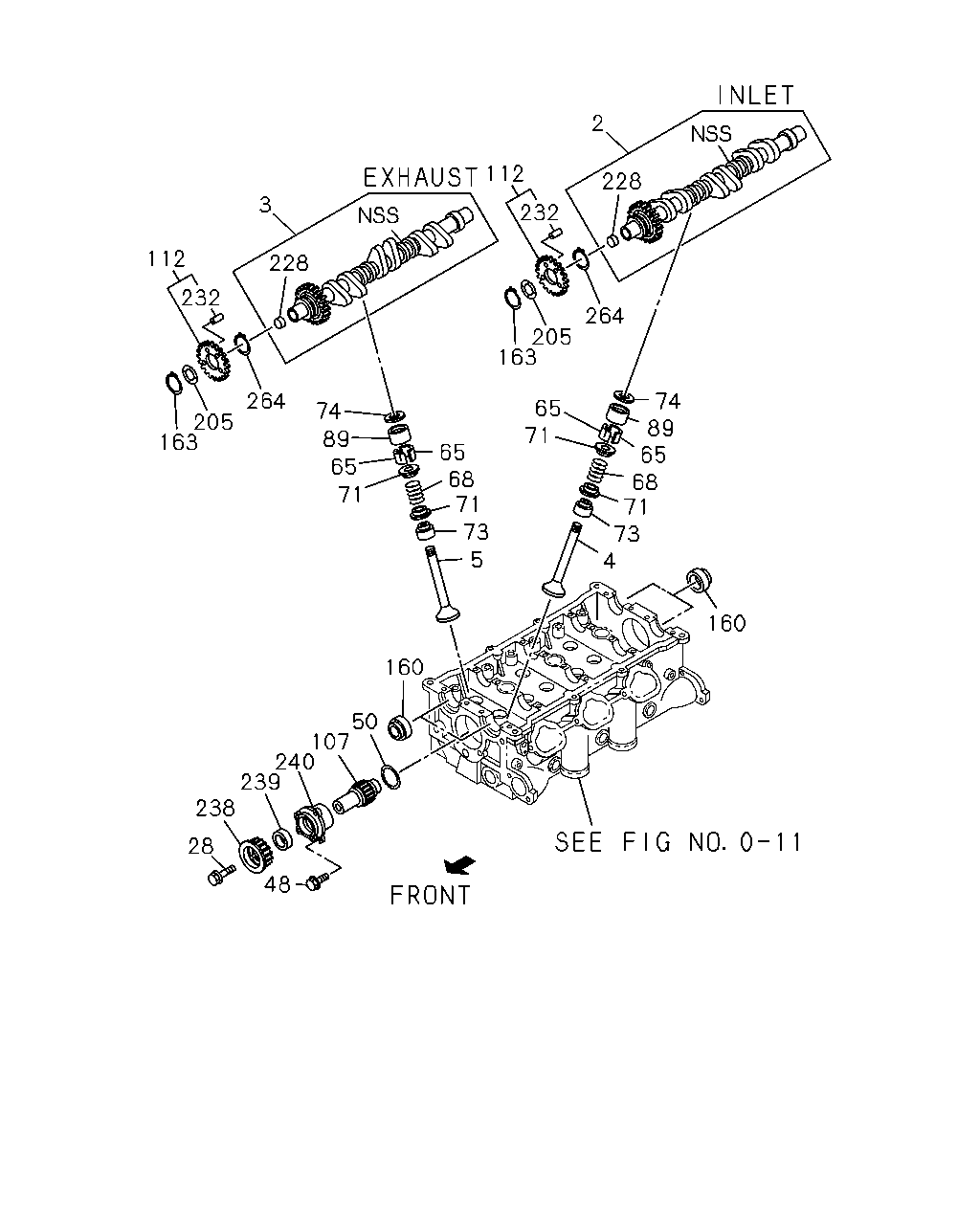

160 4 73 71 68 65 89 74 65 71 163 205 264 232 228 2 112 3 112 232 228 264 205 163 74 89 65 71 65 68 71 73 5 160 50 107 240 239 238 28 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	00.519 CAMSHAFT; INL	8-97131-946-0	01	1	9712-						●
2	00.519 CAMSHAFT; INL	8-97131-944-0	01	1	9712-						●
3	00.519 CAMSHAFT; EXH	8-97136-139-0	02	1	9712-						●
4	00.296 VALVE; INL	8-94153-969-0	04	1	9611-	●	●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9611-			●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94464-921-0	04	1	9611-				●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9611-					●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94133-275-1	04	1	9611-				●
4	00.296 VALVE; INL	8-97169-807-0	12	1	9712-						●
5	00.297 VALVE; EXH	8-97119-751-0	04	1	9611-	●	●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9611-			●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3)	8-94433-245-0	04	1	9611-				●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9611-					●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94247-875-1	04	1	9611-				●
5	00.297 VALVE; EXH	8-97169-808-0	12	1	9712-						●
28	00.738 BOLT; CAM PULLEY 08.900 M10X35	9-02061-035-0	01	1	9611-	●	●	●
28	00.738 BOLT; CAM PULLEY	8-97149-393-0	02	1	9712-						●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9611-				●
48	00.724 BOLT; RET M6X20 FLANGE	0-28690-620-0	03	1	9712-						●
48	00.724 BOLT; RET M6X30 FLANGE	0-28690-630-0	03	1	9712-						●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3)	8-97080-893-0	01	1	9611-				●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97149-238-0	02	1	9712-						●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9611-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9712-						●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9611-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9611-				●	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9712-						●
71	00.309 SEAT; SPR (A) OD=32	8-94233-232-1	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (B) OD=34	8-94200-749-0	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9611-				●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9703-				●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9611-9702				●	●
71	00.309 SEAT; SPR OD=24.2	8-97136-329-1	24	1	9712-						●
71	00.309 SEAT; SPR OD=27	8-97149-155-0	24	1	9712-						●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97033-673-0	08	1	9611-	●	●	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET	8-94324-158-1	12	1	9712-						●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXHAUST	8-97146-733-0	12	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.40	8-97149-262-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.42	8-97149-263-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.44	8-97149-264-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.46	8-97149-265-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.48	8-97149-266-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.50	8-97149-267-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.52	8-97149-268-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.54	8-97149-269-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.56	8-97149-270-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.58	8-97149-271-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.60	8-97149-272-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.62	8-97149-273-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.64	8-97149-274-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.66	8-97149-275-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.68	8-97149-276-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.70	8-97149-277-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.72	8-97149-278-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.74	8-97149-279-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.76	8-97149-280-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.78	8-97149-281-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.80	8-97149-282-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.82	8-97149-283-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.84	8-97149-284-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.86	8-97149-285-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.88	8-97149-286-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.90	8-97149-287-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.92	8-97149-288-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.94	8-97149-289-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.96	8-97149-290-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=2.98	8-97149-291-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.00	8-97149-292-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.02	8-97149-293-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.04	8-97149-294-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.06	8-97149-295-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.08	8-97149-296-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.10	8-97149-297-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.12	8-97149-298-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.14	8-97149-299-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.16	8-97149-300-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.18	8-97149-301-0	AR	1	9712-						●
74	00.459 ADJUSTER; VLV GAP T=3.20	8-97149-302-0	AR	1	9712-						●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9611-				●	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9712-						●
107	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94139-758-1	01	1	9611-				●	●
107	00.724 SHAFT; IDLE GEAR	8-97131-966-1	01	1	9712-						●
107	00.724 SHAFT; IDLE GEAR	8-97131-965-1	01	1	9712-						●
112	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-94139-759-0	01	1	9611-9611				●	●
112	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-97164-773-0	01	1	9612-				●	●
112	00.724 GEAR; IDLE Z=40	8-97136-655-0	04	1	9712-						●
160	00.533 PLUG; CM/SHF END	8-97149-338-0	08	1	9712-						●
163	00.724 RING; SNAP,IDLE	8-97149-334-0	04	1	9712-						●
205	00.724 WASHER; LK,IDLE	8-97136-589-0	04	1	9712-						●
228	00.738 CUP; SEALING,CAMSHAFT OD=8	8-97039-526-0	04	1	9712-						●
232	00.662 PIN; GEAR SET 00.738 OD=5 L=6	9-09878-626-0	04	1	9712-						●
238	00.659 PULLEY; TIMING,CAM	8-97136-327-0	02	1	9712-						●
239	00.533 SEAL; OIL,IDLE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94389-593-1	02	1	9712-						●
240	00.724 RETAINER; IDLE	8-97132-365-1	01	1	9712-						●
240	00.724 RETAINER; IDLE	8-97132-364-1	01	1	9712-						●
264	00.349 SPRING; GEAR 00.659	8-97136-343-0	04	1	9712-						●

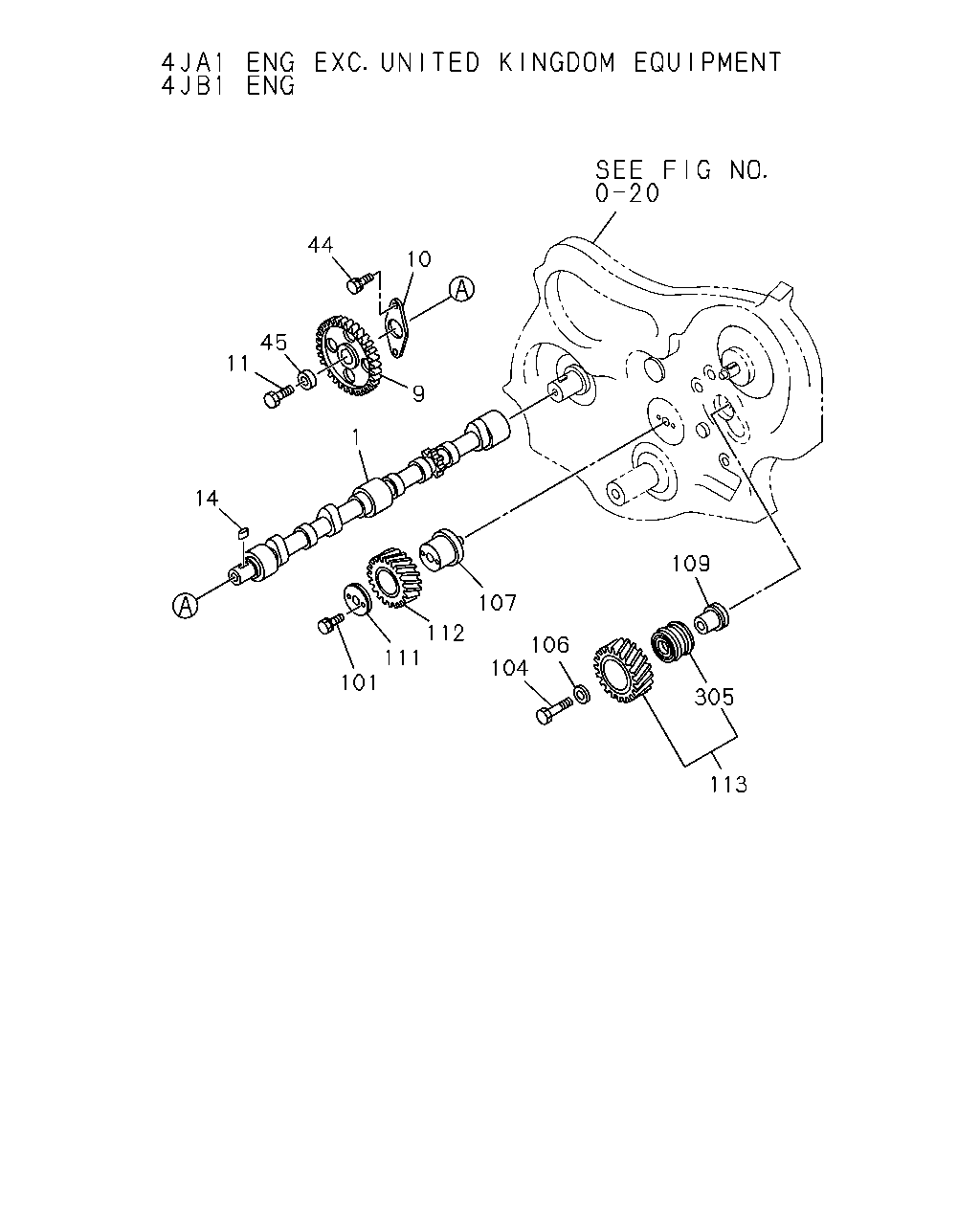

44 10 9 1 11 45 14 101 111 112 107 106 104 305 109 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9611-	●	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9611-				●	●
9	00.736 GEAR; CM/SHF EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=42	8-97079-212-0	01	1	9611-				●	●
10	00.533 PLATE; THRUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-480-1	01	1	9611-				●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9611-				●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9611-				●	●
44	00.738 BOLT EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9611-				●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9611-				●	●
101	00.724 BOLT; THRUST COLLAR EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9611-				●	●
104	00.724 BOLT; SHAFT IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-706-1	01	1	9611-				●	●
106	00.724 WASHER; IDLE GEAR SHAFT EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9611-				●	●
107	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94139-758-1	01	1	9611-				●	●
107	00.724 SHAFT; IDLE GEAR	8-97131-966-1	01	1	9712-						●
107	00.724 SHAFT; IDLE GEAR	8-97131-965-1	01	1	9712-						●
109	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-913-1	01	1	9611-				●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94141-937-1	01	1	9611-				●	●
112	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-94139-759-0	01	1	9611-9611				●	●
112	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-97164-773-0	01	1	9612-				●	●
112	00.724 GEAR; IDLE Z=40	8-97136-655-0	04	1	9712-						●
113	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=37	8-94139-761-0	01	1	9611-				●	●
305	00.724 BEARING; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-271-0	01	1	9712-				●	●

78 78 78 84 87 86 55 78 78 78 53 54 54 78 84 78 56 55 81 83 85 86 95 65 71 68 72 71 5 4 88 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	00.296 VALVE; INL	8-94153-969-0	04	1	9611-	●	●
4	00.296 VALVE; INL	8-94174-222-1	04	1	9611-			●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94464-921-0	04	1	9611-				●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9611-					●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94133-275-1	04	1	9611-				●
4	00.296 VALVE; INL	8-97169-807-0	12	1	9712-						●
5	00.297 VALVE; EXH	8-97119-751-0	04	1	9611-	●	●
5	00.297 VALVE; EXH	8-97110-256-0	04	1	9611-			●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3)	8-94433-245-0	04	1	9611-				●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9611-					●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94247-875-1	04	1	9611-				●
5	00.297 VALVE; EXH	8-97169-808-0	12	1	9712-						●
53	00.353 SHAFT; ROCKER ARM INLET	8-94110-646-1	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM EXHAUST	8-94129-227-0	01	1	9611-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9611-				●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9611-				●	●
55	00.356 PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9611-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9611-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9611-				●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94200-714-0	16	1	9611-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9611-				●	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9712-						●
68	00.303 SPRING; VLV	8-94259-483-0	08	1	9611-	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9611-				●	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9712-						●
71	00.309 SEAT; SPR (A) OD=32	8-94233-232-1	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (B) OD=34	8-94200-749-0	08	1	9611-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	9611-				●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9703-				●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	9611-9702				●	●
71	00.309 SEAT; SPR OD=24.2	8-97136-329-1	24	1	9712-						●
71	00.309 SEAT; SPR OD=27	8-97149-155-0	24	1	9712-						●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	9611-				●	●
78	00.333 ARM; ROCKER NPR	8-94102-413-0	08	1	9611-	●	●	●
78	00.333 ARM; ROCKER JBK	8-94102-416-0	08	1	9611-	●	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9611-				●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9611-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9611-				●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	9611-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9611-				●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9611-				●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	9611-				●	●
85	00.349 BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	9611-				●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9611-				●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9611-				●	●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	9611-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9611-					●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9611-				●	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9712-						●
95	00.376 SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9611-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9611-				●	●

229 230 123 121 124 144 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	F
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9611-				●
121	00.724 BOLT; IDLE PULLEY 03.613 M10X40 FLANGE	0-28681-040-0	01	1	9712-					●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(EK3)	8-94382-215-1	01	1	9611-				●
123	00.724 PULLEY; IDLE,TIMING	8-97146-877-0	01	1	9712-					●
124	00.659 PULLEY; TIMING,CR/SHF 00.724 Z=22	8-94231-165-1	01	1	9611-	●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9611-			●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=22	8-94133-501-3	01	1	9611-				●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-97136-326-0	01	1	9712-					●
135	00.724 PULLEY; TENSIONER	8-94215-197-1	01	1	9611-	●	●
135	00.724 PULLEY; TENSIONER	8-94472-349-0	01	1	9611-			●
135	00.724 PULLEY; TENSIONER	8-97136-256-0	01	1	9712-					●
144	00.724 BELT; TIMING	8-97066-863-0	01	1	9611-	●
144	00.724 BELT; TIMING	8-97041-784-0	01	1	9611-		●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9611-			●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9611-				●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9712-					●
229	00.724 ROD ASM; PUSH,TENSIONER	8-97136-257-0	01	1	9712-					●
230	00.724 BOLT; PUSH ROD 02.183 M8X35 FLANGE	0-28680-835-0	02	1	9712-					●

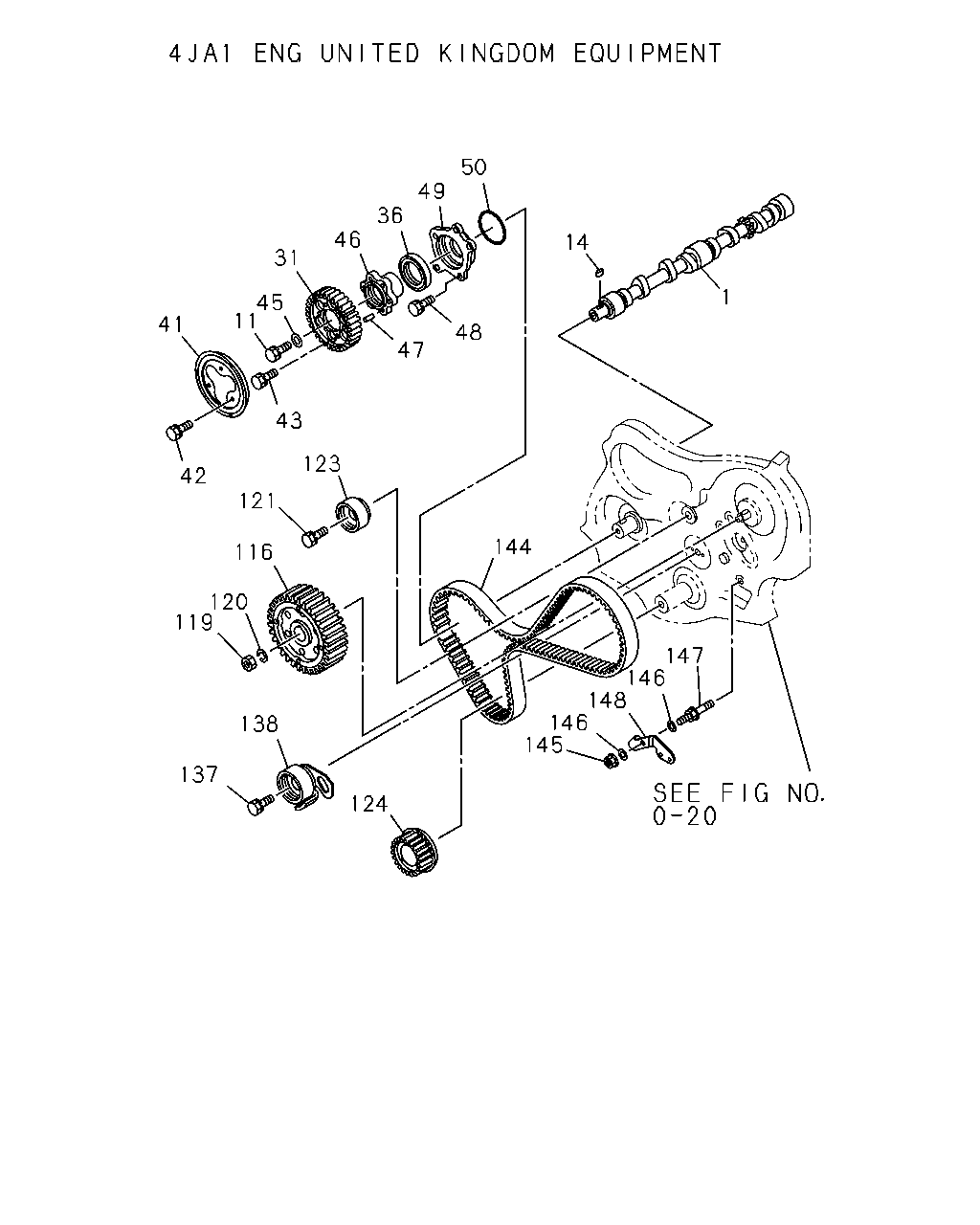

14 1 48 47 46 36 49 50 31 45 11 41 43 123 121 42 116 120 119 138 137 124 145 146 148 146 147 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94136-784-1	01	1	9611-	●	●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9611-				●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9611-				●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9611-				●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97136-107-0	01	1	9611-	●	●
31	00.736 SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9611-			●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97147-983-0	01	1	9611-				●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=45	8-94334-845-0	01	1	9611-	●	●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) OD=56 T=7.0	8-97080-562-0	01	1	9611-				●
41	00.662 FLANGE; CAM PULLEY UNITED KINGDOM EQUIPMENT(EK3)	8-94157-492-0	01	1	9611-				●
42	00.662 BOLT; FLANGE CAM UNITED KINGDOM EQUIPMENT(EK3) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9611-				●
43	00.662 BOLT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9611-				●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9611-				●	●
46	00.736 CENTER ASM; TIMING PULLEY UNITED KINGDOM EQUIPMENT(EK3)	8-97118-491-0	01	1	9611-				●
47	00.662 PIN; STRAIGHT,CENTER UNITED KINGDOM EQUIPMENT(EK3) 08.939 OD=4 L=12	9-08160-412-0	01	1	9611-				●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9611-				●
48	00.724 BOLT; RET M6X20 FLANGE	0-28690-620-0	03	1	9712-						●
48	00.724 BOLT; RET M6X30 FLANGE	0-28690-630-0	03	1	9712-						●
49	00.724 RETAINER; OIL SEAL,CM/SHF UNITED KINGDOM EQUIPMENT(EK3)	8-94133-516-2	01	1	9611-				●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3)	8-97080-893-0	01	1	9611-				●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97149-238-0	02	1	9712-						●
116	00.659 PULLEY; TIMING,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3)	8-97088-392-0	01	1	9611-				●
119	00.662 NUT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) 03.340 M14	8-94226-565-0	01	1	9611-				●
120	00.662 WASHER; LK,PULLEY,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 03.340	8-94226-554-0	01	1	9611-				●
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9611-				●
121	00.724 BOLT; IDLE PULLEY 03.613 M10X40 FLANGE	0-28681-040-0	01	1	9712-						●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(EK3)	8-94382-215-1	01	1	9611-				●
123	00.724 PULLEY; IDLE,TIMING	8-97146-877-0	01	1	9712-						●
124	00.659 PULLEY; TIMING,CR/SHF 00.724 Z=22	8-94231-165-1	01	1	9611-	●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-94457-889-0	01	1	9611-			●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=22	8-94133-501-3	01	1	9611-				●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-97136-326-0	01	1	9712-						●
137	00.724 BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9611-	●	●	●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9611-				●
138	00.724 TENSIONER; TIMING BELT UNITED KINGDOM EQUIPMENT(EK3)	8-94382-214-1	01	1	9611-				●
144	00.724 BELT; TIMING	8-97066-863-0	01	1	9611-	●
144	00.724 BELT; TIMING	8-97041-784-0	01	1	9611-		●
144	00.724 BELT; TIMING	8-97042-268-0	01	1	9611-			●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9611-				●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9712-						●
145	00.724 NUT; FLANGE UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	01	1	9611-				●
146	00.724 WASHER; PL,TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9611-				●
147	00.724 BOLT; TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9611-				●
148	00.724 LEVER; TENSION,TIMING BELT UNITED KINGDOM EQUIPMENT(EK3)	8-97146-370-0	01	1	9611-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
