0-12 — CYLINDER BLOCK (#35851) — 126 parça

119 119 120 121 117 115 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	00.034 RUBBER; SPACE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97141-687-0	01	1	9611-9611	●
115	00.034 RUBBER; SPACE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97106-521-1	01	1	9611-	●
117	00.030 COVER ASM; C/BL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97106-516-1	01	1	9611-	●
119	00.034 BOLT; COVER FIX EXC. UNITED KINGDOM EQUIPMENT(EK3) M10X28	8-94329-952-1	02	1	9611-	●
119	00.034 BOLT; COVER FIX EXC. UNITED KINGDOM EQUIPMENT(EK3) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9611-	●
120	00.034 BUSHING; MTG RUBBER EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=13 T=9.5	8-94140-427-1	05	1	9611-	●
121	00.034 RUBBER; MTG,COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=22	8-94140-428-1	05	1	9611-	●
150	02.313 BOLT; CLIP EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9704-		●

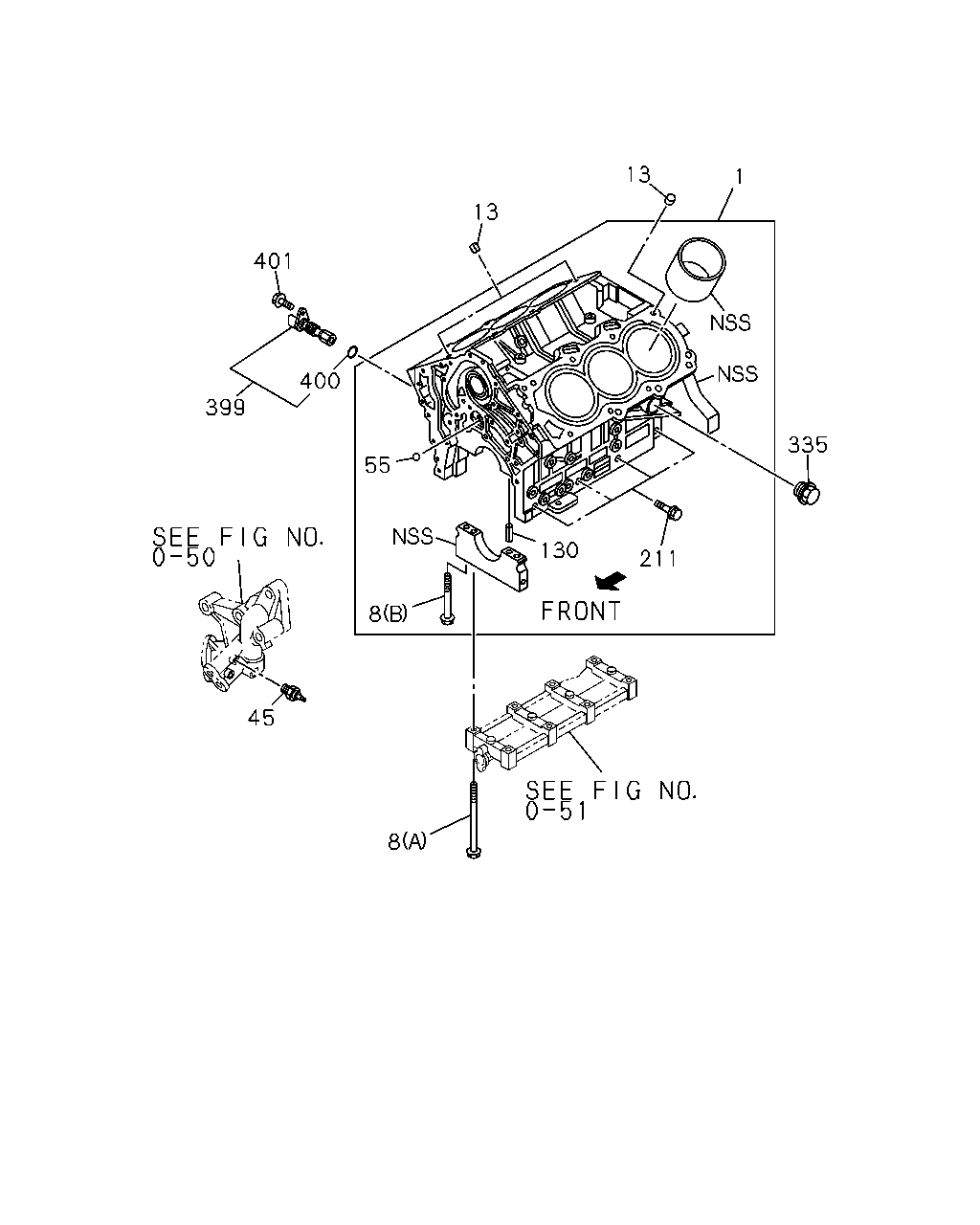

13 401 400 399 55 130 8 211 335 1 13 8 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-94341-820-2	01	1	9611-			●
1	00.033 BLOCK ASM; CYL	8-94341-822-1	01	1	9611-				●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9611-					●
1	00.033 BLOCK ASM; CYL	8-94438-404-4	01	1	9611-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9611-		●
1	00.033 BLOCK ASM; CYL	8-97149-360-1	01	1	9712-						●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9611-			●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9611-	●	●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9712-						●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9712-						●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9611-			●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9611-	●	●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9712-						●
45	01.800 SWITCH; OIL PRESSURE	8-94312-940-0	01	1	9712-						●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	01	1	9611-			●	●
55	01.531 PLUG; OIL GALLERY 01.837 3/8" BALL	9-00097-011-0	01	1	9712-						●
130	00.056 DOWEL; BRG CAP	8-94382-070-0	08	1	9712-						●
211	01.428 BOLT; CRANKCASE M10X31 FLANGE	8-94363-094-1	08	1	9712-						●
335	01.531 PLUG; C/BL,SIDE M28X16 FLANGE	8-97028-246-2	01	1	9712-						●
399	00.724 SENSOR; CRANKSHAFT POSITION	8-97136-125-1	01	1	9712-						●
400	00.724 GASKET; CRANKSHAFT POSITION SENS	8-97131-356-0	01	1	9712-						●
401	00.724 BOLT; SENSOR 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9712-						●

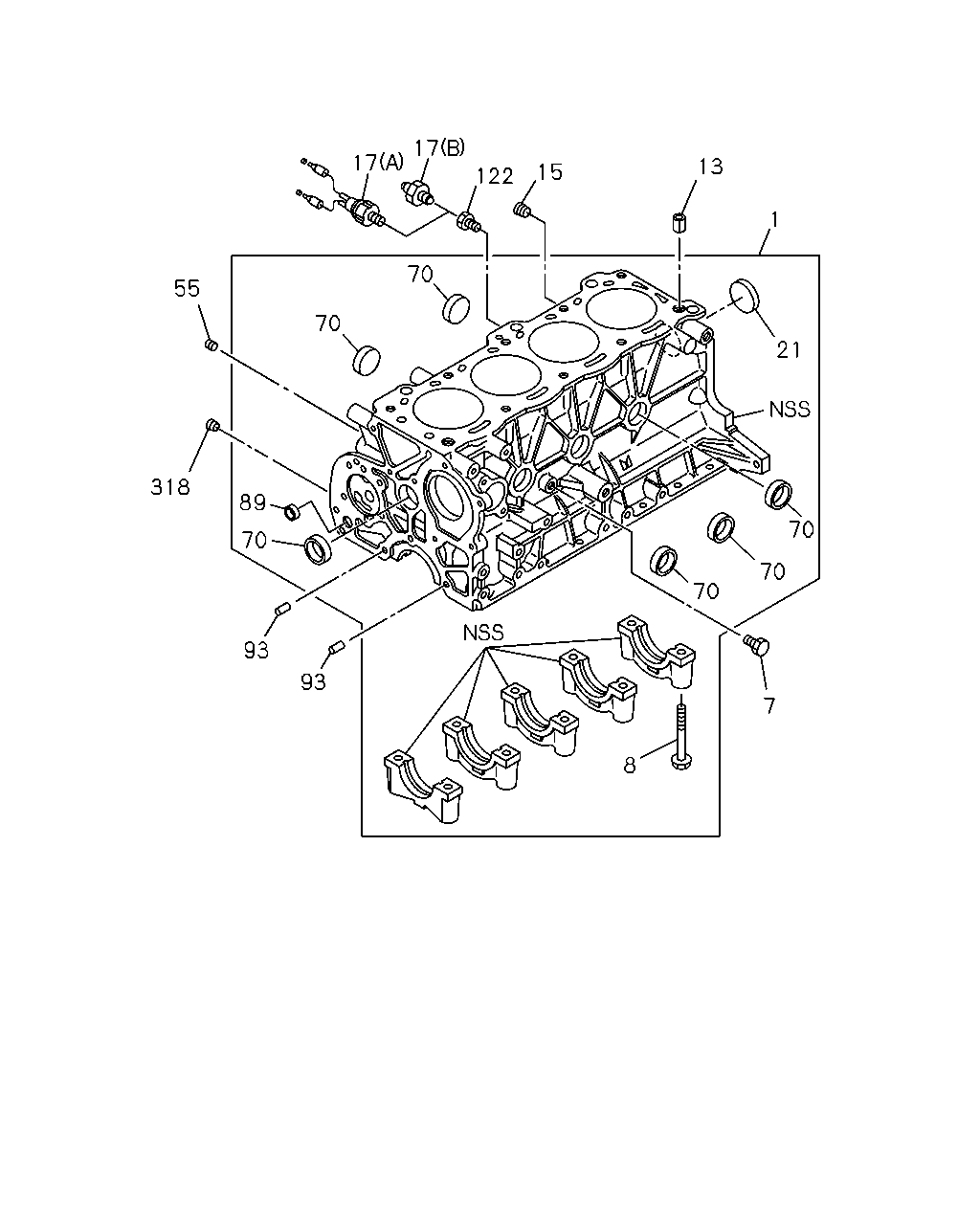

17 17 122 15 13 1 21 70 70 70 7 8 93 93 70 89 318 55 70 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-94341-820-2	01	1	9611-			●
1	00.033 BLOCK ASM; CYL	8-94341-822-1	01	1	9611-				●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9611-					●
1	00.033 BLOCK ASM; CYL	8-94438-404-4	01	1	9611-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9611-		●
1	00.033 BLOCK ASM; CYL	8-97149-360-1	01	1	9712-						●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9611-	●	●	●	●	●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9611-			●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9611-	●	●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9712-						●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9712-						●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9611-			●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9611-	●	●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9712-						●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9611-			●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9611-	●	●
17	01.800 SWITCH; OIL PRESSURE (B)	9-82720-209-2	01	1	9611-	●	●	●	●
17	01.800 SWITCH; OIL PRESSURE EXC. ELECTRIC FUEL INJECTION<6GG> (B)	9-82720-209-2	01	1	9611-					●
17	01.800 SWITCH; OIL PRESSURE ELECTRIC FUEL INJECTION<6GG> (A) WO/ADAPTER	8-94156-643-0	01	1	9611-					●
21	00.034 CUP; SEALING,RR OD=38	9-11219-005-0	01	1	9611-			●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9611-	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9611-	●	●
55	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	01	1	9611-			●	●
55	01.531 PLUG; OIL GALLERY 01.837 3/8" BALL	9-00097-011-0	01	1	9712-						●
70	00.034 CUP; SEALING,FRT & RR OD=35	8-94200-768-0	06	1	9611-			●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9611-	●	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=18	5-11219-008-0	02	1	9611-			●	●	●
93	00.206 DOWEL; RET TO C/BL OD=11 L=8	9-11229-058-1	02	1	9611-			●	●	●
122	01.800 ADAPTER; OIL PRESSURE SWITCH PT1/8 STRAIGHT	9-09902-238-0	01	1	9611-			●	●	●
318	01.531 PLUG; OIL FILTER	9-09864-007-1	01	1	9611-			●	●	●

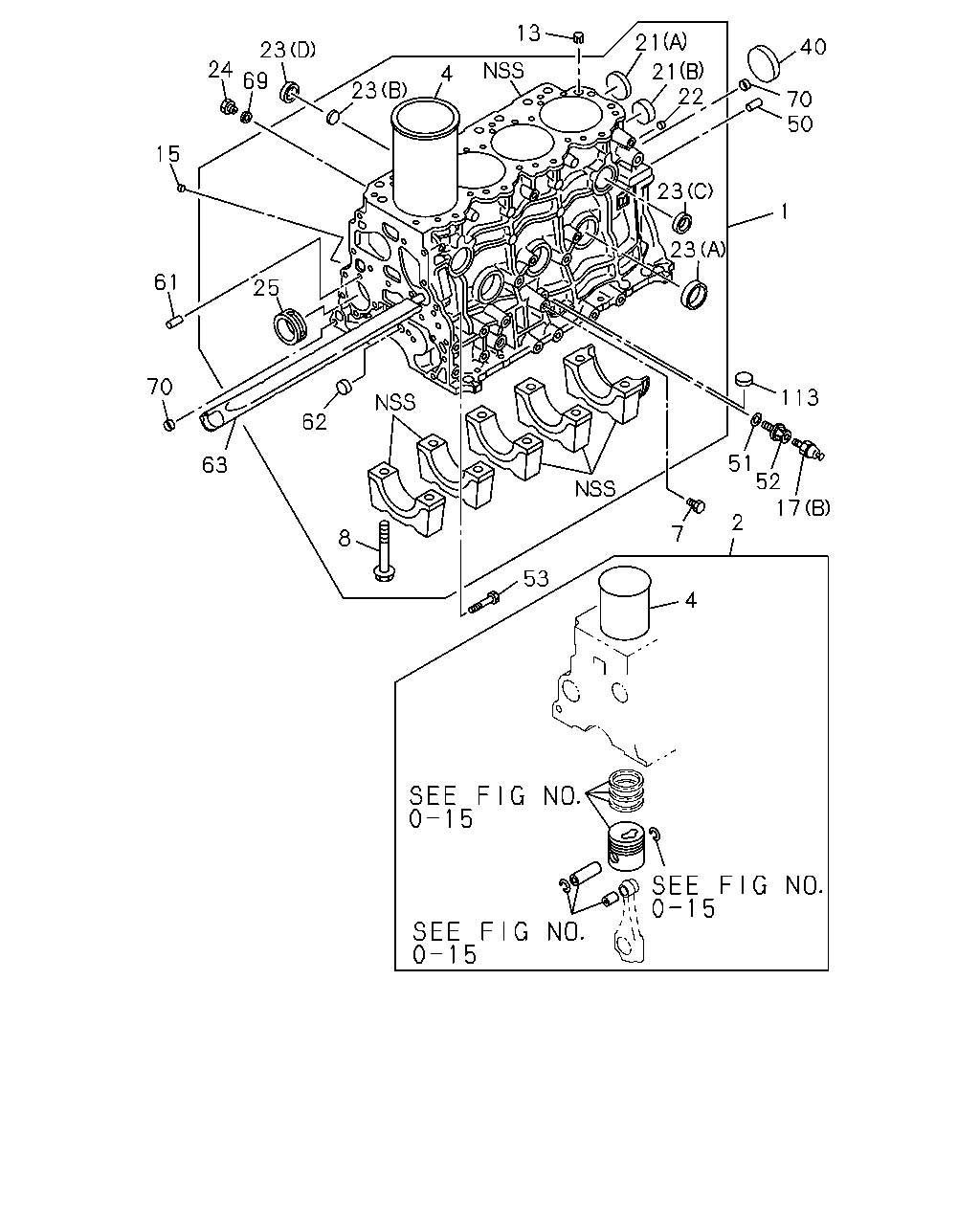

4 7 2 51 52 17 113 1 23 50 70 40 22 21 21 13 4 23 23 24 69 15 61 25 62 63 70 8 53 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.033 BLOCK ASM; CYL	8-94341-820-2	01	1	9611-			●
1	00.033 BLOCK ASM; CYL	8-94341-822-1	01	1	9611-				●
1	00.033 BLOCK ASM; CYL	8-94341-824-2	01	1	9611-					●
1	00.033 BLOCK ASM; CYL	8-94438-404-4	01	1	9611-	●
1	00.033 BLOCK ASM; CYL	8-94437-397-6	01	1	9611-		●
1	00.033 BLOCK ASM; CYL	8-97149-360-1	01	1	9712-						●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-173-0	04	1	9611-	●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-174-0	04	1	9611-	●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-175-0	04	1	9611-	●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-176-0	04	1	9611-	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87813-193-0	04	1	9611-		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87813-194-0	04	1	9611-		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87813-195-0	04	1	9611-		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87813-196-0	04	1	9611-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	9611-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	9611-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	9611-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	9611-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	9611-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	9611-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	9611-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	9611-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	9611-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	9611-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	9611-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	9611-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	9611-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	9611-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	9611-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	9611-		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	9611-	●	●	●	●	●
8	00.056 BOLT; BRG CAP M12X77	8-94220-076-1	10	1	9611-			●	●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	9611-	●	●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9712-						●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9712-						●
13	00.293 DOWEL; C/BL TO HD	8-94217-002-0	02	1	9611-			●	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	9611-	●	●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9712-						●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9611-			●	●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9611-	●	●
17	01.800 SWITCH; OIL PRESSURE (B)	9-82720-209-2	01	1	9611-	●	●	●	●
17	01.800 SWITCH; OIL PRESSURE EXC. ELECTRIC FUEL INJECTION<6GG> (B)	9-82720-209-2	01	1	9611-					●
17	01.800 SWITCH; OIL PRESSURE ELECTRIC FUEL INJECTION<6GG> (A) WO/ADAPTER	8-94156-643-0	01	1	9611-					●
21	00.034 CUP; SEALING,RR OD=38	9-11219-005-0	01	1	9611-			●	●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	9611-	●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	9611-	●	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9611-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=45	1-09600-005-1	03	1	9611-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	9611-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=36	5-11219-018-0	03	1	9611-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	02	1	9611-		●
24	01.531 NIPPLE; OIL FEED,VAC PUMP EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94419-728-0	01	1	9611-	●
25	00.539 METAL; CM/SHF CENTER & RR	8-94427-201-2	02	1	9611-	●	●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	9611-	●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-0	01	1	9611-	●	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9611-	●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9611-	●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9611-	●	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9611-	●	●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9611-	●	●
62	00.034 CUP; SEALING,C/BL FRT UNITED KINGDOM EQUIPMENT(EK3) OD=14	5-11219-011-0	01	1	9611-	●
63	01.153 DUCT; WATER,C/BL	8-94419-436-1	01	1	9611-	●	●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9611-	●
70	00.034 CUP; SEALING,FRT & RR OD=35	8-94200-768-0	06	1	9611-			●	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9611-	●	●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	9611-	●	●
