0-11 — CYLINDER HEAD (#35850) — 211 parça

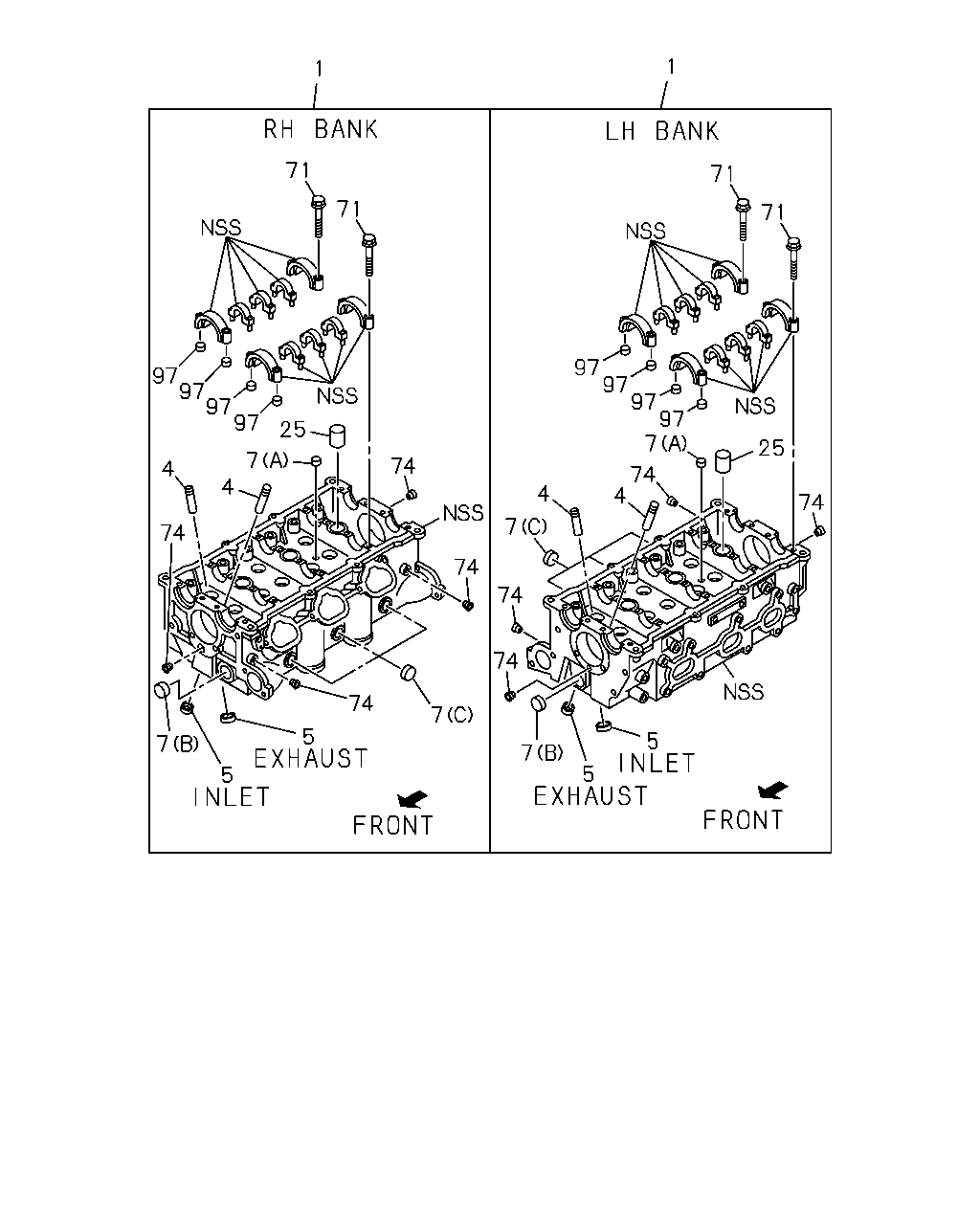

çizim 18931
1 1 71 71 97 97 97 97 25 7 4 4 74 7 5 5 74 7 74 74 4 4 74 7 74 74 7 5 5 74 25 7 97 97 97 97 71 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-97119-761-1 01 1 9611- ● ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-523-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712- ●
4 00.283 GUIDE; VLV
(A) EXHAUST 		8-97112-882-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
(B) INLET 		8-94206-762-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9611- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97119-752-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97112-566-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97110-273-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97037-802-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94431-522-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94431-522-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94431-521-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) OD=36.7 		8-94130-559-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94130-558-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT 8-97131-855-1 12 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-854-1 12 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=25 		9-11129-079-0 02 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=40 		9-11219-309-0 01 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9611- ● ● ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9712- ●
71 00.413 BOLT; CAM BRKT
M6X40 FLANGE 		0-28690-640-0 40 1 9712- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9712- ●
97 00.349 DOWEL; CAM BRKT SET 8-97014-295-1 24 1 9712- ●

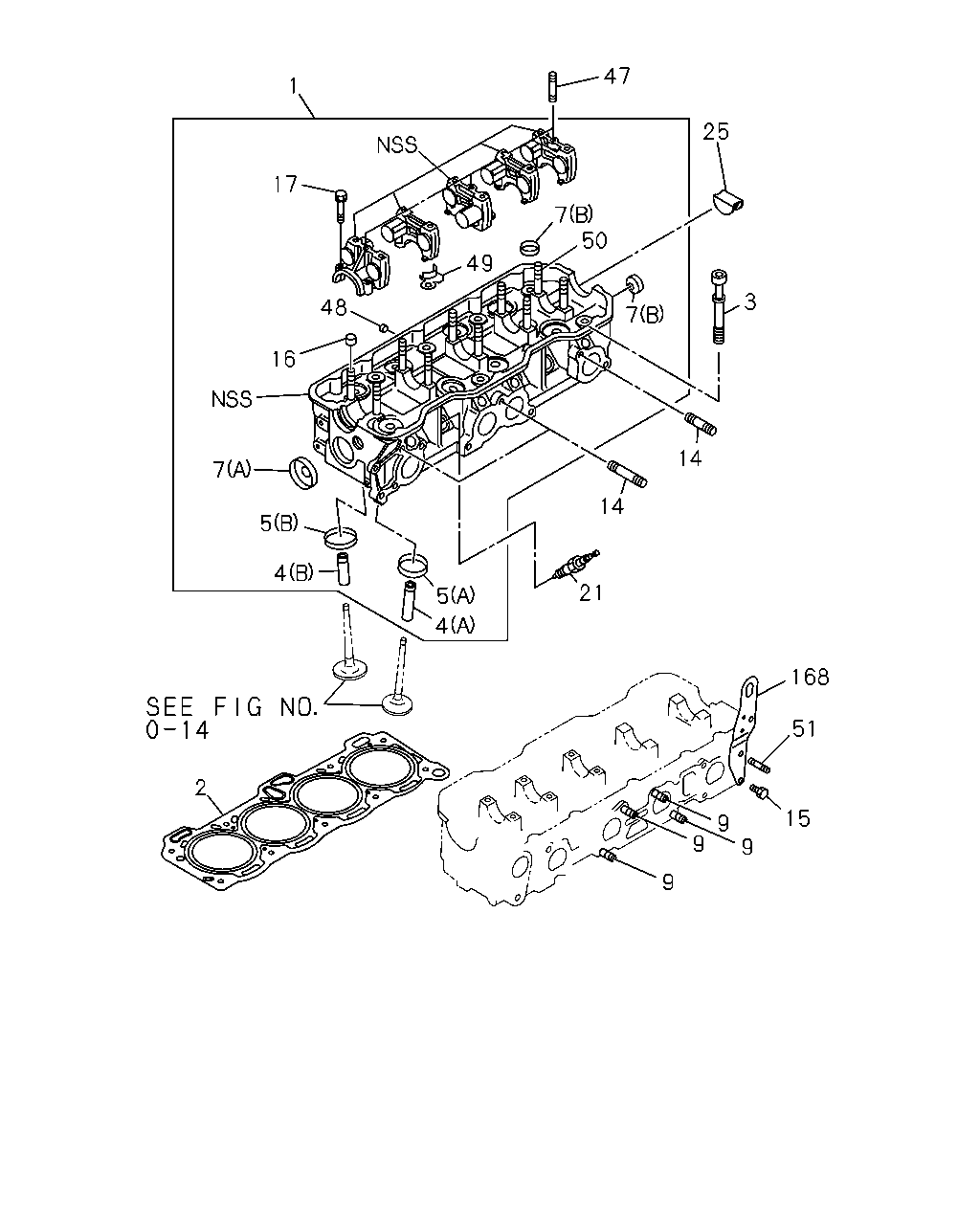

çizim 69853
1 47 25 7 50 49 17 48 16 7 5 4 5 4 21 14 14 7 3 168 51 15 9 9 9 9 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-97119-761-1 01 1 9611- ● ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-523-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94328-112-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9611- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9611- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9712- ●
4 00.283 GUIDE; VLV
(A) EXHAUST 		8-97112-882-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
(B) INLET 		8-94206-762-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9611- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97119-752-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97112-566-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97110-273-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97037-802-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94431-522-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94431-522-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94431-521-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) OD=36.7 		8-94130-559-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94130-558-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT 8-97131-855-1 12 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-854-1 12 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=25 		9-11129-079-0 02 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=40 		9-11219-309-0 01 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9611- ● ●
9 03.275 STUD; INL MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> M8X27 L=39 		8-94202-304-0 04 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X75 L=87 		9-04110-875-0 02 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X107 L=120 		9-09630-014-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> 00.349 M8X83 L=96 		9-09830-163-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9712- ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9712- ●
15 00.004 BOLT; HANGER,FRT
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
EXC. POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9712- ●
16 00.413 DOWEL; ROCKER SHAFT BRKT 8-94108-075-1 10 1 9611- ● ● ●
17 00.349 BOLT; ROCKER SHAFT BRKT
04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9611- ● ● ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9611- ● ●
21 02.270 PLUG; SPARK
EXC. ELECTRIC FUEL INJECTION<6GG> NGK 		9-82513-103-0 04 1 9611- ●
21 02.270 PLUG; SPARK
ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9611- ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9712- ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9611- ● ● ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9712- ●
47 00.413 STUD; CYL HD
00.349 M8X33 L=44 		8-94232-311-0 01 1 9611- ● ● ●
47 00.413 STUD; CYL HD
00.349 M8X18 L=29 		8-94232-312-0 02 1 9611- ● ● ●
48 00.293 PLUG; CYL HD,INL SIDE
00.253 OD=6.3 		8-94200-790-2 01 1 9611- ● ● ●
48 00.293 PLUG; CYL HD,INL SIDE
ELECTRIC FUEL INJECTION<6GG> OD=7 		8-94407-625-0 01 1 9611- ●
49 00.293 COVER; OIL DRAIN,CYL HD 8-94178-447-0 01 1 9611- ● ●
50 00.349 STUD; ROCKER SHAFT BRKT
M8X65 L=81 		9-04020-865-0 10 1 9611- ● ● ●
51 00.413 STUD; HANGER
POWER STEERING<N40> M8X60 L=72 		9-04110-860-0 01 1 9611- ● ● ●
168 00.004 HANGER; ENG,FRT 8-94472-343-0 01 1 9611- ● ● ●

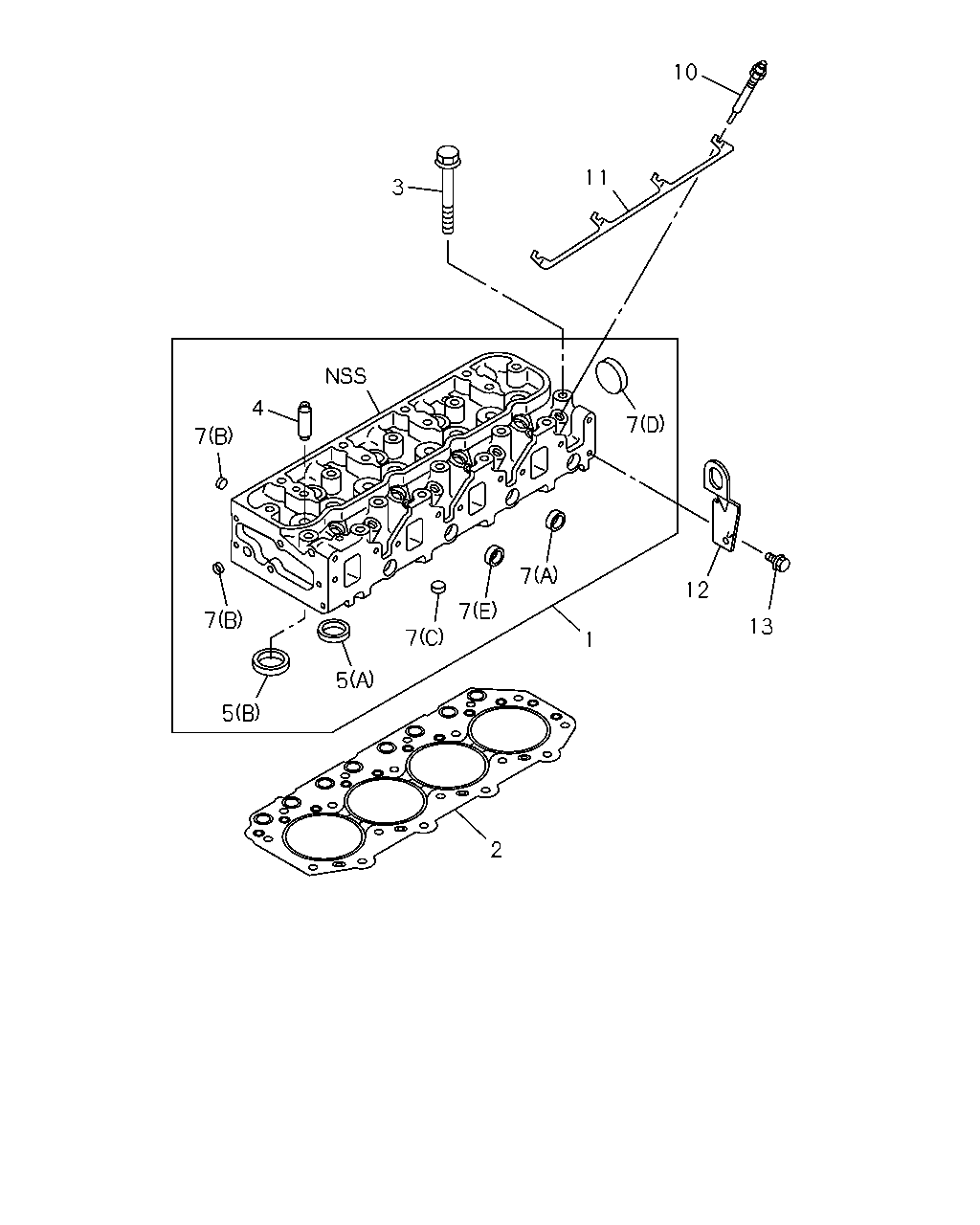

çizim 70095
12 13 1 2 7 7 7 7 11 10 3 4 7 7 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-97119-761-1 01 1 9611- ● ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-523-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94328-112-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9611- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9611- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9712- ●
4 00.283 GUIDE; VLV
(A) EXHAUST 		8-97112-882-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
(B) INLET 		8-94206-762-0 04 1 9611- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9611- ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97119-752-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97112-566-0 04 1 9611- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97110-273-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97037-802-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94431-522-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94431-522-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94431-521-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) OD=36.7 		8-94130-559-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94130-558-0 04 1 9611- ●
5 00.253 SEAT; VLV INSERT 8-97131-855-1 12 1 9712- ●
5 00.253 SEAT; VLV INSERT 8-97131-854-1 12 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=25 		9-11129-079-0 02 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=40 		9-11219-309-0 01 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) COLD START DEVICE<7LY> BOSCH 		8-94133-759-7 04 1 9611- ● ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) COLD START DEVICE<7LY> NGK 		8-94175-158-1 04 1 9611- ● ●
10 02.270 PLUG; GLOW
EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY> 		8-94140-115-5 04 1 9611- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9611- ● ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 9611- ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9611- ●

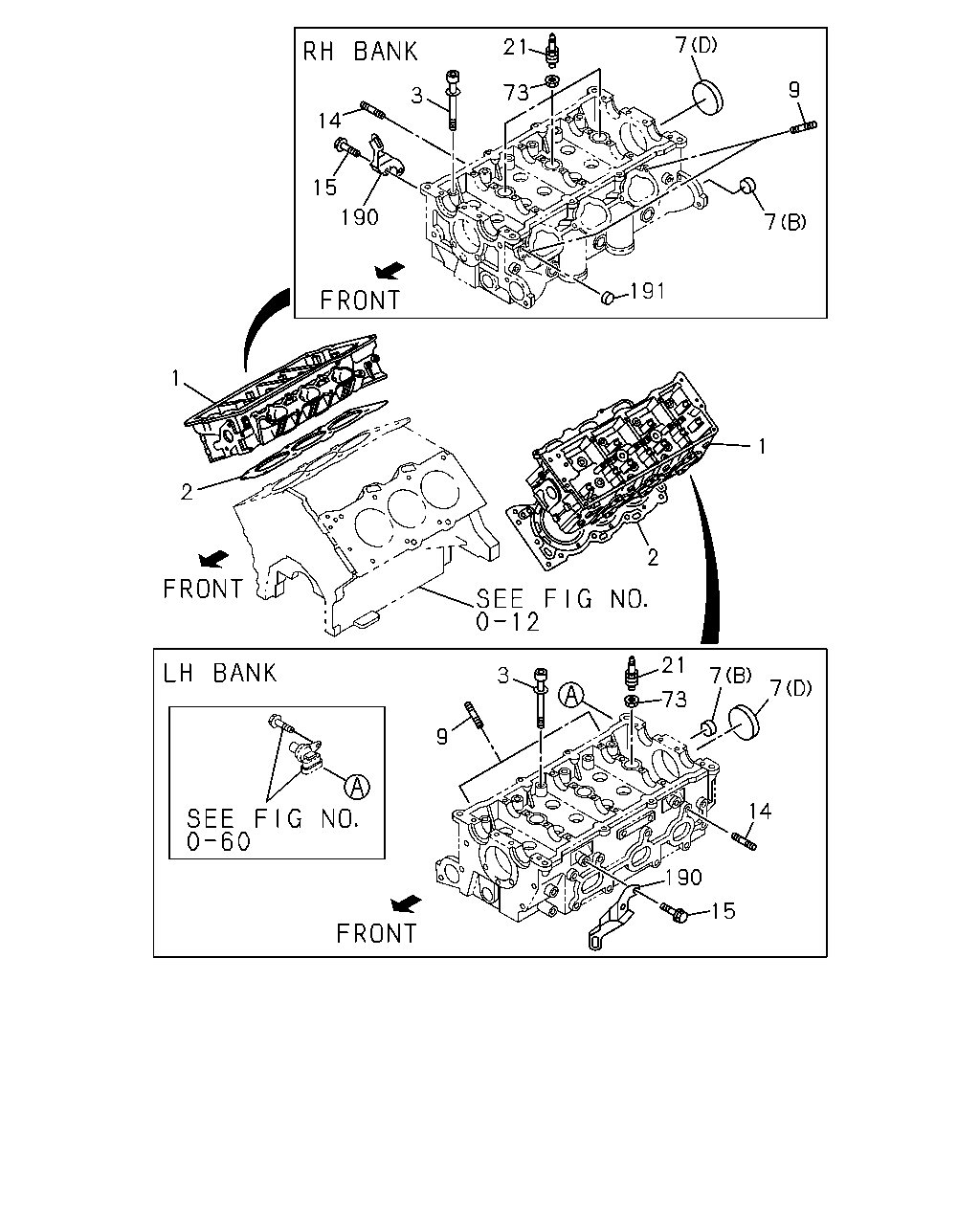

çizim 70362
1 2 2 1 190 15 14 3 73 21 7 9 7 191 21 73 7 7 14 190 15 9 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL 8-97119-761-1 01 1 9611- ● ●
1 00.269 HEAD ASM; CYL 8-97111-155-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-523-0 01 1 9611- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94328-112-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94324-053-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9611- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9611- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9611- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9611- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=25 		9-11129-079-0 02 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=40 		9-11219-309-0 01 1 9611- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9611- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=12.3 		5-09600-013-0 05 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9611- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9611- ● ●
9 03.275 STUD; INL MANIF
EXC. ELECTRIC FUEL INJECTION<6GG> M8X27 L=39 		8-94202-304-0 04 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X75 L=87 		9-04110-875-0 02 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> M8X107 L=120 		9-09630-014-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
ELECTRIC FUEL INJECTION<6GG> 00.349 M8X83 L=96 		9-09830-163-0 01 1 9611- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9712- ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9611- ● ● ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9712- ●
15 00.004 BOLT; HANGER,FRT
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
EXC. POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9611- ● ● ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9712- ●
21 02.270 PLUG; SPARK
NGK 		9-82513-103-0 04 1 9611- ● ●
21 02.270 PLUG; SPARK
EXC. ELECTRIC FUEL INJECTION<6GG> NGK 		9-82513-103-0 04 1 9611- ●
21 02.270 PLUG; SPARK
ELECTRIC FUEL INJECTION<6GG> NGK 		8-94120-560-0 04 1 9611- ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9712- ●
73 00.293 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-173-0 06 1 9712- ●
190 00.004 HANGER; ENG 8-97131-856-0 02 1 9712- ●
191 00.293 CAP; BLIND 8-97167-998-0 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
