Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#3585) — 282 parça

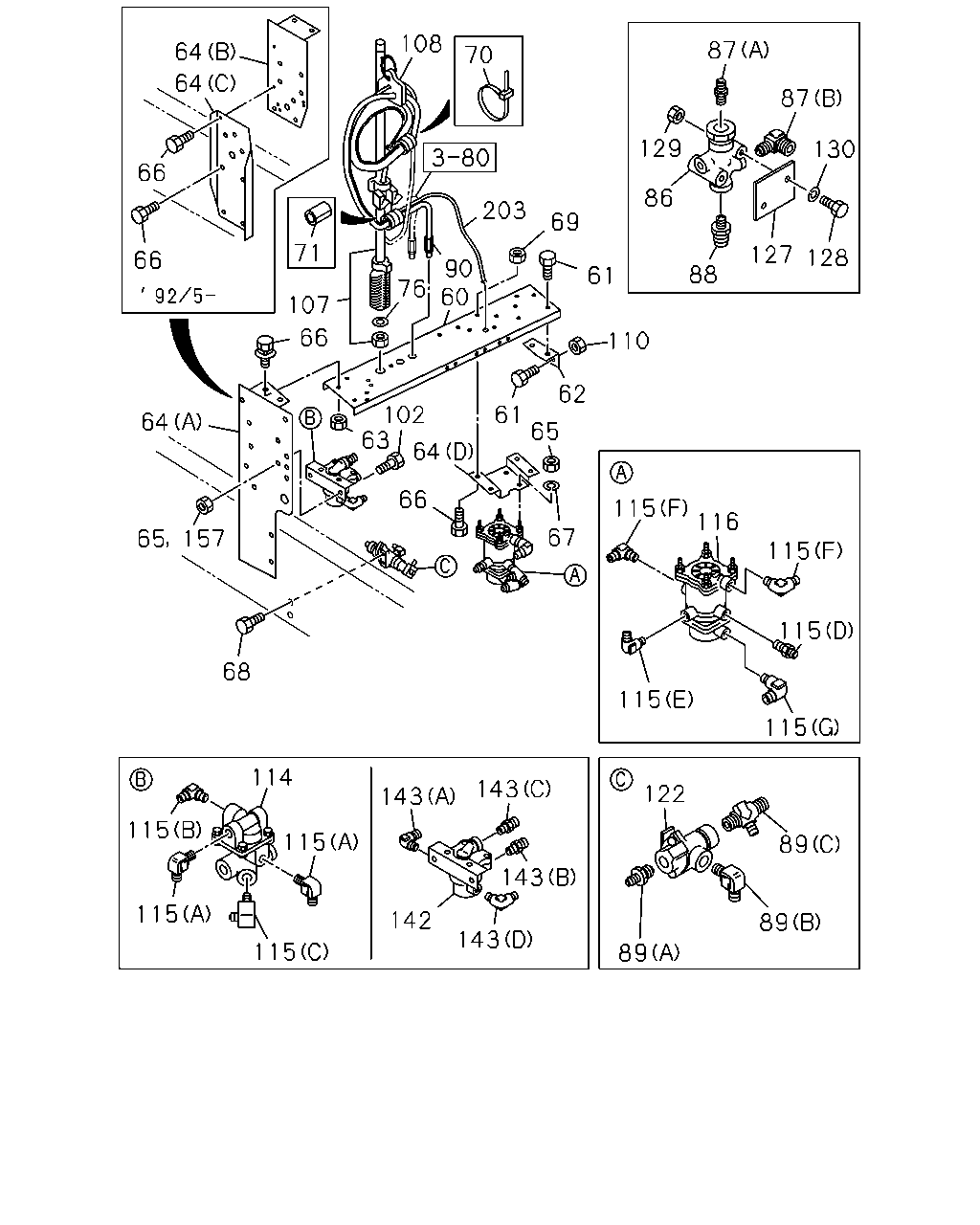

108 87 64 70 64 87 129 130 66 86 203 69 71 127 128 66 90 60 88 61 76 107 66 110 62 61 102 63 64 65 64 66 115 116 67 65 157 115 115 68 115 115 114 143 122 143 115 115 89 143 115 142 89 143 115 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	BOARD; STEP,TRAILER	1-53497-173-9	01	1	9002-9312
60	BOARD; STEP,TRAILER	1-53497-526-1	01	1	9401-
61	BOLT; STEP BOARD M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	9002-
61	BOLT; STEP BOARD M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005
61	BOLT; STEP BOARD M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2> M12X32 W/LK WASHER	0-50041-232-0	03	1	9307-
61	BOLT; STEP BOARD TAIL PIPE SINGLE HORIZONTAL<NC2> M12X45 W/LK WASHER	0-50041-245-0	03	1	9307-
62	BRACKET; BOARD,HANGER	1-53497-148-0	01	1	9002-9306
62	BRACKET; BOARD,HANGER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-53497-148-0	01	1	9307-
62	BRACKET; BOARD,HANGER TAIL PIPE SINGLE HORIZONTAL<NC2>	1-53497-331-1	01	1	9307-
63	NUT; STEP BOARD M8	9-09110-408-0	02	1	9002-
64	BRACKET; RELAY VLV (A)	1-48495-111-0	01	1	9002-9204
64	BRACKET; RELAY VLV (B)	1-48495-133-1	01	1	9205-9306
64	BRACKET; RELAY VLV (C)	1-48495-134-1	01	1	9205-9306
64	BRACKET; RELAY VLV (B)	1-48495-137-2	01	1	9307-
64	BRACKET; RELAY VLV EXC. AUTO CAB TILT<WV2> (C)	1-48495-138-0	01	1	9307-
64	BRACKET; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (D)	1-48495-103-0	01	1	9402-
65	NUT; RELAY VLV M10	9-09110-510-0	02	1	9002-
65	NUT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> M8	9-09110-408-0	04	1	9402-
66	BOLT; VLV BRKT M10X30 W/LK WASHER	9-01911-030-0	04	1	9002-9002
66	BOLT; VLV BRKT M10X30 W/LK WASHER	0-50041-030-0	04	1	9003-9204
66	BOLT; VLV BRKT M12X45 W/LK WASHER	0-50041-245-0	04	1	9205-9306
66	BOLT; VLV BRKT M12X30 W/LK WASHER	0-50041-230-0	04	1	9205-
66	BOLT; VLV BRKT EXC. AUTO CAB TILT<WV2> M12X45 W/LK WASHER	0-50041-245-0	04	1	9307-
66	BOLT; VLV BRKT BRAKE REGULATION HONG KONG<TCZ> M8X25 FLANGE	0-28080-825-0	04	1	9402-
67	WASHER; LK,RELAY VLV BRAKE REGULATION HONG KONG<TCZ> ID=8.2	9-09150-508-0	04	1	9402-
68	BOLT; DOUBLE CHECK VLV M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
68	BOLT; DOUBLE CHECK VLV M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
68	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	9303-
69	NUT; VLV BRKT M12	9-99110-412-0	02	1	9310-
69	NUT; VLV BRKT BRAKE REGULATION HONG KONG<TCZ> M8	9-09110-408-0	04	1	9402-
70	CLIP; BAND,JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK> L=250	5-09707-030-0	07	1	9002-9101
70	CLIP; BAND,JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK> L=250	5-09707-030-1	08	1	9102-
71	RUBBER; STEP BOARD EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=38.1 L=50	5-09360-835-0	03	1	9002-9101
71	RUBBER; STEP BOARD EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=38.1 L=50	5-09360-835-0	02	1	9102-
76	WASHER; PL,HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=17 OD=32	9-09160-616-0	02	1	9111-
86	VALVE; SYN	1-48460-173-0	01	1	9002-9401
86	VALVE; SYN EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48460-173-0	01	1	9402-
87	CONNECTOR; DBL CHECK VLV (A) M14	1-09650-031-0	01	1	9002-9103
87	CONNECTOR; DBL CHECK VLV (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-9401
87	CONNECTOR; DBL CHECK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9402-
87	CONNECTOR; DBL CHECK VLV (B) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302
87	CONNECTOR; DBL CHECK VLV (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9401
87	CONNECTOR; DBL CHECK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9402-
88	CONNECTOR; ELBOW M22	1-09650-246-1	01	1	9002-9401
88	CONNECTOR; ELBOW EXC. BRAKE REGULATION HONG KONG<TCZ> M22	1-09650-246-1	01	1	9402-
89	CONNECTOR; FLARE (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9002-
89	CONNECTOR; FLARE (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302
89	CONNECTOR; FLARE (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
89	CONNECTOR; FLARE (C) M16	1-09656-374-1	01	1	9002-
90	HOSE; JUMPER,TRAILER EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4140	1-09363-149-0	01	1	9002-
102	BOLT; SUPPLY DUMP VLV BRAKE REGULATION HONG KONG<TCZ> M10X22 W/LK WASHER	0-50041-022-0	02	1	9402-
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-011-1	01	1	9002-9101
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-014-0	01	1	9102-9110
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-017-0	01	1	9111-
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-009-0	01	1	9002-9101
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-016-0	01	1	9102-9110
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-018-0	01	1	9111-
110	NUT; BRKT TO FRAME TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	02	1	9307-
114	VALVE; RELAY	1-48210-157-1	01	1	9002-9401
114	VALVE; RELAY EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48210-157-1	01	1	9402-
115	CONNECTOR; DUAL RELAY VLV (A) M16 & PT3/8 ELBOW	1-09650-180-1	02	1	9002-9302
115	CONNECTOR; DUAL RELAY VLV (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9303-9401
115	CONNECTOR; DUAL RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	9402-
115	CONNECTOR; DUAL RELAY VLV (B)	1-09650-221-1	01	1	9002-9302
115	CONNECTOR; DUAL RELAY VLV (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-9401
115	CONNECTOR; DUAL RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9402-
115	CONNECTOR; DUAL RELAY VLV (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
115	CONNECTOR; DUAL RELAY VLV (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-9401
115	CONNECTOR; DUAL RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9402-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (D) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9402-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9402-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (F) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9402-
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (G) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	9402-

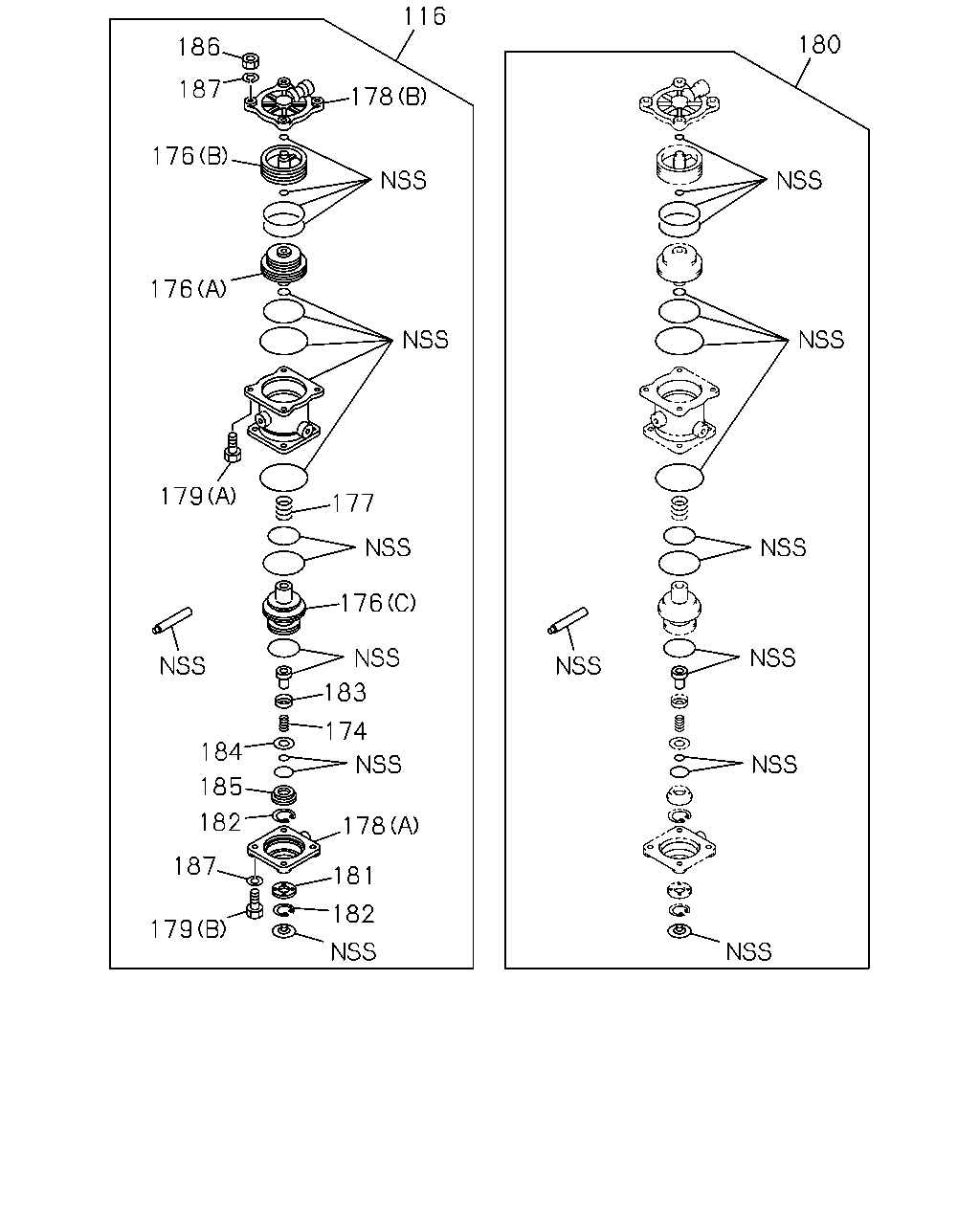

116	VALVE; DUAL RELAY BRAKE REGULATION HONG KONG<TCZ>	1-48210-347-0	01	1	9402-
122	VALVE ASM; DOUBLE CHECK	1-48410-050-0	01	1	9002-
127	DISTANCE; SYN VLV	1-48499-002-0	01	1	9002-9401
127	DISTANCE; SYN VLV EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48499-002-0	01	1	9402-
128	BOLT; VLV	9-01055-665-0	02	1	9002-9005
128	BOLT; VLV	0-10805-665-0	02	1	9006-9008
128	BOLT; VLV M6X60	0-10805-660-0	02	1	9009-9401
128	BOLT; VLV EXC. BRAKE REGULATION HONG KONG<TCZ> M6X60	0-10805-660-0	02	1	9402-
129	NUT; VLV M6	9-09110-406-0	02	1	9002-9401
129	NUT; VLV EXC. BRAKE REGULATION HONG KONG<TCZ> M6	9-09110-406-0	02	1	9402-
129	NUT; VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8	9-09110-408-0	02	1	9402-
130	WASHER; LK,VLV ID=6.1	9-09150-606-0	02	1	9002-9401
130	WASHER; LK,VLV EXC. BRAKE REGULATION HONG KONG<TCZ> ID=6.1	9-09150-606-0	02	1	9402-

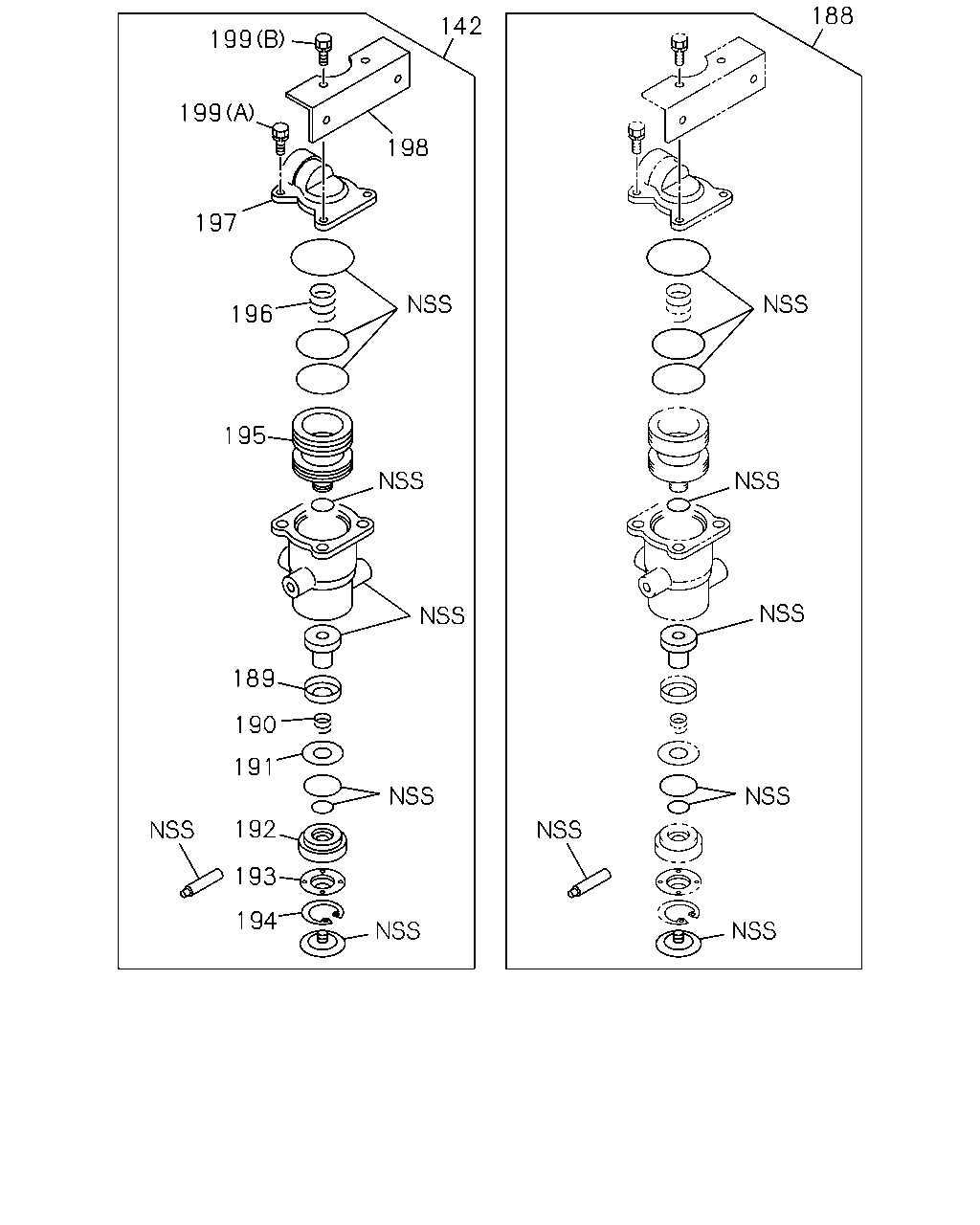

142	VALVE; SUPPLY DUMP BRAKE REGULATION HONG KONG<TCZ>	1-48210-367-0	01	1	9402-
143	CONNECTOR; CONT BRAKE REGULATION HONG KONG<TCZ> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9402-
143	CONNECTOR; CONT BRAKE REGULATION HONG KONG<TCZ> (A) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9402-
143	CONNECTOR; CONT BRAKE REGULATION HONG KONG<TCZ> (D) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	9402-
143	CONNECTOR; CONT BRAKE REGULATION HONG KONG<TCZ> (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9402-
157	NUT; SUPPLY DUMP VALVE BRAKE REGULATION HONG KONG<TCZ> M10	9-09110-510-0	02	1	9402-
203	CABLE; JUMPER EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4540	1-82659-030-0	01	1	9002-9101
203	CABLE; JUMPER EXC. JUMPER HOSE & CABLE DELETE<SJK> L=6000	1-82659-035-1	01	1	9102-

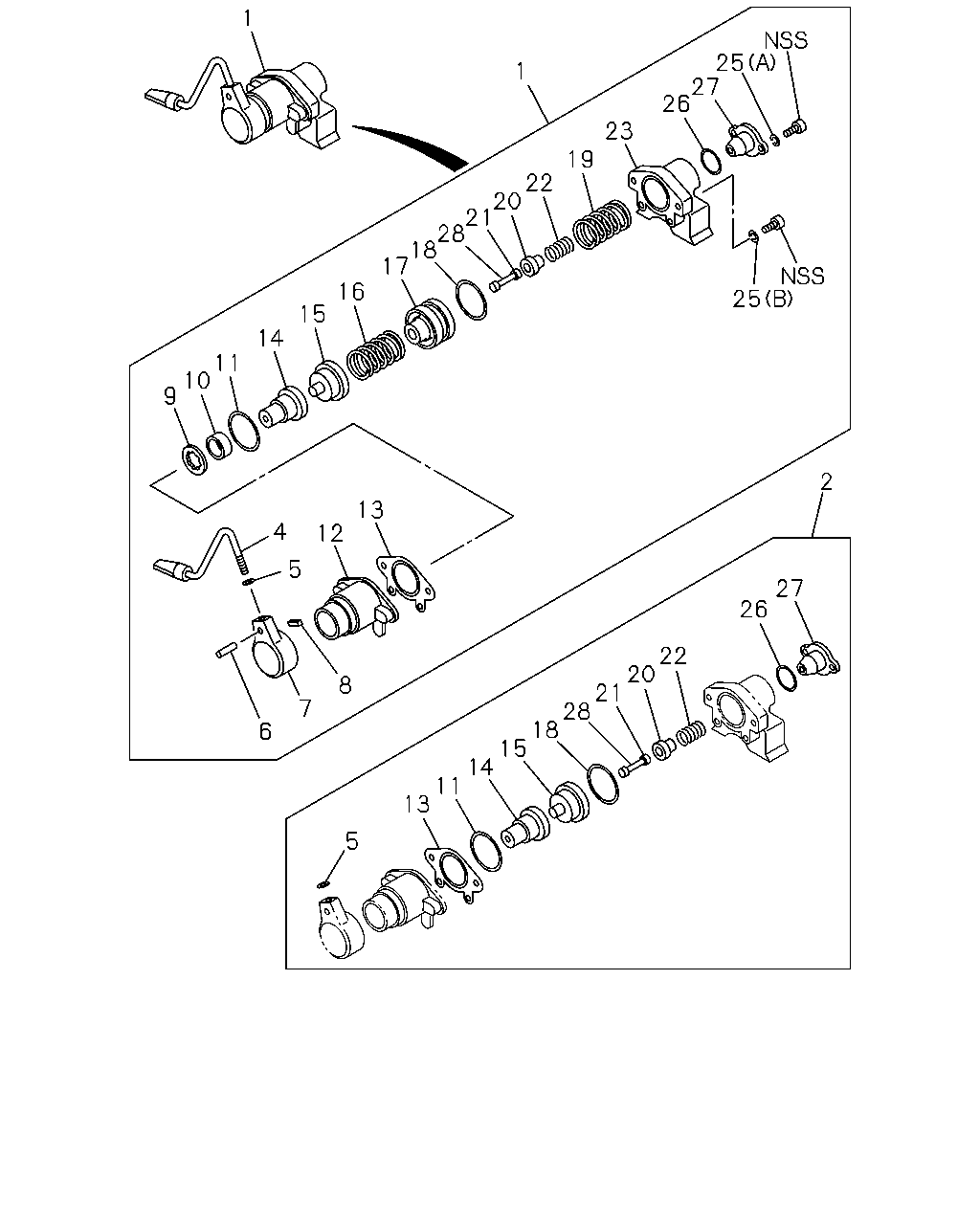

1 25 27 26 1 23 19 22 20 21 28 18 17 25 16 15 14 11 10 9 2 13 4 12 5 27 26 22 20 21 28 18 15 14 8 7 6 11 13 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-589-0	01	1	9002-
2	REPAIR KIT; HAND BRK VLV	1-87830-512-0	01	1	9002-
4	HANDLE ASM; BRK VLV	1-48119-240-1	01	1	9002-
5	GASKET; HANDLE	1-48119-128-0	01	1	9002-
6	PIN; SPR	1-48119-143-0	01	1	9002-
7	HEAD; BRK VLV	1-48119-131-0	01	1	9002-
8	STOPPER; BRK VLV	1-48119-136-0	01	1	9002-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	9002-
10	RING; ADJ	1-48119-122-0	01	1	9002-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	9002-
12	COVER; BRK VLV	1-48129-097-0	01	1	9002-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	9002-
14	FOLLOWER; CAM	1-48129-109-0	01	1	9002-
15	CAM; FOLLOWER	1-48129-110-0	01	1	9002-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	9002-
17	PISTON; SPR	1-48129-095-0	01	1	9002-
18	GASKET; BODY	1-48129-096-0	01	1	9002-
19	SPRING; PISTON	1-48129-094-0	01	1	9002-
20	GUIDE; VLV	1-48129-090-0	01	1	9002-
21	VALVE; IN & EXH	1-48121-017-0	01	1	9002-
22	SPRING; VLV	1-48123-024-0	01	1	9002-
23	BODY; BRK VLV	1-48111-030-0	01	1	9002-
25	WASHER; LK,EXH VLV (A)	1-48119-134-0	02	1	9002-
25	WASHER; LK,EXH VLV (B)	1-48129-093-0	02	1	9002-
26	GASKET; BRK VLV	1-48129-091-0	01	1	9002-
27	SEAT; INL VLV	1-48122-007-0	01	1	9002-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	9002-

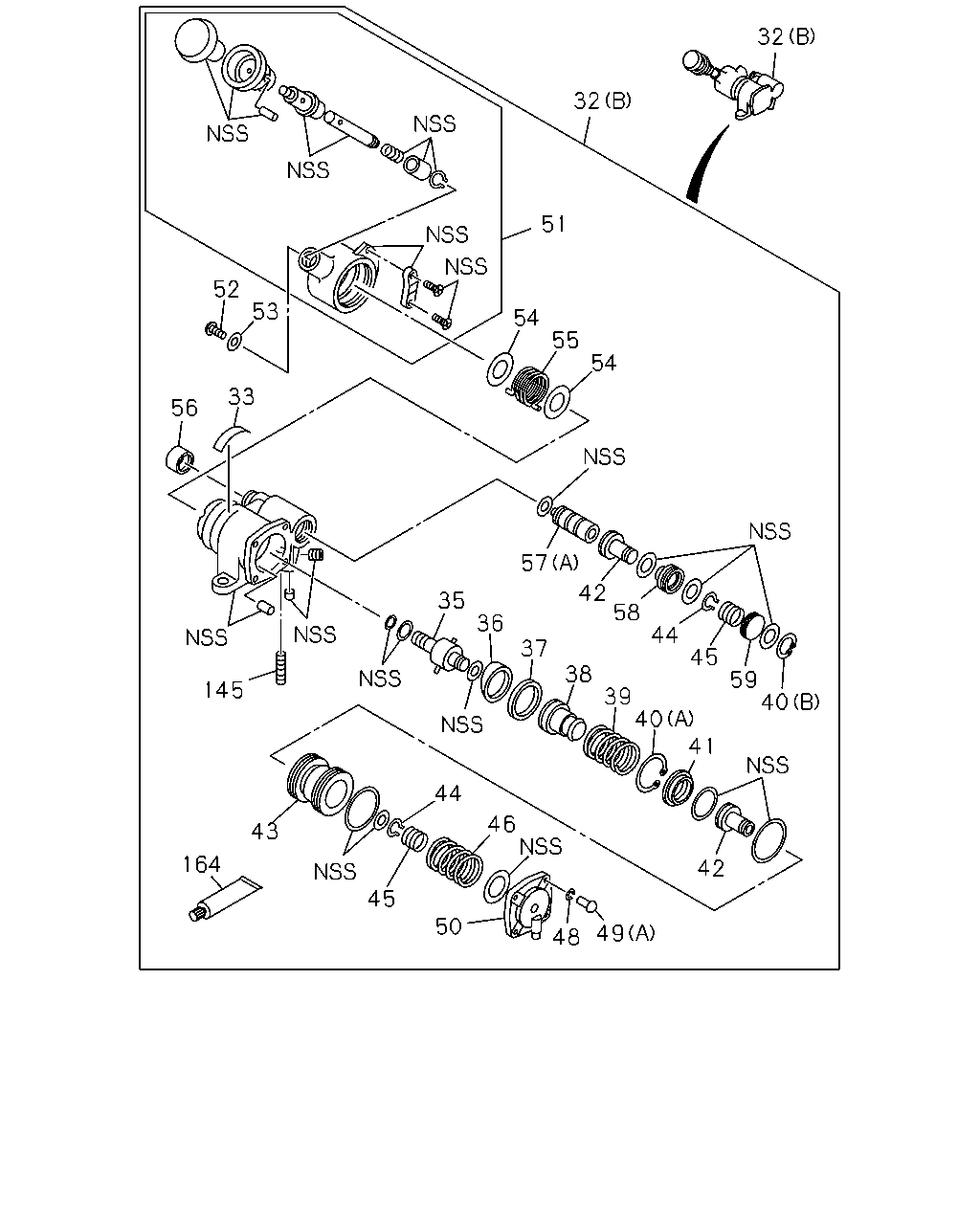

32 32 51 52 53 54 55 54 33 56 57 42 58 35 36 44 37 45 38 59 40 145 39 40 41 44 46 43 164 42 45 50 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT (A)	1-48460-184-0	01	1	9002-9401
32	VALVE; BRK,HAND CONT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-184-0	01	1	9402-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-257-0	01	1	9402-
33	PLATE; CAUTION BRAKE REGULATION HONG KONG<TCZ>	1-48469-081-0	01	1	9402-
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-054-0	01	1	9402-
36	RING; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-056-0	01	1	9402-
37	GUIDE; CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-058-0	01	1	9402-
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-057-0	01	1	9402-
39	SPRING; RETURN,CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-063-0	01	1	9402-
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-067-0	01	1	9402-
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-079-0	01	1	9402-
41	SEAT; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-066-0	01	1	9402-
42	VALVE; FEED BRAKE REGULATION HONG KONG<TCZ>	1-48469-065-0	02	1	9402-
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-064-0	01	1	9402-
44	RING; SNAP,FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-068-0	02	1	9402-
45	SPRING; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-070-0	02	1	9402-
46	SPRING; MAIN,PISTON BRAKE REGULATION HONG KONG<TCZ>	1-48469-071-0	01	1	9402-
48	WASHER; COVER BRAKE REGULATION HONG KONG<TCZ>	1-48469-074-0	04	1	9402-
49	SCREW; COVER (B)	1-52139-005-0	02	1	9002-9306
49	SCREW; COVER (B)	1-52139-005-0	02	1	9307-9401
49	SCREW; COVER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9402-
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-075-0	04	1	9402-
50	COVER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-073-0	01	1	9402-
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-060-0	01	1	9402-
52	SCREW; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-062-0	01	1	9402-
53	WASHER; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-061-0	01	1	9402-
54	SEAT; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-082-0	02	1	9402-
55	SPRING; RETURN,HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-059-0	01	1	9402-
56	BOOT; PLUNGER BRAKE REGULATION HONG KONG<TCZ>	1-48469-080-0	01	1	9402-
57	PLUNGER; HAND BRK VLV (B)	1-48469-097-0	01	1	9002-9401
57	PLUNGER; HAND BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9402-
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-076-0	01	1	9402-
58	HOLDER; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-077-0	01	1	9402-
59	HOLDER; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-078-0	01	1	9402-
145	STUD; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-069-0	01	1	9402-
164	GREASE; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-084-0	01	1	9402-

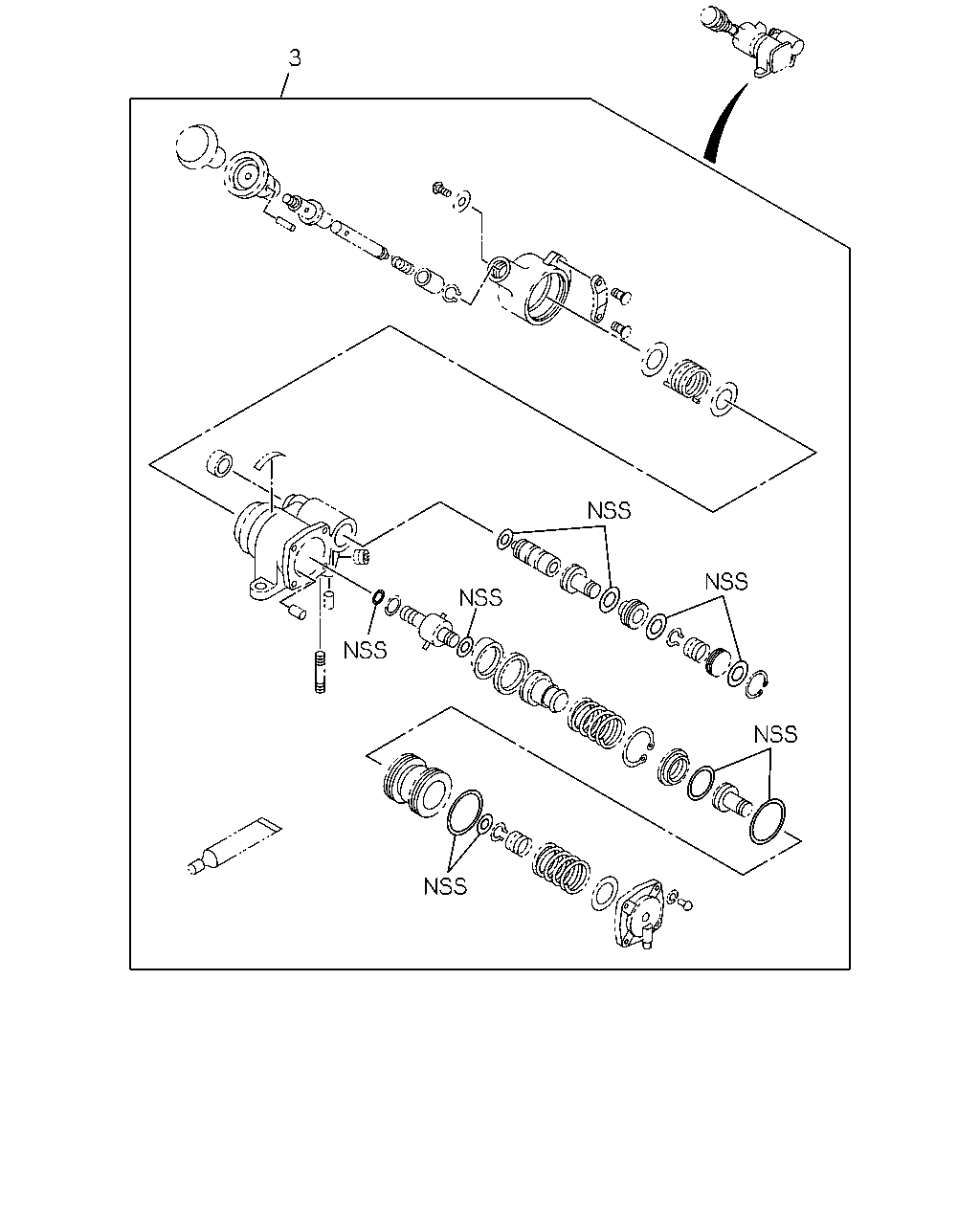

3 7

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-083-0	01	1	9402-
	7	HEAD; BRK VLV	1-48119-131-0	01	1	9002-

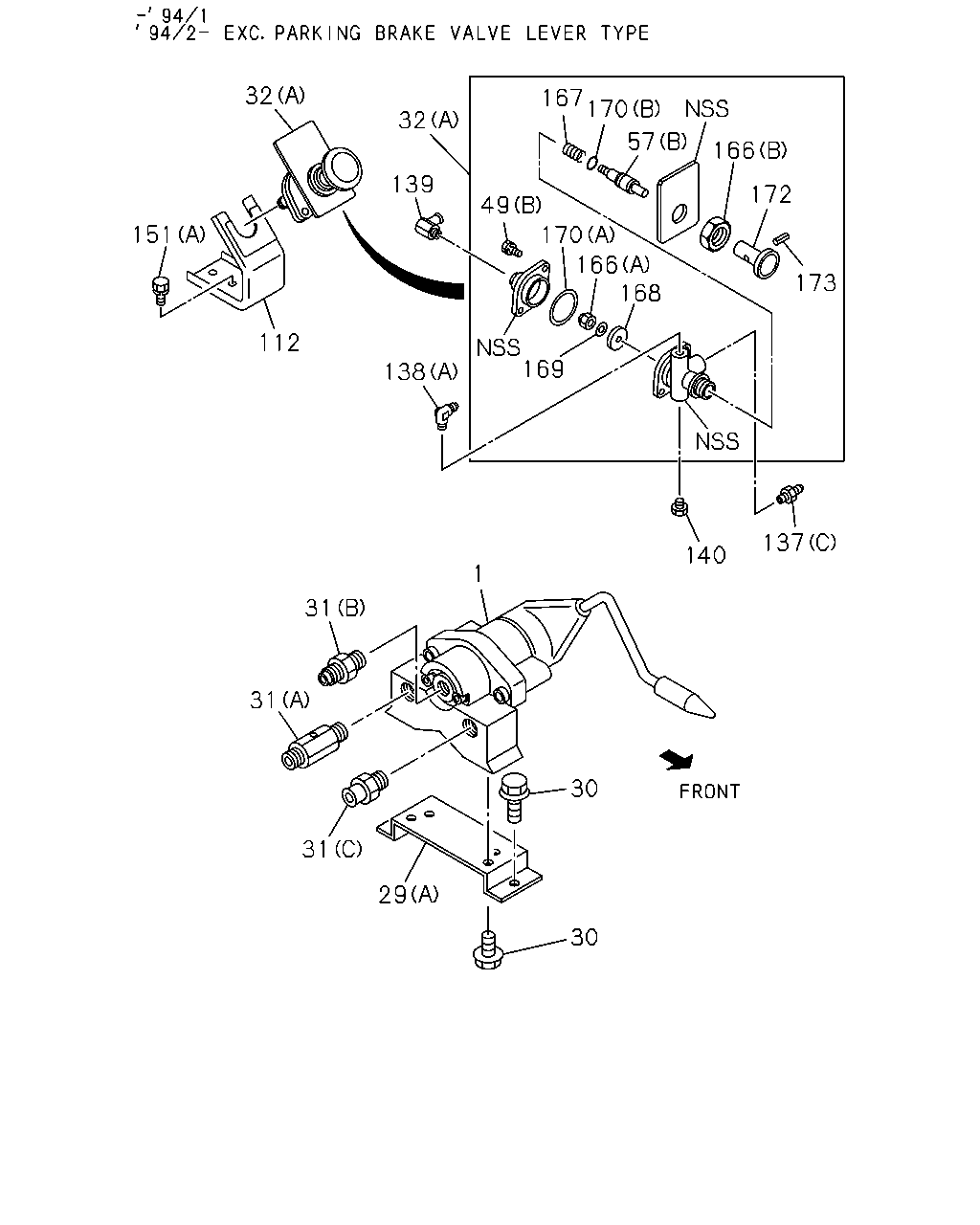

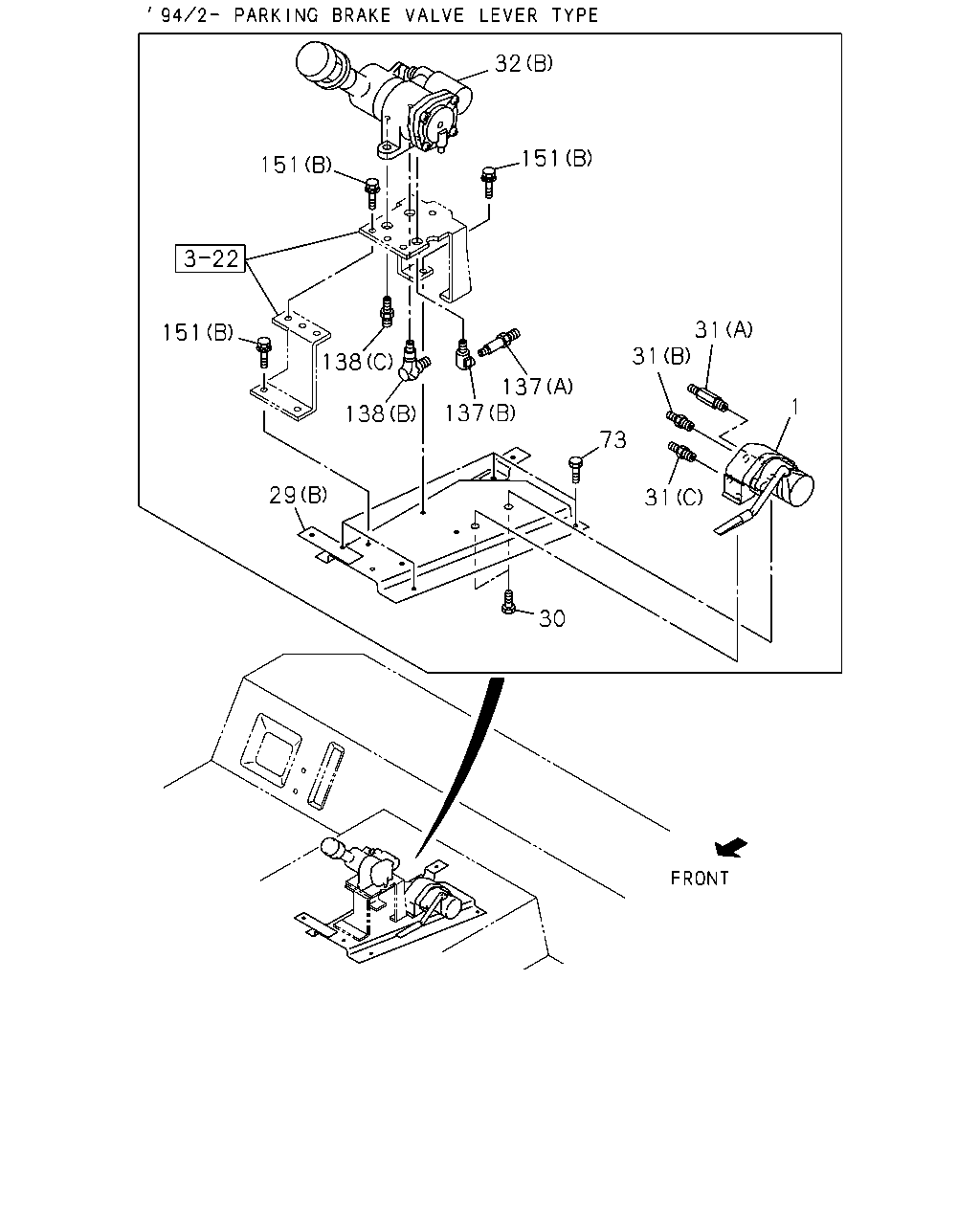

32 167 170 32 57 166 139 172 49 170 151 166 168 173 112 169 138 137 140 1 31 31 30 31 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-589-0	01	1	9002-
29	BRACKET; HAND BRK (A)	1-47475-497-0	01	1	9002-9402
29	BRACKET; HAND BRK PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79998-955-1	01	1	9402-
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	9-01901-020-0	02	1	9002-9204
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50041-020-0	02	1	9205-
30	BOLT; BRKT,HAND BRK VLV M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005
30	BOLT; BRKT,HAND BRK VLV M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302
30	BOLT; BRKT,HAND BRK VLV M8X20 FLANGE	0-28080-820-0	02	1	9303-9401
30	BOLT; BRKT,HAND BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	02	1	9402-
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	9002-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	9002-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-
32	VALVE; BRK,HAND CONT (A)	1-48460-184-0	01	1	9002-9401
32	VALVE; BRK,HAND CONT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-184-0	01	1	9402-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-257-0	01	1	9402-
49	SCREW; COVER (B)	1-52139-005-0	02	1	9002-9306
49	SCREW; COVER (B)	1-52139-005-0	02	1	9307-9401
49	SCREW; COVER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9402-
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-075-0	04	1	9402-
57	PLUNGER; HAND BRK VLV (B)	1-48469-097-0	01	1	9002-9401
57	PLUNGER; HAND BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9402-
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-076-0	01	1	9402-
112	BRACKET; CONT VLV	1-47475-260-2	01	1	9002-9401
112	BRACKET; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47475-260-2	01	1	9402-
137	CONNECTOR; SUPPLY (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-9401
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9402-
137	CONNECTOR; SUPPLY BRAKE REGULATION HONG KONG<TCZ> (A)	1-09650-352-1	01	1	9402-
137	CONNECTOR; SUPPLY BRAKE REGULATION HONG KONG<TCZ> (B) PT1/4 2WAY	1-09660-693-0	01	1	9402-
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9002-9302
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-9401
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9402-
138	CONNECTOR; DELIVERY BRAKE REGULATION HONG KONG<TCZ> (B)	1-09650-240-1	01	1	9402-
138	CONNECTOR; DELIVERY BRAKE REGULATION HONG KONG<TCZ> (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9402-
139	CONNECTOR; EXH PT1/4 ELBOW	8-94232-303-2	01	1	9002-9401
139	CONNECTOR; EXH EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4 ELBOW	8-94232-303-2	01	1	9402-
140	PLUG PT1/4	9-99204-513-0	01	1	9002-9401
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9402-
151	BOLT; VLV BRKT (A) M6X20	9-01910-620-0	02	1	9002-9005
151	BOLT; VLV BRKT (A) M6X20 W/LK WASHER	0-50040-620-0	02	1	9006-9302
151	BOLT; VLV BRKT (A) M6X20 FLANGE	0-28080-620-0	02	1	9303-9401
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X20 FLANGE	0-28080-620-0	02	1	9402-
151	BOLT; VLV BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (B) M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9402-
166	NUT; PLUNGER (A)	1-48129-069-0	01	1	9002-9401
166	NUT; PLUNGER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	9402-
166	NUT; PLUNGER (B)	1-48469-101-0	01	1	9002-9401
166	NUT; PLUNGER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	9402-
167	SPRING; VALVE	1-48469-098-0	01	1	9002-9401
167	SPRING; VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	9402-
168	VALVE; INL	1-48469-099-0	01	1	9002-9401
168	VALVE; INL EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	9402-
169	WASHER; PL,VALVE ID=6.4	9-09164-506-0	01	1	9002-9401
169	WASHER; PL,VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	9402-
170	GASKET; VALVE (A)	1-48469-100-0	01	1	9002-9401
170	GASKET; VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	9402-
170	GASKET; VALVE (B)	9-19519-094-0	01	1	9002-9401
170	GASKET; VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	9402-
172	KNOB; VALVE	1-48469-102-0	01	1	9002-9401
172	KNOB; VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	9402-
173	PIN; SPR,KNOB	8-94124-044-0	01	1	9002-9401
173	PIN; SPR,KNOB EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	9402-

188 142 199 199 198 197 196 195 189 190 191 192 193 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	VALVE; SUPPLY DUMP BRAKE REGULATION HONG KONG<TCZ>	1-48210-367-0	01	1	9402-
188	REPAIR KIT; DUMP VLV BRAKE REGULATION HONG KONG<TCZ>	1-85576-117-0	01	1	9402-
189	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-099-0	01	1	9402-
190	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-100-0	01	1	9402-
191	PLATE; VALVE HOLDER BRAKE REGULATION HONG KONG<TCZ>	1-48219-101-0	01	1	9402-
192	HOLDER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-102-0	01	1	9402-
193	PLATE; DUST SEAL BRAKE REGULATION HONG KONG<TCZ>	1-48219-098-0	01	1	9402-
194	RING; SNAP,VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-097-0	01	1	9402-
195	PISTON; DUMP VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-103-0	01	1	9402-
196	SPRING; MAIN,VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-079-1	01	1	9402-
197	COVER; DUMP VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-104-0	01	1	9402-
198	BRACKET; DUMP VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-105-0	01	1	9402-
199	BOLT; COVER BRAKE REGULATION HONG KONG<TCZ> (A) M8X22	9-01900-822-0	02	1	9402-
199	BOLT; COVER BRAKE REGULATION HONG KONG<TCZ> (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9402-

116 180 186 187 178 176 176 179 177 176 183 174 184 185 182 178 187 181 182 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	VALVE; DUAL RELAY BRAKE REGULATION HONG KONG<TCZ>	1-48210-347-0	01	1	9402-
174	SPRING; INL VLV BRAKE REGULATION HONG KONG<TCZ>	1-48219-094-0	01	1	9402-
176	PISTON; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) M14	1-48219-088-0	01	1	9402-
176	PISTON; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-089-0	01	1	9402-
176	PISTON; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (C)	1-48219-092-0	01	1	9402-
177	SPRING; RELAY VLV BRAKE REGULATION HONG KONG<TCZ>	1-48219-091-0	01	1	9402-
178	COVER; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48211-011-0	01	1	9402-
178	COVER; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-090-0	01	1	9402-
179	BOLT; COVER,RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) M8X50	9-01045-850-0	04	1	9402-
179	BOLT; COVER,RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) M8X25 W/LK WASHER	9-01900-825-0	04	1	9402-
180	REPAIR KIT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ>	1-85576-116-0	01	1	9402-
181	PLATE; DUST SEAL BRAKE REGULATION HONG KONG<TCZ>	1-48219-098-0	01	1	9402-
182	RING; SNAP,RELAY VLV BRAKE REGULATION HONG KONG<TCZ>	1-48219-097-0	02	1	9402-
183	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-093-0	01	1	9402-
184	PLATE; VALVE HOLDER BRAKE REGULATION HONG KONG<TCZ>	1-48219-095-0	01	1	9402-
185	HOLDER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48219-096-0	01	1	9402-
186	NUT; COVER BRAKE REGULATION HONG KONG<TCZ> M8	9-09110-408-0	04	1	9402-
187	WASHER; COVER BRAKE REGULATION HONG KONG<TCZ> ID=8.2	9-09150-508-0	08	1	9402-

32 151 151 31 31 151 138 137 137 1 138 73 29 31 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-589-0	01	1	9002-
29	BRACKET; HAND BRK (A)	1-47475-497-0	01	1	9002-9402
29	BRACKET; HAND BRK PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79998-955-1	01	1	9402-
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	9-01901-020-0	02	1	9002-9204
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50041-020-0	02	1	9205-
30	BOLT; BRKT,HAND BRK VLV M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005
30	BOLT; BRKT,HAND BRK VLV M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302
30	BOLT; BRKT,HAND BRK VLV M8X20 FLANGE	0-28080-820-0	02	1	9303-9401
30	BOLT; BRKT,HAND BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	02	1	9402-
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	9002-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	9002-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-
32	VALVE; BRK,HAND CONT (A)	1-48460-184-0	01	1	9002-9401
32	VALVE; BRK,HAND CONT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-184-0	01	1	9402-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-257-0	01	1	9402-
73	BOLT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M6X25	1-09980-544-0	04	1	9402-
137	CONNECTOR; SUPPLY (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-9401
137	CONNECTOR; SUPPLY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9402-
137	CONNECTOR; SUPPLY BRAKE REGULATION HONG KONG<TCZ> (A)	1-09650-352-1	01	1	9402-
137	CONNECTOR; SUPPLY BRAKE REGULATION HONG KONG<TCZ> (B) PT1/4 2WAY	1-09660-693-0	01	1	9402-
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9002-9302
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-9401
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9402-
138	CONNECTOR; DELIVERY BRAKE REGULATION HONG KONG<TCZ> (B)	1-09650-240-1	01	1	9402-
138	CONNECTOR; DELIVERY BRAKE REGULATION HONG KONG<TCZ> (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9402-
151	BOLT; VLV BRKT (A) M6X20	9-01910-620-0	02	1	9002-9005
151	BOLT; VLV BRKT (A) M6X20 W/LK WASHER	0-50040-620-0	02	1	9006-9302
151	BOLT; VLV BRKT (A) M6X20 FLANGE	0-28080-620-0	02	1	9303-9401
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M6X20 FLANGE	0-28080-620-0	02	1	9402-
151	BOLT; VLV BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (B) M6X16 W/LK&PL WASHER	0-50140-616-0	06	1	9402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
