9-01 — TOOLS (#35846) — 91 parça
çizim 19443
285 280 284 318 281 285 284 280
BalonParca AdiParca NoAdetTipApplied Date
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-94101-528-1 01 1 9412-9606
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97161-497-0 01 1 9607-9904
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 9905-0105
280 08.821 BOX; TOOL 1-85561-006-2 01 1 0106-0208
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0310-
281 08.821 BRACKET; TOOL BOX 1-53459-665-2 02 1 0106-0208
284 08.821 BOLT; TOOL BOX
03.611 M10X20 FLANGE 		0-28681-020-0 04 1 0106-0208
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 9412-9505
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9506-0105
284 08.821 BOLT; TOOL BOX
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0106-0208
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0209-0512
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601-
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9412-9810
285 08.821 NUT; TOOL BOX
08.917 M10 FLANGE 		0-91150-210-0 04 1 0106-0208
318 08.821 NUT; BRKT TO FRAME
08.917 M10 FLANGE 		0-91150-210-0 04 1 0106-0208

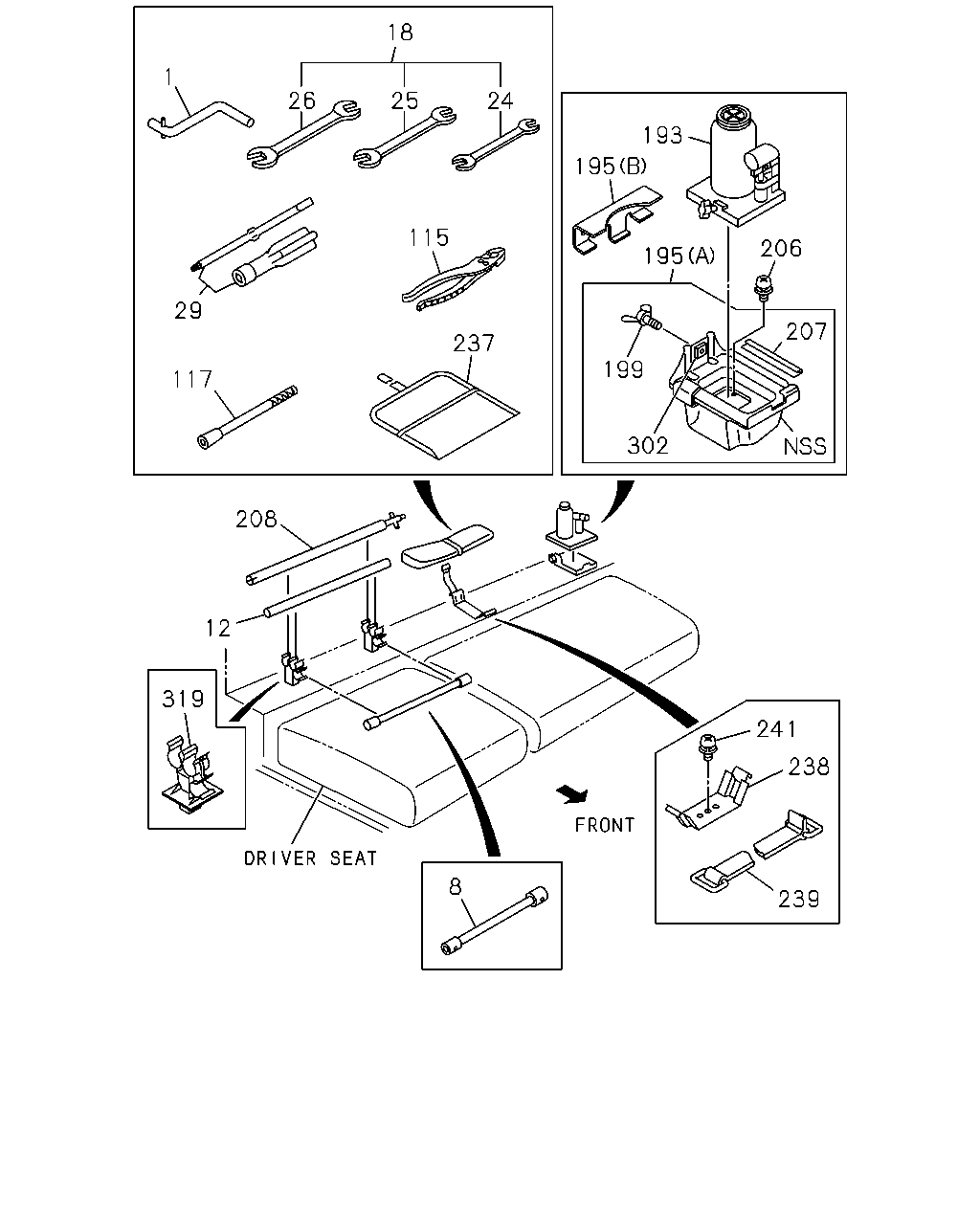

çizim 69535
18 1 26 25 24 193 195 115 206 195 29 207 237 199 117 302 208 12 319 241 238 8 239
BalonParca AdiParca NoAdetTipApplied Date
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 		9-85512-608-0 01 1 9412-9902
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 9903-
8 08.821 WRENCH; WHEEL
EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) B=41X19 L=330 		8-94386-490-1 01 1 0507-0701
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 9412-0506
8 08.821 WRENCH; WHEEL
AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) B=41X21 L=440 		1-85113-015-1 01 1 0507-0701
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0702-
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9412-0204
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0205-1001
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-
18 08.821 WRENCH KIT 9-85161-902-0 01 1 9412-0212
24 08.821 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9412-9507
25 08.821 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9412-9507
26 08.821 WRENCH; 22X17
22X17 		9-85162-101-0 01 1 9412-9507
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9412-
115 08.821 PLIER 5-85171-002-0 01 1 9412-0212
117 08.821 WRENCH; VALVE CAP 9-85163-906-1 01 1 9412-0212
193 08.820 JACK ASM
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ) AUSTRALIA EQUIPMENT(RR3) 5TON 		8-94438-021-2 01 1 0507-0508
193 08.820 JACK ASM
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) AUSTRALIA EQUIPMENT(RR3) 5TON 		8-94438-021-2 01 1 0509-
193 08.820 JACK ASM
5TON 		8-94438-021-0 01 1 9412-9501
193 08.820 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) 5TON 		8-94438-021-0 01 1 9502-9508
193 08.820 JACK ASM
5TON 		8-94438-021-0 01 1 9509-9511
193 08.820 JACK ASM
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) 5TON 		8-94438-021-0 01 1 9512-9603
193 08.820 JACK ASM
5TON 		8-94438-021-2 01 1 9604-0310
193 08.820 JACK ASM
FRT&RR 8.50R17.5 17.5X6.00-127 6WHL/NUT(CPJ),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) AUSTRALIA EQUIPMENT(RR3) 5TON 		8-94438-021-2 01 1 0311-0501
193 08.820 JACK ASM
EXC. AUSTRALIA EQUIPMENT(RR3) 5TON 		8-97131-077-2 01 1 0311-0501
193 08.820 JACK ASM
5TON 		8-97131-077-2 01 1 0502-0506
193 08.820 JACK ASM
EXC. AUSTRALIA EQUIPMENT(RR3) 5TON 		8-97131-077-2 01 1 0507-0805
193 08.820 JACK ASM
EXC. AUSTRALIA EQUIPMENT(RR3) 5TON 		8-98114-045-0 01 1 0806-
193 08.820 JACK ASM
FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNA MIC(95V) 4TON 		8-94438-019-0 01 1 9502-9508
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97866-907-1 01 1 0507-
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97867-267-3 01 1 0507-
195 08.820 BRACKET; JACK
(A) 		8-97857-483-2 01 1 9412-9501
195 08.820 BRACKET; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) (A) 		8-97857-483-2 01 1 9502-9602
195 08.820 BRACKET; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) (B) 		8-97866-907-0 01 1 9603-9603
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT-4WD(ASJ),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C),FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) (B) 		8-97866-907-1 01 1 9604-9711
195 08.820 BRACKET; JACK
(B) 		8-97866-907-1 01 1 9712-0310
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97866-907-1 01 1 0311-0501
195 08.820 BRACKET; JACK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94262-068-3 01 1 0311-0501
195 08.820 BRACKET; JACK
(A) 		8-94262-068-3 01 1 0502-0506
195 08.820 BRACKET; JACK
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94262-068-3 01 1 0507-0805
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) ,FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94273-287-7 01 1 0806-
195 08.820 BRACKET; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) (A) 		8-97867-267-0 01 1 9603-9603
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT-4WD(ASJ),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C),FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) (A) 		8-97867-267-2 01 1 9604-9711
195 08.820 BRACKET; JACK
(A) 		8-97867-267-3 01 1 9712-0310
195 08.820 BRACKET; JACK
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97867-267-3 01 1 0311-0501
195 08.820 BRACKET; JACK
FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNA MIC(95V) (A) 		8-97857-476-2 01 1 9502-9711
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(RR3) M8X30 WING 		8-94279-018-1 01 1 0507-0805
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0806-
199 08.820 BOLT; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) M8X30 WING 		8-94279-018-1 01 1 9412-9603
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 9604-0310
199 08.820 BOLT; JACK
AUSTRALIA EQUIPMENT(RR3) M8X30 WING 		8-94279-018-1 01 1 0311-0501
199 08.820 BOLT; JACK
EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING 		8-94279-136-0 01 1 0311-0501
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0502-0506
199 08.820 BOLT; JACK
EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING 		8-94279-136-0 01 1 0507-0805
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9412-0612
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0701-
207 08.820 PROTECTOR; JACK
AUSTRALIA EQUIPMENT(RR3) 		8-97866-908-2 01 1 0507-
207 08.820 PROTECTOR; JACK
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) 		8-97866-908-0 01 1 9603-9603
207 08.820 PROTECTOR; JACK
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT-4WD(ASJ),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C),FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) 		8-97866-908-2 01 1 9604-9711
207 08.820 PROTECTOR; JACK 8-97866-908-2 01 1 9712-0310
207 08.820 PROTECTOR; JACK
AUSTRALIA EQUIPMENT(RR3) 		8-97866-908-2 01 1 0311-0501
208 08.820 HANDLE; JACK 9-85512-607-0 01 1 9412-9909
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 9910-1108
208 08.820 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1109-
237 08.821 BAG; TOOL 1-85565-012-0 01 1 9412-9509
237 08.821 BAG; TOOL 8-97130-903-1 01 1 9510-
238 08.820 SUPPORT; TOOL BAG 8-94273-001-0 01 1 9412-9510
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9511-0101
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0102-
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9412-
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9412-0612
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0701-
302 08.820 NUT; JACK BRKT
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) 16.085 		8-94279-061-1 01 1 9412-9602
302 08.820 NUT; JACK BRKT
FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT(31C) ,FRT&RR 7.5-16-10 6GSX16-127 6WHL/NUT(9BA) ,FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) 		8-94279-522-0 01 1 9603-9603
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9604-
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9412-
