Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#35845) — 198 parça

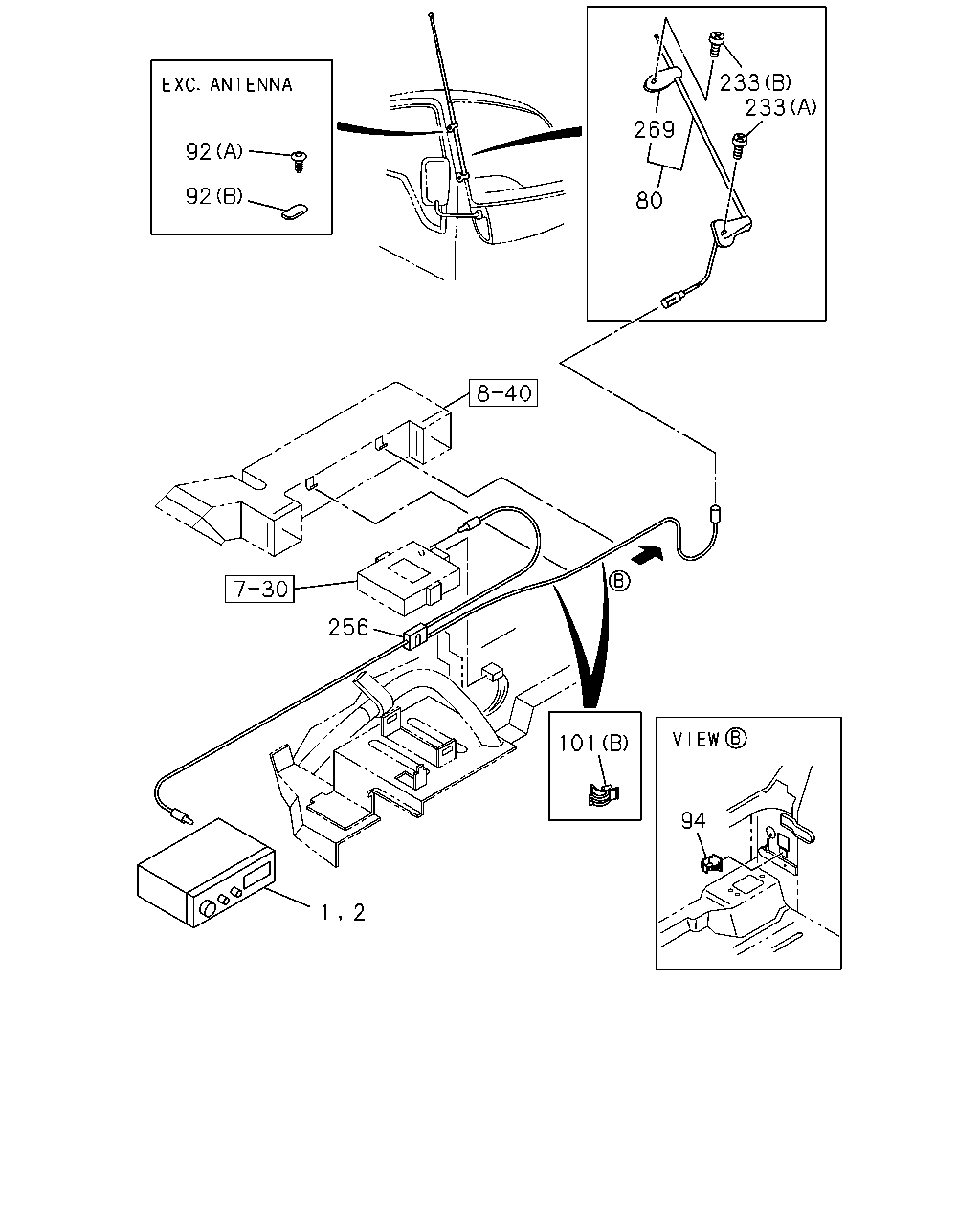

233 233 269 92 92 80 256 101 94 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97091-587-0	01	1	9412-9509
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97120-649-0	01	1	9510-9911
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	9912-0310
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM	8-97120-647-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION AM/FM	8-97376-745-0	01	1	0507-
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	1-84122-032-3	01	1	0507-
80	09.645 ANTENNA	8-97070-022-2	01	1	9412-9809
80	09.645 ANTENNA	8-97210-546-0	01	1	9810-0310
80	09.645 ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	0311-
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0311-0501
92	09.647 COVER; HOLE,ANTENNA 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0502-0506
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0507-
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	0311-0501
92	09.647 COVER; HOLE,ANTENNA (B)	8-97088-275-3	01	1	0502-0506
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-3	01	1	0507-
94	09.656 CLIP; ANTENNA FEEDER	1-09987-155-1	01	1	9501-0310
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-1	01	1	0311-0501
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-3	01	1	0507-
101	09.649 CLIP; FEEDER TO BRKT 03.162 (A) L=170	5-09707-054-0	01	1	9412-9412
101	09.649 CLIP; FEEDER TO BRKT (B) ID=7	8-97085-207-0	03	1	9412-9503
101	09.649 CLIP; FEEDER TO BRKT 04.342 (B) ID=7	5-09707-053-0	03	1	9504-0111
101	09.649 CLIP; FEEDER TO BRKT REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	02	1	0112-0212
101	09.649 CLIP; FEEDER TO BRKT 04.342 (B) ID=7	5-09707-053-0	02	1	0301-0310
101	09.649 CLIP; FEEDER TO BRKT REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	02	1	0311-0501
101	09.649 CLIP; FEEDER TO BRKT REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	02	1	0507-
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	03	1	0311-0501
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	03	1	0507-
101	09.649 CLIP; FEEDER TO BRKT EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	03	1	0112-0212
233	09.647 SCREW (A) M6X20	8-97120-686-0	01	1	9412-0310
233	09.647 SCREW ANTENNA<U73> (A) M6X20	8-97120-686-0	01	1	0311-0501
233	09.647 SCREW ANTENNA<U73> (A) M6X20	8-97120-686-0	01	1	0507-
233	09.647 SCREW (B) M6X16	8-97123-696-0	01	1	9412-0310
233	09.647 SCREW ANTENNA<U73> (B) M6X16	8-97123-696-0	01	1	0311-0501
233	09.647 SCREW ANTENNA<U73> (B) M6X16	8-97123-696-0	01	1	0507-
256	09.647 DISTRIBUTOR UNIT; FEEDER REMOTE CONT DOOR LOCK<6NF>	8-97256-812-0	01	1	0112-0212
256	09.647 DISTRIBUTOR UNIT; FEEDER	8-97256-812-0	01	1	0301-0310
256	09.647 DISTRIBUTOR UNIT; FEEDER REMOTE CONT DOOR LOCK<6NF>	8-97256-812-0	01	1	0311-0501
256	09.647 DISTRIBUTOR UNIT; FEEDER REMOTE CONT DOOR LOCK<6NF>	8-97256-812-0	01	1	0507-
269	09.647 SUPPORT KIT; ANTENNA	8-97108-183-0	01	1	9412-0310
269	09.647 SUPPORT KIT; ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97108-183-0	01	1	0311-0405
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97219-079-0	01	1	0311-0405
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0406-0501
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0507-

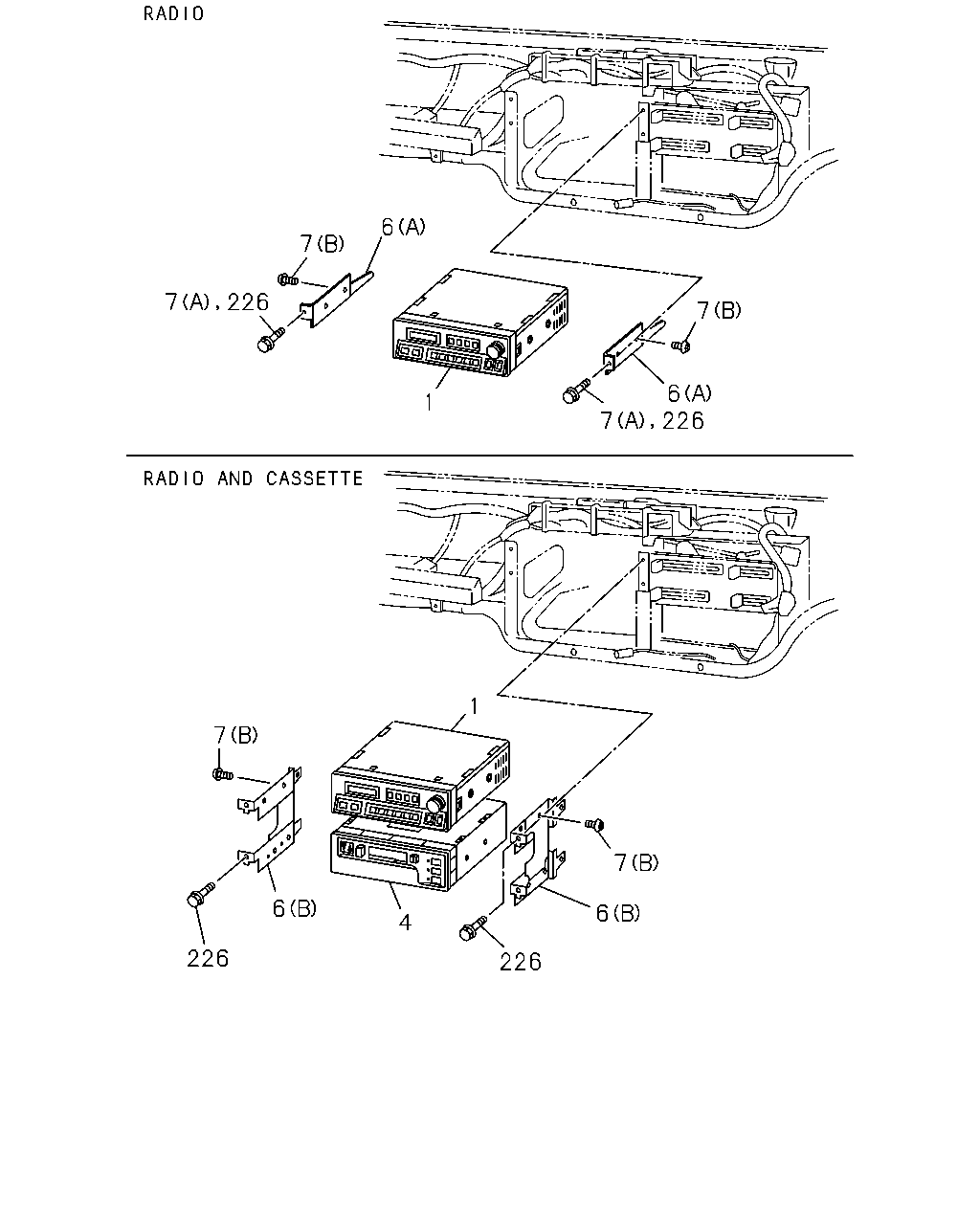

7 6 6 226 7 268 1 226 7 6 6 226 7 268 2 226 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97091-587-0	01	1	9412-9509
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97120-649-0	01	1	9510-9911
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	9912-0310
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM	8-97120-647-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION AM/FM	8-97376-745-0	01	1	0507-
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	1-84122-032-3	01	1	0507-
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9412-0501
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A)	8-97853-615-2	01	1	0507-
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9412-0501
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A)	8-97853-614-2	01	1	0507-
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-104-1	01	1	0311-0501
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-103-1	01	1	0311-0501
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 08.852 (A) M5X14	8-94323-227-0	02	1	9412-9412
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9412-9908
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9909-9909
7	09.650 SCREW; RADIO 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9909-9909
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9910-0501
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	0311-0501
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0507-0604
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-0612
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0701-
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ)	8-97856-203-3	01	1	9412-0310
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0311-0501
34	09.650 COVER; RADIO HOLE	8-97856-203-3	01	1	0502-0506
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0507-
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9412-9603
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9604-0501
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0311-0501
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0507-
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION	8-97108-088-0	01	1	9412-9509
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION	8-97093-559-0	01	1	9510-0310
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION	8-97093-559-0	01	1	0311-0501
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION	8-97375-820-0	01	1	0507-
268	09.649 KNOB; VOL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97386-201-0	01	1	0507-

6 7 7 226 7 6 226 1 7 1 7 7 6 6 4 226 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97091-587-0	01	1	9412-9509
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97120-649-0	01	1	9510-9911
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	9912-0310
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM	8-97120-647-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION AM/FM	8-97376-745-0	01	1	0507-
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	8-97088-291-0	01	1	0311-0501
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9412-0501
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A)	8-97853-615-2	01	1	0507-
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9412-0501
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (A)	8-97853-614-2	01	1	0507-
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-104-1	01	1	0311-0501
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97859-103-1	01	1	0311-0501
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 08.852 (A) M5X14	8-94323-227-0	02	1	9412-9412
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9412-9908
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9909-9909
7	09.650 SCREW; RADIO 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9909-9909
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9910-0501
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	0311-0501
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0507-0604
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0605-0612
7	09.650 SCREW; RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0701-
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9412-9603
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9604-0501
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	0311-0501
226	09.647 BOLT; BRKT RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0507-

222 116 222 171 222 5 117 48 221 221 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	09.647 HARNESS; EXT	8-97131-327-0	02	1	9509-0310
5	09.647 HARNESS; EXT ANTENNA<U73>	8-97131-327-0	02	1	0311-
48	09.650 SPEAKER; AUDIO	8-97048-670-0	02	1	9412-9508
48	09.650 SPEAKER; AUDIO	8-97130-574-0	02	1	9509-9612
48	09.650 SPEAKER; AUDIO	8-97169-451-0	02	1	9701-9809
48	09.650 SPEAKER; AUDIO	8-97207-695-0	02	1	9810-9902
48	09.650 SPEAKER; AUDIO	8-97223-098-0	02	1	9903-0204
48	09.650 SPEAKER; AUDIO	8-97317-001-0	02	1	0205-0310
48	09.650 SPEAKER; AUDIO ANTENNA<U73>	8-97317-001-0	02	1	0311-0501
48	09.650 SPEAKER; AUDIO ANTENNA<U73>	8-97317-001-1	02	1	0507-
49	09.655 SCREW; SPEAKER 16.067 M5X14	8-94279-325-0	06	1	9412-0310
49	09.655 SCREW; SPEAKER ANTENNA<U73> 16.067 M5X14	8-94279-325-0	06	1	0311-0612
49	09.655 SCREW; SPEAKER ANTENNA<U73> M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	0701-
116	16.165 PANEL; SPEAKER,FRT DOOR	8-97852-325-3	01	1	9412-0310
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-325-3	01	1	0311-
116	16.165 PANEL; SPEAKER,FRT DOOR	8-97852-324-3	01	1	9412-0310
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73>	8-97852-324-3	01	1	0311-
117	16.165 SCREW; SPEAKER PANEL 16.067 M5X14	8-94279-325-0	06	1	9412-0310
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> 16.067 M5X14	8-94279-325-0	06	1	0311-0612
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> 16.570 T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	06	1	0701-
171	09.650 COVER; SPEAKER	8-97852-331-4	02	1	9412-0310
171	09.650 COVER; SPEAKER ANTENNA<U73>	8-97852-331-4	02	1	0311-
221	16.165 SEAL; SPEAKER PANEL (A)	8-97852-327-5	02	1	9412-0310
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> (A)	8-97852-327-5	02	1	0311-
221	16.165 SEAL; SPEAKER PANEL (B)	8-97852-601-2	02	1	9412-0310
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> (B)	8-97852-601-2	02	1	0311-
222	16.165 GROMMET; SCREW,SPEAKER PANEL 09.264 (A)	1-09987-144-0	02	1	9412-0310
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> 09.264 (A)	1-09987-144-0	02	1	0311-
222	16.165 GROMMET; SCREW,SPEAKER PANEL 16.345 (B) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	06	1	9412-9705
222	16.165 GROMMET; SCREW,SPEAKER PANEL 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9706-0310
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0311-

4 1 268 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97091-587-0	01	1	9412-9509
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97120-649-0	01	1	9510-9911
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	9912-0310
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM	8-97120-647-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION AM/FM	8-97376-745-0	01	1	0507-
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	8-97088-291-0	01	1	0311-0501
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ)	8-97856-203-3	01	1	9412-0310
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0311-0501
34	09.650 COVER; RADIO HOLE	8-97856-203-3	01	1	0502-0506
34	09.650 COVER; RADIO HOLE EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	0507-
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION	8-97108-088-0	01	1	9412-9509
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION	8-97093-559-0	01	1	9510-0310
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> CLARION	8-97093-559-0	01	1	0311-0501
268	09.649 KNOB; VOL RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION	8-97375-820-0	01	1	0507-
268	09.649 KNOB; VOL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97386-201-0	01	1	0507-

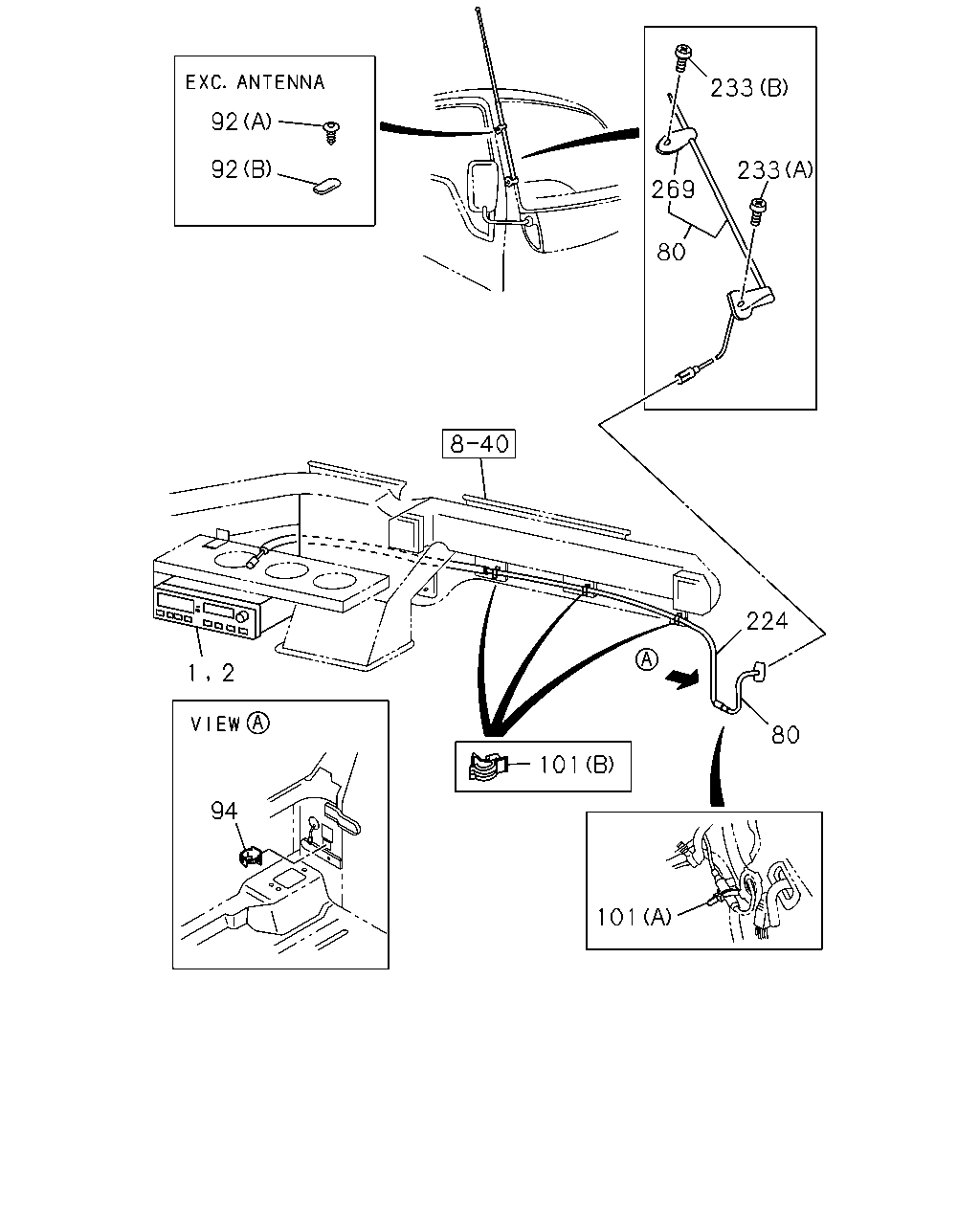

233 92 92 233 269 80 224 2 1 80 101 94 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97091-587-0	01	1	9412-9509
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97120-649-0	01	1	9510-9911
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	9912-0310
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> CLARION AM/FM	8-97241-542-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND LATIN AMERICA<7DM> CLARION AM/FM	8-97120-647-0	01	1	0311-0501
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION AM/FM	8-97376-745-0	01	1	0507-
2	09.645 RADIO & CASSETTE DECK ASM RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) CLARION	1-84122-032-3	01	1	0507-
80	09.645 ANTENNA	8-97070-022-2	01	1	9412-9809
80	09.645 ANTENNA	8-97210-546-0	01	1	9810-0310
80	09.645 ANTENNA ANTENNA<U73>	8-97211-564-0	01	1	0311-
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0311-0501
92	09.647 COVER; HOLE,ANTENNA 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0502-0506
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	0507-
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	0311-0501
92	09.647 COVER; HOLE,ANTENNA (B)	8-97088-275-3	01	1	0502-0506
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-3	01	1	0507-
94	09.656 CLIP; ANTENNA FEEDER	1-09987-155-1	01	1	9501-0310
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-1	01	1	0311-0501
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-3	01	1	0507-
101	09.649 CLIP; FEEDER TO BRKT 03.162 (A) L=170	5-09707-054-0	01	1	9412-9412
101	09.649 CLIP; FEEDER TO BRKT (B) ID=7	8-97085-207-0	03	1	9412-9503
101	09.649 CLIP; FEEDER TO BRKT 04.342 (B) ID=7	5-09707-053-0	03	1	9504-0111
101	09.649 CLIP; FEEDER TO BRKT REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	02	1	0112-0212
101	09.649 CLIP; FEEDER TO BRKT 04.342 (B) ID=7	5-09707-053-0	02	1	0301-0310
101	09.649 CLIP; FEEDER TO BRKT REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	02	1	0311-0501
101	09.649 CLIP; FEEDER TO BRKT REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	02	1	0507-
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	03	1	0311-0501
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	03	1	0507-
101	09.649 CLIP; FEEDER TO BRKT EXC. REMOTE CONT DOOR LOCK<6NF> 04.342 (B) ID=7	5-09707-053-0	03	1	0112-0212
224	09.647 CABLE; EXT,FEEDER	8-97041-980-1	01	1	9412-9412
224	09.647 CABLE; EXT,FEEDER	8-97118-847-0	01	1	9501-9811
224	09.647 CABLE; EXT,FEEDER	8-97213-766-0	01	1	9812-0111
224	09.647 CABLE; EXT,FEEDER EXC. REMOTE CONT DOOR LOCK<6NF>	8-97213-766-0	01	1	0112-0212
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97213-766-0	01	1	0311-0501
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97213-766-0	01	1	0507-
233	09.647 SCREW (A) M6X20	8-97120-686-0	01	1	9412-0310
233	09.647 SCREW ANTENNA<U73> (A) M6X20	8-97120-686-0	01	1	0311-0501
233	09.647 SCREW ANTENNA<U73> (A) M6X20	8-97120-686-0	01	1	0507-
233	09.647 SCREW (B) M6X16	8-97123-696-0	01	1	9412-0310
233	09.647 SCREW ANTENNA<U73> (B) M6X16	8-97123-696-0	01	1	0311-0501
233	09.647 SCREW ANTENNA<U73> (B) M6X16	8-97123-696-0	01	1	0507-
269	09.647 SUPPORT KIT; ANTENNA	8-97108-183-0	01	1	9412-0310
269	09.647 SUPPORT KIT; ANTENNA AUSTRALIA EQUIPMENT(RR3) ANTENNA<U73>	8-97108-183-0	01	1	0311-0405
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97219-079-0	01	1	0311-0405
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0406-0501
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97219-079-0	01	1	0507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
