◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#35844) — 170 parça

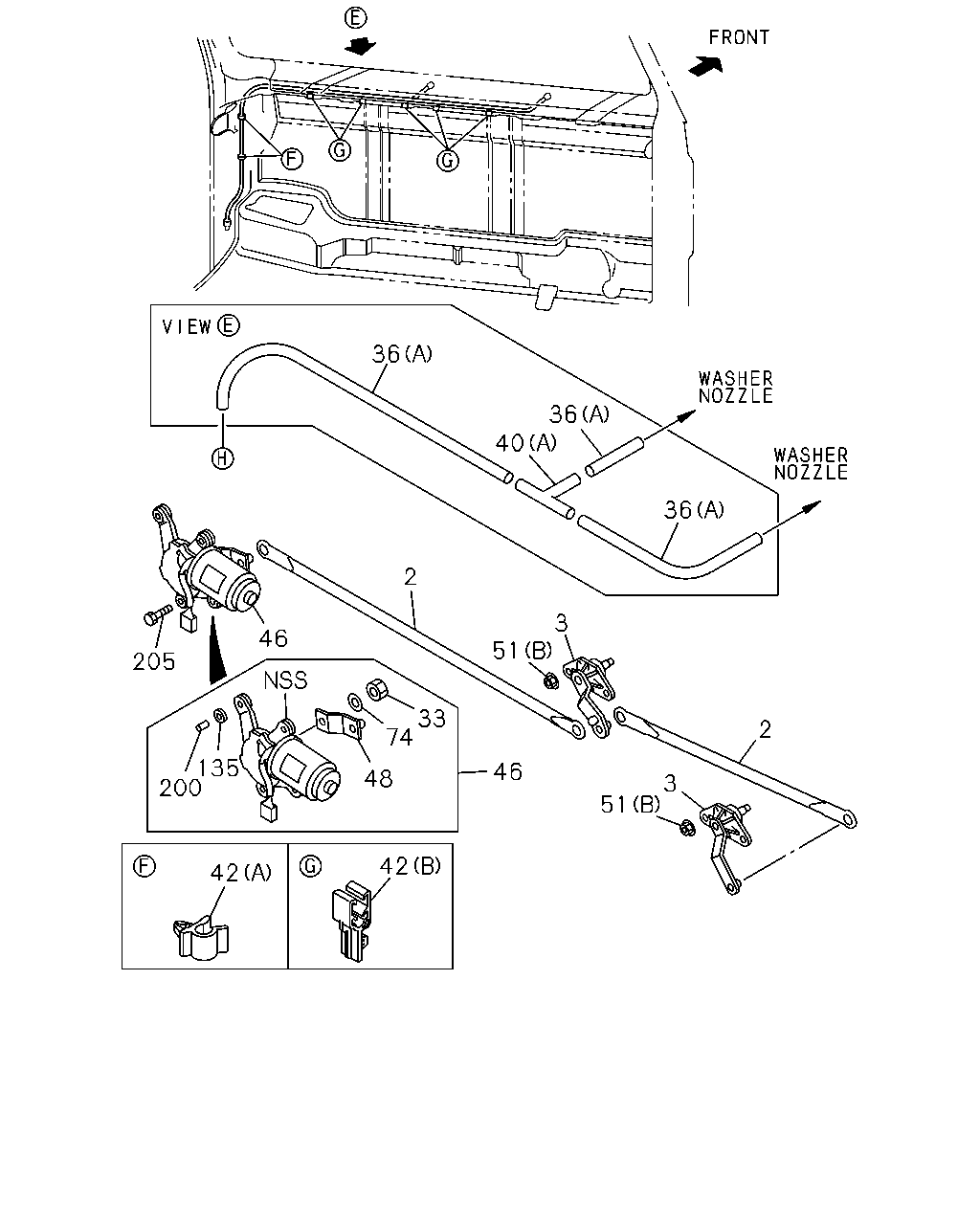

çizim 67887
36 36 40 36 2 3 51 46 205 33 74 2 135 200 46 48 3 51 42 42
BalonParca AdiParca NoAdetTipApplied Date
2 16.063 LINK; FRT WIPER
L=511 W/CAP 		8-97855-151-0 01 1 9412-
2 16.063 LINK; FRT WIPER
L=791 W/CAP 		8-97855-154-0 01 1 9412-
3 16.063 PIVOT ASM; FRT WIPER 8-97855-146-2 01 1 9412-
3 16.063 PIVOT ASM; FRT WIPER 8-97855-148-2 01 1 9412-
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 9412-
36 16.065 HOSE; WASHER
10.155 (A) SERVICED BY L=10000 		8-94389-303-0 01 1 9412-
36 16.065 HOSE; WASHER
(B) 		8-97216-111-0 02 1 9712-0501
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9412-9711
40 16.065 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 9712-0501
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 0502-
40 16.065 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 9712-0501
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0502-
40 16.065 JOINT; WASHER HOSE
(C) 		8-97307-026-0 01 1 0101-0501
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9412-
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 9412-9711
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 9712-0501
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 0502-
42 16.065 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 9712-0501
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97855-029-4 01 1 9412-9811
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97216-349-0 01 1 9812-0210
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-374-1 01 1 0211-
48 16.063 ARM; WIPER MOTOR 8-97855-156-0 01 1 9412-9811
48 16.063 ARM; WIPER MOTOR 8-97218-924-0 01 1 9812-
51 16.063 NUT; WIPER MOTOR LINK
00.854 (B) M8 FLANGE 		5-09440-005-0 04 1 9412-0611
51 16.063 NUT; WIPER MOTOR LINK
04.634 (B) M8 FLANGE 		8-97581-233-0 04 1 0612-
51 16.063 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 9509-
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 9412-
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 9412-
200 16.064 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 9412-
205 16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER 		8-94148-420-0 03 1 9412-

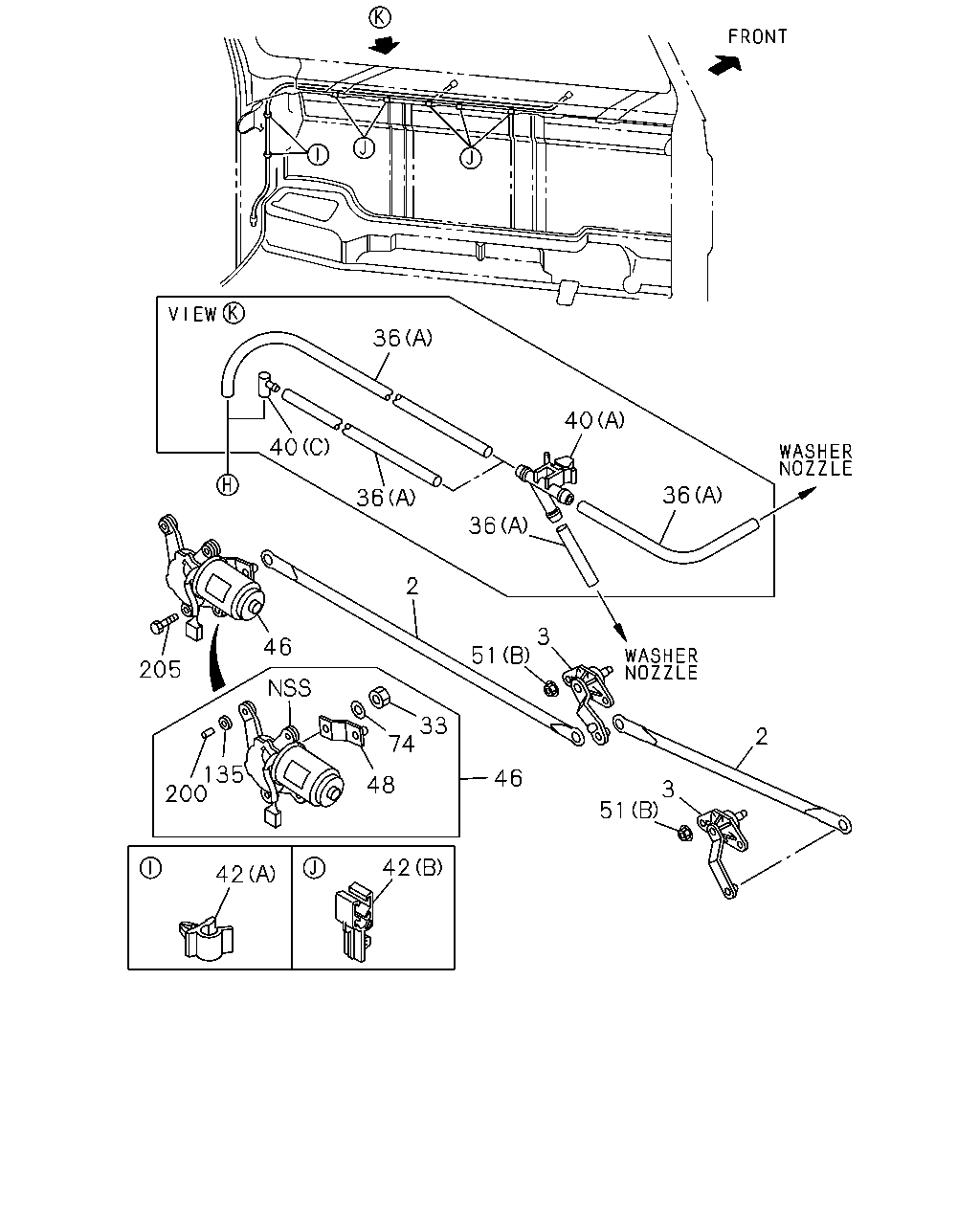

çizim 69954
36 40 40 36 36 36 2 3 51 46 205 33 74 2 135 200 46 48 3 51 42 42
BalonParca AdiParca NoAdetTipApplied Date
2 16.063 LINK; FRT WIPER
L=511 W/CAP 		8-97855-151-0 01 1 9412-
2 16.063 LINK; FRT WIPER
L=791 W/CAP 		8-97855-154-0 01 1 9412-
3 16.063 PIVOT ASM; FRT WIPER 8-97855-146-2 01 1 9412-
3 16.063 PIVOT ASM; FRT WIPER 8-97855-148-2 01 1 9412-
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 9412-
36 16.065 HOSE; WASHER
10.155 (A) SERVICED BY L=10000 		8-94389-303-0 01 1 9412-
36 16.065 HOSE; WASHER
(B) 		8-97216-111-0 02 1 9712-0501
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9412-9711
40 16.065 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 9712-0501
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 0502-
40 16.065 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 9712-0501
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0502-
40 16.065 JOINT; WASHER HOSE
(C) 		8-97307-026-0 01 1 0101-0501
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9412-
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 9412-9711
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 9712-0501
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 0502-
42 16.065 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 9712-0501
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97855-029-4 01 1 9412-9811
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97216-349-0 01 1 9812-0210
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-374-1 01 1 0211-
48 16.063 ARM; WIPER MOTOR 8-97855-156-0 01 1 9412-9811
48 16.063 ARM; WIPER MOTOR 8-97218-924-0 01 1 9812-
51 16.063 NUT; WIPER MOTOR LINK
00.854 (B) M8 FLANGE 		5-09440-005-0 04 1 9412-0611
51 16.063 NUT; WIPER MOTOR LINK
04.634 (B) M8 FLANGE 		8-97581-233-0 04 1 0612-
51 16.063 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 9509-
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 9412-
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 9412-
200 16.064 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 9412-
205 16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER 		8-94148-420-0 03 1 9412-

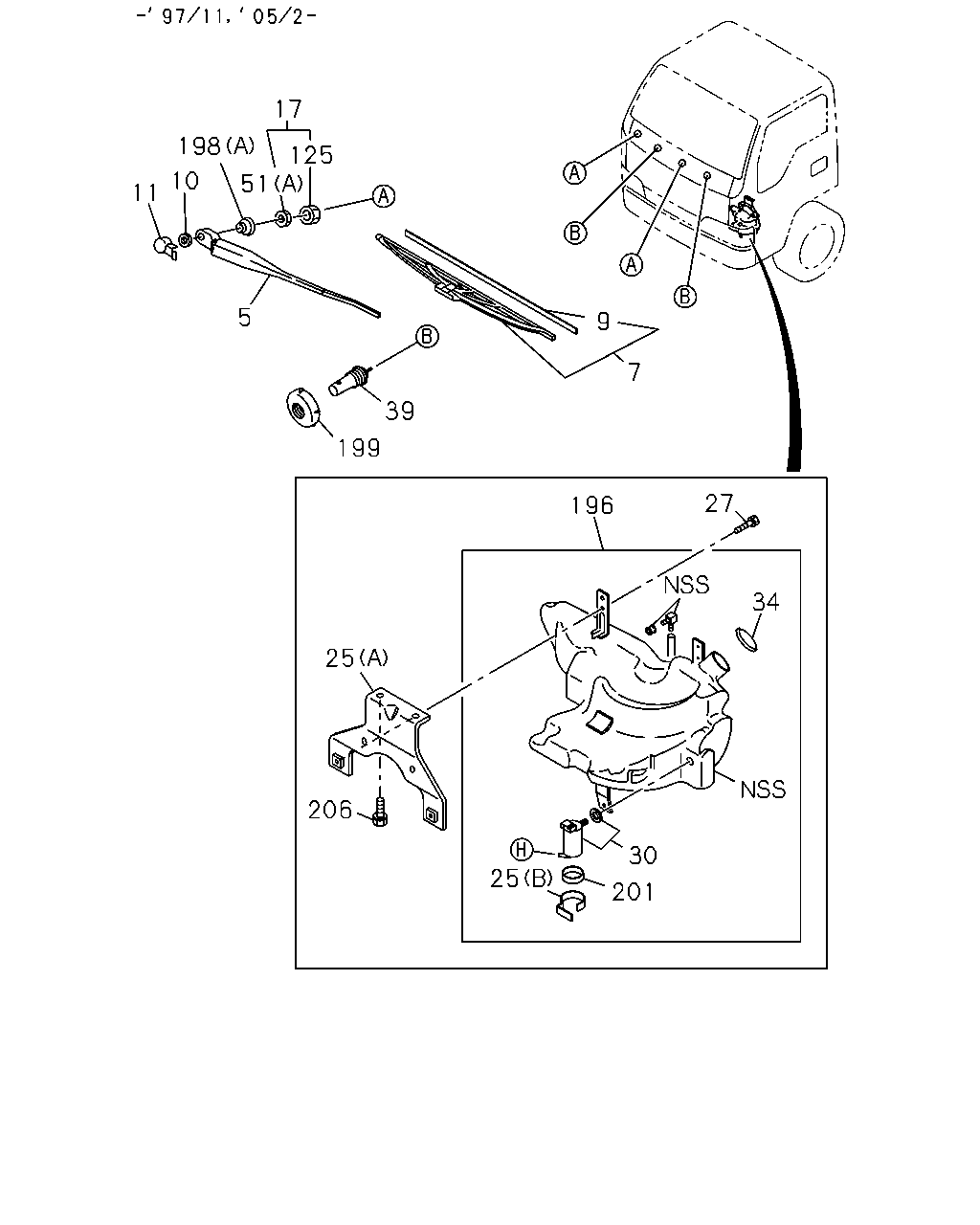

çizim 70086
17 198 125 10 51 11 5 9 7 39 199 27 196 34 25 206 30 25 201
BalonParca AdiParca NoAdetTipApplied Date
5 16.063 ARM; WIPER 8-97096-225-0 01 1 9412-9711
5 16.063 ARM; WIPER 8-97168-987-1 01 1 9712-9901
5 16.063 ARM; WIPER 8-97096-223-1 01 1 9412-9711
5 16.063 ARM; WIPER 8-97168-986-1 01 1 9712-9901
5 16.063 ARM; WIPER 8-97223-211-1 02 1 9902-0501
5 16.063 ARM; WIPER 8-97223-298-0 01 1 0502-
5 16.063 ARM; WIPER 8-97223-299-0 01 1 0502-
7 16.062 BLADE; WIPER 8-97096-228-0 01 1 9412-9510
7 16.062 BLADE; WIPER 8-97096-227-0 01 1 9412-9510
7 16.062 BLADE; WIPER
L=500 		8-97134-563-2 02 1 9511-0501
7 16.062 BLADE; WIPER
L=500 		8-97134-563-2 01 1 0502-0504
7 16.062 BLADE; WIPER
L=500 		8-97134-563-2 01 1 0502-0504
7 16.062 BLADE; WIPER
L=500 		8-97134-563-2 02 1 0505-
9 16.062 RUBBER; FRT WIPER BLADE 8-97096-230-0 01 1 9412-9510
9 16.062 RUBBER; FRT WIPER BLADE 8-97096-229-0 01 1 9412-9510
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 9511-0501
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 01 1 0502-0504
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 01 1 0502-0504
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 0505-
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 9412-0512
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 0601-
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9412-
17 16.063 OTHER PARTS; WIPER LINK 8-97855-155-1 02 1 9412-9810
25 16.065 BRACKET; WASHER TANK
(A) 		8-97855-023-2 01 1 9412-
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 9412-
27 16.065 BOLT; WASHER TANK
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9412-9603
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 9604-
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 9412-
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 9412-
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 9412-9711
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97216-107-1 02 1 9712-0501
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 0502-0502
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98010-172-0 02 1 0502-
51 16.063 NUT; WIPER MOTOR LINK
00.854 (B) M8 FLANGE 		5-09440-005-0 04 1 9412-0611
51 16.063 NUT; WIPER MOTOR LINK
04.634 (B) M8 FLANGE 		8-97581-233-0 04 1 0612-
51 16.063 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 9509-
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9509-
196 16.065 TANK; WASHER 8-97855-017-8 01 1 9412-
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9412-0305
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0306-
198 16.063 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 9712-0501
198 16.063 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 9712-0501
199 16.063 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 9412-9711
199 16.063 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 0502-
201 16.064 LINING; WIPER MOTOR 8-97855-141-0 01 1 9412-0207
201 16.064 LINING; WIPER MOTOR 8-97352-826-0 01 1 0208-
206 16.065 BOLT; BRKT,WASHER TANK
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9412-9603
206 16.065 BOLT; BRKT,WASHER TANK
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9604-0512
206 16.065 BOLT; BRKT,WASHER TANK
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601-

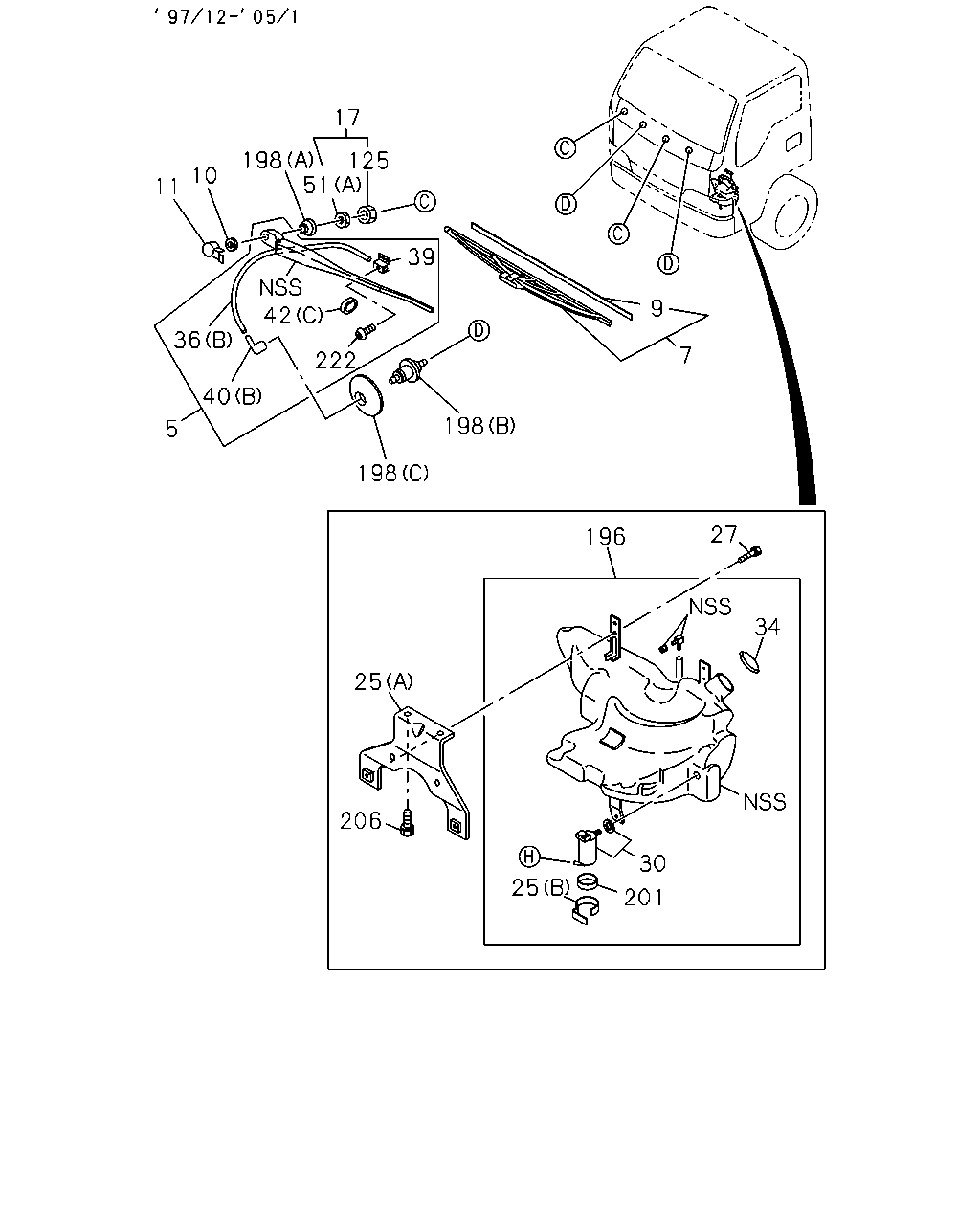

çizim 70143
17 198 125 51 10 11 39 42 9 36 7 222 40 198 5 198 27 196 34 25 206 30 25 201
BalonParca AdiParca NoAdetTipApplied Date
5 16.063 ARM; WIPER 8-97096-225-0 01 1 9412-9711
5 16.063 ARM; WIPER 8-97168-987-1 01 1 9712-9901
5 16.063 ARM; WIPER 8-97096-223-1 01 1 9412-9711
5 16.063 ARM; WIPER 8-97168-986-1 01 1 9712-9901
5 16.063 ARM; WIPER 8-97223-211-1 02 1 9902-0501
5 16.063 ARM; WIPER 8-97223-298-0 01 1 0502-
5 16.063 ARM; WIPER 8-97223-299-0 01 1 0502-
7 16.062 BLADE; WIPER 8-97096-228-0 01 1 9412-9510
7 16.062 BLADE; WIPER 8-97096-227-0 01 1 9412-9510
7 16.062 BLADE; WIPER
L=500 		8-97134-563-2 02 1 9511-0501
7 16.062 BLADE; WIPER
L=500 		8-97134-563-2 01 1 0502-0504
7 16.062 BLADE; WIPER
L=500 		8-97134-563-2 01 1 0502-0504
7 16.062 BLADE; WIPER
L=500 		8-97134-563-2 02 1 0505-
9 16.062 RUBBER; FRT WIPER BLADE 8-97096-230-0 01 1 9412-9510
9 16.062 RUBBER; FRT WIPER BLADE 8-97096-229-0 01 1 9412-9510
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 9511-0501
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 01 1 0502-0504
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 01 1 0502-0504
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-1 02 1 0505-
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 9412-0512
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 0601-
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9412-
17 16.063 OTHER PARTS; WIPER LINK 8-97855-155-1 02 1 9412-9810
25 16.065 BRACKET; WASHER TANK
(A) 		8-97855-023-2 01 1 9412-
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 9412-
27 16.065 BOLT; WASHER TANK
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9412-9603
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 9604-
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 9412-
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 9412-
36 16.065 HOSE; WASHER
10.155 (A) SERVICED BY L=10000 		8-94389-303-0 01 1 9412-
36 16.065 HOSE; WASHER
(B) 		8-97216-111-0 02 1 9712-0501
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 9412-9711
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97216-107-1 02 1 9712-0501
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 0502-0502
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98010-172-0 02 1 0502-
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9412-9711
40 16.065 JOINT; WASHER HOSE
(A) 		8-97167-258-0 01 1 9712-0501
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 0502-
40 16.065 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 9712-0501
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0502-
40 16.065 JOINT; WASHER HOSE
(C) 		8-97307-026-0 01 1 0101-0501
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9412-
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 9412-9711
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 9712-0501
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 0502-
42 16.065 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 9712-0501
51 16.063 NUT; WIPER MOTOR LINK
00.854 (B) M8 FLANGE 		5-09440-005-0 04 1 9412-0611
51 16.063 NUT; WIPER MOTOR LINK
04.634 (B) M8 FLANGE 		8-97581-233-0 04 1 0612-
51 16.063 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 9509-
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9509-
196 16.065 TANK; WASHER 8-97855-017-8 01 1 9412-
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9412-0305
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97359-329-0 02 1 0306-
198 16.063 COVER; PIVOT,WIPER
(B) 		8-97855-134-1 02 1 9712-0501
198 16.063 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 9712-0501
201 16.064 LINING; WIPER MOTOR 8-97855-141-0 01 1 9412-0207
201 16.064 LINING; WIPER MOTOR 8-97352-826-0 01 1 0208-
206 16.065 BOLT; BRKT,WASHER TANK
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9412-9603
206 16.065 BOLT; BRKT,WASHER TANK
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9604-0512
206 16.065 BOLT; BRKT,WASHER TANK
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601-
222 16.064 SCREW; WASHER NOZZLE 8-97216-113-0 02 1 9712-0501
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
