9 |
08.854 DUCT; HTR UNIT
|
8-97087-555-0 |
01 |
1 |
9412- |
| |
16 |
09.786 SHUTTER; HTR UNIT,CENTER UPR
|
8-97087-559-2 |
01 |
1 |
9412- |
| |
17 |
09.786 SHUTTER; HTR UNIT,CENTER
|
8-97087-557-1 |
01 |
1 |
9412-0310 |
| |
17 |
09.786 SHUTTER; HTR UNIT,CENTER

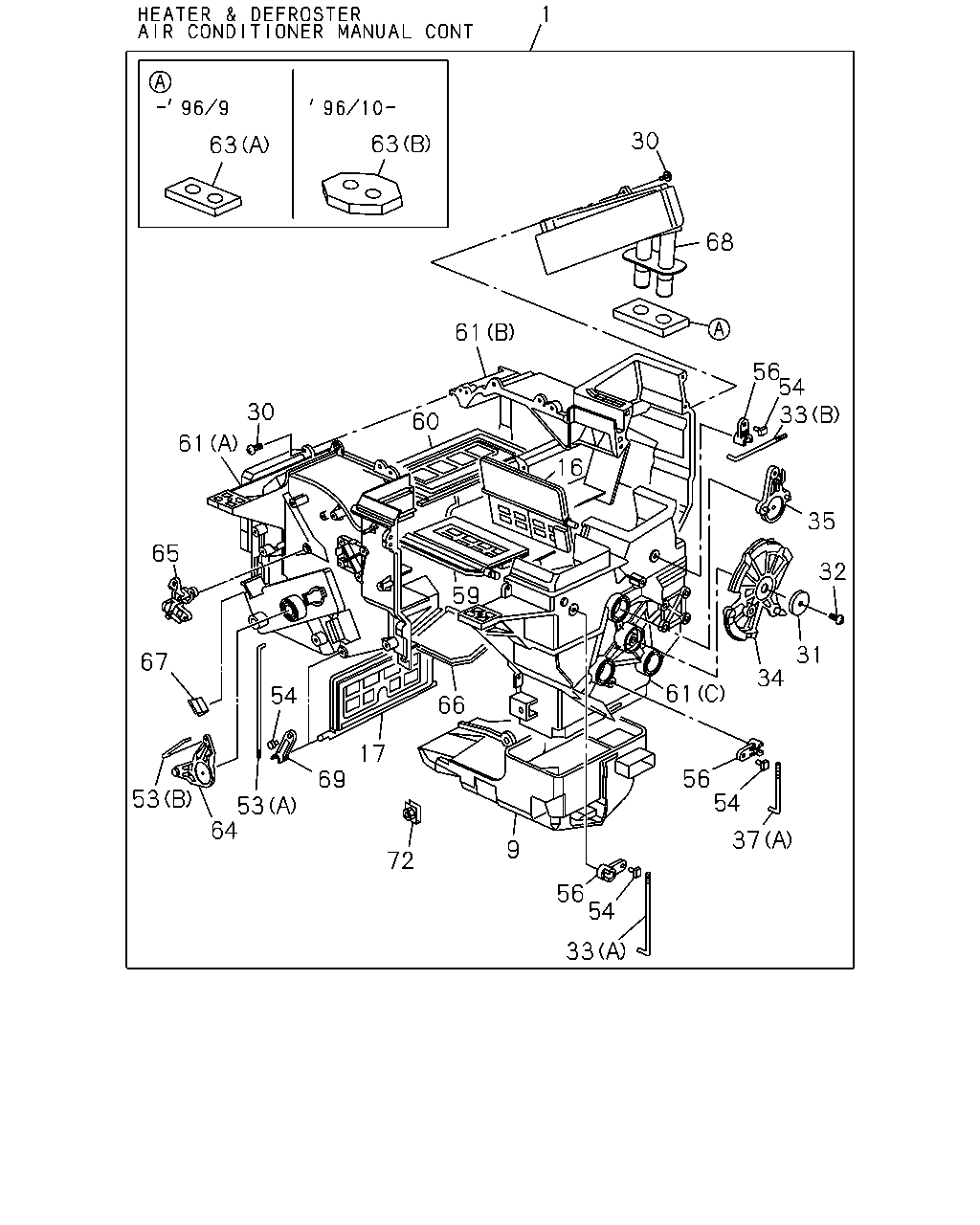

HEATER & DEFROSTER(C41)
|
8-97087-557-1 |
01 |
1 |
0311-0501 |
| |
17 |
09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-97087-557-1 |
01 |
1 |
0507- |
| |
30 |
08.845 SCREW; HTR UNIT
08.852
M4X16
|
8-94324-850-0 |
11 |
1 |
9412-0310 |
| |
30 |
08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41)
08.852
M4X16
|
8-94324-850-0 |
11 |
1 |
0311-0501 |
| |
30 |
08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39)
08.852
M4X16
|
8-94324-850-0 |
10 |
1 |
0502-0506 |
| |
30 |
08.845 SCREW; HTR UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C41),AIR CONDITIONER MANUAL
CONT(C60)
08.852
M4X16
|
8-94324-850-0 |
10 |
1 |
0507- |
| |
30 |

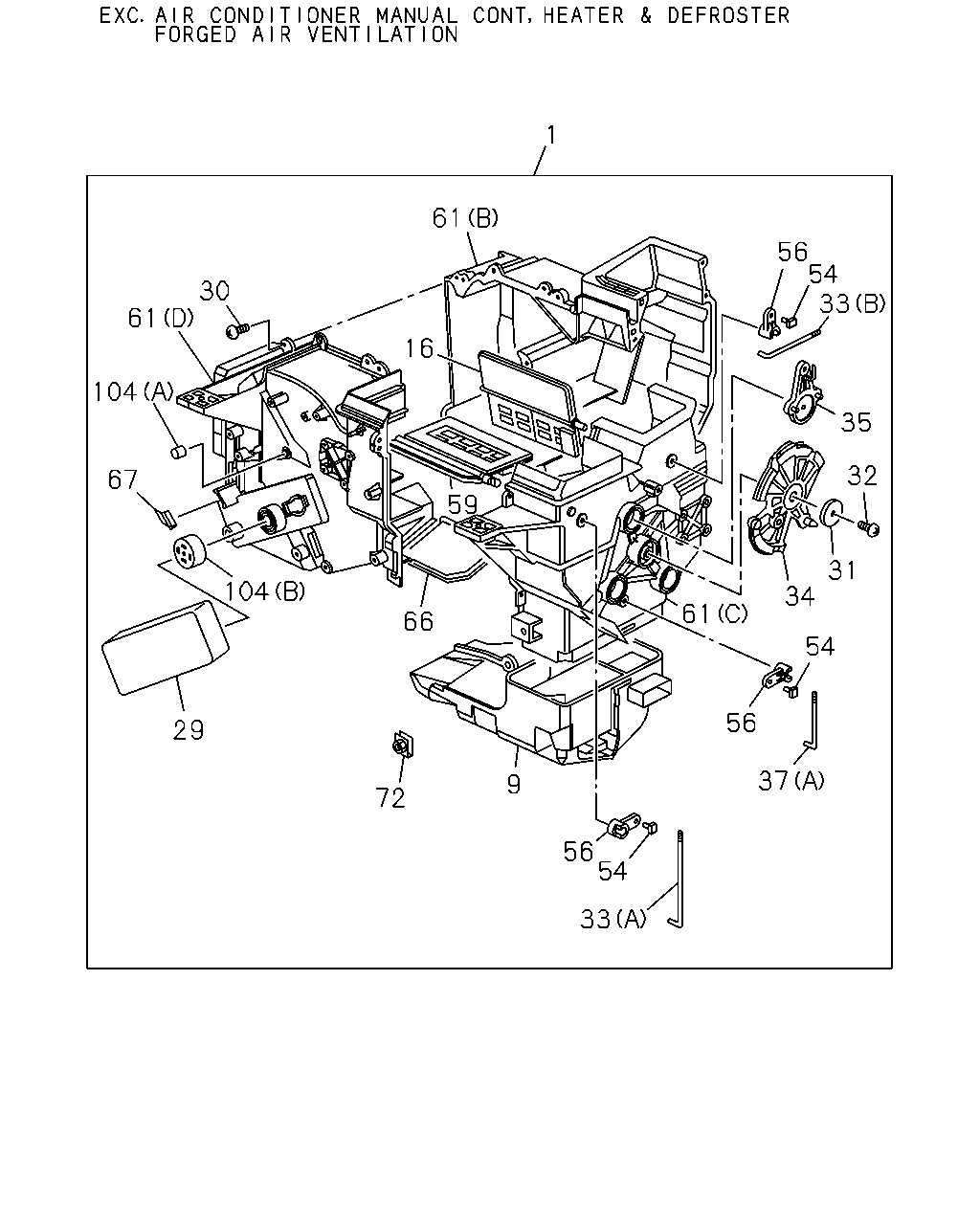

08.845 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41)
08.852
M4X16
|
8-94324-850-0 |
10 |
1 |
0311-0501 |
| |
30 |

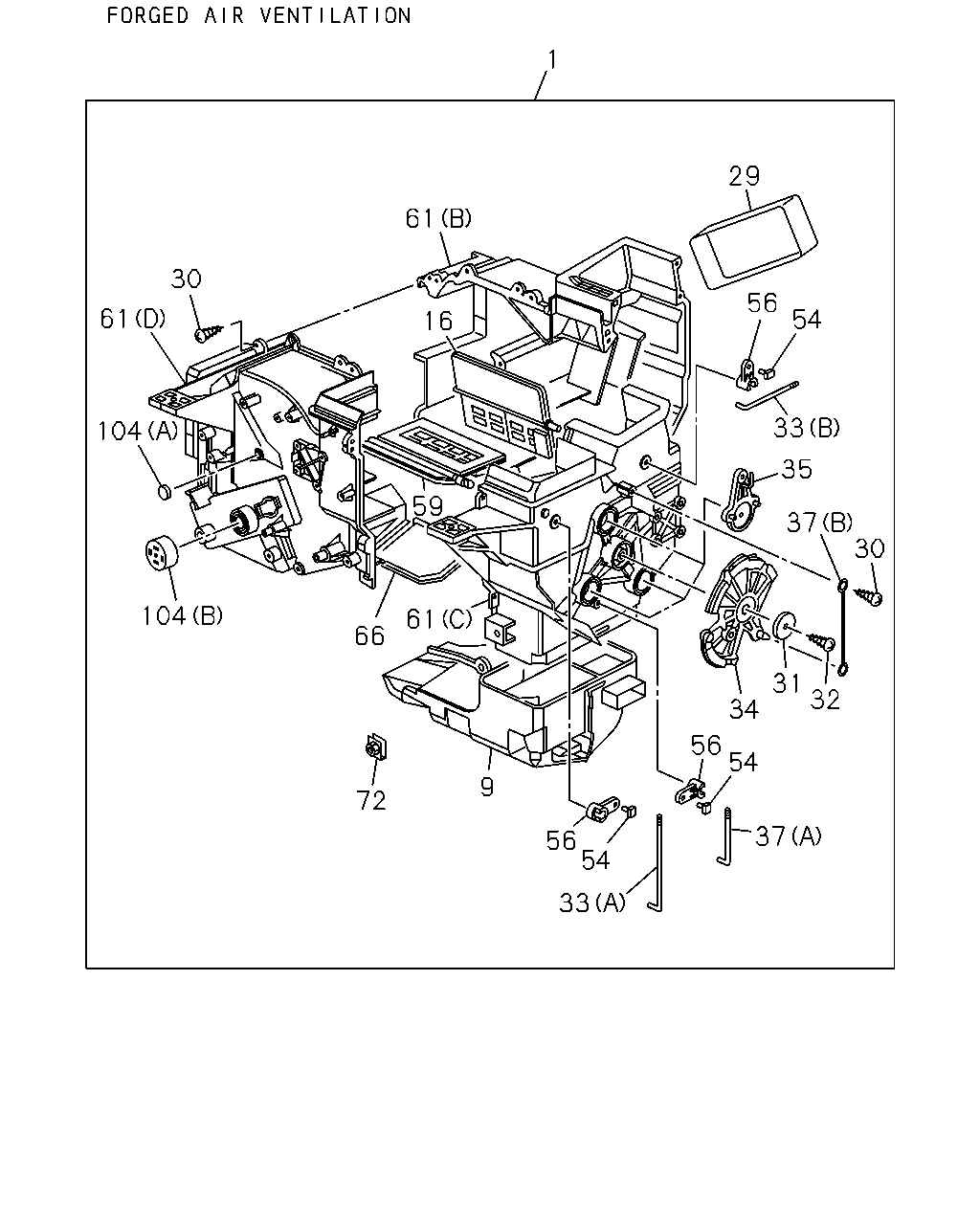

08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39)
08.852
M4X16
|
8-94324-850-0 |
11 |
1 |
0502-0506 |
| |
30 |
08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
08.852
M4X16
|
8-94324-850-0 |
11 |
1 |
0507- |
| |
31 |
08.852 WASHER; HTR UNIT
|
8-94129-950-0 |
01 |
1 |
9412- |
| |
32 |
08.852 SCREW; HTR UNIT
08.846
M5X16
|
8-94248-820-0 |
01 |
1 |
9412-9609 |
| |
32 |
08.852 SCREW; HTR UNIT
10.240
M5X20
|
9-09829-324-1 |
01 |
1 |
9610-0212 |
| |
32 |
08.852 SCREW; HTR UNIT
10.240
M5X20
|
9-09829-324-1 |
01 |
1 |
0301- |
| |
33 |
09.786 ROD; SHUTTER LEVER
(A)
|
8-97087-568-1 |
01 |
1 |
9412- |
| |
33 |
09.786 ROD; SHUTTER LEVER
(B)
|
8-97087-569-1 |
01 |
1 |
9412- |
| |
34 |
09.786 LEVER; SHUTTER,HTR UNIT
|
8-97087-561-1 |
01 |
1 |
9412-9609 |
| |
34 |
09.786 LEVER; SHUTTER,HTR UNIT
|
8-97166-657-0 |
01 |
1 |
9610- |
| |
35 |
08.852 LEVER; SHUTTER,HTR UNIT
|
8-97087-565-0 |
03 |
1 |
9412- |
| |
37 |
08.852 ROD; LEVER
(A)
|
8-97087-570-1 |
01 |
1 |
9412- |
| |
37 |
08.852 ROD; LEVER
FORGED AIR VENTILATION(C39)
(B)
|
8-98008-959-0 |
01 |
1 |
0502- |
| |
53 |
08.866 ROD; SHUTTER LEVER
(B)
|
8-97087-566-0 |
01 |
1 |
9412-0310 |
| |
53 |
08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41)
(B)
|
8-97087-566-0 |
01 |
1 |
0311-0501 |
| |
53 |
08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(B)
|
8-97087-566-0 |
01 |
1 |
0507- |
| |
53 |
08.866 ROD; SHUTTER LEVER
(A)
|
8-97087-567-1 |
01 |
1 |
9412-0310 |
| |
53 |
08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41)
(A)
|
8-97087-567-1 |
01 |
1 |
0311-0501 |
| |
53 |
08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(A)
|
8-97087-567-1 |
01 |
1 |
0507- |
| |
54 |
08.854 CLIP; SHUTTER LEVER
|
1-83574-136-0 |
03 |
1 |
9412- |
| |
56 |
09.786 LEVER; SHUTTER,HTR UNIT
|
8-97096-142-0 |
03 |
1 |
9412- |
| |
59 |
08.845 SHUTTER; HTR UNIT,SIDE
|
8-97087-558-2 |
01 |
1 |
9412- |
| |
60 |
08.854 DOOR; MIX,HTR UNIT
|
8-97087-556-1 |
01 |
1 |
9412-0310 |
| |
60 |
08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41)
|
8-97087-556-1 |
01 |
1 |
0311-0501 |
| |
60 |
08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-97087-556-1 |
01 |
1 |
0507- |
| |
61 |
08.854 CASE; HTR UNIT
(A)
|
8-97087-551-3 |
01 |
1 |
9412-0310 |
| |
61 |
08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41)
(A)
|
8-97087-551-3 |
01 |
1 |
0311-0501 |
| |
61 |
08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(A)
|
8-97087-551-3 |
01 |
1 |
0507- |
| |
61 |
08.854 CASE; HTR UNIT
(B)
|
8-97087-552-0 |
01 |
1 |
9412- |
| |
61 |
08.854 CASE; HTR UNIT
(C)
|
8-97087-553-0 |
01 |
1 |
9412- |
| |
61 |
08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41)
(D)
|
8-97115-147-3 |
01 |
1 |
0311-0501 |
| |
61 |
08.854 CASE; HTR UNIT
(D)
|
8-97115-147-3 |
01 |
1 |
0502-0506 |
| |
61 |
08.854 CASE; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
(D)
|
8-97115-147-3 |
01 |
1 |
0507- |
| |
63 |
08.856 LINING; HTR UNIT
(A)
|
8-97087-571-0 |
01 |
1 |
9412-9609 |
| |
63 |
08.856 LINING; HTR UNIT
(B)
|
8-97131-580-0 |
01 |
1 |
9610-0310 |
| |
63 |
08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41)
(B)
|
8-97131-580-0 |
01 |
1 |
0311-0501 |
| |
63 |
08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
(B)
|
8-97131-580-0 |
01 |
1 |
0507- |
| |
64 |
09.786 LEVER; MIX,DOOR
|
8-97087-562-1 |
01 |
1 |
9412-0310 |
| |
64 |
09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41)
|
8-97087-562-1 |
01 |
1 |
0311-0501 |
| |
64 |
09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-97087-562-1 |
01 |
1 |
0507- |
| |
65 |
09.786 LEVER; MIX,DOOR
|
8-97087-564-1 |
01 |
1 |
9412-0310 |
| |
65 |
09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41)
|
8-97087-564-1 |
01 |
1 |
0311-0501 |
| |
65 |
09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-97087-564-1 |
01 |
1 |
0507- |
| |
66 |
09.786 SHUTTER; HTR UNIT,CENTER LWR
|
8-97087-560-2 |
01 |
1 |
9412- |
| |
67 |
08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
09.787
|
8-94337-654-0 |
02 |
1 |
0507- |
| |
67 |
08.854 CLIP; HTR UNIT
09.787
|
8-94337-654-0 |
02 |
1 |
9412-0310 |
| |
67 |
08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41)
09.787
|
8-94337-654-0 |
02 |
1 |
0311-0501 |
| |
67 |
08.854 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41)
09.787
|
8-94337-654-0 |
01 |
1 |
0311-0501 |
| |
67 |
08.854 CLIP; HTR UNIT
EXC. FORGED AIR VENTILATION(C39)
09.787
|
8-94337-654-0 |
01 |
1 |
0502-0506 |
| |
67 |
08.854 CLIP; HTR UNIT
EXC. FORGED AIR VENTILATION(C39),HEATER &
DEFROSTER(C41),AIR CONDITIONER MANUAL
CONT(C60)
09.787
|
8-94337-654-0 |
01 |
1 |
0507- |
| |
68 |
08.854 CORE; HTR UNIT
|
8-97114-499-0 |
01 |
1 |
9412-9701 |
| |
68 |
08.854 CORE; HTR UNIT
|
8-97174-734-0 |
01 |
1 |
9702-9902 |
| |
68 |
08.854 CORE; HTR UNIT
|
8-97224-293-0 |
01 |
1 |
9903-9910 |
| |
68 |
08.854 CORE; HTR UNIT
|
8-97240-940-0 |
01 |
1 |
9911-0001 |
| |
68 |
08.854 CORE; HTR UNIT
|
8-97251-290-0 |
01 |
1 |
0002-0310 |
| |
68 |
08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41)
|
8-97251-290-0 |
01 |
1 |
0311-0501 |
| |
68 |
08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-97251-290-0 |
01 |
1 |
0507- |
| |
69 |
08.852 LEVER; SHUTTER,HTR UNIT
|
8-97087-563-1 |
01 |
1 |
9412-0310 |
| |
69 |
08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41)
|
8-97087-563-1 |
01 |
1 |
0311-0501 |
| |
69 |
08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONT(C60)
|
8-97087-563-1 |
01 |
1 |
0507- |
| |
72 |
08.845 NUT; CASE,HTR UNIT
|
8-97085-613-0 |
02 |
1 |
9412- |
