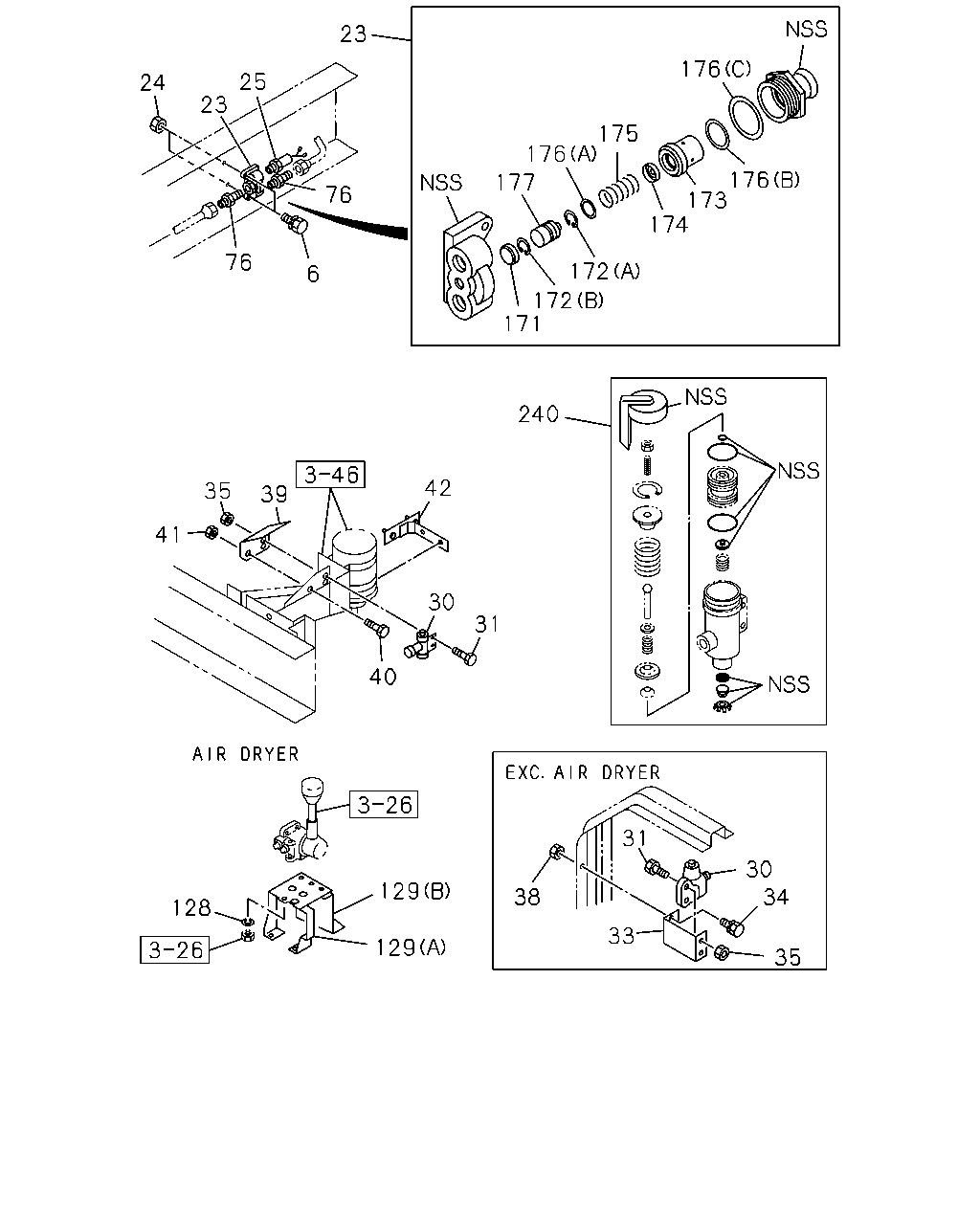

3-22 — AIR CONTROL PARTS (#3584) — 141 parça

23 176 25 24 23 175 176 176 173 174 177 76 76 172 6 172 171 240 42 35 39 41 30 31 40 31 30 34 129 38 128 33 129 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204
6	BOLT; VLV M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302
6	BOLT; VLV M8X35 FLANGE	0-28080-835-0	02	1	9303-9401
6	BOLT; VLV EXC. BRAKE REGULATION HONG KONG<TCZ> M8X35 FLANGE	0-28080-835-0	02	1	9402-
6	BOLT; VLV BRAKE REGULATION HONG KONG<TCZ> M10X35 W/LK WASHER	0-50041-035-0	02	1	9402-
23	VALVE; PRESSURE CONT	1-48460-067-1	01	1	9002-9401
23	VALVE; PRESSURE CONT EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48460-067-1	01	1	9402-
24	NUT M8	9-09110-408-0	02	1	9002-9401
24	NUT EXC. BRAKE REGULATION HONG KONG<TCZ> M8	9-09110-408-0	02	1	9402-
25	SWITCH; PRESSURE	1-48340-036-0	01	1	9002-9307
25	SWITCH; PRESSURE	1-48340-044-0	01	1	9308-9401
25	SWITCH; PRESSURE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48340-044-0	01	1	9402-9411
25	SWITCH; PRESSURE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48340-057-1	01	1	9412-
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9002-9208
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	9-01960-830-0	02	1	9002-9204
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9205-
33	BRACKET; GOV,AIR CONT EXC. AIR DRYER<PS7>	1-48359-035-0	01	1	9002-
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9307-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9002-
38	NUT; BRKT,GOV EXC. AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-
39	PROTECTOR; HEAT,GOV AIR DRYER<PS7>	1-48359-067-0	01	1	9002-
40	BOLT; HEAT PROTECTOR AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
40	BOLT; HEAT PROTECTOR AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-
41	NUT; HEAT PROTECTOR AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-
42	STAY; MUD GUARD AIR DRYER<PS7> V TYPE ENG<91L>	1-53497-350-2	01	1	9002-9306
76	CONNECTOR; CONT VLV M14	1-09650-031-0	02	1	9002-9103
76	CONNECTOR; CONT VLV M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-9401
76	CONNECTOR; CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ> M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9402-
128	WASHER; LK,PARK BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.2	9-09150-508-0	01	1	9402-
129	BRACKET; PARKING BRK VLV BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-79997-213-0	01	1	9402-
129	BRACKET; PARKING BRK VLV BRKT PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79997-214-0	01	1	9402-
171	FILTER; PRESS CONT VLV	9-88510-330-0	01	1	9002-9401
171	FILTER; PRESS CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ>	9-88510-330-0	01	1	9402-
172	RING; RETAINING (A)	1-31829-081-0	01	1	9002-9401
172	RING; RETAINING EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-31829-081-0	01	1	9402-
172	RING; RETAINING (B)	9-88510-331-0	01	1	9002-9401
172	RING; RETAINING EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	9-88510-331-0	01	1	9402-
173	PISTON; PRESS CONT VLV	1-48469-103-0	01	1	9002-9401
173	PISTON; PRESS CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-103-0	01	1	9402-
174	VALVE; PRESS CONT VLV	1-48469-104-1	01	1	9002-9401
174	VALVE; PRESS CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-104-1	01	1	9402-
175	SPRING; PRESS CONT VLV	1-48469-105-0	01	1	9002-9401
175	SPRING; PRESS CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-105-0	01	1	9402-
176	GASKET; PRESS CONT VLV (A)	1-47849-010-0	01	1	9002-9401
176	GASKET; PRESS CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-47849-010-0	01	1	9402-
176	GASKET; PRESS CONT VLV (B)	1-48212-004-0	01	1	9002-9401
176	GASKET; PRESS CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48212-004-0	01	1	9402-
176	GASKET; PRESS CONT VLV (C)	1-48469-107-0	01	1	9002-9401
176	GASKET; PRESS CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-48469-107-0	01	1	9402-
177	RETAINER; PRESS CONT VLVE	1-48469-106-0	01	1	9002-9401
177	RETAINER; PRESS CONT VLVE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-106-0	01	1	9402-
240	REPAIR KIT; AIR CONT GOV	1-85576-293-0	01	1	9410-

10 12 2 8 11 12 1 4 10 12 10 9 12 68 10 1 14 81 6 82 14 79 7 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9002-
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-157-1	01	1	9402-
2	VALVE; RELAY	1-48210-278-0	01	1	9002-
4	BOLT; RELAY VLV TO BRKT M10X30 W/LK WASHER	9-01911-030-0	02	1	9002-9002
4	BOLT; RELAY VLV TO BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-
6	BOLT; VLV M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204
6	BOLT; VLV M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302
6	BOLT; VLV M8X35 FLANGE	0-28080-835-0	02	1	9303-9401
6	BOLT; VLV EXC. BRAKE REGULATION HONG KONG<TCZ> M8X35 FLANGE	0-28080-835-0	02	1	9402-
6	BOLT; VLV BRAKE REGULATION HONG KONG<TCZ> M10X35 W/LK WASHER	0-50041-035-0	02	1	9402-
7	NUT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> M10	9-09110-510-0	02	1	9402-
8	BOLT; BRKT M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002
8	BOLT; BRKT M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-
9	NUT M10	9-09110-510-0	02	1	9002-
10	CONNECTOR (A) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302
10	CONNECTOR (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
10	CONNECTOR (B) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9002-9306
10	CONNECTOR EXC. TAIWAN EQUIPMENT(WW5) (B) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9307-
10	CONNECTOR (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
10	CONNECTOR (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
10	CONNECTOR TAIWAN EQUIPMENT(WW5) (B) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9307-
11	PLUG PT1/2	9-09204-521-0	01	1	9002-9306
11	PLUG EXC. TAIWAN EQUIPMENT(WW5) PT1/2	9-09204-521-0	01	1	9307-
12	CONNECTOR; RELAY VLV (A) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302
12	CONNECTOR; RELAY VLV (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	9002-
12	CONNECTOR; RELAY VLV (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302
12	CONNECTOR; RELAY VLV (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9402-
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B)	1-09656-576-1	01	1	9402-
68	NUT; RELAY VLV TO BRKT M10	9-09110-510-0	02	1	9002-
79	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9402-
79	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) M16	1-09656-374-1	01	1	9402-
81	BRACKET; RELAY VLV,PARKING BRK BRAKE REGULATION HONG KONG<TCZ>	1-48495-107-1	01	1	9402-
82	BOLT; BRKT,RELAY VLV BRAKE REGULATION HONG KONG<TCZ> M10X30 W/LK WASHER	0-50041-030-0	02	1	9402-

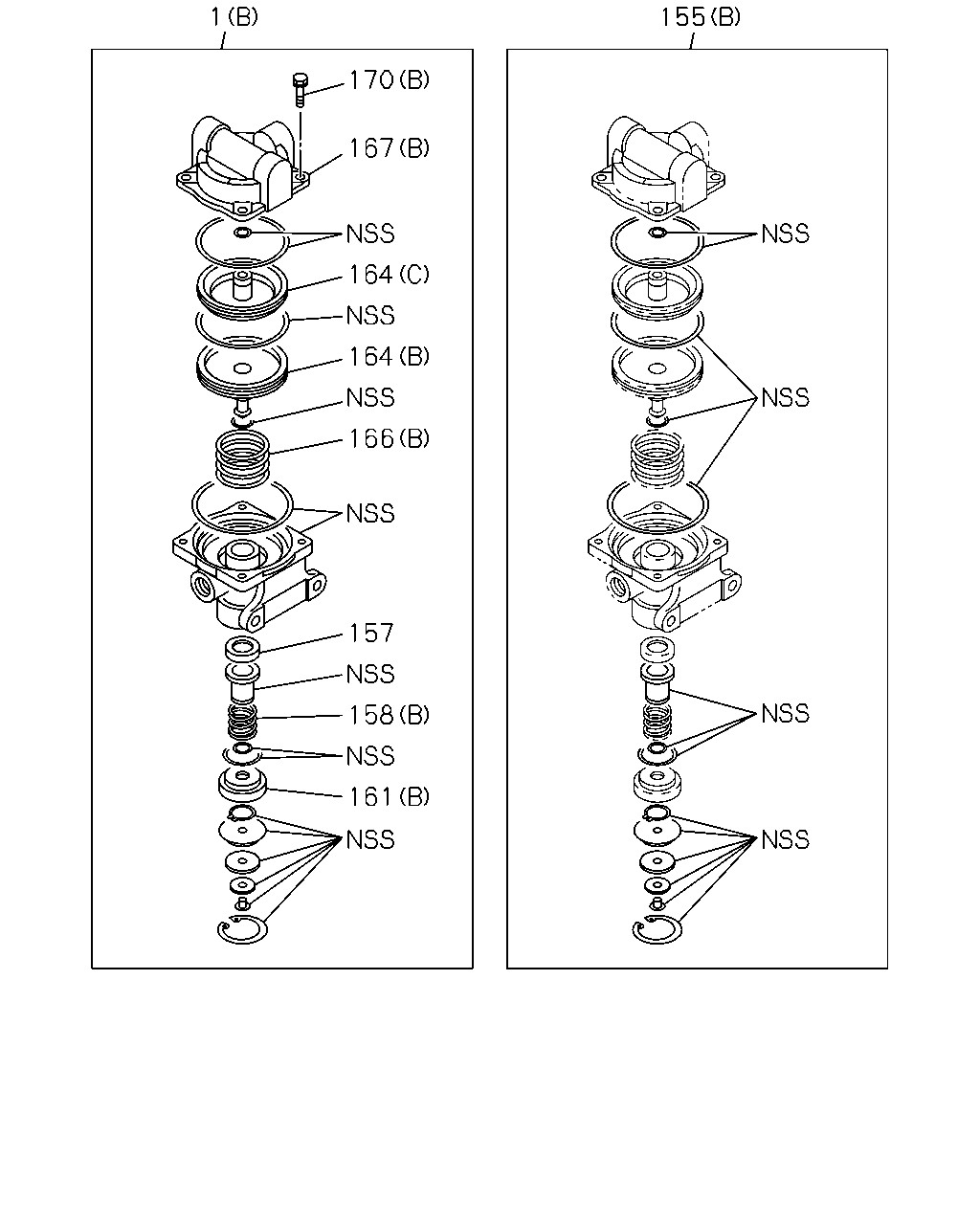

2 155 1 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9002-
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-157-1	01	1	9402-
2	VALVE; RELAY	1-48210-278-0	01	1	9002-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	9002-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-035-0	01	1	9402-
157	RETAINER; VALVE	1-48213-002-0	02	1	9002-9401
157	RETAINER; VALVE	1-48213-002-0	01	1	9402-
157	RETAINER; VALVE	1-48213-002-0	01	1	9402-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	01	1	9402-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9002-
158	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-47819-040-0	01	1	9402-
161	GUIDE; VALVE (A)	1-48129-014-0	02	1	9002-
161	GUIDE; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48129-078-0	01	1	9402-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	9002-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-032-0	01	1	9402-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (C)	1-48219-047-0	01	1	9402-
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9002-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-048-0	01	1	9402-
167	COVER; VALVE (A)	1-48219-070-0	02	1	9002-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-050-1	01	1	9402-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	9002-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-041-0	04	1	9402-

1 155 170 167 164 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR (A)	1-48210-278-0	01	1	9002-
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-157-1	01	1	9402-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	02	1	9002-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-035-0	01	1	9402-
157	RETAINER; VALVE	1-48213-002-0	02	1	9002-9401
157	RETAINER; VALVE	1-48213-002-0	01	1	9402-
157	RETAINER; VALVE	1-48213-002-0	01	1	9402-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	01	1	9402-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	9002-
158	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-47819-040-0	01	1	9402-
161	GUIDE; VALVE (A)	1-48129-014-0	02	1	9002-
161	GUIDE; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48129-078-0	01	1	9402-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	9002-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-032-0	01	1	9402-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (C)	1-48219-047-0	01	1	9402-
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9002-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-048-0	01	1	9402-
167	COVER; VALVE (A)	1-48219-070-0	02	1	9002-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-050-1	01	1	9402-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	9002-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-041-0	04	1	9402-

20 21 21 19 22 13 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>	1-48410-320-0	01	1	9402-
19	BRACKET; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>	1-47465-885-1	01	1	9402-
20	BOLT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> M8X20 W/LK WASHER	0-50040-820-0	02	1	9402-
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (A)	1-09660-136-1	01	1	9402-
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (B)	1-09660-569-0	01	1	9402-
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (C)	1-09660-570-0	01	1	9402-
22	NUT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> M8	9-09110-408-0	02	1	9402-
