8-45 — HEATER PIPING (#35839) — 122 parça

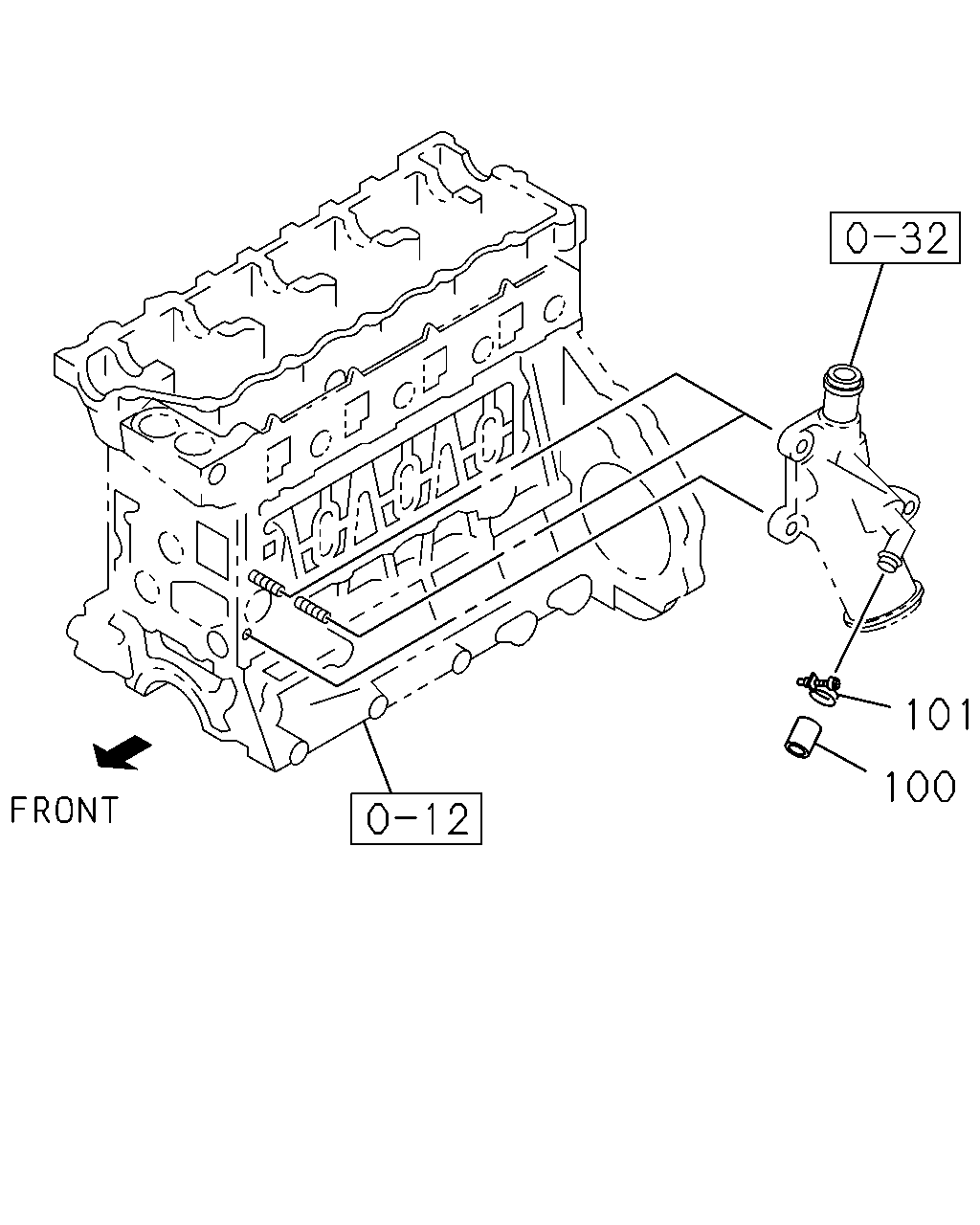

101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> INDONESIA EQUIPMENT(S4S) GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 01.166	8-94107-793-0	01	1	0311-0501
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.166	8-94107-793-0	01	1	0502-0502
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH) 01.166	8-94107-793-0	01	1	0502-0507
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	0508-0611
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	0612-
100	08.846 CAP; RUBBER,WATER PIPE 4HG1-T ENG(RDP) EXC. HEATER & DEFROSTER(C41) 01.166	8-94107-793-0	01	1	0612-
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> INDONESIA EQUIPMENT(S4S) GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 01.166 ID=25	8-94233-115-0	01	1	0311-0501
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 01.166 ID=25	8-94233-115-0	01	1	0502-0502
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH) 01.166 ID=25	8-94233-115-0	01	1	0502-0507
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	0508-0611
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	0612-
101	08.846 CLIP; CAP,WATER PIPE 4HG1-T ENG(RDP) EXC. HEATER & DEFROSTER(C41) 01.166 ID=25	8-94233-115-0	01	1	0612-

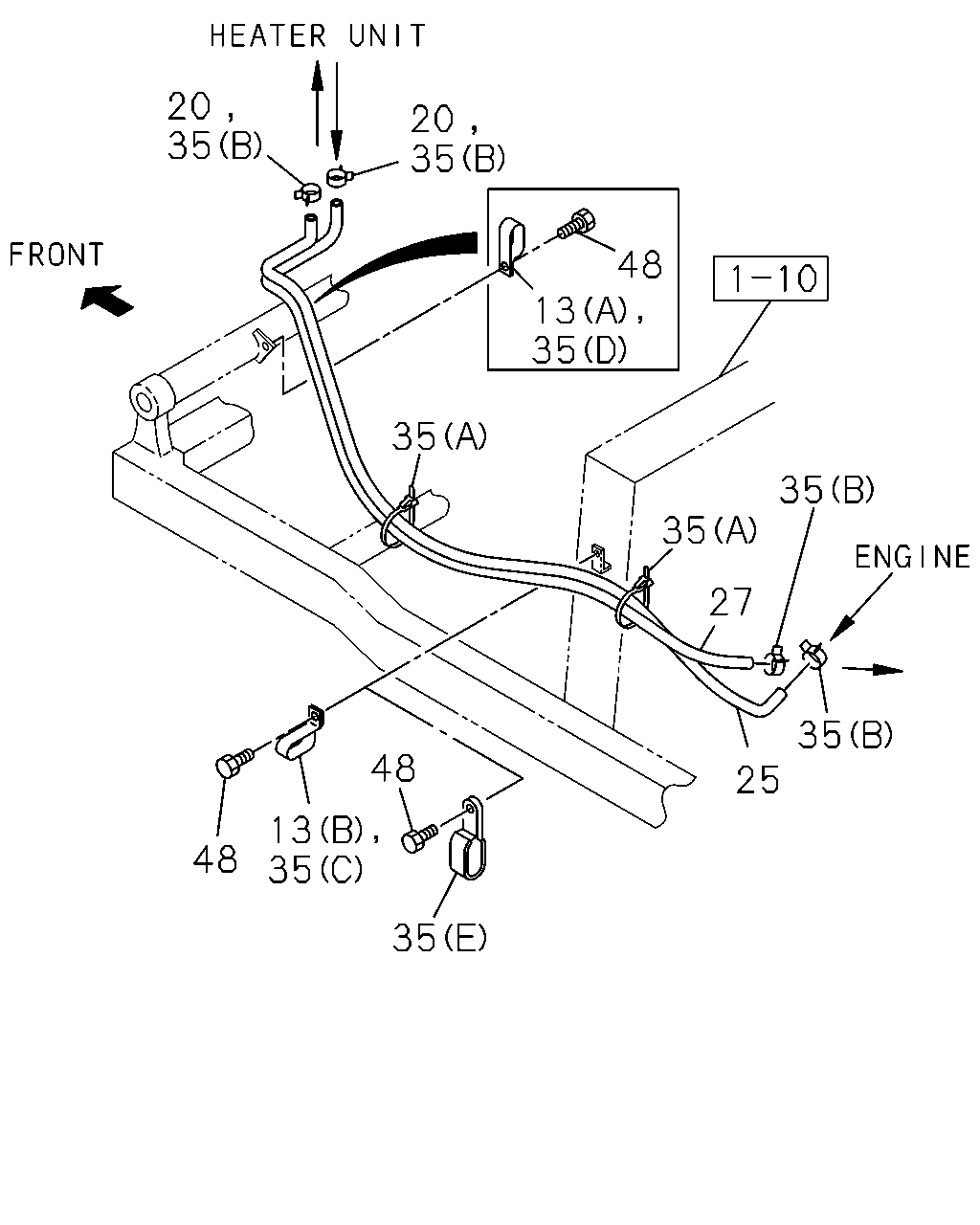

20 35 20 35 48 13 35 35 35 35 27 35 48 25 13 35 48 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	08.846 CLIP; HTR HOSE (B) ID=22X44 OVAL	8-94259-882-1	01	1	9412-9706
13	08.846 CLIP; HTR HOSE (B)	5-83574-006-0	01	1	9707-9810
13	08.846 CLIP; HTR HOSE (A) B=18	9-83651-948-1	01	1	9412-9810
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) (C) ID=22	8-94382-401-0	04	1	0301-0310
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> (C) ID=22	8-94382-401-0	04	1	0311-0501
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	04	1	0507-
20	08.866 CLIP; WATER HOSE TO HTR PIPE 08.846 ID=22	8-94382-401-0	02	1	9412-9810
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH) HEATER & DEFROSTER(C41)	8-97129-222-2	01	1	0612-
25	08.846 HOSE; WATER,ENG TO HTR UNIT	8-97095-568-4	01	1	9503-9504
25	08.846 HOSE; WATER,ENG TO HTR UNIT	8-97129-222-1	01	1	9505-0105
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH)	8-97129-222-1	01	1	0106-0212
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH) HEATER & DEFROSTER(C41)	8-97129-210-2	01	1	0612-
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-97095-569-4	01	1	9503-9504
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-97129-210-0	01	1	9505-0105
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH)	8-97129-210-0	01	1	0106-0212
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	02	1	0612-
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) HEATER & DEFROSTER(C41) (E)	8-98032-131-0	01	1	0612-
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-
35	08.852 CLIP; WATER HOSE 02.559 (A) L=250	5-09707-030-1	02	1	9503-0105
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) 02.559 (A) L=250	5-09707-030-1	02	1	0106-0212
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) 02.559 (A) L=250	5-09707-030-1	01	1	0301-0310
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> 02.559 (A) L=250	5-09707-030-1	01	1	0311-0501
35	08.852 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9810
35	08.852 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	04	1	9811-0105
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) 08.846 (B) ID=22	8-94382-401-0	04	1	0106-0212
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) 08.846 (B) ID=22	8-94382-401-0	04	1	0301-0310
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 08.846 (B) ID=22	8-94382-401-0	04	1	0311-0501
35	08.852 CLIP; WATER HOSE 08.846 (C)	5-83574-006-0	01	1	9811-0105
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) (E)	8-97191-097-0	01	1	0106-0212
35	08.852 CLIP; WATER HOSE 08.846 (D) B=18	9-83651-948-1	01	1	9811-0212
35	08.852 CLIP; WATER HOSE 08.846 (D) B=18	9-83651-948-1	01	1	0301-0310
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0311-0501
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0507-0610
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0611-
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0507-
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0610
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-97359-144-0	01	1	0611-0611
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-97359-144-0	01	1	0612-
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0611
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-
48	09.262 BOLT; CLIP FIX 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9412-9706
48	09.262 BOLT; CLIP FIX 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-0105
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-0212
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-0212
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0301-0310
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0311-0501

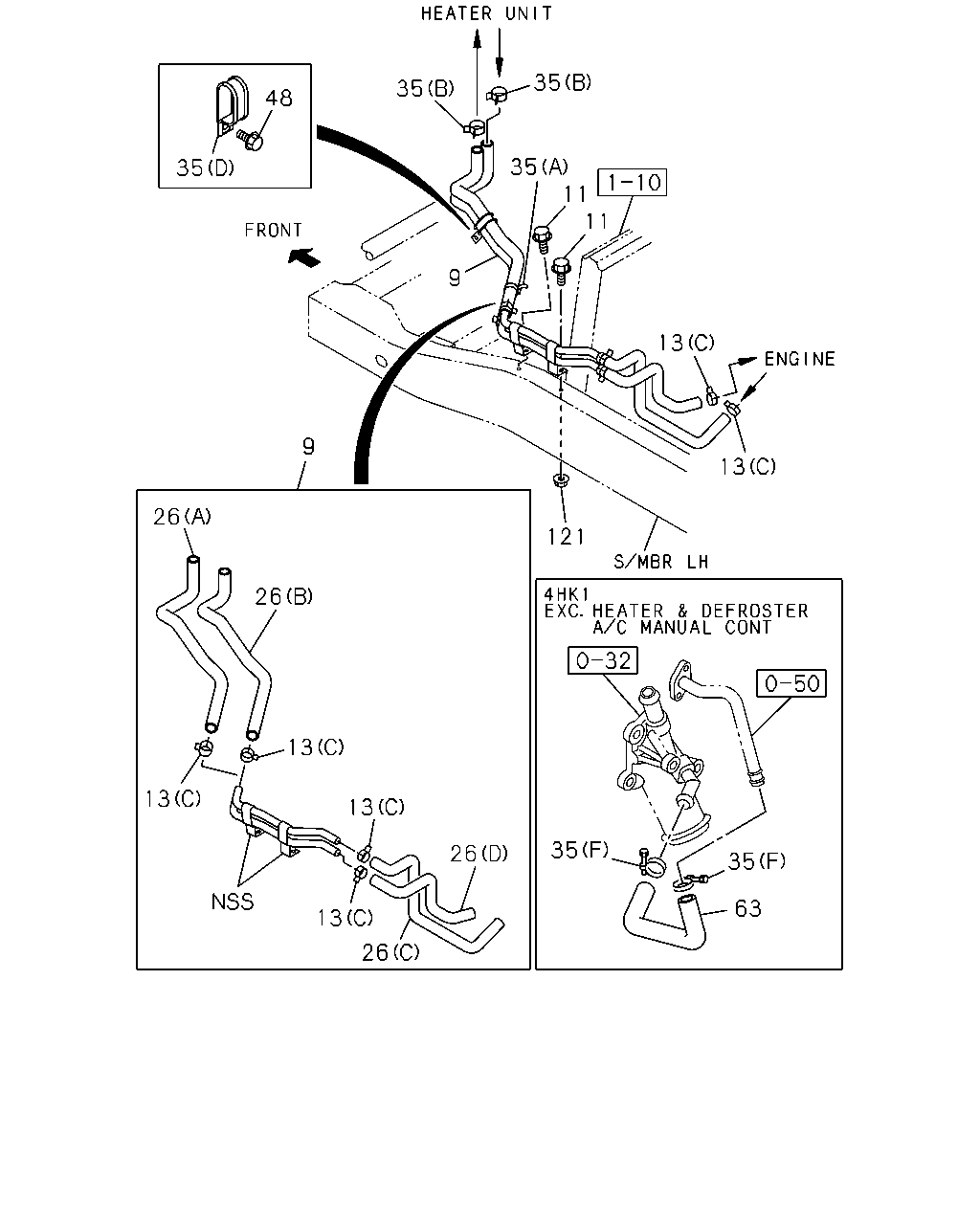

35 35 48 35 11 11 35 9 13 9 13 26 121 26 13 13 13 35 26 35 63 13 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41)	8-97330-200-1	01	1	0507-
9	08.846 PIPE; HTR 4HE1 ENG(RLY)	8-97330-200-1	01	1	0301-0310
9	08.846 PIPE; HTR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL>	8-97330-200-1	01	1	0311-0501
11	08.845 BOLT; HTR PIPE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
11	08.845 BOLT; HTR PIPE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
11	08.845 BOLT; HTR PIPE 4HE1 ENG(RLY) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0310
11	08.845 BOLT; HTR PIPE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
13	08.846 CLIP; HTR HOSE (B) ID=22X44 OVAL	8-94259-882-1	01	1	9412-9706
13	08.846 CLIP; HTR HOSE (B)	5-83574-006-0	01	1	9707-9810
13	08.846 CLIP; HTR HOSE (A) B=18	9-83651-948-1	01	1	9412-9810
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) (C) ID=22	8-94382-401-0	04	1	0301-0310
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> (C) ID=22	8-94382-401-0	04	1	0311-0501
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) (C) ID=22	8-94382-401-0	04	1	0507-
26	08.846 HOSE; HTR 4HE1 ENG(RLY) (A)	8-97356-195-0	01	1	0301-0310
26	08.846 HOSE; HTR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> (A)	8-97356-195-0	01	1	0311-0501
26	08.846 HOSE; HTR 4HE1 ENG(RLY) (B)	8-97356-196-0	01	1	0301-0310
26	08.846 HOSE; HTR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> (B)	8-97356-196-0	01	1	0311-0501
26	08.846 HOSE; HTR 4HE1 ENG(RLY) (C)	8-97356-197-0	01	1	0301-0310
26	08.846 HOSE; HTR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> (C)	8-97356-197-0	01	1	0311-0501
26	08.846 HOSE; HTR 4HE1 ENG(RLY) (D)	8-97356-198-0	01	1	0301-0310
26	08.846 HOSE; HTR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> (D)	8-97356-198-0	01	1	0311-0501
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) (A)	8-97356-195-0	01	1	0507-
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) (B)	8-97356-196-0	01	1	0507-
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) (C)	8-97356-197-0	01	1	0507-
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) (D)	8-97356-198-0	01	1	0507-
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	02	1	0612-
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) HEATER & DEFROSTER(C41) (E)	8-98032-131-0	01	1	0612-
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (F) ID=25	8-94233-115-0	02	1	0508-
35	08.852 CLIP; WATER HOSE 02.559 (A) L=250	5-09707-030-1	02	1	9503-0105
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) 02.559 (A) L=250	5-09707-030-1	02	1	0106-0212
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) 02.559 (A) L=250	5-09707-030-1	01	1	0301-0310
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> 02.559 (A) L=250	5-09707-030-1	01	1	0311-0501
35	08.852 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9810
35	08.852 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	04	1	9811-0105
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) 08.846 (B) ID=22	8-94382-401-0	04	1	0106-0212
35	08.852 CLIP; WATER HOSE 4HE1 ENG(RLY) 08.846 (B) ID=22	8-94382-401-0	04	1	0301-0310
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 08.846 (B) ID=22	8-94382-401-0	04	1	0311-0501
35	08.852 CLIP; WATER HOSE 08.846 (C)	5-83574-006-0	01	1	9811-0105
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH) (E)	8-97191-097-0	01	1	0106-0212
35	08.852 CLIP; WATER HOSE 08.846 (D) B=18	9-83651-948-1	01	1	9811-0212
35	08.852 CLIP; WATER HOSE 08.846 (D) B=18	9-83651-948-1	01	1	0301-0310
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) 08.846 (D) B=18	9-83651-948-1	01	1	0311-0501
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	04	1	0507-0610
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0611-
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	0507-
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	9-83651-948-1	01	1	0507-0610
35	08.852 CLIP; WATER HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-97359-144-0	01	1	0611-0611
35	08.852 CLIP; WATER HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18	8-97359-144-0	01	1	0612-
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0611
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH) HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0612-
48	09.262 BOLT; CLIP FIX 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9412-9706
48	09.262 BOLT; CLIP FIX 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9707-0105
48	09.262 BOLT; CLIP FIX 4HG1 ENG(RJH) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-0212
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-0212
48	09.262 BOLT; CLIP FIX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0301-0310
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0311-0501
63	08.846 HOSE; WATER 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0508-
121	08.845 NUT; PIPE 4HE1 ENG(RLY) 01.540 M8 FLANGE	0-91150-208-0	01	1	0301-0301
