Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#35838) — 66 parça

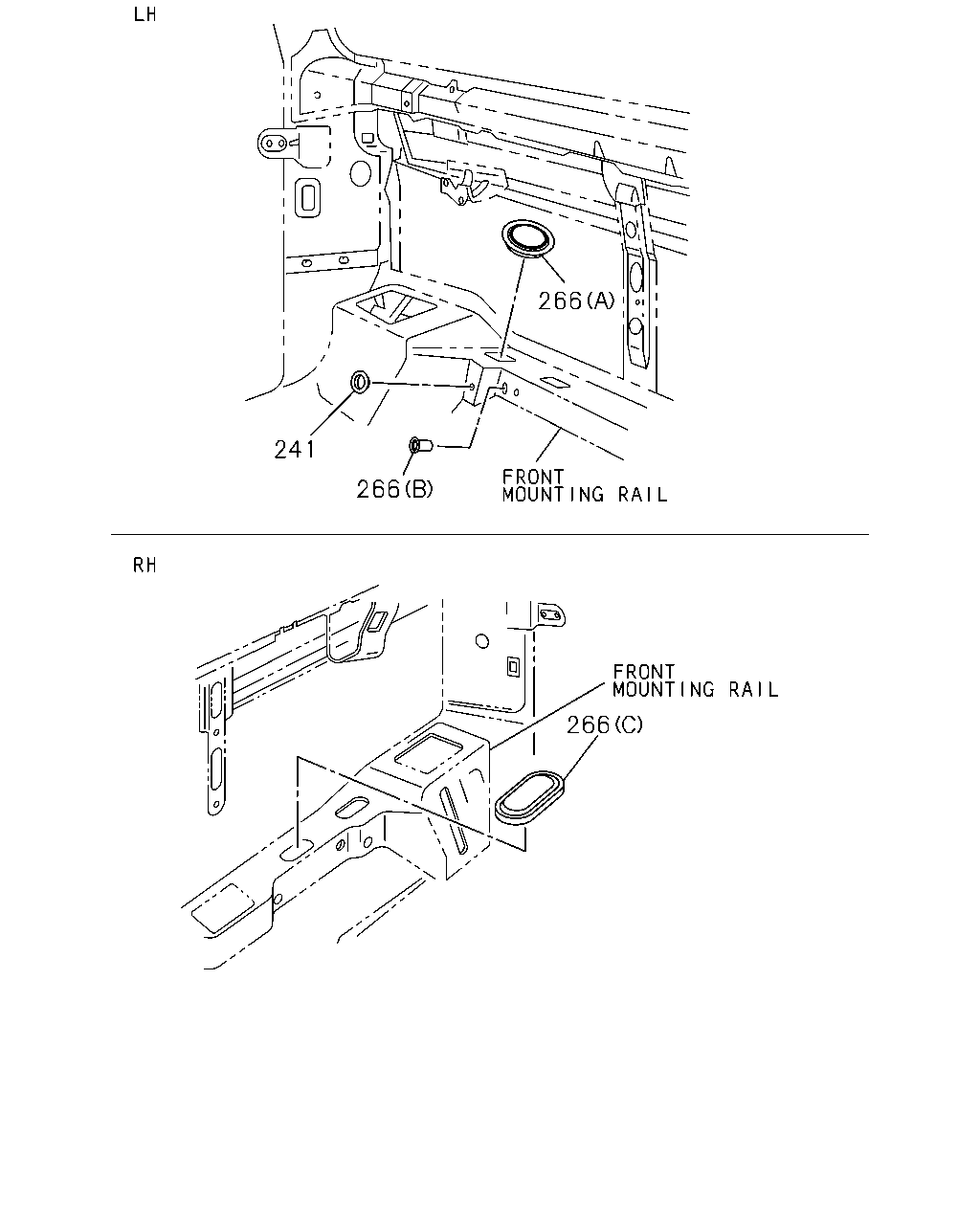

266 241 266 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE	8-97037-392-0	01	1	9412-0506
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97037-392-0	01	1	0507-
266	08.845 PLUG; HTR HOLE (A) H=78 B=37	8-97036-019-0	01	1	9412-0506
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37	8-97036-019-0	01	1	0507-
266	08.845 PLUG; HTR HOLE 09.211 (B) OD=13	9-09756-019-0	01	1	9412-0506
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13	9-09756-019-0	01	1	0507-
266	08.845 PLUG; HTR HOLE EXC. HEATER & DEFROSTER(C41) (C) H=69.5 B=29.5	8-97036-020-0	01	1	0311-0501
266	08.845 PLUG; HTR HOLE (C) H=69.5 B=29.5	8-97036-020-0	01	1	0502-0506
266	08.845 PLUG; HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5	8-97036-020-0	01	1	0507-

368

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	368	09.277 RELAY; HEATER AND A/C 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
	368	09.277 RELAY; HEATER AND A/C 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-

371 370

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	370	08.866 PLATE; BAFFLE,BLOWER UNIT	8-97856-129-2	01	1	9412-
	371	08.866 FASTENER; BAFFLE PLATE 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9412-

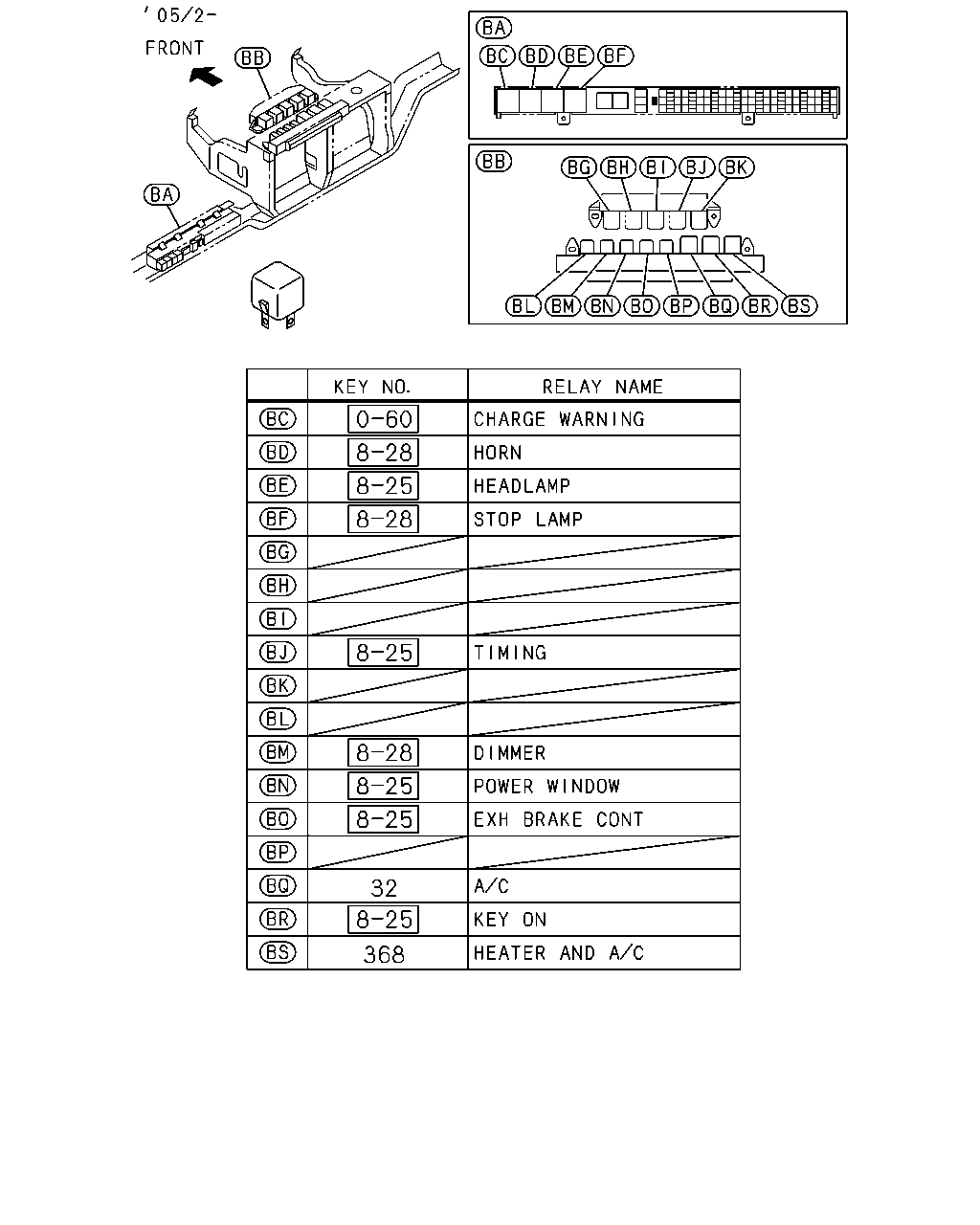

32 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0507-
368	09.277 RELAY; HEATER AND A/C 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
368	09.277 RELAY; HEATER AND A/C 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-

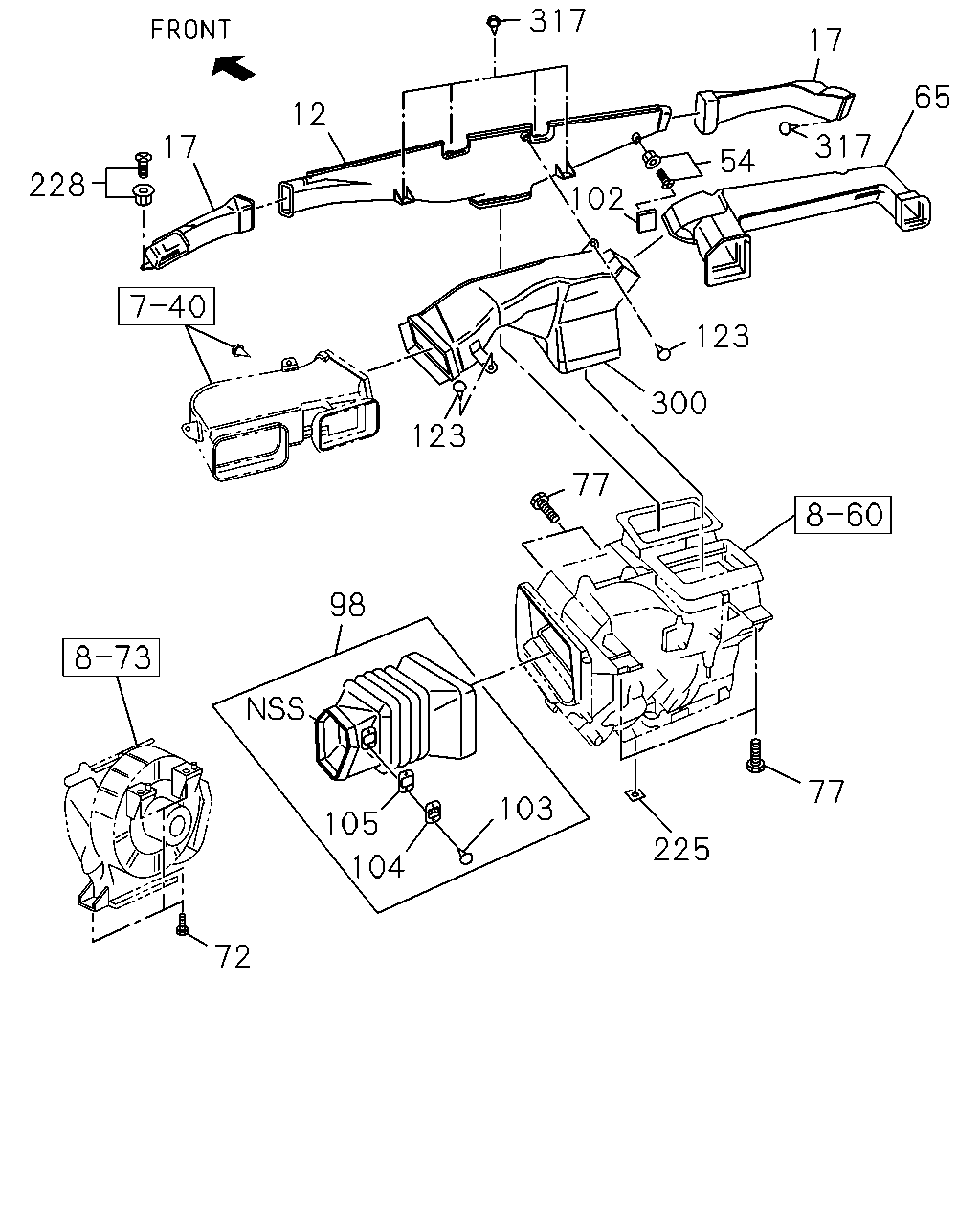

317 17 65 12 317 17 54 228 102 123 123 300 77 98 77 103 105 225 104 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	09.779 NOZZLE; DEFROSTER	8-97039-992-1	01	1	9412-9506
12	09.779 NOZZLE; DEFROSTER	8-97134-965-0	01	1	9507-0501
12	09.779 NOZZLE; DEFROSTER EXC. FORGED AIR VENTILATION(C39)	8-97134-965-0	01	1	0502-
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97080-391-1	01	1	9412-0007
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97262-701-0	01	1	0008-0501
17	09.779 NOZZLE; DEFROSTER,SIDE EXC. FORGED AIR VENTILATION(C39)	8-97262-701-0	01	1	0502-
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97035-236-1	01	1	9412-0007
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97262-689-0	01	1	0008-0501
17	09.779 NOZZLE; DEFROSTER,SIDE EXC. FORGED AIR VENTILATION(C39)	8-97262-689-0	01	1	0502-
54	09.262 CLIP; VENT DUCT 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9412-9602
65	09.786 DUCT; VENT,DRIVER SIDE	8-97039-990-1	01	1	9412-0007
65	09.786 DUCT; VENT,DRIVER SIDE	8-97262-691-0	01	1	0008-
72	08.857 BOLT; BLOWER UNIT 01.540 M6X20	0-28280-620-0	02	1	9412-9605
72	08.857 BOLT; BLOWER UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9606-0512
72	08.857 BOLT; BLOWER UNIT 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-
72	08.857 BOLT; BLOWER UNIT M8X35	8-97103-452-0	02	1	9412-
77	08.845 BOLT; HTR UNIT 01.540 M6X20	0-28280-620-0	02	1	9412-9605
77	08.845 BOLT; HTR UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9606-0512
77	08.845 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-
77	08.845 BOLT; HTR UNIT M8X25	8-97103-451-0	02	1	9412-
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT	8-97039-987-5	01	1	9412-0007
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT	8-97262-804-0	01	1	0008-0501
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT	8-97358-598-0	01	1	0502-0506
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97358-598-0	01	1	0507-
102	09.262 LINING; HTR DUCT	8-97145-038-0	01	1	9603-0501
102	09.262 LINING; HTR DUCT EXC. FORGED AIR VENTILATION(C39)	8-97145-038-0	01	1	0502-
103	08.855 SCREW; TAPPING,RESISTOR FIX 09.789 M4X16 TAPPING	1-83579-114-0	02	1	9412-0506
103	08.855 SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING	1-83579-114-0	02	1	0507-
104	08.855 RESISTOR; HTR DUCT	8-97358-389-0	01	1	0502-0506
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97358-389-0	01	1	0507-
104	08.855 RESISTOR; HTR DUCT	8-97083-135-0	01	1	9412-9802
104	08.855 RESISTOR; HTR DUCT	8-97177-238-0	01	1	9803-0003
104	08.855 RESISTOR; HTR DUCT 09.277	8-97234-546-0	01	1	0004-0501
105	08.856 PLATE; HTR DUCT	8-97020-761-0	01	1	9412-0506
105	08.856 PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97020-761-0	01	1	0507-
123	09.786 SCREW; DUCT 16.165 M5X12 TAPPING W/PL WASHER	0-74310-512-0	02	1	9412-9602
123	09.786 SCREW; DUCT 09.264 M5X12 W/PL WASHER	8-97147-069-0	02	1	9603-0501
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER	8-97147-069-0	01	1	0502-0612
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0701-
123	09.786 SCREW; DUCT EXC. FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER	8-97147-069-0	02	1	0502-0612
123	09.786 SCREW; DUCT EXC. FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	02	1	0701-
225	08.845 SEAL; WATER	8-97856-616-0	04	1	9412-
228	09.780 CLIP; DEFROSTER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9412-0501
228	09.780 CLIP; DEFROSTER EXC. FORGED AIR VENTILATION(C39) 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	0502-
300	09.264 DUCT; VENT,CENTER	8-97035-233-5	01	1	9412-0007
300	09.264 DUCT; VENT,CENTER	8-97262-687-0	01	1	0008-
317	09.264 SCREW; DEFROSTER NOZZLE 16.165 M5X12 TAPPING W/PL WASHER	0-74310-512-0	06	1	9412-9602
317	09.264 SCREW; DEFROSTER NOZZLE M5X12 W/PL WASHER	8-97147-069-0	06	1	9603-0501
317	09.264 SCREW; DEFROSTER NOZZLE EXC. FORGED AIR VENTILATION(C39) M5X12 W/PL WASHER	8-97147-069-0	06	1	0502-0612
317	09.264 SCREW; DEFROSTER NOZZLE EXC. FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	06	1	0701-
