8-28 — CHASSIS ELECTRICAL (#35837) — 90 parça

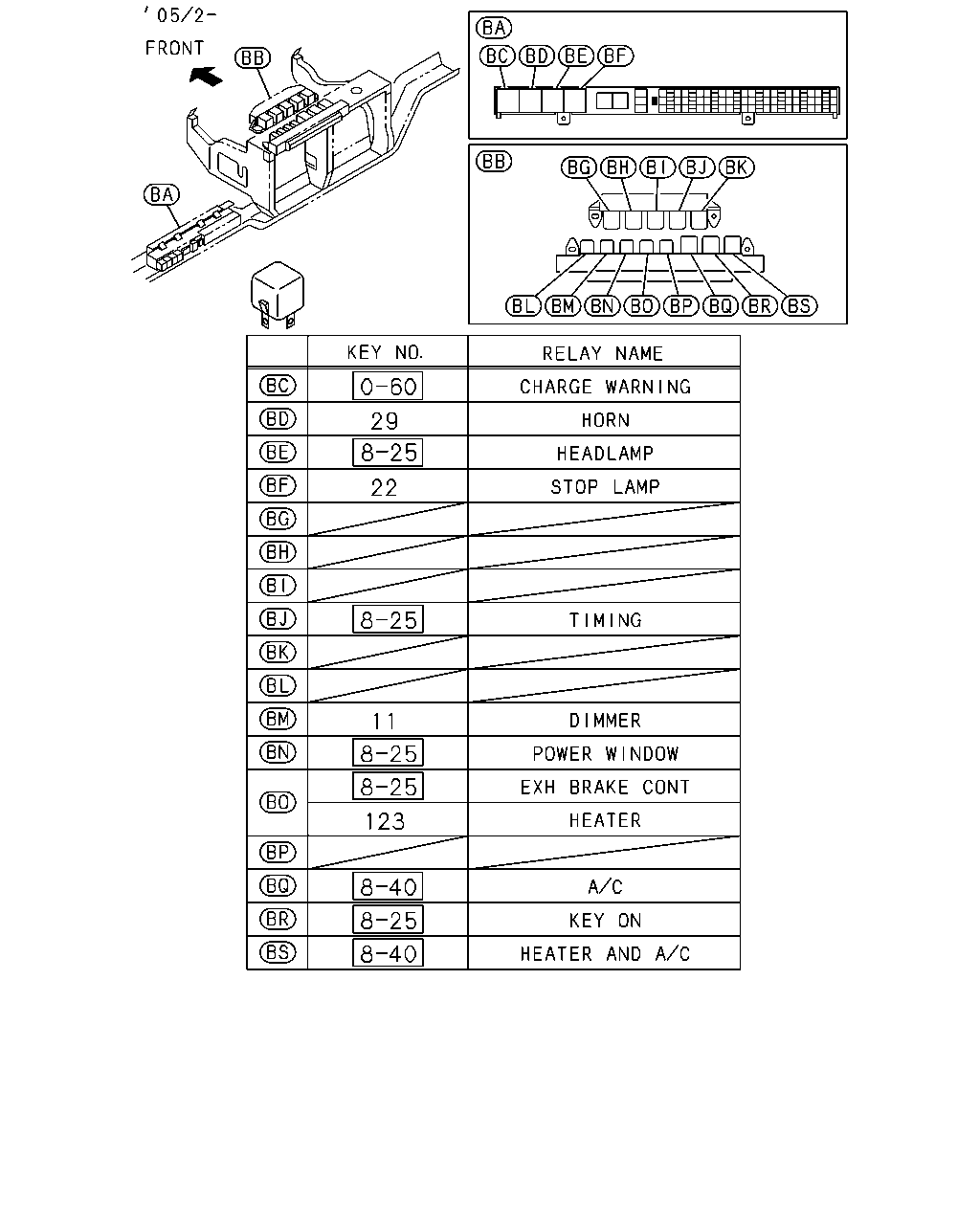

22 11 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	02.485 RELAY; DIMMER 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
11	02.485 RELAY; DIMMER 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0501
11	02.485 RELAY; DIMMER 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0501
22	02.679 RELAY; STOP LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-
29	02.815 RELAY; HORN 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
29	02.815 RELAY; HORN 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0501
29	02.815 RELAY; HORN 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-

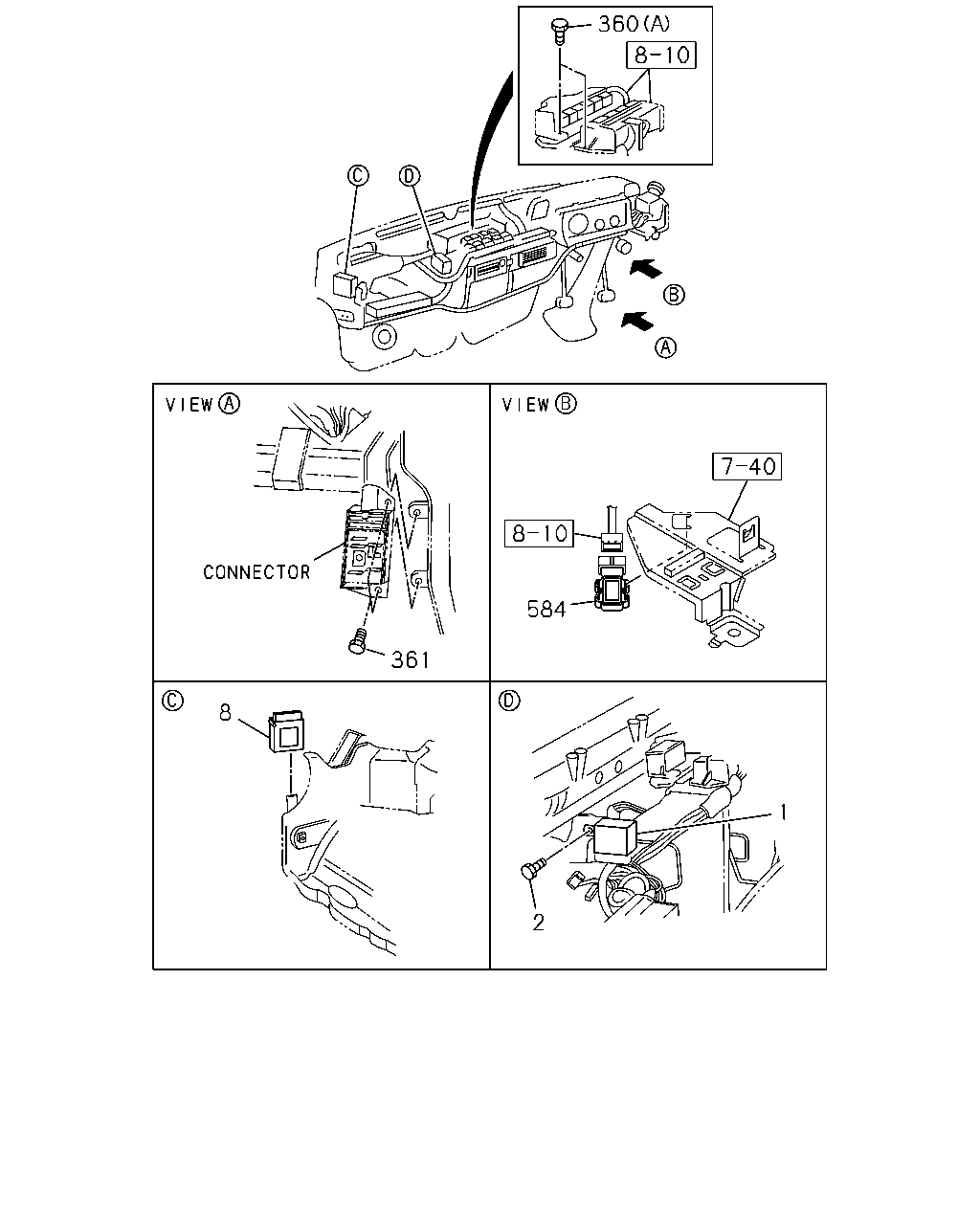

360 584 361 8 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.575 UNIT; FLASHER	8-97086-508-1	01	1	9412-0212
1	02.575 UNIT; FLASHER	8-97360-084-1	01	1	0301-
2	02.892 BOLT; FLASHER UNIT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9412-9603
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9604-
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-015-0	01	1	9412-9711
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97184-233-0	01	1	9712-0212
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97184-233-0	01	1	0301-0301
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97363-983-0	01	1	0302-
360	02.483 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) 02.559 (C) M8X25 FLANGE	0-28680-825-0	03	1	0507-0512
360	02.483 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) 06.216 (C) M8X25 FLANGE	0-28650-825-0	03	1	0601-
360	02.483 BOLT; RELAY BOX 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	9412-0307
360	02.483 BOLT; RELAY BOX 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	9412-9503
360	02.483 BOLT; RELAY BOX 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9504-0307
360	02.483 BOLT; RELAY BOX 02.559 (C) M8X25 FLANGE	0-28680-825-0	03	1	0308-0309
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) 02.559 (C) M8X25 FLANGE	0-28680-825-0	03	1	0310-0501
360	02.483 BOLT; RELAY BOX 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9412-9603
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0311-0512
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-0611
360	02.483 BOLT; RELAY BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0612-
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0311-0512
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-0611
360	02.483 BOLT; RELAY BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0612-
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9412-
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9412-
584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ) 02.510	8-09350-899-1	01	1	0507-0810
584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ)	8-28180-175-0	01	1	0811-

29 22 11 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	02.485 RELAY; DIMMER 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
11	02.485 RELAY; DIMMER 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0501
11	02.485 RELAY; DIMMER 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0501
22	02.679 RELAY; STOP LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-
29	02.815 RELAY; HORN 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
29	02.815 RELAY; HORN 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0501
29	02.815 RELAY; HORN 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-
123	02.270 RELAY; HTR 4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0507-

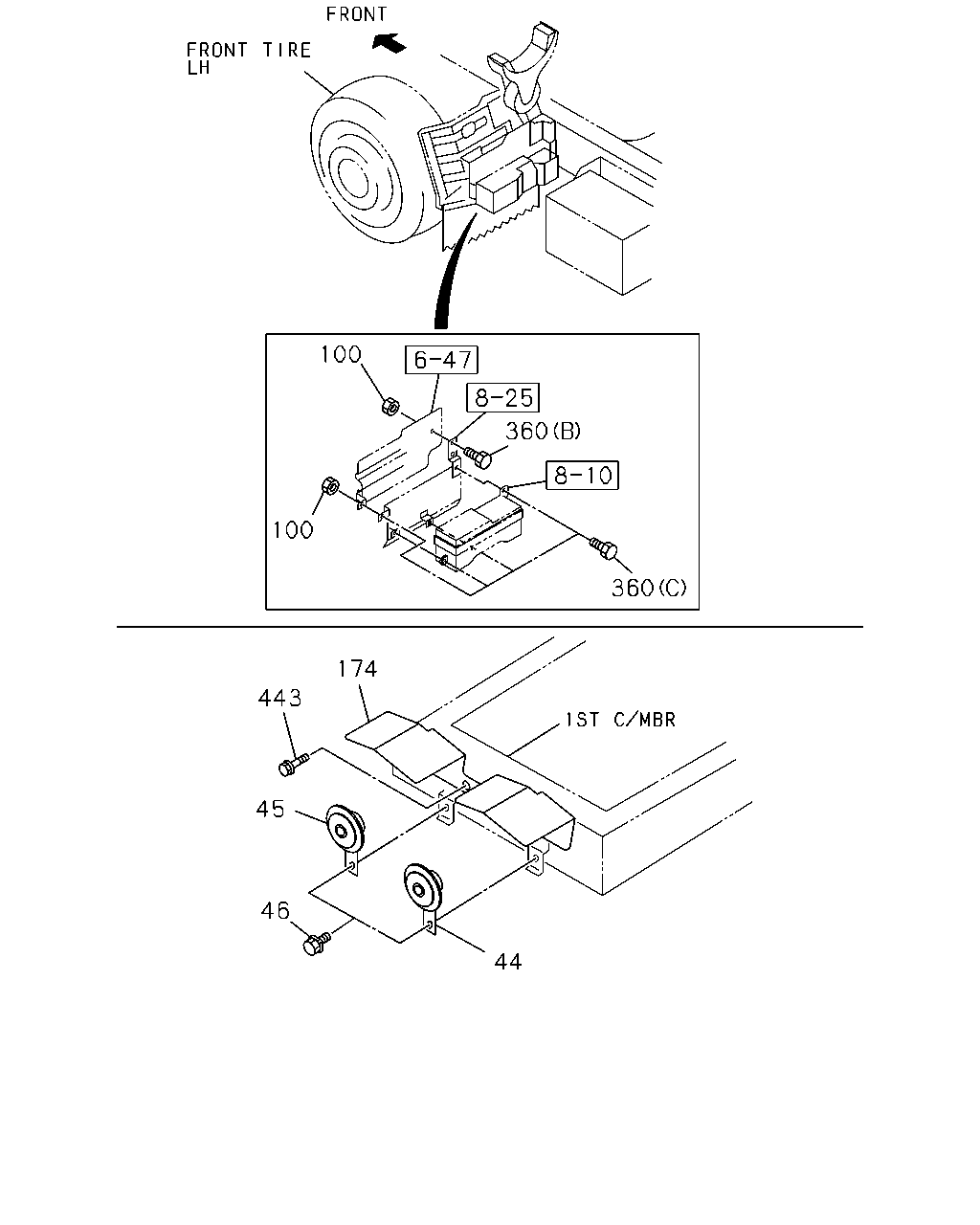

100 360 100 360 174 443 45 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-363-0	01	1	9412-0212
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97211-741-1	01	1	9812-
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>	8-97211-740-0	01	1	9812-9904
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK>	8-97211-740-1	01	1	9905-0212
45	02.810 HORN; LOW NOTE EXC. SINGLE HEAVY DUTY HORN<6HG>	8-97211-740-1	01	1	0301-
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK>	8-97109-364-1	01	1	9412-9811
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>	8-97109-364-1	01	1	9812-9904
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK>	8-97109-364-1	01	1	9905-0212
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>	8-97109-364-1	01	1	0301-
46	02.812 BOLT; HORN TO BODY DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9412-9811
46	02.812 BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9412-9811
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9812-9904
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9905-0212
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0301-1004
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1005-
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9812-9904
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9905-0212
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0301-1004
46	02.812 BOLT; HORN TO BODY EXC. DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
100	09.277 NUT; RELAY BOX COVER 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	03	1	0507-0602
100	09.277 NUT; RELAY BOX COVER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-
100	09.277 NUT; RELAY BOX COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0307
100	09.277 NUT; RELAY BOX COVER 07.633 M8 FLANGE	0-91150-108-0	03	1	0308-0309
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	03	1	0310-0501
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0602
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611
100	09.277 NUT; RELAY BOX COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
174	02.510 COVER EXC. INDONESIA EQUIPMENT(S4S)	8-97370-470-0	01	1	0701-
360	02.483 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) 02.559 (C) M8X25 FLANGE	0-28680-825-0	03	1	0507-0512
360	02.483 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) 06.216 (C) M8X25 FLANGE	0-28650-825-0	03	1	0601-
360	02.483 BOLT; RELAY BOX 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	9412-0307
360	02.483 BOLT; RELAY BOX 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	9412-9503
360	02.483 BOLT; RELAY BOX 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9504-0307
360	02.483 BOLT; RELAY BOX 02.559 (C) M8X25 FLANGE	0-28680-825-0	03	1	0308-0309
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) 02.559 (C) M8X25 FLANGE	0-28680-825-0	03	1	0310-0501
360	02.483 BOLT; RELAY BOX 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9412-9603
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0311-0512
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-0611
360	02.483 BOLT; RELAY BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0612-
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0311-0512
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-0611
360	02.483 BOLT; RELAY BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0612-
443	02.510 BOLT; COVER EXC. INDONESIA EQUIPMENT(S4S) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0701-
