8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#35836) — 88 parça

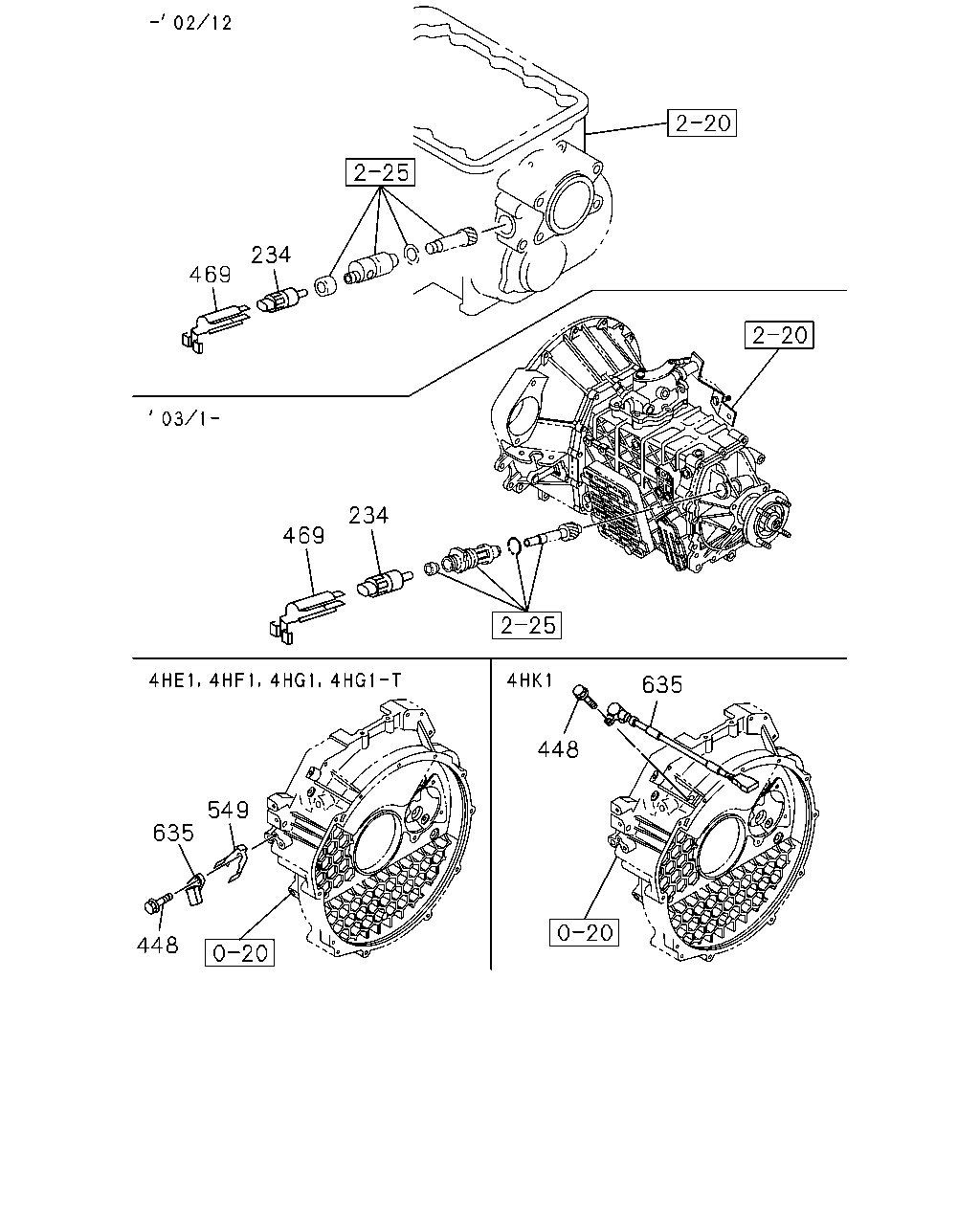

234 469 234 469 635 448 549 635 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
234	03.682 SENSOR; VEHICLE SPD 4HK1-TCN ENG(RDQ) 25 PULSE ALUMINUM	8-97328-058-1	01	1	0507-
234	03.682 SENSOR; VEHICLE SPD 4 PULSE PPS RESIN DARK GRAY	8-97065-834-0	01	1	9412-9502
234	03.682 SENSOR; VEHICLE SPD 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9503-0006
234	03.682 SENSOR; VEHICLE SPD 4 PULSE ALUMINUM	8-97256-525-0	01	1	0007-0501
234	03.682 SENSOR; VEHICLE SPD 4HG1 ENG(RJH) 4 PULSE ALUMINUM	8-97256-525-0	01	1	0502-0611
234	03.682 SENSOR; VEHICLE SPD 4HG1-T ENG(RDP),4HG1 ENG(RJH) 4 PULSE ALUMINUM	8-97256-525-0	01	1	0612-
448	02.500 BOLT; SENSOR 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9503-0105
448	02.500 BOLT; SENSOR 4HG1 ENG(RJH) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0106-0212
448	02.500 BOLT; SENSOR 4HE1 ENG(RLY) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0301-0310
448	02.500 BOLT; SENSOR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0311-0501
448	02.500 BOLT; SENSOR 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> INDONESIA EQUIPMENT(S4S) GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0311-0501
448	02.500 BOLT; SENSOR 4HG1 ENG(RJH) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0502-0502
448	02.500 BOLT; SENSOR 4HG1 ENG(RJH) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0502-0506
448	02.500 BOLT; SENSOR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0507-0512
448	02.500 BOLT; SENSOR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-0611
448	02.500 BOLT; SENSOR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0612-
469	03.682 PROTECTOR; SPEED SENSOR	8-97094-699-2	01	1	9412-9502
469	03.682 PROTECTOR; SPEED SENSOR	8-97168-308-0	01	1	0301-0808
469	03.682 PROTECTOR; SPEED SENSOR	8-98119-901-0	01	1	0809-
549	02.510 SHEET 09.743	8-97130-170-0	01	1	9512-9711
549	02.510 SHEET 09.743	8-97161-633-2	01	1	9712-0105
549	02.510 SHEET 4HG1 ENG(RJH) 09.743	8-97161-633-2	01	1	0106-0212
549	02.510 SHEET 4HE1 ENG(RLY) 09.743	8-97161-633-2	01	1	0301-0310
549	02.510 SHEET 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) 09.743	8-97161-633-2	01	1	0311-0501
549	02.510 SHEET 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> INDONESIA EQUIPMENT(S4S) GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) 09.743	8-97161-633-2	01	1	0311-0501
549	02.510 SHEET 4HG1 ENG(RJH) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 09.743	8-97161-633-2	01	1	0502-0502
549	02.510 SHEET 4HG1 ENG(RJH) 09.743	8-97161-633-2	01	1	0502-0611
549	02.510 SHEET 4HG1-T ENG(RDP),4HG1 ENG(RJH) 09.743	8-97161-633-2	01	1	0612-
635	09.750 SENSOR; TACHOMETER 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) YAZAKI	8-97214-325-0	01	1	0612-
635	09.750 SENSOR; TACHOMETER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> DENSO	8-97306-113-1	01	1	0507-0508
635	09.750 SENSOR; TACHOMETER 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> DENSO	8-97306-113-1	01	1	0509-
635	09.750 SENSOR; TACHOMETER	8-94370-581-0	01	1	9503-9511
635	09.750 SENSOR; TACHOMETER	8-97122-324-0	01	1	9512-9711
635	09.750 SENSOR; TACHOMETER YAZAKI	8-97161-655-0	01	1	9712-9809
635	09.750 SENSOR; TACHOMETER CALSONIC KANSEI	8-97163-104-0	01	1	9712-0105
635	09.750 SENSOR; TACHOMETER 4HG1 ENG(RJH) CALSONIC KANSEI	8-97163-104-0	01	1	0106-0212
635	09.750 SENSOR; TACHOMETER 4HE1 ENG(RLY) YAZAKI	8-97214-325-0	01	1	0301-0310
635	09.750 SENSOR; TACHOMETER 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) YAZAKI	8-97214-325-0	01	1	0311-0501
635	09.750 SENSOR; TACHOMETER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> INDONESIA EQUIPMENT(S4S) GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) CALSONIC KANSEI	8-97163-104-0	01	1	0311-0501
635	09.750 SENSOR; TACHOMETER 4HG1 ENG(RJH) EXC. HIGH ALTITUDE COMPENSATOR(EE2) CALSONIC KANSEI	8-97163-104-0	01	1	0502-0502
635	09.750 SENSOR; TACHOMETER 4HG1 ENG(RJH) CALSONIC KANSEI	8-97163-104-0	01	1	0502-

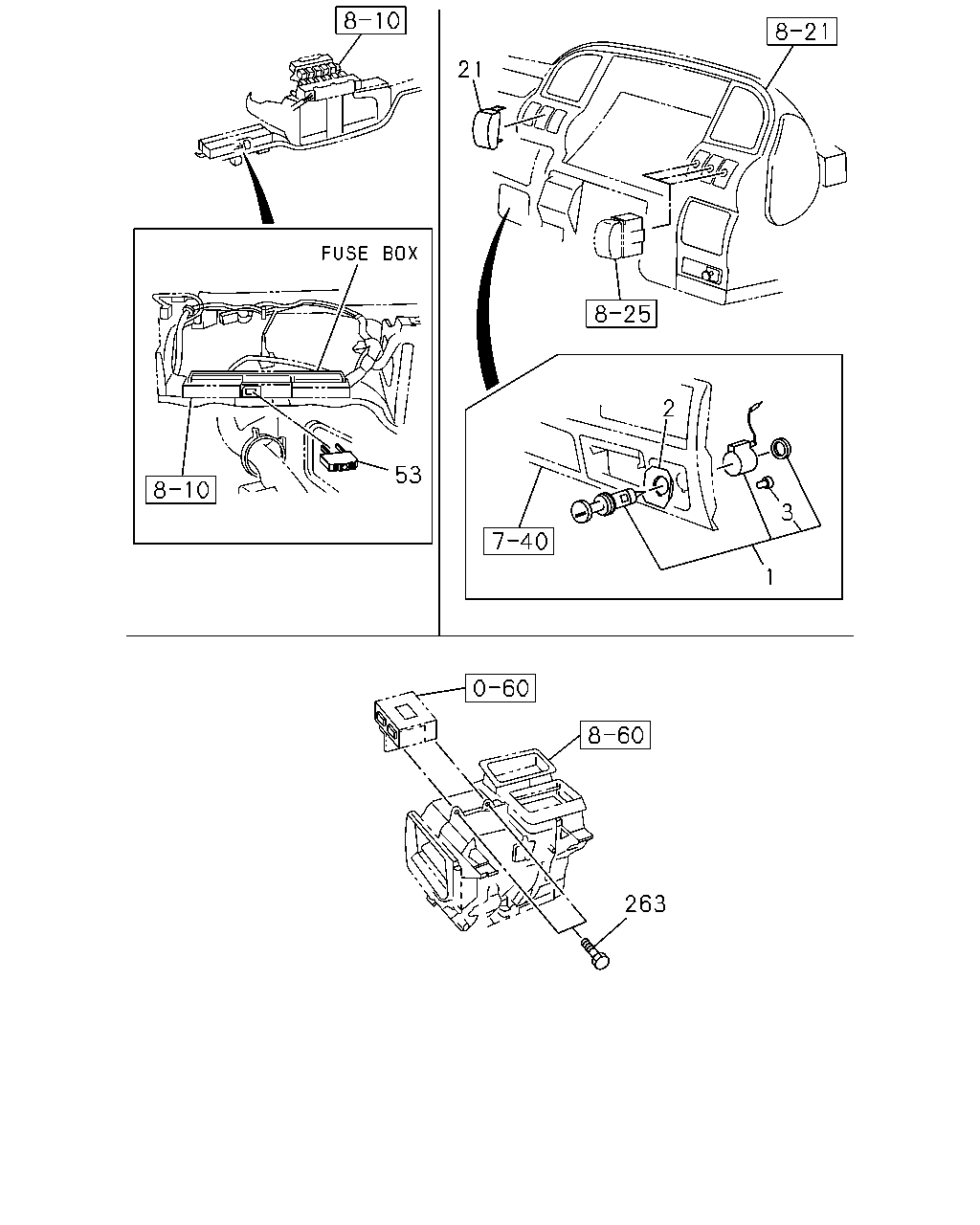

21 21 2 1 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.709 LIGHTER; CIGAR	8-97064-970-1	01	1	9412-0108
1	09.709 LIGHTER; CIGAR	8-97320-325-0	01	1	0109-
2	09.709 BEZEL; CIGAR LIGHTER	8-97853-159-1	01	1	9412-0706
2	09.709 BEZEL; CIGAR LIGHTER	8-98091-060-0	01	1	0707-
21	09.744 COVER; HOLE 09.778	8-97047-694-1	01	1	9412-9711
21	09.744 COVER; HOLE	8-97136-694-0	01	1	9712-0105
21	09.744 COVER; HOLE 4HG1 ENG(RJH)	8-97136-694-0	01	1	0106-0212
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0106-0212
21	09.744 COVER; HOLE 4HE1 ENG(RLY)	8-97136-694-0	01	1	0301-0310
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0301-0310
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0311-0501
21	09.744 COVER; HOLE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97136-694-0	01	1	0311-0501
21	09.744 COVER; HOLE 4HG1 ENG(RJH)	8-97136-694-0	01	1	0502-0506
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0502-0506
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0507-0611
21	09.744 COVER; HOLE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97136-694-0	01	1	0507-0611
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0612-
21	09.744 COVER; HOLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97136-694-0	01	1	0612-
263	04.115 BOLT; CONT UNIT 4HG1-T ENG(RDP) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0612-
263	04.115 BOLT; CONT UNIT 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0301-0310
263	04.115 BOLT; CONT UNIT 4HG1 ENG(RJH) TURBOCHARGER(K51) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0311-0501
263	04.115 BOLT; CONT UNIT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0311-0501

21 2 53 3 1 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.709 LIGHTER; CIGAR	8-97064-970-1	01	1	9412-0108
1	09.709 LIGHTER; CIGAR	8-97320-325-0	01	1	0109-
2	09.709 BEZEL; CIGAR LIGHTER	8-97853-159-1	01	1	9412-0706
2	09.709 BEZEL; CIGAR LIGHTER	8-98091-060-0	01	1	0707-
3	08.991 BULB; CIGAR LIGHTER	8-97092-962-0	01	1	9412-9612
3	08.991 BULB; CIGAR LIGHTER 28V 1.8W	8-97173-159-0	01	1	9701-
21	09.744 COVER; HOLE 09.778	8-97047-694-1	01	1	9412-9711
21	09.744 COVER; HOLE	8-97136-694-0	01	1	9712-0105
21	09.744 COVER; HOLE 4HG1 ENG(RJH)	8-97136-694-0	01	1	0106-0212
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0106-0212
21	09.744 COVER; HOLE 4HE1 ENG(RLY)	8-97136-694-0	01	1	0301-0310
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0301-0310
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0311-0501
21	09.744 COVER; HOLE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97136-694-0	01	1	0311-0501
21	09.744 COVER; HOLE 4HG1 ENG(RJH)	8-97136-694-0	01	1	0502-0506
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0502-0506
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0507-0611
21	09.744 COVER; HOLE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97136-694-0	01	1	0507-0611
21	09.744 COVER; HOLE	8-97136-694-0	01	1	0612-
21	09.744 COVER; HOLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97136-694-0	01	1	0612-
53	02.510 BREAKER; ELEC CIRCUIT POWER WINDOW FRT DOOR<A32> 20A	8-94447-470-0	01	1	9412-9711
263	04.115 BOLT; CONT UNIT 4HG1-T ENG(RDP) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0612-
263	04.115 BOLT; CONT UNIT 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0301-0310
263	04.115 BOLT; CONT UNIT 4HG1 ENG(RJH) TURBOCHARGER(K51) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0311-0501
263	04.115 BOLT; CONT UNIT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0311-0501
