Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#35835) — 209 parça

249 499 307 372 257 307 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	09.778 COVER; SW HOLE,FOG LAMP	8-97047-694-1	01	1	9412-9711
104	09.778 COVER; SW HOLE,FOG LAMP 09.744	8-97136-694-0	01	1	9712-0310
104	09.778 COVER; SW HOLE,FOG LAMP AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96> 09.744	8-97136-694-0	01	1	0311-0312
104	09.778 COVER; SW HOLE,FOG LAMP EXC. AUSTRALIA EQUIPMENT(RR3),HALOGEN HEADLAMP RECTANGULAR<TR4>,FOG LAMP<T96> 09.744	8-97136-694-0	01	1	0311-0312
104	09.778 COVER; SW HOLE,FOG LAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96> 09.744	8-97136-694-0	01	1	0401-0501
104	09.778 COVER; SW HOLE,FOG LAMP EXC. AUSTRALIA EQUIPMENT(RR3),HALOGEN HEADLAMP RECTANGULAR<TR4>,FOG LAMP<T96> 09.744	8-97136-694-0	01	1	0401-0501
104	09.778 COVER; SW HOLE,FOG LAMP 09.744	8-97136-694-0	01	1	0502-
249	02.485 SWITCH; HAZARD	8-97076-345-2	01	1	9412-9703
249	02.485 SWITCH; HAZARD	8-97117-658-0	01	1	9704-9711
249	02.485 SWITCH; HAZARD	8-97136-690-0	01	1	9712-9807
249	02.485 SWITCH; HAZARD	8-97202-475-0	01	1	9808-
257	16.081 COVER; HOLE,SW 16.494 (B)	8-94229-914-1	01	1	9412-0105
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> 09.778 (A)	8-97047-694-1	01	1	9512-9711
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> 09.744 (A)	8-97136-694-0	01	1	9712-
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (B)	8-94229-914-1	01	1	0311-0405
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> 16.494 (B)	8-94229-914-1	01	1	0406-0501
257	16.081 COVER; HOLE,SW 16.494 (B)	8-94229-914-1	01	1	0502-0506
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> 16.494 (B)	8-94229-914-1	01	1	0507-
307	08.991 BULB ASM; SW 28V 40MA	8-97116-330-0	01	1	9412-9511
307	08.991 BULB ASM; SW 28V 40MA	8-97116-330-0	01	1	9512-9703
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-330-0	01	1	9512-9703
307	08.991 BULB ASM; SW 28V 40MA	8-97116-331-0	01	1	9704-9807
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	9704-9807
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	9808-0212
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	0301-0310
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	0502-
307	08.991 BULB ASM; SW 28V 40MA	8-97116-331-0	02	1	9808-0312
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	0401-0501
307	08.991 BULB ASM; SW HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> 28V 40MA	8-97116-331-0	01	1	0401-0501
307	08.991 BULB ASM; SW FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 28V 40MA	8-97116-331-0	01	1	0401-0501
307	08.991 BULB ASM; SW 28V 40MA	8-97116-331-0	02	1	0502-
372	08.852 SWITCH; ROOM LAMP	8-97076-361-2	01	1	9412-9511
372	08.852 SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97076-361-2	01	1	9512-9703
372	08.852 SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97122-193-0	01	1	9704-9711
372	08.852 SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97136-693-0	01	1	0301-0611
372	08.852 SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97136-693-0	01	1	9712-
499	09.755 SWITCH; 4X4	8-97076-355-2	01	1	9412-9511
499	09.755 SWITCH; 4X4	8-97113-535-0	01	1	9512-9703
499	09.755 SWITCH; 4X4	8-97117-656-0	01	1	9704-9711
499	09.755 SWITCH; 4X4	8-97140-599-1	01	1	9712-

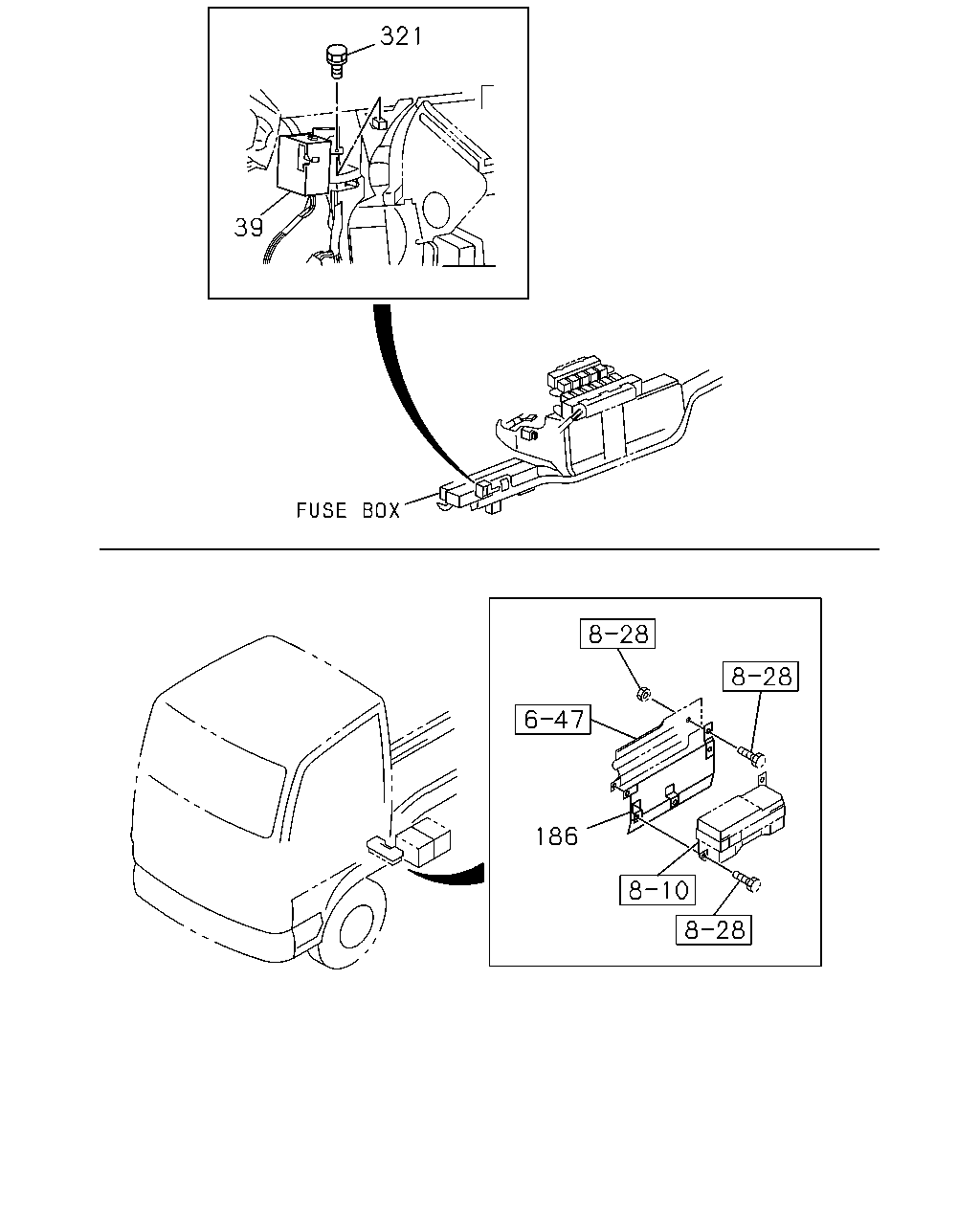

321 39 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97063-659-1	01	1	9412-9705
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97177-214-0	01	1	9706-0212
39	16.341 RELAY; DOOR LK	8-97177-214-0	01	1	0301-0310
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-97177-214-0	01	1	0311-
186	09.277 BRACKET; RELAY BOX	8-97065-157-2	01	1	9412-0307
186	09.277 BRACKET; RELAY BOX 4HG1 ENG(RJH)	8-97065-157-2	01	1	0311-0611
186	09.277 BRACKET; RELAY BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97065-157-2	01	1	0612-
321	16.341 BOLT; RELAY 01.269 M5X20	8-94436-927-0	01	1	9412-0612
321	16.341 BOLT; RELAY 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-1101
321	16.341 BOLT; RELAY 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-

249 499 307 372 257 307 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	09.778 COVER; SW HOLE,FOG LAMP	8-97047-694-1	01	1	9412-9711
104	09.778 COVER; SW HOLE,FOG LAMP 09.744	8-97136-694-0	01	1	9712-0310
104	09.778 COVER; SW HOLE,FOG LAMP AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96> 09.744	8-97136-694-0	01	1	0311-0312
104	09.778 COVER; SW HOLE,FOG LAMP EXC. AUSTRALIA EQUIPMENT(RR3),HALOGEN HEADLAMP RECTANGULAR<TR4>,FOG LAMP<T96> 09.744	8-97136-694-0	01	1	0311-0312
104	09.778 COVER; SW HOLE,FOG LAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. FOG LAMP<T96> 09.744	8-97136-694-0	01	1	0401-0501
104	09.778 COVER; SW HOLE,FOG LAMP EXC. AUSTRALIA EQUIPMENT(RR3),HALOGEN HEADLAMP RECTANGULAR<TR4>,FOG LAMP<T96> 09.744	8-97136-694-0	01	1	0401-0501
104	09.778 COVER; SW HOLE,FOG LAMP 09.744	8-97136-694-0	01	1	0502-
249	02.485 SWITCH; HAZARD	8-97076-345-2	01	1	9412-9703
249	02.485 SWITCH; HAZARD	8-97117-658-0	01	1	9704-9711
249	02.485 SWITCH; HAZARD	8-97136-690-0	01	1	9712-9807
249	02.485 SWITCH; HAZARD	8-97202-475-0	01	1	9808-
257	16.081 COVER; HOLE,SW 16.494 (B)	8-94229-914-1	01	1	9412-0105
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> 09.778 (A)	8-97047-694-1	01	1	9512-9711
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> 09.744 (A)	8-97136-694-0	01	1	9712-
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (B)	8-94229-914-1	01	1	0311-0405
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> 16.494 (B)	8-94229-914-1	01	1	0406-0501
257	16.081 COVER; HOLE,SW 16.494 (B)	8-94229-914-1	01	1	0502-0506
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> 16.494 (B)	8-94229-914-1	01	1	0507-
307	08.991 BULB ASM; SW 28V 40MA	8-97116-330-0	01	1	9412-9511
307	08.991 BULB ASM; SW 28V 40MA	8-97116-330-0	01	1	9512-9703
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-330-0	01	1	9512-9703
307	08.991 BULB ASM; SW 28V 40MA	8-97116-331-0	01	1	9704-9807
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	9704-9807
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	9808-0212
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	0301-0310
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	0502-
307	08.991 BULB ASM; SW 28V 40MA	8-97116-331-0	02	1	9808-0312
307	08.991 BULB ASM; SW ROOM LAMP SWITCH<7KL> 28V 40MA	8-97116-331-0	01	1	0401-0501
307	08.991 BULB ASM; SW HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S),FOG LAMP<T96> 28V 40MA	8-97116-331-0	01	1	0401-0501
307	08.991 BULB ASM; SW FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 28V 40MA	8-97116-331-0	01	1	0401-0501
307	08.991 BULB ASM; SW 28V 40MA	8-97116-331-0	02	1	0502-
372	08.852 SWITCH; ROOM LAMP	8-97076-361-2	01	1	9412-9511
372	08.852 SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97076-361-2	01	1	9512-9703
372	08.852 SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97122-193-0	01	1	9704-9711
372	08.852 SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97136-693-0	01	1	0301-0611
372	08.852 SWITCH; ROOM LAMP ROOM LAMP SWITCH<7KL>	8-97136-693-0	01	1	9712-
499	09.755 SWITCH; 4X4	8-97076-355-2	01	1	9412-9511
499	09.755 SWITCH; 4X4	8-97113-535-0	01	1	9512-9703
499	09.755 SWITCH; 4X4	8-97117-656-0	01	1	9704-9711
499	09.755 SWITCH; 4X4	8-97140-599-1	01	1	9712-

257 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF)	8-97855-032-3	02	1	0507-
29	16.263 SWITCH; DOOR	8-97855-032-2	01	1	9412-0105
29	16.263 SWITCH; DOOR	8-97855-032-3	02	1	0106-0310
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF)	8-97855-032-3	02	1	0311-0501
29	16.263 SWITCH; DOOR EXC. ROOM LAMP W/ALL DOORS SW(SDF)	8-97855-032-3	01	1	0311-0405
29	16.263 SWITCH; DOOR EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF>	8-97855-032-3	01	1	0406-0501
29	16.263 SWITCH; DOOR	8-97855-032-3	01	1	0502-0506
29	16.263 SWITCH; DOOR EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF>	8-97855-032-3	01	1	0507-
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) M5X16	8-94279-341-0	02	1	0507-
30	16.263 SCREW; DOOR SW M5X16	8-94279-341-0	01	1	9412-0105
30	16.263 SCREW; DOOR SW M5X16	8-94279-341-0	02	1	0106-0310
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) M5X16	8-94279-341-0	02	1	0311-0501
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X16	8-94279-341-0	01	1	0311-0405
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> M5X16	8-94279-341-0	01	1	0406-0501
30	16.263 SCREW; DOOR SW M5X16	8-94279-341-0	01	1	0502-0506
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> M5X16	8-94279-341-0	01	1	0507-
257	16.081 COVER; HOLE,SW 16.494 (B)	8-94229-914-1	01	1	9412-0105
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> 09.778 (A)	8-97047-694-1	01	1	9512-9711
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP SWITCH<7KL> 09.744 (A)	8-97136-694-0	01	1	9712-
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) 16.494 (B)	8-94229-914-1	01	1	0311-0405
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> 16.494 (B)	8-94229-914-1	01	1	0406-0501
257	16.081 COVER; HOLE,SW 16.494 (B)	8-94229-914-1	01	1	0502-0506
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF),REMOTE CONT DOOR LOCK<6NF> 16.494 (B)	8-94229-914-1	01	1	0507-

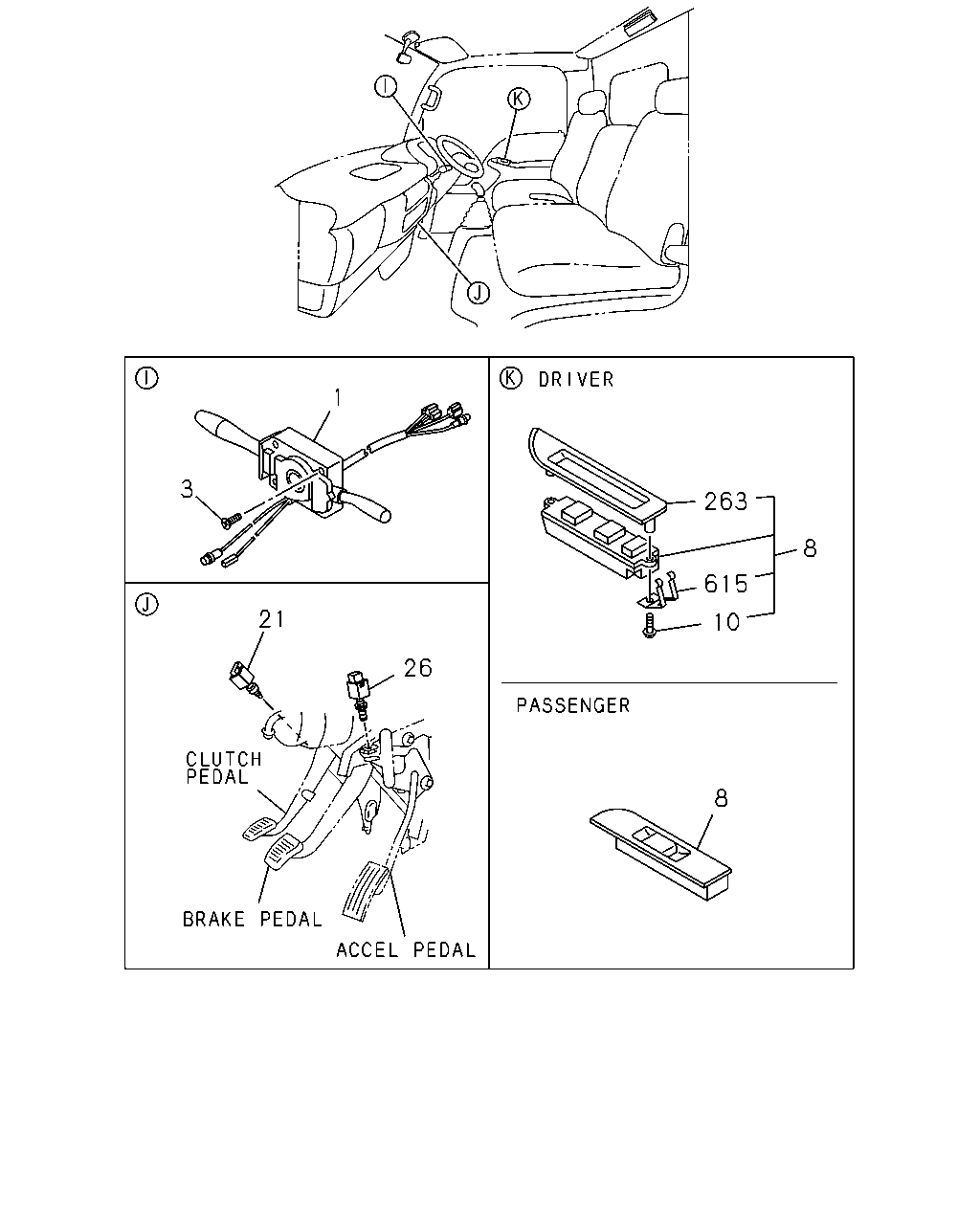

1 3 263 8 615 21 10 26 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-97071-215-1	01	1	9412-9711
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-97170-393-0	01	1	9712-0101
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-97287-892-2	01	1	0102-0301
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-97364-076-0	01	1	0302-0501
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-97383-519-0	01	1	0502-
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97071-217-1	01	1	9412-0101
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97287-886-2	01	1	0102-0301
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97364-072-0	01	1	0302-0501
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-97383-515-0	01	1	0502-
3	02.897 SCREW; COMB SW M5X20 W/LK WASHER	9-03910-520-0	04	1	9412-0604
3	02.897 SCREW; COMB SW M5X20 W/LK WASHER	0-36220-520-0	04	1	0605-0612
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	04	1	0701-
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-97043-748-2	01	1	9412-9711
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-97136-761-0	01	1	9712-9805
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-97205-726-0	01	1	9806-9901
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-97214-398-0	01	1	9902-0703
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-98075-445-0	01	1	0704-0907
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-98147-235-0	01	1	0908-
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-97073-836-2	01	1	9412-9610
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-97166-336-0	01	1	9611-9711
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-97166-342-0	01	1	9712-9811
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-97214-599-0	01	1	9812-9905
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-97222-592-0	01	1	9906-0004
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-97249-350-0	01	1	0005-0106
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-97315-176-0	01	1	0107-0907
8	16.263 SWITCH; POWER WINDOW	8-98147-225-0	01	1	0908-
10	03.885 SCREW; POWER WINDOW SW	8-97219-239-0	02	1	9412-
21	02.575 SWITCH; CLU 04.054	8-94331-723-1	01	1	9412-0105
21	02.575 SWITCH; CLU 4HG1 ENG(RJH) 04.054	8-94331-723-1	01	1	0106-0212
21	02.575 SWITCH; CLU 4HG1 ENG(RJH)	8-97358-248-0	01	1	0301-0301
21	02.575 SWITCH; CLU 4HE1 ENG(RLY)	8-97358-248-0	01	1	0301-0310
21	02.575 SWITCH; CLU 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97358-248-0	01	1	0311-0501
21	02.575 SWITCH; CLU 4HG1 ENG(RJH)	8-97358-248-0	01	1	0502-0506
21	02.575 SWITCH; CLU 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97358-248-0	01	1	0507-0611
21	02.575 SWITCH; CLU 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97358-248-0	01	1	0612-
26	03.636 SWITCH; ACCEL 04.054	8-94368-343-0	01	1	9412-0105
26	03.636 SWITCH; ACCEL 4HG1 ENG(RJH) 04.054	8-94368-343-0	01	1	0106-0212
26	03.636 SWITCH; ACCEL 4HG1 ENG(RJH)	8-97358-315-0	01	1	0301-0301
26	03.636 SWITCH; ACCEL 4HE1 ENG(RLY)	8-97358-315-0	01	1	0301-0310
26	03.636 SWITCH; ACCEL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97358-315-0	01	1	0311-0501
26	03.636 SWITCH; ACCEL 4HG1 ENG(RJH)	8-97358-315-0	01	1	0502-0611
26	03.636 SWITCH; ACCEL 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97358-315-0	01	1	0612-
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32>	8-97219-235-0	01	1	9412-9711
263	16.081 COVER; SW	8-97219-234-0	01	1	9712-
615	16.263 SPRING; POWER WINDOW SW	8-97219-238-0	01	1	9412-

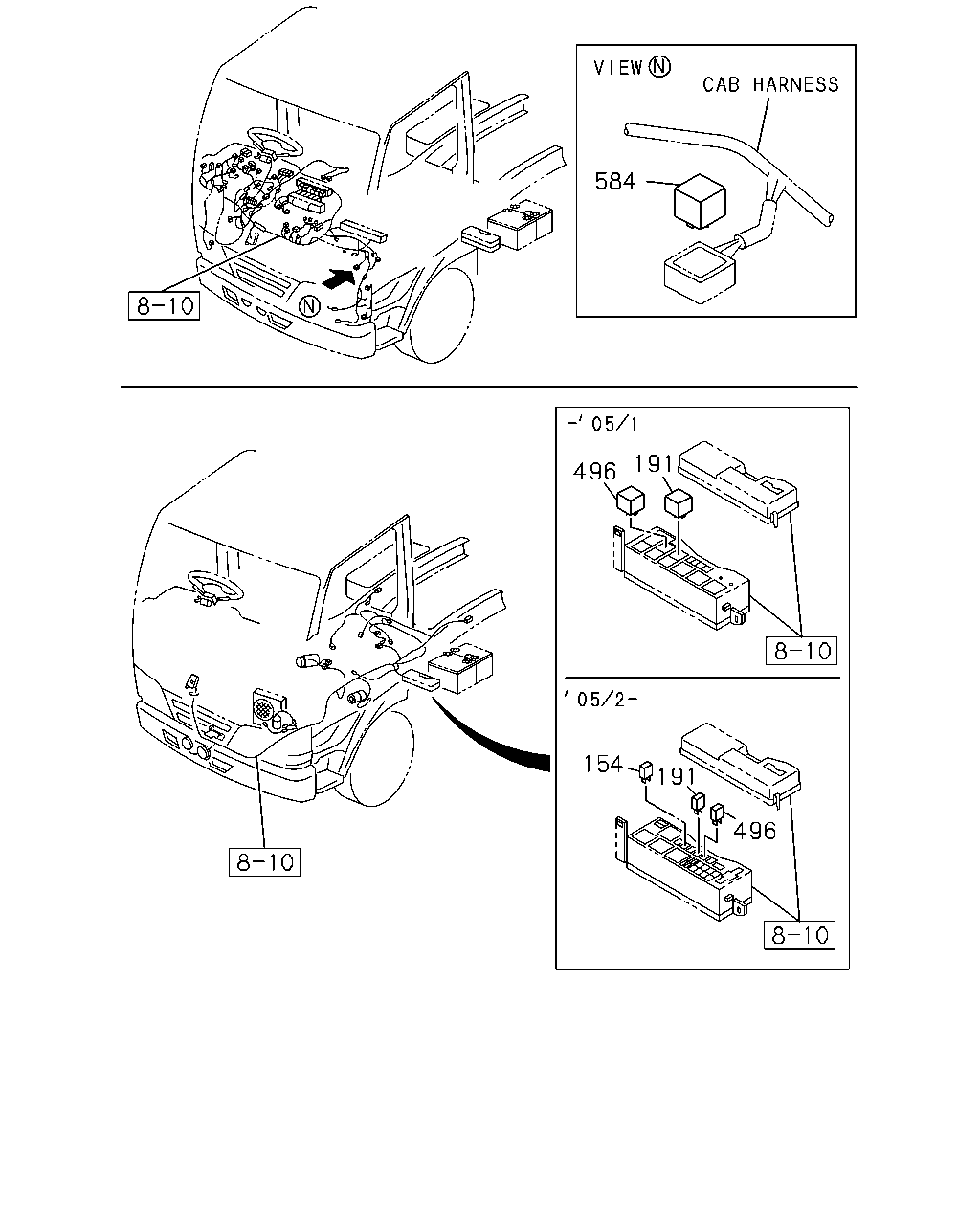

584 191 496 154 191 496

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	09.277 RELAY; CONDENSER FAN 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0507-0611
154	09.277 RELAY; CONDENSER FAN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0612-
191	02.510 RELAY; EXH BRK CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
191	02.510 RELAY; EXH BRK CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105
191	02.510 RELAY; EXH BRK CUT 4HG1 ENG(RJH) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-0212
191	02.510 RELAY; EXH BRK CUT 4HE1 ENG(RLY) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0301-0310
191	02.510 RELAY; EXH BRK CUT 4HG1 ENG(RJH),4HE1 ENG(RLY) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-0501
191	02.510 RELAY; EXH BRK CUT 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-0611
191	02.510 RELAY; EXH BRK CUT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0612-
496	02.510 RELAY; 4WD INDICATION LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
496	02.510 RELAY; 4WD INDICATION LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0501
496	02.510 RELAY; 4WD INDICATION LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-
584	02.510 RELAY; TIMING 4HE1 ENG(RLY) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0301-0310
584	02.510 RELAY; TIMING 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-0501

85 584 12 315 610

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0212
12	08.852 RELAY; POWER WINDOW 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0301-0310
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-0501
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0502-0506
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
85	02.485 RELAY; HEADLAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
85	02.485 RELAY; HEADLAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0501
85	02.485 RELAY; HEADLAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-
315	09.277 RELAY; EXH BRAKE CONT 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
315	09.277 RELAY; EXH BRAKE CONT 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105
315	09.277 RELAY; EXH BRAKE CONT 4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-0212
315	09.277 RELAY; EXH BRAKE CONT 4HE1 ENG(RLY) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0301-0310
315	09.277 RELAY; EXH BRAKE CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-0501
315	09.277 RELAY; EXH BRAKE CONT 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-0611
315	09.277 RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0612-
584	02.510 RELAY; TIMING 4HE1 ENG(RLY) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0301-0310
584	02.510 RELAY; TIMING 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-0501
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0502-

85 311 12 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0212
12	08.852 RELAY; POWER WINDOW 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0301-0310
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-0501
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0502-0506
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0507-
85	02.485 RELAY; HEADLAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
85	02.485 RELAY; HEADLAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0501
85	02.485 RELAY; HEADLAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-
311	02.596 RELAY; CORNERING LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-0311
311	02.596 RELAY; CORNERING LAMP EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0312-0501
315	09.277 RELAY; EXH BRAKE CONT 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9412-0104
315	09.277 RELAY; EXH BRAKE CONT 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105
315	09.277 RELAY; EXH BRAKE CONT 4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-0212
315	09.277 RELAY; EXH BRAKE CONT 4HE1 ENG(RLY) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0301-0310
315	09.277 RELAY; EXH BRAKE CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0311-0501
315	09.277 RELAY; EXH BRAKE CONT 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-0611
315	09.277 RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0612-

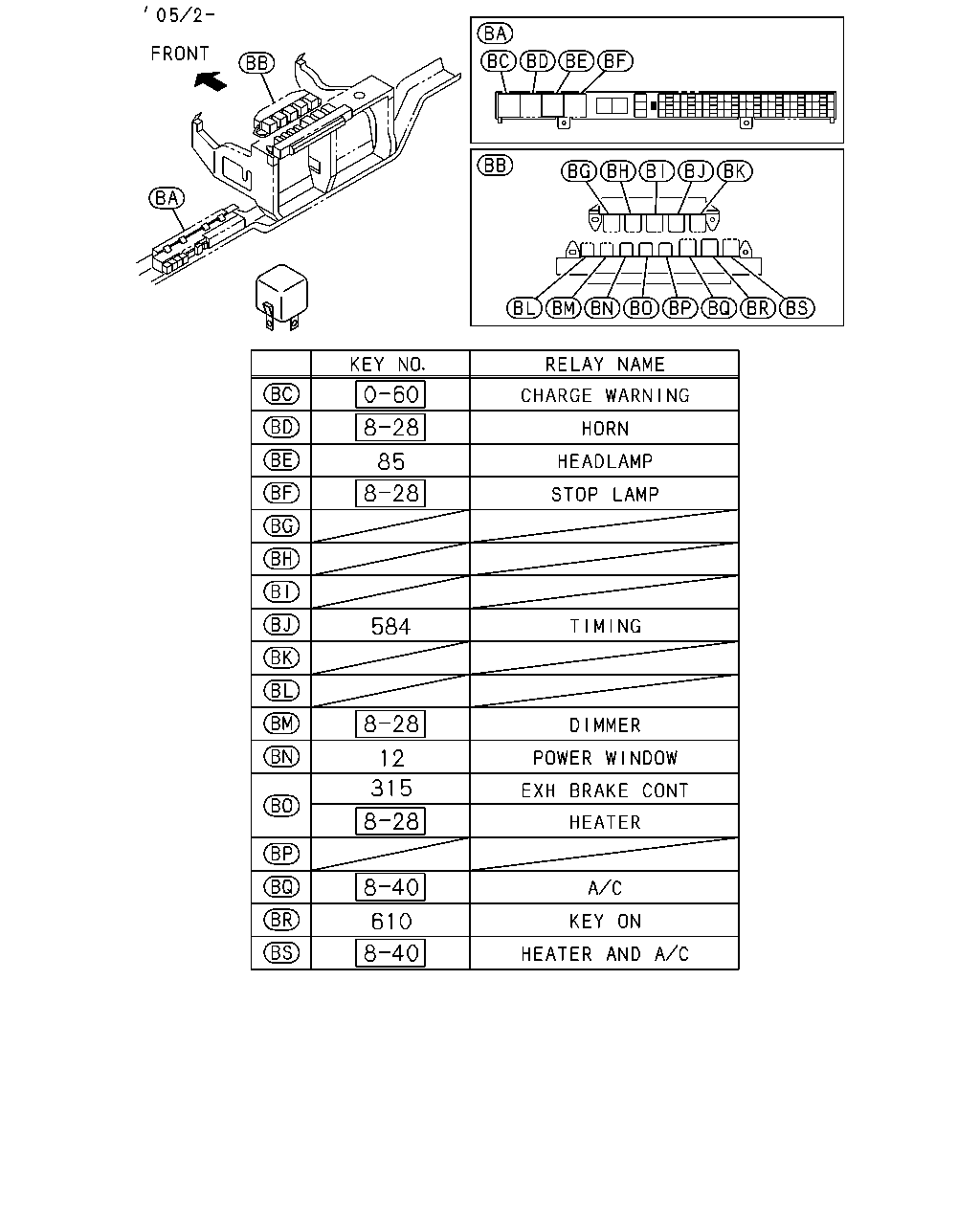

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
