Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#35834) — 552 parça

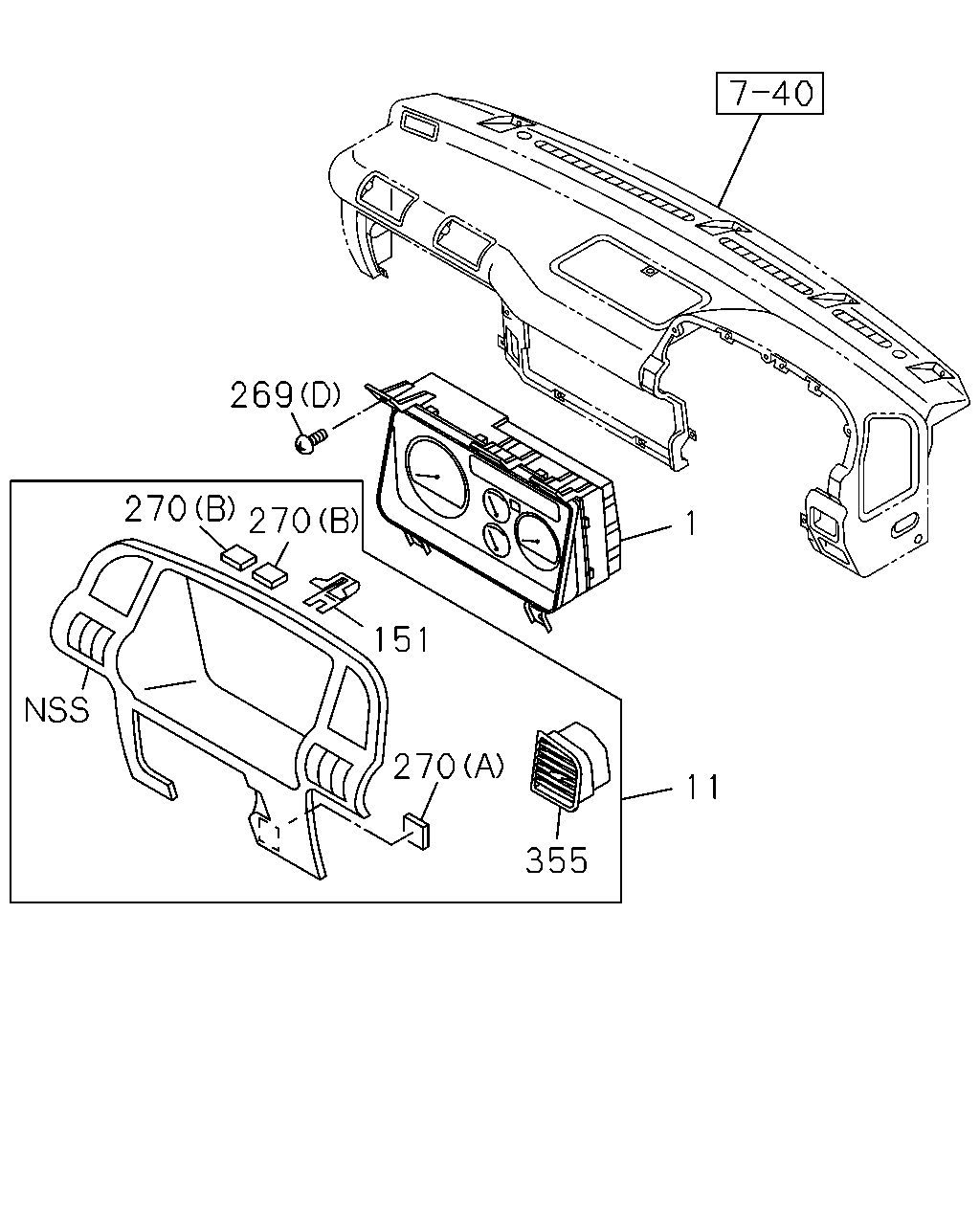

269 270 270 1 151 270 11 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER	8-97106-582-1	01	1	9412-9511
1	09.735 METER COMPL; CLUSTER	8-97129-318-0	01	1	9512-9711
1	09.735 METER COMPL; CLUSTER	8-97170-601-2	01	1	9712-0105
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97385-412-1	01	1	0502-0506
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97170-601-2	01	1	0106-0212
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY)	8-97350-663-0	01	1	0301-0310
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97350-663-0	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97170-601-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),INDONESIA EQUIPMENT(S4S),SPEEDOMETER MILE<UC1>	8-97170-600-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97217-080-0	01	1	0311-0501
11	09.743 CLUSTER ASM; METER NEW ZEALAND COUNTRY(CX6) BLACK	8-97404-376-0	01	1	0612-
11	09.743 CLUSTER ASM; METER DARK BEIGE	8-97859-354-0	01	1	9412-9711
11	09.743 CLUSTER ASM; METER BLACK	8-97195-965-2	01	1	9712-0611
11	09.743 CLUSTER ASM; METER EXC. NEW ZEALAND COUNTRY(CX6) BLACK	8-97195-965-2	01	1	0612-
151	09.747 CLIP; METER CLUSTER	8-97853-939-4	07	1	9412-9902
151	09.747 CLIP; METER CLUSTER	8-97217-066-0	07	1	9903-
269	09.743 SCREW; METER CLUSTER 08.225 (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	AR	1	9412-
269	09.743 SCREW; METER CLUSTER (B)	8-97092-904-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (A)	8-97092-906-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (C)	8-97092-907-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (E)	8-97185-523-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (F)	8-97185-524-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (G)	8-97185-525-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (H)	8-97185-528-0	AR	1	9712-
270	09.743 CUSHION; METER CLUSTER 16.085 (A) 15X30 T=5	8-94270-366-2	01	1	9412-
270	09.743 CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	9412-
355	09.748 GRILLE; VENT DARK BEIGE	8-97853-872-3	01	1	9412-9711
355	09.748 GRILLE; VENT BLACK	8-97195-967-1	01	1	9712-
355	09.748 GRILLE; VENT DARK BEIGE	8-97853-871-3	01	1	9412-9711
355	09.748 GRILLE; VENT BLACK	8-97195-966-1	01	1	9712-

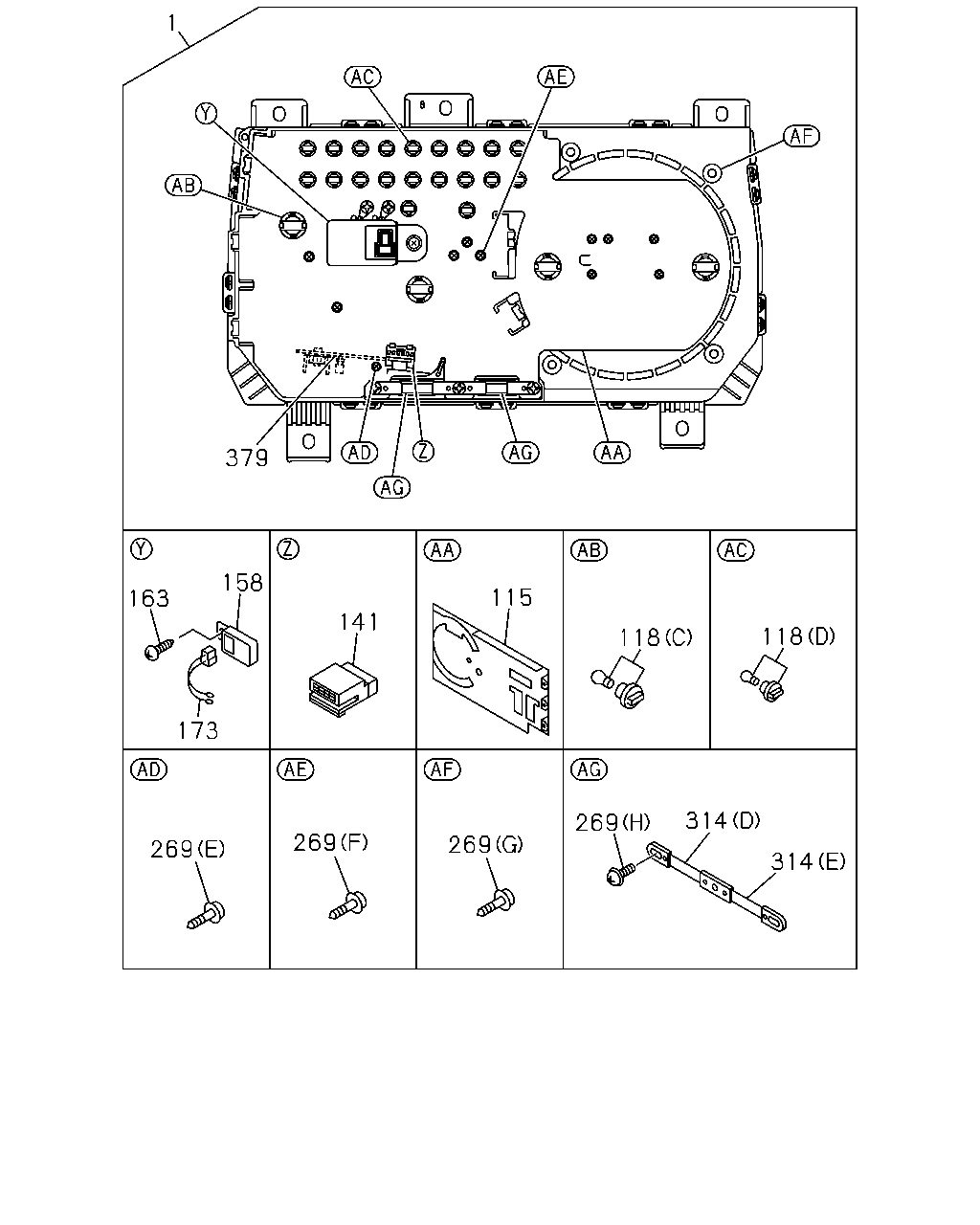

1 314 129 129 314 314 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER	8-97106-582-1	01	1	9412-9511
1	09.735 METER COMPL; CLUSTER	8-97129-318-0	01	1	9512-9711
1	09.735 METER COMPL; CLUSTER	8-97170-601-2	01	1	9712-0105
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97385-412-1	01	1	0502-0506
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97170-601-2	01	1	0106-0212
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY)	8-97350-663-0	01	1	0301-0310
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97350-663-0	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97170-601-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),INDONESIA EQUIPMENT(S4S),SPEEDOMETER MILE<UC1>	8-97170-600-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97217-080-0	01	1	0311-0501
129	09.744 SCREW; PRINTED CIRCUIT,CLUSTER M (B) M4X16	1-09140-005-0	01	1	9412-9711
129	09.744 SCREW; PRINTED CIRCUIT,CLUSTER M (A)	8-97092-908-0	09	1	9412-9711
314	09.765 RESISTOR; COMB METER,CLUSTER MET (A)	8-97092-892-0	01	1	9412-9711
314	09.765 RESISTOR; COMB METER,CLUSTER MET (D)	8-97185-515-0	01	1	9712-0105
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) (D)	8-97185-515-0	01	1	0106-0212
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HE1 ENG(RLY) (D)	8-97185-515-0	01	1	0301-0310
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH),4HE1 ENG(RLY) (D)	8-97185-515-0	01	1	0311-0501
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) (D)	8-97185-515-0	01	1	0502-0506
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1> (D)	8-97185-515-0	01	1	0507-0611
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (D)	8-97185-515-0	01	1	0612-
314	09.765 RESISTOR; COMB METER,CLUSTER MET (B)	8-97092-893-0	01	1	9412-9711
314	09.765 RESISTOR; COMB METER,CLUSTER MET (E)	8-97185-516-0	01	1	9712-0105
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) (E)	8-97185-516-0	01	1	0106-0212
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HE1 ENG(RLY) (E)	8-97185-516-0	01	1	0301-0310
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH),4HE1 ENG(RLY) (E)	8-97185-516-0	01	1	0311-0501
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) (E)	8-97185-516-0	01	1	0502-0506
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1> (E)	8-97185-516-0	01	1	0507-0611
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (E)	8-97185-516-0	01	1	0612-
314	09.765 RESISTOR; COMB METER,CLUSTER MET (C)	8-97092-894-0	01	1	9412-9711

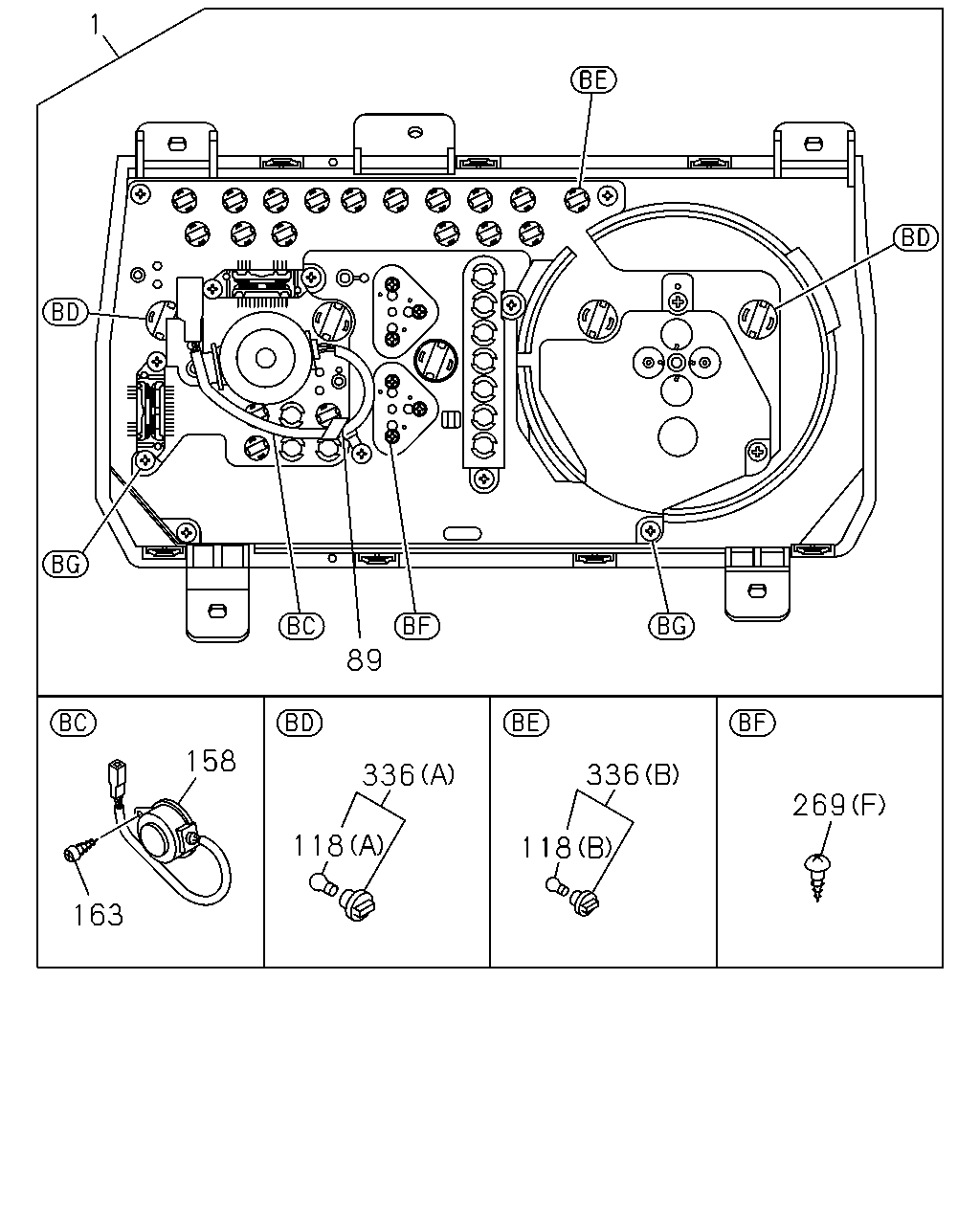

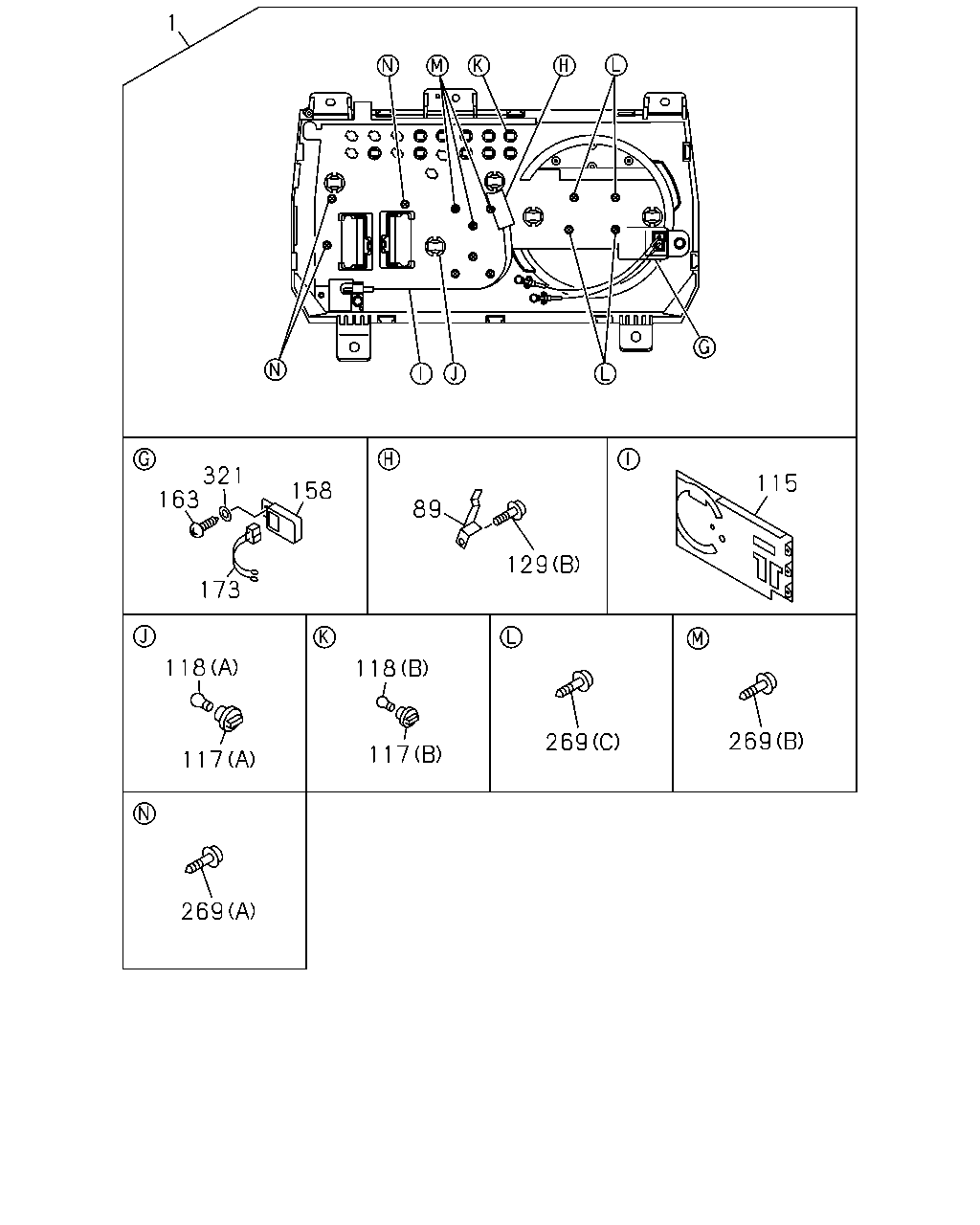

1 321 163 115 158 89 129 173 118 118 269 269 117 117 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER	8-97106-582-1	01	1	9412-9511
1	09.735 METER COMPL; CLUSTER	8-97129-318-0	01	1	9512-9711
1	09.735 METER COMPL; CLUSTER	8-97170-601-2	01	1	9712-0105
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97385-412-1	01	1	0502-0506
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97170-601-2	01	1	0106-0212
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY)	8-97350-663-0	01	1	0301-0310
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97350-663-0	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97170-601-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),INDONESIA EQUIPMENT(S4S),SPEEDOMETER MILE<UC1>	8-97170-600-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97217-080-0	01	1	0311-0501
89	09.761 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97253-928-0	01	1	0507-0611
89	09.761 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97253-928-0	01	1	0612-
89	09.761 CLIP; HARNESS	8-97088-531-1	01	1	9412-9711
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97210-311-0	01	1	0612-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-489-0	01	1	0507-0611
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-489-0	01	1	0612-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER	8-97108-111-0	01	1	9412-9711
115	09.744 CIRCUIT; PRINTED,CLUSTER METER	8-97185-507-0	01	1	9712-0105
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH)	8-97185-507-0	01	1	0106-0212
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY)	8-97185-507-0	01	1	0301-0310
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-507-0	01	1	0311-0501
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97185-507-0	01	1	0311-0501
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH)	8-97185-507-0	01	1	0502-0506
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-507-0	01	1	0507-0611
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-507-0	01	1	0612-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97210-311-0	01	1	0311-0501
117	09.744 SOCKET; BULB,GAUGE & CLOCK (B) 24V 1.8W LIGHT BROWN	8-97031-181-0	11	1	9412-9711
117	09.744 SOCKET; BULB,GAUGE & CLOCK (A) 24V 3W GREEN	8-97045-599-0	05	1	9412-9711
118	08.991 BULB; CLUSTER METER (A) 24V 3W	1-82194-073-0	AR	1	9412-9711
118	08.991 BULB; CLUSTER METER (B) 24V 1.8W	8-97031-179-0	AR	1	9412-9711
118	08.991 BULB; CLUSTER METER (C) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	AR	1	9712-0506
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	AR	1	9712-0506
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	AR	1	9712-0506
118	08.991 BULB; CLUSTER METER (C) 12V SOCKET COLOR BLACK	8-97185-535-0	AR	1	0311-0501
118	08.991 BULB; CLUSTER METER (D) 12V SOCKET COLOR BLUE	8-97185-537-0	AR	1	0311-0501
118	08.991 BULB; CLUSTER METER (A) 28V 1.8W	8-97305-177-0	AR	1	0507-
118	08.991 BULB; CLUSTER METER (B) 28V 3W	8-97305-178-0	AR	1	0507-
118	08.991 BULB; CLUSTER METER (C) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	AR	1	0612-
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	AR	1	0612-
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	AR	1	0612-
129	09.744 SCREW; PRINTED CIRCUIT,CLUSTER M (B) M4X16	1-09140-005-0	01	1	9412-9711
129	09.744 SCREW; PRINTED CIRCUIT,CLUSTER M (A)	8-97092-908-0	09	1	9412-9711
158	09.765 BUZZER; VAC WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98003-830-0	01	1	0507-0611
158	09.765 BUZZER; VAC WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98003-830-0	01	1	0612-
158	09.765 BUZZER; VAC WARNING 24V	8-97088-530-0	01	1	9412-9501
158	09.765 BUZZER; VAC WARNING 09.744 12V	5-83460-004-1	01	1	9502-9711
158	09.765 BUZZER; VAC WARNING 24V	8-97185-519-0	01	1	9712-0105
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH) 24V	8-97185-519-0	01	1	0106-0212
158	09.765 BUZZER; VAC WARNING 4HE1 ENG(RLY) 24V	8-97185-519-0	01	1	0301-0310
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH),4HE1 ENG(RLY) 24V	8-97185-519-0	01	1	0311-0501
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH) 24V	8-97185-519-0	01	1	0502-0506
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1> 24V	8-97185-519-0	01	1	0507-0611
158	09.765 BUZZER; VAC WARNING 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> 24V	8-97185-519-0	01	1	0612-
163	08.977 SCREW; BUZZER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-099-0	02	1	0507-0611
163	08.977 SCREW; BUZZER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-099-0	02	1	0612-
163	08.977 SCREW; BUZZER 09.743 M4X20	8-94246-136-0	01	1	9412-9711
163	08.977 SCREW; BUZZER	8-97185-527-0	01	1	9712-0105
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH)	8-97185-527-0	01	1	0106-0212
163	08.977 SCREW; BUZZER 4HE1 ENG(RLY)	8-97185-527-0	01	1	0301-0310
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-527-0	01	1	0311-0501
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH)	8-97185-527-0	01	1	0502-0506
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-527-0	01	1	0507-0611
163	08.977 SCREW; BUZZER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-527-0	01	1	0612-
173	09.744 WIRE; LEAD	8-97108-141-0	01	1	9502-9711
173	09.744 WIRE; LEAD	8-97185-643-0	01	1	9712-0105
173	09.744 WIRE; LEAD 4HG1 ENG(RJH)	8-97185-643-0	01	1	0106-0212
173	09.744 WIRE; LEAD 4HE1 ENG(RLY)	8-97185-643-0	01	1	0301-0310
173	09.744 WIRE; LEAD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-643-0	01	1	0311-0501
173	09.744 WIRE; LEAD 4HG1 ENG(RJH)	8-97185-643-0	01	1	0502-0506
173	09.744 WIRE; LEAD 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-643-0	01	1	0507-0611
173	09.744 WIRE; LEAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-643-0	01	1	0612-
269	09.743 SCREW; METER CLUSTER 08.225 (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	AR	1	9412-
269	09.743 SCREW; METER CLUSTER (B)	8-97092-904-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (A)	8-97092-906-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (C)	8-97092-907-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (E)	8-97185-523-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (F)	8-97185-524-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (G)	8-97185-525-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (H)	8-97185-528-0	AR	1	9712-
321	09.744 WASHER; BUZZER	8-97108-140-0	01	1	9502-9711

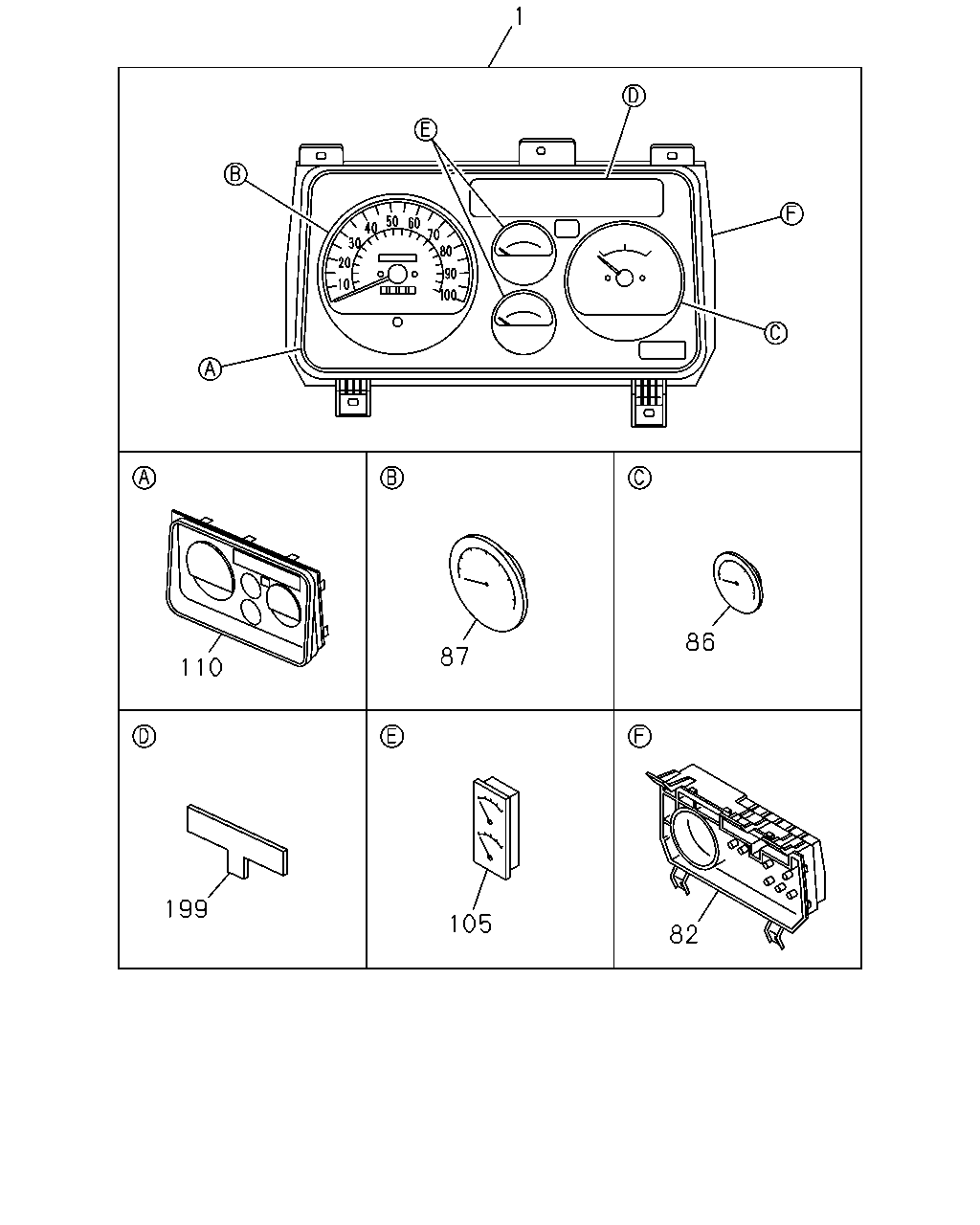

1 86 87 110 199 105 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER	8-97106-582-1	01	1	9412-9511
1	09.735 METER COMPL; CLUSTER	8-97129-318-0	01	1	9512-9711
1	09.735 METER COMPL; CLUSTER	8-97170-601-2	01	1	9712-0105
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97385-412-1	01	1	0502-0506
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97170-601-2	01	1	0106-0212
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY)	8-97350-663-0	01	1	0301-0310
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97350-663-0	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97170-601-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),INDONESIA EQUIPMENT(S4S),SPEEDOMETER MILE<UC1>	8-97170-600-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97217-080-0	01	1	0311-0501
82	09.743 CASE ASM; CLUSTER METER	8-97088-505-0	01	1	9412-9711
82	09.743 CASE ASM; CLUSTER METER	8-97185-448-0	01	1	9712-0105
82	09.743 CASE ASM; CLUSTER METER 4HG1 ENG(RJH)	8-97185-448-0	01	1	0106-0212
82	09.743 CASE ASM; CLUSTER METER 4HE1 ENG(RLY)	8-97185-448-0	01	1	0301-0310
82	09.743 CASE ASM; CLUSTER METER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-448-0	01	1	0311-0501
82	09.743 CASE ASM; CLUSTER METER 4HG1 ENG(RJH)	8-97185-448-0	01	1	0502-0506
82	09.743 CASE ASM; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-448-0	01	1	0507-0611
82	09.743 CASE ASM; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-448-0	01	1	0612-
86	09.750 TACHOMETER; CLUSTER METER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98002-115-0	01	1	0612-
86	09.750 TACHOMETER; CLUSTER METER	8-97088-513-0	01	1	9412-9511
86	09.750 TACHOMETER; CLUSTER METER	8-97117-465-0	01	1	9512-9711
86	09.750 TACHOMETER; CLUSTER METER	8-97185-470-0	01	1	9712-0105
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH)	8-97185-470-0	01	1	0106-0212
86	09.750 TACHOMETER; CLUSTER METER 4HE1 ENG(RLY)	8-97218-460-0	01	1	0301-0310
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97185-470-0	01	1	0311-
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97218-588-0	01	1	0311-0501
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH)	8-98002-112-0	01	1	0502-0506
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98002-112-0	01	1	0507-0611
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98002-112-0	01	1	0612-
87	09.761 SPEEDOMETER	8-97088-507-0	01	1	9412-9711
87	09.761 SPEEDOMETER	8-97185-457-0	01	1	9712-0105
87	09.761 SPEEDOMETER 4HG1 ENG(RJH)	8-97185-457-0	01	1	0106-0212
87	09.761 SPEEDOMETER 4HE1 ENG(RLY)	8-97185-457-0	01	1	0301-0310
87	09.761 SPEEDOMETER 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. SPEEDOMETER MILE<UC1>	8-97185-457-0	01	1	0311-0501
87	09.761 SPEEDOMETER 4HG1 ENG(RJH)	8-98002-108-0	01	1	0502-0506
87	09.761 SPEEDOMETER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-98002-108-0	01	1	0507-0611
87	09.761 SPEEDOMETER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-108-0	01	1	0612-
105	01.148 GAUGE; THERMO & FUEL,CLUSTER MET	8-97088-510-0	01	1	9412-9511
105	01.148 GAUGE; THERMO & FUEL,CLUSTER MET	8-97117-462-0	01	1	9512-9711
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-045-0	01	1	0507-0611
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-045-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-451-0	01	1	0507-0611
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-451-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER	8-97092-872-0	01	1	9412-9711
110	09.748 GLASS; CLUSTER METER	8-97185-452-0	01	1	9712-0105
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH)	8-97185-452-0	01	1	0106-0212
110	09.748 GLASS; CLUSTER METER 4HE1 ENG(RLY)	8-97185-452-0	01	1	0301-0310
110	09.748 GLASS; CLUSTER METER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-452-0	01	1	0311-0501
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0311-0501
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH)	8-97185-452-0	01	1	0502-0506
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0507-0611
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0612-
199	09.772 LENS; WARNING LAMP	8-97108-124-0	01	1	9412-9711
199	09.772 LENS; WARNING LAMP	8-97185-483-0	01	1	9712-0105
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH)	8-97185-483-0	01	1	0106-0212
199	09.772 LENS; WARNING LAMP 4HE1 ENG(RLY)	8-97185-483-0	01	1	0301-0310
199	09.772 LENS; WARNING LAMP 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97185-483-0	01	1	0311-0501
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97185-483-0	01	1	0311-0501
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97210-305-0	01	1	0311-0501
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH)	8-98002-124-0	01	1	0502-0506
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-98002-124-0	01	1	0507-0611
199	09.772 LENS; WARNING LAMP 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-124-0	01	1	0612-

1 89 158 336 336 269 118 118 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER	8-97106-582-1	01	1	9412-9511
1	09.735 METER COMPL; CLUSTER	8-97129-318-0	01	1	9512-9711
1	09.735 METER COMPL; CLUSTER	8-97170-601-2	01	1	9712-0105
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97385-412-1	01	1	0502-0506
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97170-601-2	01	1	0106-0212
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY)	8-97350-663-0	01	1	0301-0310
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97350-663-0	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97170-601-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),INDONESIA EQUIPMENT(S4S),SPEEDOMETER MILE<UC1>	8-97170-600-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97217-080-0	01	1	0311-0501
89	09.761 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97253-928-0	01	1	0507-0611
89	09.761 CLIP; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97253-928-0	01	1	0612-
89	09.761 CLIP; HARNESS	8-97088-531-1	01	1	9412-9711
118	08.991 BULB; CLUSTER METER (A) 24V 3W	1-82194-073-0	AR	1	9412-9711
118	08.991 BULB; CLUSTER METER (B) 24V 1.8W	8-97031-179-0	AR	1	9412-9711
118	08.991 BULB; CLUSTER METER (C) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	AR	1	9712-0506
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	AR	1	9712-0506
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	AR	1	9712-0506
118	08.991 BULB; CLUSTER METER (C) 12V SOCKET COLOR BLACK	8-97185-535-0	AR	1	0311-0501
118	08.991 BULB; CLUSTER METER (D) 12V SOCKET COLOR BLUE	8-97185-537-0	AR	1	0311-0501
118	08.991 BULB; CLUSTER METER (A) 28V 1.8W	8-97305-177-0	AR	1	0507-
118	08.991 BULB; CLUSTER METER (B) 28V 3W	8-97305-178-0	AR	1	0507-
118	08.991 BULB; CLUSTER METER (C) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	AR	1	0612-
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	AR	1	0612-
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	AR	1	0612-
158	09.765 BUZZER; VAC WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98003-830-0	01	1	0507-0611
158	09.765 BUZZER; VAC WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98003-830-0	01	1	0612-
158	09.765 BUZZER; VAC WARNING 24V	8-97088-530-0	01	1	9412-9501
158	09.765 BUZZER; VAC WARNING 09.744 12V	5-83460-004-1	01	1	9502-9711
158	09.765 BUZZER; VAC WARNING 24V	8-97185-519-0	01	1	9712-0105
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH) 24V	8-97185-519-0	01	1	0106-0212
158	09.765 BUZZER; VAC WARNING 4HE1 ENG(RLY) 24V	8-97185-519-0	01	1	0301-0310
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH),4HE1 ENG(RLY) 24V	8-97185-519-0	01	1	0311-0501
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH) 24V	8-97185-519-0	01	1	0502-0506
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1> 24V	8-97185-519-0	01	1	0507-0611
158	09.765 BUZZER; VAC WARNING 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> 24V	8-97185-519-0	01	1	0612-
163	08.977 SCREW; BUZZER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-099-0	02	1	0507-0611
163	08.977 SCREW; BUZZER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-099-0	02	1	0612-
163	08.977 SCREW; BUZZER 09.743 M4X20	8-94246-136-0	01	1	9412-9711
163	08.977 SCREW; BUZZER	8-97185-527-0	01	1	9712-0105
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH)	8-97185-527-0	01	1	0106-0212
163	08.977 SCREW; BUZZER 4HE1 ENG(RLY)	8-97185-527-0	01	1	0301-0310
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-527-0	01	1	0311-0501
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH)	8-97185-527-0	01	1	0502-0506
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-527-0	01	1	0507-0611
163	08.977 SCREW; BUZZER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-527-0	01	1	0612-
269	09.743 SCREW; METER CLUSTER 08.225 (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	AR	1	9412-
269	09.743 SCREW; METER CLUSTER (B)	8-97092-904-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (A)	8-97092-906-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (C)	8-97092-907-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (E)	8-97185-523-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (F)	8-97185-524-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (G)	8-97185-525-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (H)	8-97185-528-0	AR	1	9712-
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A)	8-97185-091-0	19	1	0507-0509
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A)	8-97185-091-0	20	1	0510-0611
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (A)	8-97185-091-0	20	1	0612-
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B)	8-97185-093-0	05	1	0507-0611
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B)	8-97185-093-0	05	1	0612-

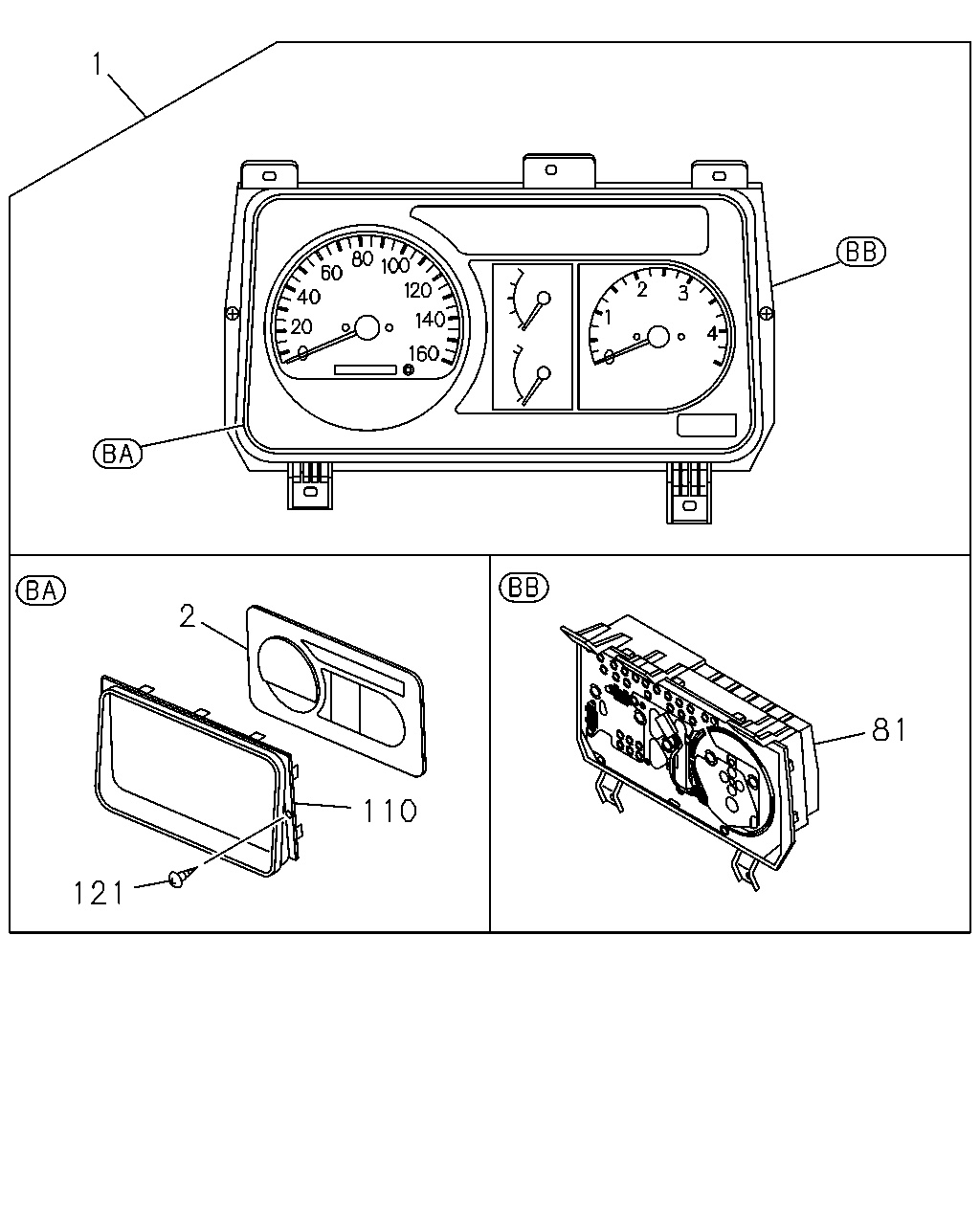

1 2 81 110 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER	8-97106-582-1	01	1	9412-9511
1	09.735 METER COMPL; CLUSTER	8-97129-318-0	01	1	9512-9711
1	09.735 METER COMPL; CLUSTER	8-97170-601-2	01	1	9712-0105
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97385-412-1	01	1	0502-0506
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97170-601-2	01	1	0106-0212
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY)	8-97350-663-0	01	1	0301-0310
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97350-663-0	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97170-601-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),INDONESIA EQUIPMENT(S4S),SPEEDOMETER MILE<UC1>	8-97170-600-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97217-080-0	01	1	0311-0501
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-047-0	01	1	0507-0611
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-047-0	01	1	0612-
2	09.735 PANEL; CLUSTER	8-97185-443-0	01	1	9712-0105
2	09.735 PANEL; CLUSTER 4HG1 ENG(RJH)	8-97185-443-0	01	1	0106-0212
2	09.735 PANEL; CLUSTER 4HE1 ENG(RLY)	8-97185-443-0	01	1	0301-0310
2	09.735 PANEL; CLUSTER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-443-0	01	1	0311-0501
2	09.735 PANEL; CLUSTER 4HG1 ENG(RJH)	8-97185-443-0	01	1	0502-0506
2	09.735 PANEL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-443-0	01	1	0507-0611
2	09.735 PANEL; CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-443-0	01	1	0612-
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 09.743	8-98003-835-0	01	1	0507-0611
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 09.743	8-98003-835-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-045-0	01	1	0507-0611
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-045-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-451-0	01	1	0507-0611
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-451-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER	8-97092-872-0	01	1	9412-9711
110	09.748 GLASS; CLUSTER METER	8-97185-452-0	01	1	9712-0105
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH)	8-97185-452-0	01	1	0106-0212
110	09.748 GLASS; CLUSTER METER 4HE1 ENG(RLY)	8-97185-452-0	01	1	0301-0310
110	09.748 GLASS; CLUSTER METER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-452-0	01	1	0311-0501
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0311-0501
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH)	8-97185-452-0	01	1	0502-0506
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0507-0611
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0612-
121	09.744 SCREW; PANEL FIX,CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-100-0	02	1	0507-0611
121	09.744 SCREW; PANEL FIX,CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-100-0	02	1	0612-

1 2 87 86 161 230 319 110 183 131 199 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER	8-97106-582-1	01	1	9412-9511
1	09.735 METER COMPL; CLUSTER	8-97129-318-0	01	1	9512-9711
1	09.735 METER COMPL; CLUSTER	8-97170-601-2	01	1	9712-0105
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97385-412-1	01	1	0502-0506
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97170-601-2	01	1	0106-0212
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY)	8-97350-663-0	01	1	0301-0310
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97350-663-0	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97170-601-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),INDONESIA EQUIPMENT(S4S),SPEEDOMETER MILE<UC1>	8-97170-600-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97217-080-0	01	1	0311-0501
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-047-0	01	1	0507-0611
2	09.735 PANEL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-047-0	01	1	0612-
2	09.735 PANEL; CLUSTER	8-97185-443-0	01	1	9712-0105
2	09.735 PANEL; CLUSTER 4HG1 ENG(RJH)	8-97185-443-0	01	1	0106-0212
2	09.735 PANEL; CLUSTER 4HE1 ENG(RLY)	8-97185-443-0	01	1	0301-0310
2	09.735 PANEL; CLUSTER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-443-0	01	1	0311-0501
2	09.735 PANEL; CLUSTER 4HG1 ENG(RJH)	8-97185-443-0	01	1	0502-0506
2	09.735 PANEL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-443-0	01	1	0507-0611
2	09.735 PANEL; CLUSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-443-0	01	1	0612-
82	09.743 CASE ASM; CLUSTER METER	8-97088-505-0	01	1	9412-9711
82	09.743 CASE ASM; CLUSTER METER	8-97185-448-0	01	1	9712-0105
82	09.743 CASE ASM; CLUSTER METER 4HG1 ENG(RJH)	8-97185-448-0	01	1	0106-0212
82	09.743 CASE ASM; CLUSTER METER 4HE1 ENG(RLY)	8-97185-448-0	01	1	0301-0310
82	09.743 CASE ASM; CLUSTER METER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-448-0	01	1	0311-0501
82	09.743 CASE ASM; CLUSTER METER 4HG1 ENG(RJH)	8-97185-448-0	01	1	0502-0506
82	09.743 CASE ASM; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-448-0	01	1	0507-0611
82	09.743 CASE ASM; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-448-0	01	1	0612-
86	09.750 TACHOMETER; CLUSTER METER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98002-115-0	01	1	0612-
86	09.750 TACHOMETER; CLUSTER METER	8-97088-513-0	01	1	9412-9511
86	09.750 TACHOMETER; CLUSTER METER	8-97117-465-0	01	1	9512-9711
86	09.750 TACHOMETER; CLUSTER METER	8-97185-470-0	01	1	9712-0105
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH)	8-97185-470-0	01	1	0106-0212
86	09.750 TACHOMETER; CLUSTER METER 4HE1 ENG(RLY)	8-97218-460-0	01	1	0301-0310
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97185-470-0	01	1	0311-
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97218-588-0	01	1	0311-0501
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH)	8-98002-112-0	01	1	0502-0506
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98002-112-0	01	1	0507-0611
86	09.750 TACHOMETER; CLUSTER METER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98002-112-0	01	1	0612-
87	09.761 SPEEDOMETER	8-97088-507-0	01	1	9412-9711
87	09.761 SPEEDOMETER	8-97185-457-0	01	1	9712-0105
87	09.761 SPEEDOMETER 4HG1 ENG(RJH)	8-97185-457-0	01	1	0106-0212
87	09.761 SPEEDOMETER 4HE1 ENG(RLY)	8-97185-457-0	01	1	0301-0310
87	09.761 SPEEDOMETER 4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. SPEEDOMETER MILE<UC1>	8-97185-457-0	01	1	0311-0501
87	09.761 SPEEDOMETER 4HG1 ENG(RJH)	8-98002-108-0	01	1	0502-0506
87	09.761 SPEEDOMETER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-98002-108-0	01	1	0507-0611
87	09.761 SPEEDOMETER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-108-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-045-0	01	1	0507-0611
110	09.748 GLASS; CLUSTER METER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-045-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-451-0	01	1	0507-0611
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-451-0	01	1	0612-
110	09.748 GLASS; CLUSTER METER	8-97092-872-0	01	1	9412-9711
110	09.748 GLASS; CLUSTER METER	8-97185-452-0	01	1	9712-0105
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH)	8-97185-452-0	01	1	0106-0212
110	09.748 GLASS; CLUSTER METER 4HE1 ENG(RLY)	8-97185-452-0	01	1	0301-0310
110	09.748 GLASS; CLUSTER METER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-452-0	01	1	0311-0501
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0311-0501
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH)	8-97185-452-0	01	1	0502-0506
110	09.748 GLASS; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0507-0611
110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-452-0	01	1	0612-
131	01.148 GAUGE; TEMP,CLUSTER METER	8-97185-475-0	01	1	9712-0105
131	01.148 GAUGE; TEMP,CLUSTER METER 4HG1 ENG(RJH)	8-97185-475-0	01	1	0106-0212
131	01.148 GAUGE; TEMP,CLUSTER METER 4HE1 ENG(RLY)	8-97185-475-0	01	1	0301-0310
131	01.148 GAUGE; TEMP,CLUSTER METER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-475-0	01	1	0311-0501
131	01.148 GAUGE; TEMP,CLUSTER METER 4HG1 ENG(RJH)	8-98002-121-0	01	1	0502-0506
131	01.148 GAUGE; TEMP,CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-98002-121-0	01	1	0507-0611
131	01.148 GAUGE; TEMP,CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-121-0	01	1	0612-
161	09.772 CLOCK; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98002-110-0	01	1	0507-0611
161	09.772 CLOCK; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98002-110-0	01	1	0612-
183	03.107 GAUGE; FUEL	8-97185-473-0	01	1	9712-0105
183	03.107 GAUGE; FUEL 4HG1 ENG(RJH)	8-97185-473-0	01	1	0106-0212
183	03.107 GAUGE; FUEL 4HE1 ENG(RLY)	8-97185-473-0	01	1	0301-0310
183	03.107 GAUGE; FUEL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-473-0	01	1	0311-0501
183	03.107 GAUGE; FUEL 4HG1 ENG(RJH)	8-98002-118-0	01	1	0502-0506
183	03.107 GAUGE; FUEL 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-98002-118-0	01	1	0507-0611
183	03.107 GAUGE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-118-0	01	1	0612-
199	09.772 LENS; WARNING LAMP	8-97108-124-0	01	1	9412-9711
199	09.772 LENS; WARNING LAMP	8-97185-483-0	01	1	9712-0105
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH)	8-97185-483-0	01	1	0106-0212
199	09.772 LENS; WARNING LAMP 4HE1 ENG(RLY)	8-97185-483-0	01	1	0301-0310
199	09.772 LENS; WARNING LAMP 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97185-483-0	01	1	0311-0501
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97185-483-0	01	1	0311-0501
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97210-305-0	01	1	0311-0501
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH)	8-98002-124-0	01	1	0502-0506
199	09.772 LENS; WARNING LAMP 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-98002-124-0	01	1	0507-0611
199	09.772 LENS; WARNING LAMP 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-98002-124-0	01	1	0612-
230	09.772 KNOB; DIGITAL CLOCK,SUB METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-644-0	01	1	0507-0611
230	09.772 KNOB; DIGITAL CLOCK,SUB METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-644-0	01	1	0612-
319	09.744 SCREW; KNOB,CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-522-0	01	1	0507-0611
319	09.744 SCREW; KNOB,CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-522-0	01	1	0612-

1 379 158 115 163 141 118 118 173 314 269 269 269 269 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-849-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-98000-850-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98000-514-4	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97385-411-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER	8-97106-582-1	01	1	9412-9511
1	09.735 METER COMPL; CLUSTER	8-97129-318-0	01	1	9512-9711
1	09.735 METER COMPL; CLUSTER	8-97170-601-2	01	1	9712-0105
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97385-412-1	01	1	0502-0506
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0507-0611
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97385-412-1	01	1	0612-
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH)	8-97170-601-2	01	1	0106-0212
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY)	8-97350-663-0	01	1	0301-0310
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. SPEEDOMETER MILE<UC1>	8-97350-663-0	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> INDONESIA EQUIPMENT(S4S) TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97170-601-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),INDONESIA EQUIPMENT(S4S),SPEEDOMETER MILE<UC1>	8-97170-600-2	01	1	0311-0501
1	09.735 METER COMPL; CLUSTER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97217-080-0	01	1	0311-0501
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1-T ENG(RDP) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97210-311-0	01	1	0612-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-489-0	01	1	0507-0611
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16>	8-97185-489-0	01	1	0612-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER	8-97108-111-0	01	1	9412-9711
115	09.744 CIRCUIT; PRINTED,CLUSTER METER	8-97185-507-0	01	1	9712-0105
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH)	8-97185-507-0	01	1	0106-0212
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY)	8-97185-507-0	01	1	0301-0310
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-507-0	01	1	0311-0501
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. TURBOCHARGER(K51),SPEEDOMETER MILE<UC1>	8-97185-507-0	01	1	0311-0501
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH)	8-97185-507-0	01	1	0502-0506
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-507-0	01	1	0507-0611
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-507-0	01	1	0612-
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3),SPEEDOMETER MILE<UC1>	8-97210-311-0	01	1	0311-0501
118	08.991 BULB; CLUSTER METER (A) 24V 3W	1-82194-073-0	AR	1	9412-9711
118	08.991 BULB; CLUSTER METER (B) 24V 1.8W	8-97031-179-0	AR	1	9412-9711
118	08.991 BULB; CLUSTER METER (C) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	AR	1	9712-0506
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	AR	1	9712-0506
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	AR	1	9712-0506
118	08.991 BULB; CLUSTER METER (C) 12V SOCKET COLOR BLACK	8-97185-535-0	AR	1	0311-0501
118	08.991 BULB; CLUSTER METER (D) 12V SOCKET COLOR BLUE	8-97185-537-0	AR	1	0311-0501
118	08.991 BULB; CLUSTER METER (A) 28V 1.8W	8-97305-177-0	AR	1	0507-
118	08.991 BULB; CLUSTER METER (B) 28V 3W	8-97305-178-0	AR	1	0507-
118	08.991 BULB; CLUSTER METER (C) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	AR	1	0612-
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	AR	1	0612-
118	08.991 BULB; CLUSTER METER (D) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	AR	1	0612-
141	09.744 CONNECTOR; CLUSTER METER	8-97185-513-0	01	1	9712-0105
141	09.744 CONNECTOR; CLUSTER METER 4HG1 ENG(RJH)	8-97185-513-0	01	1	0106-0212
141	09.744 CONNECTOR; CLUSTER METER 4HE1 ENG(RLY)	8-97185-513-0	01	1	0301-0310
141	09.744 CONNECTOR; CLUSTER METER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-513-0	01	1	0311-0501
141	09.744 CONNECTOR; CLUSTER METER 4HG1 ENG(RJH)	8-97185-513-0	01	1	0502-0506
141	09.744 CONNECTOR; CLUSTER METER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-513-0	01	1	0507-0611
141	09.744 CONNECTOR; CLUSTER METER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-513-0	01	1	0612-
158	09.765 BUZZER; VAC WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98003-830-0	01	1	0507-0611
158	09.765 BUZZER; VAC WARNING 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-98003-830-0	01	1	0612-
158	09.765 BUZZER; VAC WARNING 24V	8-97088-530-0	01	1	9412-9501
158	09.765 BUZZER; VAC WARNING 09.744 12V	5-83460-004-1	01	1	9502-9711
158	09.765 BUZZER; VAC WARNING 24V	8-97185-519-0	01	1	9712-0105
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH) 24V	8-97185-519-0	01	1	0106-0212
158	09.765 BUZZER; VAC WARNING 4HE1 ENG(RLY) 24V	8-97185-519-0	01	1	0301-0310
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH),4HE1 ENG(RLY) 24V	8-97185-519-0	01	1	0311-0501
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH) 24V	8-97185-519-0	01	1	0502-0506
158	09.765 BUZZER; VAC WARNING 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1> 24V	8-97185-519-0	01	1	0507-0611
158	09.765 BUZZER; VAC WARNING 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> 24V	8-97185-519-0	01	1	0612-
163	08.977 SCREW; BUZZER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-099-0	02	1	0507-0611
163	08.977 SCREW; BUZZER 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>	8-97185-099-0	02	1	0612-
163	08.977 SCREW; BUZZER 09.743 M4X20	8-94246-136-0	01	1	9412-9711
163	08.977 SCREW; BUZZER	8-97185-527-0	01	1	9712-0105
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH)	8-97185-527-0	01	1	0106-0212
163	08.977 SCREW; BUZZER 4HE1 ENG(RLY)	8-97185-527-0	01	1	0301-0310
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-527-0	01	1	0311-0501
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH)	8-97185-527-0	01	1	0502-0506
163	08.977 SCREW; BUZZER 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-527-0	01	1	0507-0611
163	08.977 SCREW; BUZZER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-527-0	01	1	0612-
173	09.744 WIRE; LEAD	8-97108-141-0	01	1	9502-9711
173	09.744 WIRE; LEAD	8-97185-643-0	01	1	9712-0105
173	09.744 WIRE; LEAD 4HG1 ENG(RJH)	8-97185-643-0	01	1	0106-0212
173	09.744 WIRE; LEAD 4HE1 ENG(RLY)	8-97185-643-0	01	1	0301-0310
173	09.744 WIRE; LEAD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-643-0	01	1	0311-0501
173	09.744 WIRE; LEAD 4HG1 ENG(RJH)	8-97185-643-0	01	1	0502-0506
173	09.744 WIRE; LEAD 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-643-0	01	1	0507-0611
173	09.744 WIRE; LEAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-643-0	01	1	0612-
269	09.743 SCREW; METER CLUSTER 08.225 (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	AR	1	9412-
269	09.743 SCREW; METER CLUSTER (B)	8-97092-904-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (A)	8-97092-906-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (C)	8-97092-907-0	AR	1	9412-9711
269	09.743 SCREW; METER CLUSTER (E)	8-97185-523-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (F)	8-97185-524-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (G)	8-97185-525-0	AR	1	9712-
269	09.743 SCREW; METER CLUSTER (H)	8-97185-528-0	AR	1	9712-
314	09.765 RESISTOR; COMB METER,CLUSTER MET (A)	8-97092-892-0	01	1	9412-9711
314	09.765 RESISTOR; COMB METER,CLUSTER MET (D)	8-97185-515-0	01	1	9712-0105
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) (D)	8-97185-515-0	01	1	0106-0212
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HE1 ENG(RLY) (D)	8-97185-515-0	01	1	0301-0310
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH),4HE1 ENG(RLY) (D)	8-97185-515-0	01	1	0311-0501
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) (D)	8-97185-515-0	01	1	0502-0506
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1> (D)	8-97185-515-0	01	1	0507-0611
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (D)	8-97185-515-0	01	1	0612-
314	09.765 RESISTOR; COMB METER,CLUSTER MET (B)	8-97092-893-0	01	1	9412-9711
314	09.765 RESISTOR; COMB METER,CLUSTER MET (E)	8-97185-516-0	01	1	9712-0105
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) (E)	8-97185-516-0	01	1	0106-0212
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HE1 ENG(RLY) (E)	8-97185-516-0	01	1	0301-0310
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH),4HE1 ENG(RLY) (E)	8-97185-516-0	01	1	0311-0501
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) (E)	8-97185-516-0	01	1	0502-0506
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1> (E)	8-97185-516-0	01	1	0507-0611
314	09.765 RESISTOR; COMB METER,CLUSTER MET 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1> (E)	8-97185-516-0	01	1	0612-
314	09.765 RESISTOR; COMB METER,CLUSTER MET (C)	8-97092-894-0	01	1	9412-9711
379	09.744 CIRCUIT; DROP	8-97185-512-0	01	1	9712-0105
379	09.744 CIRCUIT; DROP 4HG1 ENG(RJH)	8-97185-512-0	01	1	0106-0212
379	09.744 CIRCUIT; DROP 4HE1 ENG(RLY)	8-97185-512-0	01	1	0301-0310
379	09.744 CIRCUIT; DROP 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97185-512-0	01	1	0311-0501
379	09.744 CIRCUIT; DROP 4HG1 ENG(RJH)	8-97185-512-0	01	1	0502-0506
379	09.744 CIRCUIT; DROP 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. SPEEDOMETER MILE<UC1>	8-97185-512-0	01	1	0507-0611
379	09.744 CIRCUIT; DROP 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. SPEEDOMETER MILE<UC1>	8-97185-512-0	01	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
