Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#35833) — 232 parça

511 180 510 510 178 512 27 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	02.559 PROTECTOR; EDGE 03.008 L=80	5-22439-006-0	01	1	9412-0212
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	9412-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	9412-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	9412-
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9412-0604
511	02.559 SCREW; HARNESS COVER 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702
511	02.559 SCREW; HARNESS COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	9412-
513	02.559 TAPE; SOFT,HARNESS 02.480 50X45	8-94232-630-0	01	1	9412-9707

386 521 38 150 377 386 150 377 386 239 38 139 239 19 19 55 518 294 469 519 525 219 294 519 219 294 469 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	02.559 BOLT; PROTECTOR 4HK1-TCN ENG(RDQ) 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0507-0512
19	02.559 BOLT; PROTECTOR 4HK1-TCN ENG(RDQ) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-
19	02.559 BOLT; PROTECTOR 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0301-0501
38	02.559 BOLT; CLIP,HARNESS 04.686 (A) M6X25 FLANGE	0-28080-625-0	AR	1	9412-
38	02.559 BOLT; CLIP,HARNESS 01.531 (B) M8X25 FLANGE	0-28080-825-0	AR	1	9412-
55	02.559 WASHER; PL,CLIP 4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	0502-0605
55	02.559 WASHER; PL,CLIP 4HG1 ENG(RJH) 00.413 ID=6.4 OD=18	0-91610-706-0	01	1	0606-0611
55	02.559 WASHER; PL,CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.413 ID=6.4 OD=18	0-91610-706-0	01	1	0612-
55	02.559 WASHER; PL,CLIP 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	0301-0501
139	02.559 BOLT; BRKT 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9412-9503
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9504-0512
139	02.559 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0301-0501
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0507-0508
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0509-0512
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0507-0508
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0509-0512
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-
219	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	AR	1	9412-
219	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	AR	1	9412-
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9412-1004
239	02.559 BOLT; GRAND 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
294	02.559 NUT 4HK1-TCN ENG(RDQ) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0507-0602
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9412-0105
294	02.559 NUT 4HG1 ENG(RJH) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0106-0212
294	02.559 NUT 04.785 (C) M10 FLANGE	0-91150-110-0	01	1	0301-0602
294	02.559 NUT M/T MYY5T(RSM) 04.785 (C) M10 FLANGE	0-91150-110-0	01	1	0301-0602
294	02.559 NUT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0603-
294	02.559 NUT M/T MYY5T(RSM) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0603-
294	02.559 NUT 01.540 (B) M8 FLANGE	0-91150-208-0	01	1	9412-9511
294	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0301-0310
294	02.559 NUT FLOOR REMOTE SHIFT<M11> 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0311-0501
294	02.559 NUT M/T MYY5T(RSM) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602
294	02.559 NUT M/T MYY5T(RSM) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0602
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9412-1004
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9412-0501
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
469	02.559 NUT; PROTECTOR 4HK1-TCN ENG(RDQ) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0507-0602
469	02.559 NUT; PROTECTOR 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-
469	02.559 NUT; PROTECTOR 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0301-0501
515	02.559 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	AR	1	0301-0602
515	02.559 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	AR	1	0603-
518	02.559 WASHER; LK,EARTH CABLE ID=6	9-09151-506-0	01	1	9412-9511
519	02.559 NUT; EARTH CABLE 16.176 (A) M6	9-09110-406-0	AR	1	9412-9511
519	02.559 NUT; EARTH CABLE 04.785 (B) M10 FLANGE	0-91150-110-0	AR	1	9412-
521	02.559 BOLT; GRAND CABLE 04.785 M6X16	0-20800-616-0	01	1	9412-9511
525	02.559 NUT; CLIP 04.785 M10 FLANGE	0-91150-110-0	AR	1	0301-0501

16 16 464 16 48 464 48 48 48 48 48 464 48 48 208 16 183 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	AR	1	9412-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9412-
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	AR	1	9412-
16	02.559 CLIP; HARNESS 03.162 (K) L=170	5-09707-054-0	AR	1	9412-9711
16	02.559 CLIP; HARNESS (A) L=100	8-94327-067-1	AR	1	9412-0212
16	02.559 CLIP; HARNESS (A) L=100	8-94327-067-1	AR	1	0612-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9412-
16	02.559 CLIP; HARNESS (G) ID=16.5 & 16.5	8-94468-380-0	AR	1	9412-9702
16	02.559 CLIP; HARNESS (H) ID=7-10	8-94472-578-0	AR	1	9412-9511
16	02.559 CLIP; HARNESS 02.694 (I) ID=6 & 10-13	8-97069-515-0	AR	1	9412-9903
16	02.559 CLIP; HARNESS (P) L=135	1-09987-143-1	AR	1	9904-
16	02.559 CLIP; HARNESS (J) ID=12.5-14.5	8-97087-726-0	AR	1	9412-9702
16	02.559 CLIP; HARNESS (B) L=175	8-97110-167-0	AR	1	9412-9810
16	02.559 CLIP; HARNESS (N) L=155	8-97173-307-0	AR	1	9412-
16	02.559 CLIP; HARNESS (L) ID=16.5 & 16.5	8-94473-320-0	AR	1	9703-9801
16	02.559 CLIP; HARNESS 01.166 (M) ID=22 & 22	8-94464-837-0	AR	1	9802-
16	02.559 CLIP; HARNESS (Q) ID=15-32	8-97174-404-0	AR	1	9703-
16	02.559 CLIP; HARNESS 03.162 (O) L=140	5-09707-031-1	AR	1	9712-
16	02.559 CLIP; HARNESS (R) ID=15-40	8-97223-033-1	AR	1	9904-0105
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	AR	1	9412-0212
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94169-650-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (I) L=170.3	1-09987-182-0	AR	1	0106-0212
48	02.559 CLIP; FRAME HARNESS 02.589 (M) ID=27	5-09700-323-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=4.5 & 9	5-09709-023-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS 04.785 (K) ID=11 L=28	9-09525-055-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	AR	1	0507-
48	02.559 CLIP; FRAME HARNESS 03.162 (O) L=140	5-09707-031-1	AR	1	0507-
183	02.559 CLIP; CONNECTOR 03.162 ID=4.8 & 10	8-94152-110-0	01	1	9412-9711
208	02.559 CLIP; HARNESS,MAG VLV T=6.0	5-09709-012-0	02	1	0502-0505
208	02.559 CLIP; HARNESS,MAG VLV T=6.0	5-09709-012-0	01	1	0506-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (A) ID=6.5	8-94257-639-0	AR	1	9412-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6	5-09700-316-0	AR	1	9604-9810
464	02.525 CLIP; SEDIMENTER HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	AR	1	9811-0309
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (D) T=6.0	5-09709-024-0	AR	1	0502-

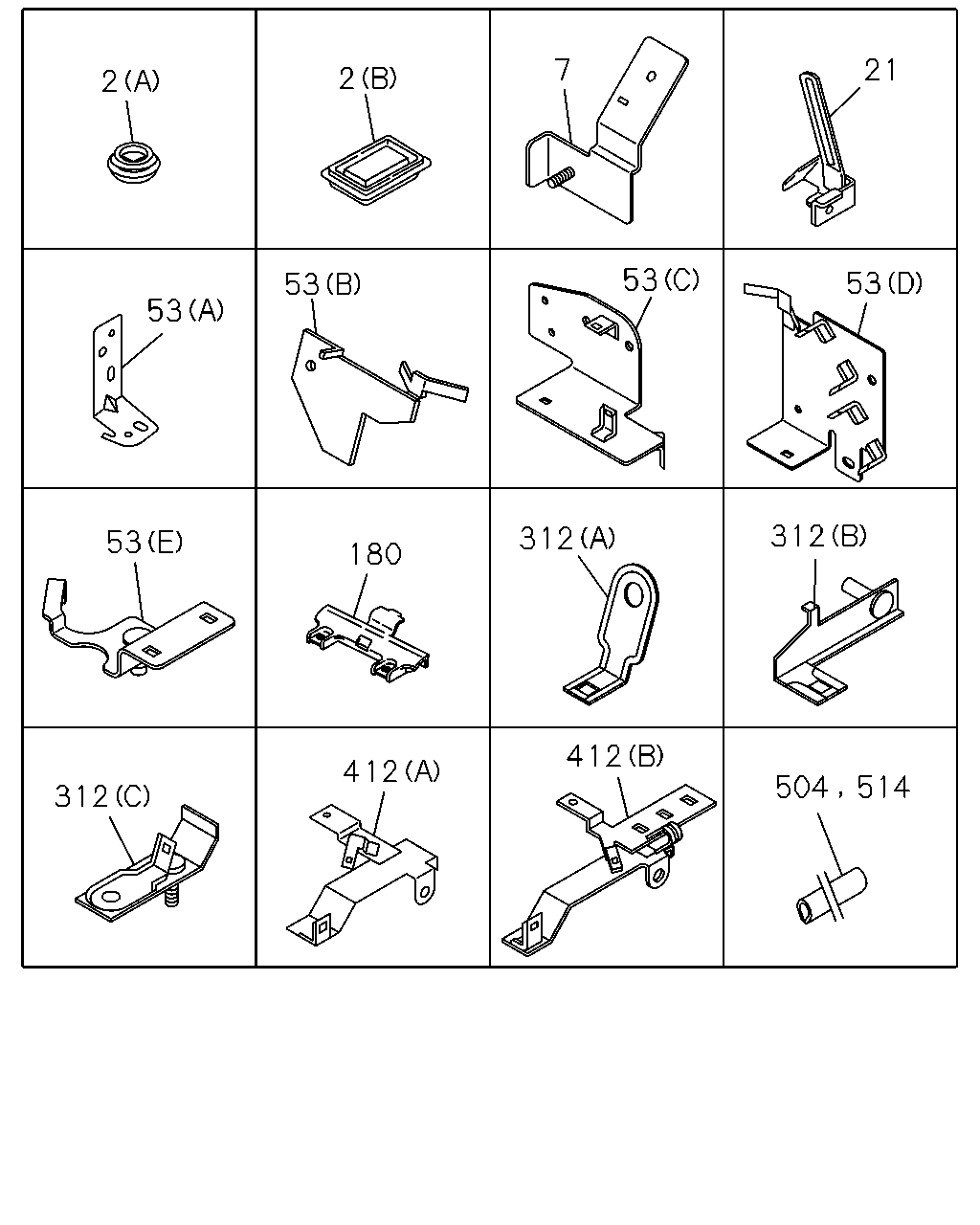

7 21 2 2 53 53 53 53 312 312 53 180 412 412 504 514 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	09.775 GROMMET; CLIP HOLE,HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	9412-9505
2	09.775 GROMMET; CLIP HOLE,HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (B)	8-94279-736-0	02	1	9412-9505
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ)	8-98003-671-1	01	1	0507-
21	02.483 BRACKET; ENG HARNESS	8-97088-278-0	01	1	9412-9511
53	02.483 BRACKET; HARNESS (A)	8-97062-178-3	01	1	9412-0105
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH) (A)	8-97062-178-3	01	1	0106-0212
53	02.483 BRACKET; HARNESS (B)	8-97321-820-1	01	1	0301-0501
53	02.483 BRACKET; HARNESS (D)	8-97377-701-0	01	1	0502-
53	02.483 BRACKET; HARNESS 02.480 (C)	8-97360-203-0	01	1	0301-0501
53	02.483 BRACKET; HARNESS (E)	8-98003-048-0	01	1	0502-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	9412-
312	02.559 BRACKET; CLIP HARNESS (A)	8-94442-081-1	01	1	9412-0212
312	02.559 BRACKET; CLIP HARNESS (C)	8-97355-918-0	01	1	0301-
312	02.559 BRACKET; CLIP HARNESS (B)	8-97017-072-2	01	1	9412-0105
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH) (B)	8-97017-072-2	01	1	0106-0212
412	02.559 BRACKET; HARNESS,TRANS M/T MYY5T(RSM) (A)	8-97324-451-1	01	1	0301-0501
412	02.559 BRACKET; HARNESS,TRANS (B)	8-97379-633-0	01	1	0502-
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) 03.008 L=80	5-22439-006-0	01	1	0507-
504	02.559 PROTECTOR; HARNESS 02.343 L=120	8-97117-880-0	01	1	0301-0501
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0502-
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0612-
514	02.559 FINISHER; HARNESS 4HK1-TCN ENG(RDQ) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-0507
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	03	1	9412-
514	02.559 FINISHER; HARNESS 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	9412-
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0301-0310
514	02.559 FINISHER; HARNESS 4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0311-0501
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500	1-79937-746-0	01	1	0311-0501

48 48 48 16 264 48 16 16 264 48 464 142 48 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	AR	1	9412-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9412-
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	AR	1	9412-
16	02.559 CLIP; HARNESS 03.162 (K) L=170	5-09707-054-0	AR	1	9412-9711
16	02.559 CLIP; HARNESS (A) L=100	8-94327-067-1	AR	1	9412-0212
16	02.559 CLIP; HARNESS (A) L=100	8-94327-067-1	AR	1	0612-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9412-
16	02.559 CLIP; HARNESS (G) ID=16.5 & 16.5	8-94468-380-0	AR	1	9412-9702
16	02.559 CLIP; HARNESS (H) ID=7-10	8-94472-578-0	AR	1	9412-9511
16	02.559 CLIP; HARNESS 02.694 (I) ID=6 & 10-13	8-97069-515-0	AR	1	9412-9903
16	02.559 CLIP; HARNESS (P) L=135	1-09987-143-1	AR	1	9904-
16	02.559 CLIP; HARNESS (J) ID=12.5-14.5	8-97087-726-0	AR	1	9412-9702
16	02.559 CLIP; HARNESS (B) L=175	8-97110-167-0	AR	1	9412-9810
16	02.559 CLIP; HARNESS (N) L=155	8-97173-307-0	AR	1	9412-
16	02.559 CLIP; HARNESS (L) ID=16.5 & 16.5	8-94473-320-0	AR	1	9703-9801
16	02.559 CLIP; HARNESS 01.166 (M) ID=22 & 22	8-94464-837-0	AR	1	9802-
16	02.559 CLIP; HARNESS (Q) ID=15-32	8-97174-404-0	AR	1	9703-
16	02.559 CLIP; HARNESS 03.162 (O) L=140	5-09707-031-1	AR	1	9712-
16	02.559 CLIP; HARNESS (R) ID=15-40	8-97223-033-1	AR	1	9904-0105
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	AR	1	9412-0212
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94169-650-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (I) L=170.3	1-09987-182-0	AR	1	0106-0212
48	02.559 CLIP; FRAME HARNESS 02.589 (M) ID=27	5-09700-323-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=4.5 & 9	5-09709-023-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS 04.785 (K) ID=11 L=28	9-09525-055-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	AR	1	0507-
48	02.559 CLIP; FRAME HARNESS 03.162 (O) L=140	5-09707-031-1	AR	1	0507-
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	AR	1	9412-0212
142	02.559 CLIP; HARNESS,ENG 03.483 (C)	8-97101-436-0	AR	1	0301-0501
142	02.559 CLIP; HARNESS,ENG (B) L=170.3	1-09987-182-0	AR	1	0301-
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	9412-0404
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0405-0501
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0405-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (A) ID=6.5	8-94257-639-0	AR	1	9412-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) ID=6	5-09700-316-0	AR	1	9604-9810
464	02.525 CLIP; SEDIMENTER HARNESS 01.240 (C) ID=14 L=47	5-09700-319-0	AR	1	9811-0309
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (D) T=6.0	5-09709-024-0	AR	1	0502-

16 16 102 16 22 488 142 220 483 484 22 102 16 205 48 142 16 16 16 14 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	9412-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	AR	1	9412-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9412-
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	AR	1	9412-
16	02.559 CLIP; HARNESS 03.162 (K) L=170	5-09707-054-0	AR	1	9412-9711
16	02.559 CLIP; HARNESS (A) L=100	8-94327-067-1	AR	1	9412-0212
16	02.559 CLIP; HARNESS (A) L=100	8-94327-067-1	AR	1	0612-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9412-
16	02.559 CLIP; HARNESS (G) ID=16.5 & 16.5	8-94468-380-0	AR	1	9412-9702
16	02.559 CLIP; HARNESS (H) ID=7-10	8-94472-578-0	AR	1	9412-9511
16	02.559 CLIP; HARNESS 02.694 (I) ID=6 & 10-13	8-97069-515-0	AR	1	9412-9903
16	02.559 CLIP; HARNESS (P) L=135	1-09987-143-1	AR	1	9904-
16	02.559 CLIP; HARNESS (J) ID=12.5-14.5	8-97087-726-0	AR	1	9412-9702
16	02.559 CLIP; HARNESS (B) L=175	8-97110-167-0	AR	1	9412-9810
16	02.559 CLIP; HARNESS (N) L=155	8-97173-307-0	AR	1	9412-
16	02.559 CLIP; HARNESS (L) ID=16.5 & 16.5	8-94473-320-0	AR	1	9703-9801
16	02.559 CLIP; HARNESS 01.166 (M) ID=22 & 22	8-94464-837-0	AR	1	9802-
16	02.559 CLIP; HARNESS (Q) ID=15-32	8-97174-404-0	AR	1	9703-
16	02.559 CLIP; HARNESS 03.162 (O) L=140	5-09707-031-1	AR	1	9712-
16	02.559 CLIP; HARNESS (R) ID=15-40	8-97223-033-1	AR	1	9904-0105
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=250	5-09707-030-1	01	1	0507-0508
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	01	1	0507-0508
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) L=250	5-09707-030-1	01	1	0509-
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	01	1	0509-
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	03	1	0507-0508
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	03	1	0509-
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 (B) L=170	5-09707-054-0	02	1	0507-0508
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 (B) L=170	5-09707-054-0	02	1	0509-
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	AR	1	9412-0212
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94169-650-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	AR	1	9412-
48	02.559 CLIP; FRAME HARNESS (I) L=170.3	1-09987-182-0	AR	1	0106-0212
48	02.559 CLIP; FRAME HARNESS 02.589 (M) ID=27	5-09700-323-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=4.5 & 9	5-09709-023-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS 04.785 (N) ID=9.6	8-94147-870-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS 04.785 (K) ID=11 L=28	9-09525-055-0	AR	1	0301-
48	02.559 CLIP; FRAME HARNESS (P) T=6.0	5-09709-024-0	AR	1	0507-
48	02.559 CLIP; FRAME HARNESS 03.162 (O) L=140	5-09707-031-1	AR	1	0507-
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 (A) L=140	5-09707-031-1	01	1	0507-0508
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 (B) L=170	5-09707-054-0	01	1	0507-0508
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 03.162 (B) L=170	5-09707-054-0	01	1	0509-
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	AR	1	9412-0212
142	02.559 CLIP; HARNESS,ENG 03.483 (C)	8-97101-436-0	AR	1	0301-0501
142	02.559 CLIP; HARNESS,ENG (B) L=170.3	1-09987-182-0	AR	1	0301-
205	02.559 CLIP; BACK LAMP HARNESS M/T MYY5T(RSM) L=135	1-09987-143-1	01	1	0301-
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MYY5T(RSM) 03.162 L=140	5-09707-031-1	01	1	0301-0310
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	0311-0501
483	02.559 CLIP; ENG HARNESS 03.162 L=140	5-09707-031-0	AR	1	9503-
484	02.559 CLIP; ECGI HARNESS TO C/MBR 03.162 L=140	5-09707-031-1	01	1	9909-0004
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	9412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
