Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#35832) — 678 parça

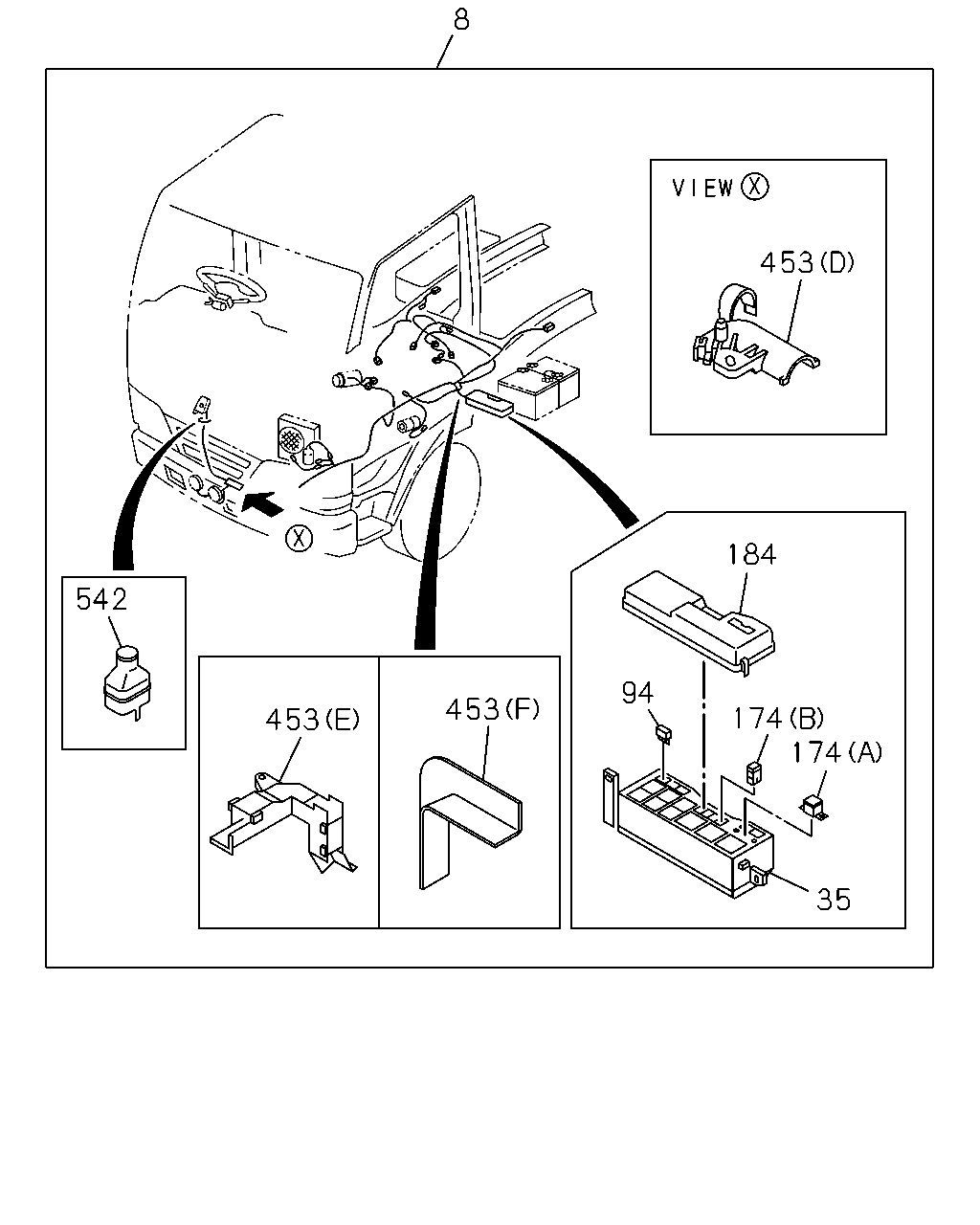

8 453 184 542 94 453 174 174 453 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-98046-723-1	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-015-0	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98010-905-1	01	1	0507-0610
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98062-164-0	01	1	0611-
8	02.480 HARNESS; FRAME,FRT	8-97106-637-1	01	1	9412-9502
8	02.480 HARNESS; FRAME,FRT	8-97129-701-1	01	1	9503-9511
8	02.480 HARNESS; FRAME,FRT	8-97131-791-0	01	1	9512-9711
8	02.480 HARNESS; FRAME,FRT	8-97187-902-0	01	1	9712-9810
8	02.480 HARNESS; FRAME,FRT	8-97217-618-1	01	1	9811-0105
8	02.480 HARNESS; FRAME,FRT	8-97261-029-1	01	1	0106-0212
8	02.480 HARNESS; FRAME,FRT	8-97360-201-1	01	1	0301-0309
8	02.480 HARNESS; FRAME,FRT 4HE1 ENG(RLY)	8-97360-201-2	01	1	0310-0310
8	02.480 HARNESS; FRAME,FRT 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3)	8-97360-201-2	01	1	0311-0501
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97373-972-2	01	1	0311-0501
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH)	8-97377-019-1	01	1	0502-0506
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-019-1	01	1	0507-
35	02.530 BOX; RELAY & FUSE	8-97063-150-1	01	1	9412-0309
35	02.530 BOX; RELAY & FUSE 4HE1 ENG(RLY)	8-97063-150-1	01	1	0310-0310
35	02.530 BOX; RELAY & FUSE 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3)	8-97063-150-1	01	1	0311-0501
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97063-150-1	01	1	0311-0501
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH)	8-97377-739-0	01	1	0502-0506
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-739-0	01	1	0507-0611
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-739-0	01	1	0507-0611
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-739-0	01	1	0612-0612
35	02.530 BOX; RELAY & FUSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-739-0	01	1	0612-0612
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-739-0	01	1	0612-
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-97377-739-0	01	1	0612-
35	02.530 BOX; RELAY & FUSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-739-0	01	1	0612-
94	02.483 DIODE; FRAME HARNESS BLACK 3P-1.5A	8-94422-640-1	AR	1	0301-0501
174	08.965 FUSE; SLOW BLOW (A) 60A YELLOW	8-94388-303-1	AR	1	9412-0501
174	08.965 FUSE; SLOW BLOW 02.483 (B) 60A YELLOW	8-94468-664-0	AR	1	9412-0501
174	08.965 FUSE; SLOW BLOW (A) 100A BLUE	8-94388-306-0	AR	1	0502-
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-97183-643-0	AR	1	0502-
174	08.965 FUSE; SLOW BLOW (B) 40A GREEN	8-97183-644-0	AR	1	0502-
174	08.965 FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	0502-
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH)	8-97377-741-0	01	1	0502-0506
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-741-0	01	1	0507-0611
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-741-0	01	1	0507-0611
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-741-0	01	1	0612-0612
184	02.559 COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-741-0	01	1	0612-0612
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-741-0	01	1	0612-
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-97377-741-0	01	1	0612-
184	02.559 COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-741-0	01	1	0612-
184	02.559 COVER; RELAY & FUSE BOX	8-97063-152-1	01	1	9412-0309
184	02.559 COVER; RELAY & FUSE BOX 4HE1 ENG(RLY)	8-97063-152-1	01	1	0310-0310
184	02.559 COVER; RELAY & FUSE BOX 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3)	8-97063-152-1	01	1	0311-0501
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97063-152-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G)	8-97088-615-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (H)	8-97062-169-0	01	1	0507-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (I)	8-97120-591-1	01	1	0507-
453	02.483 PROTECTOR; HARNESS (A)	8-97074-957-0	01	1	9512-0105
453	02.483 PROTECTOR; HARNESS (D)	8-97093-668-1	01	1	0106-0309
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (D)	8-97093-668-1	01	1	0310-0310
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) (D)	8-97093-668-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D)	8-97093-668-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (D)	8-97093-668-1	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D)	8-97093-668-1	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D)	8-97093-668-1	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS (D)	8-97093-668-1	01	1	0612-
453	02.483 PROTECTOR; HARNESS (E)	8-97120-589-0	01	1	0301-0309
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (E)	8-97120-589-0	01	1	0310-0310
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) (E)	8-97120-589-0	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-2	01	1	0106-0212
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97259-730-3	01	1	0301-0310
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) (C)	8-97259-730-3	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97259-730-3	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0106-0212
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (B)	8-97261-653-2	01	1	0301-0310
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97261-653-2	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97261-653-2	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (F)	8-94452-553-0	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
542	02.483 GROMMET; HARNESS	8-97041-956-1	01	1	9412-0501

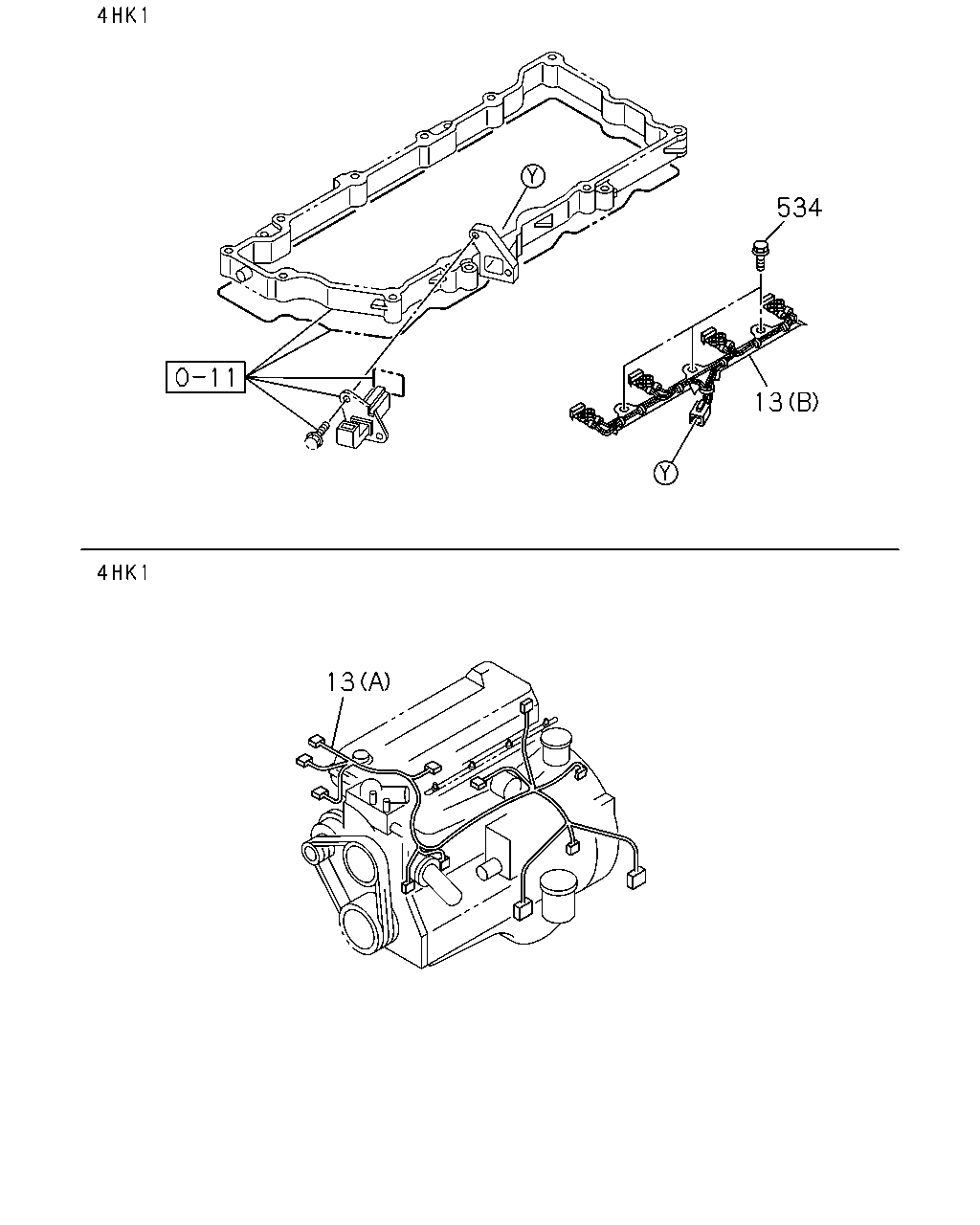

534 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) (A)	8-98048-566-1	01	1	0612-
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97385-474-1	01	1	0612-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (B)	8-97332-133-2	01	1	0507-0508
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (B)	8-97332-133-3	01	1	0509-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A)	8-97386-231-3	01	1	0507-0508
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A)	8-97386-231-3	01	1	0509-0509
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A)	8-98023-707-0	01	1	0510-
13	02.525 HARNESS; ENG (A)	8-97061-733-3	01	1	9503-9510
13	02.525 HARNESS; ENG (A)	8-97131-758-1	01	1	9511-9711
13	02.525 HARNESS; ENG (A)	8-97170-515-1	01	1	9712-0105
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) (A)	8-97170-515-1	01	1	0106-0212
13	02.525 HARNESS; ENG 4HE1 ENG(RLY) (A)	8-97358-943-0	01	1	0301-0310
13	02.525 HARNESS; ENG 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) (A)	8-97358-943-0	01	1	0311-0501
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> INDONESIA EQUIPMENT(S4S) GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) (A)	8-97373-973-0	01	1	0311-0501
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97373-973-0	01	1	0502-0502
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) (A)	8-97373-973-1	01	1	0502-
534	02.483 BOLT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 00.683 M10X55 FLANGE	8-94399-863-1	03	1	0507-0508
534	02.483 BOLT 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 00.683 M10X55 FLANGE	8-94399-863-1	03	1	0509-0805
534	02.483 BOLT 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> 00.683 M10X55 FLANGE	8-97365-449-0	03	1	0806-

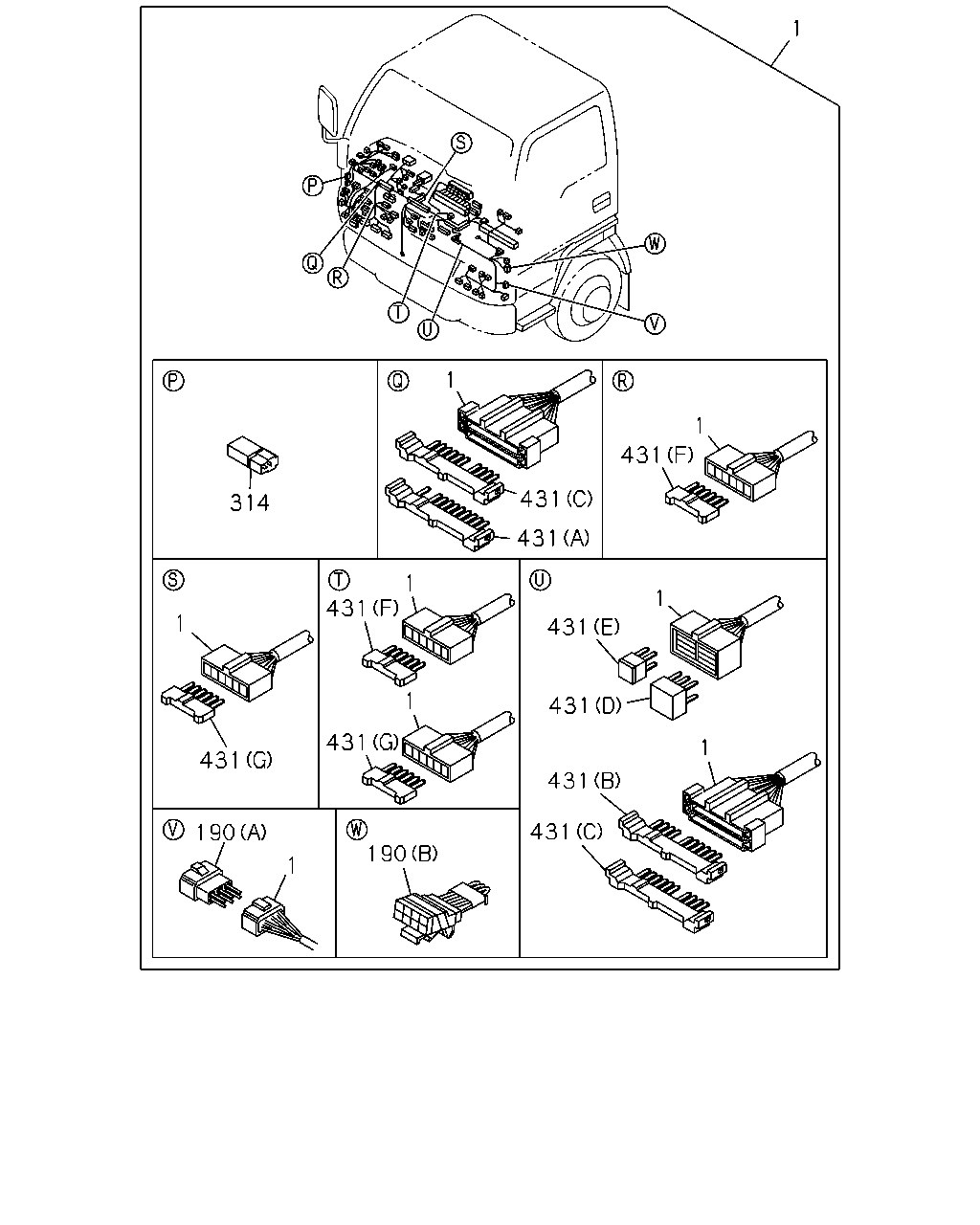

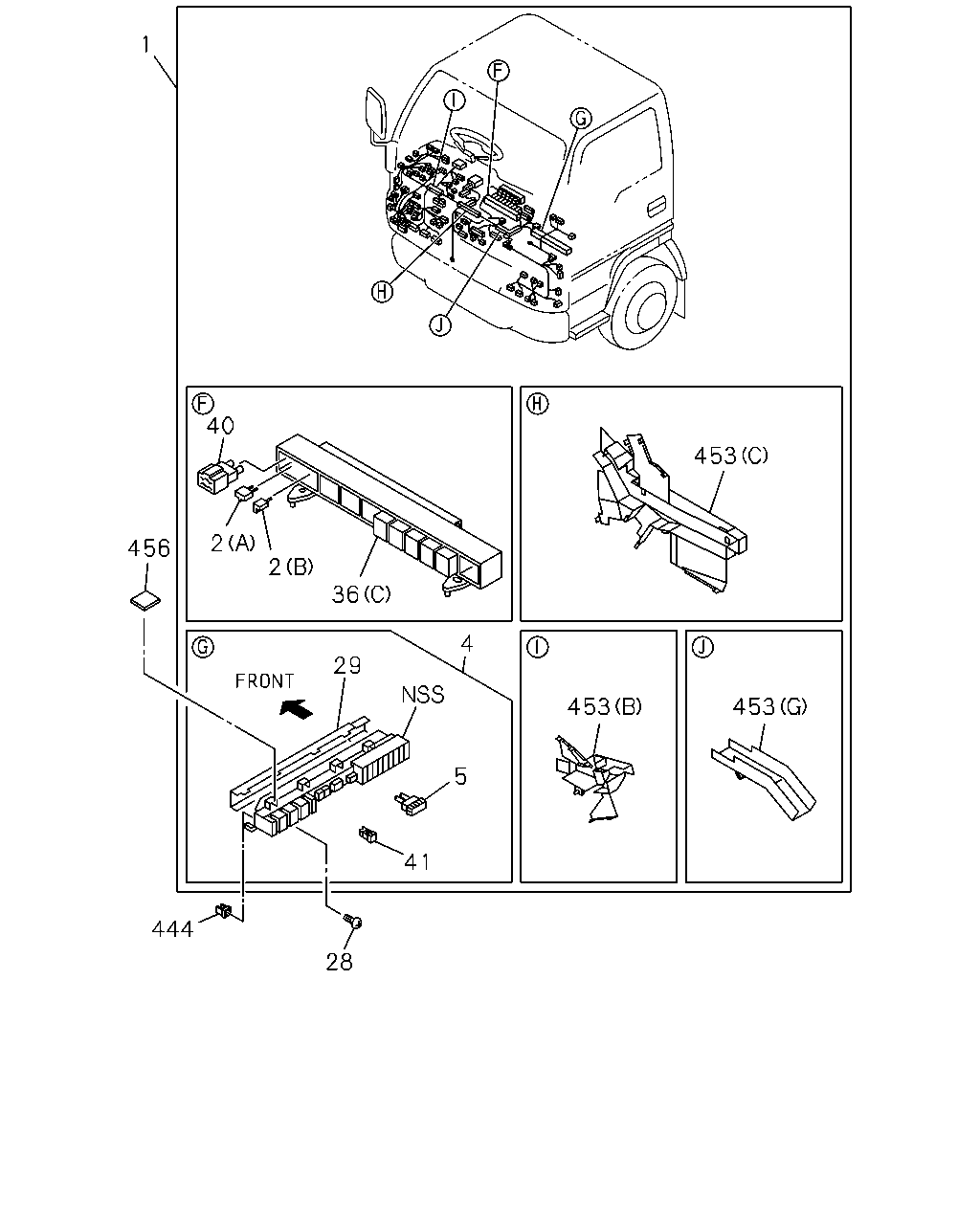

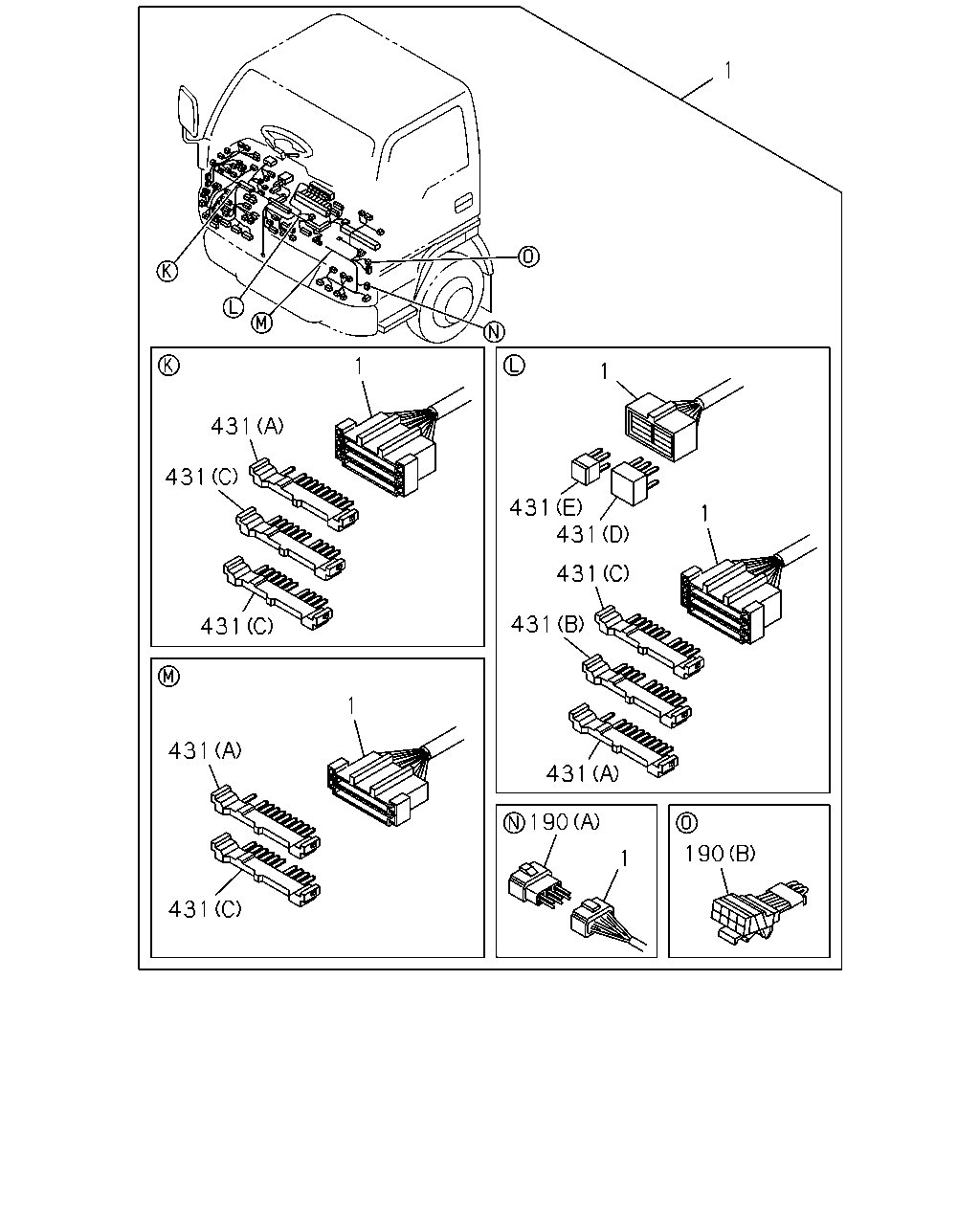

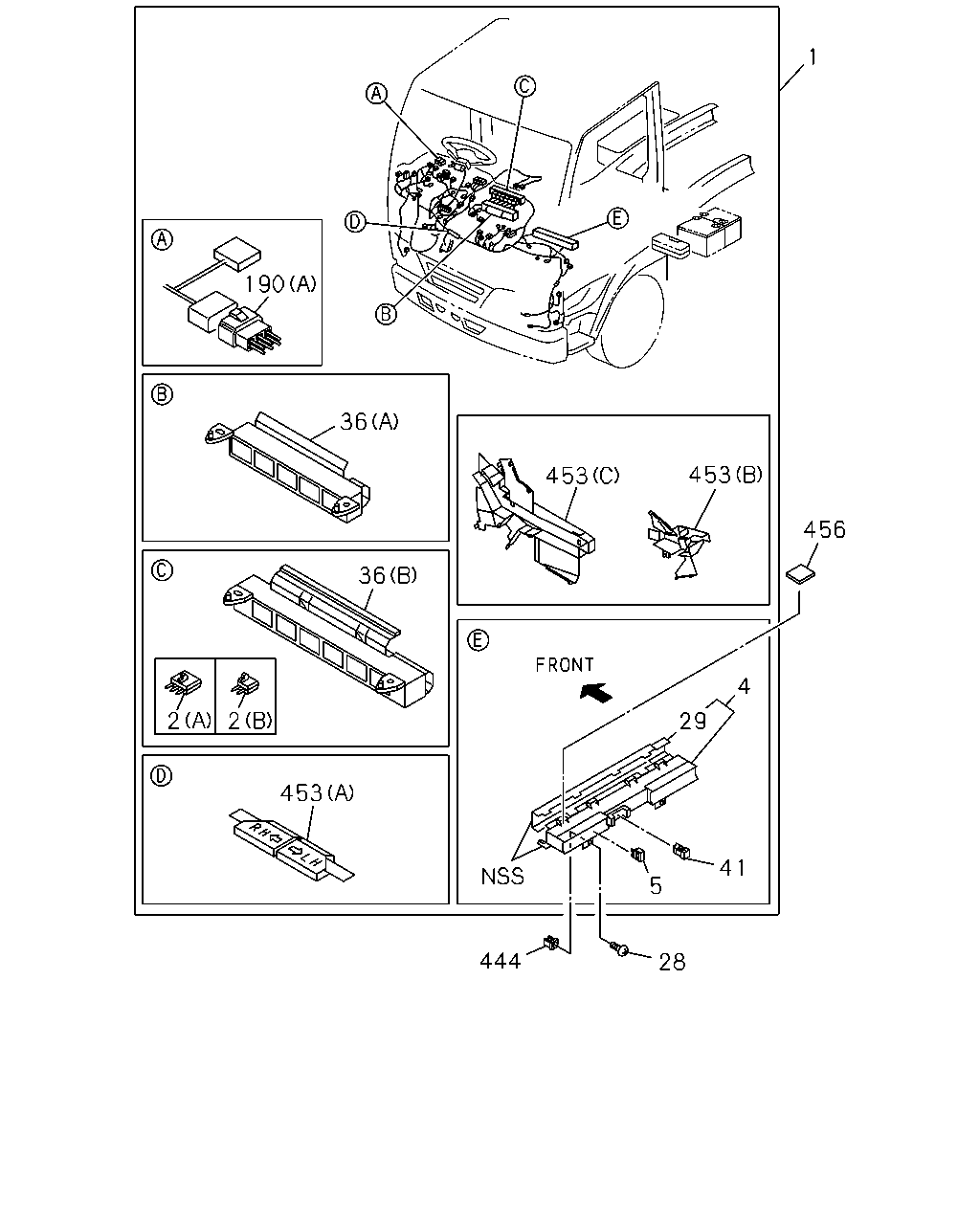

1 40 453 2 456 2 36 4 29 453 453 5 41 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP)	8-98046-727-0	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-014-0	01	1	0612-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98010-599-1	01	1	0507-0510
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98028-723-1	01	1	0511-0610
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98061-916-0	01	1	0611-
1	02.480 HARNESS; CAB	8-97104-612-2	01	1	9412-9511
1	02.480 HARNESS; CAB	8-97132-929-0	01	1	9512-9711
1	02.480 HARNESS; CAB	8-97185-313-0	01	1	9712-9810
1	02.480 HARNESS; CAB	8-97217-185-0	01	1	9811-9812
1	02.480 HARNESS; CAB	8-97217-186-1	01	1	9901-0105
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97260-555-1	01	1	0106-0111
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. REMOTE CONT DOOR LOCK<6NF>	8-97260-555-1	01	1	0112-0212
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97373-971-1	01	1	0311-0501
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-106-2	01	1	0502-0611
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-106-2	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) REMOTE CONT DOOR LOCK<6NF>	8-97326-602-0	01	1	0112-0212
1	02.480 HARNESS; CAB 4HE1 ENG(RLY)	8-97360-200-1	01	1	0301-0310
1	02.480 HARNESS; CAB 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97360-200-1	01	1	0311-0501
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	0507-
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	9412-
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	9811-9812
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	0611-
4	02.483 BOX ASM; FUSE,HARNESS	8-97077-664-0	01	1	9412-9810
4	02.483 BOX ASM; FUSE,HARNESS	8-97214-415-0	01	1	9811-0105
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97214-415-0	01	1	0106-0212
4	02.483 BOX ASM; FUSE,HARNESS 4HE1 ENG(RLY)	8-97214-415-0	01	1	0301-0310
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97214-415-0	01	1	0311-0501
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97187-921-1	01	1	0502-0506
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97187-921-1	01	1	0507-0611
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97187-921-1	01	1	0507-0611
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97187-921-1	01	1	0612-
4	02.483 BOX ASM; FUSE,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97187-921-1	01	1	0612-
5	02.485 FUSE; FACIA HARNESS 08.965 10A RED	5-82516-002-0	AR	1	9412-0501
5	02.485 FUSE; FACIA HARNESS 08.965 15A BLUE	5-82516-003-0	AR	1	9412-0501
5	02.485 FUSE; FACIA HARNESS 08.965 10A MINI RED	8-97062-022-0	AR	1	0502-
5	02.485 FUSE; FACIA HARNESS 08.965 15A MINI BLUE	8-97062-023-0	AR	1	0502-
5	02.485 FUSE; FACIA HARNESS 08.965 20A MINI YELLOW	8-97062-024-0	AR	1	0502-
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9412-0604
28	02.483 SCREW; FUSE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612
28	02.483 SCREW; FUSE BOX 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-
29	02.483 COVER; FUSE BOX	8-97074-955-0	01	1	9412-9711
29	02.483 COVER; FUSE BOX 4HG1 ENG(RJH)	8-97074-955-0	01	1	0502-0506
29	02.483 COVER; FUSE BOX 4HG1 ENG(RJH)	8-97074-955-0	01	1	0507-0611
29	02.483 COVER; FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97074-955-0	01	1	0507-0611
29	02.483 COVER; FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97074-955-0	01	1	0612-
29	02.483 COVER; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97074-955-0	01	1	0612-
36	02.530 BOX; RELAY (A)	8-97087-638-1	01	1	9412-0105
36	02.530 BOX; RELAY (B)	8-97087-639-1	01	1	9412-0105
36	02.530 BOX; RELAY 4HG1 ENG(RJH) (B)	8-97087-639-1	01	1	0106-0212
36	02.530 BOX; RELAY 4HE1 ENG(RLY) (B)	8-97087-639-1	01	1	0301-0310
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97087-639-1	01	1	0311-0501
36	02.530 BOX; RELAY 4HG1 ENG(RJH) (C)	8-97187-918-1	01	1	0502-0506
36	02.530 BOX; RELAY 4HG1 ENG(RJH) (C)	8-97187-918-1	01	1	0507-0611
36	02.530 BOX; RELAY 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97187-918-1	01	1	0507-0611
36	02.530 BOX; RELAY 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97187-918-1	01	1	0612-
36	02.530 BOX; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97187-918-1	01	1	0612-
36	02.530 BOX; RELAY 4HG1 ENG(RJH) (A)	8-97087-640-1	01	1	0106-0212
36	02.530 BOX; RELAY 4HE1 ENG(RLY) (A)	8-97087-640-1	01	1	0301-0310
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HE1 ENG(RLY) (A)	8-97087-640-1	01	1	0311-0501
36	02.530 BOX; RELAY 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	8-97087-640-2	01	1	0507-
40	02.483 BOX; DIODE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) BLACK 8P	8-97078-064-1	01	1	0611-
40	02.483 BOX; DIODE 4HG1 ENG(RJH) NATURAL 8P	8-97200-753-0	01	1	0502-0506
40	02.483 BOX; DIODE 4HG1 ENG(RJH) NATURAL 8P	8-97200-753-0	01	1	0507-0611
40	02.483 BOX; DIODE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) NATURAL 8P	8-97200-753-0	01	1	0507-0611
40	02.483 BOX; DIODE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) NATURAL 8P	8-97200-753-0	01	1	0612-
40	02.483 BOX; DIODE 4HG1-T ENG(RDP),4HG1 ENG(RJH) NATURAL 8P	8-97200-753-0	01	1	0612-
41	08.821 PULLER; FUSE 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	9412-0105
41	08.821 PULLER; FUSE 4HG1 ENG(RJH) 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0106-0212
41	08.821 PULLER; FUSE 4HE1 ENG(RLY) 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0301-0310
41	08.821 PULLER; FUSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0311-0501
41	08.821 PULLER; FUSE 4HG1 ENG(RJH)	8-97103-388-0	01	1	0502-0506
41	08.821 PULLER; FUSE 4HG1 ENG(RJH)	8-97103-388-0	01	1	0507-0611
41	08.821 PULLER; FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97103-388-0	01	1	0507-0611
41	08.821 PULLER; FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97103-388-0	01	1	0612-
41	08.821 PULLER; FUSE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97103-388-0	01	1	0612-
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9412-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G)	8-97088-615-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (H)	8-97062-169-0	01	1	0507-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (I)	8-97120-591-1	01	1	0507-
453	02.483 PROTECTOR; HARNESS (A)	8-97074-957-0	01	1	9512-0105
453	02.483 PROTECTOR; HARNESS (D)	8-97093-668-1	01	1	0106-0309
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (D)	8-97093-668-1	01	1	0310-0310
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) (D)	8-97093-668-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D)	8-97093-668-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (D)	8-97093-668-1	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D)	8-97093-668-1	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D)	8-97093-668-1	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS (D)	8-97093-668-1	01	1	0612-
453	02.483 PROTECTOR; HARNESS (E)	8-97120-589-0	01	1	0301-0309
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (E)	8-97120-589-0	01	1	0310-0310
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) (E)	8-97120-589-0	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-2	01	1	0106-0212
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97259-730-3	01	1	0301-0310
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) (C)	8-97259-730-3	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97259-730-3	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0106-0212
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (B)	8-97261-653-2	01	1	0301-0310
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97261-653-2	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97261-653-2	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (F)	8-94452-553-0	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	02	1	9412-9509
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	9510-

1 1 1 431 431 431 431 1 431 431 431 1 431 431 190 190 1 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP)	8-98046-727-0	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-014-0	01	1	0612-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98010-599-1	01	1	0507-0510
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98028-723-1	01	1	0511-0610
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98061-916-0	01	1	0611-
1	02.480 HARNESS; CAB	8-97104-612-2	01	1	9412-9511
1	02.480 HARNESS; CAB	8-97132-929-0	01	1	9512-9711
1	02.480 HARNESS; CAB	8-97185-313-0	01	1	9712-9810
1	02.480 HARNESS; CAB	8-97217-185-0	01	1	9811-9812
1	02.480 HARNESS; CAB	8-97217-186-1	01	1	9901-0105
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97260-555-1	01	1	0106-0111
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. REMOTE CONT DOOR LOCK<6NF>	8-97260-555-1	01	1	0112-0212
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97373-971-1	01	1	0311-0501
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-106-2	01	1	0502-0611
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-106-2	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) REMOTE CONT DOOR LOCK<6NF>	8-97326-602-0	01	1	0112-0212
1	02.480 HARNESS; CAB 4HE1 ENG(RLY)	8-97360-200-1	01	1	0301-0310
1	02.480 HARNESS; CAB 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97360-200-1	01	1	0311-0501
190	02.559 CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0607-
190	02.559 CONNECTOR; SHORT CIRCUIT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	5-82690-411-0	01	1	0507-
190	02.559 CONNECTOR; SHORT CIRCUIT (A)	5-82690-411-0	01	1	9412-0007
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (C) 10P GREEN	1-82699-599-0	04	1	0502-0611
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 10P GREEN	1-82699-599-0	04	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (A) 10P BROWN	1-82699-601-0	03	1	0502-0611
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 10P BROWN	1-82699-601-0	03	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (B) 10P BLUE	1-82699-598-0	01	1	0502-0506
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (B) 10P BLUE	1-82699-598-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B) 10P BLUE	1-82699-598-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B) 10P BLUE	1-82699-598-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) 10P BLUE	1-82699-598-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (E) 4P	8-97077-939-0	01	1	0502-0506
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (E) 4P	8-97077-939-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (E) 4P	8-97077-939-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (E) 4P	8-97077-939-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (E) 4P	8-97077-939-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (D) 6P	8-97077-941-0	01	1	0502-0506
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (D) 6P	8-97077-941-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D) 6P	8-97077-941-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D) 6P	8-97077-941-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (D) 6P	8-97077-941-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (F) 6P	1-82691-206-0	03	1	0507-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G) 3P & 3P	1-82698-170-0	03	1	0507-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C) 10P GREEN	1-82699-599-0	02	1	0507-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A) 10P BROWN	1-82699-601-0	01	1	0507-

1 190 36 453 453 456 36 4 2 2 29 453 41 5 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP)	8-98046-727-0	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-014-0	01	1	0612-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98010-599-1	01	1	0507-0510
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98028-723-1	01	1	0511-0610
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98061-916-0	01	1	0611-
1	02.480 HARNESS; CAB	8-97104-612-2	01	1	9412-9511
1	02.480 HARNESS; CAB	8-97132-929-0	01	1	9512-9711
1	02.480 HARNESS; CAB	8-97185-313-0	01	1	9712-9810
1	02.480 HARNESS; CAB	8-97217-185-0	01	1	9811-9812
1	02.480 HARNESS; CAB	8-97217-186-1	01	1	9901-0105
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97260-555-1	01	1	0106-0111
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. REMOTE CONT DOOR LOCK<6NF>	8-97260-555-1	01	1	0112-0212
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97373-971-1	01	1	0311-0501
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-106-2	01	1	0502-0611
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-106-2	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) REMOTE CONT DOOR LOCK<6NF>	8-97326-602-0	01	1	0112-0212
1	02.480 HARNESS; CAB 4HE1 ENG(RLY)	8-97360-200-1	01	1	0301-0310
1	02.480 HARNESS; CAB 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97360-200-1	01	1	0311-0501
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	0507-
2	02.483 DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	9412-
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	9811-9812
2	02.483 DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	0611-
4	02.483 BOX ASM; FUSE,HARNESS	8-97077-664-0	01	1	9412-9810
4	02.483 BOX ASM; FUSE,HARNESS	8-97214-415-0	01	1	9811-0105
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97214-415-0	01	1	0106-0212
4	02.483 BOX ASM; FUSE,HARNESS 4HE1 ENG(RLY)	8-97214-415-0	01	1	0301-0310
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97214-415-0	01	1	0311-0501
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97187-921-1	01	1	0502-0506
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH)	8-97187-921-1	01	1	0507-0611
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97187-921-1	01	1	0507-0611
4	02.483 BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97187-921-1	01	1	0612-
4	02.483 BOX ASM; FUSE,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97187-921-1	01	1	0612-
5	02.485 FUSE; FACIA HARNESS 08.965 10A RED	5-82516-002-0	AR	1	9412-0501
5	02.485 FUSE; FACIA HARNESS 08.965 15A BLUE	5-82516-003-0	AR	1	9412-0501
5	02.485 FUSE; FACIA HARNESS 08.965 10A MINI RED	8-97062-022-0	AR	1	0502-
5	02.485 FUSE; FACIA HARNESS 08.965 15A MINI BLUE	8-97062-023-0	AR	1	0502-
5	02.485 FUSE; FACIA HARNESS 08.965 20A MINI YELLOW	8-97062-024-0	AR	1	0502-
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9412-0604
28	02.483 SCREW; FUSE BOX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-0612
28	02.483 SCREW; FUSE BOX 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-
29	02.483 COVER; FUSE BOX	8-97074-955-0	01	1	9412-9711
29	02.483 COVER; FUSE BOX 4HG1 ENG(RJH)	8-97074-955-0	01	1	0502-0506
29	02.483 COVER; FUSE BOX 4HG1 ENG(RJH)	8-97074-955-0	01	1	0507-0611
29	02.483 COVER; FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97074-955-0	01	1	0507-0611
29	02.483 COVER; FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97074-955-0	01	1	0612-
29	02.483 COVER; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97074-955-0	01	1	0612-
36	02.530 BOX; RELAY (A)	8-97087-638-1	01	1	9412-0105
36	02.530 BOX; RELAY (B)	8-97087-639-1	01	1	9412-0105
36	02.530 BOX; RELAY 4HG1 ENG(RJH) (B)	8-97087-639-1	01	1	0106-0212
36	02.530 BOX; RELAY 4HE1 ENG(RLY) (B)	8-97087-639-1	01	1	0301-0310
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97087-639-1	01	1	0311-0501
36	02.530 BOX; RELAY 4HG1 ENG(RJH) (C)	8-97187-918-1	01	1	0502-0506
36	02.530 BOX; RELAY 4HG1 ENG(RJH) (C)	8-97187-918-1	01	1	0507-0611
36	02.530 BOX; RELAY 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97187-918-1	01	1	0507-0611
36	02.530 BOX; RELAY 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97187-918-1	01	1	0612-
36	02.530 BOX; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97187-918-1	01	1	0612-
36	02.530 BOX; RELAY 4HG1 ENG(RJH) (A)	8-97087-640-1	01	1	0106-0212
36	02.530 BOX; RELAY 4HE1 ENG(RLY) (A)	8-97087-640-1	01	1	0301-0310
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HE1 ENG(RLY) (A)	8-97087-640-1	01	1	0311-0501
36	02.530 BOX; RELAY 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	8-97087-640-2	01	1	0507-
41	08.821 PULLER; FUSE 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	9412-0105
41	08.821 PULLER; FUSE 4HG1 ENG(RJH) 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0106-0212
41	08.821 PULLER; FUSE 4HE1 ENG(RLY) 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0301-0310
41	08.821 PULLER; FUSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0311-0501
41	08.821 PULLER; FUSE 4HG1 ENG(RJH)	8-97103-388-0	01	1	0502-0506
41	08.821 PULLER; FUSE 4HG1 ENG(RJH)	8-97103-388-0	01	1	0507-0611
41	08.821 PULLER; FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97103-388-0	01	1	0507-0611
41	08.821 PULLER; FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97103-388-0	01	1	0612-
41	08.821 PULLER; FUSE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97103-388-0	01	1	0612-
190	02.559 CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0607-
190	02.559 CONNECTOR; SHORT CIRCUIT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	5-82690-411-0	01	1	0507-
190	02.559 CONNECTOR; SHORT CIRCUIT (A)	5-82690-411-0	01	1	9412-0007
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9412-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G)	8-97088-615-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (H)	8-97062-169-0	01	1	0507-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (I)	8-97120-591-1	01	1	0507-
453	02.483 PROTECTOR; HARNESS (A)	8-97074-957-0	01	1	9512-0105
453	02.483 PROTECTOR; HARNESS (D)	8-97093-668-1	01	1	0106-0309
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (D)	8-97093-668-1	01	1	0310-0310
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) (D)	8-97093-668-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D)	8-97093-668-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (D)	8-97093-668-1	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D)	8-97093-668-1	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D)	8-97093-668-1	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS (D)	8-97093-668-1	01	1	0612-
453	02.483 PROTECTOR; HARNESS (E)	8-97120-589-0	01	1	0301-0309
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (E)	8-97120-589-0	01	1	0310-0310
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) (E)	8-97120-589-0	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-2	01	1	0106-0212
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97259-730-3	01	1	0301-0310
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) (C)	8-97259-730-3	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97259-730-3	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0106-0212
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (B)	8-97261-653-2	01	1	0301-0310
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97261-653-2	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97261-653-2	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (F)	8-94452-553-0	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	02	1	9412-9509
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5	8-94270-366-2	01	1	9510-

1 1 1 431 431 314 431 1 431 1 1 431 1 431 431 1 431 431 190 431 190 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP)	8-98046-727-0	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-014-0	01	1	0612-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98010-599-1	01	1	0507-0510
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98028-723-1	01	1	0511-0610
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98061-916-0	01	1	0611-
1	02.480 HARNESS; CAB	8-97104-612-2	01	1	9412-9511
1	02.480 HARNESS; CAB	8-97132-929-0	01	1	9512-9711
1	02.480 HARNESS; CAB	8-97185-313-0	01	1	9712-9810
1	02.480 HARNESS; CAB	8-97217-185-0	01	1	9811-9812
1	02.480 HARNESS; CAB	8-97217-186-1	01	1	9901-0105
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97260-555-1	01	1	0106-0111
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. REMOTE CONT DOOR LOCK<6NF>	8-97260-555-1	01	1	0112-0212
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97373-971-1	01	1	0311-0501
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-106-2	01	1	0502-0611
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-106-2	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) REMOTE CONT DOOR LOCK<6NF>	8-97326-602-0	01	1	0112-0212
1	02.480 HARNESS; CAB 4HE1 ENG(RLY)	8-97360-200-1	01	1	0301-0310
1	02.480 HARNESS; CAB 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97360-200-1	01	1	0311-0501
190	02.559 CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0607-
190	02.559 CONNECTOR; SHORT CIRCUIT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A)	5-82690-411-0	01	1	0507-
190	02.559 CONNECTOR; SHORT CIRCUIT (A)	5-82690-411-0	01	1	9412-0007
314	02.510 RESISTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) BLUE	1-82691-204-0	01	1	0507-0607
314	02.510 RESISTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) BLUE	1-82691-204-0	02	1	0608-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (C) 10P GREEN	1-82699-599-0	04	1	0502-0611
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 10P GREEN	1-82699-599-0	04	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (A) 10P BROWN	1-82699-601-0	03	1	0502-0611
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 10P BROWN	1-82699-601-0	03	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (B) 10P BLUE	1-82699-598-0	01	1	0502-0506
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (B) 10P BLUE	1-82699-598-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B) 10P BLUE	1-82699-598-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B) 10P BLUE	1-82699-598-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) 10P BLUE	1-82699-598-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (E) 4P	8-97077-939-0	01	1	0502-0506
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (E) 4P	8-97077-939-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (E) 4P	8-97077-939-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (E) 4P	8-97077-939-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (E) 4P	8-97077-939-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (E) 4P	8-97077-939-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (D) 6P	8-97077-941-0	01	1	0502-0506
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) (D) 6P	8-97077-941-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D) 6P	8-97077-941-0	01	1	0507-0611
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D) 6P	8-97077-941-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (D) 6P	8-97077-941-0	01	1	0612-0612
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D) 6P	8-97077-941-0	01	1	0612-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (F) 6P	1-82691-206-0	03	1	0507-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G) 3P & 3P	1-82698-170-0	03	1	0507-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C) 10P GREEN	1-82699-599-0	02	1	0507-
431	02.530 CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (A) 10P BROWN	1-82699-601-0	01	1	0507-

13 208 1 416 483 8 8 347 9 443 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP)	8-98046-727-0	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-014-0	01	1	0612-
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98010-599-1	01	1	0507-0510
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98028-723-1	01	1	0511-0610
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98061-916-0	01	1	0611-
1	02.480 HARNESS; CAB	8-97104-612-2	01	1	9412-9511
1	02.480 HARNESS; CAB	8-97132-929-0	01	1	9512-9711
1	02.480 HARNESS; CAB	8-97185-313-0	01	1	9712-9810
1	02.480 HARNESS; CAB	8-97217-185-0	01	1	9811-9812
1	02.480 HARNESS; CAB	8-97217-186-1	01	1	9901-0105
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97260-555-1	01	1	0106-0111
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) EXC. REMOTE CONT DOOR LOCK<6NF>	8-97260-555-1	01	1	0112-0212
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97373-971-1	01	1	0311-0501
1	02.480 HARNESS; CAB 4HG1 ENG(RJH)	8-97377-106-2	01	1	0502-0611
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-106-2	01	1	0612-
1	02.480 HARNESS; CAB 4HG1 ENG(RJH) REMOTE CONT DOOR LOCK<6NF>	8-97326-602-0	01	1	0112-0212
1	02.480 HARNESS; CAB 4HE1 ENG(RLY)	8-97360-200-1	01	1	0301-0310
1	02.480 HARNESS; CAB 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97360-200-1	01	1	0311-0501
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-98046-723-1	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-015-0	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98010-905-1	01	1	0507-0610
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98062-164-0	01	1	0611-
8	02.480 HARNESS; FRAME,FRT	8-97106-637-1	01	1	9412-9502
8	02.480 HARNESS; FRAME,FRT	8-97129-701-1	01	1	9503-9511
8	02.480 HARNESS; FRAME,FRT	8-97131-791-0	01	1	9512-9711
8	02.480 HARNESS; FRAME,FRT	8-97187-902-0	01	1	9712-9810
8	02.480 HARNESS; FRAME,FRT	8-97217-618-1	01	1	9811-0105
8	02.480 HARNESS; FRAME,FRT	8-97261-029-1	01	1	0106-0212
8	02.480 HARNESS; FRAME,FRT	8-97360-201-1	01	1	0301-0309
8	02.480 HARNESS; FRAME,FRT 4HE1 ENG(RLY)	8-97360-201-2	01	1	0310-0310
8	02.480 HARNESS; FRAME,FRT 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3)	8-97360-201-2	01	1	0311-0501
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97373-972-2	01	1	0311-0501
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH)	8-97377-019-1	01	1	0502-0506
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-019-1	01	1	0507-
9	02.480 HARNESS; FRAME,RR	8-97066-535-2	01	1	9412-9511
9	02.480 HARNESS; FRAME,RR	8-97126-405-1	01	1	9512-9810
9	02.480 HARNESS; FRAME,RR	8-97377-066-1	01	1	0502-
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41) (A)	8-98048-566-1	01	1	0612-
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97385-474-1	01	1	0612-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (B)	8-97332-133-2	01	1	0507-0508
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (B)	8-97332-133-3	01	1	0509-
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A)	8-97386-231-3	01	1	0507-0508
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A)	8-97386-231-3	01	1	0509-0509
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A)	8-98023-707-0	01	1	0510-
13	02.525 HARNESS; ENG (A)	8-97061-733-3	01	1	9503-9510
13	02.525 HARNESS; ENG (A)	8-97131-758-1	01	1	9511-9711
13	02.525 HARNESS; ENG (A)	8-97170-515-1	01	1	9712-0105
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) (A)	8-97170-515-1	01	1	0106-0212
13	02.525 HARNESS; ENG 4HE1 ENG(RLY) (A)	8-97358-943-0	01	1	0301-0310
13	02.525 HARNESS; ENG 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) (A)	8-97358-943-0	01	1	0311-0501
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> POWER STEERING<N40> INDONESIA EQUIPMENT(S4S) GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) (A)	8-97373-973-0	01	1	0311-0501
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97373-973-0	01	1	0502-0502
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) (A)	8-97373-973-1	01	1	0502-
208	02.483 HOLDER; CONNECTOR 4HE1 ENG(RLY)	8-94459-973-1	01	1	0301-0310
208	02.483 HOLDER; CONNECTOR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-94459-973-1	01	1	0311-0501
347	02.480 HARNESS; CABLE,RR BODY	8-97066-547-1	01	1	9412-9511
347	02.480 HARNESS; CABLE,RR BODY	8-97126-418-0	01	1	9512-9705
347	02.480 HARNESS; CABLE,RR BODY	8-97147-858-1	01	1	9706-9810
347	02.480 HARNESS; CABLE,RR BODY	8-97213-568-0	01	1	9811-0302
347	02.480 HARNESS; CABLE,RR BODY	8-97364-152-0	01	1	0303-
416	02.559 NUT; TERMINAL 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9412-0105
416	02.559 NUT; TERMINAL 4HG1 ENG(RJH) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0106-0212
416	02.559 NUT; TERMINAL 4HG1 ENG(RJH) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0311-0611
416	02.559 NUT; TERMINAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0612-
443	02.480 HARNESS; EXT,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)	8-98012-984-1	01	1	0507-
483	02.480 HARNESS; EXT,RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ)	8-97383-850-0	01	1	0507-

8 453 27 184 174 174 453 453 35 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-98046-723-1	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-98069-015-0	01	1	0612-
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98010-905-1	01	1	0507-0610
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-98062-164-0	01	1	0611-
8	02.480 HARNESS; FRAME,FRT	8-97106-637-1	01	1	9412-9502
8	02.480 HARNESS; FRAME,FRT	8-97129-701-1	01	1	9503-9511
8	02.480 HARNESS; FRAME,FRT	8-97131-791-0	01	1	9512-9711
8	02.480 HARNESS; FRAME,FRT	8-97187-902-0	01	1	9712-9810
8	02.480 HARNESS; FRAME,FRT	8-97217-618-1	01	1	9811-0105
8	02.480 HARNESS; FRAME,FRT	8-97261-029-1	01	1	0106-0212
8	02.480 HARNESS; FRAME,FRT	8-97360-201-1	01	1	0301-0309
8	02.480 HARNESS; FRAME,FRT 4HE1 ENG(RLY)	8-97360-201-2	01	1	0310-0310
8	02.480 HARNESS; FRAME,FRT 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3)	8-97360-201-2	01	1	0311-0501
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97373-972-2	01	1	0311-0501
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH)	8-97377-019-1	01	1	0502-0506
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-019-1	01	1	0507-
27	08.965 FUSE UNIT 10A MINI RED	8-97062-022-0	AR	1	0502-
27	08.965 FUSE UNIT 15A MINI BLUE	8-97062-023-0	AR	1	0502-
27	08.965 FUSE UNIT 20A MINI YELLOW	8-97062-024-0	AR	1	0502-
35	02.530 BOX; RELAY & FUSE	8-97063-150-1	01	1	9412-0309
35	02.530 BOX; RELAY & FUSE 4HE1 ENG(RLY)	8-97063-150-1	01	1	0310-0310
35	02.530 BOX; RELAY & FUSE 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3)	8-97063-150-1	01	1	0311-0501
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97063-150-1	01	1	0311-0501
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH)	8-97377-739-0	01	1	0502-0506
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-739-0	01	1	0507-0611
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-739-0	01	1	0507-0611
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-739-0	01	1	0612-0612
35	02.530 BOX; RELAY & FUSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-739-0	01	1	0612-0612
35	02.530 BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-739-0	01	1	0612-
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-97377-739-0	01	1	0612-
35	02.530 BOX; RELAY & FUSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-739-0	01	1	0612-
174	08.965 FUSE; SLOW BLOW (A) 60A YELLOW	8-94388-303-1	AR	1	9412-0501
174	08.965 FUSE; SLOW BLOW 02.483 (B) 60A YELLOW	8-94468-664-0	AR	1	9412-0501
174	08.965 FUSE; SLOW BLOW (A) 100A BLUE	8-94388-306-0	AR	1	0502-
174	08.965 FUSE; SLOW BLOW (B) 30A PINK	8-97183-643-0	AR	1	0502-
174	08.965 FUSE; SLOW BLOW (B) 40A GREEN	8-97183-644-0	AR	1	0502-
174	08.965 FUSE; SLOW BLOW (B) 60A YELLOW	8-97219-407-0	AR	1	0502-
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH)	8-97377-741-0	01	1	0502-0506
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-741-0	01	1	0507-0611
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-741-0	01	1	0507-0611
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-741-0	01	1	0612-0612
184	02.559 COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-741-0	01	1	0612-0612
184	02.559 COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3)	8-97377-741-0	01	1	0612-
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S)	8-97377-741-0	01	1	0612-
184	02.559 COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97377-741-0	01	1	0612-
184	02.559 COVER; RELAY & FUSE BOX	8-97063-152-1	01	1	9412-0309
184	02.559 COVER; RELAY & FUSE BOX 4HE1 ENG(RLY)	8-97063-152-1	01	1	0310-0310
184	02.559 COVER; RELAY & FUSE BOX 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3)	8-97063-152-1	01	1	0311-0501
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S)	8-97063-152-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G)	8-97088-615-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (G)	8-97088-615-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (H)	8-97062-169-0	01	1	0507-
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (I)	8-97120-591-1	01	1	0507-
453	02.483 PROTECTOR; HARNESS (A)	8-97074-957-0	01	1	9512-0105
453	02.483 PROTECTOR; HARNESS (D)	8-97093-668-1	01	1	0106-0309
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (D)	8-97093-668-1	01	1	0310-0310
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) (D)	8-97093-668-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D)	8-97093-668-1	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (D)	8-97093-668-1	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (D)	8-97093-668-1	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (D)	8-97093-668-1	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS (D)	8-97093-668-1	01	1	0612-
453	02.483 PROTECTOR; HARNESS (E)	8-97120-589-0	01	1	0301-0309
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (E)	8-97120-589-0	01	1	0310-0310
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) AUSTRALIA EQUIPMENT(RR3) (E)	8-97120-589-0	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-2	01	1	0106-0212
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (C)	8-97259-730-3	01	1	0301-0310
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) (C)	8-97259-730-3	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97259-730-3	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (C)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97259-730-3	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0106-0212
453	02.483 PROTECTOR; HARNESS 4HE1 ENG(RLY) (B)	8-97261-653-2	01	1	0301-0310
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97261-653-2	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97261-653-2	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) AUSTRALIA EQUIPMENT(RR3) (B)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97261-653-2	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0311-0501
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) (F)	8-94452-553-0	01	1	0502-0506
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0507-0611
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-0612
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH) EXC. INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) INDONESIA EQUIPMENT(S4S) (F)	8-94452-553-0	01	1	0612-

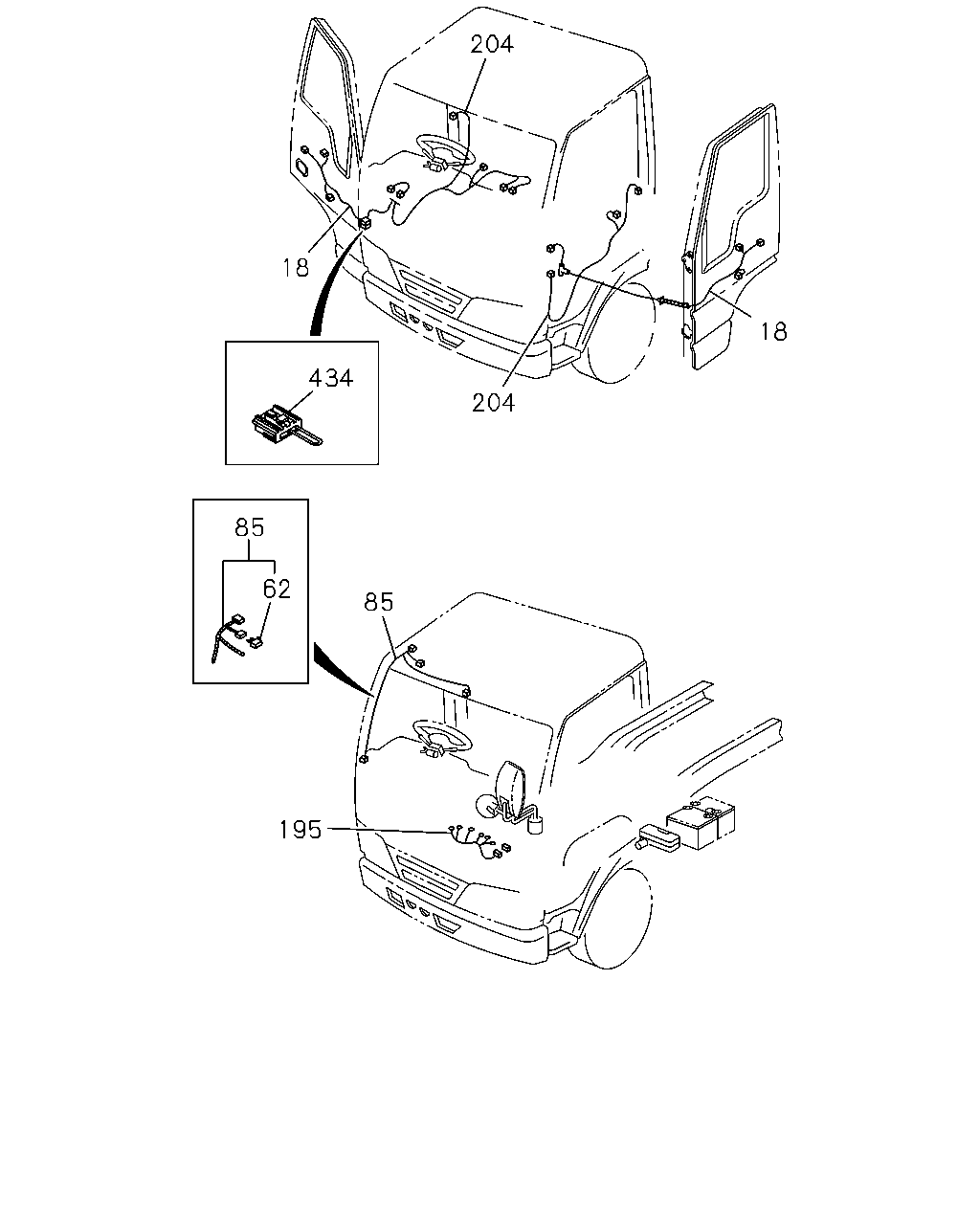

204 18 18 434 204 85 62 85 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4>	8-97226-669-0	01	1	1011-
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	1011-
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	1011-
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0507-
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97105-571-1	01	1	0507-
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0507-
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0507-1009
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	0507-1009
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0507-1009
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-98166-819-0	01	1	1010-1010
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1011-
18	02.480 HARNESS; DOOR AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97312-148-0	01	1	0507-
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0311-0501
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97226-671-1	01	1	0311-0501
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97226-671-1	01	1	0311-0501
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0311-0501
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97105-571-1	01	1	0311-0501
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97105-571-1	01	1	0311-0501
18	02.480 HARNESS; DOOR	8-97185-142-1	01	1	0502-0506
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97185-142-1	01	1	0507-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<6NF>	8-97185-142-1	01	1	0507-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97104-619-1	01	1	9412-9708
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-146-0	01	1	9709-9810
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97217-197-0	01	1	9811-0105
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0106-0212
18	02.480 HARNESS; DOOR	8-97226-669-0	01	1	0301-0310
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0311-0501
18	02.480 HARNESS; DOOR	8-97226-669-0	01	1	0502-0506
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0507-1009
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1010-1010
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1011-
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97104-617-0	01	1	9412-9708
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-145-0	01	1	9709-9810
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97217-195-0	01	1	9811-0105
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-142-1	01	1	0106-0111
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97185-142-1	01	1	0112-0212
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97185-142-1	01	1	0311-0501
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97104-618-1	01	1	9412-9810
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97104-616-0	01	1	9412-9810
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97217-196-0	01	1	9811-0105
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97226-671-0	01	1	0106-0212
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97217-194-0	01	1	9811-0105
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97105-571-0	01	1	0106-0212
18	02.480 HARNESS; DOOR REMOTE CONT DOOR LOCK<6NF>	8-97312-148-0	01	1	0112-0212
18	02.480 HARNESS; DOOR	8-97312-148-0	01	1	0301-0310
18	02.480 HARNESS; DOOR AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97312-148-0	01	1	0311-0404
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> REMOTE CONT DOOR LOCK<6NF>	8-97312-148-0	01	1	0405-0501
62	02.530 DIODE; HARNESS 02.483 BLACK 2P-1.5A	8-94422-639-1	AR	1	9412-9603
85	06.495 HARNESS; ROOM LAMP	8-97075-745-3	01	1	9412-9603
85	06.495 HARNESS; ROOM LAMP	8-97145-826-0	01	1	9604-9705
85	06.495 HARNESS; ROOM LAMP	8-97164-611-1	01	1	9706-0105
85	06.495 HARNESS; ROOM LAMP	8-97307-518-0	01	1	0106-0302
85	06.495 HARNESS; ROOM LAMP	8-97364-161-0	01	1	0303-0310
85	06.495 HARNESS; ROOM LAMP AUSTRALIA EQUIPMENT(RR3)	8-97364-161-0	01	1	0311-0501
85	06.495 HARNESS; ROOM LAMP AUSTRALIA EQUIPMENT(RR3)	8-97364-161-0	01	1	0507-
85	06.495 HARNESS; ROOM LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-97364-159-0	01	1	0311-0501
85	06.495 HARNESS; ROOM LAMP	8-97364-159-0	01	1	0502-0506
85	06.495 HARNESS; ROOM LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-97364-159-0	01	1	0507-
195	01.150 HARNESS; EXT 4HE1 ENG(RLY)	8-97306-681-0	01	1	0301-0310
195	01.150 HARNESS; EXT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97306-681-0	01	1	0311-0501
204	02.559 HARNESS; CABLE,FLOOR	8-97162-631-2	01	1	0106-0302
204	02.559 HARNESS; CABLE,FLOOR	8-97364-140-0	01	1	0303-0310
204	02.559 HARNESS; CABLE,FLOOR FLOOR REMOTE SHIFT<M11>	8-97364-140-0	01	1	0311-0501
204	02.559 HARNESS; CABLE,FLOOR	8-97364-140-0	01	1	0502-0502
204	02.559 HARNESS; CABLE,FLOOR M/T MYY5T(RSM)	8-97364-140-0	01	1	0503-
204	02.559 HARNESS; CABLE,FLOOR	8-97095-382-2	01	1	9412-9705
204	02.559 HARNESS; CABLE,FLOOR	8-97162-629-2	01	1	9706-0302
204	02.559 HARNESS; CABLE,FLOOR	8-97364-145-0	01	1	0303-0310
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF)	8-97364-145-0	01	1	0311-0501
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF)	8-97364-145-0	01	1	0507-
434	02.559 CONNECTOR; SHORT CIRCUIT 4HK1-TCN ENG(RDQ)	8-97388-448-0	01	1	0507-
434	02.559 CONNECTOR; SHORT CIRCUIT 4HE1 ENG(RLY)	8-97140-182-0	01	1	0301-0310
434	02.559 CONNECTOR; SHORT CIRCUIT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV)	8-97140-182-0	01	1	0311-0501

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
