8-03 — LAMP; REAR AND REAR SIDE (#35831) — 94 parça

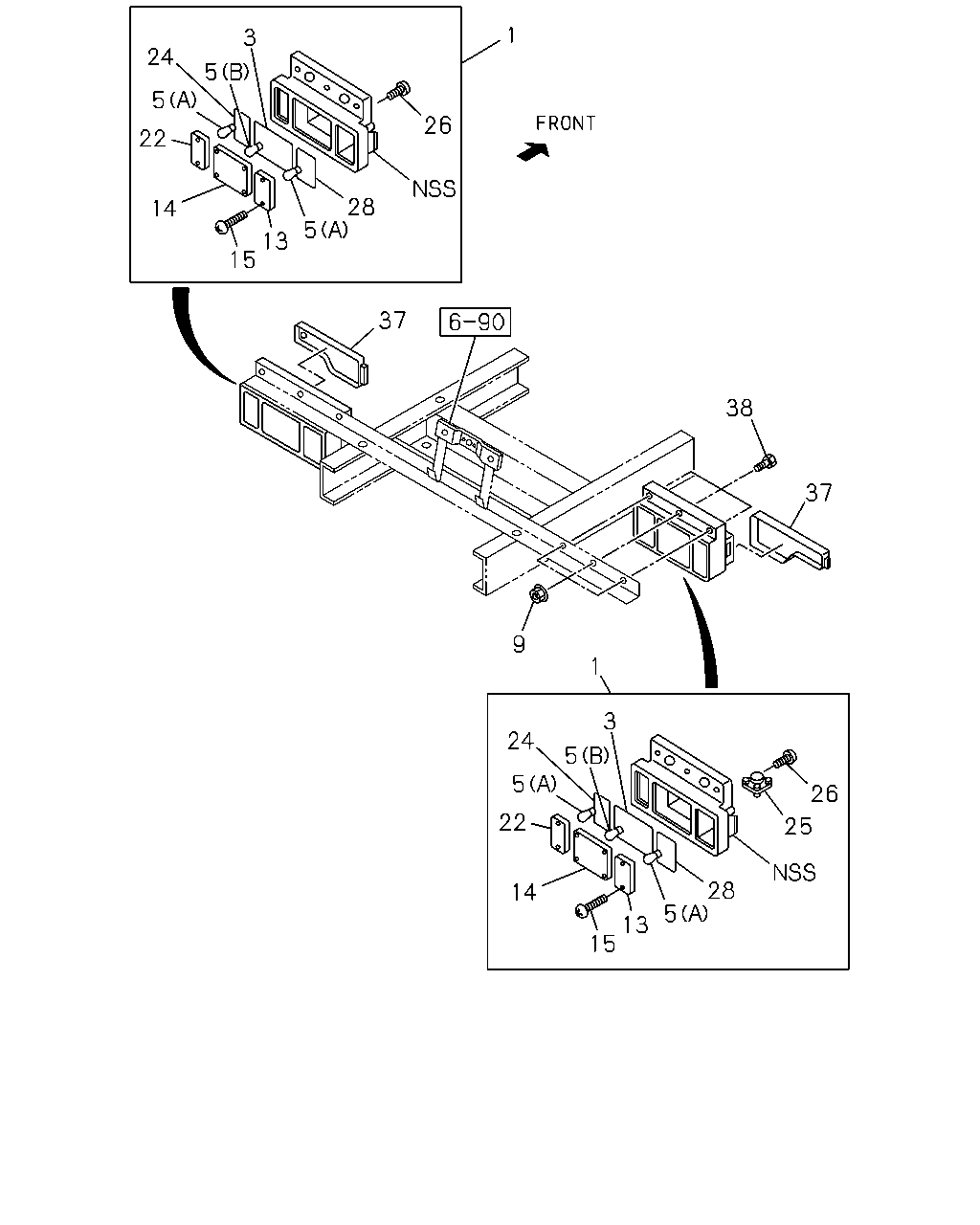

1 3 24 5 5 26 22 28 14 5 13 15 37 38 37 9 1 3 24 5 5 26 22 25 28 14 5 13 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.679 LAMP ASM; RR COMB	8-94178-621-1	01	1	9412-9809
1	02.679 LAMP ASM; RR COMB	8-97213-361-0	01	1	9810-9810
1	02.679 LAMP ASM; RR COMB	8-97213-369-0	01	1	9811-0806
1	02.679 LAMP ASM; RR COMB	8-98034-325-0	01	1	0807-
1	02.679 LAMP ASM; RR COMB	8-94178-623-2	01	1	9412-9809
1	02.679 LAMP ASM; RR COMB	8-97213-362-0	01	1	9810-9810
1	02.679 LAMP ASM; RR COMB	8-97213-370-0	01	1	9811-0310
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-97213-370-0	01	1	0311-0501
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-97213-370-0	01	1	0507-0806
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9>	8-98120-440-0	01	1	0807-
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	0311-0501
1	02.679 LAMP ASM; RR COMB	8-97213-368-0	01	1	0502-0506
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	0507-0806
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-98034-324-0	01	1	0807-
3	02.684 GASKET; RR COMB LAMP	8-94257-505-0	02	1	9412-
5	08.991 BULB; RR COMB LAMP EXC. BACK BUZZER<YM9> (A) 24V 21W	1-82194-108-0	02	1	0807-
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	0807-
5	08.991 BULB; RR COMB LAMP EXC. BACK BUZZER<YM9> (B) 24V 21/5W	1-82194-109-0	01	1	0807-
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	0807-
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	02	1	9412-0806
5	08.991 BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	02	1	9412-0806
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	01	1	9412-0806
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	01	1	9412-0806
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> (A) 24V 21W	1-82194-036-0	02	1	0807-
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> (A) 24V 21W	1-82194-036-0	02	1	0807-
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> (B) 24V 21/5W	1-82194-038-0	01	1	0807-
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> (B) 24V 21/5W	1-82194-038-0	01	1	0807-
9	02.689 NUT; LAMP,RR COMB 07.829 M6 FLANGE	5-09440-004-0	06	1	9412-
13	02.682 LENS; TURN SIGNAL	8-94174-639-0	01	1	9412-
13	02.682 LENS; TURN SIGNAL	8-94174-638-0	01	1	9412-
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	9412-
14	02.682 LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	9412-
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	9412-
22	02.697 LENS; BACKUP,RR COMB LAMP	8-94257-512-1	02	1	9412-
24	02.697 GASKET; BACK,LAMP	8-94257-506-0	02	1	9412-
25	02.810 HORN ASM; BACK	8-94257-518-0	01	1	9412-0310
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	0311-0501
25	02.810 HORN ASM; BACK BACK BUZZER<YM9>	8-94257-518-0	01	1	0507-
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	0507-
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING	9-07076-414-0	01	1	9412-
26	02.812 SCREW; BACK HORN 02.688 M4X12 TAPPING	9-07076-412-0	02	1	9412-0310
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	02	1	0311-0501
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	0311-0501
26	02.812 SCREW; BACK HORN 02.688 M4X12 TAPPING	9-07076-412-0	01	1	0502-0506
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING	9-07076-412-0	01	1	0507-
28	02.684 GASKET; TURN,LAMP	8-94257-507-0	02	1	9412-
37	02.680 COVER; RR COMB LAMP	8-94129-274-4	01	1	9412-
37	02.680 COVER; RR COMB LAMP	8-94128-858-4	01	1	9412-
38	02.689 BOLT; LAMP,RR COMB 02.664 M6X20	8-94402-623-0	06	1	9412-

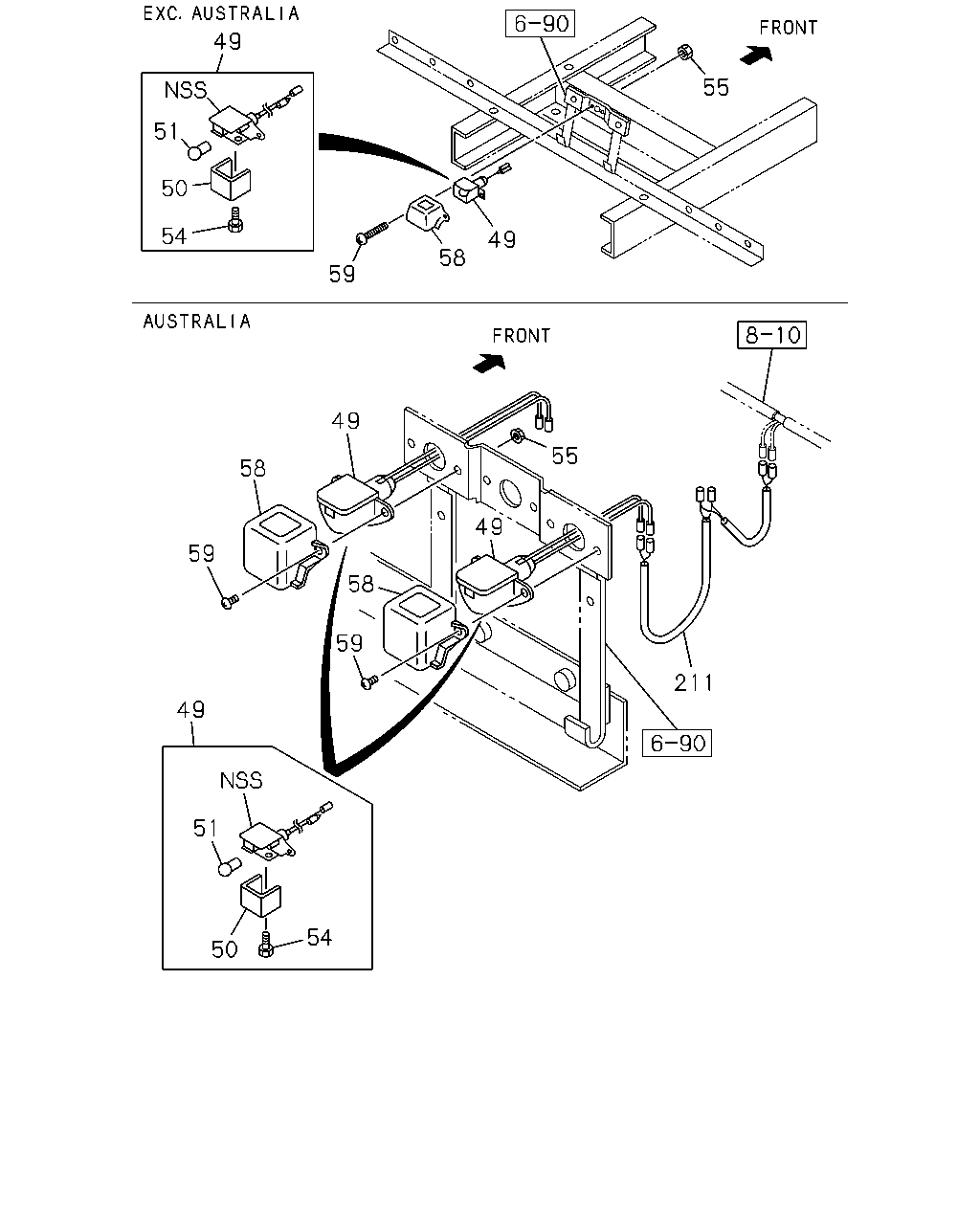

49 55 51 50 54 49 58 59 49 55 58 49 59 58 59 211 49 51 54 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	02.700 LAMP; LICENSE PLATE 24V 5W	8-97105-380-0	02	1	9412-0310
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3) 24V 5W	8-97105-380-0	02	1	0311-0501
49	02.700 LAMP; LICENSE PLATE AUSTRALIA EQUIPMENT(RR3) 24V 5W	8-97105-380-0	02	1	0507-
49	02.700 LAMP; LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	5-82120-021-0	01	1	0311-0501
49	02.700 LAMP; LICENSE PLATE 24V 12W	5-82120-021-1	01	1	0502-0506
49	02.700 LAMP; LICENSE PLATE EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	5-82120-021-1	01	1	0507-
50	02.709 LENS; LICENSE PLATE LAMP	8-97108-212-0	02	1	9412-0310
50	02.709 LENS; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97108-212-0	02	1	0311-0501
50	02.709 LENS; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97108-212-0	02	1	0507-
50	02.709 LENS; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	5-82125-004-0	01	1	0311-0501
50	02.709 LENS; LICENSE PLATE LAMP	5-82125-004-0	01	1	0502-0506
50	02.709 LENS; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	5-82125-004-0	01	1	0507-
51	08.991 BULB; LICENSE PLATE LAMP 24V 5W	1-82194-039-0	02	1	9412-0310
51	08.991 BULB; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 24V 5W	1-82194-039-0	02	1	0311-0501
51	08.991 BULB; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 24V 5W	1-82194-039-0	02	1	0507-
51	08.991 BULB; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	1-82194-004-0	01	1	0311-0501
51	08.991 BULB; LICENSE PLATE LAMP 24V 12W	1-82194-004-0	01	1	0502-0506
51	08.991 BULB; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	1-82194-004-0	01	1	0507-
54	02.708 SCREW; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	02	1	0507-
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	02	1	9412-0310
54	02.708 SCREW; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	02	1	0311-0501
54	02.708 SCREW; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	01	1	0311-0501
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8	8-94419-312-0	01	1	0502-0506
54	02.708 SCREW; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 02.709 M4X8	8-94419-312-0	01	1	0507-
55	02.708 NUT; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	04	1	0507-
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	04	1	9412-0310
55	02.708 NUT; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	04	1	0311-0501
55	02.708 NUT; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	02	1	0311-0501
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	0502-0506
55	02.708 NUT; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3) 03.444 M5 FLANGE	8-94153-039-0	02	1	0507-
58	02.705 COVER; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	02	1	0507-
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	02	1	9412-0310
58	02.705 COVER; LICENSE PLATE LAMP AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	02	1	0311-0501
58	02.705 COVER; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	01	1	0311-0501
58	02.705 COVER; LICENSE PLATE LAMP	8-97076-590-1	01	1	0502-0506
58	02.705 COVER; LICENSE PLATE LAMP EXC. AUSTRALIA EQUIPMENT(RR3)	8-97076-590-1	01	1	0507-
59	02.708 SCREW; TAP,LICENSE LAMP BODY AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	04	1	0507-
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	04	1	9412-0310
59	02.708 SCREW; TAP,LICENSE LAMP BODY AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	04	1	0311-0501
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	02	1	0311-0501
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	02	1	0502-0506
59	02.708 SCREW; TAP,LICENSE LAMP BODY EXC. AUSTRALIA EQUIPMENT(RR3) 14.550 M5X20	9-93490-520-0	02	1	0507-
211	02.708 HARNESS; EXT	5-82129-004-1	01	1	9412-0310
211	02.708 HARNESS; EXT AUSTRALIA EQUIPMENT(RR3)	5-82129-004-1	01	1	0311-0501
211	02.708 HARNESS; EXT AUSTRALIA EQUIPMENT(RR3)	5-82129-004-1	01	1	0507-
