Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#35830) — 424 parça

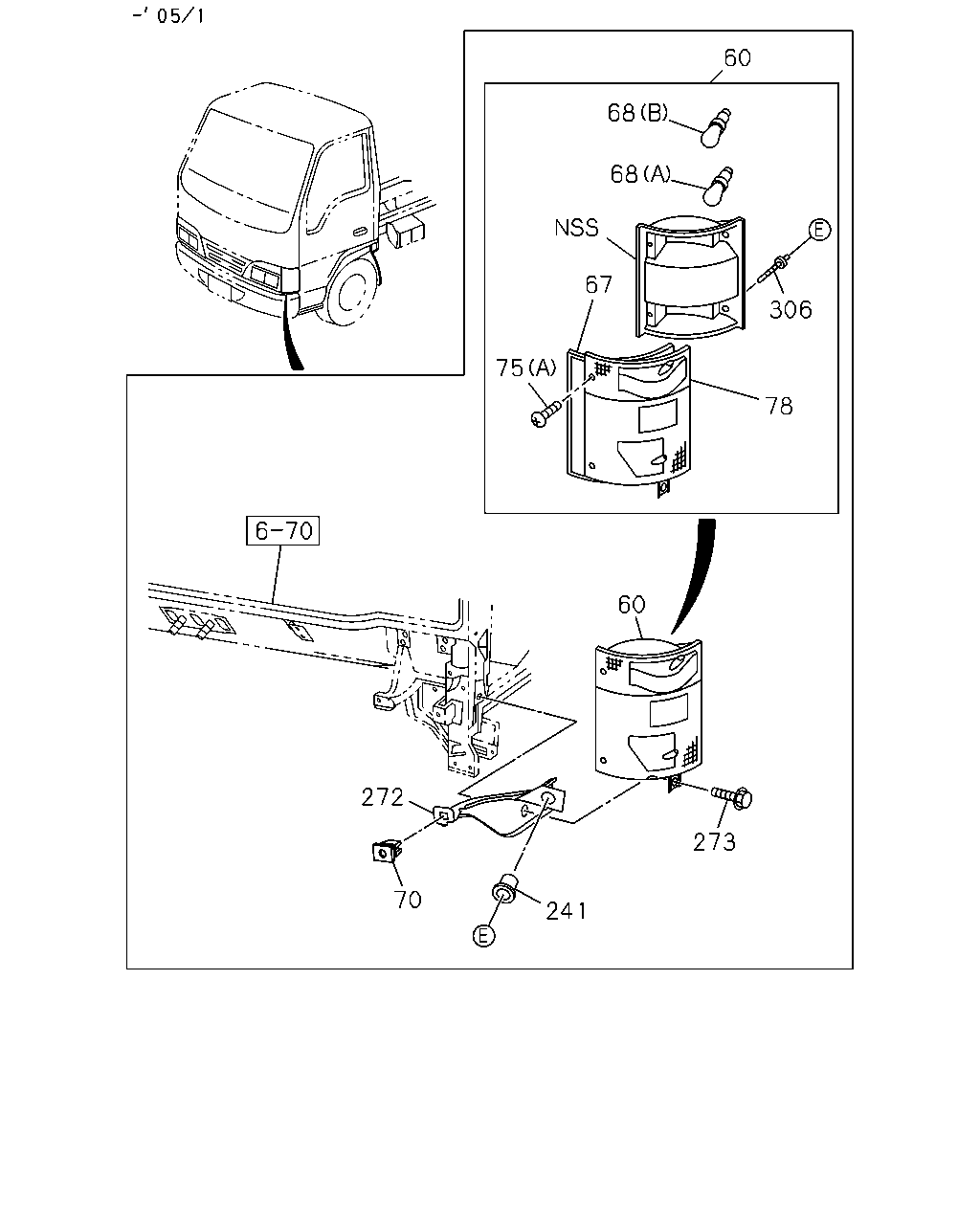

60 68 68 67 306 75 78 60 272 273 70 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-891-0	01	1	0507-
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-892-0	01	1	0507-
60	02.585 LAMP ASM; FRT COMB	8-97855-113-2	01	1	9412-0310
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3)	8-97855-113-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-113-2	01	1	0312-0501
60	02.585 LAMP ASM; FRT COMB	8-97365-175-5	01	1	0502-0502
60	02.585 LAMP ASM; FRT COMB	8-98010-884-0	01	1	0503-0506
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-884-0	01	1	0507-0701
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98053-941-0	01	1	0702-
60	02.585 LAMP ASM; FRT COMB	8-97855-112-2	01	1	9412-0310
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3)	8-97855-112-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-112-2	01	1	0312-0501
60	02.585 LAMP ASM; FRT COMB	8-97365-174-5	01	1	0502-0502
60	02.585 LAMP ASM; FRT COMB	8-98010-883-0	01	1	0503-0506
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-883-0	01	1	0507-0701
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98053-940-0	01	1	0702-
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-008-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-008-2	01	1	0312-0501
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-007-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-007-2	01	1	0312-0501
67	02.590 GASKET; FRT COMB LAMP	8-97855-121-0	02	1	9412-0501
67	02.590 GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0502-
68	08.991 BULB; FRT COMB LAMP (B) 24V 21W	8-94125-956-0	02	1	9412-0310
68	08.991 BULB; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3) (B) 24V 21W	8-94125-956-0	02	1	0311-0311
68	08.991 BULB; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) (B) 24V 21W	8-94125-956-0	02	1	0312-0501
68	08.991 BULB; FRT COMB LAMP (C) 24V 21/5W	8-94125-957-0	02	1	0502-
68	08.991 BULB; FRT COMB LAMP (A) 24V 10W	8-97094-888-0	02	1	9412-0310
68	08.991 BULB; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3) (A) 24V 10W	8-97094-888-0	02	1	0311-0311
68	08.991 BULB; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) (A) 24V 10W	8-97094-888-0	02	1	0312-0501
68	08.991 BULB; FRT COMB LAMP (D) 24V 21W AMBER	8-97323-806-0	02	1	0502-
68	08.991 BULB; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3) (A) 24V 30/10W	1-82194-065-0	02	1	0311-0311
68	08.991 BULB; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) (A) 24V 30/10W	1-82194-065-0	02	1	0312-0501
68	08.991 BULB; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3) (B) 24V 25W	9-82691-347-0	02	1	0311-0311
68	08.991 BULB; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) (B) 24V 25W	9-82691-347-0	02	1	0312-0501
70	02.587 GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	9412-0501
70	02.587 GROMMET; SCREW,FRT COMB LAMP 16.445	1-09983-081-0	02	1	0502-
75	02.587 SCREW; FRT COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9412-0501
75	02.587 SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0502-
75	02.587 SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0502-
78	02.589 LENS ASM; FRT COMB	8-97855-133-0	01	1	9412-0310
78	02.589 LENS ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3)	8-97855-133-0	01	1	0311-0311
78	02.589 LENS ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-133-0	01	1	0312-0501
78	02.589 LENS ASM; FRT COMB	8-97855-130-0	01	1	9412-0310
78	02.589 LENS ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3)	8-97855-130-0	01	1	0311-0311
78	02.589 LENS ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-130-0	01	1	0312-0501
78	02.589 LENS ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-131-0	01	1	0311-0311
78	02.589 LENS ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-131-0	01	1	0312-0501
78	02.589 LENS ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-128-0	01	1	0311-0311
78	02.589 LENS ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-128-0	01	1	0312-0501
241	02.726 GROMMET; FRT LAMP	8-94452-095-0	04	1	9412-0501
241	02.726 GROMMET; FRT LAMP	8-97380-030-0	02	1	0502-
272	02.726 BRACKET; FRT COMB LAMP	8-97853-237-2	01	1	9412-0501
272	02.726 BRACKET; FRT COMB LAMP	8-97853-236-2	01	1	9412-0501
273	02.726 BOLT; BRKT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9412-0501
306	02.587 PIVOT; FRT COMB LAMP	8-94382-330-0	04	1	9412-9810
306	02.587 PIVOT; FRT COMB LAMP	8-97219-053-0	04	1	9811-0501

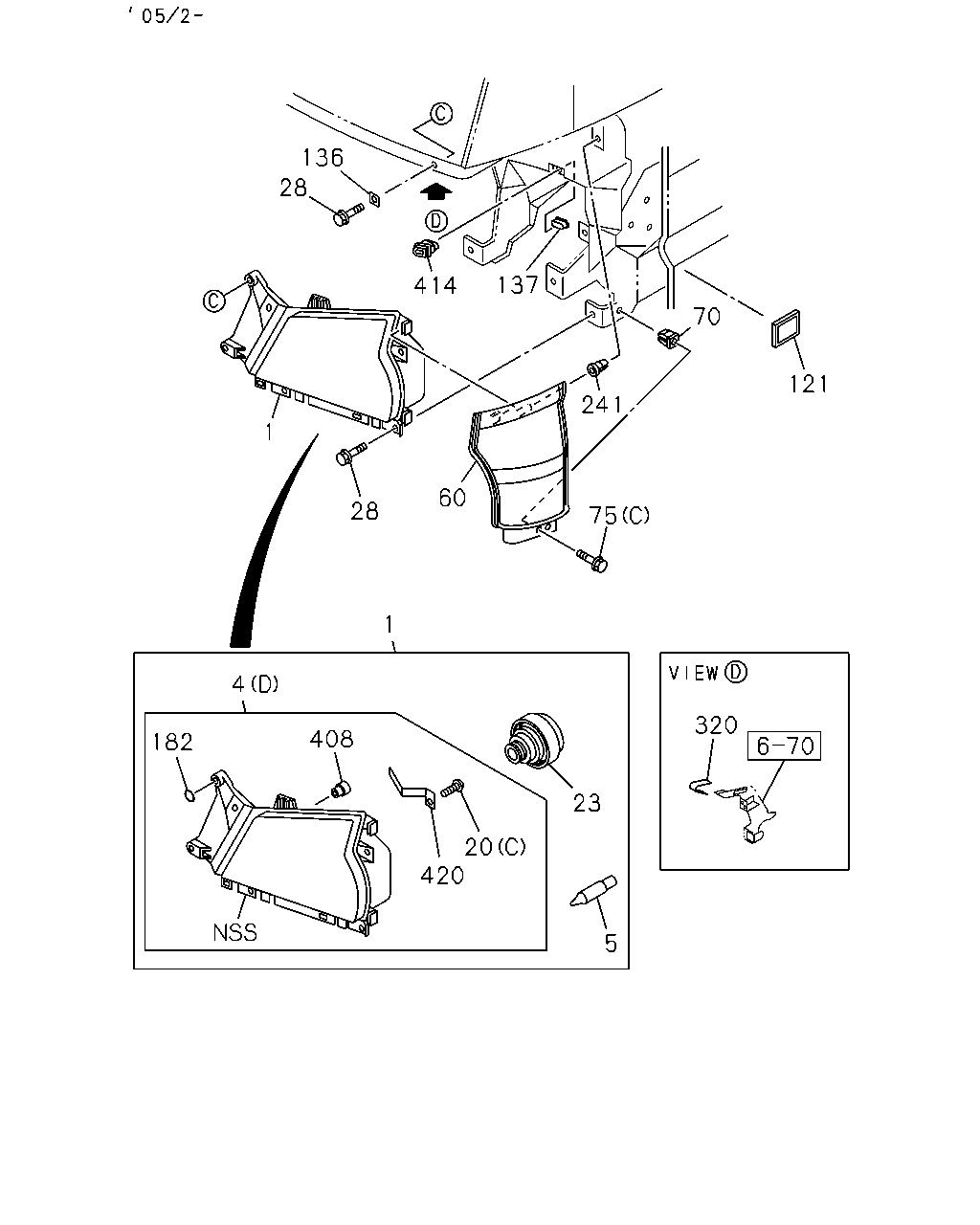

136 28 137 414 70 121 241 1 60 28 75 1 4 320 408 182 23 20 420 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.725 LAMP ASM; HEAD 24V 55/50W	8-97855-052-4	01	1	9412-0105
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97207-124-1	01	1	0106-0110
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97316-095-0	01	1	0111-0310
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-095-0	01	1	0311-0311
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-095-1	01	1	0312-0501
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97372-529-5	01	1	0502-
1	02.725 LAMP ASM; HEAD 24V 55/50W	8-97855-051-4	01	1	9412-0105
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97207-123-1	01	1	0106-0110
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97316-094-0	01	1	0111-0310
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-094-0	01	1	0311-0311
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-094-1	01	1	0312-0501
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97372-528-5	01	1	0502-
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W	8-97855-052-4	01	1	0311-0501
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W	8-97855-051-4	01	1	0311-0501
4	02.727 HEADLAMP UNIT (A) 24V 55/50W	8-94101-732-0	02	1	9412-0105
4	02.727 HEADLAMP UNIT (D)	8-98009-818-0	01	1	0502-
4	02.727 HEADLAMP UNIT (C)	8-97221-934-0	01	1	0106-0110
4	02.727 HEADLAMP UNIT (D)	8-98009-819-0	01	1	0502-
4	02.727 HEADLAMP UNIT (C)	8-97324-948-0	01	1	0111-0310
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-948-0	01	1	0311-0311
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-948-0	01	1	0312-0501
4	02.727 HEADLAMP UNIT (B) 24V 55W	8-94101-740-0	02	1	9412-0105
4	02.727 HEADLAMP UNIT (C)	8-97221-935-0	01	1	0106-0110
4	02.727 HEADLAMP UNIT (C)	8-97324-949-0	01	1	0111-0310
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-949-0	01	1	0311-0311
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-949-0	01	1	0312-0501
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 55/50W	8-94101-732-0	02	1	0311-0501
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 24V 55W	8-94101-740-0	02	1	0311-0501
5	02.727 BULB; HEADLAMP 24V 55/50W CLEAR	5-82193-003-0	04	1	9412-0105
5	02.727 BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0106-0310
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0311-0311
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 75/70W	1-82194-063-0	02	1	0312-0312
5	02.727 BULB; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0312-0312
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0401-0501
5	02.727 BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0502-
5	02.727 BULB; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W CLEAR	5-82193-003-0	04	1	0311-0501
20	02.736 SCREW; HEADLAMP (A) M4X8	8-94165-886-0	08	1	9412-0105
20	02.736 SCREW; HEADLAMP (B)	8-97855-213-0	08	1	9412-9810
20	02.736 SCREW; HEADLAMP (B)	8-97228-675-0	08	1	9811-0105
20	02.736 SCREW; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) M4X8	8-94165-886-0	08	1	0311-0501
20	02.736 SCREW; HEADLAMP (C)	8-97378-871-0	02	1	0502-
20	02.736 SCREW; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97228-675-0	08	1	0311-0501
23	02.727 COVER; BULB,HEADLAMP	8-97855-080-0	02	1	0106-0310
23	02.727 COVER; BULB,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97855-080-0	02	1	0311-0311
23	02.727 COVER; BULB,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-080-0	02	1	0312-0312
23	02.727 COVER; BULB,HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97855-080-0	02	1	0312-0312
23	02.727 COVER; BULB,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97855-080-0	02	1	0401-0501
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	0502-
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9412-0607
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-891-0	01	1	0507-
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-892-0	01	1	0507-
60	02.585 LAMP ASM; FRT COMB	8-97855-113-2	01	1	9412-0310
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3)	8-97855-113-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-113-2	01	1	0312-0501
60	02.585 LAMP ASM; FRT COMB	8-97365-175-5	01	1	0502-0502
60	02.585 LAMP ASM; FRT COMB	8-98010-884-0	01	1	0503-0506
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-884-0	01	1	0507-0701
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98053-941-0	01	1	0702-
60	02.585 LAMP ASM; FRT COMB	8-97855-112-2	01	1	9412-0310
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3)	8-97855-112-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-112-2	01	1	0312-0501
60	02.585 LAMP ASM; FRT COMB	8-97365-174-5	01	1	0502-0502
60	02.585 LAMP ASM; FRT COMB	8-98010-883-0	01	1	0503-0506
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-883-0	01	1	0507-0701
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98053-940-0	01	1	0702-
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-008-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-008-2	01	1	0312-0501
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-007-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-007-2	01	1	0312-0501
70	02.587 GROMMET; SCREW,FRT COMB LAMP	8-97030-792-0	04	1	9412-0501
70	02.587 GROMMET; SCREW,FRT COMB LAMP 16.445	1-09983-081-0	02	1	0502-
75	02.587 SCREW; FRT COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9412-0501
75	02.587 SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0502-
75	02.587 SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0502-
121	02.575 REFLECTOR; REFLEX	8-98013-990-1	02	1	0505-
136	02.726 SEAL; HEADLAMP 170X15	8-97853-541-0	01	1	9412-9701
136	02.726 SEAL; HEADLAMP 03.602 25X25	8-94272-533-0	02	1	0502-
137	02.726 GROMMET; HEADLAMP	8-97581-666-0	02	1	0502-
182	02.722 GASKET; HEADLAMP	8-97378-869-0	02	1	0502-
241	02.726 GROMMET; FRT LAMP	8-94452-095-0	04	1	9412-0501
241	02.726 GROMMET; FRT LAMP	8-97380-030-0	02	1	0502-
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	9412-
408	02.727 CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0502-
414	02.736 PIN; HEADLAMP,RIM	8-97581-667-0	02	1	0502-
420	02.737 SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	0502-

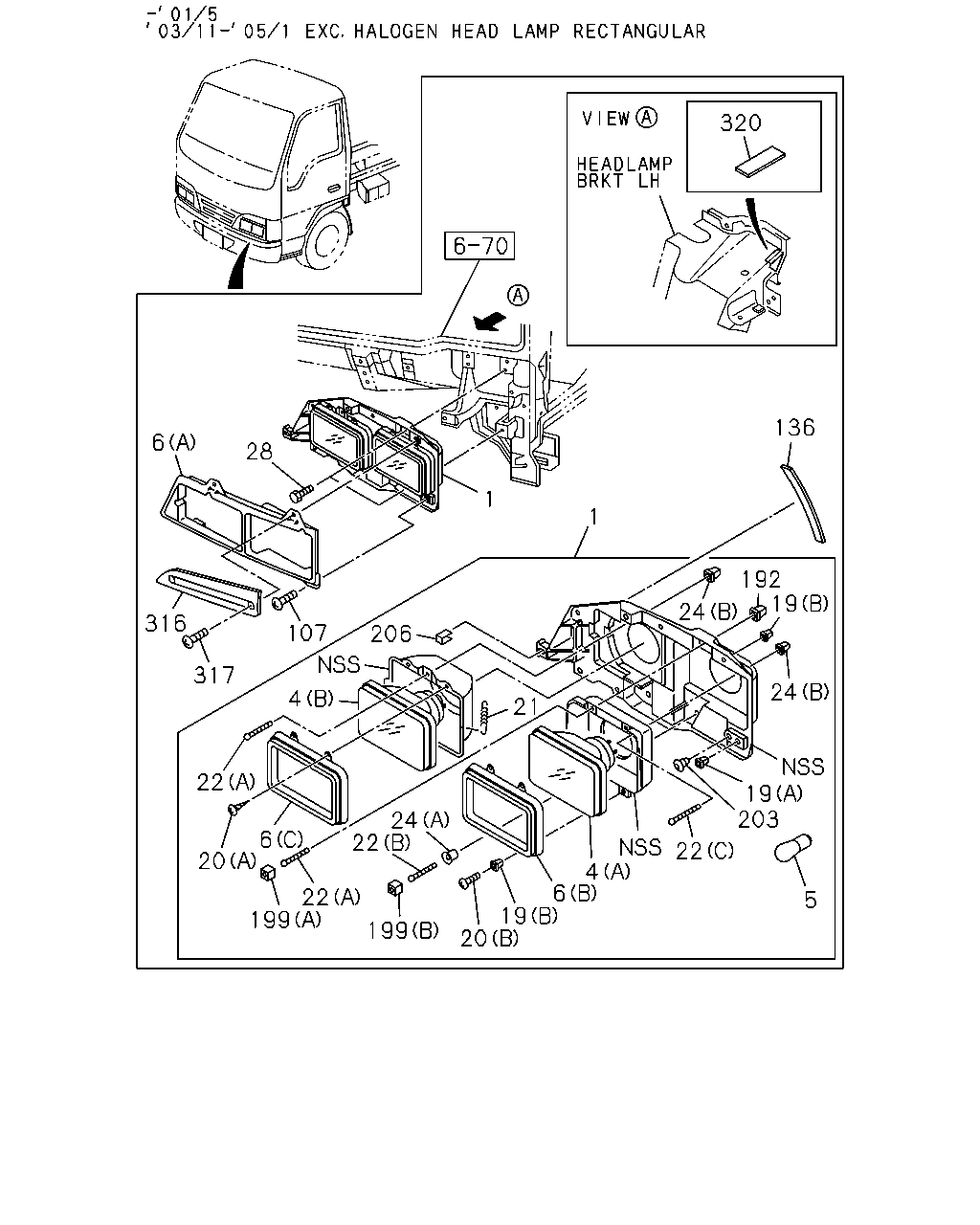

320 136 6 28 1 1 192 19 24 316 107 206 317 24 4 21 19 203 22 24 22 6 4 6 19 20 22 20 22 199 5 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.725 LAMP ASM; HEAD 24V 55/50W	8-97855-052-4	01	1	9412-0105
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97207-124-1	01	1	0106-0110
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97316-095-0	01	1	0111-0310
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-095-0	01	1	0311-0311
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-095-1	01	1	0312-0501
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97372-529-5	01	1	0502-
1	02.725 LAMP ASM; HEAD 24V 55/50W	8-97855-051-4	01	1	9412-0105
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97207-123-1	01	1	0106-0110
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97316-094-0	01	1	0111-0310
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-094-0	01	1	0311-0311
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-094-1	01	1	0312-0501
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97372-528-5	01	1	0502-
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W	8-97855-052-4	01	1	0311-0501
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W	8-97855-051-4	01	1	0311-0501
4	02.727 HEADLAMP UNIT (A) 24V 55/50W	8-94101-732-0	02	1	9412-0105
4	02.727 HEADLAMP UNIT (D)	8-98009-818-0	01	1	0502-
4	02.727 HEADLAMP UNIT (C)	8-97221-934-0	01	1	0106-0110
4	02.727 HEADLAMP UNIT (D)	8-98009-819-0	01	1	0502-
4	02.727 HEADLAMP UNIT (C)	8-97324-948-0	01	1	0111-0310
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-948-0	01	1	0311-0311
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-948-0	01	1	0312-0501
4	02.727 HEADLAMP UNIT (B) 24V 55W	8-94101-740-0	02	1	9412-0105
4	02.727 HEADLAMP UNIT (C)	8-97221-935-0	01	1	0106-0110
4	02.727 HEADLAMP UNIT (C)	8-97324-949-0	01	1	0111-0310
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-949-0	01	1	0311-0311
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-949-0	01	1	0312-0501
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 55/50W	8-94101-732-0	02	1	0311-0501
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 24V 55W	8-94101-740-0	02	1	0311-0501
5	02.727 BULB; HEADLAMP 24V 55/50W CLEAR	5-82193-003-0	04	1	9412-0105
5	02.727 BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0106-0310
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0311-0311
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 75/70W	1-82194-063-0	02	1	0312-0312
5	02.727 BULB; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0312-0312
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0401-0501
5	02.727 BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0502-
5	02.727 BULB; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W CLEAR	5-82193-003-0	04	1	0311-0501
6	02.728 RIM; HEADLAMP (C)	1-82114-016-0	02	1	9412-0105
6	02.728 RIM; HEADLAMP (B)	8-97855-211-0	02	1	9412-0105
6	02.728 RIM; HEADLAMP (A)	8-97855-099-3	01	1	9412-9511
6	02.728 RIM; HEADLAMP (A)	8-97866-621-0	01	1	9512-9712
6	02.728 RIM; HEADLAMP (A)	8-97890-801-0	01	1	9801-0105
6	02.728 RIM; HEADLAMP (A)	8-97855-098-3	01	1	9412-9511
6	02.728 RIM; HEADLAMP (A)	8-97866-620-0	01	1	9512-9712
6	02.728 RIM; HEADLAMP (A)	8-97890-800-0	01	1	9801-0105
6	02.728 RIM; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	1-82114-016-0	02	1	0311-0501
6	02.728 RIM; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97855-211-0	02	1	0311-0501
6	02.728 RIM; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97581-089-0	01	1	0311-0501
6	02.728 RIM; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97581-088-0	01	1	0311-0501
19	02.726 NUT; HEADLAMP (A)	8-97044-618-0	08	1	9412-0105
19	02.726 NUT; HEADLAMP (C)	8-97044-618-0	04	1	0106-0310
19	02.726 NUT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97044-618-0	04	1	0311-0311
19	02.726 NUT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-97044-618-0	04	1	0312-0312
19	02.726 NUT; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97044-618-0	04	1	0312-0312
19	02.726 NUT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97044-618-0	04	1	0401-0501
19	02.726 NUT; HEADLAMP (B)	8-97044-623-0	08	1	9412-0105
19	02.726 NUT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97044-618-0	08	1	0311-0501
19	02.726 NUT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97044-623-0	08	1	0311-0501
20	02.736 SCREW; HEADLAMP (A) M4X8	8-94165-886-0	08	1	9412-0105
20	02.736 SCREW; HEADLAMP (B)	8-97855-213-0	08	1	9412-9810
20	02.736 SCREW; HEADLAMP (B)	8-97228-675-0	08	1	9811-0105
20	02.736 SCREW; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) M4X8	8-94165-886-0	08	1	0311-0501
20	02.736 SCREW; HEADLAMP (C)	8-97378-871-0	02	1	0502-
20	02.736 SCREW; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97228-675-0	08	1	0311-0501
21	02.737 SPRING; ADJ HEADLAMP	1-82119-021-0	02	1	9412-0105
21	02.737 SPRING; ADJ HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>	1-82119-021-0	02	1	0311-0501
22	02.726 SCREW; ADJ,HEADLAMP (A)	8-97855-205-0	04	1	9412-0105
22	02.726 SCREW; ADJ,HEADLAMP (B)	8-97855-206-0	02	1	9412-0105
22	02.726 SCREW; ADJ,HEADLAMP (C)	8-97855-207-0	02	1	9412-0105
22	02.726 SCREW; ADJ,HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97855-205-0	04	1	0311-0501
22	02.726 SCREW; ADJ,HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97855-206-0	02	1	0311-0501
22	02.726 SCREW; ADJ,HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97855-207-0	02	1	0311-0501
24	02.737 MOUNTING; ADJ SCREW HD LAMP (B)	8-94387-097-0	06	1	9412-0105
24	02.737 MOUNTING; ADJ SCREW HD LAMP (A)	8-97855-208-0	02	1	9412-0105
24	02.737 MOUNTING; ADJ SCREW HD LAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-94387-097-0	06	1	0311-0501
24	02.737 MOUNTING; ADJ SCREW HD LAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97855-208-0	02	1	0311-0501
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9412-0607
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-
107	02.729 SCREW; RIM,HEADLAMP M4X20 TAPPING	8-94279-391-0	04	1	9412-0105
107	02.729 SCREW; RIM,HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> M4X20 TAPPING	8-97326-998-0	04	1	0311-0501
136	02.726 SEAL; HEADLAMP 170X15	8-97853-541-0	01	1	9412-9701
136	02.726 SEAL; HEADLAMP 03.602 25X25	8-94272-533-0	02	1	0502-
192	02.765 PIVOT; HEADLAMP 02.737	8-94381-595-0	02	1	9412-0105
192	02.765 PIVOT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737	8-94381-595-0	02	1	0311-0501
199	02.737 BUSHING (A)	8-94381-605-0	04	1	9412-0105
199	02.737 BUSHING (B)	8-97855-212-0	02	1	9412-0105
199	02.737 BUSHING EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-94381-605-0	04	1	0311-0501
199	02.737 BUSHING EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97855-212-0	02	1	0311-0501
203	02.726 FASTENER; HEADLAMP	8-94382-231-0	04	1	9412-0311
203	02.726 FASTENER; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94382-231-0	04	1	0312-0312
203	02.726 FASTENER; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-94382-231-0	04	1	0312-0312
203	02.726 FASTENER; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-94382-231-0	04	1	0312-0312
203	02.726 FASTENER; HEADLAMP	8-94382-231-0	04	1	0401-0501
206	02.727 HOLDER; HEADLAMP	8-97868-156-0	02	1	9811-0311
206	02.727 HOLDER; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97868-156-0	02	1	0312-0312
206	02.727 HOLDER; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97868-156-0	02	1	0312-0312
206	02.727 HOLDER; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97868-156-0	02	1	0312-0312
206	02.727 HOLDER; HEADLAMP	8-97868-156-0	02	1	0401-0501
316	02.726 ORNAMENT; HEAD LAMP	8-97859-500-0	01	1	9412-0212
316	02.726 ORNAMENT; HEAD LAMP	8-97867-863-0	01	1	0301-0501
316	02.726 ORNAMENT; HEAD LAMP	8-97855-009-4	01	1	9412-9510
316	02.726 ORNAMENT; HEAD LAMP	8-97863-622-0	01	1	9511-0212
316	02.726 ORNAMENT; HEAD LAMP	8-97867-864-0	01	1	0301-0501
317	02.726 SCREW; ORNAMENT 02.729 M4X20 TAPPING	8-94279-391-0	04	1	9412-0202
317	02.726 SCREW; ORNAMENT 02.729 M4X20 TAPPING	8-97326-998-0	04	1	0203-0501
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	9412-

320 1 28 1 28 13 198 13 316 18 5 23 317 202 18 19 4 202 206 13 13 203

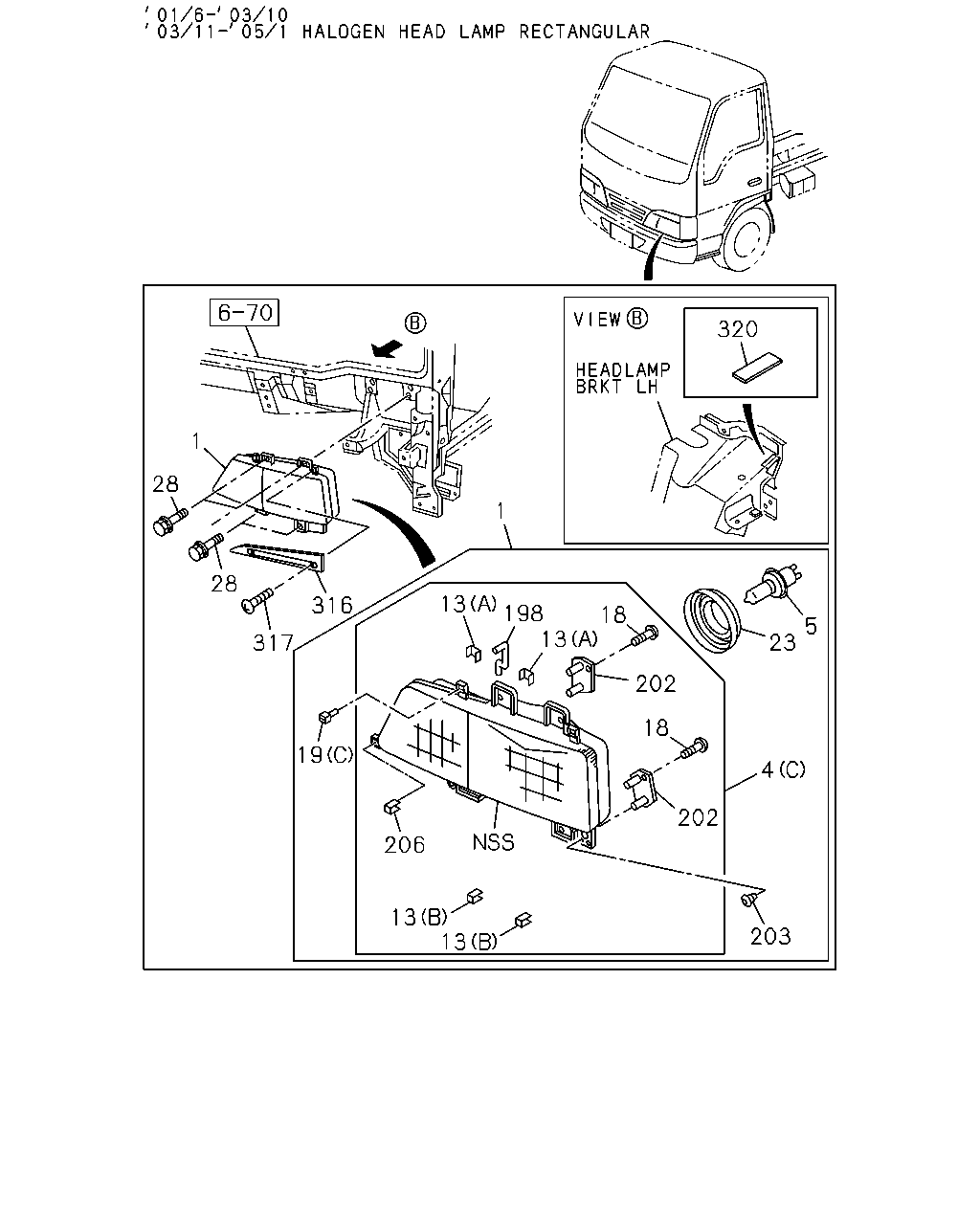

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.725 LAMP ASM; HEAD 24V 55/50W	8-97855-052-4	01	1	9412-0105
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97207-124-1	01	1	0106-0110
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97316-095-0	01	1	0111-0310
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-095-0	01	1	0311-0311
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-095-1	01	1	0312-0501
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97372-529-5	01	1	0502-
1	02.725 LAMP ASM; HEAD 24V 55/50W	8-97855-051-4	01	1	9412-0105
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97207-123-1	01	1	0106-0110
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97316-094-0	01	1	0111-0310
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-094-0	01	1	0311-0311
1	02.725 LAMP ASM; HEAD AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	8-97316-094-1	01	1	0312-0501
1	02.725 LAMP ASM; HEAD 24V 75/70W	8-97372-528-5	01	1	0502-
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W	8-97855-052-4	01	1	0311-0501
1	02.725 LAMP ASM; HEAD EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W	8-97855-051-4	01	1	0311-0501
4	02.727 HEADLAMP UNIT (A) 24V 55/50W	8-94101-732-0	02	1	9412-0105
4	02.727 HEADLAMP UNIT (D)	8-98009-818-0	01	1	0502-
4	02.727 HEADLAMP UNIT (C)	8-97221-934-0	01	1	0106-0110
4	02.727 HEADLAMP UNIT (D)	8-98009-819-0	01	1	0502-
4	02.727 HEADLAMP UNIT (C)	8-97324-948-0	01	1	0111-0310
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-948-0	01	1	0311-0311
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-948-0	01	1	0312-0501
4	02.727 HEADLAMP UNIT (B) 24V 55W	8-94101-740-0	02	1	9412-0105
4	02.727 HEADLAMP UNIT (C)	8-97221-935-0	01	1	0106-0110
4	02.727 HEADLAMP UNIT (C)	8-97324-949-0	01	1	0111-0310
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-949-0	01	1	0311-0311
4	02.727 HEADLAMP UNIT AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97324-949-0	01	1	0312-0501
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 24V 55/50W	8-94101-732-0	02	1	0311-0501
4	02.727 HEADLAMP UNIT EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 24V 55W	8-94101-740-0	02	1	0311-0501
5	02.727 BULB; HEADLAMP 24V 55/50W CLEAR	5-82193-003-0	04	1	9412-0105
5	02.727 BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0106-0310
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0311-0311
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 24V 75/70W	1-82194-063-0	02	1	0312-0312
5	02.727 BULB; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0312-0312
5	02.727 BULB; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 75/70W	1-82194-063-0	02	1	0401-0501
5	02.727 BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0502-
5	02.727 BULB; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 24V 55/50W CLEAR	5-82193-003-0	04	1	0311-0501
13	02.736 CLIP; HEADLAMP 02.729 (A)	1-82119-084-0	02	1	0106-0212
13	02.736 CLIP; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) 02.729 (A)	1-82119-084-0	04	1	0401-0403
13	02.736 CLIP; HEADLAMP 02.729 (A)	1-82119-084-0	02	1	0301-0310
13	02.736 CLIP; HEADLAMP AUSTRALIA EQUIPMENT(RR3) HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (A)	1-82119-084-0	02	1	0311-0311
13	02.736 CLIP; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (A)	1-82119-084-0	02	1	0312-0403
13	02.736 CLIP; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (A)	1-82119-084-0	02	1	0404-0501
13	02.736 CLIP; HEADLAMP 02.729 (B)	8-94381-588-0	12	1	0106-0310
13	02.736 CLIP; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (B)	8-94381-588-0	12	1	0311-0311
13	02.736 CLIP; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) 02.729 (B)	8-94381-588-0	12	1	0312-0312
13	02.736 CLIP; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (B)	8-94381-588-0	12	1	0312-0312
13	02.736 CLIP; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.729 (B)	8-94381-588-0	12	1	0401-0501
18	02.726 SCREW; GEAR CASE	1-82119-086-0	16	1	0106-0310
18	02.726 SCREW; GEAR CASE HALOGEN HEAD LAMP RECTANGULAR<TR4>	1-82119-086-0	16	1	0311-0311
18	02.726 SCREW; GEAR CASE HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	1-82119-086-0	16	1	0312-0312
18	02.726 SCREW; GEAR CASE AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	1-82119-086-0	16	1	0312-0312
18	02.726 SCREW; GEAR CASE HALOGEN HEAD LAMP RECTANGULAR<TR4>	1-82119-086-0	16	1	0401-0501
19	02.726 NUT; HEADLAMP (A)	8-97044-618-0	08	1	9412-0105
19	02.726 NUT; HEADLAMP (C)	8-97044-618-0	04	1	0106-0310
19	02.726 NUT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97044-618-0	04	1	0311-0311
19	02.726 NUT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-97044-618-0	04	1	0312-0312
19	02.726 NUT; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97044-618-0	04	1	0312-0312
19	02.726 NUT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> (C)	8-97044-618-0	04	1	0401-0501
19	02.726 NUT; HEADLAMP (B)	8-97044-623-0	08	1	9412-0105
19	02.726 NUT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A)	8-97044-618-0	08	1	0311-0501
19	02.726 NUT; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B)	8-97044-623-0	08	1	0311-0501
23	02.727 COVER; BULB,HEADLAMP	8-97855-080-0	02	1	0106-0310
23	02.727 COVER; BULB,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97855-080-0	02	1	0311-0311
23	02.727 COVER; BULB,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-080-0	02	1	0312-0312
23	02.727 COVER; BULB,HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97855-080-0	02	1	0312-0312
23	02.727 COVER; BULB,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97855-080-0	02	1	0401-0501
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	0502-
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-94279-203-0	08	1	9412-0607
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0608-
198	02.722 TUBE; COVER,HEADLAMP	8-97253-897-0	01	1	0106-0310
198	02.722 TUBE; COVER,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97253-897-0	01	1	0311-0311
198	02.722 TUBE; COVER,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97253-897-0	01	1	0312-0312
198	02.722 TUBE; COVER,HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97253-897-0	01	1	0312-0312
198	02.722 TUBE; COVER,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97253-897-0	01	1	0401-0501
198	02.722 TUBE; COVER,HEADLAMP	8-97253-896-0	01	1	0106-0310
198	02.722 TUBE; COVER,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97253-896-0	01	1	0311-0311
198	02.722 TUBE; COVER,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97253-896-0	01	1	0312-0312
198	02.722 TUBE; COVER,HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97253-896-0	01	1	0312-0312
198	02.722 TUBE; COVER,HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97253-896-0	01	1	0401-0501
202	02.726 GEAR UNIT; HEADLAMP	8-94345-040-0	04	1	0106-0310
202	02.726 GEAR UNIT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-94345-040-0	04	1	0311-0311
202	02.726 GEAR UNIT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94345-040-0	04	1	0312-0312
202	02.726 GEAR UNIT; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-94345-040-0	04	1	0312-0312
202	02.726 GEAR UNIT; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-94345-040-0	04	1	0401-0501
203	02.726 FASTENER; HEADLAMP	8-94382-231-0	04	1	9412-0311
203	02.726 FASTENER; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94382-231-0	04	1	0312-0312
203	02.726 FASTENER; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-94382-231-0	04	1	0312-0312
203	02.726 FASTENER; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-94382-231-0	04	1	0312-0312
203	02.726 FASTENER; HEADLAMP	8-94382-231-0	04	1	0401-0501
206	02.727 HOLDER; HEADLAMP	8-97868-156-0	02	1	9811-0311
206	02.727 HOLDER; HEADLAMP HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. AUSTRALIA EQUIPMENT(RR3)	8-97868-156-0	02	1	0312-0312
206	02.727 HOLDER; HEADLAMP EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97868-156-0	02	1	0312-0312
206	02.727 HOLDER; HEADLAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) HALOGEN HEAD LAMP RECTANGULAR<TR4>	8-97868-156-0	02	1	0312-0312
206	02.727 HOLDER; HEADLAMP	8-97868-156-0	02	1	0401-0501
316	02.726 ORNAMENT; HEAD LAMP	8-97859-500-0	01	1	9412-0212
316	02.726 ORNAMENT; HEAD LAMP	8-97867-863-0	01	1	0301-0501
316	02.726 ORNAMENT; HEAD LAMP	8-97855-009-4	01	1	9412-9510
316	02.726 ORNAMENT; HEAD LAMP	8-97863-622-0	01	1	9511-0212
316	02.726 ORNAMENT; HEAD LAMP	8-97867-864-0	01	1	0301-0501
317	02.726 SCREW; ORNAMENT 02.729 M4X20 TAPPING	8-94279-391-0	04	1	9412-0202
317	02.726 SCREW; ORNAMENT 02.729 M4X20 TAPPING	8-97326-998-0	04	1	0203-0501
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	9412-

60 93 75 75 315 67 419 76 68 68 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-891-0	01	1	0507-
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-892-0	01	1	0507-
60	02.585 LAMP ASM; FRT COMB	8-97855-113-2	01	1	9412-0310
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3)	8-97855-113-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-113-2	01	1	0312-0501
60	02.585 LAMP ASM; FRT COMB	8-97365-175-5	01	1	0502-0502
60	02.585 LAMP ASM; FRT COMB	8-98010-884-0	01	1	0503-0506
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-884-0	01	1	0507-0701
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98053-941-0	01	1	0702-
60	02.585 LAMP ASM; FRT COMB	8-97855-112-2	01	1	9412-0310
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3)	8-97855-112-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-112-2	01	1	0312-0501
60	02.585 LAMP ASM; FRT COMB	8-97365-174-5	01	1	0502-0502
60	02.585 LAMP ASM; FRT COMB	8-98010-883-0	01	1	0503-0506
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-883-0	01	1	0507-0701
60	02.585 LAMP ASM; FRT COMB AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98053-940-0	01	1	0702-
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-008-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-008-2	01	1	0312-0501
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3)	8-97855-007-2	01	1	0311-0311
60	02.585 LAMP ASM; FRT COMB EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97855-007-2	01	1	0312-0501
67	02.590 GASKET; FRT COMB LAMP	8-97855-121-0	02	1	9412-0501
67	02.590 GASKET; FRT COMB LAMP	8-97378-948-0	02	1	0502-
68	08.991 BULB; FRT COMB LAMP (B) 24V 21W	8-94125-956-0	02	1	9412-0310
68	08.991 BULB; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3) (B) 24V 21W	8-94125-956-0	02	1	0311-0311
68	08.991 BULB; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) (B) 24V 21W	8-94125-956-0	02	1	0312-0501
68	08.991 BULB; FRT COMB LAMP (C) 24V 21/5W	8-94125-957-0	02	1	0502-
68	08.991 BULB; FRT COMB LAMP (A) 24V 10W	8-97094-888-0	02	1	9412-0310
68	08.991 BULB; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3) (A) 24V 10W	8-97094-888-0	02	1	0311-0311
68	08.991 BULB; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) (A) 24V 10W	8-97094-888-0	02	1	0312-0501
68	08.991 BULB; FRT COMB LAMP (D) 24V 21W AMBER	8-97323-806-0	02	1	0502-
68	08.991 BULB; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3) (A) 24V 30/10W	1-82194-065-0	02	1	0311-0311
68	08.991 BULB; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) (A) 24V 30/10W	1-82194-065-0	02	1	0312-0501
68	08.991 BULB; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3) (B) 24V 25W	9-82691-347-0	02	1	0311-0311
68	08.991 BULB; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S) (B) 24V 25W	9-82691-347-0	02	1	0312-0501
75	02.587 SCREW; FRT COMB LAMP 08.977 (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9412-0501
75	02.587 SCREW; FRT COMB LAMP (C) M6X16 TAPPING	8-97374-995-0	02	1	0502-
75	02.587 SCREW; FRT COMB LAMP (B) M4X12	8-97378-944-0	14	1	0502-
76	02.589 LENS; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97378-965-0	01	1	0507-
76	02.589 LENS; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97378-966-0	01	1	0507-
76	02.589 LENS; FRT COMB LAMP	8-97378-962-0	01	1	0502-0506
76	02.589 LENS; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97378-962-0	01	1	0507-
76	02.589 LENS; FRT COMB LAMP	8-97378-961-0	01	1	0502-0506
76	02.589 LENS; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-97378-961-0	01	1	0507-
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-945-0	01	1	0502-
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-943-0	01	1	0502-
315	02.596 HARNESS; FRT COMB LAMP EXC. AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-916-0	02	1	0507-
315	02.596 HARNESS; FRT COMB LAMP	8-97378-970-0	02	1	0502-0502
315	02.596 HARNESS; FRT COMB LAMP	8-98010-917-0	02	1	0503-0506
315	02.596 HARNESS; FRT COMB LAMP AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)	8-98010-917-0	02	1	0507-
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-947-0	01	1	0502-
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-946-0	01	1	0502-

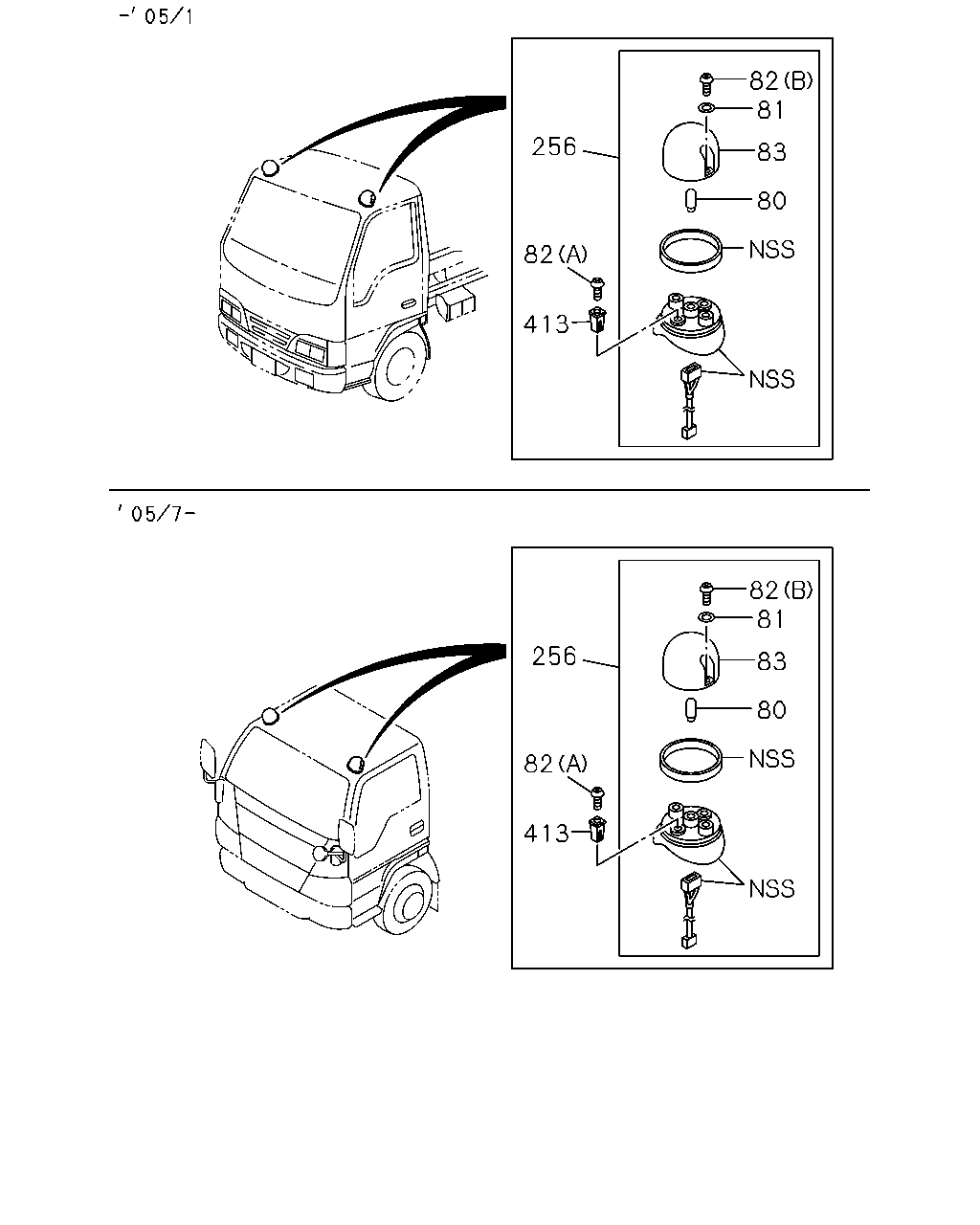

82 81 256 83 80 82 413 82 81 256 83 80 82 413

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	08.991 BULB; MARKER LAMP AUSTRALIA EQUIPMENT(RR3) 24V 5W	8-94135-397-0	02	1	0507-
80	08.991 BULB; MARKER LAMP 24V 5W	8-94135-397-0	02	1	0106-0310
80	08.991 BULB; MARKER LAMP AUSTRALIA EQUIPMENT(RR3) 24V 5W	8-94135-397-0	02	1	0311-0501
81	02.587 SEAT; SCREW AUSTRALIA EQUIPMENT(RR3)	1-82219-012-0	04	1	0507-
81	02.587 SEAT; SCREW	1-82219-012-0	04	1	0106-0310
81	02.587 SEAT; SCREW AUSTRALIA EQUIPMENT(RR3)	1-82219-012-0	04	1	0311-0501
82	02.587 SCREW; MARKER LAMP (B)	1-82219-011-0	04	1	0106-0310
82	02.587 SCREW; MARKER LAMP AUSTRALIA EQUIPMENT(RR3) (B)	1-82219-011-0	04	1	0311-0501
82	02.587 SCREW; MARKER LAMP AUSTRALIA EQUIPMENT(RR3) (B)	1-82219-011-0	04	1	0507-
82	02.587 SCREW; MARKER LAMP 16.716 (A) M6X25 TAPPING	9-07067-625-0	04	1	0106-0310
82	02.587 SCREW; MARKER LAMP AUSTRALIA EQUIPMENT(RR3) 16.716 (A) M6X25 TAPPING	9-07067-625-0	04	1	0311-0501
82	02.587 SCREW; MARKER LAMP AUSTRALIA EQUIPMENT(RR3) 16.716 (A) M6X25 TAPPING	9-07067-625-0	04	1	0507-
83	02.589 LENS; MARKER LAMP	8-97318-299-0	02	1	0106-0310
83	02.589 LENS; MARKER LAMP AUSTRALIA EQUIPMENT(RR3)	8-97318-299-0	02	1	0311-0501
83	02.589 LENS; MARKER LAMP AUSTRALIA EQUIPMENT(RR3)	8-97318-299-0	02	1	0507-
256	02.589 LAMP; MARKER	8-97307-626-0	01	1	0106-0310
256	02.589 LAMP; MARKER AUSTRALIA EQUIPMENT(RR3)	8-97307-626-0	01	1	0311-0501
256	02.589 LAMP; MARKER AUSTRALIA EQUIPMENT(RR3)	8-97307-626-0	01	1	0507-
256	02.589 LAMP; MARKER	8-97307-625-0	01	1	0106-0310
256	02.589 LAMP; MARKER AUSTRALIA EQUIPMENT(RR3)	8-97307-625-0	01	1	0311-0501
256	02.589 LAMP; MARKER AUSTRALIA EQUIPMENT(RR3)	8-97307-625-0	01	1	0507-
413	02.575 GROMMET; SCREW,MARKER LAMP FIX	8-97289-492-0	04	1	0106-0310
413	02.575 GROMMET; SCREW,MARKER LAMP FIX AUSTRALIA EQUIPMENT(RR3)	8-97289-492-0	04	1	0311-0501
413	02.575 GROMMET; SCREW,MARKER LAMP FIX AUSTRALIA EQUIPMENT(RR3)	8-97289-492-0	04	1	0507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
