Sayfa 7-43 - Isuzu EPC

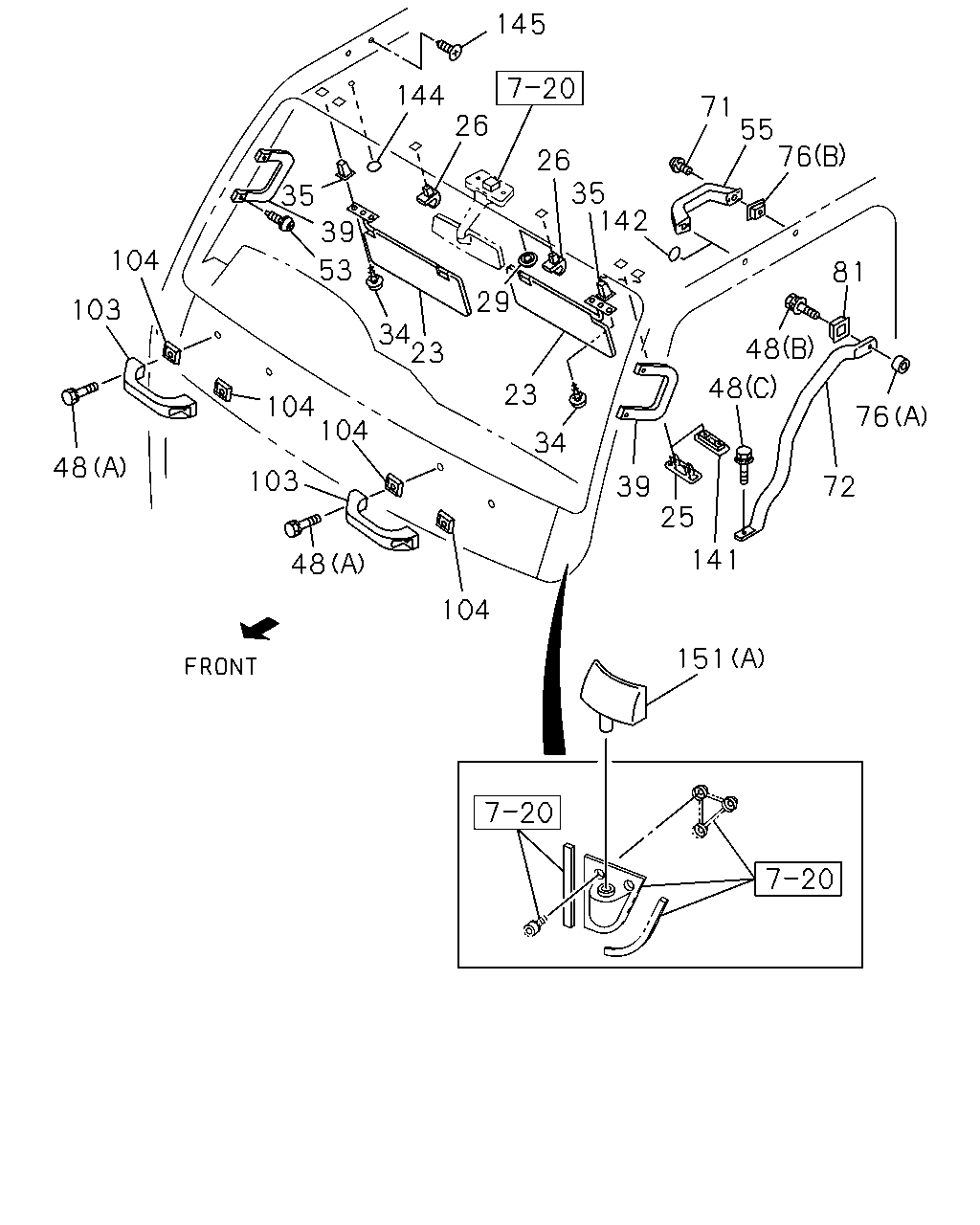

7-43 — SUN VISOR AND ASSIST GRIP (#35826) — 257 parça

145 144 26 71 55 76 26 35 142 35 39 104 53 81 29 103 34 23 48 48 23 104 104 76 34 103 48 39 25 72 141 48 104 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97855-436-0	01	1	9603-9711
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> PASSENGER LIGHT GRAY	8-97868-344-0	01	1	9712-0212
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> PASSENGER LIGHT GRAY	8-97997-504-1	01	1	0301-0310
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97997-504-1	01	1	0311-0509
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97404-401-0	01	1	0510-
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97856-490-2	01	1	9412-9503
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER GRAY	8-97855-438-0	01	1	9504-9711
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97868-220-2	01	1	0311-0509
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97404-443-0	01	1	0510-
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97855-432-0	01	1	9603-9711
23	16.070 SUN VISOR DRIVER LIGHT GRAY	8-97868-337-0	01	1	9712-0212
23	16.070 SUN VISOR DRIVER LIGHT GRAY	8-97997-875-1	01	1	0301-0310
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97997-875-1	01	1	0311-0509
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97404-451-0	01	1	0510-
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97856-489-2	01	1	9412-9503
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER GRAY	8-97855-434-0	01	1	9504-9711
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97867-781-2	01	1	0311-0509
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97404-441-0	01	1	0510-
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> GRAY	8-97853-968-3	01	1	9412-9711
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-846-3	01	1	0311-0610
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-201-3	01	1	0611-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> GRAY	8-97859-068-0	02	1	9412-9711
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97868-350-0	02	1	9712-0212
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	02	1	0301-0310
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	0311-0610
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-198-2	02	1	0611-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	02	1	9412-9711
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	0311-0610
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	02	1	0611-
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> GRAY	8-97856-239-0	01	1	9412-9711
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	0311-0610
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	01	1	0611-
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97859-068-0	01	1	9412-9711
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97868-350-0	01	1	9712-0212
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0301-0310
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0311-0610
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	0611-
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	9412-9711
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	0311-
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9412-9711
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	9412-9711
34	16.070 SCREW; SUN VISOR 03.671 M5X20	5-09981-059-0	04	1	9712-0310
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	0311-0612
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	0311-0612
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	0701-0706
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	0701-0706
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	9412-9711
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0311-0612
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-0706
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 06.514 M5X18 TAPPING	0-72180-518-0	02	1	0707-
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9412-9503
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9412-9503
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9504-9711
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	9504-9711
35	16.070 GROMMET; SCREW,SUN VISOR 16.588	8-94279-039-0	04	1	9712-0310
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	0311-
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	0311-
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	02	1	9412-9503
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	9504-9711
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	0311-
39	16.450 HANDLE; ASSIST,A-POST DARK BEIGE	8-97853-802-2	02	1	9412-9608
39	16.450 HANDLE; ASSIST,A-POST DARK BEIGE	8-97867-883-0	02	1	9609-9711
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97867-209-0	02	1	9712-0501
39	16.450 HANDLE; ASSIST,A-POST GRAY	8-97582-194-1	02	1	0502-0702
39	16.450 HANDLE; ASSIST,A-POST GRAY	8-97409-477-0	02	1	0703-
48	16.450 BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	8-94279-214-0	01	1	9412-
48	16.450 BOLT; ASSIST GRIP (C) M6X40 LK&PL WASHER	8-94279-215-0	01	1	9412-
48	16.450 BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9412-
53	16.450 SCREW; ASSIST HANDLE M4X30	8-94279-360-0	04	1	9412-9608
53	16.450 SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9609-0612
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	0701-
55	16.450 GRIP; ASSIST,CAB SIDE UPR GRAY	8-97853-837-2	01	1	9412-9511
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97853-837-2	01	1	9512-9711
55	16.450 GRIP; ASSIST,CAB SIDE UPR 16.346 DARK GRAY	8-97098-476-2	01	1	9712-0310
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> 16.346 DARK GRAY	8-97098-476-2	01	1	0311-0501
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97582-294-2	01	1	0502-0610
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	0611-
71	16.450 SCREW M4X30	8-94279-360-0	02	1	9412-9510
71	16.450 SCREW M6X30 W/LK WASHER	5-09981-064-0	02	1	9511-9511
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	9512-9711
71	16.450 SCREW M6X30 W/LK WASHER	5-09981-064-0	02	1	9712-0310
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0612
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	0701-
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK	8-97856-889-2	01	1	9412-
76	16.742 SPACER; ASSIST GRIP (A)	8-97857-268-0	01	1	9412-
76	16.742 SPACER; ASSIST GRIP (B) DARK GRAY	8-97859-854-0	02	1	9712-0310
76	16.742 SPACER; ASSIST GRIP INTERIOR DELUXE<RBB> (B) DARK GRAY	8-97859-854-0	02	1	0311-0501
76	16.742 SPACER; ASSIST GRIP INTERIOR DELUXE<RBB> (B) GRAY	8-97582-250-0	02	1	0507-0610
76	16.742 SPACER; ASSIST GRIP INTERIOR DELUXE<RBB> (B) DARK GRAY	8-97405-286-0	02	1	0611-
81	15.394 CAP; ASSIST GRIP DARK BEIGE	8-97857-190-2	01	1	9412-9711
81	15.394 CAP; ASSIST GRIP DARK GRAY	8-97867-612-4	01	1	9712-0501
81	15.394 CAP; ASSIST GRIP GRAY	8-97582-827-4	01	1	0502-
103	16.450 GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	02	1	9412-1002
103	16.450 GRIP; ASSIST,FRT PNL	8-97630-819-0	02	1	1003-
104	16.450 SPACER; ASSIST GRIP	8-97859-124-3	04	1	9412-
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> GRAY	8-97853-967-1	01	1	9412-9711
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	9712-0310
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	0311-
142	16.742 SEAL; ASSIST GRIP BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9512-9711
142	16.742 SEAL; ASSIST GRIP BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9512-9711
144	16.070 SEAL; LOCATION HOLE BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9412-9711
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	02	1	9412-9711
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-2	04	1	0311-0610
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0611-
144	16.070 SEAL; LOCATION HOLE BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0311-0501
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0502-0506
144	16.070 SEAL; LOCATION HOLE BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0507-
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	9412-9711
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	0311-
151	16.450 COVER; BRKT 16.069 (A)	8-97859-113-2	01	1	9412-9710
151	16.450 COVER; BRKT 16.069 (A)	8-97859-112-2	01	1	9412-9710
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (B) LIGHT GRAY	8-97867-250-0	01	1	0311-

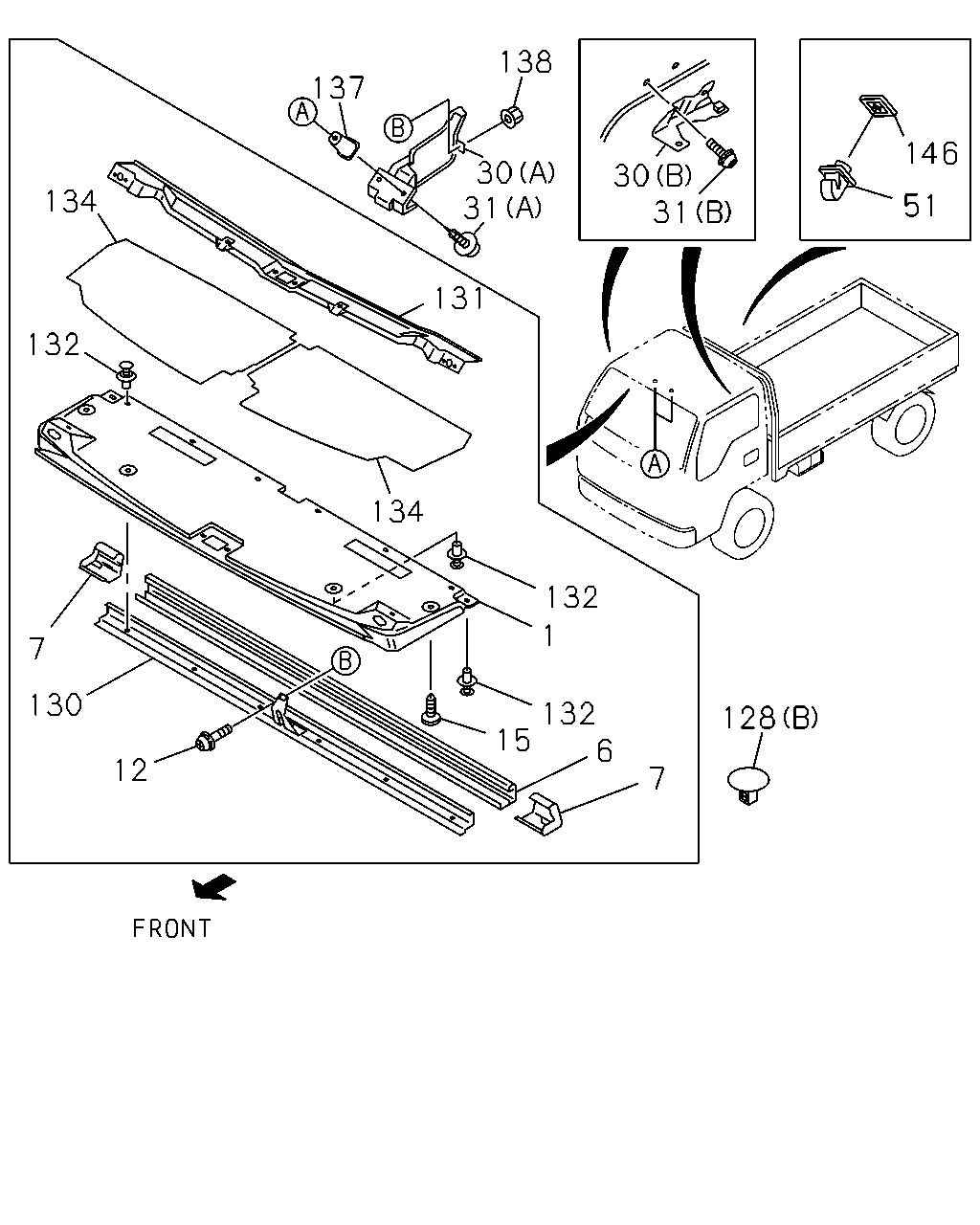

30 31 51 151 152 137 138 30 31 1 128 128 12 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97856-718-3	01	1	9412-9602
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97867-759-0	01	1	9603-9711
1	16.742 BOARD; HEADER SHELF LIGHT GRAY	8-97867-528-0	01	1	9712-9810
1	16.742 BOARD; HEADER SHELF LIGHT GRAY	8-97892-372-5	01	1	9811-0105
1	16.742 BOARD; HEADER SHELF LIGHT GRAY	8-97994-820-0	01	1	0106-0310
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-820-1	01	1	0311-
12	16.742 SCREW; HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9412-9711
12	16.742 SCREW; HEADER SHELF 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9712-9810
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9412-9711
15	16.742 FASTENER; HEADER SHELF BOARD D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9712-9712
15	16.742 FASTENER; HEADER SHELF BOARD LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	02	1	9801-9810
15	16.742 FASTENER; HEADER SHELF BOARD LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	9811-0310
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0311-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9412-9711
30	16.742 BRACKET ASM; HEADER SHELF (A)	8-97859-388-3	01	1	9712-0310
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0311-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-1	01	1	9412-9711
30	16.742 BRACKET ASM; HEADER SHELF (B)	8-97856-798-2	01	1	9712-0310
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0311-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-1	01	1	9412-9711
30	16.742 BRACKET ASM; HEADER SHELF (B)	8-97856-797-2	01	1	9712-0310
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0311-
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9412-9711
31	16.742 SCREW; BRKT,HEADER SHELF 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9712-0310
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0311-0405
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16	8-94279-341-0	02	1	0406-0612
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.570 (B) M6X16	0-38050-616-0	04	1	0701-
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9412-9711
31	16.742 SCREW; BRKT,HEADER SHELF 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9712-0310
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0311-0612
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.069 (A) M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16	8-94279-341-0	02	1	0703-
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-259-1	01	1	0507-0610
51	16.570 HOOK; COAT HANGER AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97867-259-1	01	1	0507-0610
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> DARK GRAY	8-97405-302-1	01	1	0611-
51	16.570 HOOK; COAT HANGER AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97405-302-1	01	1	0611-
51	16.570 HOOK; COAT HANGER GRAY	8-97856-015-1	01	1	9412-9711
51	16.570 HOOK; COAT HANGER LIGHT GRAY	8-97867-259-1	01	1	9712-0310
51	16.570 HOOK; COAT HANGER LIGHT GRAY	8-97867-259-1	01	1	9712-0310
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-259-1	01	1	0311-0501
51	16.570 HOOK; COAT HANGER AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97867-259-1	01	1	0311-0501
128	16.742 FASTENER; HEADER SHELF (A) LIGHT GRAY	8-97892-153-2	02	1	9811-0310
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) LIGHT GRAY	8-97892-153-2	02	1	0311-
128	16.742 FASTENER; HEADER SHELF (C)	8-97892-737-0	03	1	9811-0310
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0311-0612
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C) M6X16 W/TORQUES	8-98064-273-0	03	1	0701-
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (B) GRAY	8-97853-998-2	01	1	9412-9711
128	16.742 FASTENER; HEADER SHELF EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97867-230-2	01	1	9712-9810
128	16.742 FASTENER; HEADER SHELF EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97892-151-0	01	1	9811-0310
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97892-151-0	01	1	0311-
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	01	1	9412-9503
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	9504-9711
137	16.742 GROMMET; SCREW,HEADER SHELF 16.588	8-94279-039-0	01	1	9712-0310
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	0311-0405
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-9711
138	16.742 NUT; BRKT,HEADER SHELF 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-0310
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0602
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
151	16.450 COVER; BRKT 16.069 (A)	8-97859-113-2	01	1	9412-9710
151	16.450 COVER; BRKT 16.069 (A)	8-97859-112-2	01	1	9412-9710
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> (B) LIGHT GRAY	8-97867-250-0	01	1	0311-
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	0311-

138 137 146 30 31 30 31 134 51 131 132 134 132 1 7 130 132 6 128 15 12 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97856-718-3	01	1	9412-9602
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> GRAY	8-97867-759-0	01	1	9603-9711
1	16.742 BOARD; HEADER SHELF LIGHT GRAY	8-97867-528-0	01	1	9712-9810
1	16.742 BOARD; HEADER SHELF LIGHT GRAY	8-97892-372-5	01	1	9811-0105
1	16.742 BOARD; HEADER SHELF LIGHT GRAY	8-97994-820-0	01	1	0106-0310
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-820-1	01	1	0311-
6	16.742 FINISHER; HEADER SHELF,REAR TRAY ROOF HEAD<7EJ> GRAY	8-97856-128-1	01	1	9412-9711
6	16.742 FINISHER; HEADER SHELF,REAR LIGHT GRAY	8-97867-529-1	01	1	9712-9810
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-057-3	01	1	9412-9711
7	16.742 FINISHER; HEADER SHELF,CORNER LIGHT GRAY	8-97859-849-3	01	1	9712-9810
7	16.742 FINISHER; HEADER SHELF,CORNER TRAY ROOF HEAD<7EJ> GRAY	8-97856-056-3	01	1	9412-9711
7	16.742 FINISHER; HEADER SHELF,CORNER LIGHT GRAY	8-97859-848-3	01	1	9712-9810
12	16.742 SCREW; HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9412-9711
12	16.742 SCREW; HEADER SHELF 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	03	1	9712-9810
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9412-9711
15	16.742 FASTENER; HEADER SHELF BOARD D6.8X11 PUSH RIVET	8-97856-755-0	02	1	9712-9712
15	16.742 FASTENER; HEADER SHELF BOARD LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	02	1	9801-9810
15	16.742 FASTENER; HEADER SHELF BOARD LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	9811-0310
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0311-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-1	01	1	9412-9711
30	16.742 BRACKET ASM; HEADER SHELF (A)	8-97859-388-3	01	1	9712-0310
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0311-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-1	01	1	9412-9711
30	16.742 BRACKET ASM; HEADER SHELF (B)	8-97856-798-2	01	1	9712-0310
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0311-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-1	01	1	9412-9711
30	16.742 BRACKET ASM; HEADER SHELF (B)	8-97856-797-2	01	1	9712-0310
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0311-
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9412-9711
31	16.742 SCREW; BRKT,HEADER SHELF 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9712-0310
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0311-0405
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16	8-94279-341-0	02	1	0406-0612
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.570 (B) M6X16	0-38050-616-0	04	1	0701-
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9412-9711
31	16.742 SCREW; BRKT,HEADER SHELF 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9712-0310
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0311-0612
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.069 (A) M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16	8-94279-341-0	02	1	0703-
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-259-1	01	1	0507-0610
51	16.570 HOOK; COAT HANGER AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97867-259-1	01	1	0507-0610
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> DARK GRAY	8-97405-302-1	01	1	0611-
51	16.570 HOOK; COAT HANGER AUSTRALIA EQUIPMENT(RR3) DARK GRAY	8-97405-302-1	01	1	0611-
51	16.570 HOOK; COAT HANGER GRAY	8-97856-015-1	01	1	9412-9711
51	16.570 HOOK; COAT HANGER LIGHT GRAY	8-97867-259-1	01	1	9712-0310
51	16.570 HOOK; COAT HANGER LIGHT GRAY	8-97867-259-1	01	1	9712-0310
51	16.570 HOOK; COAT HANGER INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-259-1	01	1	0311-0501
51	16.570 HOOK; COAT HANGER AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY	8-97867-259-1	01	1	0311-0501
128	16.742 FASTENER; HEADER SHELF (A) LIGHT GRAY	8-97892-153-2	02	1	9811-0310
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) LIGHT GRAY	8-97892-153-2	02	1	0311-
128	16.742 FASTENER; HEADER SHELF (C)	8-97892-737-0	03	1	9811-0310
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0311-0612
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C) M6X16 W/TORQUES	8-98064-273-0	03	1	0701-
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (B) GRAY	8-97853-998-2	01	1	9412-9711
128	16.742 FASTENER; HEADER SHELF EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97867-230-2	01	1	9712-9810
128	16.742 FASTENER; HEADER SHELF EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97892-151-0	01	1	9811-0310
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97892-151-0	01	1	0311-
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97853-746-3	01	1	9412-9604
130	16.742 REIFORCEMENT; HEADER SHELF,RR TRAY ROOF HEAD<7EJ>	8-97859-532-1	01	1	9605-9711
130	16.742 REIFORCEMENT; HEADER SHELF,RR	8-97859-532-1	01	1	9712-9810
131	16.742 REIFORCEMENT; HEADER SHELF,FRT TRAY ROOF HEAD<7EJ>	8-97853-745-5	01	1	9412-9711
131	16.742 REIFORCEMENT; HEADER SHELF,FRT	8-97853-745-5	01	1	9712-9810
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	10	1	9412-9510
132	16.742 FASTENER; BOARD,HEADER SHELF TRAY ROOF HEAD<7EJ> D6.8X11 PUSH RIVET	8-97856-755-0	08	1	9511-9711
132	16.742 FASTENER; BOARD,HEADER SHELF D6.8X11 PUSH RIVET	8-97856-755-0	08	1	9712-9712
132	16.742 FASTENER; BOARD,HEADER SHELF LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	08	1	9801-9810
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97856-385-2	01	1	9412-9602
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97856-384-2	01	1	9412-9602
134	16.742 SHEET; HEADER SHELF TRAY ROOF HEAD<7EJ>	8-97867-479-0	02	1	9603-9711
134	16.742 SHEET; HEADER SHELF	8-97867-479-0	02	1	9712-9810
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 09.743 D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	01	1	9412-9503
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	9504-9711
137	16.742 GROMMET; SCREW,HEADER SHELF 16.588	8-94279-039-0	01	1	9712-0310
137	16.742 GROMMET; SCREW,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	0311-0405
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-9711
138	16.742 NUT; BRKT,HEADER SHELF 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-0310
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0602
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
146	16.070 SPACER; HOOK AUSTRALIA EQUIPMENT(RR3) EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-152-1	01	1	0507-0708
146	16.070 SPACER; HOOK AUSTRALIA EQUIPMENT(RR3) EXC. INTERIOR DELUXE<RBB> 16.742 DARK GRAY	8-97406-202-1	01	1	0709-
146	16.070 SPACER; HOOK GRAY	8-97856-335-1	01	1	9412-9711
146	16.070 SPACER; HOOK AUSTRALIA EQUIPMENT(RR3) EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-152-1	01	1	0311-0501

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
