Isuzu WW
▶
TRUCKS
▶
NPS
▶
50701 - NPS-RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-42 - ASH TRAY
▶

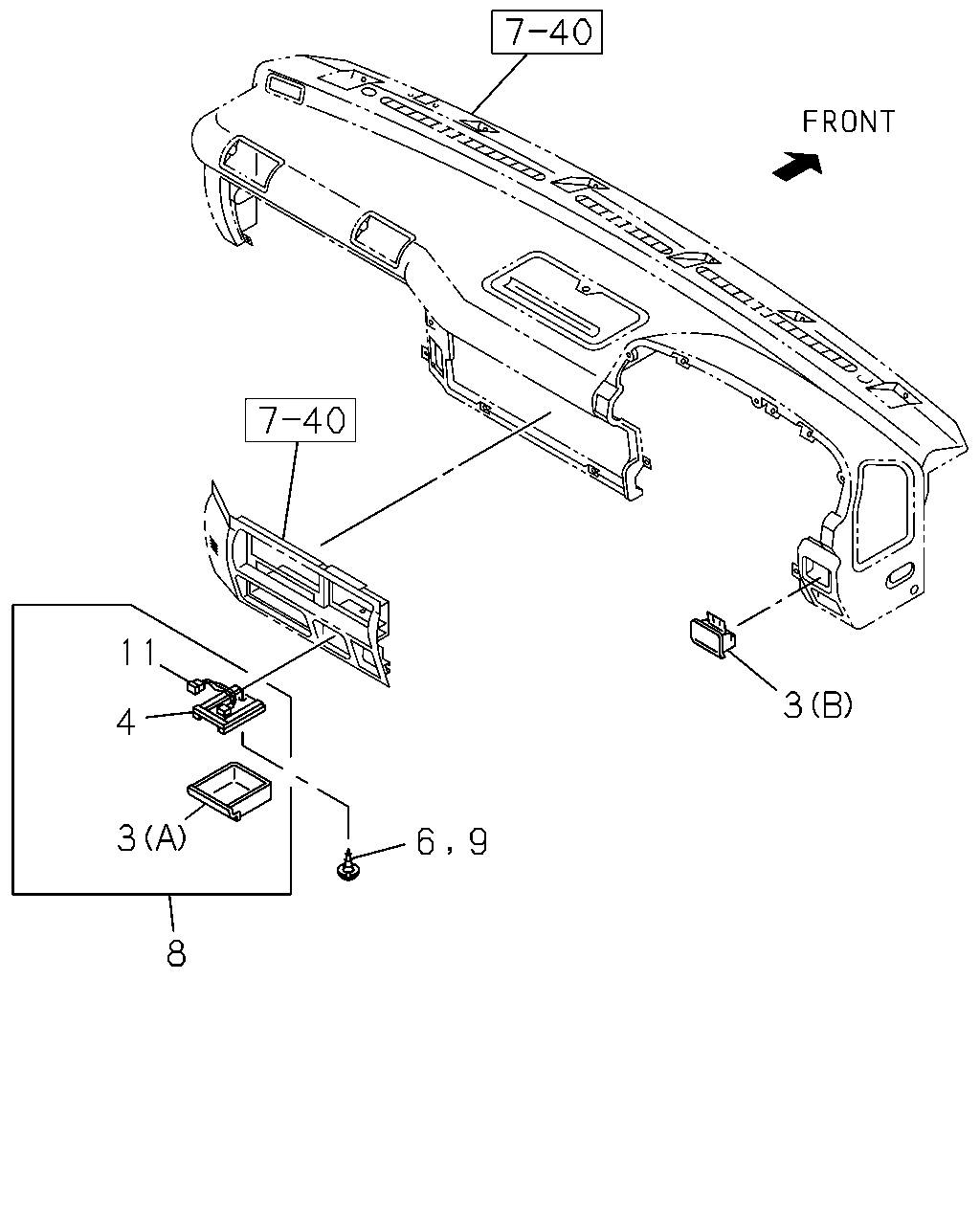

7-42 — ASH TRAY
(#35825) — 18 parça
11
3
4
3
6
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
16.120 CASE ASM; ASH TRAY INNER
(A) DARK BEIGE
8-97857-997-1
01
1
9412-9711
3
16.120 CASE ASM; ASH TRAY INNER
(A) DARK GRAY
8-97857-998-1
01
1
9712-9810
3
16.120 CASE ASM; ASH TRAY INNER
(A) DARK GRAY
8-97207-244-0
01
1
9811-0009
3
16.120 CASE ASM; ASH TRAY INNER
(A) DARK GRAY
8-97898-280-0
01
1
0010-
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> 16.100 (B) DARK BEIGE
8-97853-892-3
01
1
9512-9711
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (B) DARK GRAY
8-97859-799-3
01
1
9712-9809
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (B) DARK GRAY
8-97198-913-0
01
1
9810-0501
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (B) DARK GRAY
8-97582-213-0
01
1
0502-
4
16.120 CASE ASM; ASH TRAY OUTER
8-97857-995-1
01
1
9412-0009
4
16.120 CASE ASM; ASH TRAY OUTER
8-97898-279-0
01
1
0010-
6
16.120 SCREW; ASH TRAY
07.874 M6X16 TRUSS-HEAD
8-94318-980-0
01
1
9701-
8
16.120 TRAY ASM; ASH
DARK BEIGE
8-97853-867-2
01
1
9412-9711
8
16.120 TRAY ASM; ASH
DARK GRAY
8-97859-834-2
01
1
9712-9810
8
16.120 TRAY ASM; ASH
8-97206-393-0
01
1
9811-0009
8
16.120 TRAY ASM; ASH
8-97898-278-0
01
1
0010-
9
16.120 SCREW; OUTER CASE,ASH TRAY
16.067 M5X14
8-94279-325-0
01
1
9412-9612
11
08.991 BULB; ASH TRAY
8-97857-999-0
01
1
9412-0009
11
08.991 BULB; ASH TRAY
16.120
8-97898-281-0
01
1
0010-
