◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#35823) — 395 parça

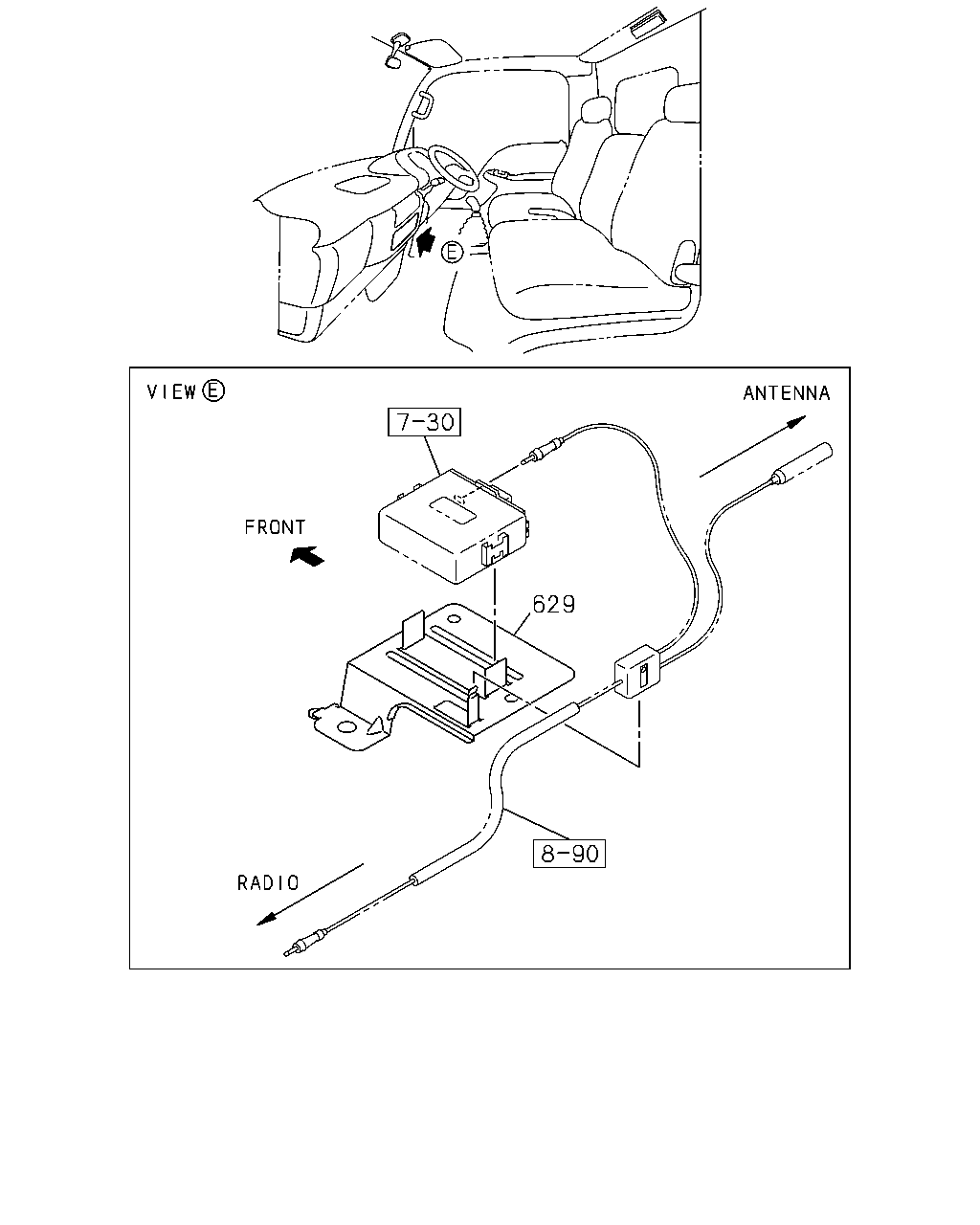

çizim 17801
629
BalonParca AdiParca NoAdetTipApplied Date
629 16.085 BRACKET; KEYLESS ENTRY
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> 		8-97581-182-2 01 1 0507-
629 16.085 BRACKET; KEYLESS ENTRY 8-97859-513-3 01 1 0301-0310
629 16.085 BRACKET; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<6NF> 		8-97859-513-3 01 1 0311-0501

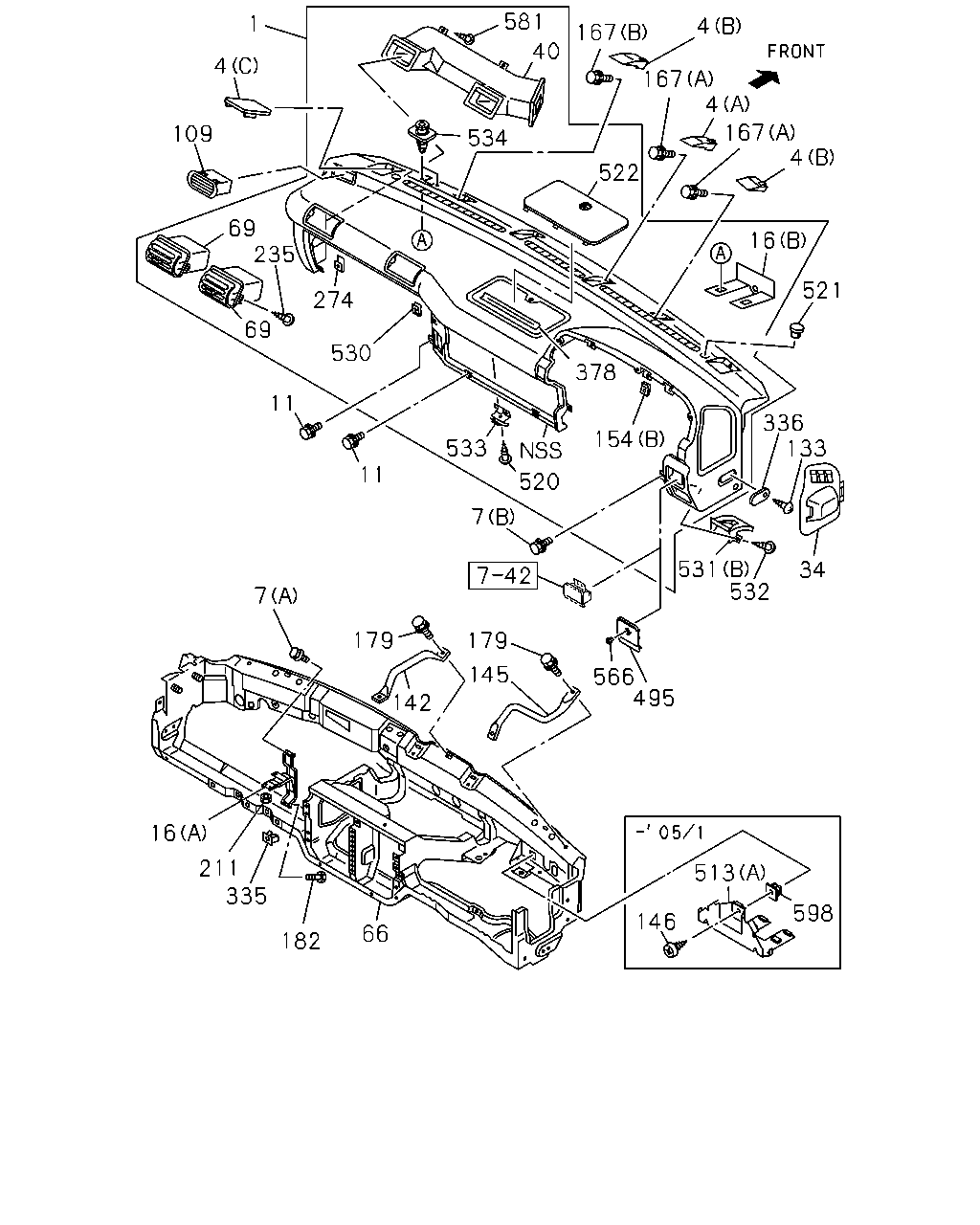

çizim 18288
581 1 4 167 40 4 167 4 167 4 109 534 522 69 235 16 521 274 69 530 378 11 336 133 154 533 11 520 7 531 532 34 7 179 179 145 566 495 142 16 211 335 513 598 146 66 182
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK BEIGE 		8-97856-667-2 01 1 9412-9511
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-4 01 1 9512-9711
1 16.080 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 9712-0501
1 16.080 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0502-
4 16.080 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-3 02 1 9412-9711
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9712-0501
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0502-
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-3 01 1 9412-9711
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9712-0501
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0502-
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-155-1 01 1 9412-9711
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 9712-0501
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0502-
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-3 01 1 9412-9711
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9712-0501
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0502-
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-154-1 01 1 9412-9711
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 9712-0501
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0502-
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 06 1 9412-9603
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 04 1 9604-0106
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0107-
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 9604-0512
7 16.085 BOLT; SUPPORT,INST PNL
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
11 16.090 BOLT; INST PNL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9412-
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) (A) 		8-98012-980-1 01 1 0507-
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> (C) 		8-97261-472-0 01 1 0507-
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 9412-0105
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0106-0212
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0301-0310
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH),4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0311-0501
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0502-0611
16 16.085 BRACKET; INST PNL
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0612-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0208-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0208-
34 16.085 LID; OIL TANK
DARK BEIGE 		8-97853-886-7 01 1 9412-9711
34 16.085 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 9712-0501
34 16.085 LID; OIL TANK
FORGED AIR VENTILATION(C39) 16.081 DARK GRAY 		8-97582-488-5 01 1 0502-
34 16.085 LID; OIL TANK
EXC. FORGED AIR VENTILATION(C39) DARK GRAY 		8-97582-207-7 01 1 0502-
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97039-991-0 01 1 9412-0007
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-692-0 01 1 0008-
66 16.085 REINFORCEMENT; INST PANEL 8-97859-285-9 01 1 9412-9808
66 16.085 REINFORCEMENT; INST PANEL 8-97213-341-1 01 1 9809-0005
66 16.085 REINFORCEMENT; INST PANEL 8-97898-463-4 01 1 0006-0505
66 16.085 REINFORCEMENT; INST PANEL 8-98013-757-1 01 1 0506-
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9412-9711
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9712-0501
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0502-
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97853-879-0 01 1 9412-9711
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 9712-0501
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97582-222-0 01 1 0502-
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9412-0604
133 16.081 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612
133 16.081 SCREW; COVER,INST PNL
09.647 T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-
142 16.085 STAY; INST PANEL 8-97853-624-4 01 1 9412-
145 16.085 STAY; INST PANEL SIDE 8-97853-625-2 01 1 9412-
146 16.100 SCREW; TAP
4HE1 ENG(RLY) 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0301-0501
146 16.100 SCREW; TAP
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 0502-0506
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 0601-0611
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0612-
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9412-9612
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9701-9901
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0501
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 04 1 0502-0512
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0601-0611
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 0612-
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9412-9806
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807-0501
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 9412-
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9412-
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9412-0307
179 16.085 BOLT; STAY,INST PANEL
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0308-0512
179 16.085 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601-
182 16.085 BOLT; BRKT,INST PANEL
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9412-9603
182 16.085 BOLT; BRKT,INST PANEL
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9604-
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 9412-0602
211 16.120 NUT; BRKT TO INST
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9412-
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9412-
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9412-
336 16.081 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 9412-9711
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9712-0501
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0502-
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9412-9810
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 9811-
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97859-977-4 01 1 9512-9711
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9712-0501
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0502-
513 16.120 BRACKET; RELAY
4HK1-TCN ENG(RDQ) (B) 		8-97410-713-2 01 1 0507-
513 16.120 BRACKET; RELAY
4HE1 ENG(RLY) (A) 		8-97859-391-2 01 1 0301-0501
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9412-
521 16.081 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 9412-9711
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 9712-0501
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0502-
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-4 01 1 9507-9711
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 9712-0501
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0502-
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9412-
531 16.100 CASE; ASH TRAY
(B) 		8-97853-130-0 01 1 9412-9511
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (B) 		8-97853-130-0 01 1 9512-
531 16.100 CASE; ASH TRAY
(A) DARK BEIGE 		8-97853-892-2 01 1 9412-9511
532 16.100 SCREW; ASH TRAY
16.067 M5X14 		8-94279-325-0 02 1 9412-9511
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9512-0612
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701-
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9412-
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 9412-
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 9512-9711
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9712-0501
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0502-
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 9412-
598 09.262 GROMMET; SCREW
4HE1 ENG(RLY) 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0301-0501

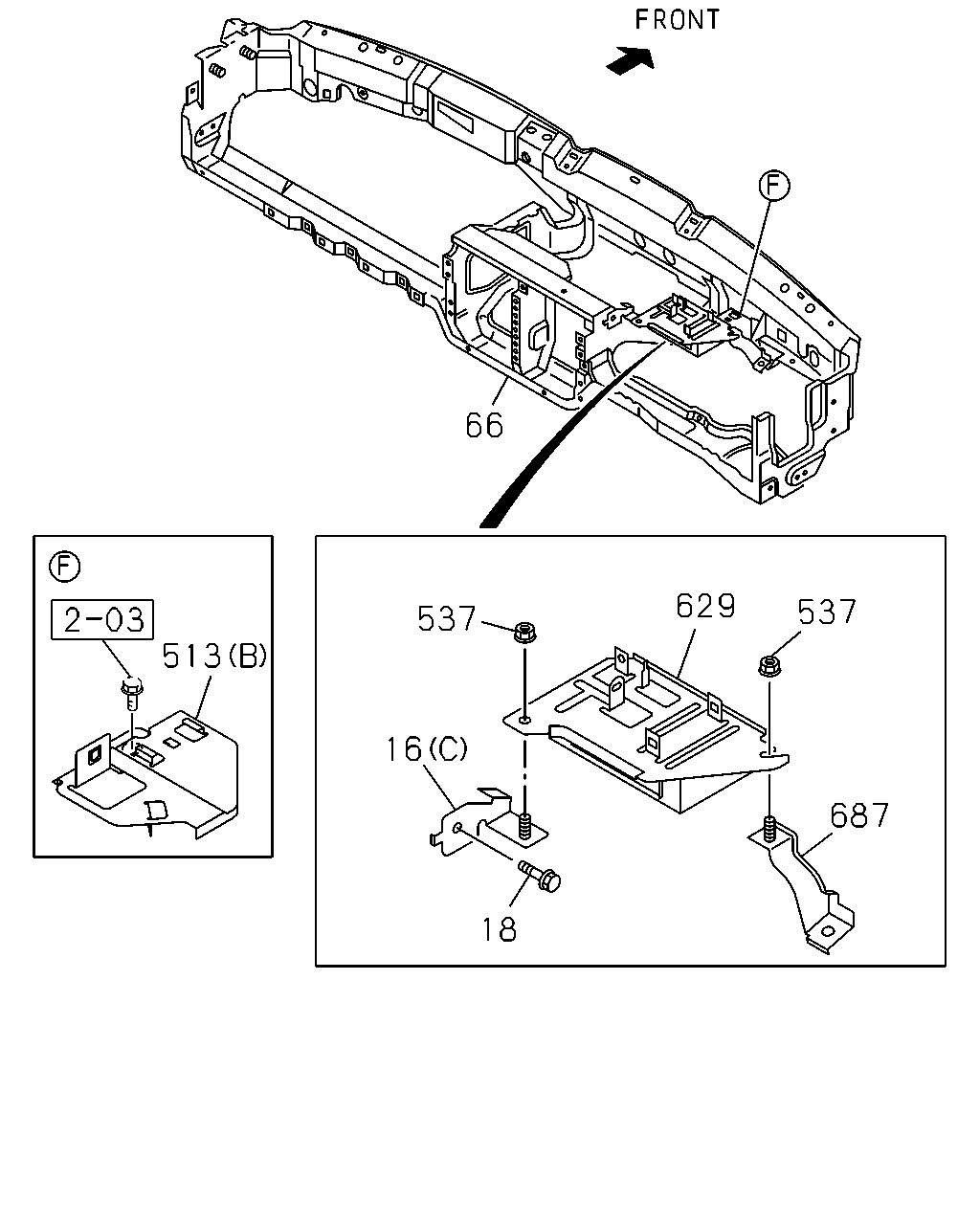

çizim 19519
66 62 537 537 513 16 687 18
BalonParca AdiParca NoAdetTipApplied Date
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) (A) 		8-98012-980-1 01 1 0507-
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> (C) 		8-97261-472-0 01 1 0507-
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 9412-0105
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0106-0212
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0301-0310
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH),4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0311-0501
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0502-0611
16 16.085 BRACKET; INST PNL
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0612-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0208-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0208-
18 16.085 BOLT; BRKT
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 0507-0512
18 16.085 BOLT; BRKT
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER 		0-50640-612-0 01 1 0601-
62 16.110 KNOB; GLOVE BOX LID
DARK BEIGE 		8-97853-861-1 01 1 9412-9711
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 9712-0501
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0502-
66 16.085 REINFORCEMENT; INST PANEL 8-97859-285-9 01 1 9412-9808
66 16.085 REINFORCEMENT; INST PANEL 8-97213-341-1 01 1 9809-0005
66 16.085 REINFORCEMENT; INST PANEL 8-97898-463-4 01 1 0006-0505
66 16.085 REINFORCEMENT; INST PANEL 8-98013-757-1 01 1 0506-
513 16.120 BRACKET; RELAY
4HK1-TCN ENG(RDQ) (B) 		8-97410-713-2 01 1 0507-
513 16.120 BRACKET; RELAY
4HE1 ENG(RLY) (A) 		8-97859-391-2 01 1 0301-0501
537 16.085 NUT; BRKT
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602
537 16.085 NUT; BRKT
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-
687 16.085 BRACKET; ECU
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> 		8-97239-050-0 01 1 0507-

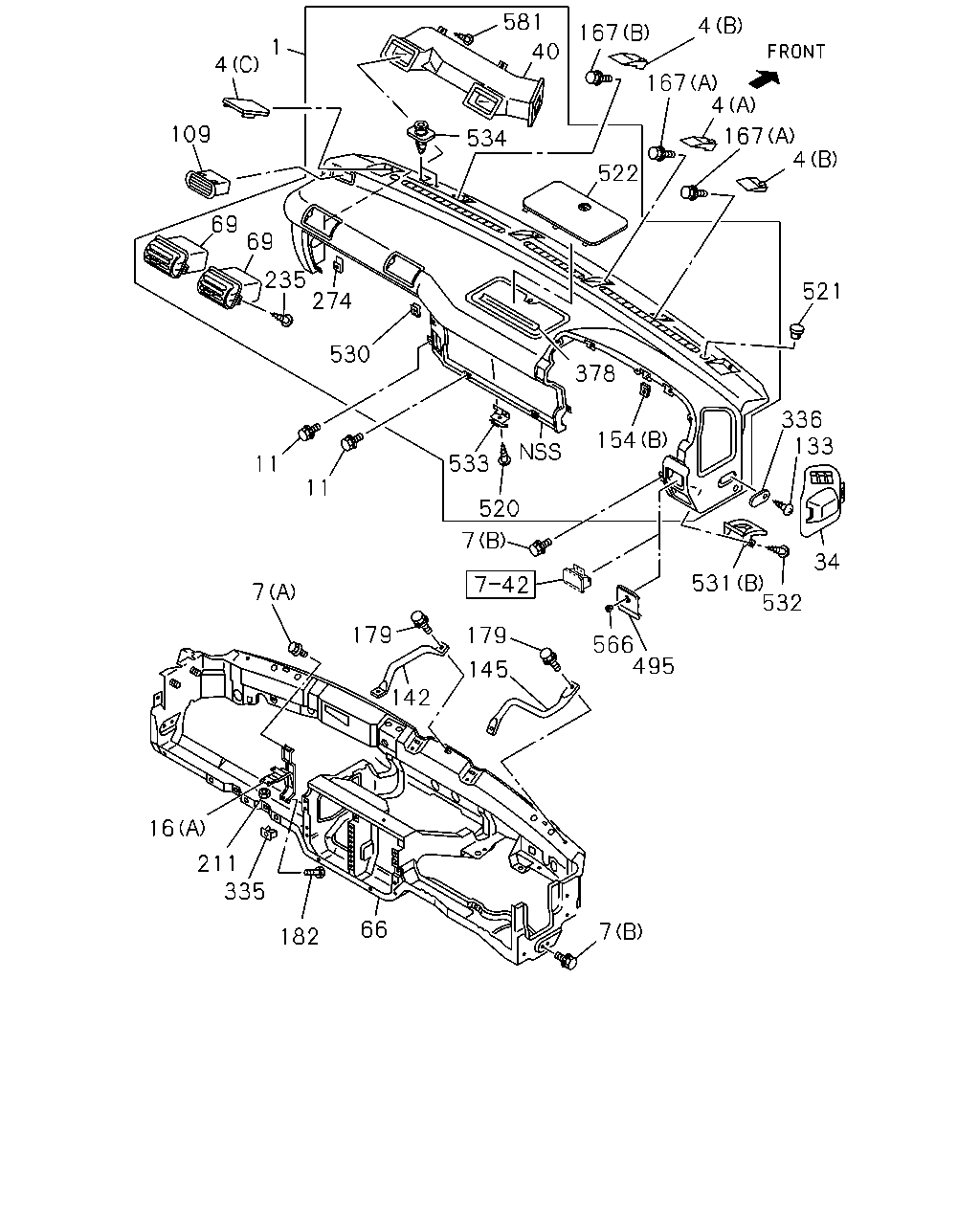

çizim 20496
581 4 167 1 40 4 167 4 109 167 4 534 522 69 69 235 274 521 530 378 336 133 154 533 11 11 520 7 34 531 532 7 179 179 566 495 145 142 16 211 335 66 7 182
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK BEIGE 		8-97856-667-2 01 1 9412-9511
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-4 01 1 9512-9711
1 16.080 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 9712-0501
1 16.080 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0502-
4 16.080 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-3 02 1 9412-9711
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9712-0501
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0502-
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-3 01 1 9412-9711
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9712-0501
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0502-
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-155-1 01 1 9412-9711
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 9712-0501
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0502-
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-3 01 1 9412-9711
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9712-0501
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0502-
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-154-1 01 1 9412-9711
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 9712-0501
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0502-
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 06 1 9412-9603
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 04 1 9604-0106
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0107-
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 9604-0512
7 16.085 BOLT; SUPPORT,INST PNL
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
11 16.090 BOLT; INST PNL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9412-
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) (A) 		8-98012-980-1 01 1 0507-
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> (C) 		8-97261-472-0 01 1 0507-
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 9412-0105
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0106-0212
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0301-0310
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH),4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0311-0501
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0502-0611
16 16.085 BRACKET; INST PNL
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0612-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0208-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0208-
34 16.085 LID; OIL TANK
DARK BEIGE 		8-97853-886-7 01 1 9412-9711
34 16.085 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 9712-0501
34 16.085 LID; OIL TANK
FORGED AIR VENTILATION(C39) 16.081 DARK GRAY 		8-97582-488-5 01 1 0502-
34 16.085 LID; OIL TANK
EXC. FORGED AIR VENTILATION(C39) DARK GRAY 		8-97582-207-7 01 1 0502-
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97039-991-0 01 1 9412-0007
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-692-0 01 1 0008-
66 16.085 REINFORCEMENT; INST PANEL 8-97859-285-9 01 1 9412-9808
66 16.085 REINFORCEMENT; INST PANEL 8-97213-341-1 01 1 9809-0005
66 16.085 REINFORCEMENT; INST PANEL 8-97898-463-4 01 1 0006-0505
66 16.085 REINFORCEMENT; INST PANEL 8-98013-757-1 01 1 0506-
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9412-9711
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9712-0501
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0502-
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97853-879-0 01 1 9412-9711
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 9712-0501
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97582-222-0 01 1 0502-
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9412-0604
133 16.081 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612
133 16.081 SCREW; COVER,INST PNL
09.647 T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-
142 16.085 STAY; INST PANEL 8-97853-624-4 01 1 9412-
145 16.085 STAY; INST PANEL SIDE 8-97853-625-2 01 1 9412-
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 0601-0611
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0612-
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9412-9612
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9701-9901
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0501
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 04 1 0502-0512
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0601-0611
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 0612-
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9412-9806
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807-0501
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 9412-
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9412-
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9412-0307
179 16.085 BOLT; STAY,INST PANEL
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0308-0512
179 16.085 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601-
182 16.085 BOLT; BRKT,INST PANEL
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9412-9603
182 16.085 BOLT; BRKT,INST PANEL
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9604-
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 9412-0602
211 16.120 NUT; BRKT TO INST
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9412-
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9412-
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9412-
336 16.081 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 9412-9711
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9712-0501
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0502-
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9412-9810
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 9811-
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97859-977-4 01 1 9512-9711
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9712-0501
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0502-
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9412-
521 16.081 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 9412-9711
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 9712-0501
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0502-
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-4 01 1 9507-9711
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 9712-0501
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0502-
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9412-
531 16.100 CASE; ASH TRAY
(B) 		8-97853-130-0 01 1 9412-9511
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (B) 		8-97853-130-0 01 1 9512-
531 16.100 CASE; ASH TRAY
(A) DARK BEIGE 		8-97853-892-2 01 1 9412-9511
532 16.100 SCREW; ASH TRAY
16.067 M5X14 		8-94279-325-0 02 1 9412-9511
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9512-0612
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701-
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9412-
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 9412-
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK BEIGE 		8-97863-839-0 01 1 9512-9711
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9712-0501
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0502-
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 9412-

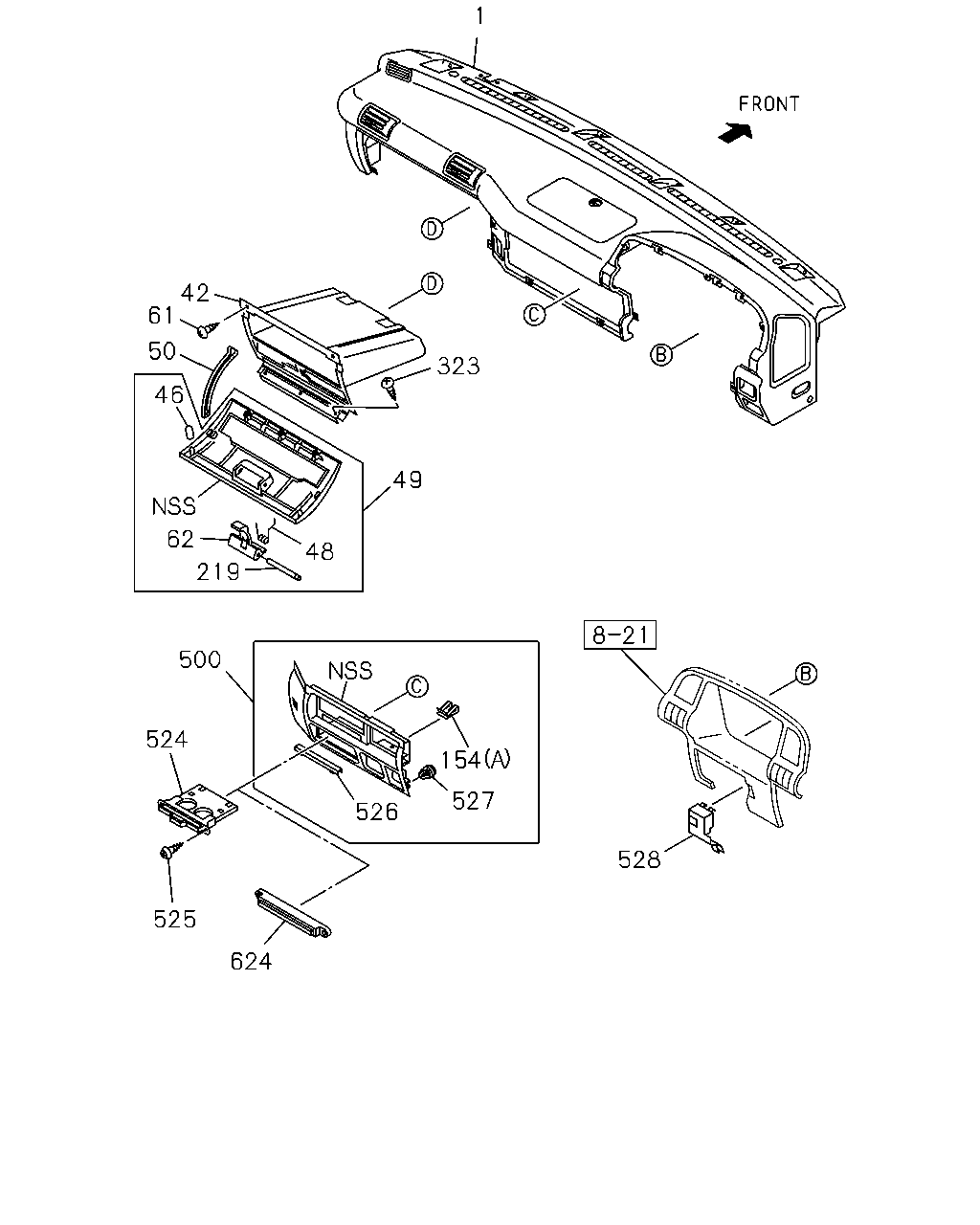

çizim 66824
1 42 61 50 323 46 49 62 48 219 500 524 154 527 526 528 525 624
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK BEIGE 		8-97856-667-2 01 1 9412-9511
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-4 01 1 9512-9711
1 16.080 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 9712-0501
1 16.080 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0502-
42 16.100 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 9412-
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9412-0208
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9412-
49 16.110 LID; GLOVE BOX
DARK BEIGE 		8-97856-166-2 01 1 9412-9711
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97857-496-4 01 1 9712-0501
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0502-
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9412-
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9412-0604
61 16.100 SCREW; GLOVE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612
61 16.100 SCREW; GLOVE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1101
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-
62 16.110 KNOB; GLOVE BOX LID
DARK BEIGE 		8-97853-861-1 01 1 9412-9711
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 9712-0501
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0502-
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 0601-0611
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0612-
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9412-9612
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9701-9901
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0501
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 04 1 0502-0512
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0601-0611
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 0612-
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9412-9806
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807-0501
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9412-
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9412-0612
323 16.110 SCREW; GLOVE BOX LK
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701-
500 16.081 CLUSTER; INST CENTER
DARK BEIGE 		8-97856-161-9 01 1 9412-9711
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97859-814-9 01 1 9712-9901
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97199-874-1 01 1 9902-0310
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97199-874-1 01 1 0311-0501
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97582-809-1 01 1 0502-
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97199-876-1 01 1 0311-0501
524 16.100 STAND ASM; CUP,INST 8-97853-172-5 01 1 9412-9511
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 9512-
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9412-0612
525 16.100 SCREW; CUP STAND
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101
525 16.100 SCREW; CUP STAND
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK BEIGE 		8-97853-896-1 01 1 9412-9711
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 9712-0310
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97857-503-1 01 1 0311-0501
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0502-0611
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0612-
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9412-
528 16.081 COVER; PTO LEVER
DARK BEIGE 		8-97856-095-4 01 1 9412-9711
528 16.081 COVER; PTO LEVER
BLACK 		8-97867-544-5 01 1 9712-
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 9512-

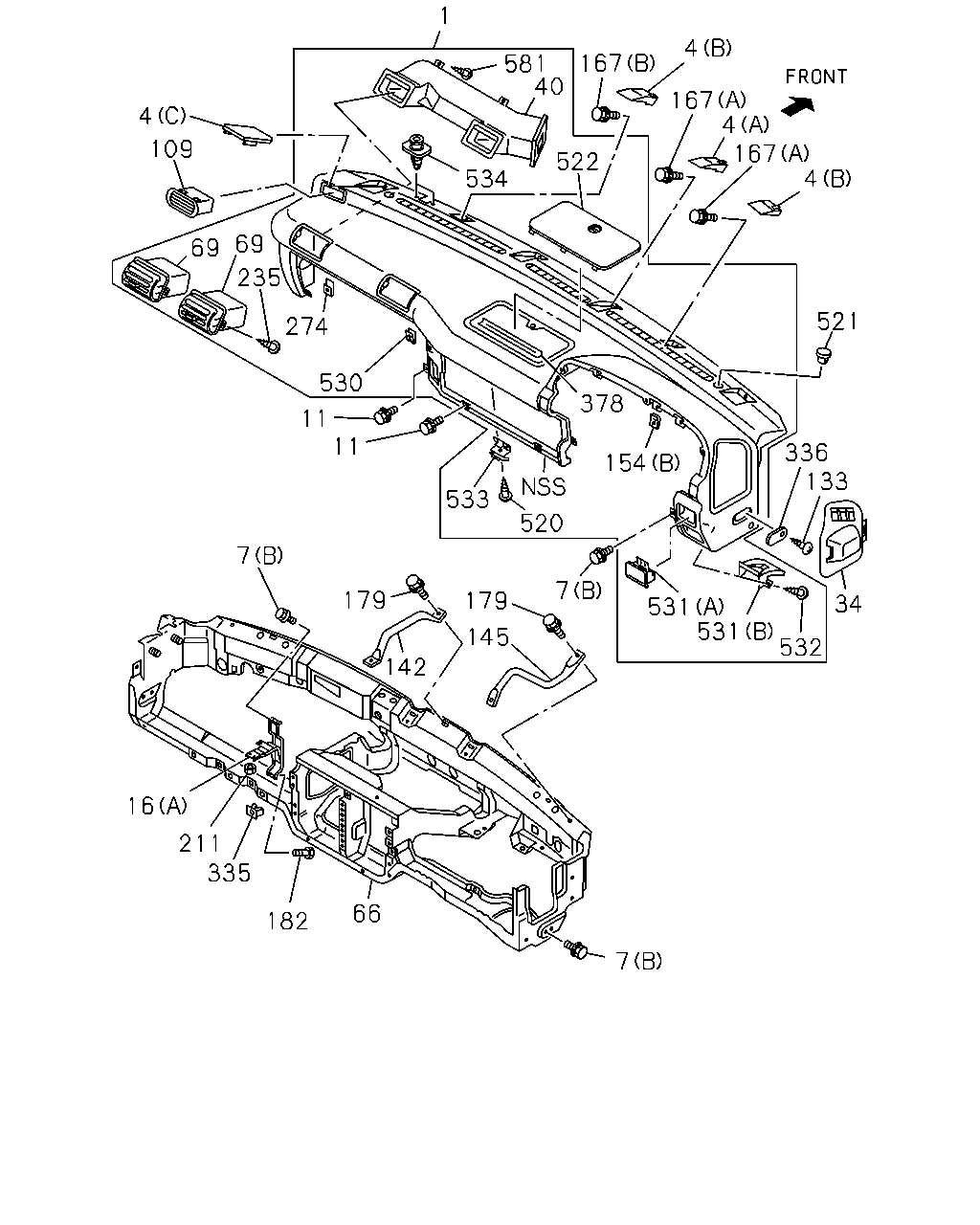

çizim 70296
1 4 167 581 40 167 4 167 4 109 4 522 534 69 69 235 521 274 530 378 11 11 336 133 154 533 520 7 7 179 179 34 531 531 532 145 142 16 211 335 66 182 7
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK BEIGE 		8-97856-667-2 01 1 9412-9511
1 16.080 PANEL; INST
DARK BEIGE 		8-97855-245-4 01 1 9512-9711
1 16.080 PANEL; INST
DARK GRAY 		8-97195-959-1 01 1 9712-0501
1 16.080 PANEL; INST
DARK GRAY 		8-97582-810-1 01 1 0502-
4 16.080 COVER; INST PNL
(A) DARK BEIGE 		8-97853-880-3 02 1 9412-9711
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9712-0501
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0502-
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-882-3 01 1 9412-9711
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9712-0501
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0502-
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-155-1 01 1 9412-9711
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 9712-0501
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0502-
4 16.080 COVER; INST PNL
(B) DARK BEIGE 		8-97853-881-3 01 1 9412-9711
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9712-0501
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0502-
4 16.080 COVER; INST PNL
(C) DARK BEIGE 		8-97856-154-1 01 1 9412-9711
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 9712-0501
4 16.080 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0502-
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 06 1 9412-9603
7 16.085 BOLT; SUPPORT,INST PNL
(B) M8X20 FLANGE 		8-97114-431-0 04 1 9604-0106
7 16.085 BOLT; SUPPORT,INST PNL
16.090 (B) M8X23 FLANGE 		8-97264-766-0 04 1 0107-
7 16.085 BOLT; SUPPORT,INST PNL
02.664 (A) M8X20 FLANGE 		0-28680-820-0 02 1 9604-0512
7 16.085 BOLT; SUPPORT,INST PNL
01.531 (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
11 16.090 BOLT; INST PNL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9412-
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) (A) 		8-98012-980-1 01 1 0507-
16 16.085 BRACKET; INST PNL
4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> (C) 		8-97261-472-0 01 1 0507-
16 16.085 BRACKET; INST PNL
(A) 		8-97853-306-7 01 1 9412-0105
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0106-0212
16 16.085 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0301-0310
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH),4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0311-0501
16 16.085 BRACKET; INST PNL
4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0502-0611
16 16.085 BRACKET; INST PNL
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 		8-97853-306-7 01 1 0612-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0208-
16 16.085 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0208-
34 16.085 LID; OIL TANK
DARK BEIGE 		8-97853-886-7 01 1 9412-9711
34 16.085 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 9712-0501
34 16.085 LID; OIL TANK
FORGED AIR VENTILATION(C39) 16.081 DARK GRAY 		8-97582-488-5 01 1 0502-
34 16.085 LID; OIL TANK
EXC. FORGED AIR VENTILATION(C39) DARK GRAY 		8-97582-207-7 01 1 0502-
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97039-991-0 01 1 9412-0007
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-692-0 01 1 0008-
66 16.085 REINFORCEMENT; INST PANEL 8-97859-285-9 01 1 9412-9808
66 16.085 REINFORCEMENT; INST PANEL 8-97213-341-1 01 1 9809-0005
66 16.085 REINFORCEMENT; INST PANEL 8-97898-463-4 01 1 0006-0505
66 16.085 REINFORCEMENT; INST PANEL 8-98013-757-1 01 1 0506-
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK BEIGE 		8-97853-878-2 02 1 9412-9711
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9712-0501
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0502-
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK BEIGE 		8-97853-879-0 01 1 9412-9711
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 9712-0501
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97582-222-0 01 1 0502-
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9412-0604
133 16.081 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612
133 16.081 SCREW; COVER,INST PNL
09.647 T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-
142 16.085 STAY; INST PANEL 8-97853-624-4 01 1 9412-
145 16.085 STAY; INST PANEL SIDE 8-97853-625-2 01 1 9412-
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 0601-0611
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0612-
154 16.085 NUT
16.081 (A) M5 SPIRE NUT 		8-94279-051-0 01 1 9412-9612
154 16.085 NUT
16.742 (A) M6 SPIRE NUT 		8-94291-960-0 01 1 9701-9901
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0501
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 04 1 0502-0512
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0601-0611
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 0612-
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 03 1 9412-9806
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 9807-0501
167 16.085 BOLT; REINF TO INST
06.500 (A) M6X25 		8-94279-204-0 04 1 9412-
167 16.085 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 9412-
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9412-0307
179 16.085 BOLT; STAY,INST PANEL
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0308-0512
179 16.085 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601-
182 16.085 BOLT; BRKT,INST PANEL
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9412-9603
182 16.085 BOLT; BRKT,INST PANEL
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 9604-
211 16.120 NUT; BRKT TO INST
04.594 M6 FLANGE 		0-91150-106-0 02 1 9412-0602
211 16.120 NUT; BRKT TO INST
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9412-
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9412-
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9412-
336 16.081 COVER; INST PANEL SIDE
DARK BEIGE 		8-97853-885-4 02 1 9412-9711
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9712-0501
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0502-
378 09.743 SEAL; INST PANEL 8-97853-938-0 01 1 9412-9810
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 9811-
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9412-
521 16.081 COVER; SUN SENSOR
DARK BEIGE 		8-97853-890-2 01 1 9412-9711
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 9712-0501
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0502-
522 16.085 LID; RELAY BOX
DARK BEIGE 		8-97853-876-4 01 1 9507-9711
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 9712-0501
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0502-
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9412-
531 16.100 CASE; ASH TRAY
(B) 		8-97853-130-0 01 1 9412-9511
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> (B) 		8-97853-130-0 01 1 9512-
531 16.100 CASE; ASH TRAY
(A) DARK BEIGE 		8-97853-892-2 01 1 9412-9511
532 16.100 SCREW; ASH TRAY
16.067 M5X14 		8-94279-325-0 02 1 9412-9511
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9512-0612
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701-
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9412-
534 16.100 CLIP; BRKT 8-97856-276-0 04 1 9412-
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 03 1 9412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
