Sayfa 7-30 - Isuzu EPC

7-30 — LOCK CYLINDER SET (#35822) — 166 parça

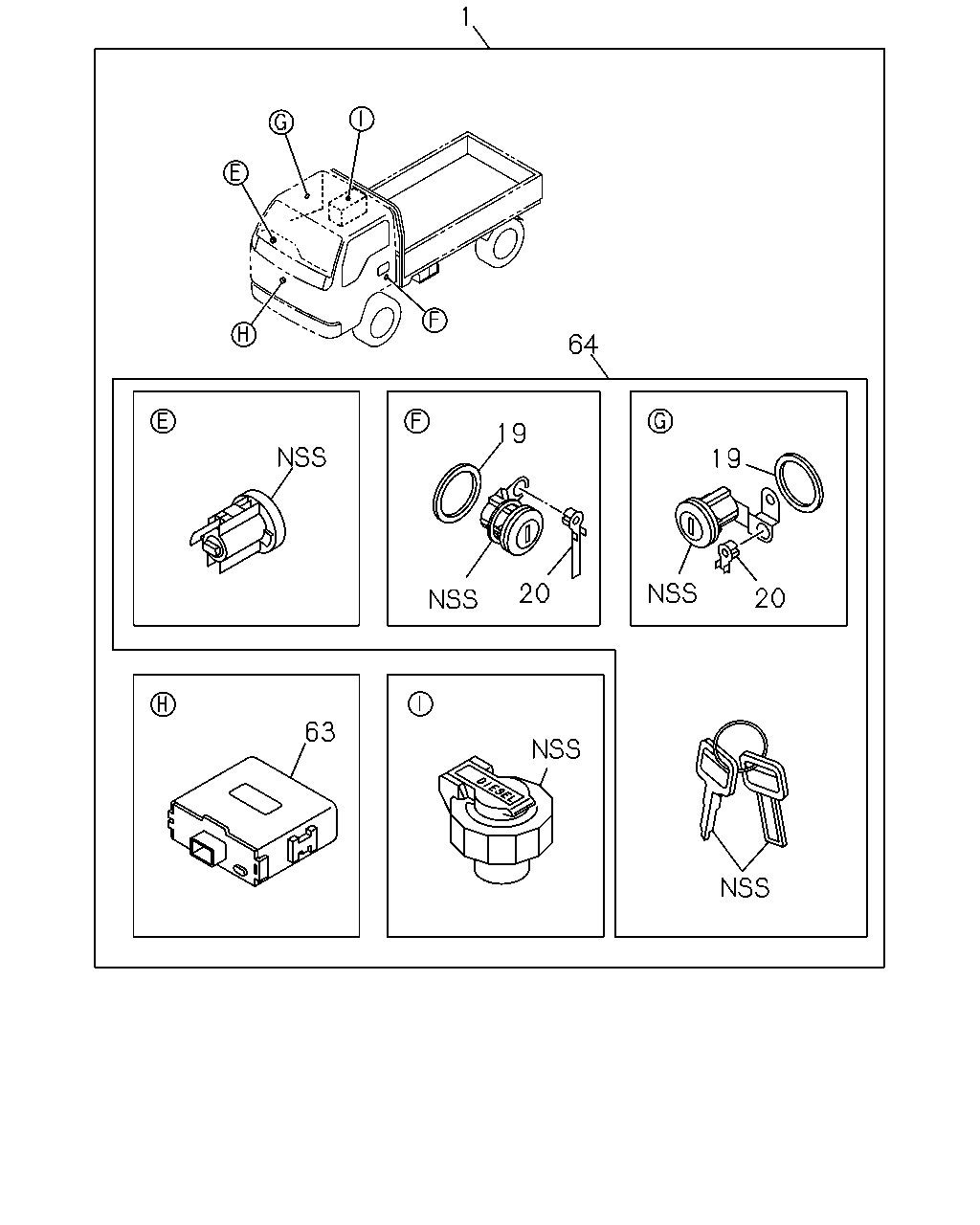

1 64 19 19 20 20 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97410-695-0	01	1	0507-
1	02.188 CYLINDER SET; CAR LOCK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>	8-97410-694-0	01	1	0507-
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05>	8-97035-294-1	01	1	9412-9906
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> REMOTE CONT DOOR LOCK<6NF>	8-97119-181-1	01	1	0311-0501
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97035-294-1	01	1	0311-0501
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05>	8-97035-294-1	01	1	0502-0506
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97035-294-1	01	1	0507-
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>	8-97035-293-1	01	1	9412-9906
1	02.188 CYLINDER SET; CAR LOCK	8-97035-293-1	01	1	9907-0111
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<6NF>	8-97035-293-1	01	1	0112-0212
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>,REMOTE CONTDOOR LOCK<6NF>	8-97035-293-1	01	1	0311-0501
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>	8-97035-293-1	01	1	0502-0506
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>,REMOTE CONTDOOR LOCK<6NF>	8-97035-293-1	01	1	0507-
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<6NF>	8-97121-675-1	01	1	0112-0212
1	02.188 CYLINDER SET; CAR LOCK	8-97121-675-1	01	1	0301-0310
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>	8-97121-675-1	01	1	0311-0501
19	16.328 GASKET; DOOR LOCK CYL FUEL TANK CAP W/LOCK<N05>	8-94128-739-0	02	1	9412-9810
19	16.328 GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	9811-0506
19	16.328 GASKET; DOOR LOCK CYL AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-94128-739-0	02	1	0507-
19	16.328 GASKET; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<6NF>	8-94128-739-0	02	1	0507-
20	16.328 SNAP; DOOR LOCK CYL 10.474 BROWN	8-97040-453-0	01	1	9412-0506
20	16.328 SNAP; DOOR LOCK CYL AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 10.474 BROWN	8-97040-453-0	01	1	0507-
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<6NF> 10.474 BROWN	8-97040-453-0	01	1	0507-
20	16.328 SNAP; DOOR LOCK CYL 10.474 YELLOW	8-97040-452-0	01	1	9412-0506
20	16.328 SNAP; DOOR LOCK CYL AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 10.474 YELLOW	8-97040-452-0	01	1	0507-
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<6NF> 10.474 YELLOW	8-97040-452-0	01	1	0507-
63	02.195 CONTROLLER; LOCK CYL,24V AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97119-185-0	01	1	0507-
63	02.195 CONTROLLER; LOCK CYL,24V REMOTE CONT DOOR LOCK<6NF>	8-97119-185-0	01	1	0112-0212
63	02.195 CONTROLLER; LOCK CYL,24V	8-97119-185-0	01	1	0301-0310
63	02.195 CONTROLLER; LOCK CYL,24V REMOTE CONT DOOR LOCK<6NF>	8-97119-185-0	01	1	0311-0501
64	02.188 CYLINDER SET; LOCK,W/O CONTROLLE FUEL TANK CAP W/LOCK<N05> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-98007-240-0	01	1	0507-
64	02.188 CYLINDER SET; LOCK,W/O CONTROLLE AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>	8-98007-239-0	01	1	0507-
64	02.188 CYLINDER SET; LOCK,W/O CONTROLLE FUEL TANK CAP W/LOCK<N05> REMOTE CONT DOOR LOCK<6NF>	8-97868-215-0	01	1	0311-0501
64	02.188 CYLINDER SET; LOCK,W/O CONTROLLE REMOTE CONT DOOR LOCK<6NF>	8-97868-214-0	01	1	0112-0212
64	02.188 CYLINDER SET; LOCK,W/O CONTROLLE	8-97868-214-0	01	1	0301-0310
64	02.188 CYLINDER SET; LOCK,W/O CONTROLLE REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>	8-97868-214-0	01	1	0311-0501

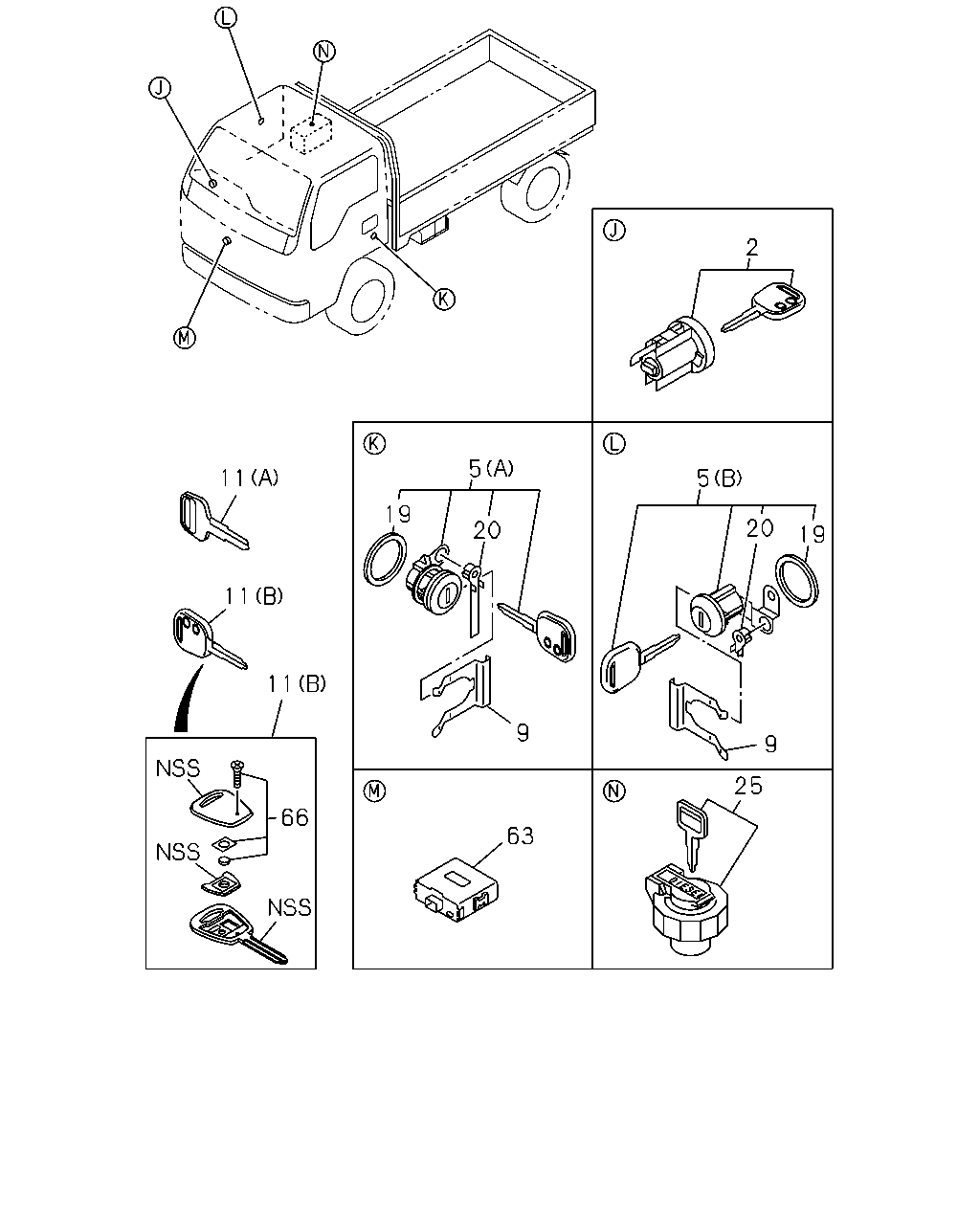

2 5 11 5 19 20 20 19 11 11 9 9 25 66 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.188 BARREL ASM; W/KEY,STRG LOCK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-98007-235-0	01	1	0507-
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-97095-682-2	01	1	9412-0111
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-682-2	01	1	0112-0212
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<6NF>	8-97868-202-0	01	1	0112-0212
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-97868-202-0	01	1	0301-0310
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<6NF>	8-97868-202-0	01	1	0311-0501
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-682-2	01	1	0311-0501
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-97095-682-2	01	1	0502-0506
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-682-2	01	1	0507-
5	16.328 CYLINDER ASM; DOOR LOCK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (B)	8-98007-236-0	01	1	0507-
5	16.328 CYLINDER ASM; DOOR LOCK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (A)	8-98007-237-0	01	1	0507-
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-97095-685-2	01	1	9412-0111
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (A)	8-97095-685-2	01	1	0112-0212
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-97095-684-2	01	1	9412-0111
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (B)	8-97095-684-2	01	1	0112-0212
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<6NF> (A)	8-97868-204-0	01	1	0112-0212
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-97868-204-0	01	1	0301-0310
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<6NF> (A)	8-97868-204-0	01	1	0311-0501
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<6NF> (B)	8-97868-203-0	01	1	0112-0212
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-97868-203-0	01	1	0301-0310
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<6NF> (B)	8-97868-203-0	01	1	0311-0501
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (A)	8-97095-685-2	01	1	0311-0501
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-97095-685-2	01	1	0502-0506
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (A)	8-97095-685-2	01	1	0507-
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (B)	8-97095-684-2	01	1	0311-0501
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-97095-684-2	01	1	0502-0506
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (B)	8-97095-684-2	01	1	0507-
9	16.328 CLIP; DOOR LOCK	8-94278-105-0	02	1	9412-9910
9	16.328 CLIP; DOOR LOCK	8-97898-277-0	02	1	9911-0610
9	16.328 CLIP; DOOR LOCK	8-97410-786-0	02	1	0611-
11	02.187 KEY; BLANK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (A) WO/NOTCH	8-97890-854-0	AR	1	0507-
11	02.187 KEY; BLANK (A) WO/NOTCH	8-97076-337-0	AR	1	9412-0212
11	02.187 KEY; BLANK (A) WO/NOTCH	8-97076-337-0	AR	1	0301-0506
11	02.187 KEY; BLANK EXC. REMOTE CONT DOOR LOCK<6NF> (A) WO/NOTCH	8-97076-337-0	AR	1	0507-
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<6NF> (B) WO/NOTCH	8-97121-677-1	AR	1	0112-0212
11	02.187 KEY; BLANK (B) WO/NOTCH	8-97121-677-1	AR	1	0301-0310
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<6NF> (B) WO/NOTCH	8-97121-677-1	AR	1	0311-0501
19	16.328 GASKET; DOOR LOCK CYL FUEL TANK CAP W/LOCK<N05>	8-94128-739-0	02	1	9412-9810
19	16.328 GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	9811-0506
19	16.328 GASKET; DOOR LOCK CYL AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-94128-739-0	02	1	0507-
19	16.328 GASKET; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<6NF>	8-94128-739-0	02	1	0507-
20	16.328 SNAP; DOOR LOCK CYL 10.474 BROWN	8-97040-453-0	01	1	9412-0506
20	16.328 SNAP; DOOR LOCK CYL AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 10.474 BROWN	8-97040-453-0	01	1	0507-
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<6NF> 10.474 BROWN	8-97040-453-0	01	1	0507-
20	16.328 SNAP; DOOR LOCK CYL 10.474 YELLOW	8-97040-452-0	01	1	9412-0506
20	16.328 SNAP; DOOR LOCK CYL AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 10.474 YELLOW	8-97040-452-0	01	1	0507-
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<6NF> 10.474 YELLOW	8-97040-452-0	01	1	0507-
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-98007-238-0	01	1	0507-
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-97095-686-2	01	1	9412-9906
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> REMOTE CONT DOOR LOCK<6NF>	8-97868-205-0	01	1	0311-0501
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-686-2	01	1	0311-0501
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-97095-686-2	01	1	0502-0506
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-686-2	01	1	0507-
63	02.195 CONTROLLER; LOCK CYL,24V AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97119-185-0	01	1	0507-
63	02.195 CONTROLLER; LOCK CYL,24V REMOTE CONT DOOR LOCK<6NF>	8-97119-185-0	01	1	0112-0212
63	02.195 CONTROLLER; LOCK CYL,24V	8-97119-185-0	01	1	0301-0310
63	02.195 CONTROLLER; LOCK CYL,24V REMOTE CONT DOOR LOCK<6NF>	8-97119-185-0	01	1	0311-0501
66	02.195 BATTERY SET; TRANSMITTER KEY AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97869-042-0	01	1	0507-
66	02.195 BATTERY SET; TRANSMITTER KEY REMOTE CONT DOOR LOCK<6NF>	8-97869-042-0	01	1	0112-0212
66	02.195 BATTERY SET; TRANSMITTER KEY	8-97869-042-0	01	1	0301-0310
66	02.195 BATTERY SET; TRANSMITTER KEY REMOTE CONT DOOR LOCK<6NF>	8-97869-042-0	01	1	0311-0501

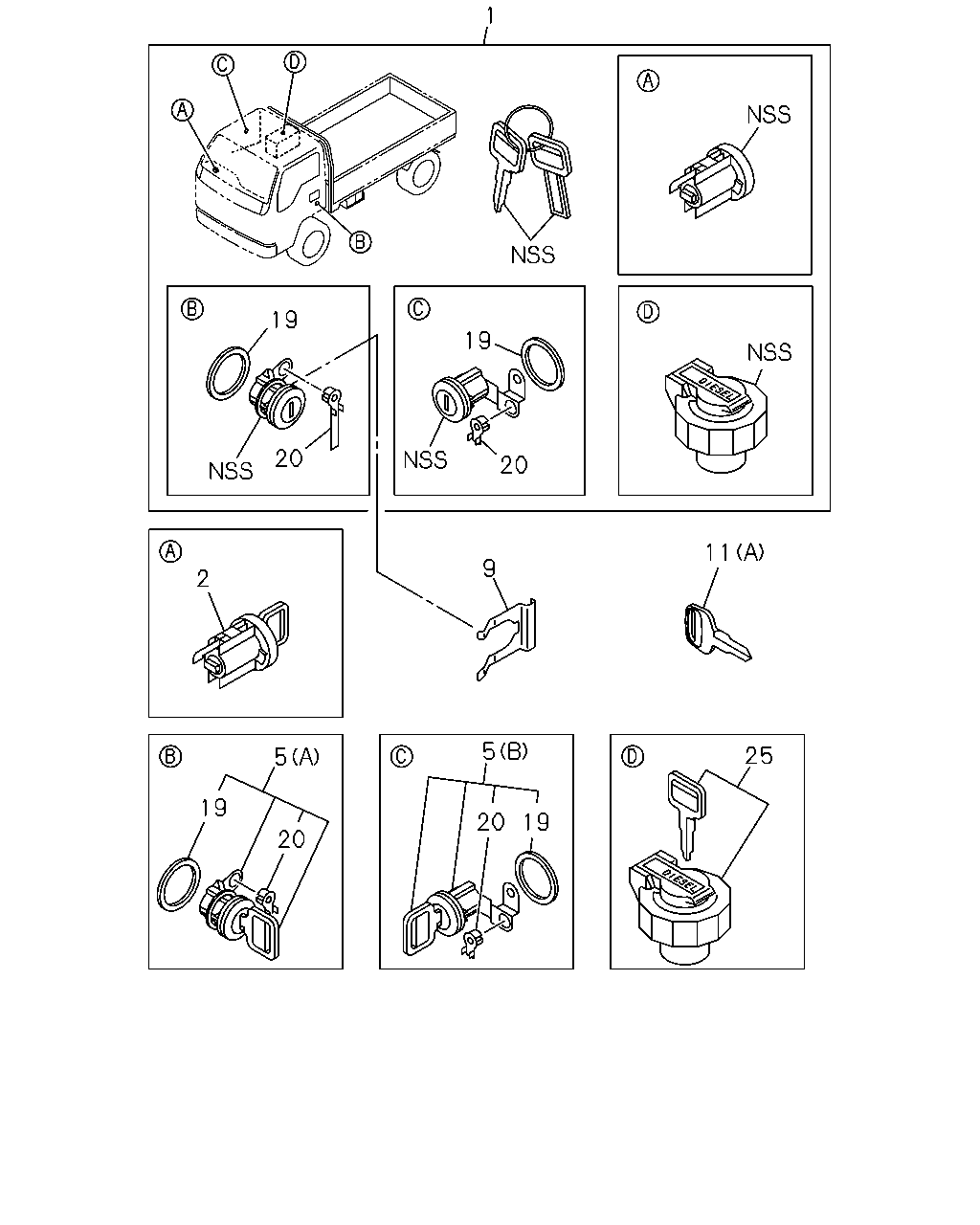

1 19 19 20 20 11 9 2 5 25 5 19 20 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-97410-695-0	01	1	0507-
1	02.188 CYLINDER SET; CAR LOCK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>	8-97410-694-0	01	1	0507-
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05>	8-97035-294-1	01	1	9412-9906
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> REMOTE CONT DOOR LOCK<6NF>	8-97119-181-1	01	1	0311-0501
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97035-294-1	01	1	0311-0501
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05>	8-97035-294-1	01	1	0502-0506
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97035-294-1	01	1	0507-
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>	8-97035-293-1	01	1	9412-9906
1	02.188 CYLINDER SET; CAR LOCK	8-97035-293-1	01	1	9907-0111
1	02.188 CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<6NF>	8-97035-293-1	01	1	0112-0212
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>,REMOTE CONTDOOR LOCK<6NF>	8-97035-293-1	01	1	0311-0501
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>	8-97035-293-1	01	1	0502-0506
1	02.188 CYLINDER SET; CAR LOCK EXC. FUEL TANK CAP W/LOCK<N05>,REMOTE CONTDOOR LOCK<6NF>	8-97035-293-1	01	1	0507-
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<6NF>	8-97121-675-1	01	1	0112-0212
1	02.188 CYLINDER SET; CAR LOCK	8-97121-675-1	01	1	0301-0310
1	02.188 CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. FUEL TANK CAP W/LOCK<N05>	8-97121-675-1	01	1	0311-0501
2	02.188 BARREL ASM; W/KEY,STRG LOCK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-98007-235-0	01	1	0507-
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-97095-682-2	01	1	9412-0111
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-682-2	01	1	0112-0212
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<6NF>	8-97868-202-0	01	1	0112-0212
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-97868-202-0	01	1	0301-0310
2	02.188 BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<6NF>	8-97868-202-0	01	1	0311-0501
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-682-2	01	1	0311-0501
2	02.188 BARREL ASM; W/KEY,STRG LOCK	8-97095-682-2	01	1	0502-0506
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-682-2	01	1	0507-
5	16.328 CYLINDER ASM; DOOR LOCK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (B)	8-98007-236-0	01	1	0507-
5	16.328 CYLINDER ASM; DOOR LOCK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (A)	8-98007-237-0	01	1	0507-
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-97095-685-2	01	1	9412-0111
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (A)	8-97095-685-2	01	1	0112-0212
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-97095-684-2	01	1	9412-0111
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (B)	8-97095-684-2	01	1	0112-0212
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<6NF> (A)	8-97868-204-0	01	1	0112-0212
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-97868-204-0	01	1	0301-0310
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<6NF> (A)	8-97868-204-0	01	1	0311-0501
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<6NF> (B)	8-97868-203-0	01	1	0112-0212
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-97868-203-0	01	1	0301-0310
5	16.328 CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<6NF> (B)	8-97868-203-0	01	1	0311-0501
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (A)	8-97095-685-2	01	1	0311-0501
5	16.328 CYLINDER ASM; DOOR LOCK (A)	8-97095-685-2	01	1	0502-0506
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (A)	8-97095-685-2	01	1	0507-
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (B)	8-97095-684-2	01	1	0311-0501
5	16.328 CYLINDER ASM; DOOR LOCK (B)	8-97095-684-2	01	1	0502-0506
5	16.328 CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<6NF> (B)	8-97095-684-2	01	1	0507-
9	16.328 CLIP; DOOR LOCK	8-94278-105-0	02	1	9412-9910
9	16.328 CLIP; DOOR LOCK	8-97898-277-0	02	1	9911-0610
9	16.328 CLIP; DOOR LOCK	8-97410-786-0	02	1	0611-
11	02.187 KEY; BLANK AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> (A) WO/NOTCH	8-97890-854-0	AR	1	0507-
11	02.187 KEY; BLANK (A) WO/NOTCH	8-97076-337-0	AR	1	9412-0212
11	02.187 KEY; BLANK (A) WO/NOTCH	8-97076-337-0	AR	1	0301-0506
11	02.187 KEY; BLANK EXC. REMOTE CONT DOOR LOCK<6NF> (A) WO/NOTCH	8-97076-337-0	AR	1	0507-
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<6NF> (B) WO/NOTCH	8-97121-677-1	AR	1	0112-0212
11	02.187 KEY; BLANK (B) WO/NOTCH	8-97121-677-1	AR	1	0301-0310
11	02.187 KEY; BLANK REMOTE CONT DOOR LOCK<6NF> (B) WO/NOTCH	8-97121-677-1	AR	1	0311-0501
19	16.328 GASKET; DOOR LOCK CYL FUEL TANK CAP W/LOCK<N05>	8-94128-739-0	02	1	9412-9810
19	16.328 GASKET; DOOR LOCK CYL	8-94128-739-0	02	1	9811-0506
19	16.328 GASKET; DOOR LOCK CYL AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-94128-739-0	02	1	0507-
19	16.328 GASKET; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<6NF>	8-94128-739-0	02	1	0507-
20	16.328 SNAP; DOOR LOCK CYL 10.474 BROWN	8-97040-453-0	01	1	9412-0506
20	16.328 SNAP; DOOR LOCK CYL AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 10.474 BROWN	8-97040-453-0	01	1	0507-
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<6NF> 10.474 BROWN	8-97040-453-0	01	1	0507-
20	16.328 SNAP; DOOR LOCK CYL 10.474 YELLOW	8-97040-452-0	01	1	9412-0506
20	16.328 SNAP; DOOR LOCK CYL AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF> 10.474 YELLOW	8-97040-452-0	01	1	0507-
20	16.328 SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<6NF> 10.474 YELLOW	8-97040-452-0	01	1	0507-
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<6NF>	8-98007-238-0	01	1	0507-
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-97095-686-2	01	1	9412-9906
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> REMOTE CONT DOOR LOCK<6NF>	8-97868-205-0	01	1	0311-0501
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-686-2	01	1	0311-0501
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-97095-686-2	01	1	0502-0506
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<6NF>	8-97095-686-2	01	1	0507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
