◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#35820) — 78 parça
çizim 18010
201 190
BalonParca AdiParca NoAdetTipApplied Date
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0301-0506
190 08.808 PLATE; CAUTION,OIL CHANGE
REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0507-0804
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0805-
201 08.808 PLATE; CAUTION,BLEED BOLT
4HE1 ENG(RLY) 		8-97192-288-0 01 1 0301-0310
201 08.808 PLATE; CAUTION,BLEED BOLT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41) 		8-97192-288-0 01 1 0311-0501

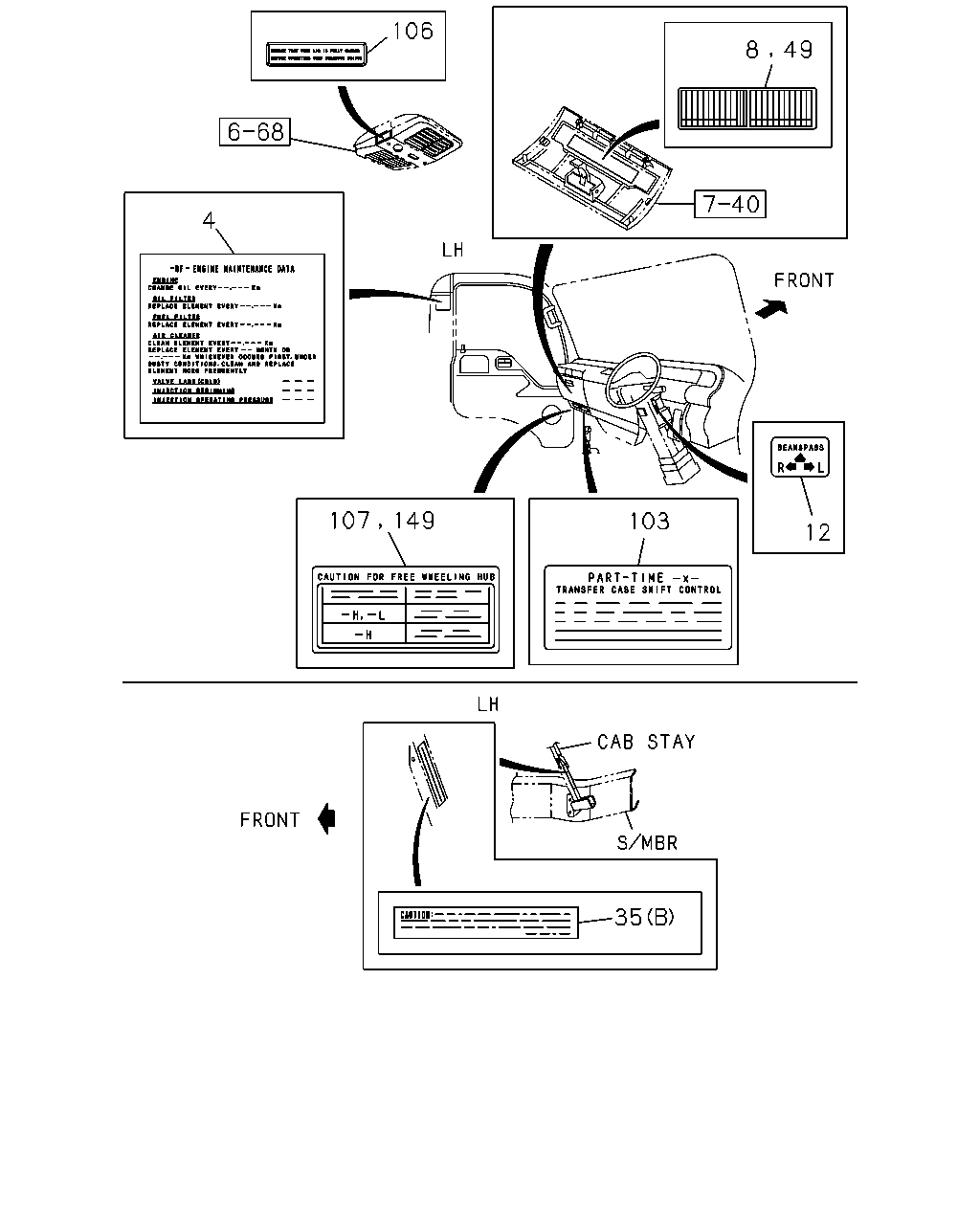

çizim 72100
106 8 49 4 107 149 103 12 35
BalonParca AdiParca NoAdetTipApplied Date
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) CAUTION SPANISH<YN1> 		8-97211-906-0 01 1 0612-
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) EXC. CAUTION SPANISH<YN1> 		8-97187-424-0 01 1 0612-
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) CAUTION SPANISH<YN1> 		8-98013-424-0 01 1 0612-
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> 		8-97189-402-1 01 1 0612-
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) 		8-98013-423-0 01 1 0507-0611
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) EXC. CAUTION SPANISH<YN1> 		8-98013-423-0 01 1 0612-
4 00.004 LABEL; ENG MAINTENANCE 8-97093-307-0 01 1 9412-9511
4 00.004 LABEL; ENG MAINTENANCE 8-97133-029-0 01 1 9512-9711
4 00.004 LABEL; ENG MAINTENANCE 8-97189-401-0 01 1 9712-0105
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) 		8-97189-401-1 01 1 0106-0212
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) 		8-97189-405-0 01 1 0301-0310
4 00.004 LABEL; ENG MAINTENANCE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97189-405-0 01 1 0311-0501
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97187-424-0 01 1 0311-0501
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97189-401-1 01 1 0311-0501
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) 		8-97189-401-1 01 1 0502-0611
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> 		8-97189-401-1 01 1 0612-
8 03.680 LABEL; FUSE 8-97857-283-0 01 1 9412-9711
12 02.459 LABEL; TURN 8-94273-445-0 01 1 9412-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0612-1005
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1006-
35 08.808 PLATE; CAUTION,CAB
CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9412-9711
35 08.808 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9412-9711
35 08.808 PLATE; CAUTION,CAB
(B) 		5-85881-328-1 01 1 9712-9810
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (B) 		5-85881-328-1 01 1 9811-0611
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0612-
35 08.808 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9412-9711
35 08.808 PLATE; CAUTION,CAB
(A) 		8-97856-228-0 01 1 9712-9810
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (A) 		8-97856-228-0 01 1 9811-0611
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0612-1005
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-98067-809-0 01 1 1006-
49 08.808 PLATE; CAUTION,FUSE BOX
4HK1-TCN ENG(RDQ) 		8-97377-717-0 01 1 0507-
49 08.808 PLATE; CAUTION,FUSE BOX 8-97182-191-0 01 1 9712-0212
49 08.808 PLATE; CAUTION,FUSE BOX 8-97215-898-0 01 1 0301-0310
49 08.808 PLATE; CAUTION,FUSE BOX
CHARGE AIR COOLER<6PL> 		8-97215-898-0 01 1 0311-0501
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1 ENG(RJH) 		8-97377-715-0 01 1 0502-0611
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97377-715-0 01 1 0612-
49 08.808 PLATE; CAUTION,FUSE BOX
EXC. CHARGE AIR COOLER<6PL> 		8-97182-191-0 01 1 0311-0501
103 08.808 PLATE; CAUTION,4WD
CAUTION SPANISH<YN1> 04.017 		8-97108-716-1 01 1 0612-
103 08.808 PLATE; CAUTION,4WD
04.017 		8-97108-715-0 01 1 9412-0611
103 08.808 PLATE; CAUTION,4WD
EXC. CAUTION SPANISH<YN1> 04.017 		8-97108-715-0 01 1 0612-
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0612-
106 08.808 PLATE; CAUTION,ROOF VENT 8-94273-602-0 01 1 9412-0212
106 08.808 PLATE; CAUTION,ROOF VENT 8-97580-589-0 01 1 0301-0310
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> 		8-97580-589-0 01 1 0311-0611
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0612-
107 08.808 LABEL; FREE WHEEL HUB 8-97108-673-0 01 1 9412-9502
149 08.808 PLATE; CAUTION,LOCKING HUB
CAUTION SPANISH<YN1> 		8-97108-674-2 01 1 0612-
149 08.808 PLATE; CAUTION,LOCKING HUB 8-97108-673-1 01 1 9503-0611
149 08.808 PLATE; CAUTION,LOCKING HUB
EXC. CAUTION SPANISH<YN1> 		8-97108-673-1 01 1 0612-
çizim 72311
139 9 78 35 116
BalonParca AdiParca NoAdetTipApplied Date
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH) M/T MYY5T(RSM) CAUTION SPANISH<YN1> EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-94158-942-0 01 1 0612-
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97229-102-0 01 1 0507-0611
9 08.808 PLATE; NAME,SPD RANGE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97229-102-0 01 1 0612-
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16> 		8-94158-946-0 01 1 0507-0611
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH) M/T MYY5T(RSM) SPEEDOMETER MILE<UC1> EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-946-0 01 1 0612-
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-94158-940-0 01 1 0507-0611
9 08.808 PLATE; NAME,SPD RANGE
4HG1 ENG(RJH) M/T MYY5T(RSM) EXC. SPEEDOMETER MILE<UC1>,TACHOMETER<U16> ,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0612-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0612-1005
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1006-
35 08.808 PLATE; CAUTION,CAB
CAUTION SPANISH<YN1> (A) 		8-97857-419-0 01 1 9412-9711
35 08.808 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 9412-9711
35 08.808 PLATE; CAUTION,CAB
(B) 		5-85881-328-1 01 1 9712-9810
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (B) 		5-85881-328-1 01 1 9811-0611
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0612-
35 08.808 PLATE; CAUTION,CAB
EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 9412-9711
35 08.808 PLATE; CAUTION,CAB
(A) 		8-97856-228-0 01 1 9712-9810
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> (A) 		8-97856-228-0 01 1 9811-0611
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0612-1005
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-98067-809-0 01 1 1006-
78 08.808 PLATE; CAUTION,ENG COOLAN 8-97109-623-0 01 1 9503-9603
116 08.808 LABEL; CAUTION,SEDIMENTER 8-94153-282-1 01 1 9412-9711
139 08.808 PLATE; CAUTION,PROP SHAFT
CAUTION SPANISH<YN1> 		8-98009-407-0 01 1 0612-
139 08.808 PLATE; CAUTION,PROP SHAFT 8-97118-440-0 01 1 9412-0611
139 08.808 PLATE; CAUTION,PROP SHAFT
EXC. CAUTION SPANISH<YN1> 		8-97118-440-0 01 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
