Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#35807) — 339 parça

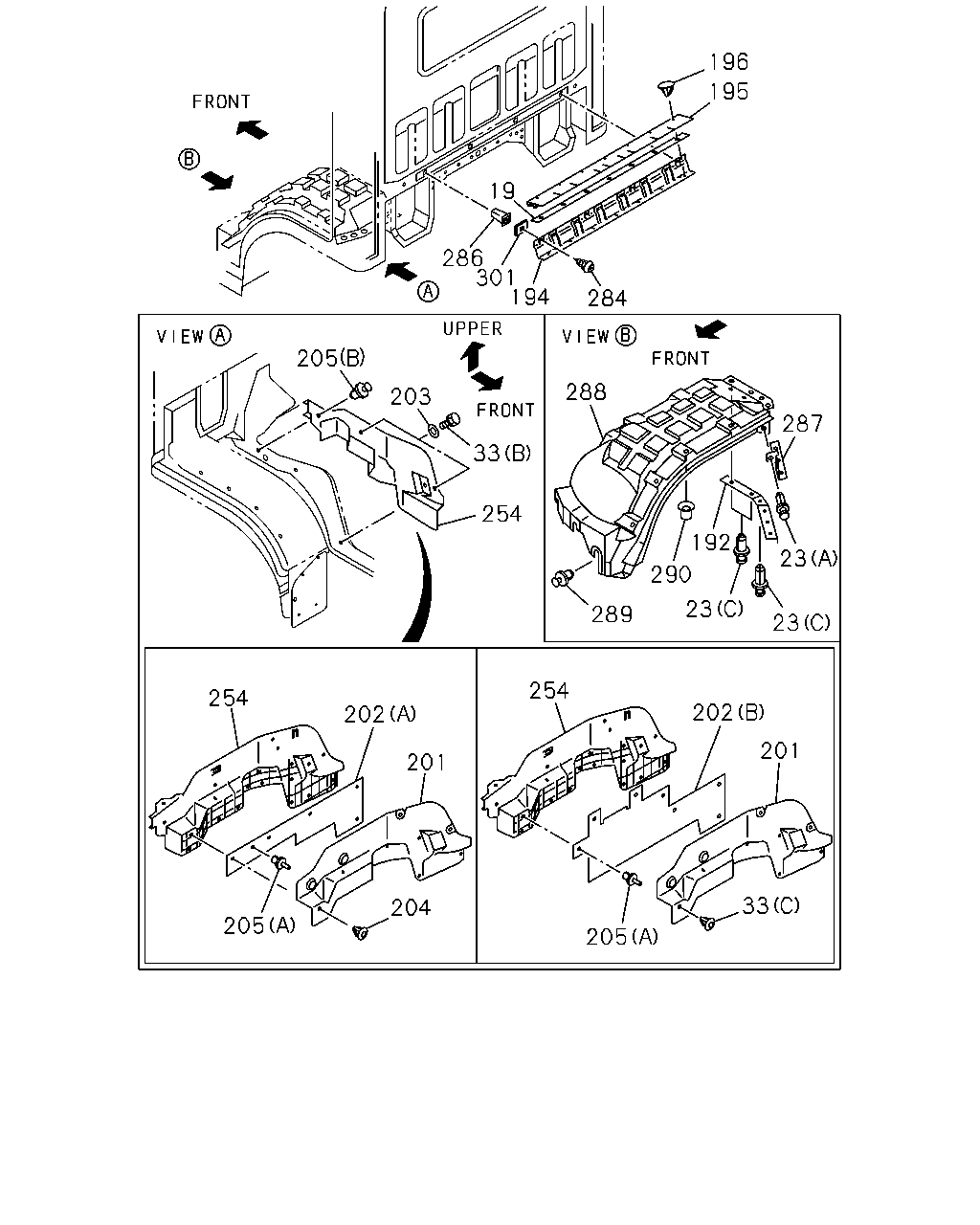

196 195 19 286 301 194 284 205 288 203 287 33 254 192 23 290 23 289 23 254 254 202 202 201 201 33 204 205 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	9603-0212
23	08.154 FASTENER; MUD COVER 08.155 (A) OD=8	1-09983-125-0	02	1	9412-
23	08.154 FASTENER; MUD COVER 16.320 (B) OD=8.3	8-94279-989-0	08	1	9412-
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-94279-989-0	10	1	9412-9907
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-94279-989-0	12	1	9908-0207
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-97997-832-0	12	1	0208-
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0311-0501
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	08	1	0601-
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	9412-0201
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	08	1	0202-0310
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	08	1	0311-0501
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0502-0506
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0507-0512
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	12	1	0601-
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9412-0512
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	08.155 BOLT; MUD COVER 06.500 (B) M6X25	8-94279-204-0	04	1	9412-9603
33	08.155 BOLT; MUD COVER 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	9604-0512
33	08.155 BOLT; MUD COVER 00.685 (B) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604
33	08.155 BOLT; MUD COVER (B) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-
33	08.155 BOLT; MUD COVER 07.633 (D) M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	9412-9501
33	08.155 BOLT; MUD COVER 16.320 (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9502-0805
33	08.155 BOLT; MUD COVER 16.085 (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
192	08.153 SEAL; MUD COVER	8-97857-299-3	01	1	9412-
192	08.153 SEAL; MUD COVER	8-97857-298-3	01	1	9412-
194	03.602 BRACKET; HEAT PROTECTOR	8-97853-797-1	01	1	9603-0212
195	03.602 PROTECTOR; HEAT	8-97856-386-1	01	1	9603-0112
195	03.602 PROTECTOR; HEAT	8-97856-386-1	01	1	0201-0212
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	9603-0212
201	08.155 INSULATOR; VALANCE 4HK1-TCN ENG(RDQ)	8-97892-184-1	01	1	0507-
201	08.155 INSULATOR; VALANCE 4HK1-TCN ENG(RDQ)	8-98013-416-0	01	1	0507-
201	08.155 INSULATOR; VALANCE	8-97853-631-2	01	1	9412-9711
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH)	8-97853-630-3	01	1	0311-
201	08.155 INSULATOR; VALANCE	8-97853-631-2	01	1	9712-0105
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH)	8-97853-631-2	01	1	0106-0212
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY)	8-97853-631-3	01	1	0301-0310
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97853-631-3	01	1	0311-0501
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH)	8-97853-631-3	01	1	0502-0611
201	08.155 INSULATOR; VALANCE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-631-3	01	1	0612-
201	08.155 INSULATOR; VALANCE	8-97853-630-2	01	1	9412-0105
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH)	8-97853-630-2	01	1	0106-0212
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY)	8-97892-184-1	01	1	0301-0310
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97892-184-1	01	1	0311-0501
202	08.155 RUBBER; MUD,VALANCE PANEL 4HK1-TCN ENG(RDQ) (A)	8-97997-869-1	01	1	0507-
202	08.155 RUBBER; MUD,VALANCE PANEL 4HK1-TCN ENG(RDQ) (B)	8-98013-417-0	01	1	0507-
202	08.155 RUBBER; MUD,VALANCE PANEL (A)	8-97857-171-0	01	1	9412-0502
202	08.155 RUBBER; MUD,VALANCE PANEL 4HG1 ENG(RJH) (A)	8-97857-171-0	01	1	0503-0611
202	08.155 RUBBER; MUD,VALANCE PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97857-171-0	01	1	0612-
202	08.155 RUBBER; MUD,VALANCE PANEL (A)	8-97857-170-0	01	1	9412-0212
202	08.155 RUBBER; MUD,VALANCE PANEL (A)	8-97997-869-1	01	1	0301-0311
202	08.155 RUBBER; MUD,VALANCE PANEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97997-869-1	01	1	0312-0501
202	08.155 RUBBER; MUD,VALANCE PANEL 4HG1 ENG(RJH) (A)	8-97857-170-0	01	1	0312-0611
202	08.155 RUBBER; MUD,VALANCE PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97857-170-0	01	1	0612-
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9412-0604
204	08.155 CLIP; VALANCE,INSULATOR 4HK1-TCN ENG(RDQ) OD=18 L=17	8-94279-702-0	10	1	0507-
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	14	1	9412-0308
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0309-0501
204	08.155 CLIP; VALANCE,INSULATOR 4HG1 ENG(RJH) OD=18 L=17	8-94279-702-0	12	1	0502-0611
204	08.155 CLIP; VALANCE,INSULATOR 4HG1-T ENG(RDP),4HG1 ENG(RJH) OD=18 L=17	8-94279-702-0	12	1	0612-
205	08.155 FASTENER; MUD COVER 4HK1-TCN ENG(RDQ) (A)	5-09989-002-0	15	1	0507-
205	08.155 FASTENER; MUD COVER 12.934 (B) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9412-
205	08.155 FASTENER; MUD COVER (A)	5-09989-002-0	12	1	9506-0212
205	08.155 FASTENER; MUD COVER (A)	5-09989-002-0	14	1	0301-0311
205	08.155 FASTENER; MUD COVER 4HG1 ENG(RJH) (A)	5-09989-002-0	12	1	0312-0611
205	08.155 FASTENER; MUD COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	5-09989-002-0	12	1	0612-
205	08.155 FASTENER; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	5-09989-002-0	14	1	0312-0501
254	08.153 COVER; MUD,VALANCE 4HK1-TCN ENG(RDQ)	8-97892-183-0	01	1	0507-
254	08.153 COVER; MUD,VALANCE 4HK1-TCN ENG(RDQ)	8-98013-415-1	01	1	0507-
254	08.153 COVER; MUD,VALANCE	8-97853-358-3	01	1	9412-9511
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH)	8-97853-358-3	01	1	0502-0611
254	08.153 COVER; MUD,VALANCE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-358-3	01	1	0612-
254	08.153 COVER; MUD,VALANCE	8-97853-358-3	01	1	9512-0105
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH)	8-97853-358-3	01	1	0106-0212
254	08.153 COVER; MUD,VALANCE 4HE1 ENG(RLY)	8-97892-183-0	01	1	0301-0310
254	08.153 COVER; MUD,VALANCE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97892-183-0	01	1	0311-0501
254	08.153 COVER; MUD,VALANCE	8-97853-359-3	01	1	9412-0501
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH)	8-97853-359-3	01	1	0502-0611
254	08.153 COVER; MUD,VALANCE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-359-3	01	1	0612-
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH)	8-97853-358-3	01	1	0311-0501
284	08.155 SCREW; HEAT PROTECTOR 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9603-0212
286	08.155 GROMMET; SCREW,HEAT PROTECTOR 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9412-0101
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0102-
287	08.155 BRACKET; SEAL,MUD COVER	8-97856-348-3	01	1	9412-
287	08.155 BRACKET; SEAL,MUD COVER	8-97856-347-3	01	1	9412-
288	08.155 LINER; TIRE HOUSE	8-97853-718-6	01	1	9412-9803
288	08.155 LINER; TIRE HOUSE	8-97890-581-1	01	1	9804-0212
288	08.155 LINER; TIRE HOUSE	8-97581-243-0	01	1	0301-
288	08.155 LINER; TIRE HOUSE	8-97853-717-6	01	1	9412-9803
288	08.155 LINER; TIRE HOUSE 16.069	8-97890-580-1	01	1	9804-0212
288	08.155 LINER; TIRE HOUSE	8-97581-242-0	01	1	0301-
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	9412-9905
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	9906-0212
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9412-9905
301	08.155 HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9412-0101
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0102-

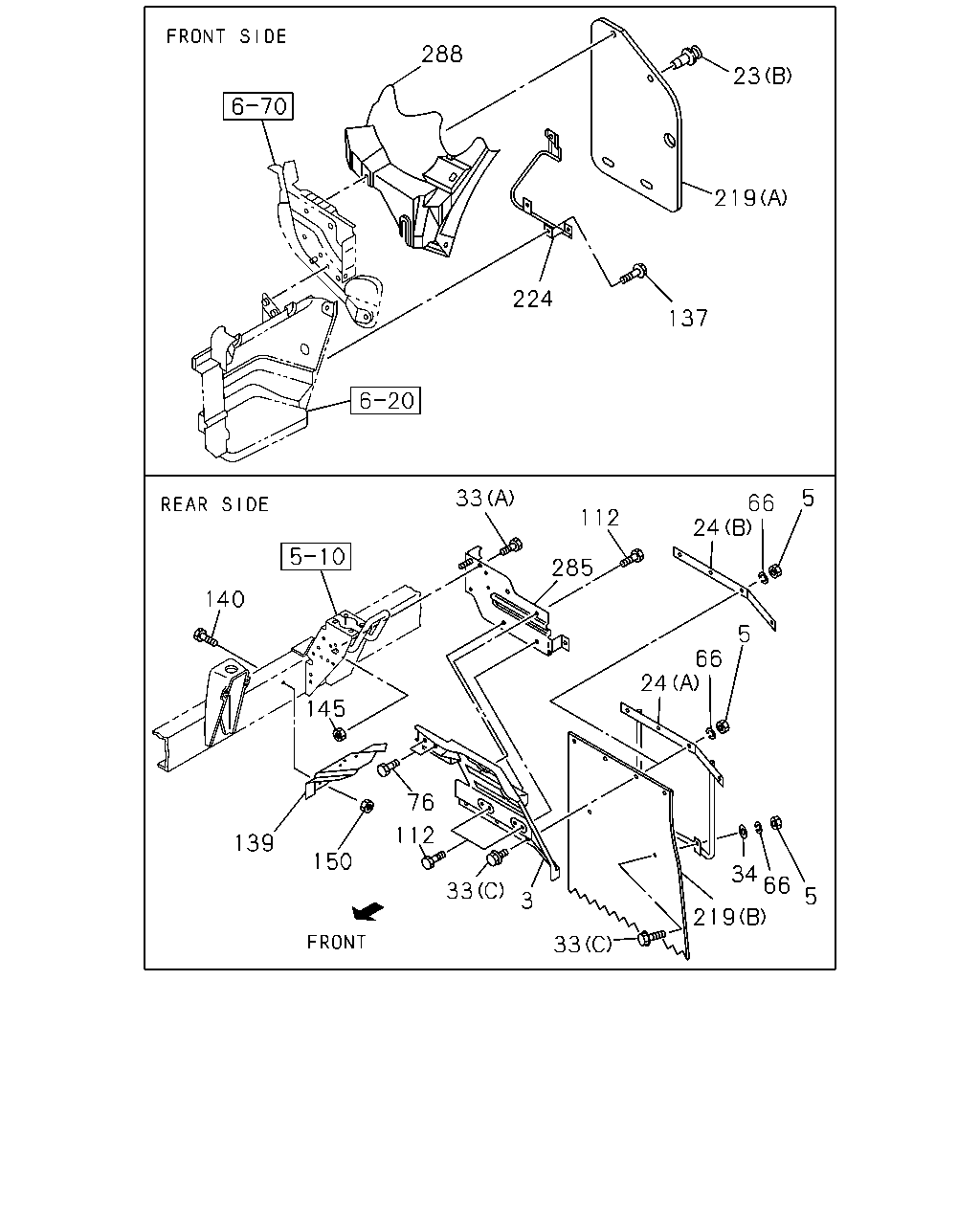

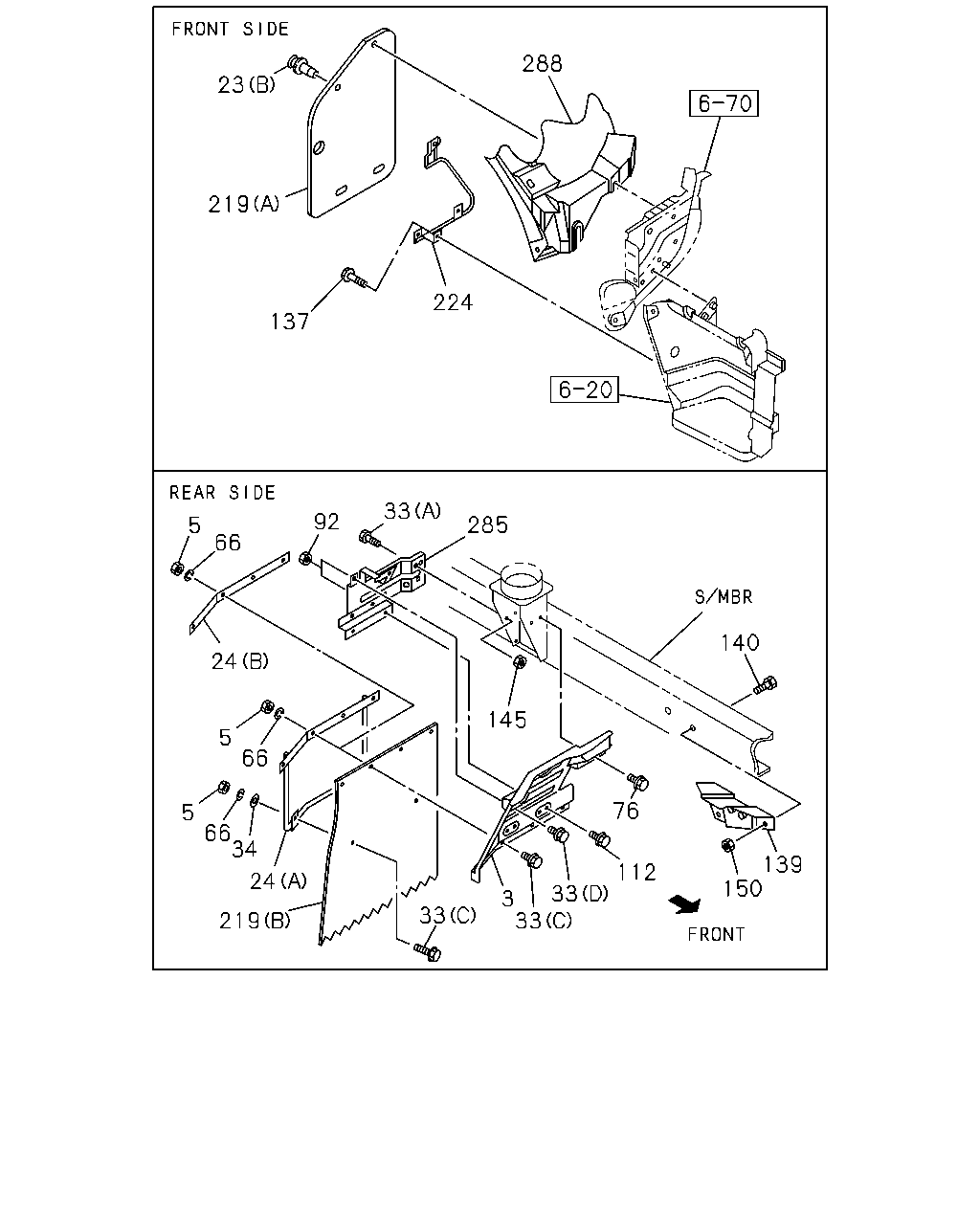

288 23 219 224 137 33 92 285 5 66 140 24 145 5 66 76 5 66 34 139 150 112 24 33 3 33 33 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.153 GUARD; MUD,RR	8-97048-729-1	01	1	9412-0312
3	08.153 GUARD; MUD,RR	8-97366-988-1	01	1	0401-
3	08.153 GUARD; MUD,RR	8-97048-728-3	01	1	9412-
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) 08.915 M6	9-09111-406-0	08	1	0507-0512
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) M6	0-91111-506-0	08	1	0601-
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	12	1	9412-0201
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0202-0310
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) 08.915 M6	9-09111-406-0	08	1	0311-0501
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	12	1	0502-0506
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3) 08.915 M6	9-09111-406-0	12	1	0507-0512
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3) M6	0-91111-506-0	12	1	0601-
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3) 08.915 M6	9-09111-406-0	12	1	0311-0501
23	08.154 FASTENER; MUD COVER 08.155 (A) OD=8	1-09983-125-0	02	1	9412-
23	08.154 FASTENER; MUD COVER 16.320 (B) OD=8.3	8-94279-989-0	08	1	9412-
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-94279-989-0	10	1	9412-9907
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-94279-989-0	12	1	9908-0207
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-97997-832-0	12	1	0208-
24	08.155 PLATE; MUD COVER AUSTRALIA EQUIPMENT(RR3) (B)	8-97095-186-0	02	1	0507-
24	08.155 PLATE; MUD COVER (A)	8-97066-489-0	01	1	9412-0201
24	08.155 PLATE; MUD COVER (A)	8-97066-488-0	01	1	9412-0201
24	08.155 PLATE; MUD COVER (B)	8-97095-186-0	02	1	0202-0310
24	08.155 PLATE; MUD COVER AUSTRALIA EQUIPMENT(RR3) (B)	8-97095-186-0	02	1	0311-0501
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-489-0	01	1	0311-0501
24	08.155 PLATE; MUD COVER (A)	8-97066-489-0	01	1	0502-0506
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-489-0	01	1	0507-
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-488-0	01	1	0311-0501
24	08.155 PLATE; MUD COVER (A)	8-97066-488-0	01	1	0502-0506
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-488-0	01	1	0507-
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0311-0501
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	08	1	0601-
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	9412-0201
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	08	1	0202-0310
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	08	1	0311-0501
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0502-0506
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0507-0512
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	12	1	0601-
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9412-0512
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	08.155 BOLT; MUD COVER 06.500 (B) M6X25	8-94279-204-0	04	1	9412-9603
33	08.155 BOLT; MUD COVER 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	9604-0512
33	08.155 BOLT; MUD COVER 00.685 (B) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604
33	08.155 BOLT; MUD COVER (B) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-
33	08.155 BOLT; MUD COVER 07.633 (D) M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	9412-9501
33	08.155 BOLT; MUD COVER 16.320 (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9502-0805
33	08.155 BOLT; MUD COVER 16.085 (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
34	08.155 WASHER; PL,MUD COVER 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	9412-0201
34	08.155 WASHER; PL,MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0311-0501
34	08.155 WASHER; PL,MUD COVER 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0502-0506
34	08.155 WASHER; PL,MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605
34	08.155 WASHER; PL,MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) 00.206 ID=6.1	9-09150-506-0	08	1	0507-0603
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) ID=6.1	0-91510-506-0	08	1	0604-
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	12	1	9412-0201
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0202-0310
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) 00.206 ID=6.1	9-09150-506-0	08	1	0311-0501
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	12	1	0502-0506
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3) 00.206 ID=6.1	9-09150-506-0	12	1	0507-0603
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3) ID=6.1	0-91510-506-0	12	1	0604-
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3) 00.206 ID=6.1	9-09150-506-0	12	1	0311-0501
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	9412-0512
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0601-
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0602
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
112	08.155 BOLT; BRKT 07.010 M8X20 FLANGE	0-28080-820-0	05	1	9412-9509
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9510-0512
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-
137	08.155 BOLT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9412-
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ)	8-97255-626-0	01	1	0507-
139	08.153 PANEL; SIDE	8-94333-419-2	01	1	9412-9904
139	08.153 PANEL; SIDE	8-97222-097-1	01	1	9905-0501
139	08.153 PANEL; SIDE 4HG1 ENG(RJH)	8-97222-097-1	01	1	0502-0611
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97222-097-1	01	1	0612-
139	08.153 PANEL; SIDE	8-94333-420-2	01	1	9412-9904
139	08.153 PANEL; SIDE	8-97222-098-0	01	1	9905-
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
140	08.155 BOLT; SIDE PANEL 07.010 M8X20 FLANGE	0-28080-820-0	04	1	9412-9507
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9508-0501
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0611
140	08.155 BOLT; SIDE PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	9412-0602
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	04	1	9412-0205
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0206-0602
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
219	08.155 FLAP; MUD GUARD AUSTRALIA EQUIPMENT(RR3) (B)	8-97329-458-0	02	1	0507-
219	08.155 FLAP; MUD GUARD (B)	8-97044-154-1	02	1	9412-9511
219	08.155 FLAP; MUD GUARD (B)	8-97044-154-1	01	1	9512-9903
219	08.155 FLAP; MUD GUARD (A)	8-97857-549-1	02	1	9412-
219	08.155 FLAP; MUD GUARD (B)	8-94375-534-0	01	1	9512-9903
219	08.155 FLAP; MUD GUARD (B)	8-97218-083-0	02	1	9904-0201
219	08.155 FLAP; MUD GUARD (B)	8-97329-458-0	02	1	0202-0310
219	08.155 FLAP; MUD GUARD AUSTRALIA EQUIPMENT(RR3) (B)	8-97329-458-0	02	1	0311-0501
219	08.155 FLAP; MUD GUARD EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-97218-083-0	02	1	0311-0501
219	08.155 FLAP; MUD GUARD (B)	8-97218-083-0	02	1	0502-0506
219	08.155 FLAP; MUD GUARD EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-97218-083-0	02	1	0507-
224	08.155 SUPPORT; MUD GUARD	8-97857-513-1	01	1	9412-
224	08.155 SUPPORT; MUD GUARD	8-97857-512-1	01	1	9412-
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ)	8-97035-780-4	01	1	0507-
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97092-037-2	01	1	0311-0501
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97092-037-2	01	1	0311-0501
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97092-037-2	01	1	0502-0611
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97092-037-2	01	1	0612-
285	08.155 BRACKET; MUD COVER	8-97092-037-1	01	1	9412-0105
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97092-037-2	01	1	0106-0212
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY)	8-97035-780-4	01	1	0301-0310
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97035-780-4	01	1	0311-0501
285	08.155 BRACKET; MUD COVER	8-97035-778-4	01	1	9412-0105
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97035-778-4	01	1	0106-0212
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY)	8-97035-778-4	01	1	0301-0310
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97035-778-4	01	1	0311-0501
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97035-778-4	01	1	0502-0506
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97035-778-4	01	1	0507-0611
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97035-778-4	01	1	0612-
288	08.155 LINER; TIRE HOUSE	8-97853-718-6	01	1	9412-9803
288	08.155 LINER; TIRE HOUSE	8-97890-581-1	01	1	9804-0212
288	08.155 LINER; TIRE HOUSE	8-97581-243-0	01	1	0301-
288	08.155 LINER; TIRE HOUSE	8-97853-717-6	01	1	9412-9803
288	08.155 LINER; TIRE HOUSE 16.069	8-97890-580-1	01	1	9804-0212
288	08.155 LINER; TIRE HOUSE	8-97581-242-0	01	1	0301-

288 23 219 224 137 5 33 66 24 112 285 140 5 66 24 145 76 112 139 150 34 66 33 5 3 219 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.153 GUARD; MUD,RR	8-97048-729-1	01	1	9412-0312
3	08.153 GUARD; MUD,RR	8-97366-988-1	01	1	0401-
3	08.153 GUARD; MUD,RR	8-97048-728-3	01	1	9412-
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) 08.915 M6	9-09111-406-0	08	1	0507-0512
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) M6	0-91111-506-0	08	1	0601-
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	12	1	9412-0201
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0202-0310
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) 08.915 M6	9-09111-406-0	08	1	0311-0501
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	12	1	0502-0506
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3) 08.915 M6	9-09111-406-0	12	1	0507-0512
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3) M6	0-91111-506-0	12	1	0601-
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3) 08.915 M6	9-09111-406-0	12	1	0311-0501
23	08.154 FASTENER; MUD COVER 08.155 (A) OD=8	1-09983-125-0	02	1	9412-
23	08.154 FASTENER; MUD COVER 16.320 (B) OD=8.3	8-94279-989-0	08	1	9412-
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-94279-989-0	10	1	9412-9907
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-94279-989-0	12	1	9908-0207
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-97997-832-0	12	1	0208-
24	08.155 PLATE; MUD COVER AUSTRALIA EQUIPMENT(RR3) (B)	8-97095-186-0	02	1	0507-
24	08.155 PLATE; MUD COVER (A)	8-97066-489-0	01	1	9412-0201
24	08.155 PLATE; MUD COVER (A)	8-97066-488-0	01	1	9412-0201
24	08.155 PLATE; MUD COVER (B)	8-97095-186-0	02	1	0202-0310
24	08.155 PLATE; MUD COVER AUSTRALIA EQUIPMENT(RR3) (B)	8-97095-186-0	02	1	0311-0501
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-489-0	01	1	0311-0501
24	08.155 PLATE; MUD COVER (A)	8-97066-489-0	01	1	0502-0506
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-489-0	01	1	0507-
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-488-0	01	1	0311-0501
24	08.155 PLATE; MUD COVER (A)	8-97066-488-0	01	1	0502-0506
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-488-0	01	1	0507-
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0311-0501
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	08	1	0507-0512
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	08	1	0601-
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	9412-0201
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	08	1	0202-0310
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	08	1	0311-0501
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0502-0506
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0507-0512
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	12	1	0601-
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9412-0512
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	08.155 BOLT; MUD COVER 06.500 (B) M6X25	8-94279-204-0	04	1	9412-9603
33	08.155 BOLT; MUD COVER 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	9604-0512
33	08.155 BOLT; MUD COVER 00.685 (B) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604
33	08.155 BOLT; MUD COVER (B) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-
33	08.155 BOLT; MUD COVER 07.633 (D) M8X28 W/LK&PL WASHER	8-94438-324-1	01	1	9412-9501
33	08.155 BOLT; MUD COVER 16.320 (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9502-0805
33	08.155 BOLT; MUD COVER 16.085 (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
34	08.155 WASHER; PL,MUD COVER 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	9412-0201
34	08.155 WASHER; PL,MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0311-0501
34	08.155 WASHER; PL,MUD COVER 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0502-0506
34	08.155 WASHER; PL,MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0507-0605
34	08.155 WASHER; PL,MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) 00.206 ID=6.1	9-09150-506-0	08	1	0507-0603
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) ID=6.1	0-91510-506-0	08	1	0604-
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	12	1	9412-0201
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0202-0310
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) 00.206 ID=6.1	9-09150-506-0	08	1	0311-0501
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	12	1	0502-0506
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3) 00.206 ID=6.1	9-09150-506-0	12	1	0507-0603
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3) ID=6.1	0-91510-506-0	12	1	0604-
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3) 00.206 ID=6.1	9-09150-506-0	12	1	0311-0501
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	9412-0512
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0601-
112	08.155 BOLT; BRKT 07.010 M8X20 FLANGE	0-28080-820-0	05	1	9412-9509
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9510-0512
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-
137	08.155 BOLT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9412-
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ)	8-97255-626-0	01	1	0507-
139	08.153 PANEL; SIDE	8-94333-419-2	01	1	9412-9904
139	08.153 PANEL; SIDE	8-97222-097-1	01	1	9905-0501
139	08.153 PANEL; SIDE 4HG1 ENG(RJH)	8-97222-097-1	01	1	0502-0611
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97222-097-1	01	1	0612-
139	08.153 PANEL; SIDE	8-94333-420-2	01	1	9412-9904
139	08.153 PANEL; SIDE	8-97222-098-0	01	1	9905-
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
140	08.155 BOLT; SIDE PANEL 07.010 M8X20 FLANGE	0-28080-820-0	04	1	9412-9507
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9508-0501
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0611
140	08.155 BOLT; SIDE PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	9412-0602
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	04	1	9412-0205
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0206-0602
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
219	08.155 FLAP; MUD GUARD AUSTRALIA EQUIPMENT(RR3) (B)	8-97329-458-0	02	1	0507-
219	08.155 FLAP; MUD GUARD (B)	8-97044-154-1	02	1	9412-9511
219	08.155 FLAP; MUD GUARD (B)	8-97044-154-1	01	1	9512-9903
219	08.155 FLAP; MUD GUARD (A)	8-97857-549-1	02	1	9412-
219	08.155 FLAP; MUD GUARD (B)	8-94375-534-0	01	1	9512-9903
219	08.155 FLAP; MUD GUARD (B)	8-97218-083-0	02	1	9904-0201
219	08.155 FLAP; MUD GUARD (B)	8-97329-458-0	02	1	0202-0310
219	08.155 FLAP; MUD GUARD AUSTRALIA EQUIPMENT(RR3) (B)	8-97329-458-0	02	1	0311-0501
219	08.155 FLAP; MUD GUARD EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-97218-083-0	02	1	0311-0501
219	08.155 FLAP; MUD GUARD (B)	8-97218-083-0	02	1	0502-0506
219	08.155 FLAP; MUD GUARD EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-97218-083-0	02	1	0507-
224	08.155 SUPPORT; MUD GUARD	8-97857-513-1	01	1	9412-
224	08.155 SUPPORT; MUD GUARD	8-97857-512-1	01	1	9412-
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ)	8-97035-780-4	01	1	0507-
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97092-037-2	01	1	0311-0501
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97092-037-2	01	1	0311-0501
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97092-037-2	01	1	0502-0611
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97092-037-2	01	1	0612-
285	08.155 BRACKET; MUD COVER	8-97092-037-1	01	1	9412-0105
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97092-037-2	01	1	0106-0212
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY)	8-97035-780-4	01	1	0301-0310
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97035-780-4	01	1	0311-0501
285	08.155 BRACKET; MUD COVER	8-97035-778-4	01	1	9412-0105
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97035-778-4	01	1	0106-0212
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY)	8-97035-778-4	01	1	0301-0310
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97035-778-4	01	1	0311-0501
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH)	8-97035-778-4	01	1	0502-0506
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97035-778-4	01	1	0507-0611
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97035-778-4	01	1	0612-
288	08.155 LINER; TIRE HOUSE	8-97853-718-6	01	1	9412-9803
288	08.155 LINER; TIRE HOUSE	8-97890-581-1	01	1	9804-0212
288	08.155 LINER; TIRE HOUSE	8-97581-243-0	01	1	0301-
288	08.155 LINER; TIRE HOUSE	8-97853-717-6	01	1	9412-9803
288	08.155 LINER; TIRE HOUSE 16.069	8-97890-580-1	01	1	9804-0212
288	08.155 LINER; TIRE HOUSE	8-97581-242-0	01	1	0301-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
