◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#35805) — 105 parça

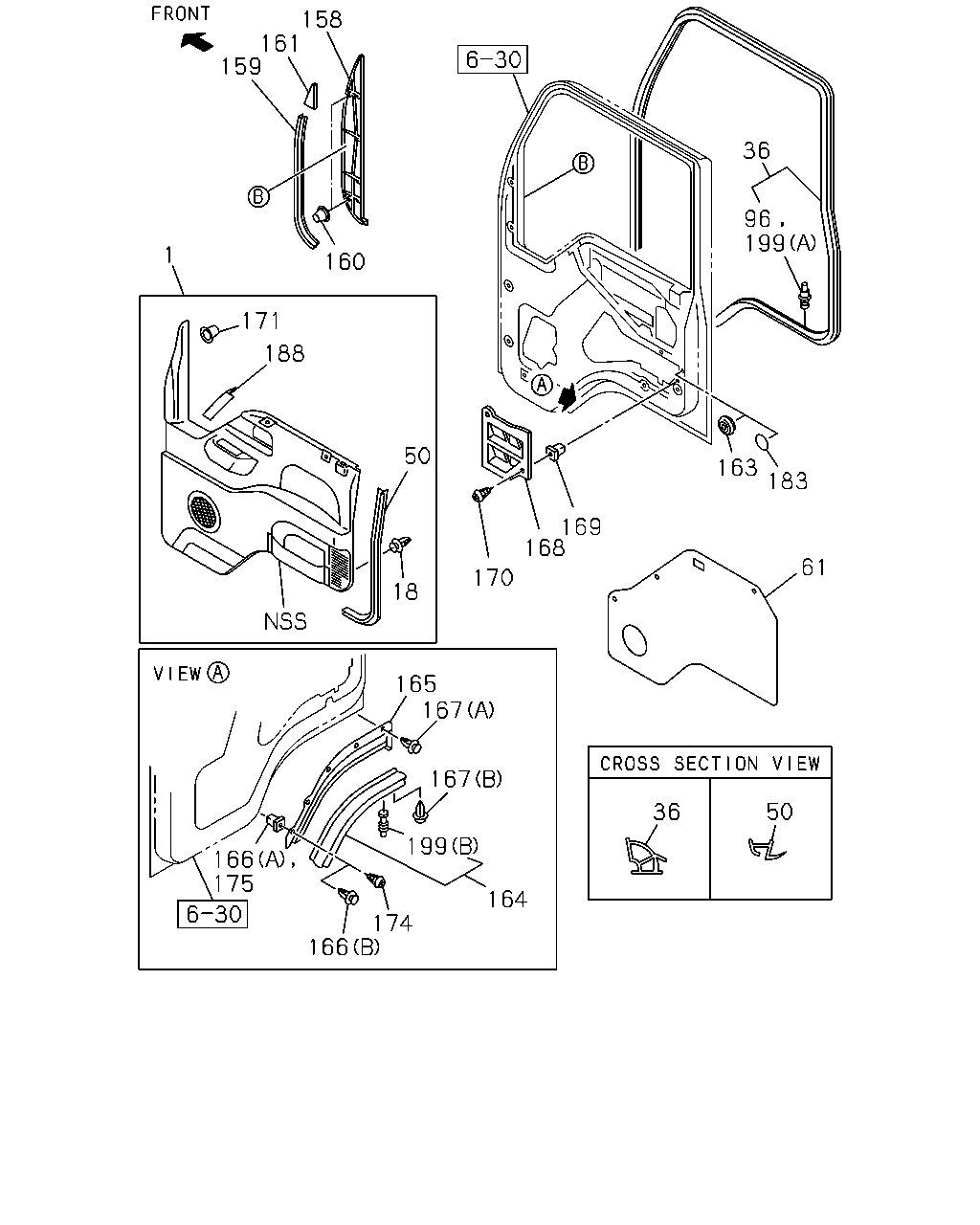

çizim 71158
158 161 159 36 96 199 1 160 171 188 50 163 183 169 168 61 170 18 165 167 167 50 36 199 166 175 164 174 166
BalonParca AdiParca NoAdetTipApplied Date
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-280-4 01 1 0507-
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-286-4 01 1 0507-
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-411-5 01 1 9412-9711
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-722-5 01 1 9712-0212
1 16.165 PAD; TRIM,FRT DOOR
DARK GRAY 		8-97859-722-6 01 1 0301-0310
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-722-6 01 1 0311-0501
1 16.165 PAD; TRIM,FRT DOOR
GRAY 		8-97582-288-7 01 1 0502-0506
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-288-7 01 1 0507-
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-410-5 01 1 9412-9711
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-721-5 01 1 9712-0212
1 16.165 PAD; TRIM,FRT DOOR
DARK GRAY 		8-97859-721-6 01 1 0301-0310
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-721-6 01 1 0311-0501
1 16.165 PAD; TRIM,FRT DOOR
GRAY 		8-97582-282-6 01 1 0502-0506
1 16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97582-282-6 01 1 0507-
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-635-3 01 1 9412-9711
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-645-3 01 1 9712-0212
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-645-4 01 1 0311-0501
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-634-3 01 1 9412-9711
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-644-3 01 1 9712-0212
1 16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-644-4 01 1 0311-0501
18 16.165 CLIP; DOOR PAD
OD=7.9 BLACK 		8-94279-974-1 24 1 9412-
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97852-145-9 01 1 9412-9808
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97892-409-0 01 1 9809-9902
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97892-903-3 01 1 9903-
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97852-144-9 01 1 9412-9808
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97892-408-0 01 1 9809-9902
36 16.225 SEAL; DOOR,MAIN,CAB SIDE 8-97892-902-3 01 1 9903-
50 16.166 FINISHER; DOOR PAD
DARK BEIGE 		8-97852-401-2 02 1 9412-9609
50 16.166 FINISHER; DOOR PAD
DARK BEIGE 		8-97868-179-0 02 1 9610-9711
50 16.166 FINISHER; DOOR PAD
DARK GRAY 		8-97868-180-0 02 1 9712-0501
50 16.166 FINISHER; DOOR PAD
GRAY 		8-97582-685-0 02 1 0502-
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> ANTENNA<U73> 		8-97852-328-3 02 1 0507-
61 16.165 SEAL; WATER,DOOR PAD
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 0507-
61 16.165 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>, ANTENNA<U73> 		8-97852-307-1 02 1 0507-
61 16.165 SEAL; WATER,DOOR PAD
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 0311-0501
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> 		8-97852-328-3 02 1 9412-0212
61 16.165 SEAL; WATER,DOOR PAD 8-97852-328-3 02 1 0301-0310
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> ANTENNA<U73> 		8-97852-328-3 02 1 0311-0501
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. ANTENNA<U73> 		8-97852-329-2 02 1 0311-0501
61 16.165 SEAL; WATER,DOOR PAD 8-97852-329-2 02 1 0502-0506
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. ANTENNA<U73> 		8-97852-329-2 02 1 0507-
61 16.165 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 9412-0212
61 16.165 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>, ANTENNA<U73> 		8-97852-307-1 02 1 0311-0501
96 16.165 CLIP; SEAL
NATURAL 		1-09987-253-1 09 1 0510-1007
96 16.165 CLIP; SEAL
YELLOW 		1-09987-254-1 09 1 0510-1007
96 16.165 CLIP; SEAL
PINK 		1-09987-256-0 32 1 0510-1007
158 16.165 GARNISH; DOOR 8-97852-129-2 01 1 9412-
158 16.165 GARNISH; DOOR 8-97852-128-2 01 1 9412-
159 16.165 FINISHER; GARNISH 8-97852-257-4 02 1 9412-
160 16.165 CLIP; GARNISH 8-97852-058-0 04 1 9412-
161 16.165 FASTENER; GARNISH 8-97852-479-2 02 1 9412-9506
161 16.165 FASTENER; GARNISH 8-97134-313-1 01 1 9507-
161 16.165 FASTENER; GARNISH 8-97134-312-1 01 1 9507-
163 16.165 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 9412-0803
164 16.165 SEAL; SUB,SILL SIDE
EXC. OVER FENDER<6GH> 		8-97852-319-4 01 1 0612-0612
164 16.165 SEAL; SUB,SILL SIDE
EXC. OVER FENDER<6GH> 		8-97852-320-4 01 1 0612-0612
164 16.165 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 9412-0501
164 16.165 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 9412-0501
165 16.165 LINER; DOOR LWR
EXC. OVER FENDER<6GH> 		8-97581-080-0 01 1 0612-0612
165 16.165 LINER; DOOR LWR
EXC. OVER FENDER<6GH> 		8-97581-081-0 01 1 0612-0612
166 16.155 PLUG; HOLE
16.547 (A) 14.5X14.5 BLACK 		8-94279-714-0 02 1 9412-0310
166 16.155 PLUG; HOLE
OVER FENDER<6GH> 16.547 (A) 14.5X14.5 BLACK 		8-94279-714-0 02 1 0311-0501
166 16.155 PLUG; HOLE
16.547 (A) 14.5X14.5 BLACK 		8-94279-714-0 02 1 0502-0611
166 16.155 PLUG; HOLE
OVER FENDER<6GH> 16.547 (A) 14.5X14.5 BLACK 		8-94279-714-0 02 1 0612-0612
166 16.155 PLUG; HOLE
16.547 (A) 14.5X14.5 BLACK 		8-94279-714-0 02 1 0612-
166 16.155 PLUG; HOLE
16.592 (B) OD=6.4 BLACK 		8-94279-805-0 08 1 9412-0305
166 16.155 PLUG; HOLE
16.592 (B) OD=6.4 BLACK 		8-94279-805-0 06 1 0306-0310
166 16.155 PLUG; HOLE
OVER FENDER<6GH> 16.592 (B) OD=6.4 BLACK 		8-94279-805-0 06 1 0311-0501
166 16.155 PLUG; HOLE
16.592 (B) OD=6.4 BLACK 		8-94279-805-0 06 1 0502-0611
166 16.155 PLUG; HOLE
OVER FENDER<6GH> 16.592 (B) OD=6.4 BLACK 		8-94279-805-0 06 1 0612-0612
166 16.155 PLUG; HOLE
16.592 (B) OD=6.4 BLACK 		8-94279-805-0 06 1 0612-
167 16.165 CLIP; LINER
EXC. OVER FENDER<6GH> 08.155 (A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0612-0612
167 16.165 CLIP; LINER
EXC. OVER FENDER<6GH> (B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 0612-0612
168 16.175 VALVE; DOOR OUTLET 8-97852-306-1 01 1 9412-9503
168 16.175 VALVE; DOOR OUTLET 8-97855-413-0 01 1 9504-
168 16.175 VALVE; DOOR OUTLET 8-97852-305-1 01 1 9412-9503
168 16.175 VALVE; DOOR OUTLET 8-97855-412-0 01 1 9504-
169 16.175 GROMMET; SCREW,VALVE
16.345 D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9412-9705
169 16.175 GROMMET; SCREW,VALVE
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9706-
170 16.175 SCREW; VALVE
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 04 1 9412-0604
170 16.175 SCREW; VALVE
16.345 M5X12 TAPPING W/PL WASHER 		0-74160-512-0 04 1 0605-0612
170 16.175 SCREW; VALVE
16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0701-
171 16.165 RETAINER; DOOR PAD
01.303 		5-09709-049-0 02 1 9412-
174 16.175 SCREW; LINER
EXC. OVER FENDER<6GH> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0612-0612
175 16.175 GROMMET; SCREW,LINER
EXC. OVER FENDER<6GH> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0612-0612
183 16.165 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0804-
188 16.165 CASE; DOOR
DARK BEIGE 		8-97852-436-3 01 1 9412-9711
188 16.165 CASE; DOOR
DARK GRAY 		8-97852-668-3 01 1 9712-0501
188 16.165 CASE; DOOR
GRAY 		8-97582-693-3 01 1 0502-
188 16.165 CASE; DOOR
DARK BEIGE 		8-97852-435-3 01 1 9412-9711
188 16.165 CASE; DOOR
DARK GRAY 		8-97852-667-3 01 1 9712-0501
188 16.165 CASE; DOOR
GRAY 		8-97582-684-3 01 1 0502-
199 16.165 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 1008-
199 16.165 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 1008-
199 16.165 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 1008-
199 16.165 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 23 1 9609-9902
199 16.165 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 9903-0509
199 16.165 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 23 1 9609-9902
199 16.165 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 9903-0509
199 16.165 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 9903-0509
199 16.165 CLIP; SEAL
(B) PINK 		8-97852-456-0 07 1 0301-0501
199 16.165 CLIP; SEAL
(B) NATURAL 		8-97852-455-0 07 1 0301-0501
199 16.165 CLIP; SEAL
EXC. OVER FENDER<6GH> (B) NATURAL 		8-97852-455-0 07 1 0612-0612
199 16.165 CLIP; SEAL
EXC. OVER FENDER<6GH> (B) PINK 		8-97852-456-0 07 1 0612-0612
çizim 72249
162 162
BalonParca AdiParca NoAdetTipApplied Date
162 16.165 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> 		8-97856-390-2 02 1 9412-
