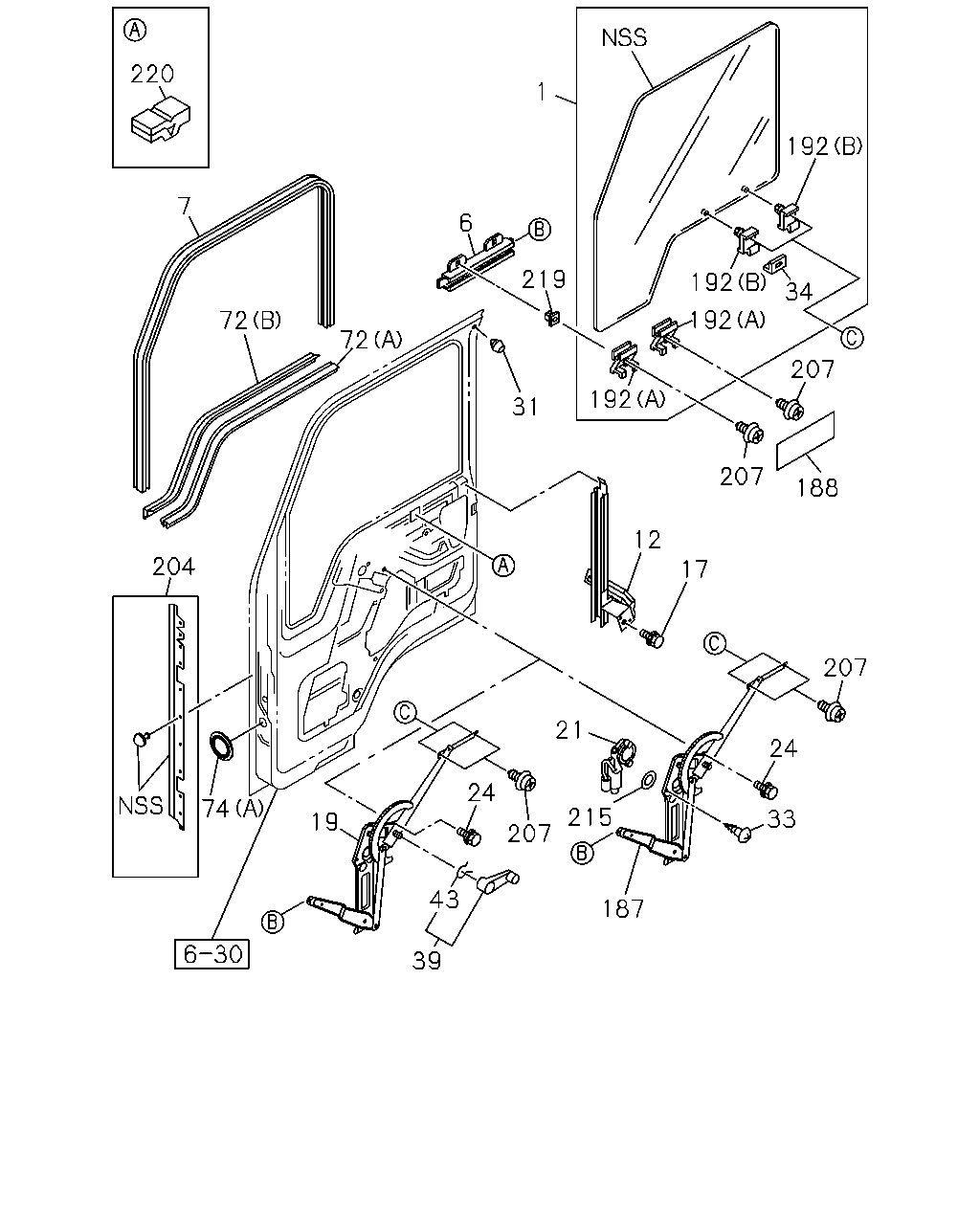

6-31 — FRONT DOOR GLASS AND REGULATOR (#35803) — 160 parça

220 1 192 7 6 192 219 34 192 72 72 207 192 31 207 188 12 204 17 207 21 24 24 74 215 33 19 207 43 187 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.180 GLASS; FRT DOOR ASAHI	8-97852-149-2	01	1	9412-9501
1	16.180 GLASS; FRT DOOR ASAHI	8-97859-955-0	01	1	9502-9708
1	16.180 GLASS; FRT DOOR ASAHI	8-97867-418-1	01	1	9709-
1	16.180 GLASS; FRT DOOR ASAHI	8-97852-148-2	01	1	9412-9501
1	16.180 GLASS; FRT DOOR ASAHI	8-97859-954-0	01	1	9502-9708
1	16.180 GLASS; FRT DOOR ASAHI	8-97867-417-1	01	1	9709-
6	10.685 CHANNEL; DOOR GLASS W/ROLLER	8-97852-367-0	02	1	9412-9706
6	10.685 CHANNEL; DOOR GLASS W/ROLLER&PROTECTOR	8-97890-590-0	02	1	9707-0003
6	10.685 CHANNEL; DOOR GLASS W/ROLLER&PROTECTOR	8-97898-425-1	02	1	0004-
7	16.190 GLASS RUN; FRT DOOR 4HK1-TCN ENG(RDQ) EXC. POWER WINDOW FRT DOOR<A32>	8-97859-495-1	01	1	0507-
7	16.190 GLASS RUN; FRT DOOR 4HK1-TCN ENG(RDQ) EXC. POWER WINDOW FRT DOOR<A32>	8-97859-496-1	01	1	0507-
7	16.190 GLASS RUN; FRT DOOR	8-97852-143-4	01	1	9412-0105
7	16.190 GLASS RUN; FRT DOOR 4HG1 ENG(RJH)	8-97852-143-4	01	1	0106-0212
7	16.190 GLASS RUN; FRT DOOR 4HE1 ENG(RLY)	8-97852-143-4	01	1	0301-0310
7	16.190 GLASS RUN; FRT DOOR 4HG1 ENG(RJH)	8-97852-143-4	01	1	0311-0501
7	16.190 GLASS RUN; FRT DOOR 4HE1 ENG(RLY) POWER WINDOW FRT DOOR<A32>	8-97852-143-4	01	1	0311-0501
7	16.190 GLASS RUN; FRT DOOR 4HG1 ENG(RJH)	8-97852-143-4	01	1	0502-0506
7	16.190 GLASS RUN; FRT DOOR 4HG1 ENG(RJH)	8-97852-143-4	01	1	0507-0611
7	16.190 GLASS RUN; FRT DOOR 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32>	8-97852-143-4	01	1	0507-0611
7	16.190 GLASS RUN; FRT DOOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97852-143-4	01	1	0612-
7	16.190 GLASS RUN; FRT DOOR 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32>	8-97852-143-4	01	1	0612-
7	16.190 GLASS RUN; FRT DOOR	8-97852-142-4	01	1	9412-0105
7	16.190 GLASS RUN; FRT DOOR 4HG1 ENG(RJH)	8-97852-142-4	01	1	0106-0212
7	16.190 GLASS RUN; FRT DOOR 4HE1 ENG(RLY)	8-97852-142-4	01	1	0301-0310
7	16.190 GLASS RUN; FRT DOOR 4HG1 ENG(RJH)	8-97852-142-4	01	1	0311-0501
7	16.190 GLASS RUN; FRT DOOR 4HE1 ENG(RLY) POWER WINDOW FRT DOOR<A32>	8-97852-142-4	01	1	0311-0501
7	16.190 GLASS RUN; FRT DOOR 4HG1 ENG(RJH)	8-97852-142-4	01	1	0502-0506
7	16.190 GLASS RUN; FRT DOOR 4HG1 ENG(RJH)	8-97852-142-4	01	1	0507-0611
7	16.190 GLASS RUN; FRT DOOR 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32>	8-97852-142-4	01	1	0507-0611
7	16.190 GLASS RUN; FRT DOOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97852-142-4	01	1	0612-
7	16.190 GLASS RUN; FRT DOOR 4HK1-TCN ENG(RDQ) POWER WINDOW FRT DOOR<A32>	8-97852-142-4	01	1	0612-
7	16.190 GLASS RUN; FRT DOOR 4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32>	8-97859-496-1	01	1	0311-0501
7	16.190 GLASS RUN; FRT DOOR 4HE1 ENG(RLY) EXC. POWER WINDOW FRT DOOR<A32>	8-97859-495-1	01	1	0311-0501
12	16.190 CHANNEL; GLASS RUN,FRT	8-97852-112-5	01	1	9412-
12	16.190 CHANNEL; GLASS RUN,FRT	8-97852-111-5	01	1	9412-
17	16.183 SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	8-94279-402-0	04	1	9412-0305
17	16.183 SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	8-97582-826-0	04	1	0306-0612
17	16.183 SCREW; RR CHANNEL 16.650 T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	04	1	0701-1101
17	16.183 SCREW; RR CHANNEL 16.585 T25 M6X12 HEXALOBULAR SOCKET	8-98177-720-0	04	1	1102-
19	16.260 REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97852-115-7	01	1	0507-
19	16.260 REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97852-116-7	01	1	0507-
19	16.260 REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97852-116-6	01	1	9412-0212
19	16.260 REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97852-115-6	01	1	9412-0212
19	16.260 REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97852-116-7	01	1	0311-0501
19	16.260 REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97852-115-7	01	1	0311-0501
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97852-188-2	01	1	9412-9608
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97868-066-0	01	1	9609-9703
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97869-080-0	01	1	9704-0002
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97898-480-0	01	1	0003-0212
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR	8-97898-480-0	01	1	0301-0310
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97898-480-0	01	1	0311-0501
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR	8-97898-480-0	01	1	0502-0506
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97898-480-0	01	1	0507-
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97852-187-2	01	1	9412-9608
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97868-065-0	01	1	9609-9703
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97869-079-0	01	1	9704-0002
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97898-479-0	01	1	0003-0212
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR	8-97898-479-0	01	1	0301-0310
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97898-479-0	01	1	0311-0501
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR	8-97898-479-0	01	1	0502-0506
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97898-479-0	01	1	0507-
24	16.230 SCREW; WINDOW REG M6X8 W/LK&PL WASHER	8-94279-401-0	10	1	9412-0612
24	16.230 SCREW; WINDOW REG M8X6.5 W/TORQUES	8-98064-275-2	10	1	0701-0710
24	16.230 SCREW; WINDOW REG M6X8 W/LK&PL WASHER	8-94279-401-0	10	1	0711-0802
24	16.230 SCREW; WINDOW REG M6X9 LK+W/PL WASHER&TORQUES	8-98108-677-0	10	1	0803-
31	16.225 STOPPER; RUBBER,DOOR INNER	8-97852-022-1	02	1	9412-
33	16.230 SCREW; REG MOTOR	8-98097-389-0	06	1	0502-0506
33	16.230 SCREW; REG MOTOR POWER WINDOW FRT DOOR<A32>	8-98097-389-0	06	1	0507-
34	16.270 STOPPER; WINDOW REG	8-97852-012-0	02	1	9412-
39	16.270 HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-97582-306-0	02	1	0507-0709
39	16.270 HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-98090-302-0	02	1	0710-
39	16.270 HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE	8-97852-452-0	02	1	9412-9711
39	16.270 HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY	8-97098-453-0	02	1	9712-0212
39	16.270 HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY	8-97098-453-0	02	1	0311-0501
43	16.270 CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-94220-591-0	02	1	0507-
43	16.270 CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-94220-591-0	02	1	9502-0212
43	16.270 CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-94220-591-0	02	1	0311-0501
72	16.183 SEAL; WAIST,FRT DOOR (B) OUTER	8-97852-120-5	01	1	9412-9503
72	16.183 SEAL; WAIST,FRT DOOR (B) OUTER	8-97855-293-6	01	1	9504-
72	16.183 SEAL; WAIST,FRT DOOR (A) INNER	8-97852-166-5	01	1	9412-9511
72	16.183 SEAL; WAIST,FRT DOOR (A) INNER	8-97852-118-6	01	1	9512-
72	16.183 SEAL; WAIST,FRT DOOR (B) OUTER	8-97852-119-5	01	1	9412-9503
72	16.183 SEAL; WAIST,FRT DOOR (B) OUTER	8-97855-292-6	01	1	9504-
72	16.183 SEAL; WAIST,FRT DOOR (A) INNER	8-97852-165-5	01	1	9412-9511
72	16.183 SEAL; WAIST,FRT DOOR (A) INNER	8-97852-117-6	01	1	9512-
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF> ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	0507-1003
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF>,RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	1004-
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF> ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 09.775 (B)	8-94279-736-0	02	1	0507-1003
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF>,RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.775 (B)	8-94279-736-0	02	1	1004-
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF> ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	0311-0501
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF> ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 09.775 (B)	8-94279-736-0	02	1	0311-0501
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97852-184-3	01	1	9412-9608
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97868-114-1	01	1	9609-0212
187	16.260 REGULATOR ASM; DOOR	8-97868-114-2	01	1	0301-0310
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97868-114-2	01	1	0311-0501
187	16.260 REGULATOR ASM; DOOR	8-97868-114-2	01	1	0502-0506
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97868-114-2	01	1	0507-
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97852-183-3	01	1	9412-9608
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97868-113-1	01	1	9609-0212
187	16.260 REGULATOR ASM; DOOR	8-97868-113-2	01	1	0301-0310
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97868-113-2	01	1	0311-0501
187	16.260 REGULATOR ASM; DOOR	8-97868-113-2	01	1	0502-0506
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97868-113-2	01	1	0507-
188	16.225 PROTECTOR; DOOR SEAL	8-97994-698-1	02	1	0112-
192	16.183 HOLDER; DOOR GLASS (A)	8-97852-076-1	04	1	9412-
192	16.183 HOLDER; DOOR GLASS (B)	8-97852-077-1	04	1	9412-
204	16.183 RUBBER; SHIELD,FRT DOOR AUSTRALIA EQUIPMENT(RR3)	8-97852-092-2	01	1	0507-
204	16.183 RUBBER; SHIELD,FRT DOOR AUSTRALIA EQUIPMENT(RR3)	8-97852-093-2	01	1	0507-
204	16.183 RUBBER; SHIELD,FRT DOOR	8-97852-093-2	01	1	9412-0310
204	16.183 RUBBER; SHIELD,FRT DOOR AUSTRALIA EQUIPMENT(RR3)	8-97852-093-2	01	1	0311-0501
204	16.183 RUBBER; SHIELD,FRT DOOR	8-97852-092-2	01	1	9412-0310
204	16.183 RUBBER; SHIELD,FRT DOOR AUSTRALIA EQUIPMENT(RR3)	8-97852-092-2	01	1	0311-0501
207	16.183 SCREW; DOOR GLASS 16.445 FRONT & REAR M6X16 TAPPING W/PL WASHER	1-09981-452-0	08	1	9412-9706
207	16.183 SCREW; DOOR GLASS 16.445 REAR M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	9707-0612
207	16.183 SCREW; DOOR GLASS FRONT & REAR M4X14.5 TAPPING	8-98020-522-2	08	1	0701-
207	16.183 SCREW; DOOR GLASS FRONT M6X14.5 W/PL WASHER TAPPING	8-94279-014-0	04	1	9707-0612
215	63.121 SPACER; WINDOW REG 16.230	8-97388-942-0	02	1	0502-0506
215	63.121 SPACER; WINDOW REG POWER WINDOW FRT DOOR<A32> 16.230	8-97388-942-0	02	1	0507-
219	16.175 GROMMET; SCREW,CHANNEL,REG	8-94326-756-0	04	1	9412-
220	16.332 SEAL; LINK ROD	8-97852-321-0	02	1	9412-

74 222 223 222 129 221 223 222 223 244 222 221 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF> ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	0507-1003
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF>,RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	1004-
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF> ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 09.775 (B)	8-94279-736-0	02	1	0507-1003
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF>,RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.775 (B)	8-94279-736-0	02	1	1004-
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF> ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	0311-0501
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),REMOTE CONT DOOR LOCK<6NF> ,RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 09.775 (B)	8-94279-736-0	02	1	0311-0501
129	16.183 SEAL; DOOR,SUB UPR AUSTRALIA EQUIPMENT(RR3)	8-97852-146-3	01	1	0507-
129	16.183 SEAL; DOOR,SUB UPR AUSTRALIA EQUIPMENT(RR3)	8-97852-147-3	01	1	0507-
129	16.183 SEAL; DOOR,SUB UPR	8-97852-147-3	01	1	9412-0310
129	16.183 SEAL; DOOR,SUB UPR AUSTRALIA EQUIPMENT(RR3)	8-97852-147-3	01	1	0311-0501
129	16.183 SEAL; DOOR,SUB UPR	8-97852-146-3	01	1	9412-0310
129	16.183 SEAL; DOOR,SUB UPR AUSTRALIA EQUIPMENT(RR3)	8-97852-146-3	01	1	0311-0501
221	16.320 BAR ASM; DOOR GLASS GUARD DARK BEIGE	8-97852-423-0	01	1	9412-9511
221	16.320 BAR ASM; DOOR GLASS GUARD DARK BEIGE	8-97863-834-1	01	1	9512-9605
221	16.320 BAR ASM; DOOR GLASS GUARD DARK BEIGE	8-97867-821-0	01	1	9606-9711
221	16.320 BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97867-822-1	01	1	9712-0109
221	16.320 BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97995-853-0	01	1	0110-0501
221	16.320 BAR ASM; DOOR GLASS GUARD GRAY	8-97582-310-1	01	1	0502-
221	16.320 BAR ASM; DOOR GLASS GUARD DARK BEIGE	8-97852-422-0	01	1	9412-9511
221	16.320 BAR ASM; DOOR GLASS GUARD DARK BEIGE	8-97863-833-1	01	1	9512-9605
221	16.320 BAR ASM; DOOR GLASS GUARD DARK BEIGE	8-97867-819-0	01	1	9606-9711
221	16.320 BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97867-820-1	01	1	9712-0109
221	16.320 BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97995-850-0	01	1	0110-0501
221	16.320 BAR ASM; DOOR GLASS GUARD GRAY	8-97582-309-1	01	1	0502-
222	16.320 CAP; GUARD BAR (A) DARK BEIGE	8-97852-425-0	04	1	9412-9511
222	16.320 CAP; GUARD BAR (B) DARK BEIGE	8-97863-835-0	02	1	9512-9605
222	16.320 CAP; GUARD BAR (B) DARK BEIGE	8-97867-823-0	02	1	9606-9711
222	16.320 CAP; GUARD BAR (B) DARK GRAY	8-97867-824-0	02	1	9712-0109
222	16.320 CAP; GUARD BAR (B) DARK GRAY	8-97995-856-0	02	1	0110-0501
222	16.320 CAP; GUARD BAR (B) GRAY	8-97582-312-0	02	1	0502-
222	16.320 CAP; GUARD BAR (C) DARK BEIGE	8-97863-836-0	02	1	9512-9605
222	16.320 CAP; GUARD BAR (C) DARK BEIGE	8-97867-825-0	02	1	9606-9711
222	16.320 CAP; GUARD BAR (C) DARK GRAY	8-97867-826-0	02	1	9712-0109
222	16.320 CAP; GUARD BAR (C) DARK GRAY	8-97995-859-0	02	1	0110-0501
222	16.320 CAP; GUARD BAR (C) GRAY	8-97582-313-0	02	1	0502-
223	16.320 SCREW; GUARD BAR M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9412-0112
223	16.320 SCREW; GUARD BAR 16.650 M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0201-0612
223	16.320 SCREW; GUARD BAR M6X18 W/TORQUES	8-98064-277-0	04	1	0701-
244	16.155 STOPPER; DOOR	8-97857-394-0	02	1	9412-9706
244	16.155 STOPPER; DOOR	8-97890-484-0	02	1	9707-
