◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#35801) — 138 parça

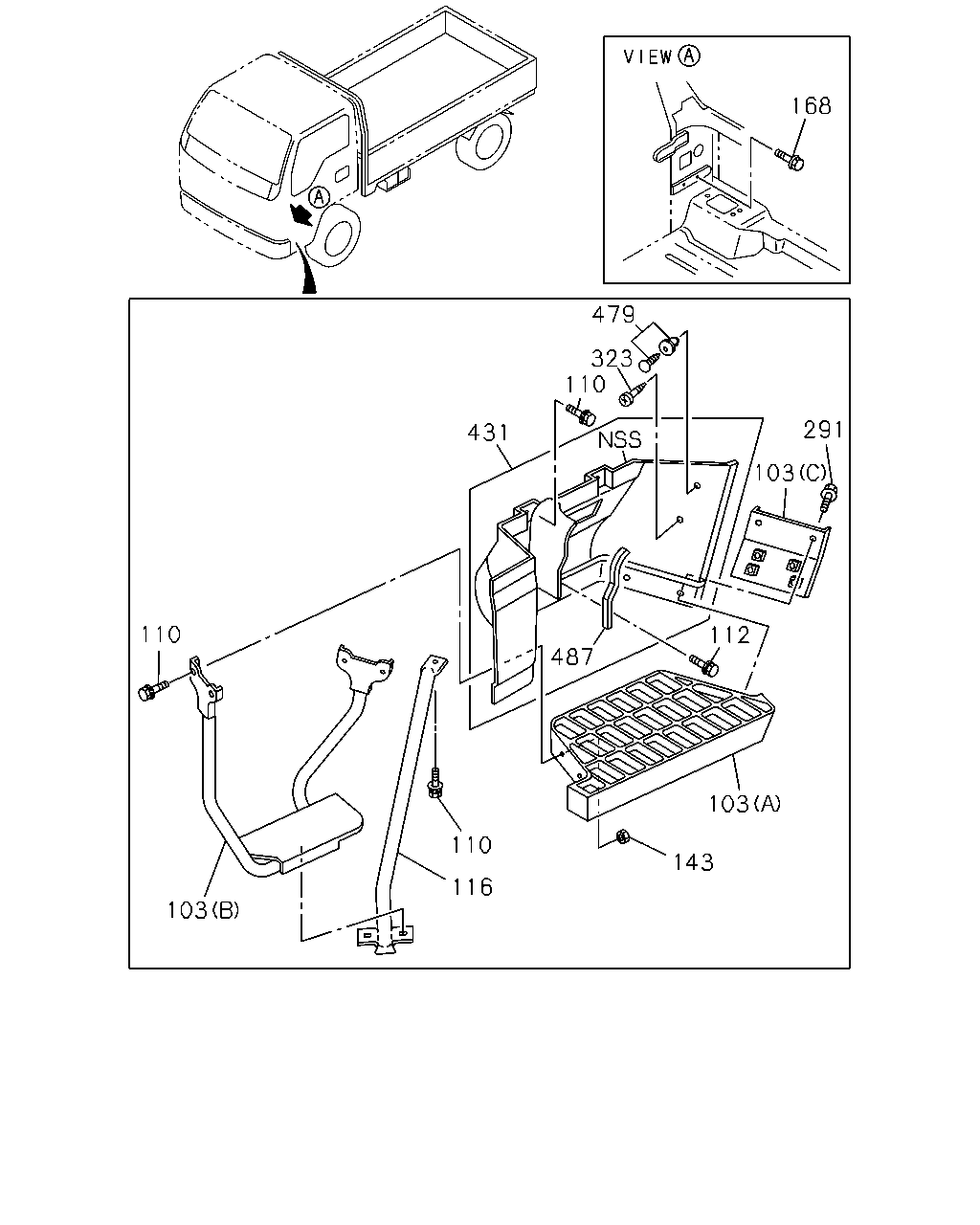

çizim 70026
168 479 323 110 291 431 103 110 112 487 103 110 143 116 103
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP
08.155 (C) 		8-97856-571-2 02 1 9412-
103 08.228 PLATE; STEP
(A) 		8-97853-586-1 01 1 9412-9502
103 08.228 PLATE; STEP
(A) 		8-97859-997-0 01 1 9503-9607
103 08.228 PLATE; STEP
(A) 		8-97867-969-1 01 1 9608-
103 08.228 PLATE; STEP
(B) 		8-97856-568-1 01 1 9412-
103 08.228 PLATE; STEP
(A) 		8-97853-585-1 01 1 9412-9502
103 08.228 PLATE; STEP
(A) 		8-97859-996-0 01 1 9503-9607
103 08.228 PLATE; STEP
(A) 		8-97867-968-1 01 1 9608-
103 08.228 PLATE; STEP
(B) 		8-97856-567-1 01 1 9412-
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9412-0908
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909-
112 08.228 BOLT; 1ST STEP
16.335 M8X20 FLANGE 		0-28280-820-0 10 1 9412-9803
112 08.228 BOLT; 1ST STEP
02.664 M8X20 FLANGE 		0-28680-820-0 10 1 9804-0512
112 08.228 BOLT; 1ST STEP
01.531 M8X20 FLANGE 		0-28650-820-0 10 1 0601-
116 08.228 STAY; 1ST STEP,FRT 8-97856-570-1 01 1 9412-0501
116 08.228 STAY; 1ST STEP,FRT 8-97410-684-0 01 1 0502-
116 08.228 STAY; 1ST STEP,FRT 8-97856-569-2 01 1 9412-
143 08.309 NUT; STEP PLATE TO BRKT
03.417 M8 FLANGE 		8-94279-517-0 04 1 9412-
168 16.570 BOLT; BODY SIDE PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9412-9603
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9604-
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9412-0908
291 08.225 BOLT; STEP PLATE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0909-
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 02 1 9412-
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9412-9910
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 9911-
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9412-9910
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 9911-
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9412-
487 16.570 SEAL; SUPPORT 8-97857-355-1 01 1 9412-9601
487 16.570 SEAL; SUPPORT 8-97857-354-1 01 1 9412-9601

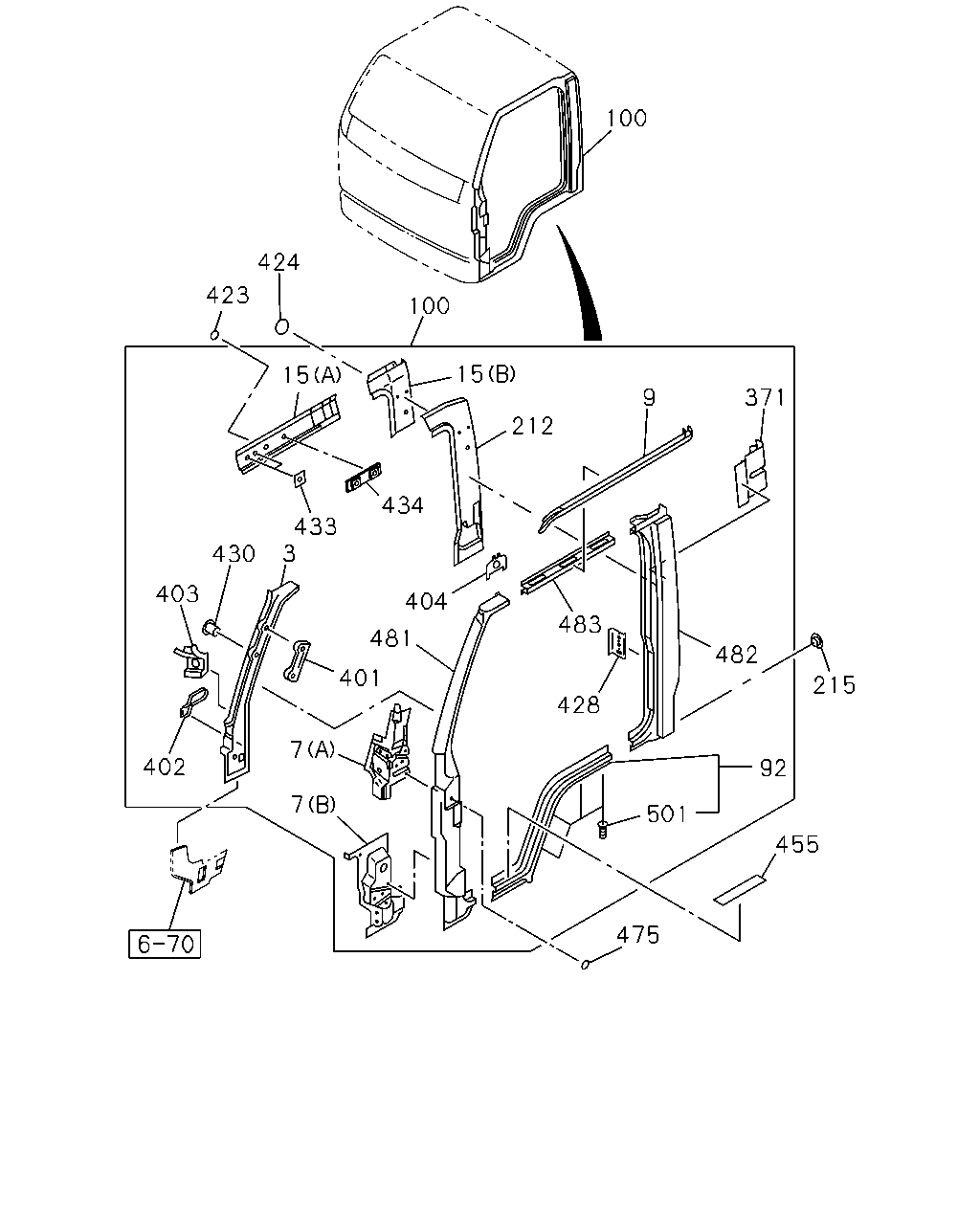

çizim 70368
100 424 423 100 15 15 9 371 212 434 433 3 430 403 404 483 481 482 401 215 428 7 402 92 7 501 455 475
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 9412-
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 9412-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 9412-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 9412-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-4 01 1 9412-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 9412-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 9412-1106
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-624-0 01 1 1107-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 9412-1106
9 16.592 MOLDING; DRIP,CAB SIDE 8-98177-623-0 01 1 1107-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-5 01 1 9412-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-6 01 1 9412-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-5 01 1 9412-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-6 01 1 9412-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-533-0 01 1 9412-9711
92 16.570 PANEL; SIDE SILL,CAB 8-97867-238-0 01 1 9712-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-532-0 01 1 9412-9711
92 16.570 PANEL; SIDE SILL,CAB 8-97867-237-0 01 1 9712-
100 16.570 PANEL ASM; BODY SIDE
EXC. INDONESIA EQUIPMENT(S4S) 		8-97997-871-1 01 1 0507-0801
100 16.570 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97997-871-1 01 1 0802-
100 16.570 PANEL ASM; BODY SIDE 8-97851-423-0 01 1 9412-9703
100 16.570 PANEL ASM; BODY SIDE 8-97867-453-0 01 1 9704-9711
100 16.570 PANEL ASM; BODY SIDE 8-97890-304-0 01 1 9712-0212
100 16.570 PANEL ASM; BODY SIDE 8-97997-871-1 01 1 0301-0310
100 16.570 PANEL ASM; BODY SIDE
EXC. INDONESIA EQUIPMENT(S4S) 		8-97997-871-1 01 1 0311-0501
100 16.570 PANEL ASM; BODY SIDE 8-97857-591-0 01 1 9412-9703
100 16.570 PANEL ASM; BODY SIDE 8-97868-194-0 01 1 9704-9711
100 16.570 PANEL ASM; BODY SIDE 8-97890-418-1 01 1 9712-
100 16.570 PANEL ASM; BODY SIDE
INDONESIA EQUIPMENT(S4S) 		8-97890-304-1 01 1 0311-0501
100 16.570 PANEL ASM; BODY SIDE 8-97890-304-1 01 1 0502-0506
100 16.570 PANEL ASM; BODY SIDE
INDONESIA EQUIPMENT(S4S) 		8-97890-304-1 01 1 0507-0801
100 16.570 PANEL ASM; BODY SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-304-1 01 1 0802-
212 16.588 CLOSING; PILLAR 8-97851-032-7 01 1 9412-9709
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 9710-
212 16.588 CLOSING; PILLAR 8-97857-578-4 01 1 9412-9709
212 16.588 CLOSING; PILLAR 8-97890-456-4 01 1 9710-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 9812-
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 9412-
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 9412-
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 9412-0309
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0310-
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 9412-
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 9412-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9412-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9412-
404 16.570 BRACKET 8-97851-529-0 01 1 9412-9709
404 16.570 BRACKET 8-97890-318-1 01 1 9710-
404 16.570 BRACKET 8-94265-098-2 01 1 9412-9709
404 16.570 BRACKET 8-97890-317-1 01 1 9710-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9412-9711
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9412-9711
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0311-0311
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0312-0501
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) INDONESIA EQUIPMENT(S4S) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0312-0501
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0506
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0502-0506
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0507-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) INDONESIA EQUIPMENT(S4S) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0507-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) INDONESIA EQUIPMENT(S4S) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0311-0501
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0502-0506
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0507-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0311-0311
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0312-0501
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) INDONESIA EQUIPMENT(S4S) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0312-0501
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0502-0506
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0502-0506
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0507-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) INDONESIA EQUIPMENT(S4S) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0507-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0311-0501
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0502-0506
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0507-
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9412-9711
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9412-9711
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0311-0501
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0502-0506
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0507-0610
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611-
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0311-0501
424 16.570 SEAL; CLOSING
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0502-0506
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR POLARSILVER MET(845),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0507-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 9412-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 9412-
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 9412-0212
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9412-0805
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806-
430 16.570 NUT; PANEL
INDONESIA EQUIPMENT(S4S) M8 POP NUT 		8-94279-538-0 02 1 0311-0501
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0502-0506
430 16.570 NUT; PANEL
INDONESIA EQUIPMENT(S4S) M8 POP NUT 		8-94279-538-0 02 1 0507-0801
430 16.570 NUT; PANEL
EXC. AUSTRALIA EQUIPMENT(RR3) M8 POP NUT 		8-94279-538-0 02 1 0802-0805
430 16.570 NUT; PANEL
EXC. AUSTRALIA EQUIPMENT(RR3) 16.549 M8 POP NUT 		8-98021-404-0 02 1 0806-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 9412-0309
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0310-
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9412-
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 9412-0511
455 08.228 PROTECTOR; STEP 8-98027-816-0 02 1 0512-
475 16.570 GROMMET; CTR PILLAR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0304-0501
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 9412-
481 16.570 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 9412-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 9412-
482 16.570 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 9412-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 9412-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 9412-
501 16.570 PIN; STUD
M8X17 SPECIAL STUD 		8-94279-177-0 08 1 9412-9703
501 16.570 PIN; STUD
M8X17 SPECIAL STUD 		8-94279-177-0 06 1 9704-0309
501 16.570 PIN; STUD
M8X17 SPECIAL STUD 		8-94279-177-0 03 1 0310-
