6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#35800) — 60 parça

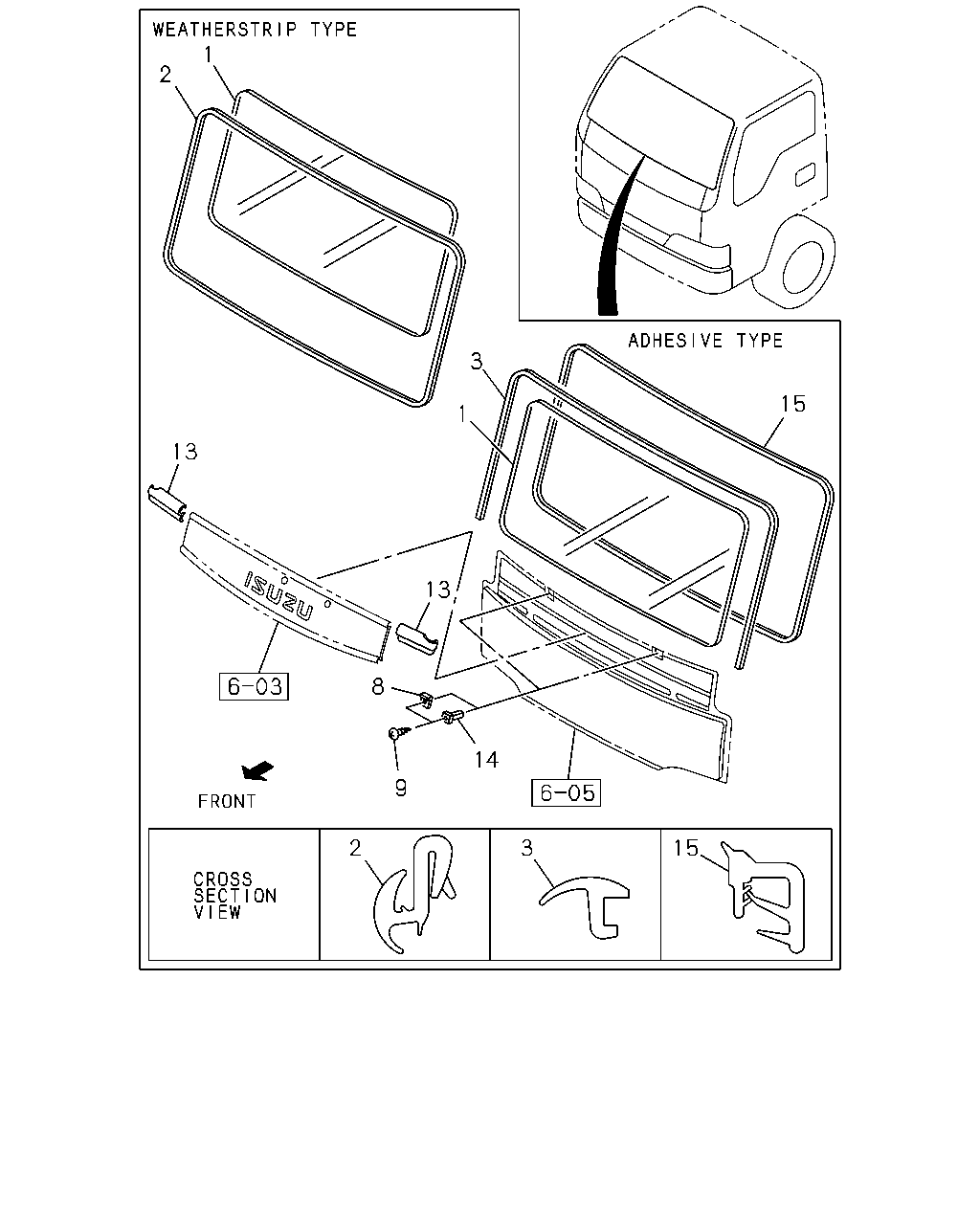

1 2 3 15 1 13 13 8 14 9 2 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.005 GLASS; WINDSHIELD	8-97084-090-1	01	1	9412-9501
1	16.005 GLASS; WINDSHIELD	8-97123-528-0	01	1	9502-9708
1	16.005 GLASS; WINDSHIELD	8-97867-742-0	01	1	9709-9802
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-1	01	1	9803-0805
1	16.005 GLASS; WINDSHIELD T=6.3	8-97997-945-2	01	1	0806-
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-350-4	01	1	9712-
3	16.470 MOLDING; WINDSHIELD	8-97857-908-1	01	1	9412-9711
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97857-908-1	01	1	9712-9802
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-215-2	01	1	9803-0501
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-624-3	01	1	0502-
8	16.041 STOPPER; WINDSHIELD GLASS	8-97859-215-0	02	1	9412-9711
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	9712-0305
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-1112
8	16.041 STOPPER; WINDSHIELD GLASS KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	1201-
9	16.041 SCREW; STOPPER 16.067 M5X14	8-94279-325-0	02	1	9412-9711
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	9712-1112
9	16.041 SCREW; STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	1201-
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR	8-97853-787-4	01	1	9412-9711
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	9712-0501
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0502-
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR	8-97853-786-3	01	1	9412-9711
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	9712-0501
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0502-
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK	8-94279-714-0	04	1	9712-
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-1112
14	16.041 GROMMET; SCREW,STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1201-
15	16.041 FINISHER; WINDSHIELD DARK BEIGE	8-97856-152-4	01	1	9412-9711
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97857-048-5	01	1	9712-0501
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-815-7	01	1	0502-

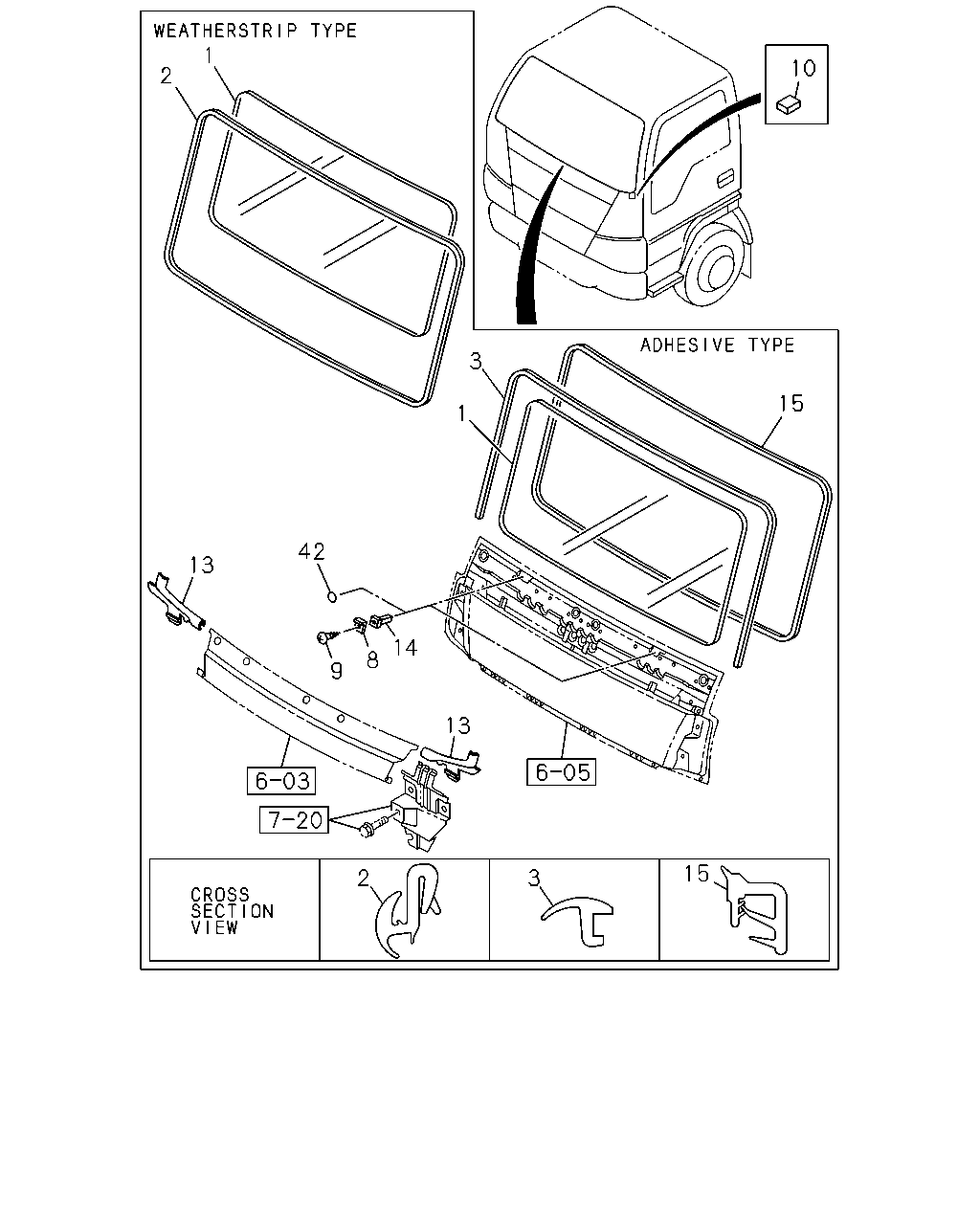

1 10 2 3 15 1 42 13 14 8 9 13 15 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.005 GLASS; WINDSHIELD	8-97084-090-1	01	1	9412-9501
1	16.005 GLASS; WINDSHIELD	8-97123-528-0	01	1	9502-9708
1	16.005 GLASS; WINDSHIELD	8-97867-742-0	01	1	9709-9802
1	16.005 GLASS; WINDSHIELD T=6.3	8-97869-127-1	01	1	9803-0805
1	16.005 GLASS; WINDSHIELD T=6.3	8-97997-945-2	01	1	0806-
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-350-4	01	1	9712-
3	16.470 MOLDING; WINDSHIELD	8-97857-908-1	01	1	9412-9711
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97857-908-1	01	1	9712-9802
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-215-2	01	1	9803-0501
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-624-3	01	1	0502-
8	16.041 STOPPER; WINDSHIELD GLASS	8-97859-215-0	02	1	9412-9711
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	9712-0305
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-1112
8	16.041 STOPPER; WINDSHIELD GLASS KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	1201-
9	16.041 SCREW; STOPPER 16.067 M5X14	8-94279-325-0	02	1	9412-9711
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	9712-1112
9	16.041 SCREW; STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	1201-
10	08.160 SPACER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 10.027 10X10	8-94174-466-0	01	1	0509-
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR	8-97853-787-4	01	1	9412-9711
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	9712-0501
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0502-
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR	8-97853-786-3	01	1	9412-9711
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	9712-0501
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0502-
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK	8-94279-714-0	04	1	9712-
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-1112
14	16.041 GROMMET; SCREW,STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1201-
15	16.041 FINISHER; WINDSHIELD DARK BEIGE	8-97856-152-4	01	1	9412-9711
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97857-048-5	01	1	9712-0501
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-815-7	01	1	0502-
42	16.041 SEAL; HOLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>,KD PREPARATORY PACK VAR.4<7TV> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1201-
