6-03 — RADIATOR GRILLE (#35797) — 126 parça

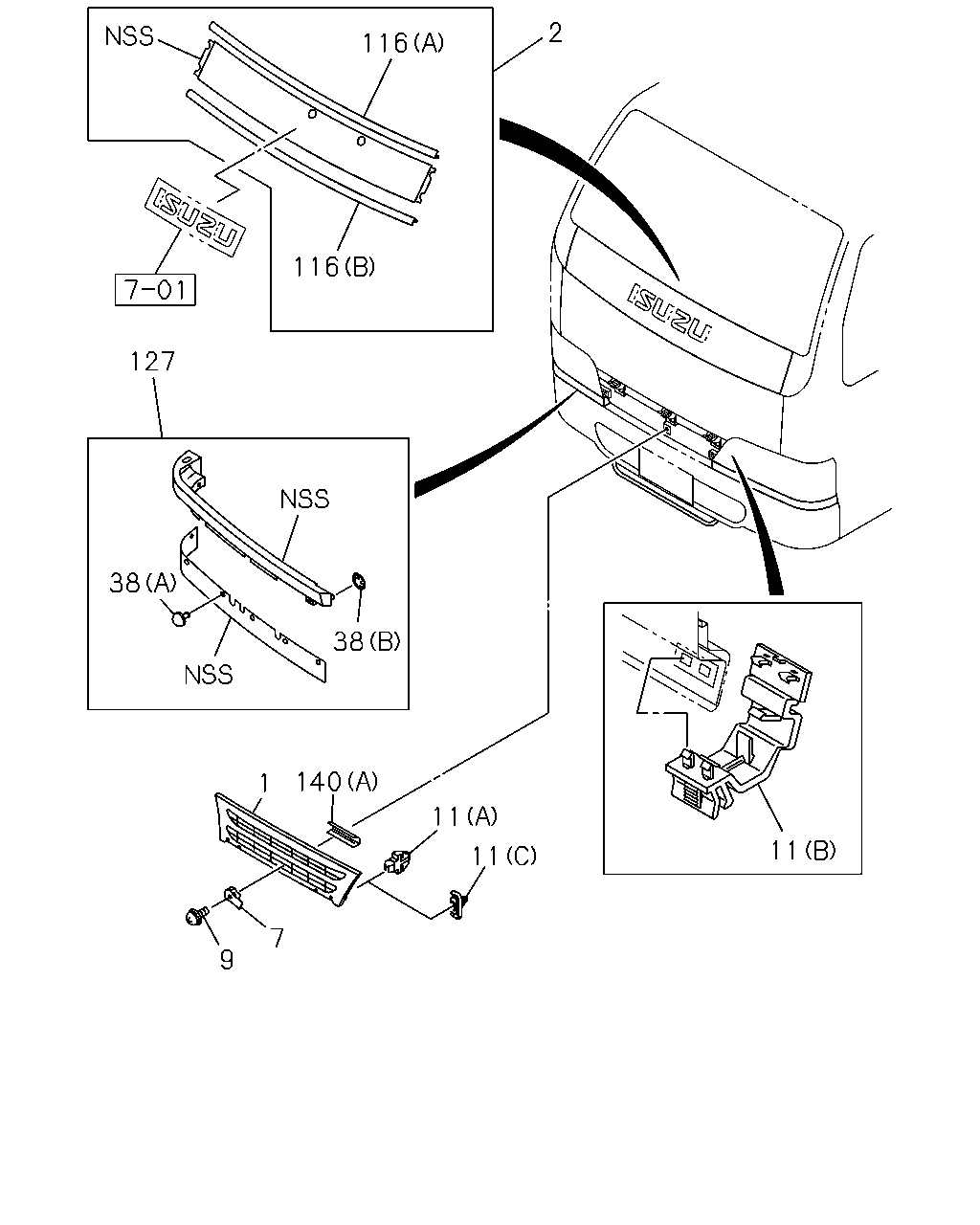

2 116 116 127 38 38 140 1 11 11 11 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.266 GRILLE; RAD PLEASE PAINT TO MATCH BODY COLOR	8-97078-953-2	01	1	9412-9711
1	01.266 GRILLE; RAD PLEASE PAINT TO MATCH BODY COLOR	8-97867-550-0	01	1	9712-0105
1	01.266 GRILLE; RAD PLEASE PAINT TO MATCH BODY COLOR	8-97891-681-1	01	1	0106-0501
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97583-047-4	01	1	0502-
1	01.266 GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97581-826-2	01	1	0502-
1	01.266 GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97583-050-4	01	1	0502-
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97583-048-4	01	1	0502-
1	01.266 GRILLE; RAD BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE	8-97589-227-4	01	1	0507-
1	01.266 GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW	8-97589-228-4	01	1	0507-
2	01.266 GRILLE; ORNAMENT W/DECAL	8-97856-577-8	01	1	9412-9711
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97859-465-3	01	1	9712-0501
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97581-821-5	01	1	0502-
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97868-329-3	01	1	9712-0501
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97583-952-2	01	1	0502-
7	01.269 NUT; SPIRE,RAD GRILLE 08.155	8-97805-829-0	01	1	9412-0505
7	01.269 NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-
9	01.269 SCREW; RAD GRILLE 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	9412-0805
9	01.269 SCREW; RAD GRILLE 08.153 M6X20 W/PL WASHER	8-98059-504-0	01	1	0806-
11	01.269 CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	04	1	9412-
11	01.269 CLIP; RAD GRILLE (A)	8-97075-929-2	02	1	9412-9711
11	01.269 CLIP; RAD GRILLE (A) WHITE	8-97892-729-0	02	1	9712-0105
11	01.269 CLIP; RAD GRILLE (C) WHITE	8-97892-730-0	02	1	0106-0212
11	01.269 CLIP; RAD GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE	8-97892-730-0	02	1	0301-0501
11	01.269 CLIP; RAD GRILLE (D)	8-97581-651-2	04	1	0502-
38	01.269 CLIP; GRILLE (A) D=6.5	8-97855-279-0	09	1	9512-0209
38	01.269 CLIP; GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5	8-97855-279-0	09	1	0210-0501
38	01.269 CLIP; GRILLE (B)	1-09987-180-0	01	1	9512-0209
38	01.269 CLIP; GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (B)	1-09987-180-0	01	1	0210-0501
116	01.266 MOLDING; ORNAMENT GRILLE (A)	8-97853-096-2	01	1	9412-9711
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-096-2	01	1	9712-0501
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-656-1	01	1	0502-
116	01.266 MOLDING; ORNAMENT GRILLE (B)	8-97853-098-4	01	1	9412-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ADRIATIC BLUE(730) BLUE	8-97150-952-5	01	1	9412-9908
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ADRIATIC BLUE(730) BLUE	8-97898-200-0	01	1	9909-0001
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ADRIATIC BLUE(730) BLUE	8-97898-377-1	01	1	0002-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ADRIATIC BLUE(730) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97898-377-1	01	1	0210-0212
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ADRIATIC BLUE(730) BLUE	8-97150-942-3	01	1	9412-9510
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ADRIATIC BLUE(730) BLUE	8-97867-325-3	01	1	9511-9908
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ADRIATIC BLUE(730) BLUE	8-97898-179-0	01	1	9909-0001
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ADRIATIC BLUE(730) BLUE	8-97898-356-1	01	1	0002-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ADRIATIC BLUE(730) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97898-356-1	01	1	0210-0212
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) WHITE	8-97150-960-5	01	1	9412-9908
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) WHITE	8-97898-210-0	01	1	9909-0001
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) WHITE	8-97898-387-1	01	1	0002-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97898-387-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) WHITE	8-97150-950-3	01	1	9412-9510
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) WHITE	8-97867-331-3	01	1	9511-9908
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) WHITE	8-97898-189-0	01	1	9909-0001
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) WHITE	8-97898-366-1	01	1	0002-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97898-366-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR CARDINAL RED(736) RED	8-97150-959-5	01	1	9412-9908
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR CARDINAL RED(736) RED	8-97898-207-0	01	1	9909-0001
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR CARDINAL RED(736) RED	8-97898-384-1	01	1	0002-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED	8-97898-384-1	01	1	0210-0212
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR CARDINAL RED(736) RED	8-97150-949-3	01	1	9412-9510
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR CARDINAL RED(736) RED	8-97867-383-3	01	1	9511-9908
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR CARDINAL RED(736) RED	8-97898-186-0	01	1	9909-0001
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR CARDINAL RED(736) RED	8-97898-363-1	01	1	0002-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED	8-97898-363-1	01	1	0210-0212
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR FT ORANGE(609) ORANGE	8-97898-526-1	01	1	0006-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE	8-97898-526-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR FT ORANGE(609) ORANGE	8-97898-525-1	01	1	0006-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE	8-97898-525-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97580-968-1	01	1	0209-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR GOLDEN YELLOW(904) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW	8-97580-968-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR GOLDEN YELLOW(904) YELLOW	8-97580-967-1	01	1	0209-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR GOLDEN YELLOW(904) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW	8-97580-967-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) BLUE	8-97150-961-5	01	1	9412-9908
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) BLUE	8-97898-214-0	01	1	9909-0001
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) BLUE	8-97898-391-1	01	1	0002-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97898-391-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) BLUE	8-97150-951-3	01	1	9412-9510
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) BLUE	8-97867-332-3	01	1	9511-9908
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) BLUE	8-97898-193-0	01	1	9909-0001
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) BLUE	8-97898-370-1	01	1	0002-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97898-370-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR POLAR SILVER MET(845) SILVER	8-97898-383-1	01	1	0009-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97898-383-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR POLAR SILVER MET(845) SILVER	8-97898-362-1	01	1	0009-0209
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97898-362-1	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97898-455-0	01	1	0210-0501
127	01.266 GRILLE; HEADLAMP,LWR RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97898-454-0	01	1	0210-0501
140	01.266 SEAL; RAD GRILLE (A)	8-97088-561-3	01	1	9412-0212
140	01.266 SEAL; RAD GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A)	8-97088-561-3	01	1	0301-0501
140	01.266 SEAL; RAD GRILLE (C)	8-97581-665-0	01	1	0502-
140	01.266 SEAL; RAD GRILLE (B)	8-97583-411-1	02	1	0502-

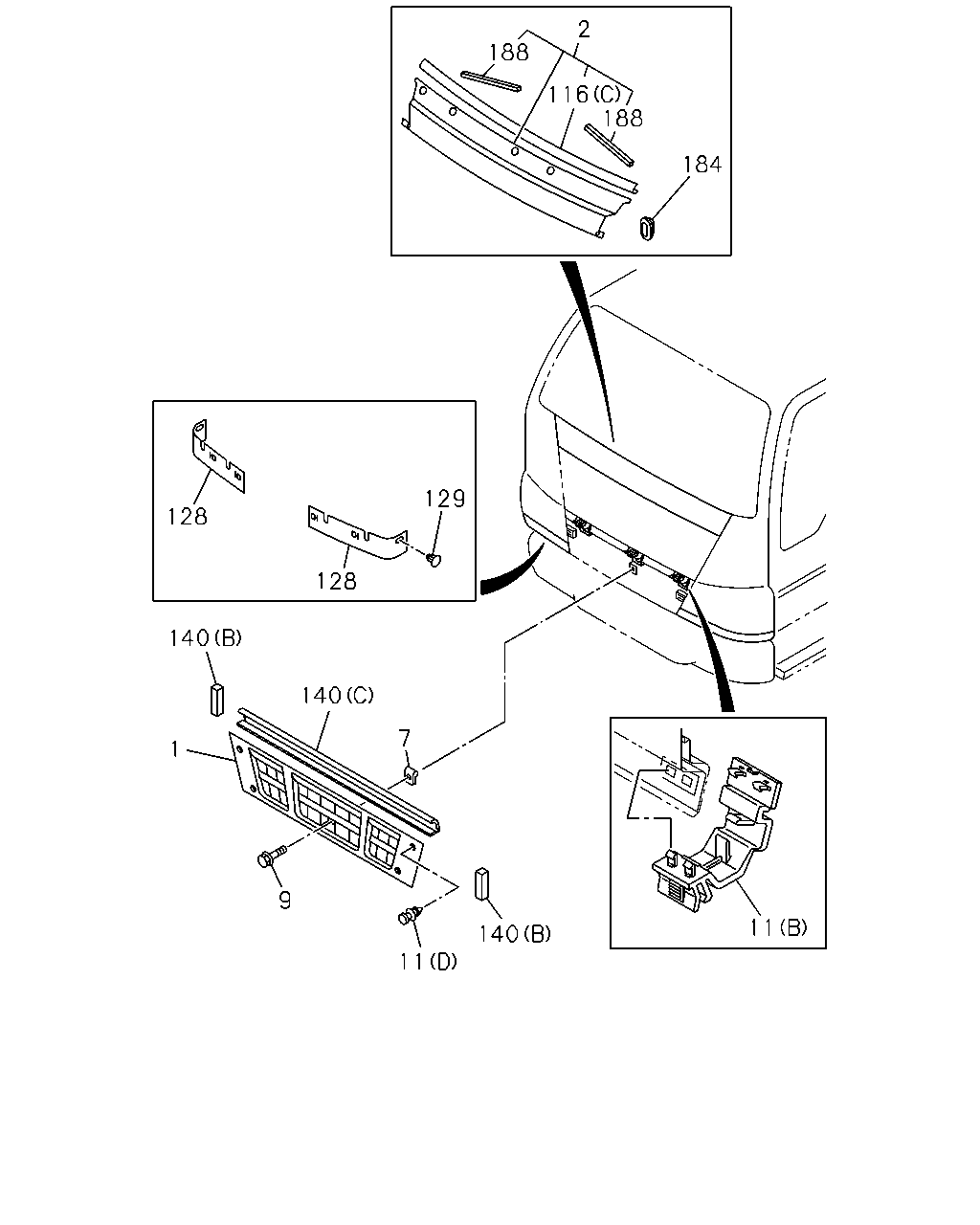

2 188 116 188 184 129 128 128 140 140 7 1 9 11 140 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.266 GRILLE; RAD PLEASE PAINT TO MATCH BODY COLOR	8-97078-953-2	01	1	9412-9711
1	01.266 GRILLE; RAD PLEASE PAINT TO MATCH BODY COLOR	8-97867-550-0	01	1	9712-0105
1	01.266 GRILLE; RAD PLEASE PAINT TO MATCH BODY COLOR	8-97891-681-1	01	1	0106-0501
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97583-047-4	01	1	0502-
1	01.266 GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97581-826-2	01	1	0502-
1	01.266 GRILLE; RAD BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER	8-97583-050-4	01	1	0502-
1	01.266 GRILLE; RAD BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE	8-97583-048-4	01	1	0502-
1	01.266 GRILLE; RAD BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE	8-97589-227-4	01	1	0507-
1	01.266 GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW	8-97589-228-4	01	1	0507-
2	01.266 GRILLE; ORNAMENT W/DECAL	8-97856-577-8	01	1	9412-9711
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97859-465-3	01	1	9712-0501
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97581-821-5	01	1	0502-
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97868-329-3	01	1	9712-0501
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97583-952-2	01	1	0502-
7	01.269 NUT; SPIRE,RAD GRILLE 08.155	8-97805-829-0	01	1	9412-0505
7	01.269 NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-
9	01.269 SCREW; RAD GRILLE 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	9412-0805
9	01.269 SCREW; RAD GRILLE 08.153 M6X20 W/PL WASHER	8-98059-504-0	01	1	0806-
11	01.269 CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	04	1	9412-
11	01.269 CLIP; RAD GRILLE (A)	8-97075-929-2	02	1	9412-9711
11	01.269 CLIP; RAD GRILLE (A) WHITE	8-97892-729-0	02	1	9712-0105
11	01.269 CLIP; RAD GRILLE (C) WHITE	8-97892-730-0	02	1	0106-0212
11	01.269 CLIP; RAD GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (C) WHITE	8-97892-730-0	02	1	0301-0501
11	01.269 CLIP; RAD GRILLE (D)	8-97581-651-2	04	1	0502-
116	01.266 MOLDING; ORNAMENT GRILLE (A)	8-97853-096-2	01	1	9412-9711
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-096-2	01	1	9712-0501
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-656-1	01	1	0502-
116	01.266 MOLDING; ORNAMENT GRILLE (B)	8-97853-098-4	01	1	9412-0501
128	01.267 COVER; HEADLAMP GRILLE 4HK1-TCN ENG(RDQ)	8-98015-934-0	02	1	0507-
128	01.267 COVER; HEADLAMP GRILLE	8-97581-653-3	02	1	0502-0504
128	01.267 COVER; HEADLAMP GRILLE 4HG1 ENG(RJH)	8-97581-653-3	02	1	0505-0611
128	01.267 COVER; HEADLAMP GRILLE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97581-653-3	02	1	0612-
129	01.269 CLIP; COVER HEADLAMP GRILLE D=6.5	8-97855-279-0	02	1	0502-
140	01.266 SEAL; RAD GRILLE (A)	8-97088-561-3	01	1	9412-0212
140	01.266 SEAL; RAD GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A)	8-97088-561-3	01	1	0301-0501
140	01.266 SEAL; RAD GRILLE (C)	8-97581-665-0	01	1	0502-
140	01.266 SEAL; RAD GRILLE (B)	8-97583-411-1	02	1	0502-
184	01.269 GROMMET; ORNAMENT	8-97581-668-0	03	1	0502-0602
184	01.269 GROMMET; ORNAMENT	8-97581-668-0	02	1	0603-
188	08.010 SEAL; ORNAMENT	8-97584-800-0	02	1	0502-
